Schweigen CLUM210 User manual

www.schweigen.com.au
RANGEHOOD & INSTALLATION GUIDE
CLUM210
CLUM212

Page 2
Index
1. Welcome 3
Your State Regulatory Authority 3
2. Important Safety Information 4
Before Installation 5
Product Use 6
Ducted or Recirculating? 6
Maintenance and Service 6
Cleaning the Bae Filters 6
Electrical Cord 6
3. Description 7
Rangehood 7
Cutout Size 7
4. Operation 8
Push Button Control Panel 8
Speed Control 8
5. Cleaning & Maintenance 9
Surfaces 9
Filters 9
Cleaning the Interior 10
Cleaning the Exterior 10
Replacing the Light Bulb 11
6. Installation 12
Rangehood Size vs Cooktop Size 12
BBQ Installation 12
Overhead cabinet Rangehood Installation position 13
Mounting Instructions – Outdoor/Alfresco 14
Mounting Points for Body 14
Outlet Options 14
Installation Example 15
Ducting 16
Back Draft Fins 17
Ducting Advice 18
Roof Cowls / Roof Seal Kit – Dual 200mm ducts 19
Roof Cowls / Roof Seal Kit – Single 200mm duct 20
7. Troubleshooting 21
Troubleshooting 21
Service 21
Faulty Installation 21
8. Specications 22
Dimensions 22
Technical Specications 22
9. Disclaimer 23

Page 3
1. Welcome
Your State Regulatory Authority
Dierent Australian states have varying legislative requirements for the installation of rangehood
ducting. Some will insist on ducting being vented externally (i.e. not in to the ceiling cavity); others
will not. It is imperative that you check with your state building authority and/or private certier
to conrm their position.
Thank you for purchasing your new Schweigen rangehood.
To get the maximum output from this unit, please read through this guide before use.
The guide contains important information on the use and maintenance of the unit, as well as important
safety notes. This will ensure your personal safety and the lasting value of your rangehood.
Please always retain your proof of purchase to aid in any warranty queries.
If you are unable to locate your warranty card, one is available to download from our website
www.schweigen.com.au.
This appliance and its packaging are produced by processes that minimise waste and respect
the environment.
Please help us to continue this eort to protect the environment by using the appliance eciently
and dispose of the packaging in a responsible manner.
We trust that you will enjoy your new Schweigen rangehood.

Page 4
2. Important Safety Information
WARNING
Please read this section thoroughly before attempting to operate the appliance.
Inspect your product upon receipt. Any damage or defects MUST be reported
within 48 hours, or no claim will be recognised.
DO NOT INSTALL THIS APPLIANCE IF YOU FIND IT DAMAGED.
If this product is installed damaged, neither the supplier, nor the retailer, will be
responsible for the costs associated with the repair, replacement, removal or
re-installation of the appliances.
1. To be installed in an undercover alfresco area only.
2. If the unit is not adequately covered or sheltered from the outside elements the warranty
will be null and void.
3. There shall be adequate ventilation in the room when the rangehood is used at the same time
as appliances burning gas or other fuels.
4. There is a re risk if cleaning is not carried out in accordance with the instructions.
5. Do not ambé under the rangehood. This will damage the rangehood and will not be covered by warranty.
6. Do not ignite burners that give o intense, uncontrolled ames beneath the rangehood.
7. Make sure that no ames emerge from the sides of pans.
8. Do not leave packaging materials (bags, corner brackets, etc.) within reach of children.
9. This appliance is not intended for use by person/s (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and/or knowledge. Unless the person has
been given supervision or instruction concerning the use of the appliance by a person responsible
for their safety. Children should be supervised to ensure that they do not play with the appliance,
it is not a toy.
10. Exhaust air must not be discharged into an existing ue that is used for exhausting fumes from
appliances burning gas or other fuels.
11. Air exhaust must be installed in accordance with local laws. Regulations concerning the discharge
of air have to be fullled.
12. Accessible parts may become hot when used with cooking appliances.
13. Before performing any cleaning or maintenance operation, disconnect the rangehood from
the mains using the respective mains or sector switch or by unplugging it.
14. Do not use the rangehood without the grease lters.
15. Keep the grease lters clean and respect the recommended cleaning frequencies.
16. Turn the rangehood motor on before starting to cook.
17. Turn the rangehood motor o about 10-15 minutes after you nish cooking.

Page 5
2. Important Safety Information
18. It is forbidden to use the rangehood as an aspirator.
19. Never cook foodstu directly over the ame or have the gas burners on under the rangehood
without using cookware.
Before Installation
1. We recommend this appliance be installed or repaired by a qualied Schweigen Home Appliances
technician.
2. Please see our website www.schweigen.com.au for recommended installers.
3. It is dangerous to modify any part of this appliance. Modication of any kind, will immediately void the
warranty.
4. The manufacturer declines all responsibility in case of failure to adopt proper safety measures.
5. Ensure that the location in which this appliance is installed, has good and permanent ventilation.
6. Please consult local laws and regulations and install in accordance.
7. Use an electrical connector with earth that is correct for your location.
8. Check that the voltage in your area corresponds to the appliance as indicated on the rating label.
9. This appliance must be connected to an electricity supply with a ground connection.
10. Check that the installation and electrical connections are made by a qualied technician and that the
indicated instructions and local regulations in force are met, using materials that are compliant with
the applicable legislation.
11. The company will not be responsible for installations executed by non-qualied sta and
installations that fail to heed the applicable legislation on electrical safety (with regard to both
modes and materials).
12. The electrical technical data can be found inside the rangehood, after removing the grease lters.
13. The exible power cable supplied is already connected internally and emerges from the rangehood
near the air outlet tube.
14. Before installing the electrical connections, you should:
–Verify that the indicated electrical data coincide with the voltage values and frequency
of the electrical circuit in the house where the rangehood is to be installed;
–Check that the premises has electrical protection against short circuits and electrocution,
pursuant to the applicable legislation;
–Always switch o the current using the double-pole switch before maintenance and turn
the power on again for normal use only when the operation has been completed.

Page 6
2. Important Safety Information
Product Use
This product is designed for household use and should not be used for commercial applications.
After use, always ensure that all controls are in the “OFF” position.
When frying with a gas ame, take particular care not to allow the oil or grease in the pan to catch
re. (Flambé)
Ducted or Recirculating?
Ducted rangehoods (or extractor rangehoods) extract the cooking fumes from the kitchen and expel
them from the space via ducting. Good design practice would always see a re-rated ducting system
extend to the house exterior, rather than to the ceiling cavity. When a rangehood is ducted only into
the ceiling space, the collection of humidity and grease can present very real health issues and re hazards.
Recirculating (or non-ducted or ltered) rangehoods extract cooking fumes and pass them through
lters. As the name would suggest, they recirculate this air back into the room. Recirculating rangehoods
are not as eective as removing fumes from a kitchen space, but they are sometimes the only option due
to budgetary or building constraints. You should be made aware of the requirement to change and clean
lters on a regular basis for the optimum eciency of air ltering.
Electrical Cord
Ensure the supply cord is not exposed to heat, chemicals or sharp objects. If the supply cord is damaged,
it must be replaced by the manufacturer, service agent or a similarly qualied person in order to avoid
a hazard.

Page 7
Rangehood
1. Power Cord
2. 2 x 200mm adapter
3. Body
4. Lights
5. Baes
6. Touch Button Controls
7. Internal Motors
8. Remote Control
NOTE:Quantities may vary from
model to model.
3. Description
1
2
3
4
5
8
6
7
CLUM210: 966mm / CLUM212: 1166mm approx.
472mm approx.
Note: Please make sure that all plastic protection on the rangehood and lters are removed before use.
Dimensions may be subject to change.
Cutout Size
Use this as a guide only when designing your cabinet. We advise you to take the rangehood
to your cabinet maker so they can tailor the cabinet to t correctly.

Page 8
4. Operation
TOUCH BUTTON CONTROL PANEL
Remote control sensor
Turn light on/off
Fan speed setting
Turn rangehood on/off
REMOTE CONTROL
As well as the touch buttons, this rangehood comes with a remote control
to operate the rangehood.
1. Use this button for activating and deactivating the motor.
2. Changes the speed of the motor (minimum level is 1, maximum is 5.)
3. Automatically changes the speed to maximum or minimum speed.
4. Turns the lights on or off.
5. 10 minute timer.
USING THE ON/OFF BUTTON
To turn on the rangehood press the on/off button. Press the on/off button a second time to activate
the 10min auto-shut off timer. Press the on/off button a third time to turn the rangehood off.
SPEED CONTROL
This rangehood is equipped with a 5speed touch control.
Speed control usage suggestions:
• Low speed for simmering.
• Medium speed for light cooking.
• High speed for heavy frying/cooking.
1
2
3
4
5

Page 9
5. Cleaning & Maintenance
Cleaning the Interior
Clean the interior of the rangehood with a damp cloth and a neutral detergent or denatured alcohol.
NOTE: Do not use denatured alcohol on the exterior of the rangehood. Do not clean the electric parts or
the motor with liquids or solvents
Cleaning the Exterior
We recommended using a soft cloth, water and a liquid soap, rinsing it well and then drying it thoroughly.
For better results, you can use high quality cleaning and protection products (e.g. Steel Kleen) to clean
your rangehood.
• The recommended detergent is a solution of water and a neutral
liquid soap.
• It is very important for the liquid soap to not contain granules
that could scratch the surface.

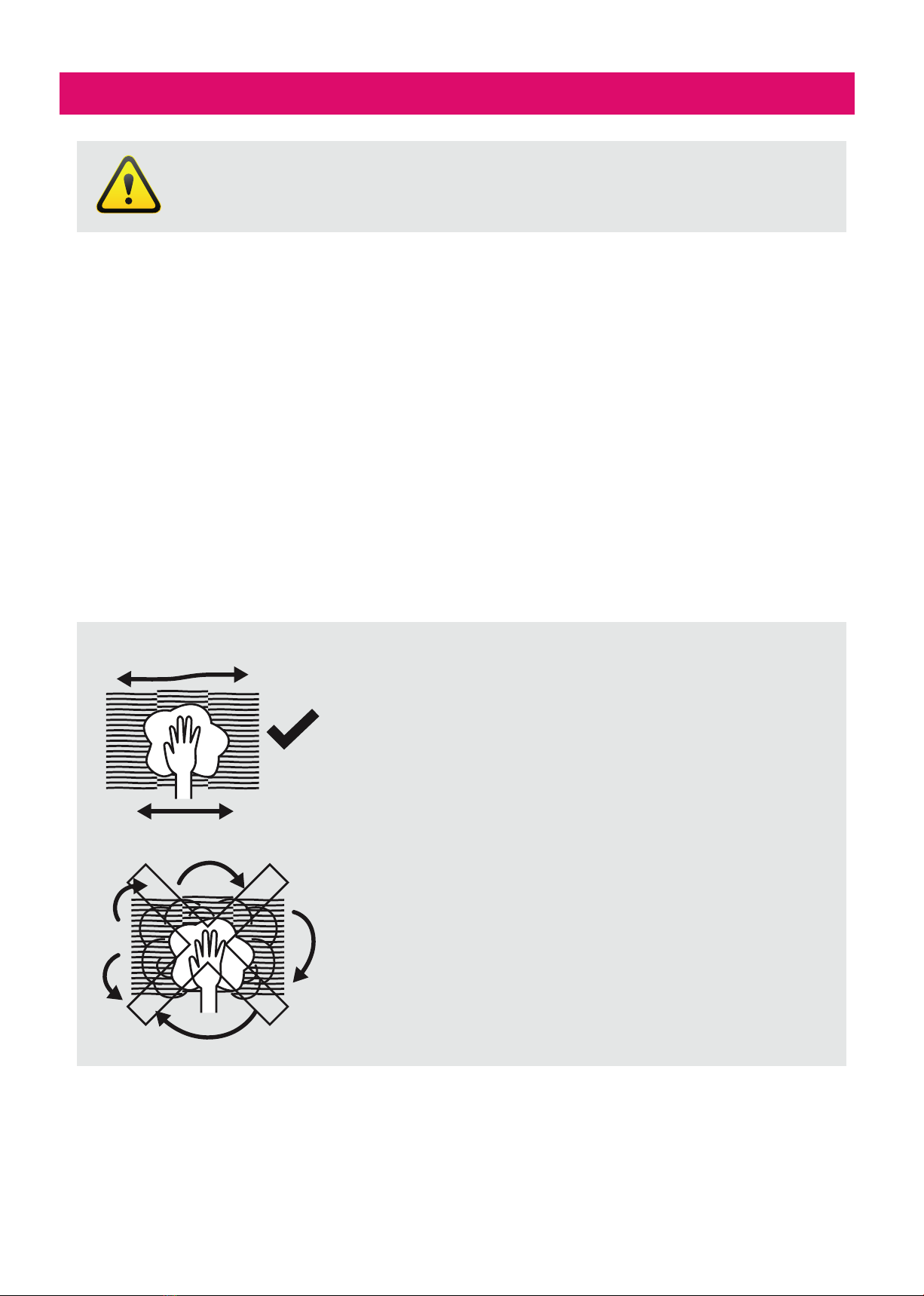

• First apply the solution to a soft cloth and then rub the cloth
over the rangehood. It is important to follow the direction of the
stained surface with the cloth (refer to gure on left).
• Do not pour any liquid directly on to the rangehood.
• The cloth must have no buttons, zips or fasteners that could
scratch the surface.
• It is strictly forbidden to use chemical solvents, aggressive,
grainy or abrasive products, naphtha, alcohol or similar products
that could damage the surface of the rangehood.
• The manufacturer will not be held responsible for functional or
aesthetic damage caused by cleaning with products which are
not suitable or using inadequate cleaning methods.
OK
Warning
Always switch o and disconnect power before cleaning.

Page 10
5. Cleaning & Maintenance

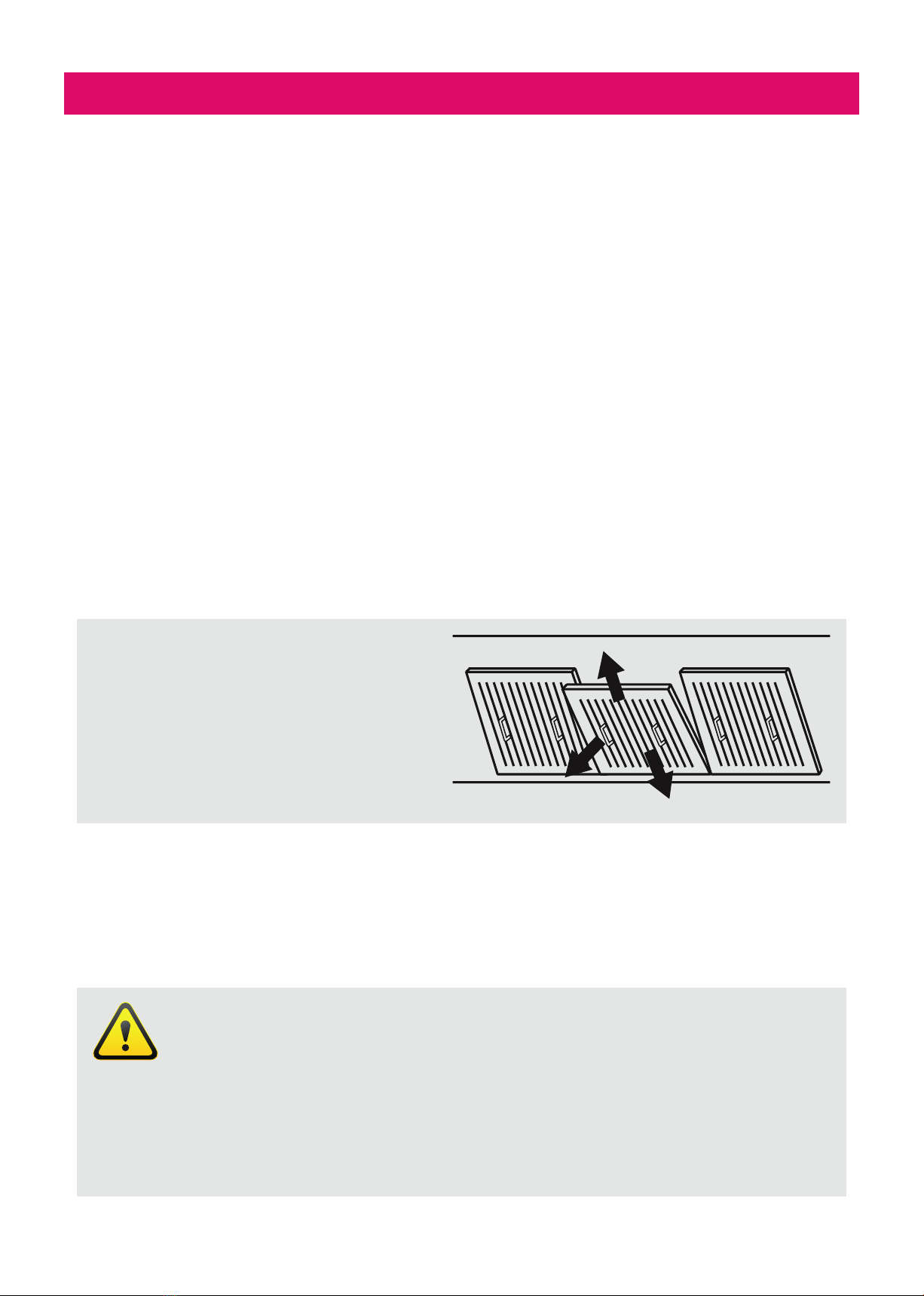

Endure the baes are cool before removing, to
ensure no oil is spilt.
To remove, push away from you until the near
edge clears the slot. Then carefully pull down
and back to remove. To replace, perform the
same operation but in reverse.
Baes
For this appliance to function eectively, regular maintenance is a must.
• The function of the bae is to collect the grease particles given o during cooking.
• Clogged heavy oil deposits restrict airow and may cause the motor to overheat
and become a re hazard.
• Baes should be cleaned every 3-6 weeks or after 40 hours of use.
• For induction cooktop, please aim to clean them at least every 10 days, depending on use.
• The baes can be washed by hand or in the dishwasher.
–Washing by hand - Immerse the lter in hot water and a suitable detergent and when clean,
rinse with plenty of hot water.
–Dishwasher - Put the lter in the dishwasher and select a short program at low temperature.
NOTE: The colour of the metal mesh lters may change after several washes. This is normal and
it is not necessary to change the lters.
Please ensure the baes are completely dry before placing them back in position
and operating the rangehood.
Warning
• If the baes are very dirty, the motor will extract only a small quantity of air, which
reduces its eciency;
• The grease deposits that build up on the baes are highly ammable and COULD
EASILY CATCH FIRE.
• The manufacturer is exonerated from all responsibility in the event of re due to poor
maintenance of the grease lters.

Page 11
5. Cleaning & Maintenance

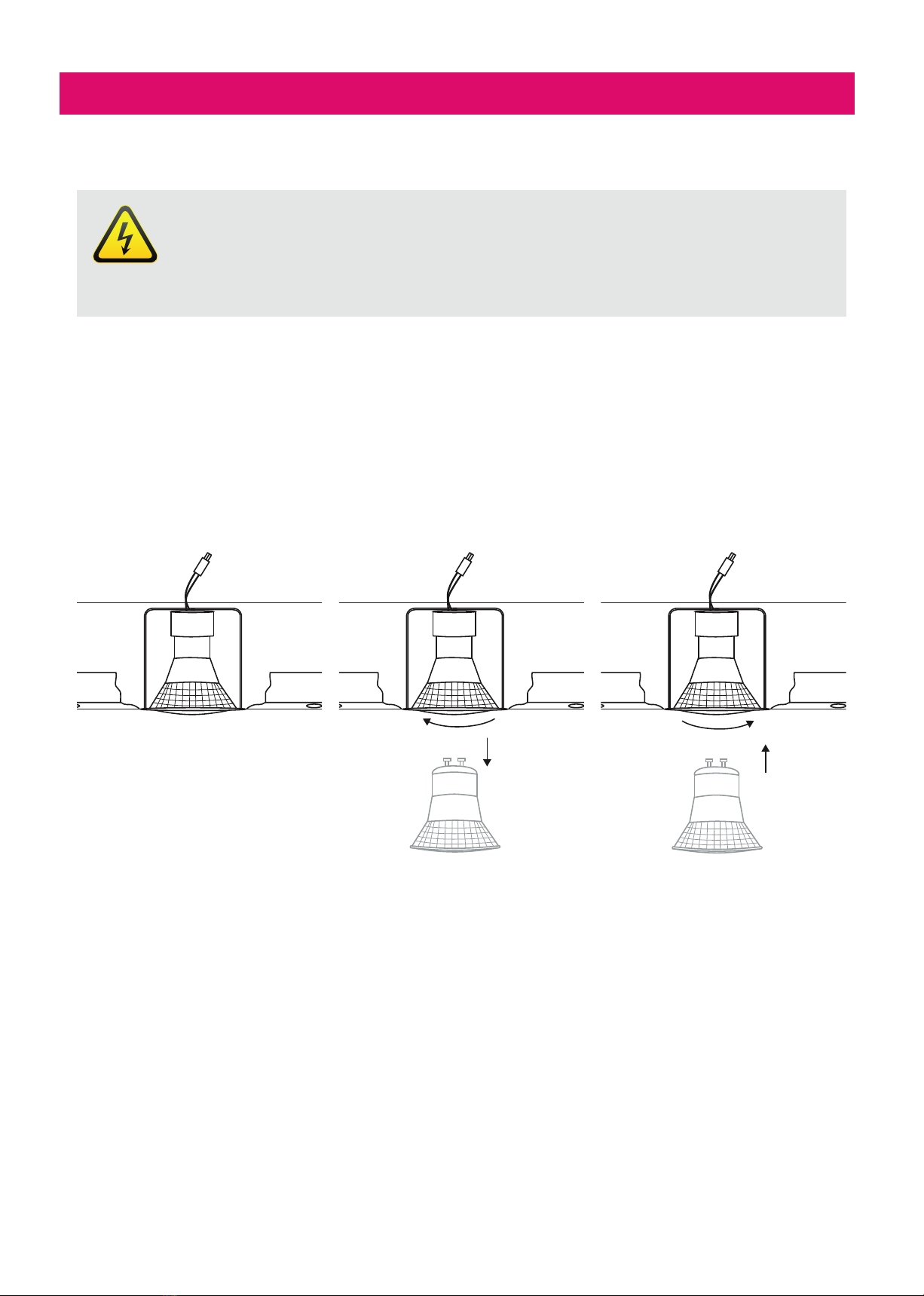

Replacing the Light Bulb
Step 2
Gently turn light bulb anti-
clockwise, pull the light bulb
down and remove it from the
light holder.
Step 3
Insert a new light bulb by lining
up the pins of the light bulb with
the larger holes inside the light
holder. Once the pins are in place,
turn clockwise to secure the light
bulb.
Step 1
Remove the lters from
the rangehood.
DANGER
Always switch o and disconnect the power cord before replacing any light bulbs. Failure
to do so may cause serious injury. Please be aware that the light bulb will retain heat for
a short period of time after being switched o.

Page 12
6. Installation
Rangehood Size vs Cooktop Size
In addition to the size, the height of the rangehood above the cooktop is important to obtain
the best performance.
INADEQUATE
Rangehood smaller than
cooking zone
ADEQUATE
Rangehood same size as
cooking zone
OPTIMAL
Rangehood larger than
cooking zone
BBQ Installation
When installing the rangehood over a BBQ , please be aware that the lid will obstruct the rangehoods
eectiveness to extract smoke, steam and odours. Where possible, remove the lid of the BBQ unit when
in use, so as to allow for eective rangehood extraction. Alternatively, install the rangehood on an
extension, to move the rangehood further out.
Extension

Page 13
6. Installation
Overhead cabinet Rangehood Installation position
It is important to consider the benchtop and overhead cabinetry depth before installing the rangehood.
The information below is to be used as a guide only, drawings are not to scale and do not account
for all circumstances.
The cooktop is centrally installed in the benchtop in the diagrams below.
GOOD
600mm 600mm 600mm
400mm
Side View Side View
BETTER
450mm
BEST
500mm
When the overhead cabinetry is
constructed and installed deeper
than standard, ensure the rangehood
is installed as close to the front
as possible. This will increase the
rangehood extraction results as there
is a greater coverage of the cooktop
surface area.
Side View

Page 14
6. Installation
Mounting Instructions – Outdoor/Alfresco
When installing in an outdoor kitchen or alfresco area,the rangehood MUST NOT
be installed where it is directly exposed to the elements .
It is STRONGLY RECOMMENDED that the rangehood be installed centrally over the cooktop.
This will greatly improve its performance.
Minimum legal height from the BBQ surface to the underside face of the rangehood:
• 1200mm
Any installation above 1200mm will compromise the extraction performance.
Measurements are from the top of the trivets to the lowest part of the rangehood,
including the button controls.
*IMPORTANT: If the user decides to install the rangehood at a distance of less than minimum height
above the cooking surface, Schweigen declines responsibility for damages suered by the rangehood
due to excess heat or damage to objects, people and others caused directly or indirectly by a
malfunction, breakage or re.
*Important: In addition to the information in this manual,
please check all relevant state requirememnts for minimum–
maximum heights, as well as regulations regarding the
expelling of air. Schweigen is not liable if your rangehood is
not installed in accordance with these legal requirements.

_n_. _RH Section_
Page 15
6. Installation

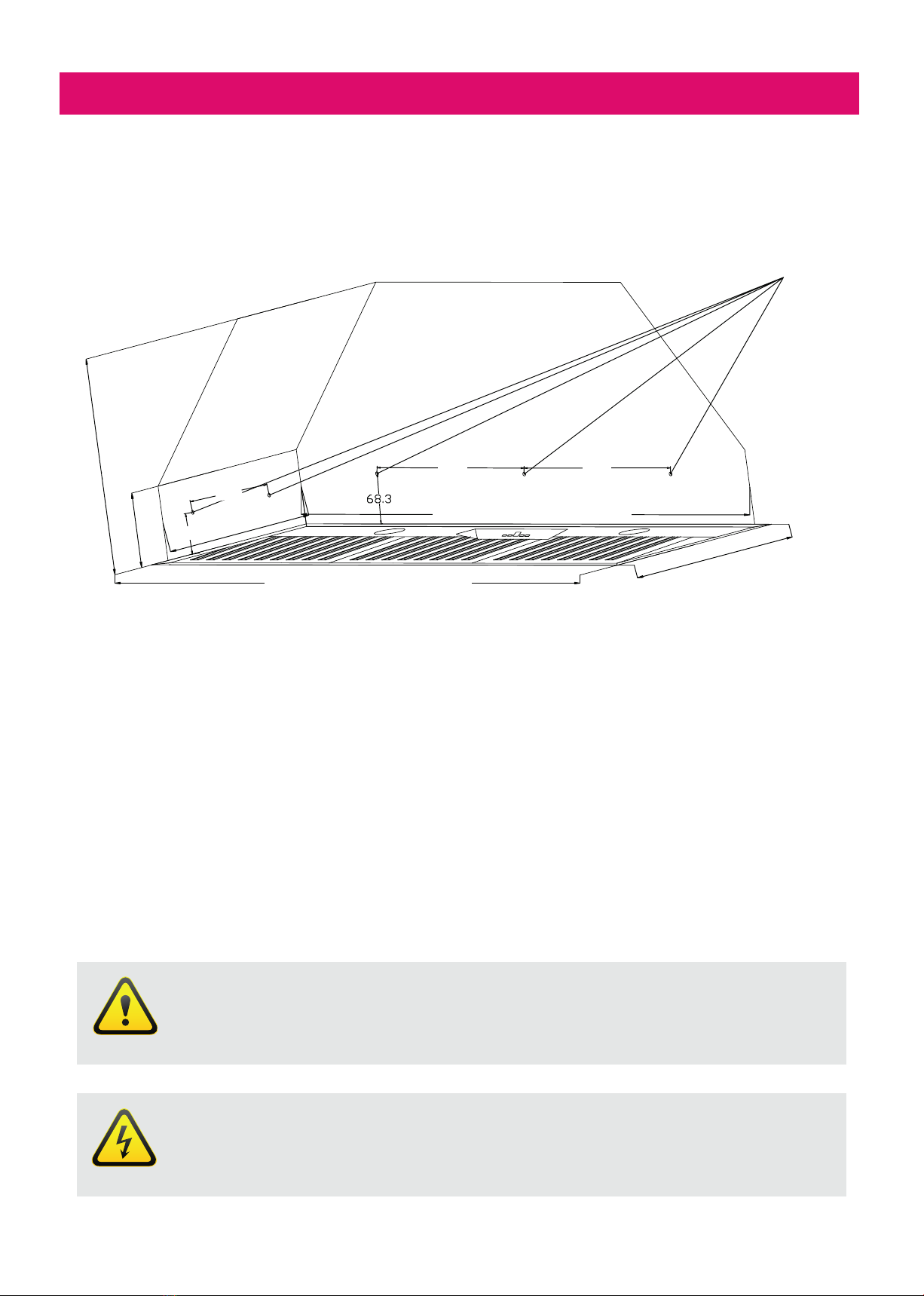

Mounting Points for Body
The diagrams below are a guide for all mounting points.
DANGER
Always switch o and disconnect the power supply before installing the rangehood.
Failure to do so may cause serious injury.
WARNING
Please remove lters before installation. Failure to do so may damage the clips.
270 270
500
Mounting Points
466
250
68.3
120
360
CLUM210: 1000 / CLUM212: 1200
CLUM210: 960 / CLUM212: 1160

_n_. _LH Section_
Page 16
6. Installation
Installation Example
FRONT VIEW
TOP VIEW
BOTTOM VIEW
SIDE VIEW SIDE VIEW
FRONT VIEW
TOP VIEW
BOTTOM VIEW
SIDE VIEW SIDE VIEW
FRONT VIEW
TOP VIEW
BOTTOM VIEW
SIDE VIEW SIDE VIEW
FRONT VIEW
TOP VIEW
BOTTOM VIEW
SIDE VIEW SIDE VIEW
FRONT VIEW
TOP VIEW
BOTTOM VIEW
SIDE VIEW SIDE VIEW
Support Frame
Power Plug
(Main power)
Step 2
Secure support frame to inside of cabinet.
Step 3
Secure the undermount into cavity using screws.
All screws are installed internally into a support
frame.
Step 1
Insert support frame into cabinet. The support
will only be needed in certain circumstances.
NOTE: The support frame is not included. The
requirement of a support frame is dependent
on the type and location of installation. Please
contact your installer for more information.
IMPORTANT
Please ensure all plastic protectionontherangehoodandlters is removed before use.

_n_. _RH Section_
Page 17
6. Installation

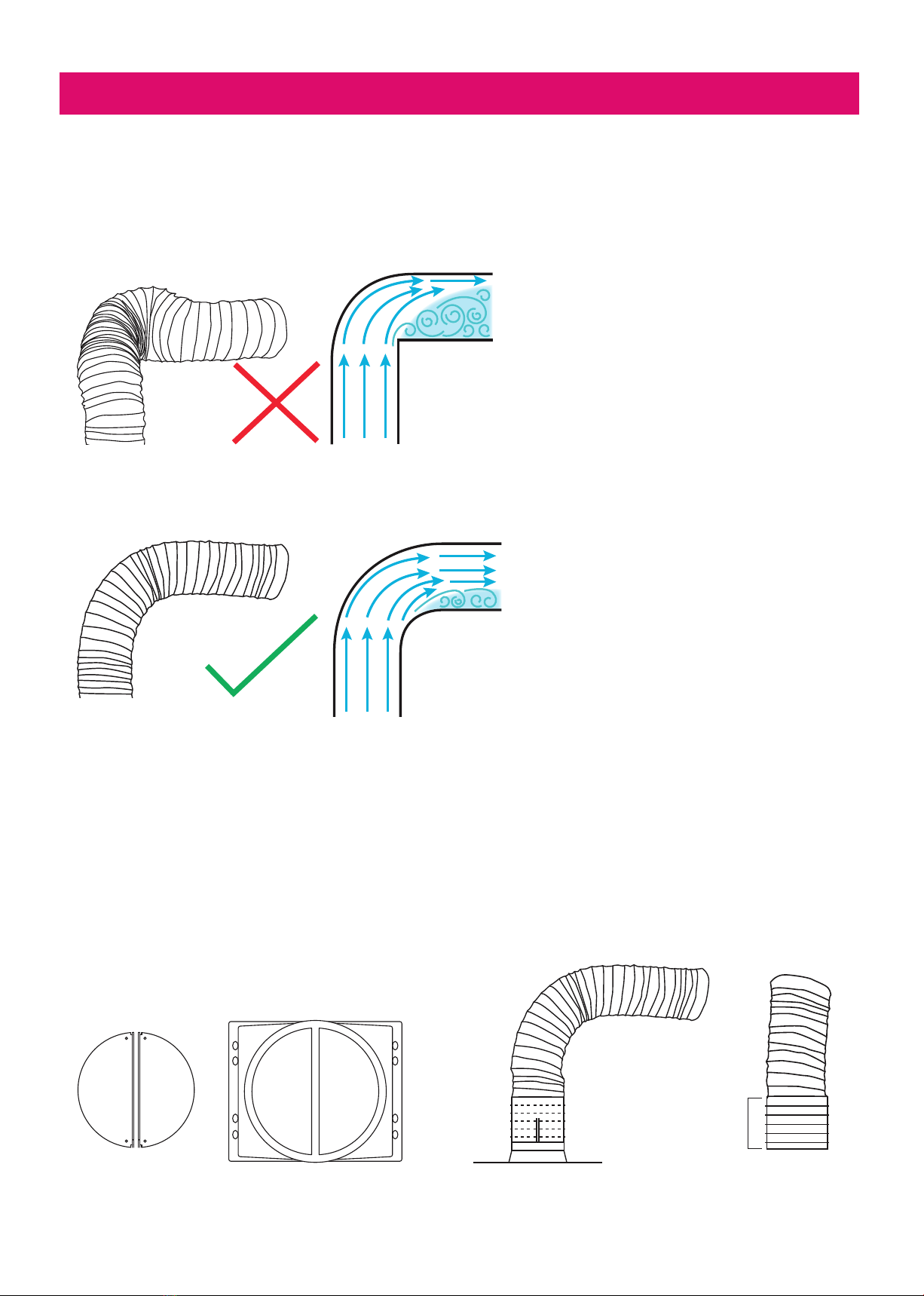

Ducting
Please DO NOT crush or kink the ducting.
1. Crushed or kinked ducting creates
sharp corners that creates turbulence.
This reduces the size and eciency
of the ducting, lowers extraction and
may cause excessive noise.
2. Sweeping curves and taut ducting
reduces resistance and turbulence.
The airow and extraction will be
more ecient and stronger.
Back Draft Fins (For applicable models)
The supplied ducting has been manufactured with an allowance for the back draft ns to operate without
hindrance. It is the smooth extended end of the ducting.
When installing Back Draft Fins, please ensure that you insert the Back Draft Fins onto the back draft base,
which are attached to the top of the motor outlet before installation. Then place the smooth extended edge
of the ducting into the back draft base and x securely.
Should your Back Draft Fins get stuck, this is not a warranty issue.
Back Draft Fins Back Draft Fins
open position Back Draft Fins ducting
Allowance for
Back Draft Fins
Back Draft Base

_n_. _LH Section_
Page 18
6. Installation

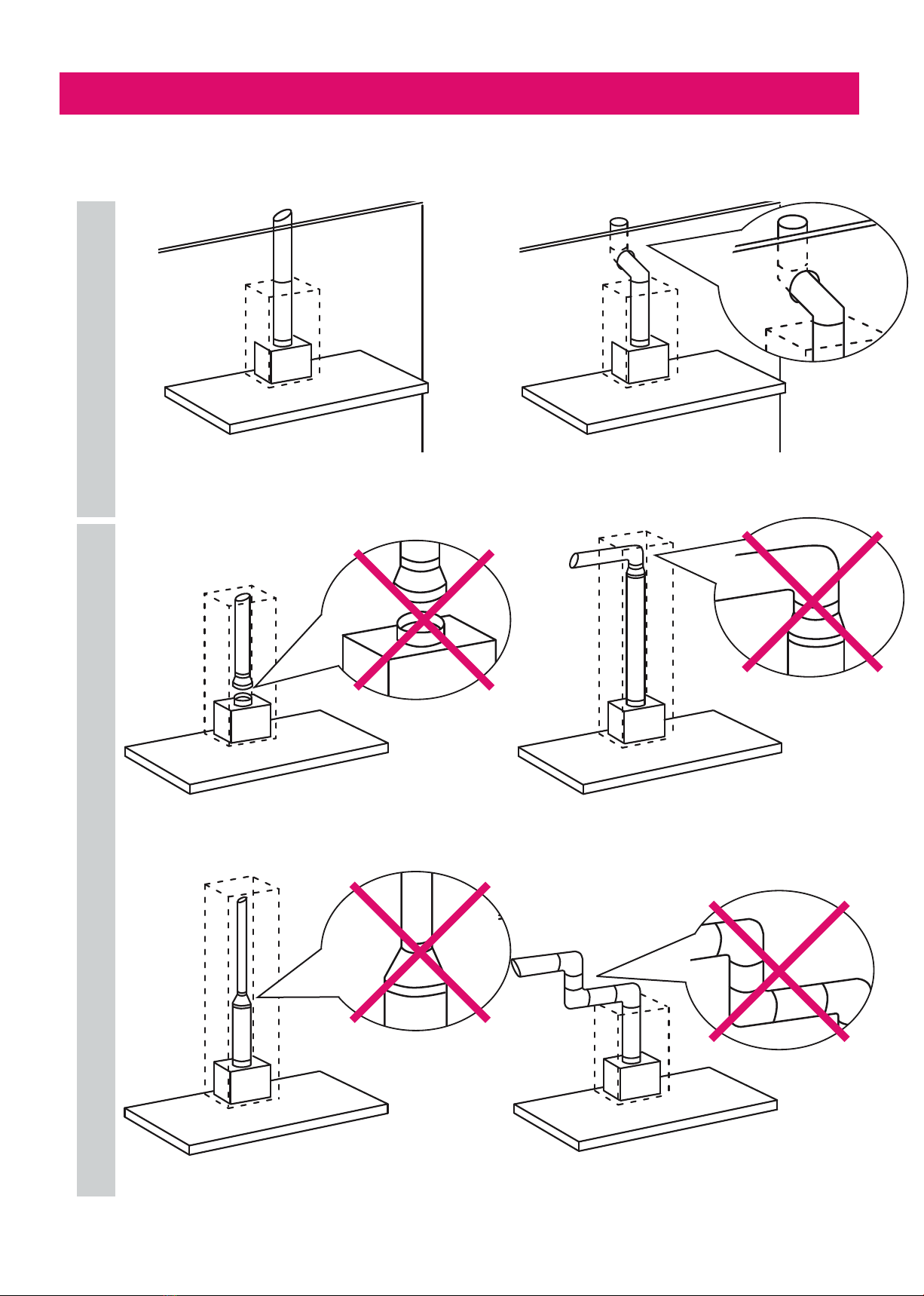

Ducting Advice
Never reduce ue diameter right next
to the rangehood outlet tting.
Avoid excessive reduction of the ue size,
as this drastically reduces extraction capacity.
Keep the curves or bends to a minimum. If they
do exist, try to keep the angles as open as possible.
Straight ducting is the most eective installation
Never t reductions next to curves or bends in
the installations. They must always be in straight
sections and as far as possible from the rangehood.
You should not have more than one blend
in the installation.
1.
2.1.
3.
2.
4.
RECOMMENDEDAVOID

_n_. _RH Section_
Page 19
6. Installation
Roof Cowls / Roof Seal Kit – Dual 200mm ducts
*NOTE: Motor system does not include the roof seal/roof cowls, ring clamp or support straps.
For best result, please install ducting in a straight line and duct length no longer than 4 metres.
Do not reduce the ducting diameter, this will reduce airow.
1. Roof Cowls (Not supplied)*
2. Flexible Ducting must be pulled
taut. DO NOT crush or kink the
ducting.
3. Connect exible ducting to the
outlet on rangehood using a
ring clamp. Please DO NOT rip
the ducting.
4. Power Plug
Maximum of
4 metres of
ducting for
best result
WARNING
All electrical wiring should be kept inside the roof space.
1
2
3
4

_n_. _LH Section_
Page 20
6. Installation
1
2
3
4
5
Roof Cowls / Roof Seal Kit – Single 200mm duct
*NOTE: Motor system does not include the roof seal/roof cowls, ring clamp or support straps.
For best result, please install ducting in a straight line and duct length no longer than 4 metres.
Do not reduce the ducting diameter, this will reduce airow.
1. Roof Cowl (Not supplied)*
2. Flexible Ducting must be pulled
taut. DO NOT crush or kink the
ducting.
3. Y-Joint
4. Connect exible ducting to the
outlet on rangehood using a
ring clamp. Please DO NOT rip
the ducting.
5. Power Plug
Maximum of
4 metres of
ducting for
best result
WARNING
All electrical wiring should be kept inside the roof space.
