ASSEMBLY
MANUAL
MPower™ Echelon2 Console
Core Health & Fitness
o
ns
ol
e

Page 1
Echelon2 + 4iiii Powermeter
Applies to: Echelon2G w/4iiii Powermeter Upgrade
Identify the handlebar style present on your bike
before continuing with assembly/install:
Performance Plus-Style: If the handlebar style
present on the bike is the Performance Plus-
style handlebars (pictured right), proceed to
Page 2 - Step 1.
Performance Plus
Studio-Style: If the handlebar style present on
the bike is the Studio-style handlebars (pictured
right), proceed to Page X - Step 1.
Studio
Sport: If the handlebar style present on the
bike is the Sport-style handlebars (pictured
right), proceed to Page X, Step 1.
Sport

Page 2
Performance Plus-Style
Required Tools:
• #2 Phillips Screwdriver
• 2.5mm Allen Key
1. Use a #2 phillips screwdriver to secure the con-
sole bracket to the handlebars using three (3)
pieces of the M4 x 10mm screws.
2. Install the two (2) C-type batteries into the Eche-
lon2 console.
3. Slide the console onto the console bracket, then
secure the console to the bracket using one (1)
piece of the M3 x 6mm screw

Page 3
4. Use a 2.5mm allen key to attach the rear cover to
the console bracket using two (2) pieces of the
M3 x 12mm screws.
5. Attach the console bracket cover to the console
bracket using one (1) piece of the M5 x 16mm
screw.
6. After completing this step, please proceed to
Page 8 - Step 1.

Page 4
Studio-Style
Required Tools:
• #2 Phillips Screwdriver
• 2.5mm Allen Key
1. Use a 2.5mm allen key to secure the console
bracket to the handlebars using four (4) pieces of
the M4 x 14mm screws.
2. Use a #2 phillips screwdriver to secure the brack-
et cover to the bracket using one (1) piece of the
M5 x 16mm screw.
3. Install the two (2) C-type batteries into the Eche-
lon2 console.

Page 5
4. Slide the console onto the console bracket, then
secure the console to the bracket using one (1)
piece of the M3 x 6mm screw.
5. Use a 2.5mm allen key to attach the rear cover to
the console bracket using two (2) pieces of the
M3 x 12mm screws.
6. After completing this step, please proceed to
Page 8 - Step 1.

Page 6
Sport-Style
Required Tools:
• #2 Phillips Screwdriver
• 2.5mm Allen Key
1. Install the console bracket onto the underside
of the handlebar post using a #2 phillips screw-
driver and two (2) pieces of the M4 x 10mm
screws.
2. Install the two (2) C-type batteries into the Eche-
lon2 console.
3. Slide the console onto the console bracket, then
secure the console to the bracket using one (1)
piece of the M3 x 6mm screw.

Page 7
4. Use a 2.5mm allen key to attach the rear cover to
the console bracket using two (2) pieces of the
M3 x 12mm screws.
5. After completing this step, please proceed to
Page 8 - Step 1.

Page 8
1. Ensure that the 4iiii crank is up to date. To do this,
heck that Bluetooth is enabled on the phone
then follow the proceeding directions.
2. Download the 4iiii app from the app store BUT
DO NOT CREATE A LOGIN. Android
iOS
3. Record the ANT+ ID of the powermeter that
needs to be updated.
NOTE: The ANT+ ID is a 4 OR 5 digit number located
on the underside of the 4iiii sensor. If the number is 4
digits, the rst number of the ANT+ ID is zero (0).

Page 9
4. Open the 4iiii app and select the “Prole” menu
in the upper left corner of the main screen then
select “PRECISCION Conguration”
5. Spin the 4iiii crank arm of the target bike >30
RPM; the 2-5 digit ANT+ ID should show up on
the “Select your Powermeter” screen.
6. Select the corresponding ANT+ ID of the bike
from Step 5 and set up the powermeter as “Single
Sided.”

Page 10
7. On the next screen, a rmware update prompt
should appear if newer rmware is available.
Select “Upgrade”to begin the update.
8. The update procedure will now run. This may
take several minutes to complete.

Page 11
9. Once the update is complete, select “Continue.”
10. Enable the “3rd Party Apps”option.
11. Select “Forget” to disconnect from this poweme-
ter once the rmware has been updated.
12. On the Echelon2G console, press and hold
STAGE and “AVG/MAX” for 3-5 seconds to
access the service menu.
13. Use AVG/MAX to scroll until SENSOR TYPE is
displayed then push the back-light button to
access the sensor menu. Ensure that “4iiii” is dis-
played as the sensor type.

Page 12
14. If the sensor type is set to “Echelon 2” press the
back-light button to select the sensor type,
use the AVG/MAX button to select “4iiii” then
press the back-light button again.
15. Once “4iiii” is selected the console will enter the
pairing process, check the side of the power sen-

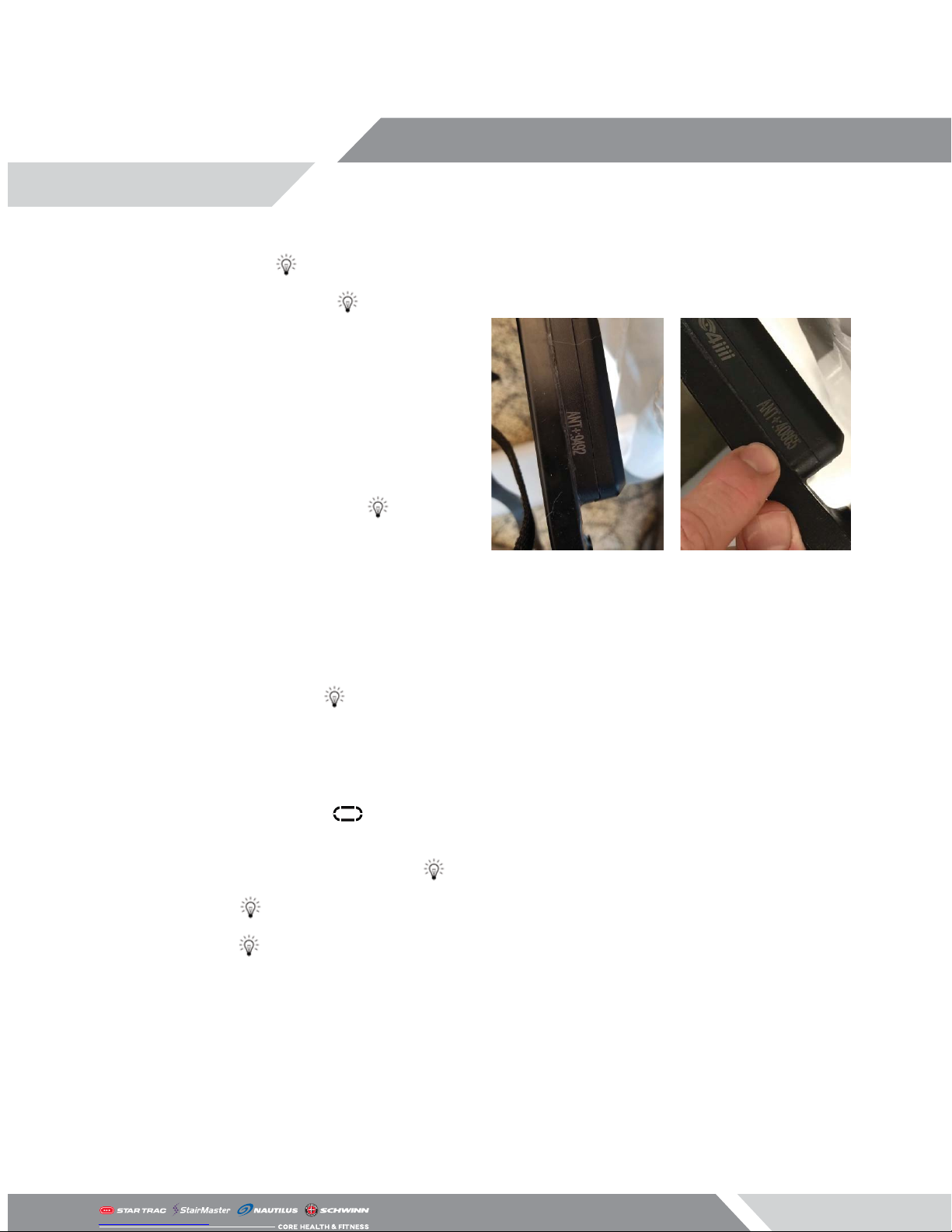

sor for a 4 OR* 5-digit ANT+ ID code. Enter this
code on the “ENTER ANT ID” screen using AVG/
MAX to scroll and the back-light to enter the
ANT+ ID.
Please note that the ANT+ ID referenced in Step
4 could be either a 4-digit OR 5-digit number.
If the 4-digit code is present, the rst number of
the ANT+ ID Code is zero (0).
16. Once the ANT+ ID has been entered, pedal the
bike, then select “PAIRING SPIN CRANK” but push-
ing the back-light button . If pairing does
not pass, check to ensure the ANT+ ID is correct
and try the pairing process again. It may take 2-3
attempts to pair successfully.
17. After successfully pairing the 4iiii crank, the pow-
er sensor must be calibrated BEFORE riding the
bike. Press and hold STAGE and AVG/MAX for
3-5 seconds to access the service menu then use
AVG/MAX to scroll until“CALIBRATE” is displayed
then select it using the back-light button .
“ZERO RESET” will be displayed, press the back-
light button to select it. Once “SPINCRANK”
is displayed, spin the crank and press the back-
light button to proceed. Ensure that the left
crank arm is in the 6 o’clock position then follow
the on-screen directions to nish calibrating the
sensor.

© 2018 CORE HEALTH & FITNESS, LLC PART NUMBER 620-8634, REV B
