SCIEX MSR 130 Manual

SCIEX Dry Pump MSR 130
OPERATOR GUIDE
RUO-IDV-05-14943-A Original instructions

Disclaimer
This document is provided to customers who have purchased SCIEX equipment to use in
the operation of such SCIEX equipment. This document is copyright protected and any
reproduction of this document or any part of this document is strictly prohibited, except as
SCIEX may authorize in writing.
Software that may be described in this document is furnished under a license agreement. It
is against the law to copy, modify, or distribute the software on any medium, except as
specifically allowed in the license agreement. Furthermore, the license agreement may
prohibit the software from being disassembled, reverse engineered, or decompiled for any
purpose. Warranties are as stated therein.
Portions of this document may make reference to other manufacturers and/or their products,
which may contain parts whose names are registered as trademarks and/or function as
trademarks of their respective owners. Any such use is intended only to designate those
manufacturers' products as supplied by SCIEX for incorporation into its equipment and does
not imply any right and/or license to use or permit others to use such manufacturers' and/or
their product names as trademarks.
SCIEX warranties are limited to those express warranties provided at the time of sale or
license of its products and are the sole and exclusive representations, warranties, and
obligations of SCIEX. SCIEX makes no other warranty of any kind whatsoever, expressed or
implied, including without limitation, warranties of merchantability or fitness for a particular
purpose, whether arising from a statute or otherwise in law or from a course of dealing or
usage of trade, all of which are expressly disclaimed, and assumes no responsibility or
contingent liability, including indirect or consequential damages, for any use by the
purchaser or for any adverse circumstances arising therefrom.
Trademarks and/or registered trademarks mentioned herein, including associated logos, are
the property of AB Sciex Pte. Ltd., or their respective owners, in the United States and/or
certain other countries (see sciex.com/trademarks).
For Research Use Only. Not for use in Diagnostic Procedures
AB Sciex™ is being used under license.
Made in Czechia
Manufactured for:
AB Sciex LLC
500 Old Connecticut Path
Framingham, Massachusetts 01701
USA
Copyright notice
© 2023 DH Tech. Dev. Pte. Ltd.
Published: 9/4/2023

Contents
1. Safety and compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.1. Definition of Warnings and Cautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2. Safety symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2. General description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.1. Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2. Interfaces and control panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.2.1. Auxiliary connector socket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.2.2. Logic interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.2.3. Auto-run. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.2.4. Pump controller. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3. Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.1. Operating and storage conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.2. Performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.3. Materials exposed to gases. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.4. Intake gas specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.5. Electrical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4. Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.1. Installation safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.2. Unpack and inspect. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.3. Mechanical installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.4. Leak test the system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.5. Electrical installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.5.1. Connect the electrical supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.6. Connect the system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.6.1. Connection for remote control and monitoring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5. Commission the pump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6. Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.1. Operation safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.2. Operational modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.2.1. Manual control mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.3. Logic interface data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.4. Parallel control and monitoring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6.5. Analogue speed control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
6.6. Hardware configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6.7. Operational modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6.8. Start the pump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6.9. Shut down the pump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6.10. Restart the pump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
6.11. Unplanned shutdown. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
6.12. Gas ballast operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
6.13. Gas ballast connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
SCIEX Dry Pump MSR 130
Page 3 of 40
Operator Guide
RUO-IDV-05-14943-A

7. Maintenance and service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
7.1. General maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
7.2. Maintenance plan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
7.3. Inspect and clean the inlet strainer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
7.4. Clean the ventilation slots. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
7.5. Electrical safety check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
7.6. Return the equipment or components for service (SCIEX). . . . . . . . . . . . . . . . . . . . . . . . . . 35
8. Fault finding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
8.1. Alarm indicator codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
9. Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
10. Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Operator Guide
RUO-IDV-05-14943-A
SCIEX Dry Pump MSR 130
Page 4 of 40

List of Figures
Figure 1: Pump features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Figure 2: Control panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Figure 3: Valve connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Figure 4: Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Figure 5: Performance graph. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Figure 6: Unpacking Instruction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Figure 7: Logic interface connections - parallel control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Figure 8: Logic interface connections - analogue speed control. . . . . . . . . . . . . . . . . . . . . . . . 29
Figure 9: Analogue speed control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Figure 10: Maximum vapour handling capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Figure 11: Gas ballast connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
SCIEX Dry Pump MSR 130
Page 5 of 40
Operator Guide
RUO-IDV-05-14943-A

1. Safety and compliance
For safe operation from the start, read these instructions carefully before you install or
commission the equipment and keep them safe for future use. Read all the safety instructions
in this section and the rest of this manual carefully and make sure that you obey these
instructions.
The instruction manual is an important safety document that we often deliver digitally. It is
your responsibility to keep the instruction manual available and visible while working with the
equipment. Please download the digital version of the instruction manual for use on your
device or print it if a device will not be available.
1.1. Definition of Warnings and Cautions
For safe operation from the start, read these instructions carefully before you install or
commission the equipment and keep them safe for future use.
Read all the safety instructions in this section and the rest of this manual carefully and make
sure that you obey these instructions. The equipment must only be operated and maintained
by trained personnel in the proper condition and as described in this instruction manual.
Obey local and state requirements and regulations. If you have any questions about safety,
operation or maintenance of the device, please contact our nearest subsidiary.
Important safety information is highlighted as warning and caution instructions which are
defined as follows. Different symbols are used according to the type of hazard.
WARNING:
If you do not obey a warning, there is a risk of injury or death.
CAUTION:
If you do not obey a caution, there is a risk of damage to equipment, related equipment or
process.
NOTICE:
Information about properties or instructions for an action which, if ignored, will cause
damage to the equipment.
We reserve the right to change the design and the stated data. The illustrations are not
binding.
Operator Guide
RUO-IDV-05-14943-A
SCIEX Dry Pump MSR 130
Page 6 of 40

1.2. Safety symbols
The safety symbols on the products show the areas where care and attention is necessary.
The safety symbols that we use on the product or in the product documentation have the
following meanings:
Warning/Caution
Risk of injury and/or damage to equipment. An appropriate safety instruction
must be followed or a potential hazard exists.
Warning - Heavy object
Risk of injury or damage to equipment. Identifies a possible hazard from a
heavy object.
Warning - Dangerous voltage
Risk of injury. Identifies possible sources of hazardous electrical shock.
Warning - Hot surfaces
Risk of injury. Identifies a surface capable of inflicting burns through contact.
Symbol - Protective earth
Identifies an electrical equipment earth (ground) terminal.
Warning - Use protective equipment
Risk of injury. Use appropriate Personal Protective Equipment (PPE) when
performing the task.
SCIEX Dry Pump MSR 130
Page 7 of 40
Operator Guide
RUO-IDV-05-14943-A

2. General description
2.1. Overview
WARNING: INCORRECT USE OF EQUIPMENT
Risk of injury or damage to equipment. Incorrect use of the equipment can cause injury. The
user is responsible for the safe operation, installation and monitoring of the system.
CAUTION: GAS BALLAST INSTALLATION
Risk of damage to the equipment. If water vapour is present within the system or is pumped
by the product the gas ballast must be used to prevent damage to the product. The gas
ballast should continue to be applied with the pump running, for at least 1 hour after the
water vapour source has been removed to enable the pump to dry.
The MSR 130 is a dry, multi-stage roots vacuum pump that offers high pumping speed in a
compact form. The pump is connected by a power cord and is designed for use on clean duty
applications.
The cord rating is:
Supply voltage (V) Current (A) Frequency (Hz)
200 ‑ 240 16 50 or 60
The pump is not designed for use with flammable, corrosive, toxic or other hazardous gases.
Gas or oxygen can mix in the pump system.
The dry pump operates in steady-state gas load conditions with an inlet pressure from
1 ‑ 15 mbar. If the inlet pressure is more than 15 mbar for an extended period, the pump
controller reduces the motor speed. The motor speed is increased when the pressure is
reduced, or when the transient overload protection has recovered. Refer to Table:
Performance data for information on maximum inlet pressure.
Refer to Figure: Pump features. The system is supplied with NW40 inlet port (item 3) and
NW25 exhaust port (item 2).
The system is air cooled by a fan installed in the pump enclosure. The fan continues to
operate for 5 minutes after the pump is set to off. The pump has a thermal protection device
that will stop the motor if a thermal overload, for example in high ambient temperature,
occurs. You must restart the pump after it has cooled down.
The pump mechanism is operated by an electric motor driven by an internal pump controller.
The rotational elements of the pumping mechanism are simply supported at the end by
lubricated bearings. PFPE lubricant is used and this is contained in both the gearbox and
motor ends of the pump module. These are "sealed for life" and the lubricant does not need
to be replaced until the pump service interval is reached.
The system has a gas ballast connection, if it is necessary to purge the system.
The pump is designed to remove the residual gases used in high vacuum systems. The
gases are:
▪Air
▪Oxygen (O2) < 21% by volume
▪Neon
▪Nitrogen
▪Argon
Operator Guide
RUO-IDV-05-14943-A
SCIEX Dry Pump MSR 130
Page 8 of 40

▪Helium
You can use the pump to pump water vapour. You must use the gas ballast when water
vapour is pumped. The water vapour must not condense in the pump.
If you wish to pump a gas not contained within the list above, or if you are unsure about safe
gas mixtures or concentration levels, contact your supplier for advice. If you do not contact
your supplier, you may invalidate the warranty on the pump. The pump is not suitable for
pumping aggressive, corrosive or mixture of flammable gases.
Figure 1 Pump features
1. Dashboard or interface 2. Exhaust port
3. Inlet port 4. Castor x 4
5. Leveling feet x 4 6. Gas ballast connection
7. Lifting eye positions 8. Mains circuit breaker
9. Mains connector port 10. Protective earth stud
11. 15-way D-type connector 12. Auxiliary connector
1. Dashboard or interface 2. Exhaust port
3. Inlet port 4. Castor x 4
5. Leveling feet x 4 6. Gas ballast connection
7. Lifting eye positions 8. Mains circuit breaker
9. Mains connector port 10. Protective earth stud
11. 15-way D-type connector 12. Auxiliary connector
SCIEX Dry Pump MSR 130
Page 9 of 40
Operator Guide
RUO-IDV-05-14943-A

2.2. Interfaces and control panel

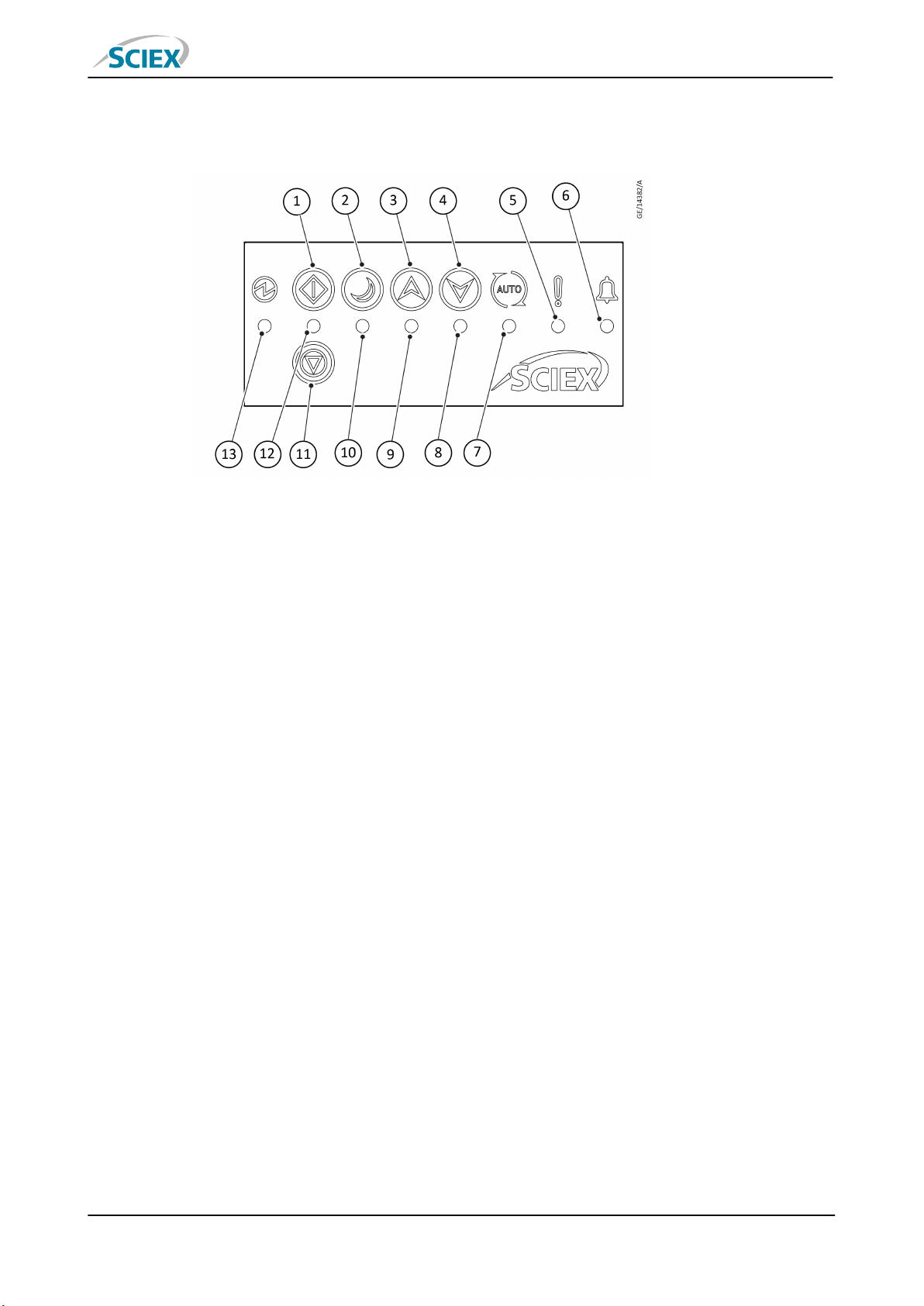

Figure 2 Control panel
1. Start button 2. Standby button
3. Standby increase button 4. Standby decrease button
5. Service indicator LED 6. Alarm indicator LED
7. Auto‑run indicator LED 8. Standby decrease indicator LED
9. Standby increase indicator LED 10. Standby indicator LED
11. Stop button 12. Run indicator LED
13. Power status LED
1. Start button 2. Standby button
3. Standby increase button 4. Standby decrease button
5. Service indicator LED 6. Alarm indicator LED
7. Auto‑run indicator LED 8. Standby decrease indicator LED
9. Standby increase indicator LED 10. Standby indicator LED
11. Stop button 12. Run indicator LED
13. Power status LED
2.2.1. Auxiliary connector socket
An auxiliary control connection on the rear panel controls an optional inlet valve. This inlet
valve can be operated in parallel with the normal pump output signal. Refer to Figure: Pump
features item 6. The valve is usually closed and:
▪will open when the normal signal is active (pump at speed)
▪will close when you select stop, or if there is a fault condition.
The reaction time will be in line with the valve selection. The output signal is 24 V d.c. Refer
to Figure: Valve connector for the polarity of the connector pins when the connector is
energized.
The auxiliary connector is regulated to 24 V d.c. to control the accessories. Refer to Table:
Auxiliary load currents, the output will shut down to protect the pump controller.
Refer to Table: Recommended mating plugs for the recommended mating plugs.
Operator Guide
RUO-IDV-05-14943-A
SCIEX Dry Pump MSR 130
Page 10 of 40

Figure 3 Valve connector
Pin number Signal Polarity
1 Valve 1 – Control output Positive
2 Valve 2 – Control output Positive
3 Valve 1 - Return Negative
4 Valve 2 - Return Negative
Table 1 Auxiliary load currents
Description Data
Connector plug Phoenix part number SACC-DSI-M 8FS-4CON-M12/0.5
Voltage output 24 V d.c. -25%, +10% (18 V d.c. to 26.4 V d.c.)
Output power 2 Channels with 4 watts per channel
Table 2 Recommended mating plugs
Mating connector plug Phoenix part number
Screw connection, straight SACC-M 8MS-4CON-M-SW
Solder connection, straight SACC-M 8MS-4CON-M
Screw connection, right angle SACC-M 8MR-4CON-M-SW
Solder connection, right angle SACC-M 8MR-4CON-M
2.2.2. Logic interface
The logic interface is designed to support the serial control and the parallel control to monitor
and control through one connector.
The pump controller can be operated through the 15‑way D‑type logic interface connector
(refer to Figure: Pump features, item 8). The signals on the logic interface are:
▪Control inputs: switch type and analogue signals that control the pump.
▪Status outputs: to identify the status of the system.
For serial control select RS232 or RS485. Refer to Serial Comms Interface manual.
For control modes refer to Table: Manual control mode.
For logic interface data refer to Logic interface data.
2.2.3. Auto-run
The auto‑run setting configures the pump to start automatically when the power is switched
on, without any customer intervention.
SCIEX Dry Pump MSR 130
Page 11 of 40
Operator Guide
RUO-IDV-05-14943-A

You can configure the auto‑run through serial communications, or with the start or stop
button. Push and hold the start or stop button for more than eight seconds to enable or
disable the auto-run setting. The auto-run LED displays the auto-run setting.
The pump can be stopped by either manual, parallel or serial control modes when in auto‑run
mode.
Note:
Refer to Operation safety for guidelines on how to configure different operational modes and
any associated earnings to consider.
2.2.4. Pump controller
CAUTION: ELECTRICAL SUPPLY
Risk of damage to equipment. Do not disconnect the pump from the electrical supply until it
has has fully stopped.
The pump controller contains the drive electronics to control the pump operation.
The pump controller controls the supply of electric current to the motor for the operating
conditions. This allows the pump to be connected to a single phase mains supply.
The interface control panel is installed on the pump controller. The pump can be operated:
▪Manually, with the buttons on the user interface control panel. Refer to Figure: Control
panel.
▪Remotely, with the serial communications or the digital and analogue process control
(parallel). The control is connected to the pump through the 15‑way D‑type interface
connector. Refer to Figure: Pump features and Connection for remote control and
monitoring.
Operator Guide
RUO-IDV-05-14943-A
SCIEX Dry Pump MSR 130
Page 12 of 40

3. Technical data
3.1. Operating and storage conditions
Table 3 Operating and storage conditions
Range Data
Ambient operating temperature range 5 °C to 40 °C
Ambient operating humidity range 10% to 90% RH (non‑condensing)
Maximum operating altitude 2000 m
Ambient storage temperature range -30 °C to 70 °C
Pollution degree 2
Equipment type Indoor use
Enclosure protection IP20
Note:
The pump-system is designed to meet the electrical safety creepage and clearance
requirements for 3000 m altitude. For maximum thermal performance, de-rating is required
between 2000 m and 3000 m. Reduce the maximum operating ambient temperature from
40 oC to 35 oC between 2000 m and 3000 m linearly. This de‑rating meets the requirements
of IEC 282‑1.2.
Figure 4 Dimensions
Table 4 Mechanical data
Parameter Units Data
Overall dimensions (L x W x H) mm 696 x 297 x 343
Maximum tilt angle deg 25°
Nominal rotational speed rpm 9000
Mass kg 77
Inlet connection - NW40
Outlet connection - NW25
SCIEX Dry Pump MSR 130
Page 13 of 40
Operator Guide
RUO-IDV-05-14943-A

3.2. Performance
Table 5 Performance data
Parameter Units Data
Maximum pumping speed with 16.6 mm restrictor em-
bedded m3/h 126
Maximum pumping speed at atmospheric pressure m3/h 6
Ultimate pressure mbar 0.02
Maximum continuous inlet pressure mbar 20
Maximum continuous exhaust pressure bar 0.4
Suck‑back protection - By exhaust valve
Leak tightness (static) mbar l/s-1 < 1 x 10-5
Maximum water vapor pumping rate kg/h 0.3
* Values for the maximum pumping speed are taken at a sea level. At levels higher than sea
level, the pump performance can be affected and the rotational speed can drop below the
nominal value.
Table 6 Sound data
Declared dual‑number noise‑emission values in accordance with ISO 4871
Data
Measured A‑weighted emission sound pressure level, LpA at ultimate
vacuum 1 m from the pump in free space dB(A) 55.4
Uncertainty, KpA dB(A) 2.5
Values from ISO 3744: 2010
Figure 5 Performance graph
Operator Guide
RUO-IDV-05-14943-A
SCIEX Dry Pump MSR 130
Page 14 of 40

3.3. Materials exposed to gases
The materials and the components exposed to the gases in the pump are:
▪Iron
▪Aluminium alloy
▪Steel
▪Fluoroelastomer (seals)
▪PTFE (seals)
▪PFPE lubricant
3.4. Intake gas specification
Table 7 Intake gas specification
Specification Reference data
Intake gas Dry air, nitrogen, argon or other inert gases
(except Xenon and Radon)
Intake gas interface 8 mm tube compression fitting
Maximum allowable intake gas supply pres-
sure
7 bar (gauge), 100 psig, 7 x 105 Pa
Minimum allowable intake gas supply pres-
sure
3 bar (gauge), 45 psig, 3 x 105 Pa
Minimum purity ISO 8573 solids class 1
Typical flow at 3 bar 4 slm
Refer to Gas ballast operation on page 31.
3.5. Electrical data
Table 8 Electrical rating for continuous operation
Supply voltage
(V a.c. rms)
Phase Frequency
(Hz)
Rated current
(A rms)
Max continuous
current (A rms)
Max overload
current (A rms)
200 - 240 +/-10% Single 50 ‑ 60 8.5 10 16.5 for maximum
3 minutes
Note:
In a transient overload condition the maximum overload current drawn by the pump is
10 amps. Refer to Transient overload protection for more information.
SCIEX Dry Pump MSR 130
Page 15 of 40
Operator Guide
RUO-IDV-05-14943-A

4. Installation
4.1. Installation safety
CAUTION: SAFETY INSTRUCTIONS
Follow all safety instructions and take note of all appropriate precautions.
CAUTION: BLOCKED EXHAUST PIPELINE
Risk of damage to equipment. Make sure the exhaust pipeline is not blocked. If an exhaust
isolation valve is used, make sure that the pump is not operated with the valve closed.
Possible hazards on the dry pumping system include electricity, process chemicals, and
Fomblin® (PFPE) oil:
▪Contact us or see sciex.com/support/request-support for advice or assistance on
installation.
▪Do not remove the temporary covers from the system inlet and exhaust until ready to
connect.
▪Do not operate the system unless the inlet and exhaust are connected to the vacuum and
exhaust extraction system.
▪Isolate the other components in the process system from the electrical supply to prevent
accidental operation.
▪Electrical supplies are potentially hazardous energy sources. Lockout and tagout before
you do the maintenance.
▪Obey all national and local rules and safety regulations when you install the system.
▪Tighten the cables, hoses and pipework during installation to prevent a trip hazard.
▪Make sure that the installation area is clean and free from debris and contamination
before you install the pump.
▪Make sure that all facilities given in this manual are available for the system to perform
correctly.
4.2. Unpack and inspect
WARNING: DAMAGED PUMP
Risk of injury to people or damage to equipment. Do not use the pump if it is damaged.
Failure to do so can result in injury to people and/or damage to equipment.
CAUTION: PUMP LIFE
Risk of damage to equipment. Unpack the pump carefully and avoid excessive shock to the
pump. Excessive shock will damage the bearings and reduce the life of the pump.
Operator Guide
RUO-IDV-05-14943-A
SCIEX Dry Pump MSR 130
Page 16 of 40

Figure 6 Unpacking Instruction
Refer to Table: Mechanical data for the mass of the pump.
To unpack the pump follow the instruction as shown in the Figure: Unpacking Instruction.
The pump is attached to a wooden pallet with metal brackets in a cardboard package. The
metal brackets must be removed and kept.
1. Open the cardboard box from the top.
2. Remove the packing material. Keep all the packing materials for use in inspection and if
the pump is returned for service.
3. Examine the pump for damage. If the pump is damaged, tell your supplier and the carrier
immediately. Give the supplier and the carrier the information that follows:
▪part number of the pump
▪serial number of the pump
▪order number
▪supplier's invoice number
4. Do not use the pump if the pump is damaged.
5. If the pump is not to be used immediately, store the pump in the conditions given in
Storage.
6. The pump is supplied with sealed inlets and outlet to prevent the entry of dust and vapor.
Do not remove the seals until the pump is ready to be installed on the vacuum system.
4.3. Mechanical installation
WARNING: HEAVY OBJECT
Risk of physical injury. Use suitable equipment to lift the pump.
WARNING: TRIPPING HAZARD
Risk of injury or damage to equipment. Make sure that cables or pipe work attached to the
pump are installed carefully to prevent a slip or trip hazard and the damage to the cable.
SCIEX Dry Pump MSR 130
Page 17 of 40
Operator Guide
RUO-IDV-05-14943-A

WARNING: LIFTING EYE INTEGRITY
Risk of injury or damage to equipment. Make sure that the maximum angle between the
paired slings used to lift the system is 45 degrees. Increased angle could decrease the
lifting eye integrity.
WARNING: INSTALLATION SAFETY
Risk of injury or damage to equipment. Install the pump in the vacuum system before you
connect the pump to the power supply. This will make sure that the pump is not operated
and injure people during installation.
WARNING: TOPPLE HAZARD
Risk of injury or damage to equipment. Do not exceed the topple angle when you move the
pump or the pump can fall over and injure people.
WARNING: HEAVY OBJECT
Push-pull hazard with strain injury. Push or pull the pump system only for short distance and
over flat surfaces. Lift the system if the floor is uneven or has obstacles.
WARNING: EXHAUST BLOCKAGE
Risk of injury or damage to equipment. A peak pressure of 3 bar(g) can be generated in the
pump if the exhaust or pipework attached to the exhaust are blocked.
WARNING: STATIC PRESSURE
Risk of injury or damage to equipment. Do not step or stand on the pump, it is not designed
to withstand large static loads.
CAUTION: INSTALLATION SAFETY
Risk of damage to the environment. Obey all local legislation when the pump is installed or
removed to reduce the impact of the pump on the environment.
CAUTION: CONDENSATE DRAINAGE
Risk of damage to equipment. Use a catchpot to prevent the drainage of condensate back
into the system. Condensate that drains back into the system could damage the pump.
Note: Do not touch power cable with hot surfaces.
Obey the instructions that follow when you install the pump:
▪Make sure that there is no blockage to access the pump electrical supply cable or the
other controls.
▪Make sure that there is a minimum air gap of 40 mm on all sides of the pump to allow
effective air circulation.
Operator Guide
RUO-IDV-05-14943-A
SCIEX Dry Pump MSR 130
Page 18 of 40

▪Make sure that the system is on a firm and levelled surface that can support the mass of
the pump.
▪Make sure that the system is installed away from combustible materials.
▪You must do a risk assessment of the location and make sure that you can move the
pump safely and as per the local and national manual handling guidelines.
To attach the system to the floor:
1. Put the M10 (class 12.9) bolts (not supplied) in the slotted holes of the shipping brackets
to attach the the system to the floor.
2. Tighten the M10 (class 12.9) bolts.
3. If the vibration transmission to the floor is a problem, install the applicable vibration
isolators (not supplied) between the brackets and the tie bolt or the stud.
4. Level the pump to a maximum of 5 degrees (measured at the pump inlet).
Note:
The shipping brackets that are used to attach the pump to the shipping pallet can be used for
seismic restraint. The shipping brackets are designed to withstand a level 4 earthquake at a
ground floor installation.
To move the pump:
1. Attach the correct lifting equipment to all 3 lifting eyebolts. Refer to Figure: Pump features.
2. Move the pump carefully to the installation area. Refer to Table: Mechanical data for
weight of the pump.
3. Adjust the levelling feet (Refer to Figure: Pump features) to make sure that the dry
pumping system is levelled and not supported by the castors. The recommended jacking
height is 5 mm.
4. Remove the plastic caps from the inlet and exhaust before you connect the pump to the
vacuum system. Use appropriate NW vacuum fittings for the connection to the system.
Obey the instructions that follow when you connect the pump to the vacuum system:
▪Connect the pump to an exhaust line to minimize the noise and the exhaust emissions.
▪Make sure that the pipeline connected to the pump inlet is as short as possible. Make
sure that the pipeline has a minimum internal diameter to get maximum pump speeds.
▪Put support under the vacuum pipeline to prevent the load on the coupling joints.
▪Make sure that the pump exhaust line is not blocked as a pressure of 3 bar(g) can be
generated in the exhaust pipework. Connect the pump with appropriate pipework and
fittings.
▪If necessary, install flexible bellows in the system pipelines to reduce the transmission of
the vibration and to prevent the load on the coupling joints. The pressure rating of the
bellows must be higher than the highest pressure generated in the system. We
recommend that you use the manufacturer's bellows.
▪Install an inlet isolation valve in the pipeline between the vacuum system and the pump.
The inlet isolation valve isolates the vacuum system from the pump when the system is
set to off. This prevent the flow of the process gases and particles back into the vacuum
system.
▪Make sure that the sealing surfaces are clean and are not scratched.
▪We recommend that you use an exhaust extraction system appropriate for use with all
pumped process gases. Make sure that the exhaust extraction system is not blocked or
obstructed when the pump is in operation.
SCIEX Dry Pump MSR 130
Page 19 of 40
Operator Guide
RUO-IDV-05-14943-A

4.4. Leak test the system
WARNING: SYSTEM LEAK TEST
Risk of injury or damage to equipment. Do the leak test of the system after installation. Seal
all the leaks found to prevent leakage of dangerous substances out of the system and
leakage of air into the system.
We will accept no liability or warranty claims for damages caused from flammable mixtures
because of air leaks.
1. Do the leak test of the vacuum system after installation.
2. Seal all the leaks found.
4.5. Electrical installation
WARNING: ELECTRICAL CONNECTION
Risk of electric shock. The electrical installation must be done by a qualified person. Always
make the electrical connections to the pump after the pump has been installed on the
vacuum system.
WARNING: INSTALLATION SAFETY
Risk of electric shock or damage to equipment. The pump must be electrically installed in
accordance with regional and local codes, and must obey the local and national safety
requirements.
WARNING: HAZARDOUS VOLTAGE
Risk of electric shock or damage to equipment. The logic interface is 30 V maximum rated
PELV and must only be connected to PELV interfaces. Failure to use an correctly rated
supply could result in electric shock.
The pump is a cord‑connected device rated at 8.5 A and must be installed in accordance with
local electrical regulations. The pump is to be supplied from a single phase 200 - 240 V
branch circuit protected supply rated at 15 A maximum. Refer to Table: Recommended
mating plugs.
4.5.1. Connect the electrical supply
WARNING: PROTECTIVE EARTH CONNECTION
Risk of electric shock. Make sure that the pump and electrical cables are suitably protected
against earth (ground) faults. We recommend you attach a protective earth (ground)
conductor (with a cross sectional area of 2.5 mm2/14 AWG) to the protective earth (ground)
stud.
Make the electrical connection to the pump mains connector port (Figure: Pump features)
with an appropriate cord set. Refer to Table: Recommended mating plugs.
The pump must be grounded through the earth (ground) conductor of the IEC60320
connector.
Operator Guide
RUO-IDV-05-14943-A
SCIEX Dry Pump MSR 130
Page 20 of 40
