TTX-2W Four-wheel lithium battery folding vehicle user

manual (Big chair model ) Back to Scootmobiel TTX2W webpage

Environment Safety Effort

Welcome to use

 Thank you for choosing TTX-2W four-wheel lithium battery folding bike .(Big

chair model ) (hereinafter referred to as TTX-2W). TTX-2W is a smart and

lightweight folding four-wheeled travel tool. The four-wheel design structure is

stable and suitable for different age groups.

 TTX-2W has advanced and reliable design technology, and energy saving

and environmental protection. TTX-2W has no pollution and noise during

operation, which is conducive to environmental protection.

 This user manual explains the operation of the TTX-2W. For your

safety, please read and follow the relevant regulations.

 If your TTX-2W is transferred, please forward this manual to new users,

who also need to know about this.

 This manual contains as much as possible the function descriptions and

instructions for use when printing. However, due to continuous improvement

of product features, design changes, etc., it may still be inconsistent with the

products you purchased.Please refer to the products actually purchased.

Prohibited items

 It is forbidden to use the laws of the country/region and the relevant administrative units to prohibit the use of such vehicles area us this vehicle.

 It is forbidden to drive horizontally on the slope.

 Overloading is prohibited, and the standard load capacity is 120kg.

 It is forbidden to exceed the safety warning line of each telescopic part of TTX-2W.

 It is forbidden to store at an ambient temperature of 40 ° C or higher and below -20 ° C

 It is forbidden to hand pushing electricity, and it must be ensured that the vehicle is in a power-off state before pushing .

 It is forbidden to turn violently, change the direction greatly and become unstable, which may cause danger.

 It is forbidden to drive in bad weather or in the environment, such as heavy rain, heavy snow, wind and other weather and slippery, muddy and other sections.

 Children under the age of 14 are prohibited from driving alone (the legal driving age is subject to local law).

 It is forbidden to drive TTX-2W without wearing a safety helmet. Wear helmets or related protective gear in accordance with local laws.

 Alcoholics, mental patients, sedatives, etc., as well as those with limited mobility, are prohibited.

 When driving, it is forbidden to leave the steering handle with both hands. It is forbidden to support the body on the steering handle. It is forbidden to leave the foot pedal during driving.。

 It is forbidden to arbitrarily modify the parts of the TTX-2W and drive the modified TTX-2W on the road, which will affect the performance of the TTX-2W and even damage the TTX-2W.

 It is forbidden to drive in an unsafe environment, such as flammable gases, steam, liquids, dust fibers, etc., which may cause dangerous events such as fire or explosion.

Special Note: Do not place the TTX-2W in a car or in a trunk sealed environment during hot weather! At high temperatures, the battery pack may be completely ineffective or even cause burning!

Back to Scootmobiel TTX2W webpage

Safety instructions

The TTX-2W is a sporting entertainment tool that is not a vehicle, but once you drive it into a public area, it will also have vehicle

properties, so there are also security risks that may exist with all vehicles. You may face personal injury from collisions and loss of

control. To ensure your driving safety, please read all instructions and precautions in this manual thoroughly and carefully.

Note: Although this manual will help you better understand and use the TTX-2W, we cannot ensure that all types of

emergency are included. Therefore, we remind you to drive carefully and ensure your driving safety.

 Please take effective safety measures before driving TTX-2W. You must use safety helmets and other protective gear correctly.

Be vigilant during driving, and keep a reasonable safe distance from pedestrians and others.

 In countries and regions where there are currently no national standards and regulations related to TTX-2W, please be sure to strictly follow

the safety requirements of this manual for drivers. The company will not bear any direct liability and joint liability for all property, personal loss,

accidents, legal disputes and other adverse events that cause conflicts of interest caused by violation of instructions in this manual.

 Do not lend the TTX-2W to someone who does not operate it to avoid injury. Please be responsible for the safety of your friends. Please read

this manual carefully before giving TTX-2W to your friends. Please tell him that he must wear safety gear to assist him in driving.

 Please perform basic inspection of this product before driving TTX-2W every time to confirm that the quick release parts of TTX-2W

are fastened and the steering handle is stable. If you notice abnormal parts of the car body, tires leaking or excessive wear, abnormal

steering, or steering failure, please stop using it immediately, and do not force driving. Please contact the company in time for

troubleshooting to obtain professional guidance.

 Avoid TTX-2W rain or wading. When the rainwater is immersed or the wading water level is flooded to the rear wheel motor hub, the

battery will enter the water and the internal circuit will be short-circuited. In this case, it is strictly forbidden to charge the TTX-2W

again, otherwise it will cause the battery to burn and explode.

Learning to drive

Practice in a safe and empty place until you can get on the bus safely and comfortably, skillfully controlling, steering, parking, and

getting off. Do not drive the TTX-2W out to complex driving conditions and road conditions before you are skilled.

There is a risk of falling and injury during the study, so please wear a safety helmet and protective gear throughout the journey.

1.Check if the power is sufficient before the driving, whether the tire pressure is sufficient, and whether the braking performance is intact.

2. Insert the electric door key into the power switch lock, turn it to the “ON” position, the power indicator light is on, and the power

is turned on before you can drive.

3. Right hand turn the speed control lever slowly backwards to the speed you need to enter normal driving.

4. When you need to stop, first turn off the handle, so that the speed will drop significantly, then brake, keep the vehicle still, turn the key

to “OFF”, this means that the power has been cut off and the key is unplugged. Keep the vehicle stationary. After getting off the electric

scooter with one foot and landing, leave the pedal with the other foot.

5. After use, please charge according to the remaining battery capacity.

The maximum speed of TTX-2W is up to 18km/h, and the turning radius is limited. If you make a sharp turn under the condition of not

high speed, the center of gravity will become unstable if you change the direction significantly, which will lead to the overturning of TTX-

2W and other risks such as falls.

Back to Scootmobiel TTX2W webpage

Folding and unfolding steps

Folding

Stop the TTX-2W on a flat place, remove the seat part before folding, and pull up the large red

sphere on the right to fold it successfully.

After folding, you can pull the TTX-2W direction bar to tow it. If you need to put it in the car or

transport it, you can open the quick release handle of the direction bar and rotate the loose nut to

adjust to the lowest height.。

Unfolding

After pulling the lower small red ball handle to unlock the folding lock, pull it back and forth to

complete the TTX-2W unfolded state, and install the seat part.

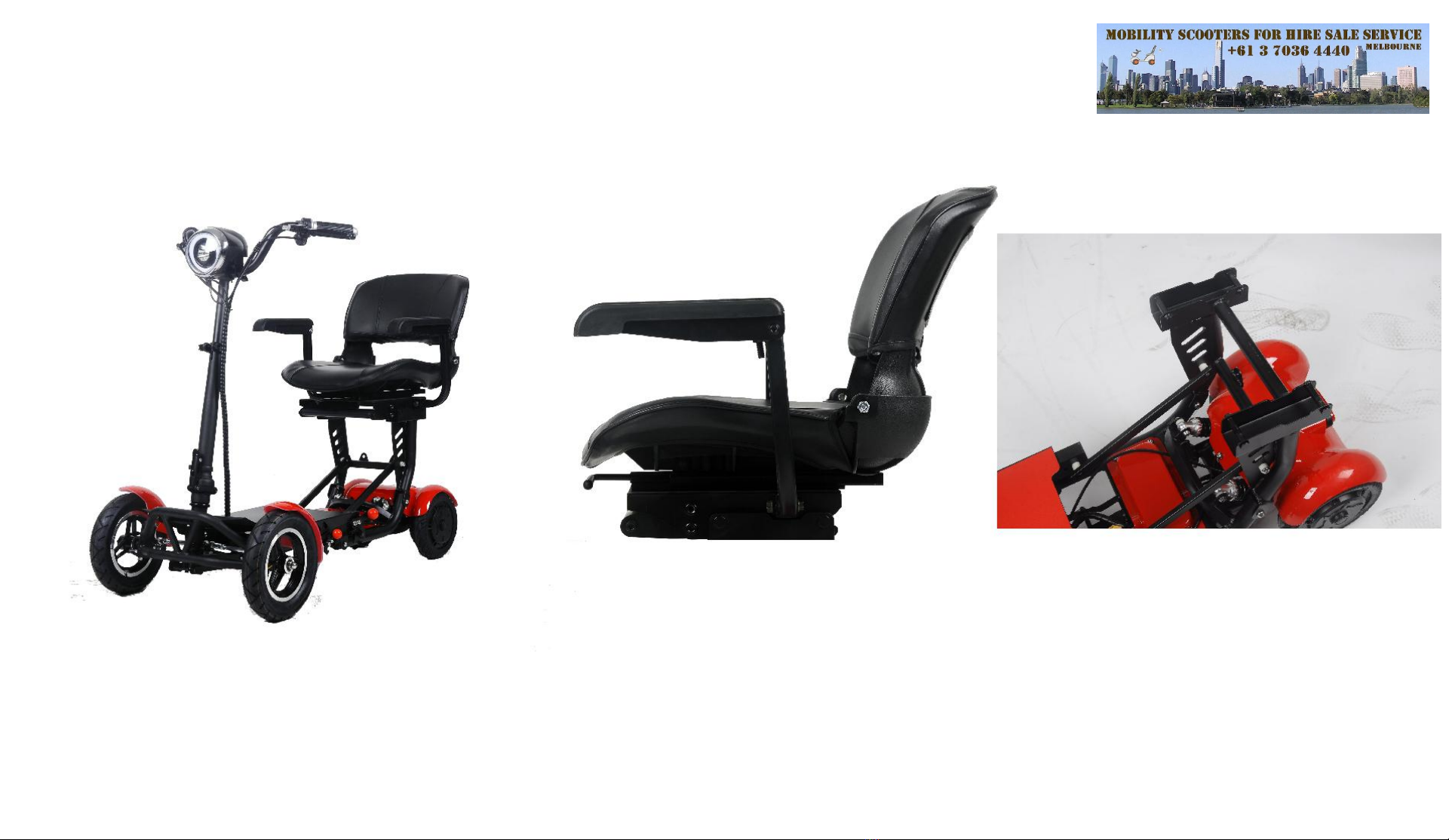

Steering bar and child seat adjustment

Steering bar height adjustment Seat installation and removal

First open the quick release handle and rotate the loose

nut. Adjust the direction lever to the appropriate height

according to your height. After the adjustment is completed,

tighten the nut and lock the quick release handle.

When adjusting the steering bar, care should be taken not

to expose the safety marking line of the directional tube riser.

Installation: Pick up the seat, first insert the slot

behind the seat into the bracket behind the seat,

pull the bar under the seat, and insert the groove in

the front of the seat into the bracket in front of the

seat. The small bracket can be adjusted forward and

backward. Seat position.

Disassembly: Pull the bar under the seat and lift

the seat up to remove the seat

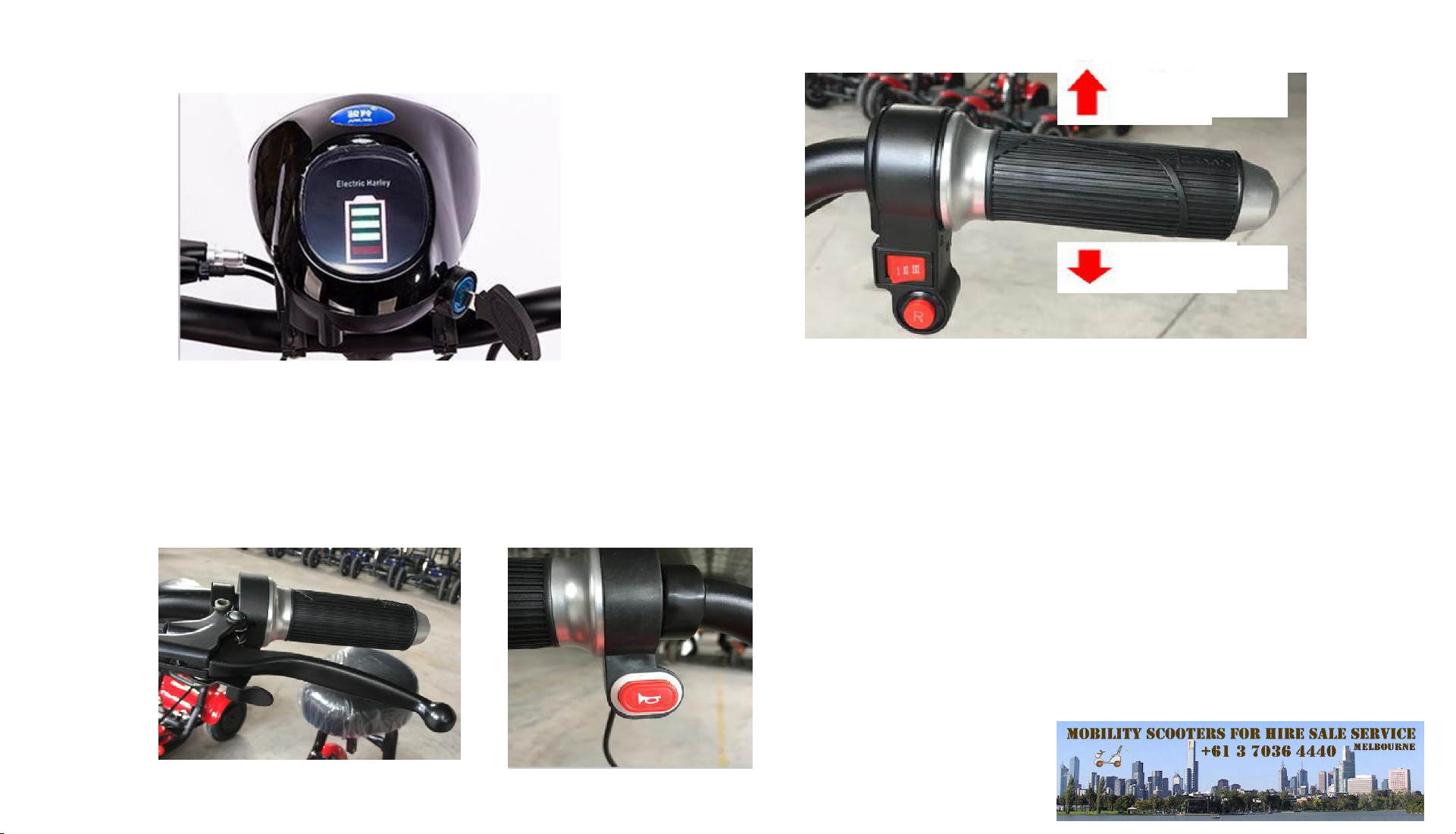

Function diagram

LCD instrument assembly, lock, LED headlights

and power display.

Insert the key clockwise to turn on the power switch

once, otherwise turn off the power switch, turn

clockwise twice to turn on the LED headlights

speed down

Speed up

Turn the speed control handle, turn the handle on the right hand,

and adjust the acceleration and deceleration according to the

direction shown in the figure.

Three-speed shift switch, I, II, III three gears

respectively correspond to 6/12/18km / h.

The reverse switch "R", the pressed state is the reverse

gear, and then the rebound state is the forward gear.

Horn switch, press the horn button to sound, to

remind the passing pedestrians and vehicles, to avoid some

unnecessary traffic accidents.

Parking parking system (two- speed adjustment of

handbrake), parking in the way to prevent uneven

road slipping.

Charging method

The charging port is under the left

pedal of the TTX-2W body, and the

charging port cover is opened and the

charging interface is dry.

Please insert the positioning

groove of the charging port of

the charger at the charging

port of the car body first, and

then connect the charger plug

to the ac power socket.

After charging, unplug the AC

power supply, and then unplug

the connector that is connected

to the charging port of the car.

In order to ensure the safety of transportation, the TTX-2W battery pack is not fully charged. Due to the self-consumption of electricity during the

transportation and storage cycle, it may cause low or no power when first used. This is normal. Don't worry. Charge according to the charging method.

Please use the TTX-2W original charger for charging. Do not use other chargers for charging. The company will not be responsible for any

consequences caused by not using the original charger.

The TTX-2W charging time takes about 5~8 hours (depending on the battery pack capacity). When charging, the indicator light on the charger

lights up red, indicating that the power is on and charging. When the indicator changes from red to green, the battery is fully charged. Stop charging

at this time. The maximum charging time should not exceed 10 hours. Long-term charging will affect the life and safety of the battery pack.

It is forbidden to disassemble the charger ,As it has a high voltage circuit.

Do not connect the charger to the AC power supply without the charger working, otherwise it will damage the life of the charger and may cause other

dangers. When charging, the surrounding environment should be empty, ventilated, no fire, no flammable or explosive materials around, and do not

cover anything on the charger. Pay attention to prevent liquid and metal particles from entering into the charger, prevent falling and impact, so as to

avoid damage.

Back to Scootmobiel TTX2W webpage

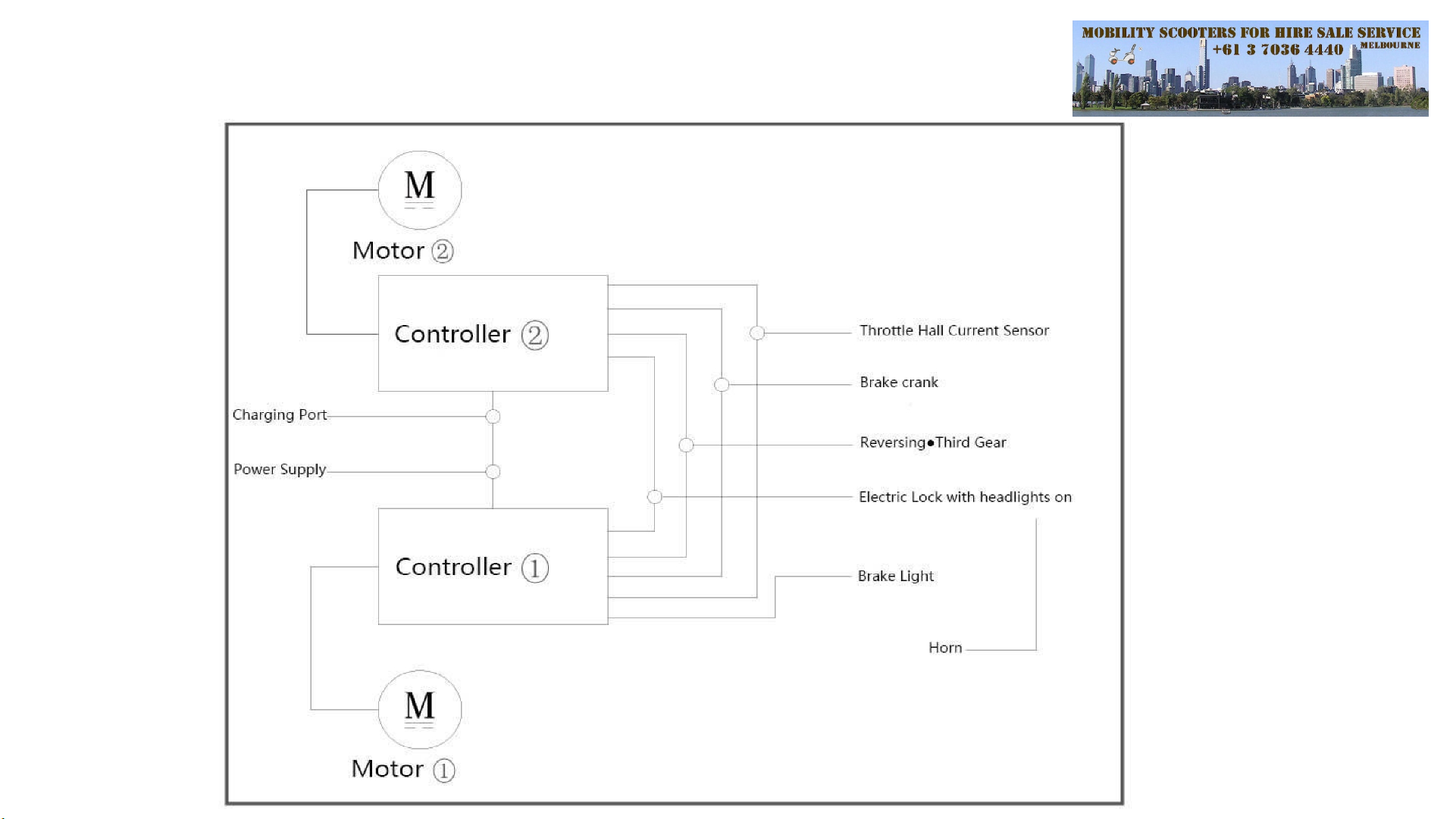

Electrical Schematic Diagram

brake lever

Technical Data Sheet

Product name

TTX-2W Four-wheel folding bike (Big chair model)

Overall dimensions

980x550x830mm

Pack up the size

370x550x690mm

Packaging size

630*410*745mm

Motor power

250Wx2

Front / Rear wheel size

10/8 inch

Lithium Battery

36V10Ah / 36V15.6Ah

Charger

100~240V，50-60Hz

Charging time

5h / 8h

Max. speed(km/h)

6/12/18km/h

Turning Radius

1.5m

Max.climbing grade

12°

Max.loading weight

120kg

Ground Clearance

9.5cm

Travel Range

25km/40km

N.W / G.W

29kg/34kg

Option parts

baskets

*The actual range of driving range is affected by vehicle configuration, load, temperature, wind speed, road surface, operating habits and other factors. The data in

this manual are for reference only.

*Actual product size and weight may vary slightly due to different measurement methods, assembly tolerances and configurations. The data in this manual are

for reference only.

*The technical parameters of TTX -2W will vary from country to country, and the data in this manual are for reference only.For TTX-2W technical parameters,

please refer to the information provided by the actual purchase office.

Maintenance

If stains appear on the surface of the TTX-2W body, wipe it with clean water or a mild detergent, and then wipe it off with a dry cloth.

Tip: Do not use alcohol, gasoline, kerosene or other corrosive, volatile chemical solvents to clean, otherwise it will seriously damage

the appearance and internal structure of the car body.

It is forbidden to use high pressure water gun to wash, so as to avoid the internal electronic components and wiring caused by the potential accident.

When the TTX-2W is not in use, try to store it indoors in a dry and cool place. Try to avoid storing it outdoors for a long time. Sunlight exposure,

overheating, and cold outdoor environments all accelerate the appearance of the TTX-2W and the aging of the tires and reduce the life of the TTX-

2W and its battery pack.

Do not disassemble or modify this product by yourself. The company does not bear all the consequences. It is forbidden to use any spare parts not

specified by the company. Once used, you will lose your warranty. If you need to repair or replace parts, please contact our company or local

authorized dealer.

Maintenance of TTX-2W battery pack

Do not place the TTX-2W at temperatures above 40 °C or in low temperatures below -20 °C (for example, do not place this product or its battery pack in a

car exposed to summer exposure). Do not put the battery pack into fire. Otherwise, it may cause battery failure, overheating, and even a risk of fire.

Avoid completely exhausting the battery and recharging it. Try to use it as much as possible. This will greatly extend the life of the battery pack. In
