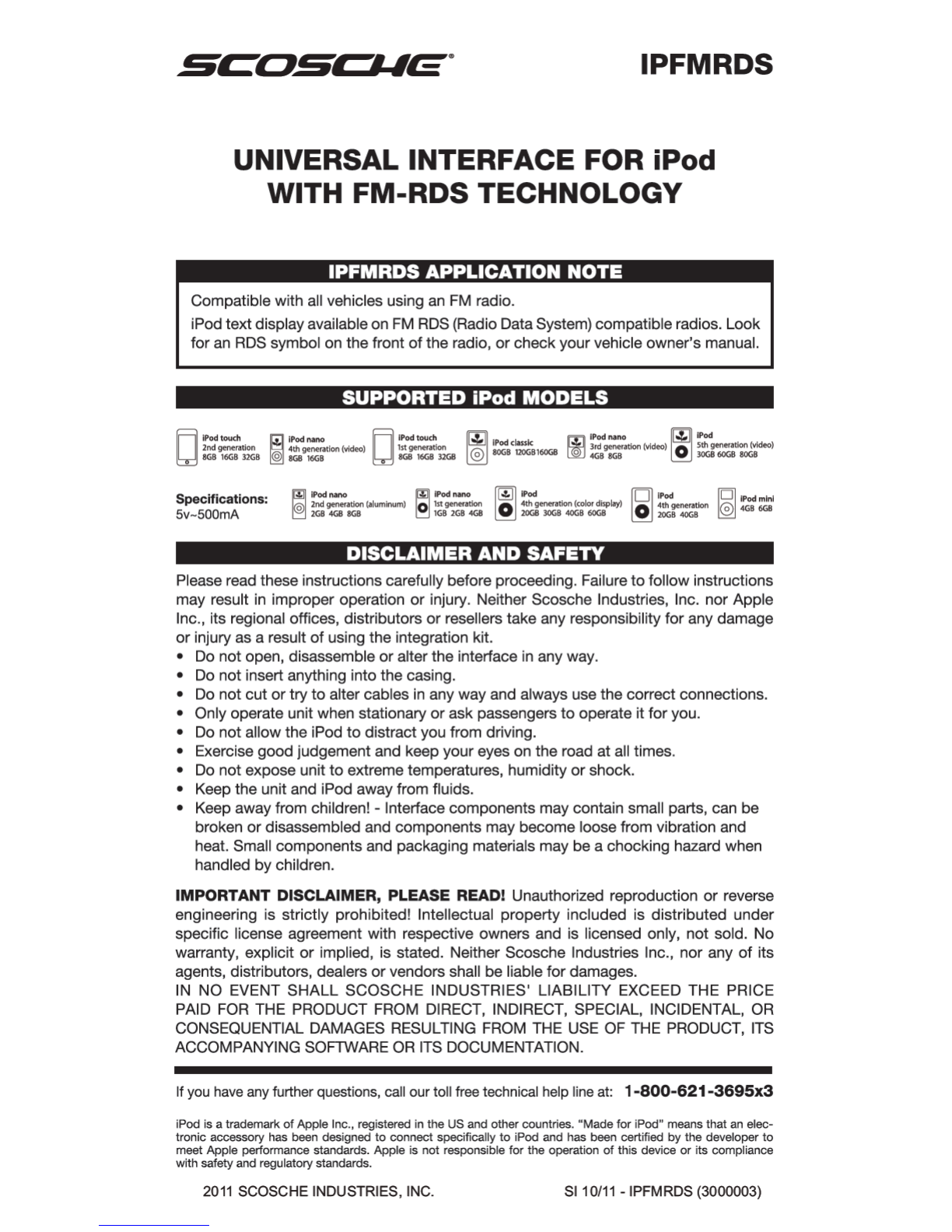

Scosche IPFMRDS User manual

IPFMRDS
UNIVERSAL INTERFACE FOR
iPod
WITH FM-RDS TECHNOLOGY
IPFMRDS APPLICATION NOTE
Compatible with al l veh icles using an FM radio.
iPod text display available on
FM RDS (Rad io Data System) compatibleradios. Look
for
an RDS symbol on the front of the radio, or check your vehicle owner's manual.
SUPPORTED iPod MODELS
D
iPod t0<1cll ~ iPod nano D IPod t0<1ch ~ IPod
1 k
~ IPod nano ~ IPod . .
2ndgeneration 4thgeneration{video) 1st generati on f.::\ 80GB c ~Bl60GB 3rd generation (v ideo) 0 Sth generauon (VIdeo)
8GB 16GB 32GB @ 8Gi1 16GB 8GB 16G8 32G11 0 ° 4GB 8GB 30<;8 60G8 80<;8
S pe cifi cat ion s:
5v -5 00mA
~
iPodnano ; IPod nano ~.,f. iPod ~ iPod ~ IPod mini
2nd generation (a l uminum) 0 1st generadon 0 4 th generation (co lordispl ay) O 4th generation 0- 4GB 6GB
2G8 4G8 8GB 1GB 2GB <G8 20GB 30GB 40GB 60GB 20GB 40GB '.:::.;
DISCLAIMER AND SAFETY
Please read these instructions carefully before proceeding. Failure to follow instructions
may result in improper operation
or injury. Neither Scosche Industries, I nc . nor App le
Inc., its regional offices, distributors
or resellers take any responsibility for any damage
or injury as a result of using the integration kit.
• Do notopen, disassemble
or alter the interface in any way.
• Do not insert anything into the casing.
• Do not
cut or tryto alter cables in any way and always use the correct connections.
• Onlyoperate unit when stationary
or ask passengers to operate it f or you.
• Do not
al l ow the iPod to distractyou from driving.
• Exercise good judgement and keep your eyes on the road
at all times.
• Do notexpose
un it to extreme temperatures, humidity or shock.
• Keep the unit and iPod away from fluids.
• Keep away from children!- Interface components may contain small parts, can be
broken
or disassembled and components may become loose from vibration and
heat. Small components and packaging materials may be a chocking hazard when
handled by ch
il dren.
IMPORTANT DISCLAIMER, PLEASE READ! Unauthorized reproduction
or reverse
engineering is strictly prohibited! Intellectual property included is distributed under
specific license agreement with respective owners and is licensed only, not sold. No
warranty, explicit
or implied, is stated. Neither Scosche Industries Inc., nor any of its
agents, distributors, dealers
or vendors shall be liable for damages.
IN NO EVENT
SHA LL SCOSCHE INDUSTRIES' LIABILITY EXCEED THE PRICE
PAID
FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR
CONSEQUENTI
AL DAMAGES RESULT ING FROM THE USE OF TH E PRODUCT, ITS
ACCOMPANYI
NG SOFTWARE OR ITS DOCUMENTATION.
If you have any furtherquestions, call our to ll free technical help line at: 1-800-621-3695x3
iPod is a trademark ofApple Inc., regis te red in the USand other countries. "Made for iPod" means that an elec-
tronic accessory has been designed to connect specifically to iPod and has been certified by the developer
to
meet Apple performance standards. Apple is not responsible for the operation of this device or i ts compliance
with safety and regulatorystandards.
2011 SCOSCHE INDUSTRIES, INC. Sl 10/11 - IPFMRDS(3000003)

CHARGING THE iPod
CHARGING FOR PREMIUM CABLE
The interface automatically charges the battery of the iPod when connecte d. Most ve-
hicles turn
off ACC power when the key is in the OFF pos it ion and the iPod wi ll stop
playing and charging. However, in some veh icles the ACC power is always on and the
iPod should be disconnected
to prevent draining the vehicles battery.
CHARGING ICON WILL APPEAR IN THE UPPER
RIGHT HAND CORNER OF
THE IPod SCREEN
TO INDICATE CHARGING
BATTERYICON WILL APPEAR IN THE UPPER
RIGHT HAND CORNER OF
TH E IPod SCREEN
TO INDICATE CHARGING HASSTOPPED
FM FREQUENCY SETTING
The frequency selector switch is located on the interface unit and is used to set the
optimal transmitting frequency. Incorrect dip switch settings may cause the IPFMRDS
interface
no t to work properly or not to operate at al l. Disconnect the vehicle harness
from module a
nd cycle ign it ion off fo r 5 seconds after changing the switche s! After
making changes
to the frequency selector be sure to tune to the correct FM frequency
on which the iPod wi
ll be heard.
NOTE: Try to select a transm
it ting frequency that is no t occupied by a local FM radio
station F
or more information please contact Tech Support at:
1-800-621-3695 Ext.3
FREQUECY
SELECTOR
ON/OFF SWITCH POSITIONS
~ ~ -~ oFF n
~ l.J oN
1 2
FREQUENCY CONFIGURATION SETTINGS
DIP SWITCHCONFIGURATION
FM(MHz) DIP SWITCH 1 DIPSWITCH 2
88.7 OFF OFF
93.3 ON OFF
97.5 ON ON
107.7 OFF ON
2

INSTALLATION
Installation should onlybe performed byaqualified professional. Beware ofsharp edges
to avoid injury and exercise caution when removing trims as they may break.The inter-
face unitshould beplaced at an accessible location, such as in the glovebox, the center
console or under the front seat.
1. Make sure that the radio code is available before disconnecting battery. (applies
toAnti-theft radios only). Disconnect Negative battery terminal.
2. Remove the radio. Call Scosche Tech support ifyou need assistance with radio
removal: [phone] Ext. 3.
3. Access the antenna connections at the back of the radio. Unplug the Factory
antenna cable and connect to the "Female"Antenna "IN" cable of the IPFMRDS.
NOTE: Some vehides do not have standard antenna connections and require the
use of Male/FemaleAntenna adapters. Adapters are sold separately. Consult
Tech support if your antenna connection differs from the IPFMRDS plugs.
4. Connect the "Male" Antenna "OUT' cable coming from the IPFMRDS to your radio's
antenna location.
5. Connect the Power, Ignition and Ground wires of the IPFMRDS power cable. Call
Tech Support if you need assistance with Factory wires colors and/or locations.
A IN AntennaOUT ntenna
(to Car Ant.) (to Radio)
IPFMRDS Module
Frequency
Selector
Not Used
DIAGRAMS:
IPFMRDS Module
USB Upgrade
port
Yellow
Black
(Ground)
Red
(+12Vconstant) (+12Vignition)
PowerCable
iPod
D
@
t
tI It
iPod Cable \\ r
...........___ \\ _,.
5. Verify that all connections have been properly made.
6. Reconnect the car's battery. Test the unit before seating the cables and reinstalling
the panels/trim.
3

FM-RDS FOR iPod
Select the FM radio source on the radio and t une to the frequency that was selected
on the interface unit. As soon as the radio is tuned to the appropriate frequency, audio
from t he iPod will be heard.
rr~ I T~ e ) (·
)· "8
08
... rF~~, Artist N1 -I
lf>T l I .,.r_ I
cruo
@
..,.. 1 ~ 11 -: I ·: I
... . o
-:o- J
' . .
I I
FM FR EQUEN CY
RDS TEXT
ABOUTRDS
Radios wit h RDS capab il ity all ow the currently playing song title and art i st name to be
disp layed on the screen of the radio. To find out if a radio has RDS, tune to a popular
radio station and if the station name is displayed then the radio has RDS capab il ity .
TROUBLESHOOTING
PROBLEM SOLUTION
Make sure to select the FM source on the rad io and
Cannot hear audio from iPod. tune to the correct
FM frequency. Check DIP switch
settings. With the ignition
OFF disconnect vehicle
harness from module for a few seconds and reconnect.
Select
an FM frequency that isnot already occupied
Audio from iPod receives by a radio station. Select a frequency preset with the
high amounts
of static and least amount
of static. It's best to drive around and
radio interference. experiment to find the ideal setting. Reposition
interface unit. If problem persists, the professional
installation is recommended.
Cannot switch back to With pro-install, the iPod must be disconnected before
local radio stations while the vehicle's factory antenna is reactivated.
the iPod is connected.
iPod continues
to charge Some vehicle will not turn
off ACC power and the iPod
when igniti
on is in OFF
wi ll continue to charge until disconnected! To prevent
position. battery f
rom draini ng or possibly being damaged, the
iPod MUST be disconnected.
RDS text does not For
RDS text to appear, a strong signal is required.
consistently
or scro ll.
If plug & play connection is used, RDS text may not
always refresh promptly.
LIMITED WARRANTY
Scosche Indu str ies Inc. warrants th is product to be free from defects in material and workmanship for a
period
of 90 days fr om pu rchase. Th is Scoscheproduct is sold with the understanding that the purchaser has
independently determined
the suitability of this product. This warranty Is offered to the original purchaser of
the product on ly. This warranty does not cover the pr oduct if physically damaged, subject to negligence or
misuse, abuse, alteration, accident, or an act of GOD. Thiswarranty does not app ly to productwhich haswater
or physically damaged by accident or which has been misused, disassembled or altered.
The original datedsales slip
or proof of purchasewill establish warrantyel ig ibility. Ifthe productshould prove
defective within the warranty period, retum
the product with proof of purchase to Scosche Industries Inc.
Scosche,
at its opt ion, will replace or repair the product free of charge and return the product postage pa id.
In
no event shall Scosche Industries, Inc. be responsible f or claims beyond the replacement value of the
defective product,
or in any way be liable or responsible for consequential or incidental damages. No empress
warranties and
no implied warranties, whether for fitness or any particul ar use or otherwise, except as set forth
above(which is made expressly in lieu
of all otherwarranties) shall app ly to products sold by Scosche. Scosche
Industries cannot be held responsible for discrepancies/inconsistencies
that may occur due to automoti ve
manufacturing changes or option.
4
