Scott Safety Proton ZM User manual

Proton®ZM
Revision: F
Date: November 2007
ECN: 128383
Part Number: 087-0036

READ BEFORE OPERATING
This manual must be carefully read by all competent individuals
who have or will have the responsibility for using or testing this
product. The product will perform as designed only if it used
and tested in accordance with the manufacturer s instructions.
Failure to do so will result in the warranty and approvals being
null and void. It may also result in serious injury or death.
US & Canadian Intrinsic Safety:
UL/cUL Class I, Groups A, B, C, D T5
European Intrinsic Safety:
0575 II 1 G EEx ia IIB T5 / 2 G EEx ia IIC T5
DEMKO 07 ATEX 0722503X
-40°C Tamb 55°C
WARNING! Read this manual for Intrinsic Safety
precautions. Substitution of components may impair intrinsic
safety, resulting in serious injury or death.
WARNING! If the LCD displays Test do not use
instrument until a successful bump test has been performed
and the LCD displays OK . Failure to do so may result in
serious injury or death.
DO DO NOT
Perform a bump test every 30
days.
Make sure the gas inlet is free
of dirt and debris.
Properly recycle Lithium
batteries when disposing.
Take the instrument apart to
replace or x any parts except
the battery.
Use the instrument after its
expiration date.
Use the gas monitor as a
measurement device.

CAUTION!!
Change battery only in an area known to be non-
hazardous. Failure to do so may result in serious
injury or death.

Table of Contents
General Information...................................................1
Physical Description..................................................4
Display Features........................................................5
Start-up.......................................................................6
Operation....................................................................6
Alarms and Maximum Alarm Hours.........................7
Alarm Set Points and Peak Readings and
Alarm-Minutes Consumed........................................7
Changing the Battery................................................8
Alarm Signals..........................................................10
Calibration Bump Test............................................12
Speci cations..........................................................13

1
General Information
The Proton®ZM is a portable clip-on gas monitor that is
operated by a single key and has a two-year life span
(typical). It can produce a maximum of 730 minutes of alarm
(equivalant to one minute of alarm per eight hours for over
two years).
The Proton®ZM is designed to be clipped to a hardhat, belt
or other clothing, for personal monitoring. Gas levels are
monitored at low and high set points, indicated by three
different types of alarm signals: audio, light and vibrating.
The Proton®ZM requires no calibration, however, a bump test
should be performed every 30 days.

2
Equipment List
1. Proton®ZM Detector with H2S or CO sensor as specified
2. Lithium Battery - installed
3. Spare Lithium battery
4. Alligator Clip - attached
5. Wrist Strap - included
6. Gas Test Adapter - included
7. Operation Instructions - included
See the gure below for a picture of the standard box contents.
Unpacking
Open each shipping box carefully and remove items. Check your
order and packing list for completeness. Examine each item for
external damage.

3
Accessories
Proton®ZM Test Station for automated bump testing
Bump Test gases (cylinders and regulators)
Rubber boot

4
7
Physical Description
1. LED Alarm
2. Display
3. Audio Alarm
4. Gas Inlet
5. Button
6. Alligator Clip
7. Battery compartment
1
2
3
6
5
4

5

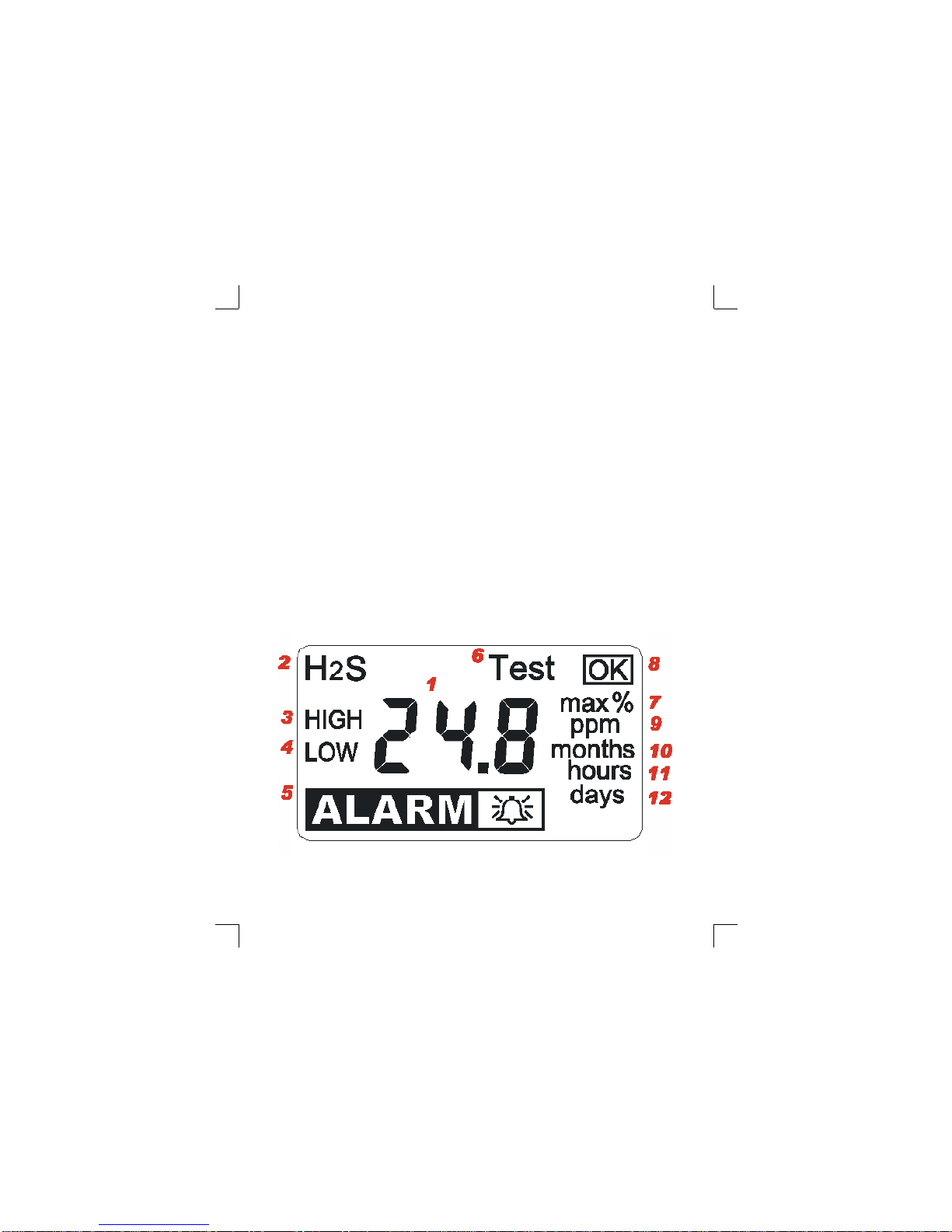

DisplayFeatures
1. Remaining operational life, peak readings, alarm-
minutes (divided by 10) used.
2. Type of detector
3,5 High Alarm
4,5 Low Alarm
5,3 & 4 Alarm Condition
6. Bump Test needed indicator
7. Peak Value
8. Function Status
9. Parts Per Million (unit of measure)
10. Remaining Time in Months
11. Remaining Time in Hours
12. Remaining Time in Days

6
Start-up
Before the monitor is used for the rst time, it is in standby
and the display is blank. To turn on the Proton®ZM:
1. Press and hold the button for five seconds. After a long
beep, the monitor performs a 30-second warm-up.
After the warm-up, the monitor is in normal operating
mode and the remaining typical life span of the battery is
displayed.
Operation
During normal operation, the Proton®ZM displays the typical
remaining operating life in months; no concentration is
displayed.
Operational life is limited to 730 minutes of alarm. The
number of alarm-minutes consumed can be viewed by
pressing the button (see Alarm Minutes Consumed on
page 7).
Warning: The Proton®ZM is sealed with a special screw
and is designed to remain on continuously once activated. All
warranties are null and void if the Proton®ZM is opened. Only
the battery compartment can be opened.
An OK is displayed if the unit has passed bump test
within the last 30 days.
A Test is displayed when the 30-day period has
expired and a bump test is required, or the last
calibration failed.

7
Alarms and Maximum Alarm Minutes
The Proton®ZM is designed to deliver two years of operation
with one minute of alarm per eight hour shift or about 730
alarm-minutes.
During alarm conditions, the current alarm set point will
appear on the LCD. See Alarm Set Points for more details.

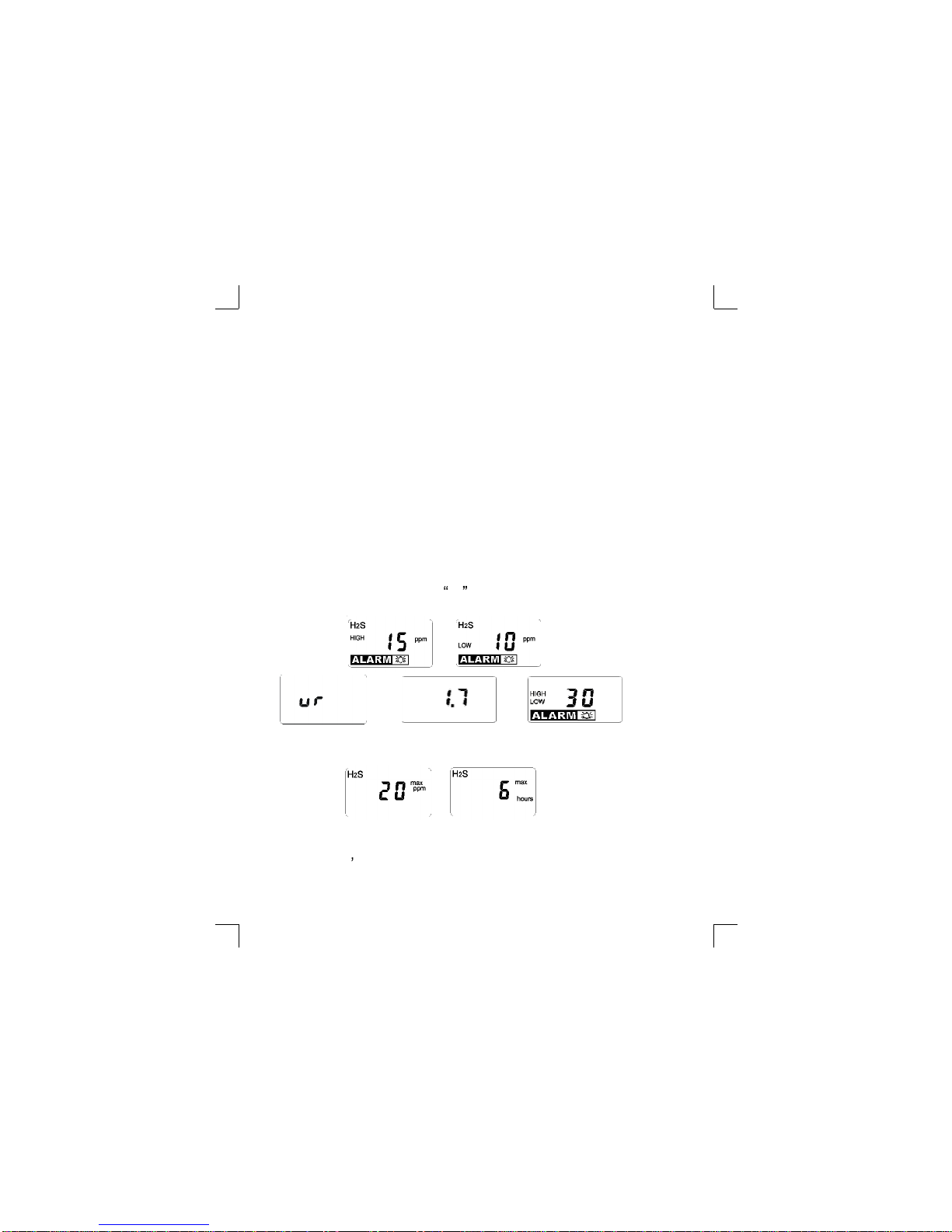

Alarm Set Points, Peak Readings and
Alarm-Minutes Consumed
1. Press the button and the display will test all segments.
The LED will light up, and the monitor will beep.
2. It will automatically display the high alarm limit, low alarm
limit, firmware version ( ur = version), the alarm-minutes
consumed, and then return to normal mode.
3. If an alarm occured within the past 24 hours, the peak
value and the elapsed time since the alarm occurred will
appear.
NOTE: Custom alarms can be as low as 5 ppm for
H2S and 20 ppm for CO and are set at time of order.
Proton®ZMs with custom alarms have a special label on
their back to indicate alarm levels.

8
Changing the battery
CAUTION!!
Change battery only in an area known to be non-
hazardous. Failure to do so may cause serious injury or
death.
To ensure the 2-year life of the detector, the Proton®ZM
comes with a spare battery.

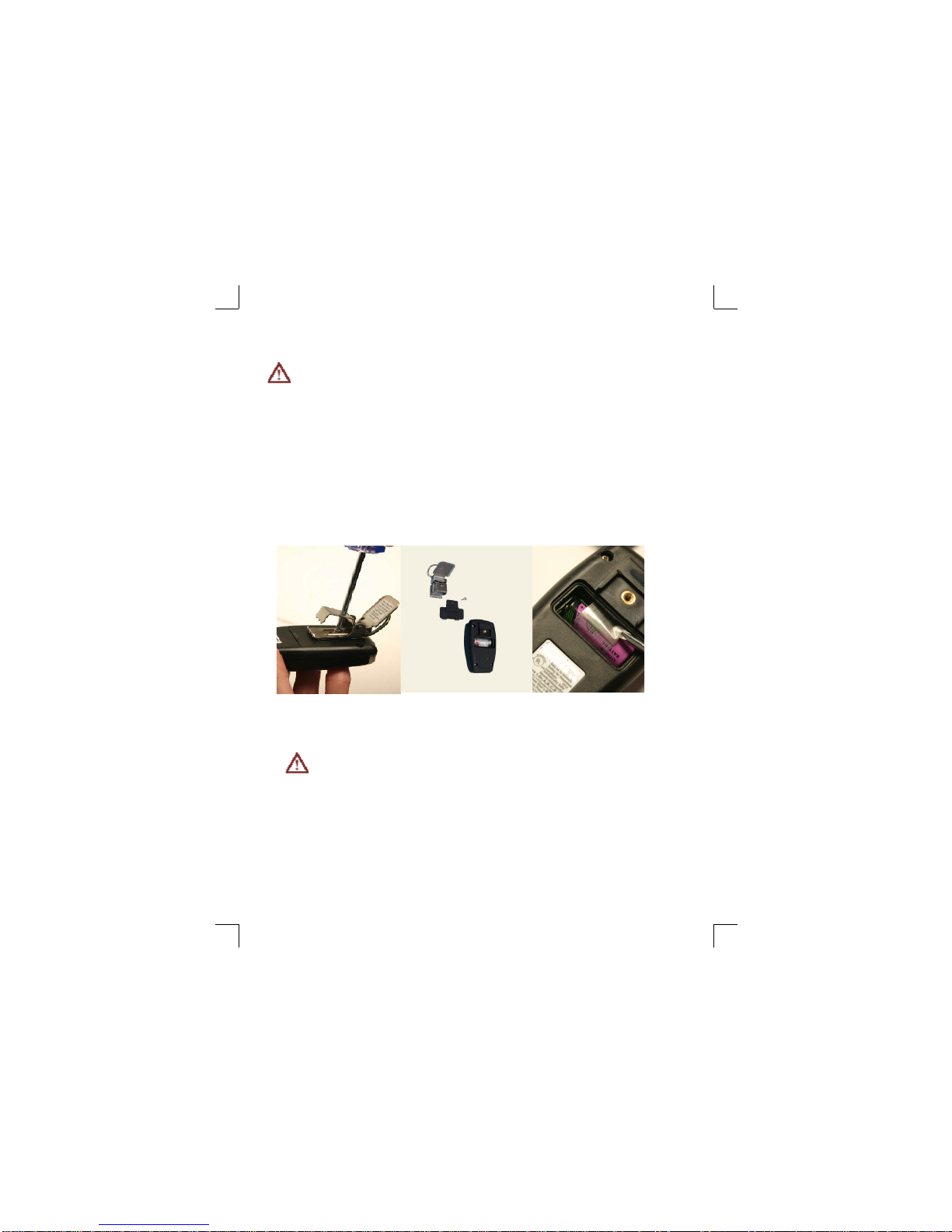

To change the battery:
Step 1a-b. Remove the battery compartment cover on the
back of the detector with a Phillips-head screw driver .
Step 2. Lift the ribbon out.
Warning!!
Use only the following model of batteries:
EVE ER14335
Failure to do so may void UL approval and the warranty.
The instrument may not function properly causing
serious injury or death.
Step 1a Step 1b Step 2

9
Step 3. Using the ribbon, pull the battery out.
Step 4. Replace the old battery using the
orientation markers inside the battery compartment.
Step 4
Step 3

10
Alarm Signals
LCD Reason LED Beeps Vibration
Normal
Mode None None None
Low Alarm Red LED every 2
seconds
1 beep
every 2
seconds
Every 2
seconds
High Alarm Red LED every 2
seconds
3 beeps
every 2
seconds
Every 2
seconds
Bump test
required
every 30
days
None None None
Bump test
failed Red LED
ash Continous
beep None
Seven
days of
life span
remain
Red LED
every
minute
1 beep
every
minute None
Alarm-
minutes
used,
divided by
10
None None None

11

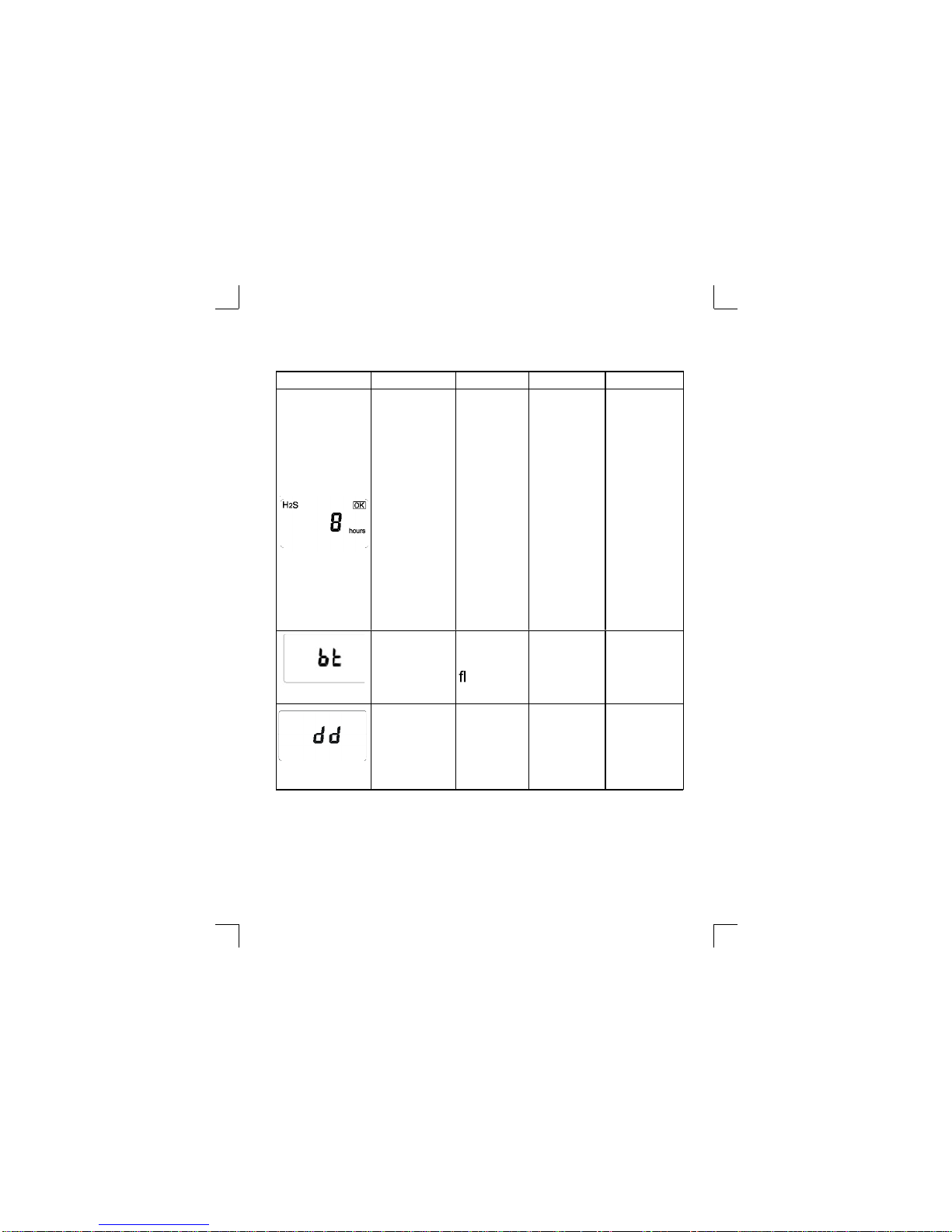

Alarm Signals
Continued from page 10
LCD Reason LED Beeps Vibration
The
instrument
continues
to operate
for 8 hours
after its
life span.
Press
button for
5 seconds
to turn
instrument
off.
Constant
red
1 beep
every
minute None
Battery
is low.
Change
battery
Red LED
ash Continous
buzzer None
Battery is
depleted.
Change
battery
None None None

12
Bump Test
1. To start the bump test, press and hold the button for 5
seconds until the display toggles back and forth between
"bp" (bump) and go .
2. Press the button again for 5 seconds until only bp is
displayed.
3. Attach the gas adapter to the gas inlet on the monitor.
4. Apply test gas to the monitor. (H2S -25 ppm, CO - 50 ppm)
5. If the monitor passes the bump test, the confirmation
message "PA" is displayed and the LED will be green.
6. If the monitor fails the bump test, or the monitor does not
see any gas within 100 seconds, the error message
Er (error) is displayed. The LED will be red and a long
beep will sound. To clear the alarm, press the button
for 5 seconds. The monitor will display cL (clear) for 3
seconds and then display the remaining operating life and
the TEST warning.

13
Speci cations
Size 3.6 in x 2.0 in x 0.9 in
(92 mm x 50 mm x 22 mm)
Weight (inc. clip) 2.9 ounces (82 grams)
Gas Concentration
Range CO, 1 - 300 ppm
H2S, 1 - 100 ppm
Life Span 2 years or 730 alarm-minutes,
maintenance-free
Alarm Set Points CO Low: 35 ppm, High: 200 ppm
H2S Low: 10 ppm, High: 15 ppm
Sensor Type Electrochemical
Response Time Less than 60 sec when exposed
to 50 ppm CO or 25 ppm H2S
Operation Single Key
Alarm Signals Audio alarm - 90dB at 10 cm
Visual alarm - red/green LEDs
Certi cations US & Canadian Intrinsic Safety:
UL/cULClass I, GroupsA, B, C, D, T5
European Intrinsic Safety:
0575 II 1 G EEx ia IIB T5 / 2 G
EEx ia IIC T5
DEMKO 07 ATEX 0722503X
Operation
Temperature Continuous operation:
-20° C to 45° C (-4° F to 113° F)
Intermittent operation:
-40° C to 55° C (-40° F to 131° F)

14
Operation Humidity 0% to 95% humidity,
non-condensing
Resistance Radio
Interference EMC standard 89/336/EEC
Package Water-resistant, shock-resistant
Specifications
Continued from page 13

15
Limited Product Warranty
Scott Health & Safety (SCOTT), a division of Tyco International warrants its
Proton®ZM for Carbon Monoxide and Hydrogen Sul de PRODUCTS (THE
PRODUCTS) to be free from defects in workmanship and materials for a period
of 24 months or 730 alarm-minutes and for the Proton®for Carbon Monoxide
or Hydrogen Sul de 24 months all other sensors 12 months from the date of
original manufacture by SCOTT. This warranty applies to all components of THE
PRODUCTS including all accessories and optional equipment purchased and
supplied at the time of original sale of THE PRODUCTS, EXCEPT consumable
supplies such as lters, batteries, calibration gases, tubing. SCOTT s obligation
under this warranty is limited to replacing or repairing (at SCOTT s option) THE
PRODUCTS shown to be defective in either workmanship or materials.
To maintain the warranty THE PRODUCT must be maintained in accordance with
the operating and maintenance instructions include with THE PRODUCT.
Only personnel of SCOTT or, when directed by SCOTT, authorized SCOTT agents
are permitted to perform warranty obligations. This warranty does not apply to
defects or damage caused by any repairs of or alterations to THE PRODUCTS
made by owner or any third party unless expressly permitted by SCOTT product
manuals or by written authorization from SCOTT. To obtain performance under
this warranty, and as a condition precedent to any duty of SCOTT, the purchaser
must return such products to SCOTT, a SCOTT authorized agents or a SCOTT
authorized service center.Any product returned to SCOTT shall be sent to SCOTT
HEALTH & SAFETY (Attn.: Warranty Claim Dept.), 4320 Goldmine Road,
Monroe, NC 28111. This warranty does not apply to any malfunction of or damage
to THE PRODUCTS resulting from accident, alteration, misuse, or abuse.
THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES,
EXPRESSED OR IMPLIED INCLUDING, BUT NOT LIMITED TO, ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. IN ADDITION, SCOTT EXPRESSLY DISCLAIMS
ANY LIABILITY FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES IN ANY WAY CONNECTED WITH THE SALE OR USE OF
SCOTT PRODUCTS, AND NO OTHER FIRM OR PERSON IS AUTHORIZED
TO ASSUME ANY SUCH LIABILITY.

Thank you for reading this data sheet.
For pricing or for further information, please contact us at our UK Office, using the details
below.
UK Office
Keison Products,
P.O. Box 2124, Chelmsford, Essex, CM1 3UP, Engl nd.
Tel: [phone]
F x: [phone]
Em il: s [email protected]
Please note - Product designs and specifications are sub ect to change without notice. The user is responsible for determining the
suitability of this product.
