Scott PRO-PAK User manual

PRO-PAK
Self-contained Breathing Apparatus
User Instructions
Article No. 2014234
Issue D 12. 2005

i
Self-contained Breathing Apparatus
Contents
WARNINGS.................................................................................................................................................................. ii
1. INTRODUCTION............................................................................................................................................. 1
1.1 ABBREVIATIONS .................................................................................................................................. 1
1.2 BREATHABLE AIR................................................................................................................................. 1
1.3 COMPRESSED AIR AIRLINE SUPPLIES ............................................................................................. 1
1.4 APPARATUS DURATION...................................................................................................................... 2
1.5 PERSONNEL TRAINING ....................................................................................................................... 2
1.6 SERVICING............................................................................................................................................ 2
1.7 SPARE PARTS AND ACCESSORIES................................................................................................... 2
2. APPARATUS DESCRIPTION......................................................................................................................... 3
2.1 GENERAL .............................................................................................................................................. 3
2.2 HARNESS.............................................................................................................................................. 3
2.3 CYLINDER BAND .................................................................................................................................. 3
2.4 THE PNEUMATIC SYSTEM .................................................................................................................. 5
2.5 REDUCER.............................................................................................................................................. 5
2.6 GAUGE AND WHISTLE......................................................................................................................... 5
2.7 DEMAND VALVE ................................................................................................................................... 5
2.8 OPTIONAL ATTACHMENTS ................................................................................................................. 6
2.9 FACEMASKS ......................................................................................................................................... 6
3. PRE-USE AND MONTHLY CHECKS............................................................................................................. 7
3.1 CHECK APPARATUS ............................................................................................................................ 7
3.2 REPLACING SINGLE CYLINDERS....................................................................................................... 7
3.3 REPLACING DUO CYLINDERS ............................................................................................................ 8
3.4 CONVERTING FROM DUO CYLINDERS TO SINGLE CYLINDER.................................................... 10
3.5 RESET DEMAND VALVE .................................................................................................................... 11
3.6 CYLINDER PRESSURE / LEAK TEST ................................................................................................ 11
3.7 DV AND FACEMASK........................................................................................................................... 12
3.7.1 All Facemasks............................................................................................................................. 12
3.7.2 Facemasks with a Web Harness................................................................................................. 12
3.7.3 Facemasks with a Net Harness................................................................................................... 13
3.8 POSITIVE PRESSURE TEST.............................................................................................................. 13
3.9 WHISTLE TEST ................................................................................................................................... 14
3.10 AIRLINE AND DECONTAMINATION ATTACHMENTS....................................................................... 14
3.11 RSM ATTACHMENTS ......................................................................................................................... 14
3.12 HOSES................................................................................................................................................. 14
4. DONNING PROCEDURE ............................................................................................................................. 15
4.1 DON APPARATUS............................................................................................................................... 15
4.2 CHECK DV / OPEN CYLINDER VALVE.............................................................................................. 15
4.3 DON FACEMASK................................................................................................................................. 15
4.3.1 Facemasks with a Web Harness................................................................................................. 15
4.3.2 Facemasks with a Net Harness................................................................................................... 16
4.4 POSITIVE PRESSURE TEST.............................................................................................................. 16
4.5 FACEMASK SEAL TEST ..................................................................................................................... 16
4.6 WHISTLE TEST ................................................................................................................................... 17
4.7 FINAL CHECKS ................................................................................................................................... 17
4.8 ATTACHING AN AIRLINE.................................................................................................................... 17
5. DOFFING INSTRUCTIONS .......................................................................................................................... 18
5.1 DOFFING THE APPARATUS .............................................................................................................. 18
5.2 REMOVE CYLINDER(S)...................................................................................................................... 18
6. AFTER USE .................................................................................................................................................. 19
6.1 CLEANING ........................................................................................................................................... 19
6.2 CHECK APPARATUS .......................................................................................................................... 20
6.3 RECORD TEST DETAILS.................................................................................................................... 20
6.4 STORAGE............................................................................................................................................ 20
7. SCHEDULED MAINTENANCE..................................................................................................................... 21
7.1 MONTHLY............................................................................................................................................ 21
7.2 ANNUALLY .......................................................................................................................................... 21
Registered office: Scott Health and Safety Limited, Pimbo Road, West Pimbo,
Skelmersdale, Lancashire, WN8 9RA, United Kingdom.

ii
WARNINGS
Please Read Carefully and Fully Understand
This manual is for use by personnel trained in the use and care of compressed air
breathing apparatus, and MUST NOT be used as a self-teaching guide by untrained users.
Failure to understand or adhere to the Pro-Pak user instructions may result in injury or
death.
Scott Health and Safety Limited have taken great care to ensure that the information in
this manual is accurate, complete and clear. However, Training & Technical Support
Services will be pleased to clarify any points in the manual and answer questions on
SCOTT breathing apparatus.
The following warnings are in accordance with certifying authority requirements
and apply to the use of breathing apparatus in general:
Breathing apparatus users must be fully trained in the use and care of self-
contained, compressed air breathing apparatus.
Ensure that the selection of the apparatus type is sufficient for the tasks
being undertaken and the hazards likely to be encountered. Please refer to
National Regulations for guidance.
Adequate protection may not be provided in certain highly toxic
atmospheres.
The apparatus must be tested and serviced in accordance with Section 7 -
Scheduled Maintenance and the notes in Section 1 under Training &
Servicing.
The quality of air used to supply and charge breathing apparatus must meet
the requirements of EN 12021 : 1999. See Section 1 for details.
Ensure that a good seal can be obtained between the face and facemask. The
wearing of beards, side-burns or spectacles may adversely affect the sealing
of a facemask to the wearer's face.
The apparatus is not designed for use underwater.
The harness must not be used as a vehicle seat restraint.
DISCLAIMER
Failure to comply with these instructions or misuse of the apparatus may result in:
death, injury or material damage, and invalidate any warranty or insurance claims.
COPYRIGHT
This manual must not be copied in part or whole, or used for purposes other than its intended
purpose without the written permission of Scott Health and Safety Limited.

PRO-PAK
1
1. INTRODUCTION
1.1 ABBREVIATIONS
The following abbreviations are used in
this manual:
AL Airline attachment
BA Breathing Apparatus
CVR Cylinder Valve Retainer
DCC Decontamination attachment
DV Demand Valve
HP High Pressure
IRIS Integrated Radio Information
System
L/min Litres per minute
m Metres
min Minutes
mg Milligrams
mm Millimetres
MP Medium Pressure
NRV Non Return Valve
PRV Pressure Relief Valve
psi Pounds per Square Inch
RSM Rescue Mask Attachment
1.2 BREATHABLE AIR
Air used to supply or charge breathing air
may be natural or synthetic. The
composition of breathable air is given in
Table 1.
Component Mass %
(Dry Air)
Volume%
(Dry Air)
Oxygen 23.14 20.948
Nitrogen 75.52 78.08
Argon 1.29 0.93
Carbon Dioxide 0.05 0.031 4
Hydrogen 0.000 003 0.000 05
Neon 0.001 270 0.001 818
Helium 0.000 037 0.000 524
Krypton 0.000 330 0.000 114
Xenon 0.000 039 0.000 009
Table 1: Breathable Air
There is an increased fire risk when the
oxygen content is above the value shown
above.
The purity/quality of air used to supply
and charge breathing apparatus should
be tested periodically in accordance with
national regulations.
Unless otherwise specified, the
contaminants shall not exceed the
permissible exposure level.
National regulations must be observed.
The mineral oil content shall be such that
the air is without the odour of oil. The
odour threshold is in the region of 0.3
mg/m
3
.
The water content shall not exceed 50
mg/m
3
for 200 and 207 bar apparatus
and 30 mg/m
3
for 300 bar apparatus.
For airline apparatus, air must be used
with a dew-point sufficiently low to
prevent internal freezing.
1.3 COMPRESSED AIR
AIRLINE SUPPLIES
Air for use with compressed air airlines
must conform to EN 12021 : 1995 and
must have a dew point sufficiently low to
prevent internal freezing when apparatus
is used in temperatures below 4°C.
No. of Wearers Airflow (L/min.)
1
2
3
4
300
450
750
900
Table 2
Airline pressure must be between 5.0 and
9.0 bar (70 and 130 psi). Airflow supply
capacity for a single airline is given in
Table 2.
Generally; each additional wearer
requires an extra 150 litres per minute,
each additional pair of wearers requires
300 L/min for one wearer and 450 L/min
for two wearers. All measurements must
be taken at the wearer end of the airline.
Example: for 8 users (4 pairs) the
recommended flow is 4 x (300 + 150) =
1800 litres/minute.
An airline flow tester is available from
Scott Health and Safety Limited under
Article Number 1035978.

PRO-PAK
2
Compressed air airlines used with Pro-
Pak must be SCOTT products, approved
to EN 139.
Ensure that hoses used in an explosive
or inflammable atmosphere are marked:
ANTI-STATIC – EN 139.
Cost effective PVC hoses may be used in
other atmospheres.
Scott Health and Safety Limited
manufacture a range of anti-static and
PVC hoses, in lengths ranging from 15m
to 60m. Our Customer Services
Department will be pleased to advise on
price and delivery.
1.4 APPARATUS DURATION
All durations quoted are nominal, based
on an Average Wearer Consumption
Rate of 40 L/min and FULLY CHARGED
cylinders. Actual Wearer Consumption
rates vary due to many factors, such as:
•Workload: high work rates increase
consumption rates.
•Weight of apparatus and use of
heavy or restrictive clothing.
•Work environments with extremes
of heat or cold.
•Physical fitness of the wearer.
•Other factors include emotional
stress and fatigue.
•Supplying cylinder air to a
resuscitator or rescue second
mask (RSM).
It is important that all wearers are aware
of these factors and take account of them
when assessing cylinder duration.
1.5 PERSONNEL TRAINING
Personnel who use self-contained,
compressed air breathing apparatus must
be fully trained in accordance with these
instructions and national regulations.
These instructions cannot replace an
accredited training course run by fully
qualified instructors in the proper and
safe use of SCOTT breathing apparatus.
Please contact Training & Technical
Support Services or your distributor for
training course details.
Training & Technical Support
Services:
Scott Health and Safety Limited
Pimbo Road, West Pimbo,
Skelmersdale, Lancashire,
WN8 9RA, United Kingdom.
Tel: [phone]
Fax: [phone]
1.6 SERVICING
Pro-Pak must be serviced at scheduled
intervals by personnel who have
completed a formal training course and
hold a current certificate for the servicing
and repair of SCOTT breathing
apparatus. Details of the servicing
schedule are contained in the SCOTT
Pro-Pak Service Manual, copies of which
can only be obtained by registered
holders of a current certificate.
Your distributor or Training & Technical
Support Services will be pleased to
provide training course details and quotes
for service contracts. Please see above
for contact details.
1.7 SPARE PARTS AND
ACCESSORIES
Customer Services provide an efficient,
friendly, customer contact point for
ordering new apparatus, spare parts and
accessories. The team can also provide
general information on SCOTT products.
Customer Services:
Scott Health and Safety Limited
Pimbo Road, West Pimbo,
Skelmersdale, Lancashire,
WN8 9RA, United Kingdom.
Tel: [phone]
Fax: [phone]

PRO-PAK
3
2. APPARATUS
DESCRIPTION
2.1 GENERAL
Pro-Pak is an open circuit, self-
contained, compressed air Breathing
Apparatus (BA) for use by fire-fighters
and in industrial applications where a
high level of respiratory protection is
required.
Standard versions of Pro-Pak feature a
mechanical pressure gauge and whistle
mounted on the left-hand shoulder strap.
Versions specifically intended for use by
fire-fighters are available which
incorporate the IRIS data-
communications system.
Pro-Pak is approved to the following
European Standards:
•EN 137 : 1993 - Self-contained
Breathing Apparatus.
•PrEN 137 : 2002 - Including Annex
A, Self-contained Breathing
Apparatus classification: Type 2 -
Fire Fighting.
•EN 139 : 1995 - Self-contained
Breathing Apparatus with airline
attachment when there is no
intermediate split connection in the
MP airline between DV and
Pressure Reducer.
•EN 139 : 1995 - Excluding
requirements of clause 6.7.2, Self-
contained Breathing Apparatus with
airline attachment when there is an
intermediate split connection in the
MP airline between DV and
Pressure Reducer.
Pro-Pak is 'CE' marked in accordance
with EEC Directive EC/686/1986 plus
amendments.
NOTIFIED BODIES:
Inspec International Ltd (No. 0194)
Upper Wingbury Courtyard,
Wingrave, Aylesbury,
Buckinghamshire,
HP22 4LW,
United Kingdom.
British Standards Institute (No. 0086)
389 Chiswick High Road,
London,
W4 4AL,
United Kingdom.
Please call Scott Health and Safety
Limited for further apparatus approval
details.
This manual contains user instructions
for single cylinder, twin cylinder (Duo)
versions and versions for use with
compressed air airlines.
2.2 HARNESS
The Pro-Pak harness is made from
flame-retardant Kevlar
TM
and Nomex
TM
.
The buckles are manufactured from
stainless steel, chromium-plated steel or
brass; and the press-studs from brass or
nickel-plated brass.
For wearer comfort, a lumbar pad or full
back pad is provided. Both are fabricated
from flame-retardant material and packed
with flame retardant, closed cell foam.
The lumbar pad is held in place by four
press-studs. The full-length pad is held
by press studs and the harness straps.
2.3 CYLINDER BAND
Pro-Pak can be configured for use with
one or two (Duo) 200, 207 or 300 bar,
steel or fully wrapped aluminium carbon
fibre composite cylinders (see Table 3).
Cylinders are secured to the lightweight
backplate by a webbing cylinder band
and a cylinder valve retainer (CVR).
The webbing cylinder band is secured
around the cylinder(s) by a hinged, clamp
mechanism with a thumb-operated
release tag that prevents accidental
opening. The band can be adjusted to
accept the range of cylinders listed in
Table 3. The clamp mechanism facilitates
replacement of similar size cylinders
without cylinder band adjustment.
Pro-Pak Duo cylinder bands can easily
be altered by the wearer (no tools
required) to mount a single cylinder,
centrally on the backplate.

PRO-PAK
4
Weight of Pro-Pak
with Cylinder
(kg)
Cylinders Water
Capacity
(litres)
Charging
Pressure
(bar)
Free air
Volume
(litres)
Nominal
Duration
(mins)
Warning
Period
(mins)
Total
Duration
(mins)
Cylinder
Charged
Weight
(kg) Single Duo
CYL-1200 6.0 200 1200 22 8 30 8.8 12.0 -
CYL-HWG-
1200 6.0 207 1200 22 8 30 7.2 10.4 -
CYL-FWC-
1300 4.7 300 1300 25 7 32 5.0 8.2 -
CYL-1640 6.0 300 1640 33 8 41 12.5 15.7 -
CYL-HWG-
1640 6.0 300 1640 33 8 41 10.0 13.2 -
CYL-FWC-
1640 6.0 300 1640 33 8 41 6.3 9.5 16.0
CYL-1800 9.0 200 1800 33 12 45 13.0 16.2 -
CYL-HWG-
1800 9.0 207 1800 33 12 45 11.2 14.4 -
CYL-FWC-
1800 9.0 207 1800 33 12 45 6.75 9.95 18.0
CYL-FWC-
1860 6.8 300 1860 37 9 46 6.75 9.95 18.0
CYL-FWC-
2460 9.0 300 2460 50 12 62 8.8 12.0 -
Note: Only cylinders in the shaded areas (above) are suitable for use with Pro-Pak Duo in
the twin-cylinder configuration. The total apparatus weight must not exceed 18 kg when fully-
charged; (ref: EN 137, Clause 5.4).
Table 3: Cylinders approved for use with Pro-Pak apparatus
Table 4 identifies the cylinder material code and cylinder specification.
Code Material Specification
No Code Steel (e.g.: CYL-1200) CE Marked
HWG Hoop Wrapped Glass Fibre (e.g.: CYL-HWG-1200) HSE-AL-HW1
FWC Fully Wrapped Carbon (e.g.: CYL-FWC-1300) CE Marked
Table 4: Cylinder Codes and Specifications
Durations are nominal and based on an Average Wearer Consumption Rate of 40 L/min and
are for fully charged cylinders.
Cylinder Free Air Capacity
Total Duration = Average Wearer Consumption Rate
Nominal Duration = Total Duration minus the Warning Period.
Whistle Operating Pressure
Warning Period = Average Wearer Consumption Rate

PRO-PAK
5
2.4 THE PNEUMATIC
SYSTEM
The pneumatic system has two pressure
reduction stages: air from the cylinder is
reduced to a medium-pressure (MP) of
between 5.5 and 11 bar by the reducer.
The second pressure reduction is
performed in the facemask Demand
Valve (DV).
Air from the cylinder passes through a
sintered bronze particle filter in the
cylinder connector, which protects the
pneumatic system, then through a short
length of high-pressure (HP) braided
hose to the reducer inlet manifold.

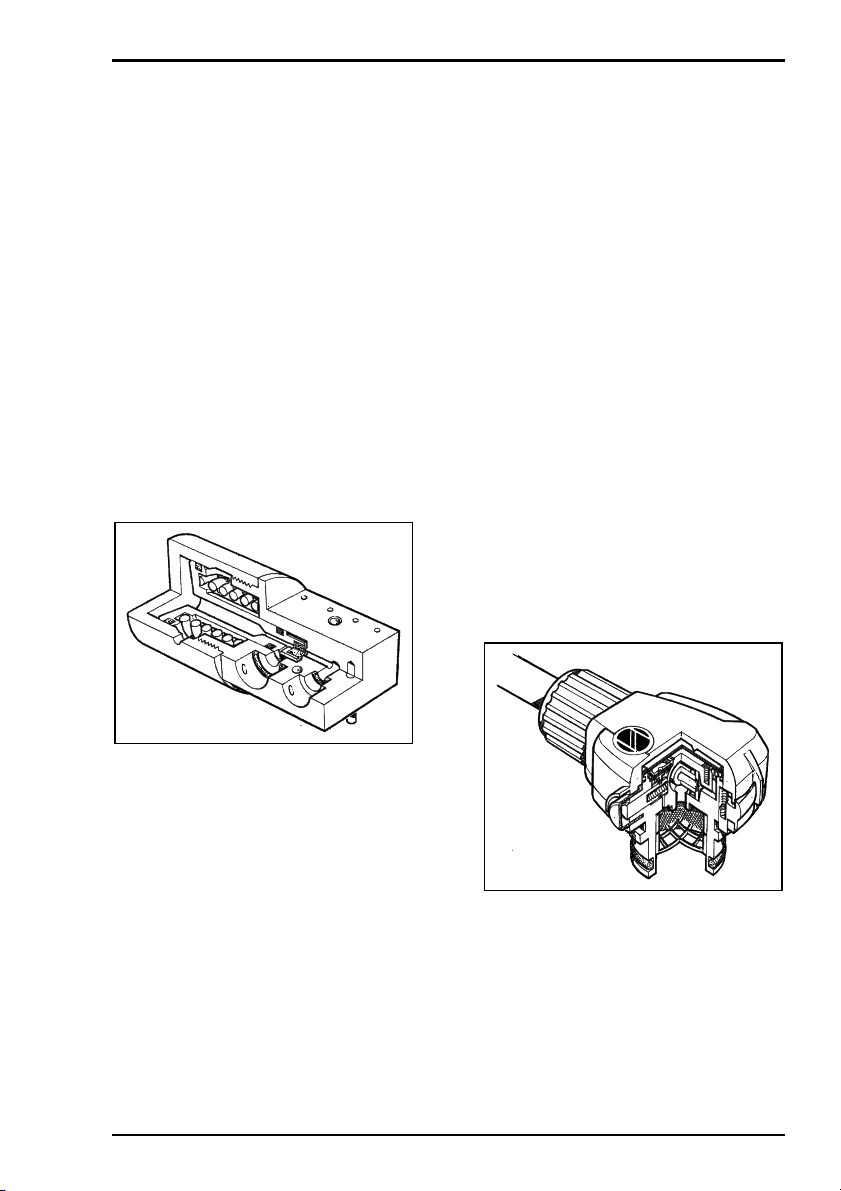

2.5 REDUCER
The reducer is a simple, self-regulating,
spring and piston device that requires no
adjustment. It has a pressure relief valve
(PRV) that protects the MP system from
over-pressurisation.
Air from the reducer is connected through
a reinforced, chlorinated polyethylene
hose to the facemask-mounted DV,
which regulates the air supplied to the
wearer.
2.6 GAUGE AND WHISTLE
A high-pressure hose from the reducer
inlet manifold connects air, at cylinder
pressure, to a warning whistle and
pressure gauge.
On standard versions, the warning
whistle and pressure gauge are mounted
on the left-hand shoulder strap. On
versions fitted with the IRIS data-
communications system, the warning
whistle and pressure gauge are
incorporated within the IRIS unit.
The warning whistle sounds when
pressure in the cylinder falls to 55 bar (±5
bar).
The duration of the air remaining in the
cylinder, from the start of the warning
whistle, is listed for each cylinder type
under Warning Period in Table 3.
The pressure gauge dial is photo
luminescent to aid use in low light levels.
The lens is impact resistant
polycarbonate. A rubber shroud protects
the gauge.
Should the gauge, whistle or hose
become damaged, a restrictor in the
reducer limits air-loss to less than 25
litres per minute.
2.7 DEMAND VALVE
The DV operates in conjunction with the
facemask spring loaded exhale valve to
maintain a positive pressure within the
facemask.
The DV has a servo-assisted tilting
diaphragm mechanism that responds to
pressure changes within the facemask to
regulate the flow of air to the mask,
ensuring that pressure within the mask
remains safely above ambient.
The DV has a reset button that enables
wearers to close the airflow through the
DV, permitting the facemask to be
removed during test procedures and at
the end of a task, without loss of cylinder
air.
When the apparatus is donned the DV is
normally ‘reset’ (closed), and is opened
(activated) when the wearer takes a first
breath.

PRO-PAK
6
The DV has a supplementary flow device
(bypass), that the wearer can open using
the bypass knob.
When the bypass is used, the
unregulated flow of air through the DV
reduces cylinder duration.
The DV is connected to the facemask by
a Quick-Fit (QF) bayonet fitting with a
spring-loaded locking catch to prevent
accidental disconnection.
2.8 OPTIONAL
ATTACHMENTS
The available options are:
•Decontamination attachment
(DCC) - facilitates airline
connection into a gas tight
chemical suit, permitting the wearer
to breathe from an airline during
extended decontamination
procedures.
•Rescue mask attachment (RSM) -
permits the wearer to supply a
rescue mask or an air powered
resuscitator from own cylinder air.
This reduces the duration of the
cylinder supply.
•Airline attachment (AL) - permits
Pro-Pak to be used with an airline.
The cylinder provides emergency
backup.
Note:
Air for use with airline must conform to
Breathable Air as detailed in Section 1.
2.9 FACEMASKS
Pro-Pak is approved for use with:
Vision 3, PanaSeal, PanaVisor and
Pro-Mask PP full facemasks, all of which
conform to EN 136, Class 3.
All are available with five point, fully
adjustable web or net head-harnesses
and neckstraps.
An inner mask minimises CO
2
dead
space and visor misting. A speech
diaphragm is fitted.
PanaSeal is suitable for medium and
smaller face sizes. PanaVisor is suitable
for medium to larger face sizes.
Vision 3 is available in three sizes, small,
medium and medium/large which cover
most face sizes. Pro-Mask PP is
available in two sizes, small/medium and
medium/large.
Vision 3 is moulded in grey silicone,
while PanaSeal and PanaVisor are non-
dermatitic, black neoprene or blue
silicone. Pro-Mask PP is moulded in
hypo-allergenic, black Procomp
TM
with a
soft silicone inner mask.
The polycarbonate visors conform to EN
166, Grade B for impact resistance.
Versions of PanaSeal, PanaVisor and
Vision 3 masks are available for use with
the Gallet F1
TM
helmet and the
Rosenbauer Heros
TM
helmet.
Vision 3 Facemask with Web Harness
PanaSeal/PanaVisor Facemask with
Net Harness

PRO-PAK
7
Pro-Mask PP Facemask
3. PRE-USE AND
MONTHLY CHECKS
3.1 CHECK APPARATUS
Visually inspect to ensure that Pro-Pak is
clean and in good condition. Check that
all hose retaining press-studs or Velcro
TM
retainers are closed. Fully slacken the
waistbelt and shoulder straps ready for
use.
When Pro-Pak is to be used with an
airline check that:
i) The airline is in good condition, free
from splits, bulges and abrasions.
ii) The airline connector is in good
condition and that it connects securely to
the Pro-Pak pigtail.
iii) The air-supply conforms to EN 132
(see Section 1.3 - Compressed Air Airline
Supplies).
iv) The Pro-Pak airline coupling is in
good condition.
3.2 REPLACING SINGLE
CYLINDERS
1. Close the cylinder valve.
2 Open the facemask bypass to vent
the system.
3. Unscrew the cylinder connector.

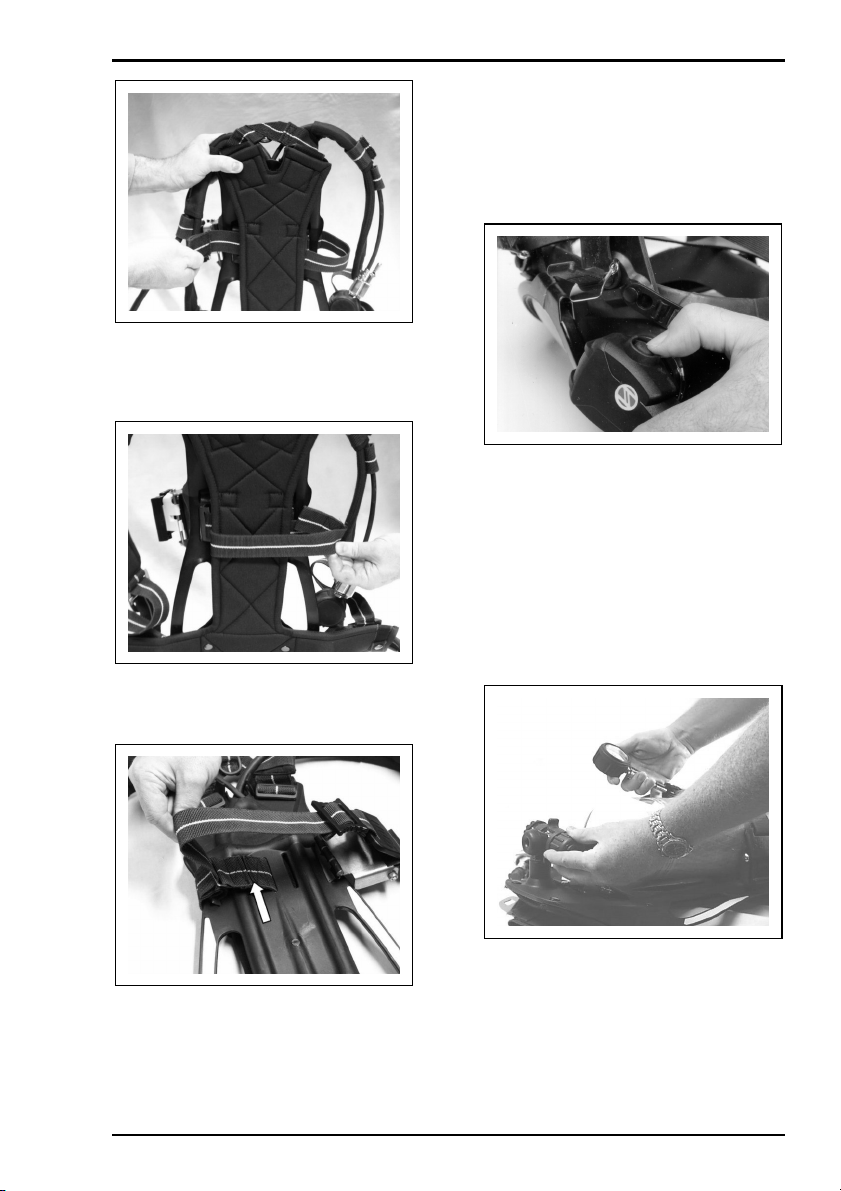

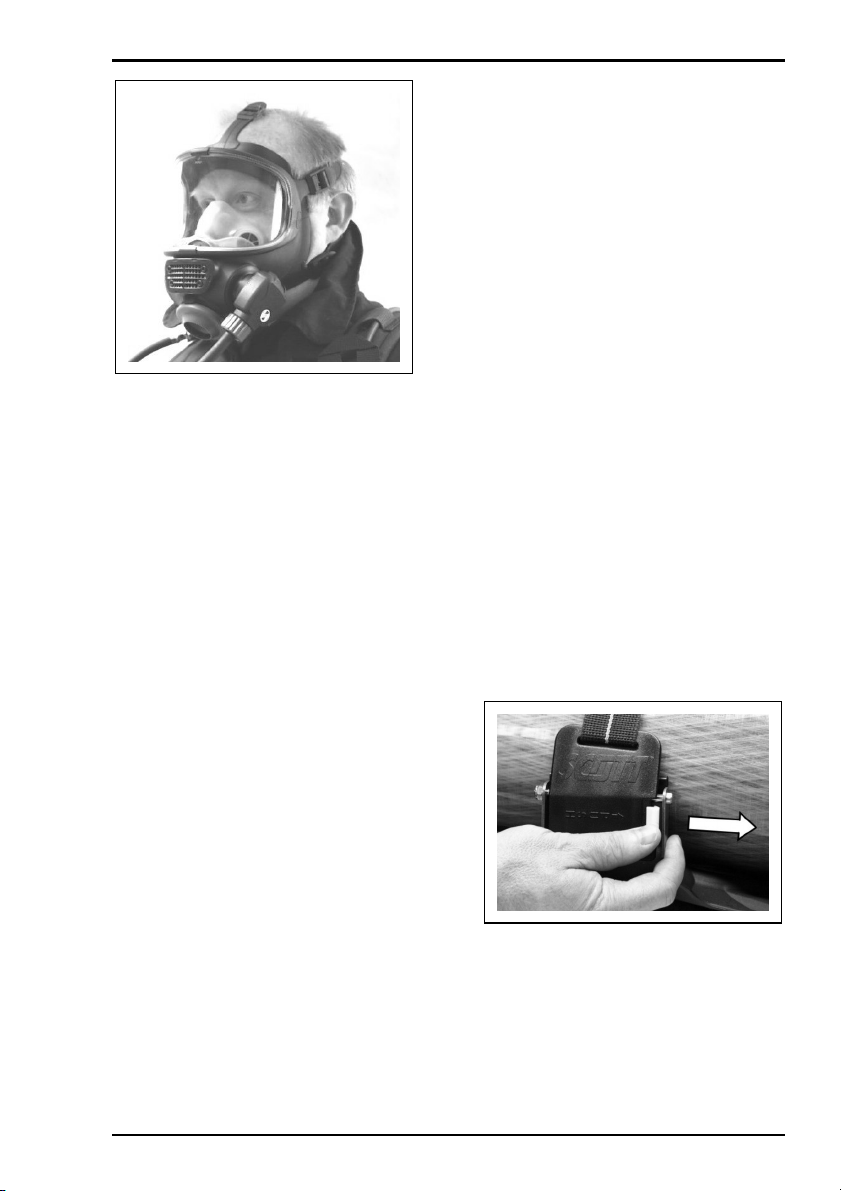

4. Use the thumb of your right hand to
push the release tag away from the
clamp mechanism in the direction of the
arrow that appears on the moulded clamp
cover. The clamp mechanism will open,
allowing the cylinder to move freely within
the cylinder band.
