Scotty SD208555A Technical Document

SCOTTY Mobile HD
Equipment Manual

Disclaimer
Copyright SCOTTY Group Austria GmbH. All rights reserved.
SCOTTY Group Austria GmbH (SCOTTY) retains copyright in this manual and associated user
documentation (the Documentation). The Documentation must not be reproduced or used for
any purpose other than intended without written permission. The information provided in the
Documentation is believed to be accurate and reliable; however, SCOTTY does not accept
responsibility for loss or damage arising out of errors or omissions, and reserves the right to
revise the documentation without notice.
SCOTTY and its suppliers retain all copyright and other intellectual property rights in the
software embedded in and associated with the product described in the documentation (the
Software). Some products include software distributed under GNU General Public License (GPL)
and other licenses; please contact SCOTTY for further information and source code. By
purchasing the product described in the documentation you are granted a limited license to use
the Software, provided you do not copy, alter or adapt the Software in any way including
decompiling, disassembling or reverse-engineering.
No liability for consequential damages.
SCOTTY, the SCOTTY logo, TeleporterTM, and Mobile HDTM are Trademarks of SCOTTY.
Microsoftand Windowsare registered Trademarks of Microsoft Corporation.
Version V2.00
SD208542A
This document is under electronic revision control.

SCOTTY Mobile HD Equipment Manual
All rights reserved. 3
Table of Contents
1 Welcome.............................................................................................5
1.1 Welcome .............................................................................................................5
1.2 About the Manuals..............................................................................................6
1.3 Customer Support ...............................................................................................6
2 Introduction........................................................................................7
2.1 Scope ...................................................................................................................7
2.2 System Overview.................................................................................................8
3 Operation............................................................................................9
3.1 Protector Case .....................................................................................................9
3.2 System Components............................................................................................9
3.3 Notebook Overview...........................................................................................10
3.4 AC Power Operation..........................................................................................11
3.5 Battery Operation..............................................................................................11
3.6 Network Connection .........................................................................................11
3.7 Communication Box Connections .....................................................................12
3.8 Status LEDs ........................................................................................................12
3.9 Setting up the Gooseneck Microphone.............................................................13
3.10 Starting the SCOTTY Mobile HD ......................................................................13
3.11 Microphone Selection .....................................................................................13
3.12 Software Configuration ...................................................................................14
3.13 Turning Off the System....................................................................................14
4 Maintenance.....................................................................................15
4.1 Installing and Removing the Notebook.............................................................15
4.2 Fan Dust Filter Replacement .............................................................................15
4.3 Communication Box Battery Replacement .......................................................16
4.4 Notebook Battery Replacement........................................................................17
5 Physical Specifications...................................................................19
5.1 Weight and Dimensions, closed (for transport) ................................................19
5.2 Weight and Dimensions, opened (for operation) .............................................19
5.3 Outline Drawings...............................................................................................20
6 Electrical Interfaces.........................................................................21
6.1 Overview............................................................................................................21
6.2 Hardware Specification .....................................................................................22
6.3 Data Interfaces ..................................................................................................22
6.4 Video Interfaces ................................................................................................22
6.5 Audio Interfaces ................................................................................................23
6.6 Notebook Interfaces..........................................................................................24
6.7 AC Power Requirements ...................................................................................24

SCOTTY Mobile HD Equipment Manual
4 All rights reserved.
6.8 Rechargeable Battery ....................................................................................... 25
6.8.1 Battery Operation Time............................................................................ 25
6.8.2 Battery Charge Time................................................................................. 25
6.8.3 Battery Discharge Time (Battery life) ....................................................... 25
7 Connectors and Pin-Outs ...............................................................27
7.1 Notebook Interfaces ......................................................................................... 27
7.2 Communication Box Interfaces......................................................................... 28
7.3 Headset............................................................................................................. 29
7.4 Line Out............................................................................................................. 29
7.5 Line In................................................................................................................ 29
7.6 CVBS In.............................................................................................................. 29
7.7 HDMI/DVI/VGA Out .......................................................................................... 30
7.8 HDMI/DVI/VGA In ............................................................................................. 31
7.9 COM4 ................................................................................................................ 32
7.10 Mic .................................................................................................................. 32
7.11 Camera............................................................................................................ 33
7.12 AC Power......................................................................................................... 33
8 Environmental Specifications........................................................35
8.1 Operation.......................................................................................................... 35
8.2 Charging............................................................................................................ 35
8.3 Storage.............................................................................................................. 35
9 Options.............................................................................................37

SCOTTY Mobile HD Equipment Manual
All rights reserved. 5
1Welcome
1.1 Welcome
Welcome to the world of advanced communication... welcome to the world of
SCOTTY!
SCOTTY provides a unique offering of live HD video, audio, and data
communication, live HD video surveillance transmission, and imagery transfer
from air, land, and sea –over satellite and terrestrial networks. This package is
used by customers around the world to support their border control,
intelligence gathering, reconnaissance, surveillance, search and rescue, and
other missions which require beyond line-of-sight connectivity and
ruggedized/reliable equipment.
SCOTTY is EN9100 certified and has over fifteen years' experience serving
customers around the world.
Please find detailed information on our website: www.scottygroup.com

SCOTTY Mobile HD Equipment Manual
6 All rights reserved.
1.2 About the Manuals
The Equipment Manual describes the hardware aspects of your SCOTTY
system, serving as a valuable source of information both for users and
administrators.
The Software Manual accompanies the Equipment Manual. It describes the
software aspects of your SCOTTY system, and is geared toward the user and
administrator.
Both manuals help you take full advantage of your SCOTTY solution. They are
not only a comprehensive guide to the operation of the system, they also
provide technical details, simple step by step instructions on how to perform
the most common applications, and more. We recommend you read the
manuals carefully in order to fully benefit from SCOTTY's advanced solutions.
Furthermore, Quick Reference Guides are available describing the basic
functionality on a single page –these are suitable for daily use.
Details about the notebook used as part of the SCOTTY Mobile HD are covered
by a separate set of documentation. This documentation is installed on the
notebook itself and available through the SCOTTY Teleport Manual menu.
1.3 Customer Support
The Support section on our website www.scottygroup.com offers help to
maximize the functionality of your SCOTTY system.
Choose Downloads to retrieve the latest documents, manuals and software.
Find updated information about our demo numbers to place demonstration
and test calls to our demonstration systems.
Find out how to get in contact with our support experts.
Please help our support team provide the best support possible by including
the serial number of your SCOTTY unit in all requests.

SCOTTY Mobile HD Equipment Manual
All rights reserved. 7
2Introduction
2.1 Scope
This document covers the specifications, including interface control, usage
and maintenance of the following component:
SD208555A SCOTTY Mobile HD and variants
The SCOTTY Mobile HD
The system uses a ruggedized notebook placed on a high performance
communication box located underneath.

SCOTTY Mobile HD Equipment Manual
8 All rights reserved.
2.2 System Overview
The SCOTTY Mobile HD delivers superior full high definition video and audio,
even over satellite or other challenging networks with bandwidth constraints
and high latency.
Based on a built-in camera, a microphone and speakers, the system is ready
for high quality video and data communication.
The system supports both common videoconference standards and SCOTTY
proprietary, highly optimized communication protocols. By providing bi-
directional low latency real time communication, unidirectional live video
streaming and video recording for store-and-forward applications, many
different application requirements can be fulfilled. Parallel data channels
enable bidirectional communication of supplementary data and also remote
control of cameras and other equipment.
The platform supports a wide range of video interfaces like Composite, HD-
SDI, HDMI, DVI, and VGA with resolutions of up to 1080p60. Highly adaptable
audio interfaces support a wide range of signal requirements. Flexible data
interfaces support various data sources which can be integrated in the
communication setup.
The SCOTTY Mobile HD is based on a rugged 15.6” notebook providing PC
interfaces like LAN and USB. An internal solid state disk is used for the
operating software –Microsoft Windows –and is available for storage of user
data. The proven SCOTTY Teleporter provides a flexible, highly configurable
user interface for the communication box.
Featuring internal batteries, the system may be used for several hours
without the need for a mains supply.
Excellent EMC characteristics allow employment in setups required to fulfill
Zone 2 –NATO SDIP 27 Class C (AMSG 784).

SCOTTY Mobile HD Equipment Manual
All rights reserved. 9
3Operation
3.1 Protector Case
The SCOTTY Mobile HD is mounted in a watertight, shock resistant and
dustproof carrying case.
To open the case rotate the number wheels to the correct combination, then
slide the lock tab (see below) to the right.
On delivery the combination is set to “000”.
To set a new combination:
3.2 System Components
The SCOTTY Mobile HD is based on a rugged 15.6” notebook employing a full
HD (1920x1080) sunlight readable display. The notebook sits on the SCOTTY
communication box containing the communication system and the power
supply.
A high quality, high resolution camera is used as the local video source. An
integrated camera microphone or an included gooseneck microphone may be
used as audio source. Two speakers are located in the front of the
communication box. The notebook display is used to display local and/or
received video.

SCOTTY Mobile HD Equipment Manual
10 All rights reserved.
3.3 Notebook Overview

SCOTTY Mobile HD Equipment Manual
All rights reserved. 11

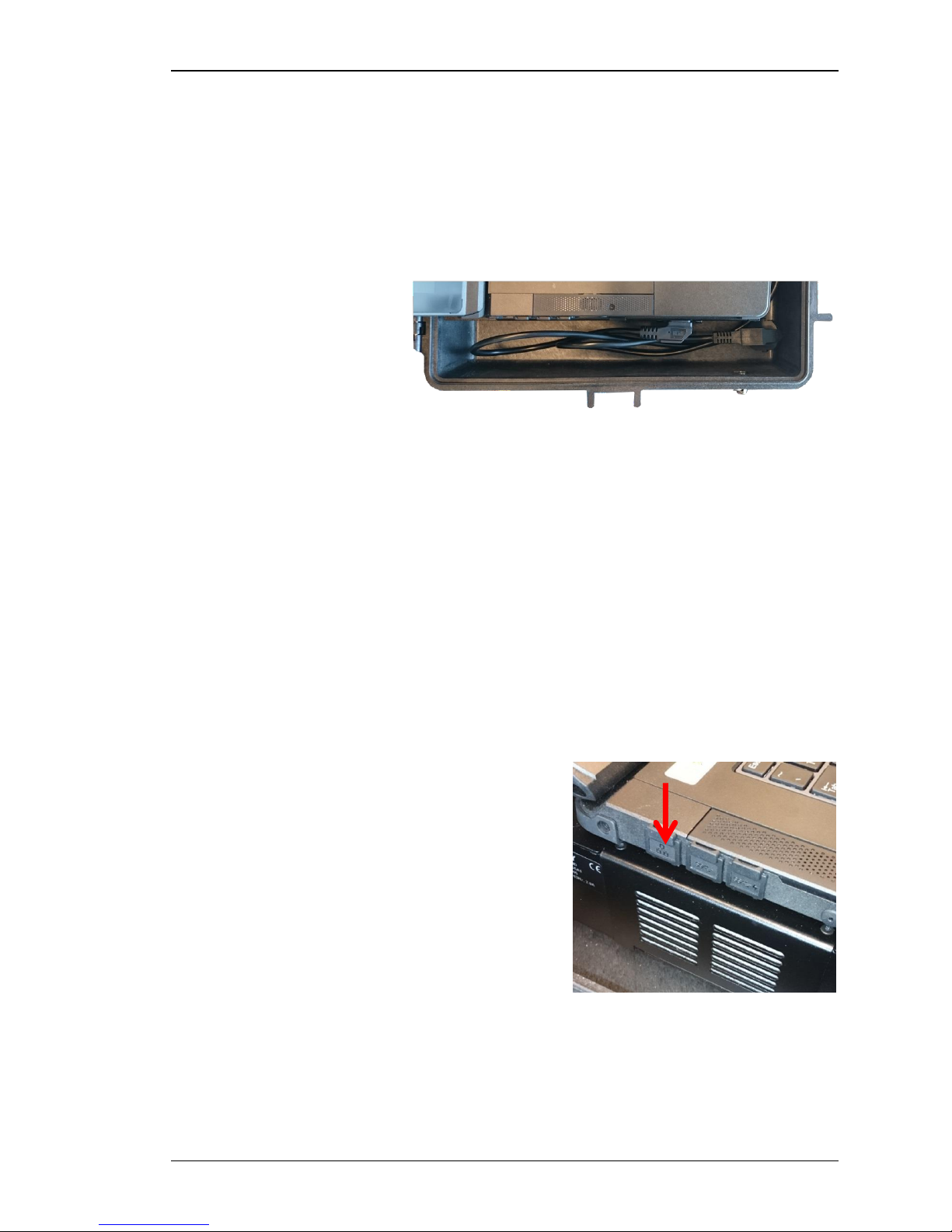

3.4 AC Power Operation
The system may be powered using the internal wide range AC power supply.
The power connector is located on the left side of the communication box.
When not used, the power cord can be folded and stowed without
disconnecting from the communication box.
Power cord stowed for transport
3.5 Battery Operation
When no mains power is available, operation is possible using the built in
rechargeable batteries. The notebook is then powered by its internal battery,
whereas the communication box uses its own battery.
For replacing the batteries see chapter Maintenance.
3.6 Network Connection
The notebook Gigabit LAN interface is used to connect the system to the
network.
By default, the SCOTTY Mobile HD uses DHCP and will setup the network
address automatically.
LAN interface connector

SCOTTY Mobile HD Equipment Manual
12 All rights reserved.
3.7 Communication Box Connections
The notebook provides “typical” computer interfaces like USB 3.0. The
communication box allows flexible use of external video and audio
equipment.
For details, see chapter Connectors and Pin-Outs.
3.8 Status LEDs
Three LED’s on the left side of the unit provide information on the
communication box status.
SCOTTY Mobile HD Status LEDs
ACT Communication box is active.
BATT Communication box battery charge level.
PWR Mains power connected.
The PWR LED indicates that mains power is available. In this case both the
communication box and the notebook batteries are being charged.
The ACT LED indicates that the system is active. Mains power is used if
available; otherwise the system operates on battery power.
A slow flashing ACT LED (1Hz) indicates that the battery level is low (less than
5%) or the communication box temperature is close to the operational limits.
A fast flashing ACT LED (4Hz) indicates that the battery level is very low (less
than 1%) or the communication box temperature is above the operational
limits. In either case the system communication box is switched off
immediately.
The BATT LED indicates the current battery charging level while the
communication box battery is being charged and/or while the communication

SCOTTY Mobile HD Equipment Manual
All rights reserved. 13
box is active. When the battery is fully charged the BATT LED is constantly on,
otherwise the LED flashes once per second to indicate the charge level. Short
flashes indicate a low battery level, longer flashes a higher level. The LED is
switched off when the battery level is very low (less than 1%).
3.9 Setting up the Gooseneck Microphone
To provide superior audio quality the system is equipped with a gooseneck
microphone. For transport the microphone is stored in the front of
communication box, for operation it is plugged into the “Mic” connector on
the back right side of the SCOTTY Mobile HD.

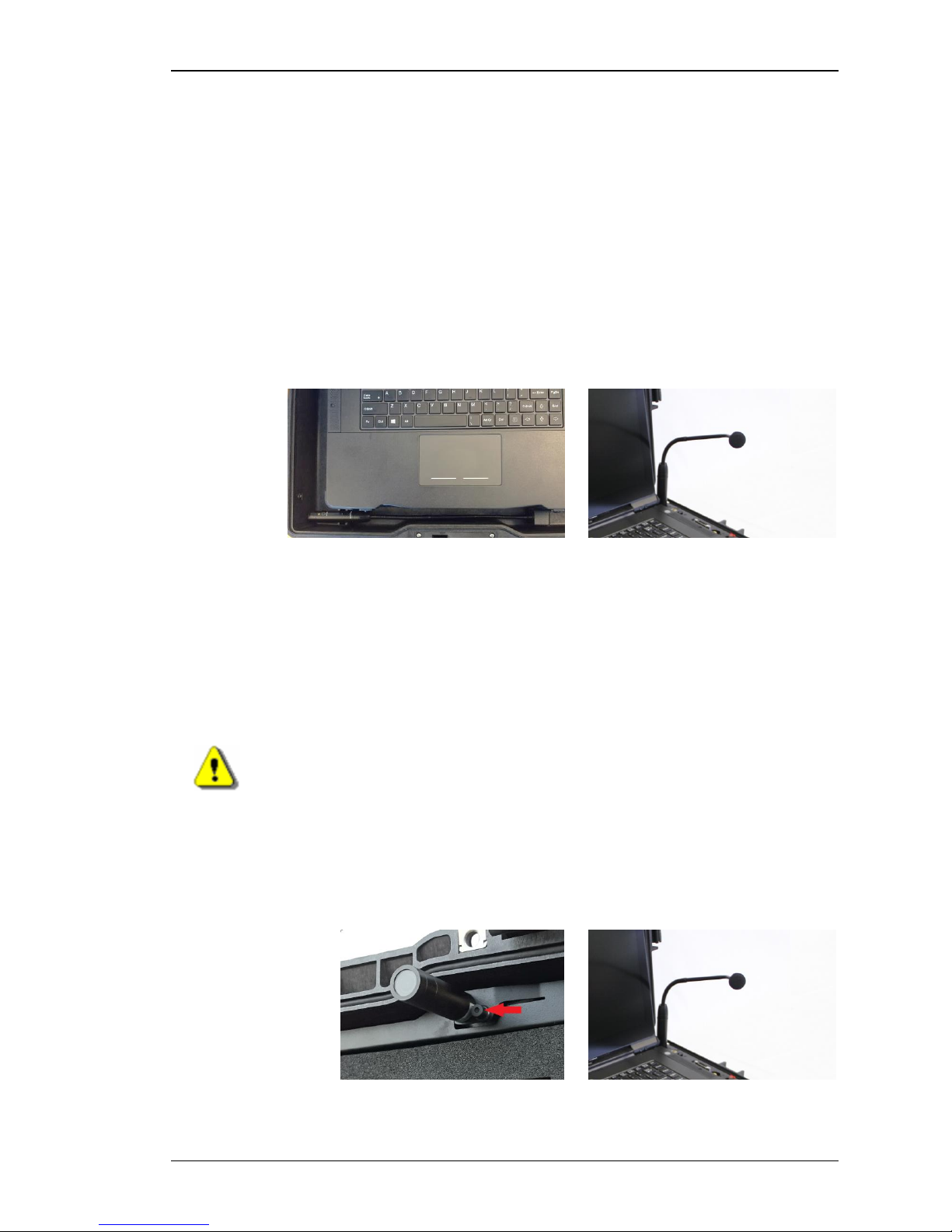

Gooseneck microphone stowed for transport / installed for operation
3.10 Starting the SCOTTY Mobile HD
After pressing the power button of the notebook the system will turn on and
boot up Windows.
The communication box is activated as soon as the notebook is powered on.
For operation, the three cables (data, power, and camera) on the rear side of the notebook
must be properly installed.
3.11 Microphone Selection
Either the integrated camera microphone or the gooseneck microphone may
be used as local audio source.
Camera microphone / gooseneck microphone

SCOTTY Mobile HD Equipment Manual
14 All rights reserved.
The microphone sensitivity can be selected in the Teleporter Application /
Options / Audio… dialog. For the integrated camera microphone use the
“Camera” control, for the gooseneck microphone use the “Mic” control.
For more details, please refer to the Software Manual.
3.12 Software Configuration
To allow optimal operation, the software settings of the SCOTTY Mobile HD
need to match the equipment used.
Therefore, especially the codec audio and video settings in the Config Utility
and in the Teleport application should be configured as required.
Please refer to the chapter Connectors and Pin-Outs for the signal labels
cross-referenced by software and hardware.
For configuration details, please refer to the Software Manual.
3.13 Turning Off the System
The preferred way to power down the system is to close the software and to
shut down Windows; see the Software Manual for details.
The unit can also be turned off by pressing the notebook power button.
Pushing the button will gracefully shutdown Windows.
Holding the notebook power button for more than four seconds will result in
an immediate power off without shutting down Windows first.
If the system is not shut down in the correct fashion, data-loss can occur.
The communication box will be deactivated automatically after notebook shutdown is
complete.

SCOTTY Mobile HD Equipment Manual
All rights reserved. 15
4Maintenance
4.1 Installing and Removing the Notebook
The SCOTTY Mobile HD is based on a rugged 15.6” notebook. This notebook
can easily be removed from the communication box by disconnecting the
data, the power and the camera connectors and loosen two knurled thumb
screws on the rear side of the notebook.
After reinstalling the notebook make sure both screws are properly fixed and all cables are
correctly connected.
4.2 Fan Dust Filter Replacement
The SCOTTY communication box employs temperature controlled internal
fans for air circulation.
After removing the notebook from the communication box, the fan cover can
easily be uninstalled to replace the air inlet dust filter. No tools besides a
Philips-head screwdriver are required.

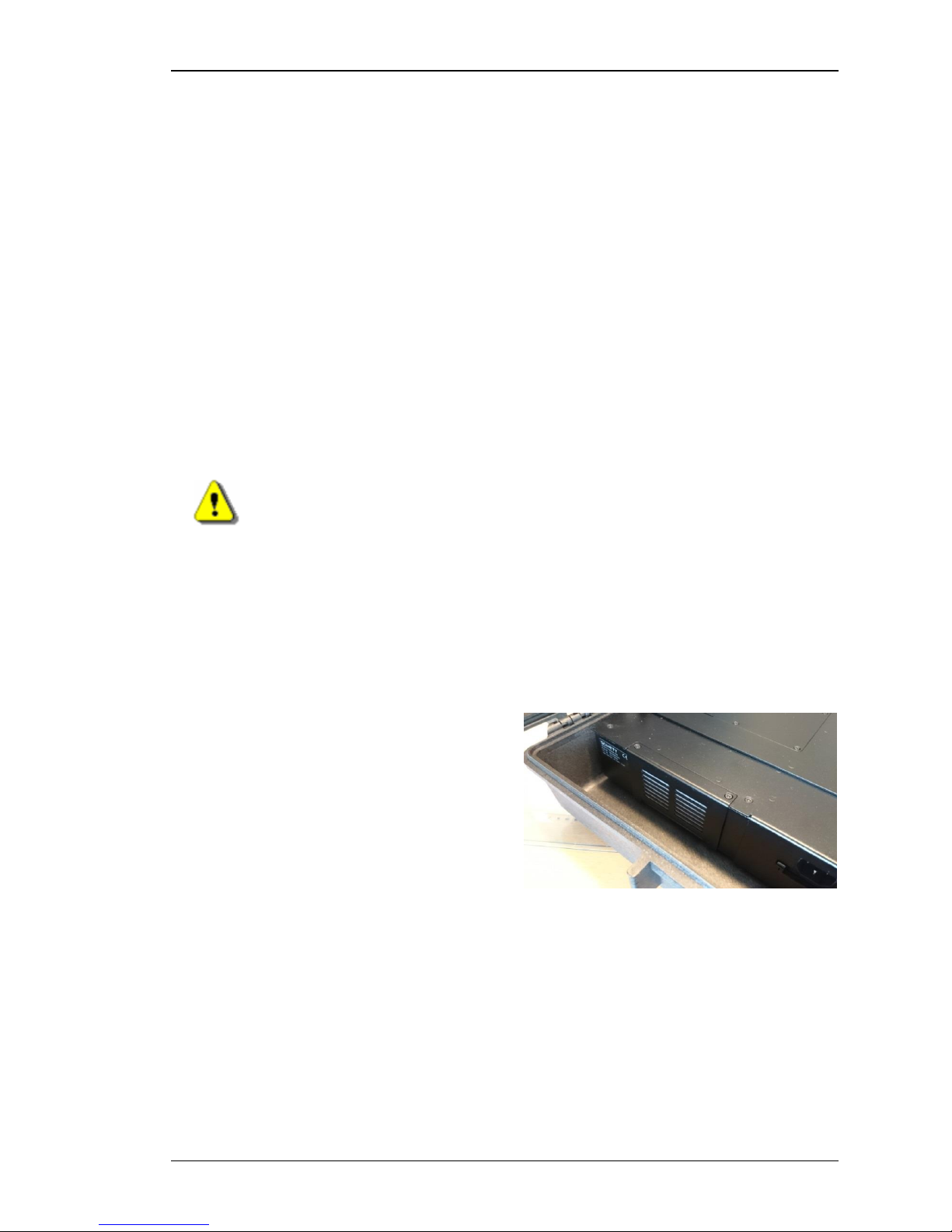

SCOTTY Mobile HD fan cover
Life cycle time of the filter pad may vary depending on the operating
environment.
A proper filter pad can be ordered at SCOTTY:
Filter Pad P200 10mm, 55x85mm, part number: SD208577A

SCOTTY Mobile HD Equipment Manual
16 All rights reserved.
4.3 Communication Box Battery Replacement
The communication box employs an internal rechargeable battery. After
removing the notebook from the communication box, the battery cover can
easily be uninstalled to replace the battery. No tools besides a Philips-head
screwdriver are required.
SCOTTY Mobile battery cover
Life cycle time of the battery may vary depending on the operating
environment and the operating characteristics.
The communication box employs a standard RRC2024 lithium-ion battery pack
manufactured by RRC power solutions. The capacity of the battery is 95.0Wh
(14.4V / 6600mAh).
The batteries were tested for safety and have worldwide approvals:
The batteries are registered with recycling systems worldwide.
For more details please consult:
http://www.rrc-ps.de/en/products/battery-packs/standard-battery-
packs/rrc2024/features.html
A replacement battery can be ordered at SCOTTY:
Li-Ion battery pack RRC2024 14.4V 95Wh EK, part number: SD208575A

SCOTTY Mobile HD Equipment Manual
All rights reserved. 17
Battery Disposal & Caution:
Recycle batteries according to national and local regulations. Contact your local
representative for assistance. The batteries must be disposed only in a discharged state at
the local collection center. In case of not fully discharged batteries, provide for a risk against
short circuits e. g. by isolating the terminals with tape. Replace only with the same or an
equivalent battery recommended by the manufacturer.
4.4 Notebook Battery Replacement
The notebook employs an 11.1V, 6040mAh lithium ion battery pack
(Type: BRSB3A).
For more information on replacing this battery please consult the notebook
documentation, available through the SCOTTY Teleport Manual menu.
Battery Disposal & Caution:
Recycle batteries according to national and local regulations. Contact your local
representative for assistance. The batteries must be disposed only in a discharged state at
the local collection center. In case of not fully discharged batteries, provide for a risk against
short circuits e. g. by isolating the terminals with tape. Replace only with the same or an
equivalent battery recommended by the manufacturer.

SCOTTY Mobile HD Equipment Manual
18 All rights reserved.
This page intentionally left blank.

SCOTTY Mobile HD Equipment Manual
All rights reserved. 19
5Physical Specifications
Built into a water tight, crush and dust proof carrying case, the system uses a
ruggedized notebook connected to the high performance communication box
located underneath.
5.1 Weight and Dimensions, closed (for transport)
Width:
550 mm
21.7”
Depth:
423 mm
16.7”
Height:
129 mm
5.1”
Weight:
12 kg
26.5 lbs
5.2 Weight and Dimensions, opened (for operation)
Width:
550 mm
21.7”
Depth:
522 mm
20.6”
Height:
477 mm
18.8”
Weight:
12 kg
26.5 lbs

SCOTTY Mobile HD Equipment Manual
20 All rights reserved.
5.3 Outline Drawings
In the following drawings, dimensions are in mm; drawings not to scale.
Mobile HD dimensions closed (for transport)
Mobile HD dimensions opened (for operation)
