Panasonic CY-TUP153N User manual

ORDER NO. ACED060117C8
AUTOMOTIVE AFTERMARKET
CY-TUP153N
TV Tuner
SPECIFICATIONS
Specifications*
General
Power Supply DC 12V (11V - 16V),
Test Voltage 14.4V
Negative Ground
Current Consumption Less than 0.5A
Video Output Signal Composite Video Signal, 1.0
Vp-p (75 )
Audio Output Signal 1 Vrms at 400 Hz
(With 100% Modulation)
Dimensions (W×H×D)** 156×22.5×150mm
Weight** 650 g
TV Section
Usable Sensitivity 36 dB/ V
Diversity Antenna
Power Supply DC 12V (11V - 16V),
Test Voltage 14.4V
Negative Ground
Current Consumption Less than 0.1A
Output Impedance 75 × 4 (with mini plug)
Cord Length 6 m
Dimensions (W×H×D)** 480×340×20mm
Weight** (each unit) 330 g (including the cable)
1

* Specifications and the design are subject to possible
modification without notice due to improvements.
** Dimensions and Weight shown are approximate.
** Above specifications comply with EIA standards.
2006 Matsushita Electric Industrial Co., Ltd. All rights reserved.
Unauthorized copying and distribution is a violation of law.
1. ABOUT LEAD FREE SOLDER (PbF)
Distinction of PbF PCB:
PCBs (manufactured) using lead free solder will have a PbF stamp on the PCB.
Caution :
- Pb free solder has a higher melting point than standard solder; Typically
the melting point is 50 - 70°F (30 - 40°C) higher. Please use a soldering
iron with temperature control and adjust it to 700 ± 20°F (370 ± 10°C). In
2

case of using high temperature soldering iron, please be careful not to
heat too long.
- Pb free solder will tend to splash when heated too high (about 1100°F/
600°C)
- This lead free solder will be used for the products after serial No.
1,000,001.
2. FEATUERS
- Analog TV only
- Head Unit (The optional Head Unit: CQ-VD7003N, CQ-VD6503N, etc.)
- Expansion Module (The optional Hub unit: CY-EM100N)
- Compatible with both receiving systems PAL or SECAM
- 4ch Diversity TV Antenna system
- 12 Preset channels for each bands
3. REPLACEING THE FUSE
Use fuses of the same specified rating 3 amps. Using different substitutes or fuses with higher ratings,
or connecting the unit directly without a fuse, could cause fire or damage to the stereo unit.
4. DIMENSIONS
5. WIRING DIAGRAM
3

6. TERMINALS DESCRIPTION
IC601 : C2BBYY000199
4

PIN Port Description I/O (V)
1 NC NC(GND connection) I 0
2 ANT SEL1 Diver antenna control
output 1
O 0
3 ANT SEL2 Diver antenna control
output 2
O 0
4 ANT SEL3 Diver antenna control
output 3
O 0
5 ANT SEL4 Diver antenna control
output 4
O 0
6 DIVER
CONT
Free orchis adjustment
mode control terminal
(TEST mode: H)
O 0
7 ACC
SENS
Accessories detection I 5.1
8 BATT
SENS
Battery detection I 5.1
9 NC NC(GND connection) I 0
10 RESET System reset input
terminal
I 4.4
11 NC NC(GND connection) I 0
12 SELF
WRITE
Control terminal for O 0
13 IC/FLMD0 Terminal for internal
connection and flash
memory programming
mode drawing in
- 0
14 X2 MAIN system clock
departure Nobuko
connection
- 2.7
15 X1 MAIN system clock
departure Nobuko
connection
I 2.6
16 REGC Regulator output
stability capacity
connection
- 2.6
17 VSS Grand potential for in - 0
18 EVSS Grand potential for
external(the same
potential as Vss)
- 0
19 VDD Positive power supply
supply terminal for in
- 5.1
20 EVDD Positive power supply
supply for external(the
same potential as VDD)
- 5.1
21 NC NC(GND connection) I 0
22 NC NC(GND connection) I 0
23 NC NC(GND connection) I 0
24 TUNER
PWR
TV TUNER POWER ON
state output
O 0
5

PIN Port Description I/O (V)
25 NC NC(GND connection) I 0
26 NC NC(GND connection) I 0
27 NC NC(GND connection) I 0
28 NC NC(GND connection) I 0
29 NC NC(GND connection) I 0
30 NC NC(GND connection) I 0
31 NC NC(GND connection) I 0
32 SYS PWR System power supply
control output
O 5.1
33 MAIN
PWR
The main power supply
control output
O 5.1
34 SYS
MUTE
System mute signal
output
O 0
35 SIDE
BRAKE
Parking brake detection I 5.1
36 NC NC(GND connection) I 0
37 NC NC(GND connection) I 0
38 REMO
DATA
External remote control
signal input
I 5.2
39 REMO
JDG
External remote control
signal input detection
I 5.2
40 TV MUTE Image mute signal output
(L: Image mute release)
O 5.1
41 INIT DET1 Inducing detection 1 I 0
42 INIT DET2 Inducing detection 2 I 0
43 INIT DET3 Inducing detection 3 I 5.2
44 NC NC(GND connection) I 0
45 NC NC(GND connection) I 0
46 NC NC(GND connection) I 0
47 NC NC(GND connection) I 0
48 NC NC(GND connection) I 0
49 NC NC(GND connection) I 0
50 RX Terminal for Flash
rewriting
O 0
51 TX Terminal for Flash
rewriting
I 0
52 OSD
DATA
OSD DATA output O 4.3
53 NC NC(GND connection) I 0
54 OSD CLK OSD CLK output O 4.9
55 OSD CS OSD CS control O 3.7
56 OSD
RESET
OSD RESET output (L:
RESET ON)
O 5.1
57 SYNC
JDG
OSDC synchronous
signal detection (H:
Signal detection)
I 5.1
58 BG/DK/I BG/DK/I switch control
output
O 0
6

PIN Port Description I/O (V)
59 AVREF Standard voltage input 0
of A/D converter
- 5.1
60 AVSS A/D converter grand
potential
- 0
61 TV
VCONT
TV electrolysis strength
input
I 1.8
62 TV SD There is a TV bureau and
it detects it.
I 0
63 NC NC(GND connection) I 0
64 NC NC(GND connection) I 0
65 NC NC(GND connection) I 0
66 NC NC(GND connection) I 0
67 NC NC(GND connection) I 0
68 TUNER
LOCK
TV tuner packing front
end LOCK detection
I 0.2
69 TUNER
EN
TV tuner packing front
end ENABLE output
O 0
70 TUNER
CLK
TV tuner packing front
end clock output
O 0
71 NC NC(GND connection) I 0
72 TUNER
DATA
TV tuner packing front
end data output
O 0
73 NC NC(GND connection) I 0
74 NC NC(GND connection) I 0
75 NC NC(GND connection) I 0
76 NC NC(GND connection) I 0
77 NC NC(GND connection) I 0
78 NC NC(GND connection) I 0
79 NC NC(GND connection) I 0
80 NC NC(GND connection) I 0

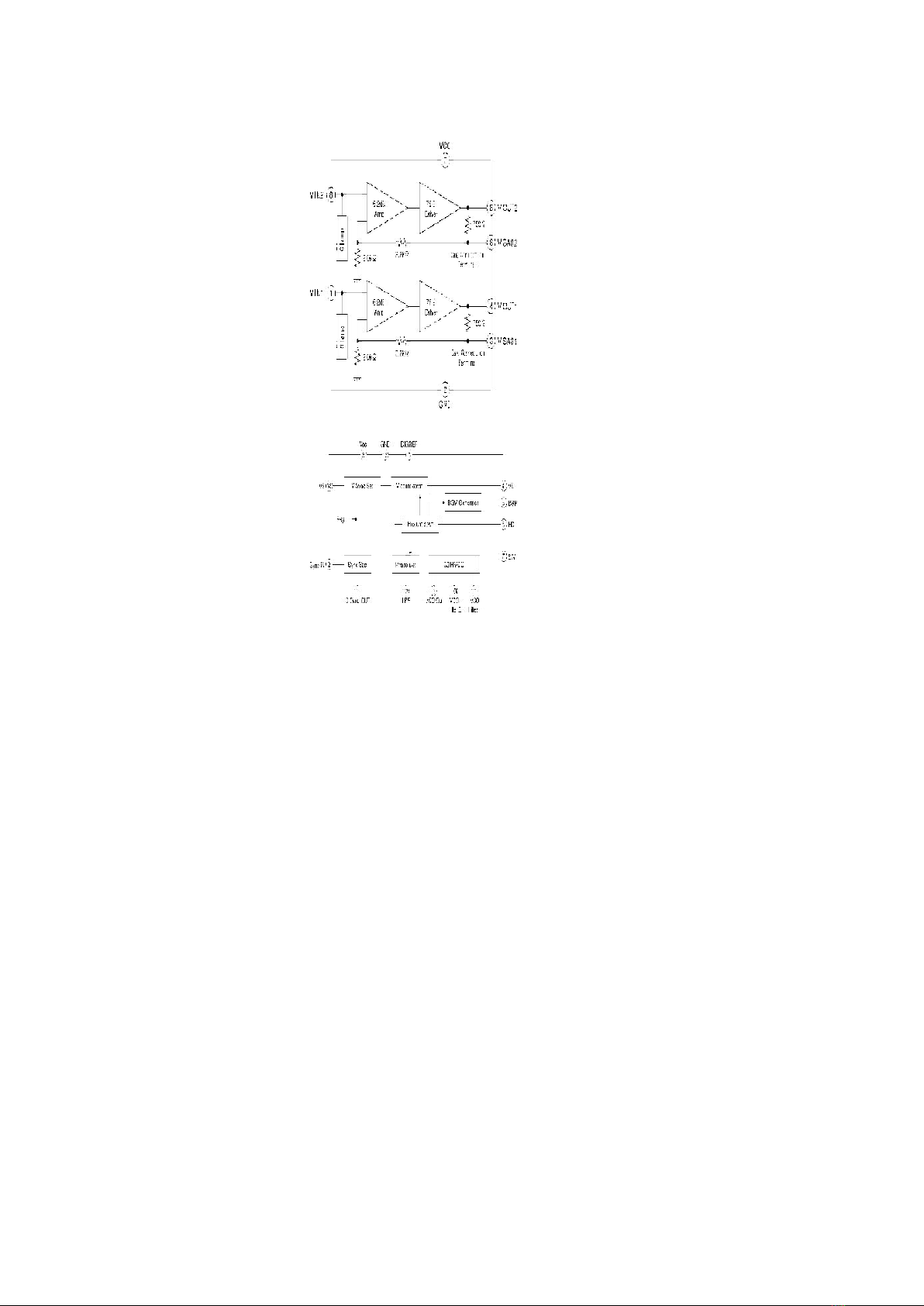

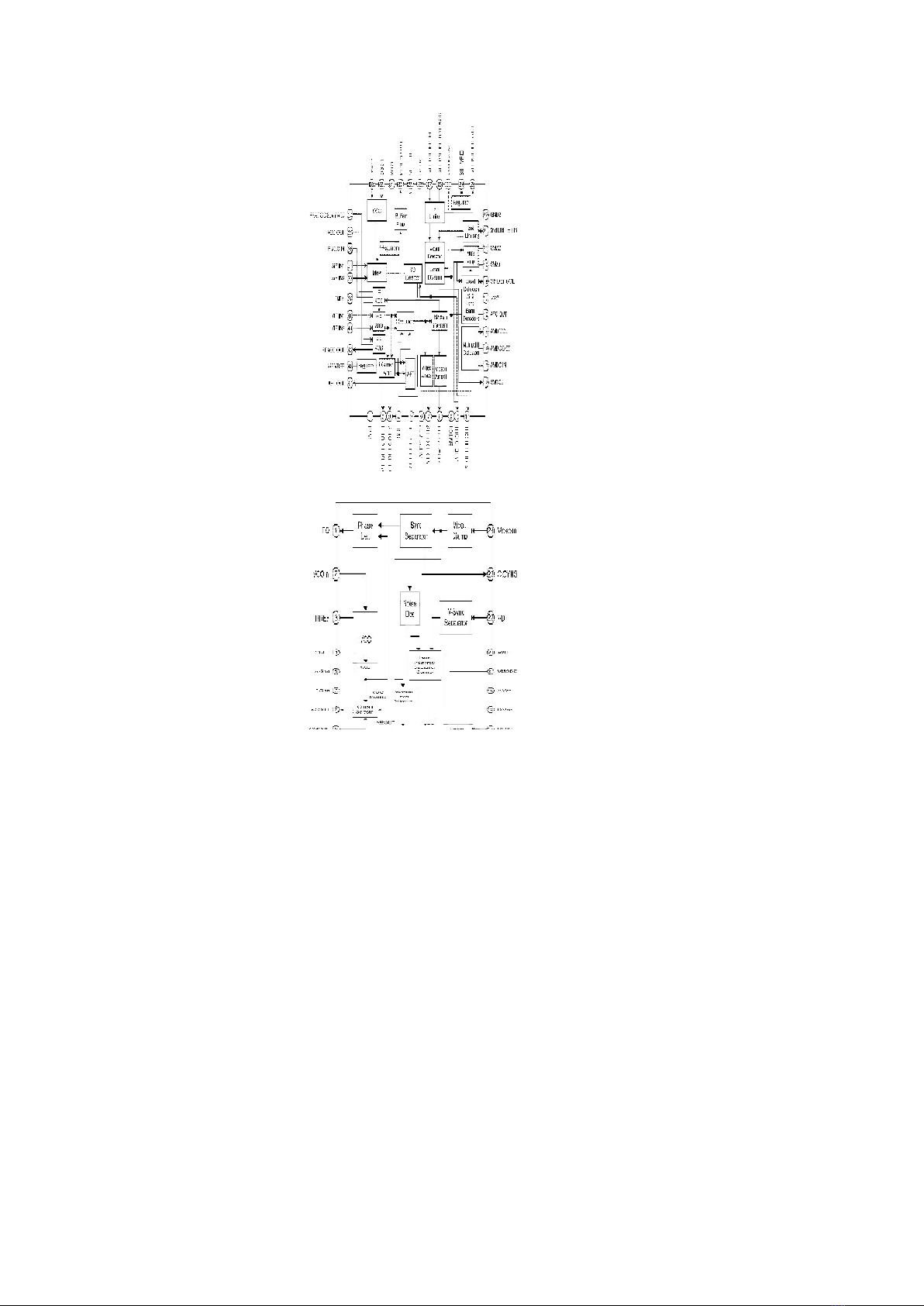

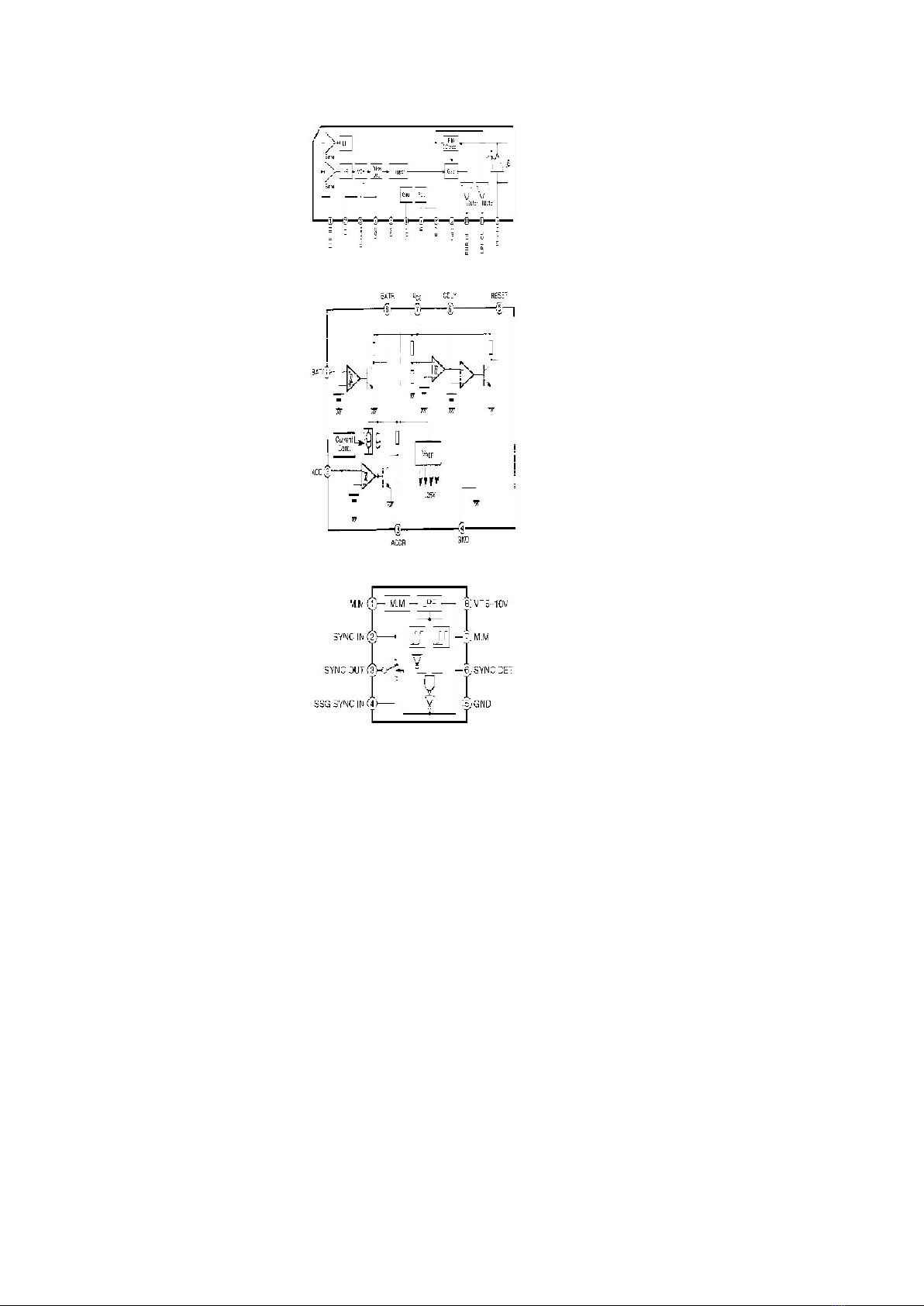

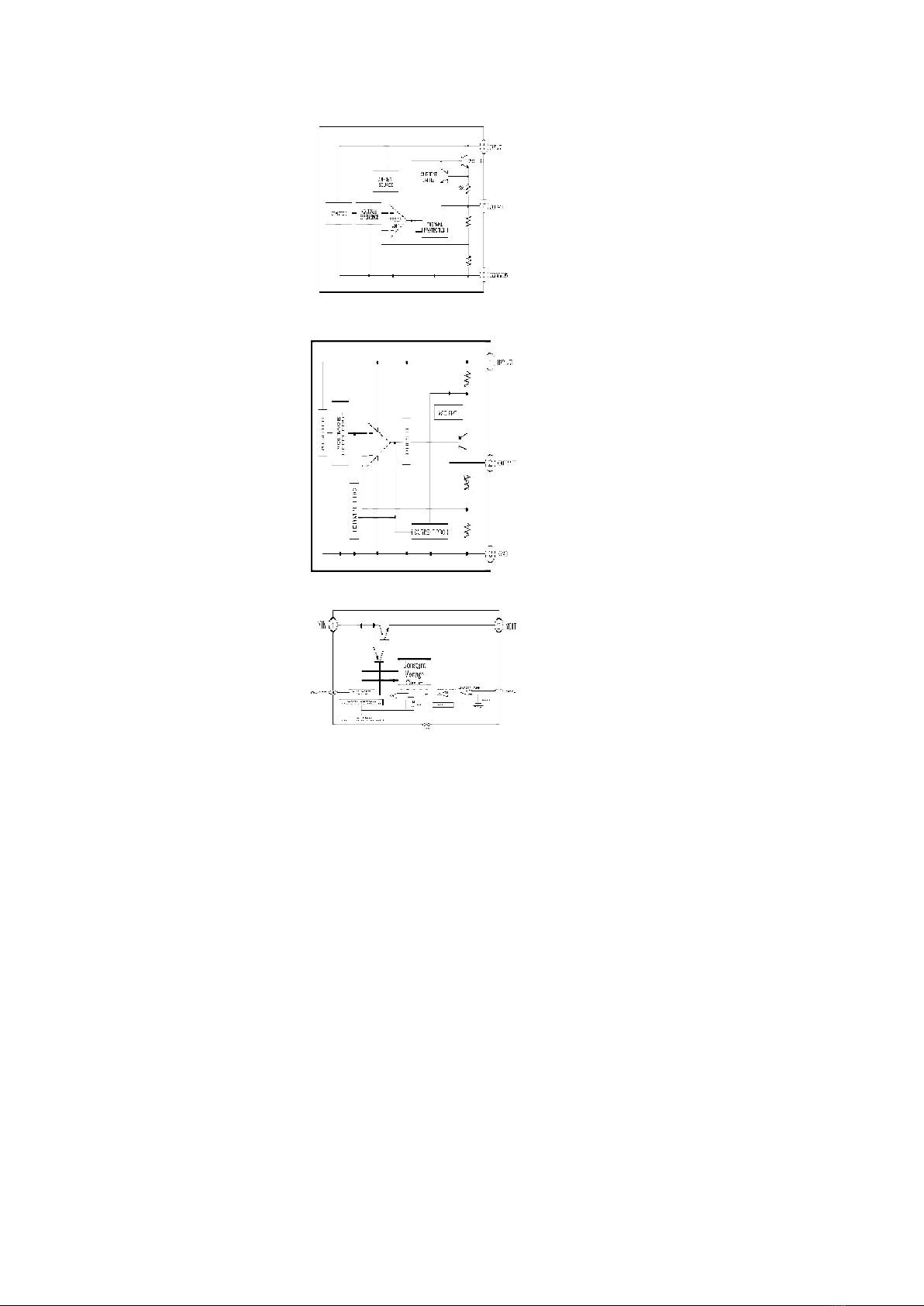

7. IC BLOCK DIAGRAM
IC1 : AN5186FB-V
7

IC9 : C1EB00000101
IC12 : C1AA00000751
8

IC602 : AN8065S-EIV
IC651 : C1AB00000393
IC652 : C0JBAA000344
IC705 : C0CBADC00084
9

IC721 : C0CBACG00005
IC731: C0DBAJG00002
IC801 : C5ZBZ0000019
10

IC802 : C1AB00000163
IC803 : C1AB00001852
8. REPLACEMENT PARTS LIST
Notes :
1. Be sure to make your orders of replacement parts according to this list.
2. Important safety notice: Components, identified by mark have
special characteristics important for safety. When replacing any of
these components, use only manufacturer's specified parts.
3. Location keys in the remarks column indicates the general location of
the parts shown in the exploded drawing, as in a road map.
4. The marking (RTL) indicates that Retention Time is limited for this item.
After the discontinuation of assembly in production, the item will
continue to be available for a specific period of time. The retention
period of availability is dependent on the type of assembly, and in
accordance with the laws governing part and product retention. After
the end of this period, the assembly will no longer be available.
- Order intake period is basically six months after the first shipment.
5. “T” marks in remarks colum are indicated supply parts of PTW.
11

Ref. No. Part No. Part Name & Description Remarks
[E9786B] Main Block
IC's AND TRANSISTORs
IC1 AN5186FB-V IC T
IC9 C1EB00000101 IC T
IC10 C1AA00000668 IC T
IC12 C1AA00000751 IC T
IC201 C0ABBA000063 IC T
IC601 C2BBYY000199 IC T
IC602 AN8065S-E1V IC T
IC651 C1AB00000393 IC T
IC652 C0JBAA000344 IC T
IC705 C0CBADC00084 IC T
IC721 C0CBACG00005 IC T
IC731 C0DBAJG00002 IC T
IC801 C5ZBZ0000019 IC T
IC802 C1AB00000163 IC T
IC803 C1AB00001852 IC T
PAC1 J3AAAAZ00009 Tuner T
Q1 B1GDCFJJ0002 Transistor T
Q2 B1GDCFJJ0002 Transistor T
Q3 B1GDCFJJ0002 Transistor T
Q4 B1GDCFJJ0002 Transistor T
Q5 B1ABBD000002 Transistor T
Q6 2SC4626J0L Transistor T
Q7 B1GBCFJJ0002 Transistor T
Q8 2SD0601AHR Transistor T
Q17 B1GBCFJJ0002 Transistor T
Q201 B1GDCFLL0010 Transistor T
Q202 B1GDCFNN0002 Transistor T
Q204 XN0F26100L Transistor T
Q601 B1GDCFNN0002 Transistor T
Q751 B1BDEL000001 Transistor T
Q752 B1GDJCEJ0002 Transistor T
Q761 B1BBAC000007 Transistor T
Q801 B1ABCF000052 Transistor T
Q802 2SB0709AWL Transistor T
Q803 2SD0601AHR Transistor T
Q804 2SB0709AWL Transistor T
Q805 2SD0601AHR Transistor T
Q806 2SD0601AHR Transistor T
Q807 B1GBHBEA0004 Transistor T
Q808 B1GDCFNN0002 Transistor T
Q809 B1GBCFNN0004 Transistor T
DIODEs
D2 B0DCBF000003 Diode T
D3 B0DCBF000003 Diode T
D4 B0DCBF000003 Diode T
D5 B0DCBF000003 Diode T
D6 MA3X028TAL Diode T
D7 MA3X152E0L Diode T
D12 B0JCRC000002 Diode T
D16 B0ECKL000001 Diode T
D201 B0ADCJ000007 Diode T
D203 B0ADCJ000020 Diode T
D601 B0ACCK000005 Diode T
12

D601 B0ACCK000005 Diode T
13

Ref. No. Part No. Part Name & Description Remarks
D602 B0ACCK000005 Diode T
D603 B0ADCJ000007 Diode T
D604 B0ACCK000005 Diode T
D615 MAZ80510ML Diode T
D721 B0ECKL000001 Diode T
D731 B0JCQD000002 Diode T
D761 B0BC5R700008 Diode T
D762 B0ECKL000001 Diode T
D763 B0ECKP000002 Diode T
D764 B0ACCK000005 Diode T
D771 B0BA04700003 Diode T
D801 B0ACCK000005 Diode T
D803 B0BC5R700008 Diode T
CAPACITORs
C1 F1J1H470A732 Ceramic, 47PF 50WV T
C2 F1J1H470A732 Ceramic, 47PF 50WV T
C3 F1J1H470A732 Ceramic, 47PF 50WV T
C4 F1J1H470A732 Ceramic, 47PF 50WV T
C5 F1J1H102A733 Ceramic, 1000PF 50WV T
C6 F1J1H102A733 Ceramic, 1000PF 50WV T
C7 F1J1H102A733 Ceramic, 1000PF 50WV T
C8 F1J1H102A733 Ceramic, 1000PF 50WV T
C9 F1J1H151A785 Ceramic, 150PF 50WV T
C10 F1J1H151A785 Ceramic, 150PF 50WV T
C11 F1J1H151A785 Ceramic, 150PF 50WV T
C12 F1J1H151A785 Ceramic, 150PF 50WV T
C13 F1J1H102A733 Ceramic, 1000PF 50WV T
C14 F1J1H102A733 Ceramic, 1000PF 50WV T
C15 F1J1H102A733 Ceramic, 1000PF 50WV T
C16 F1J1H102A733 Ceramic, 1000PF 50WV T
C17 F1J1C104A148 Ceramic, 0.1 F 16WV T
C18 ECA1CM100I Electrolytic, 10 F 16WV T
C19 F1J2A103A027 Ceramic, 0.01 F 100WV T
C20 F1J1C105A173 Ceramic, 1 F 16WV T
C21 F1J1H222A733 Ceramic, 2200PF 50WV T
C22 F1H1C473A071 Ceramic, 0.047 F 16WV T
C23 F1H1E223A011 Ceramic, 0.022 F 25WV T
C24 F1J1H150A732 Ceramic, 10PF 50WV T
C25 F1J1H150A732 Ceramic, 10PF 50WV T
C26 F1H1H222A842 Ceramic, 2200PF 50WV T
C27 F1H1C104A107 Ceramic, 0.1 F 16WV T
C28 F1H1H222A842 Ceramic, 2200PF 50WV T
C29 F1J1A2250004 Ceramic, 2.2 F 10WV T
C30 F1H1E103A086 Ceramic, 0.01 F 25WV T
C31 F1H1H220A860 Ceramic, 220PF 50WV T
C32 F1J1C105A173 Ceramic, 1 F 16WV T
C33 F1H1E102A034 Ceramic, 1000PF 25WV T
C34 F1H1E103A086 Ceramic, 0.01 F 25WV T
C36 ECA1AM101I Electrolytic, 100 F 10WV T
C37 F1J1C104A148 Ceramic, 0.1 F 16WV T
14

Ceramic, 0.1 F 16WV
Ref. No. Part No. Part Name & Description Remarks
C38 ECA1AM101I Electrolytic, 100 F 10WV T
C39 F1J1H181A732 Ceramic, 180PF 50WV T
C40 F1H1E103A086 Ceramic, 0.01 F 25WV T
C41 F1J1C104A148 Ceramic, 0.1 F 16WV T
C42 F1H1E223A011 Ceramic, 0022 F 25WV T
C43 F1H1C104A107 Ceramic, 0.1 F 16WV T
C44 ECA1HM2R2I Electrolytic, 2.2 F 50WV T
C45 F1J1C104A148 Ceramic, 0.1 F 16WV T
C46 ECA1CM100I Electrolytic, 10 F 16WV T
C47 ECA1CM100I Electrolytic, 10 F 16WV T
C48 ECA1CM220I Electrolytic, 22 F 16WV T
C50 F1H1C473A071 Ceramic, 0.047 F 16WV T
C51 F1H1E123A086 Ceramic, 0.012 F 25WV T
C52 F1H1E223A011 Ceramic, 0.022 F 25WV T
C53 F1H1C104A107 Ceramic, 0.1 F 16WV T
C54 F1H1C104A107 Ceramic, 0.1 F 16WV T
C55 F1H1H222A842 Ceramic, 2200PF 50WV T
C56 F1J2A103A027 Ceramic, 0.01 F 100WV T
C57 ECA1CM100I Electrolytic, 10 F 16WV T
C58 F1J1C104A148 Ceramic, 0.1 F 16WV T
C59 F1H1E223A011 Ceramic, 0022 F 25WV T
C61 F1J1H222A733 Ceramic, 2200PF 50WV T
C94 F1H0J1050010 Ceramic, 1 F 6.3WV T
C95 F1H1E103A086 Ceramic, 0.01 F 25WV T
C96 F1H1E103A086 Ceramic, 0.01 F 25WV T
C97 F1J2A103A027 Ceramic, 0.01 F 100WV T
C98 F1H1E103A086 Ceramic, 0.01 F 25WV T
C99 ECA0JM101I Electrolytic, 100 F 6.3WV T
C100 F1H1H332A748 Ceramic, 3300PF 50WV T
C102 F1J1H220A732 Ceramic, 22PF 50WV T
C107 F1H1H152A842 Ceramic, 1500PF 50WV T
C108 F1J1H330A732 Ceramic, 33PF 50WV T
C110 F1J1A2250004 Ceramic, 2.2 F 10WV T
C111 F1H1C104A107 Ceramic, 0.1 F 16WV T
C120 F1H1C104A107 Ceramic, 0.1 F 16WV T
C121 F1H1E103A086 Ceramic, 0.01 F 25WV T
C122 F1H1H102A190 Ceramic, 1000PF 50WV T
C123 F1H1E123A086 Ceramic, 0.012 F 25WV T
C124 ECA1AM101I Electrolytic, 100 F 10WV T
C125 F1H1E103A086 Ceramic, 0.01 F 25WV T
C126 F1H1E103A086 Ceramic, 0.01 F 25WV T
C127 F1H1E103A086 Ceramic, 0.01 F 25WV T
C128 ECA0JM101I Electrolytic, 100 F 6.3WV T
15

Ref. No. Part No. Part Name & Description Remarks
C162 F1J0J4750003 Ceramic, 4.7 F 6.3WV T
C201 ECEA1HKA010I Electrolytic, 1 F 50WV T
C202 F1H1E103A086 Ceramic, 0.01 F 25WV T
C204 ECA1CM100I Electrolytic, 10 F 16WV T
C205 ECEA1HKA010I Electrolytic, 1 F 50WV T
C206 F1J1H560A788 Ceramic, 56PF 50WV T
C207 ECA1AM221I Electrolytic, 220 F 10WV T
C208 F1J1C105A173 Ceramic, 1 F 16WV T
C209 ECA1CM100I Electrolytic, 10 F 16WV T
C305 ECEA1HKA010I Electrolytic, 1 F 50WV T
C306 F1J1H560A788 Ceramic, 56 F 50WV T
C309 ECA1CM100I Electrolytic, 10 F 50WV T
C601 ECA0JM101I Electrolytic, 100 F 6.3WV T
C602 F1H1C104A107 Ceramic, 0.1 F 16WV T
C603 F1H1C104A107 Ceramic, 0.1 F 16WV T
C604 ECA0JM221I Electrolytic, 220 F 6.3WV T
C605 F1H1E103A086 Ceramic, 0.01 F 25WV T
C606 F1H1C104A107 Ceramic, 0.1 F 16WV T
C607 ECA0JM221I Electrolytic, 220 F 6.3WV T
C608 F1H1A474A046 Ceramic, 0.47 F 10WV T
C609 F1H1A224A046 Ceramic, 0.22 F 10WV T
C610 F1H1C104A107 Ceramic, 0.1 F 16WV T
C612 ECA0JM221I Electrolytic, 220 F 6.3WV T
C613 F1J1H102A733 Ceramic, 1000PF 50WV T
C614 ECA0JM221I Electrolytic, 220 F 6.3WV T
C615 F1J1H102A733 Ceramic, 1000PF 50WV T
C651 F1H1E102A034 Ceramic, 1000PF 25WV T
C652 F1H1C104A107 Ceramic, 0.1 F 16WV T
C653 F1J0J4750003 Ceramic, 4.7 F 6.3WV T
C654 F1H1C104A107 Ceramic, 0.1 F 16WV T
C655 F1H1C104A107 Ceramic, 0.1 F 16WV T
C721 F1H1C104A107 Ceramic, 0.1 F 16WV T
C722 F2A1A181A835 Electrolytic, 180 F 10WV T
C723 F2A1A181A835 Electrolytic, 180 F 10WV T
C724 F1H1C104A107 Ceramic, 0.1 F 16WV T
C732 F1K1E475A099 Ceramic, 4.7 F 16WV T
C733 F1H1H471A842 Ceramic, 470PF 50WV T
C734 F1H1H222A842 Ceramic, 2200PF 50WV T
C735 F1K1E475A099 Ceramic, 4.7 F 16WV T
C736 F2H1C331A023 Electrolytic, 330 F 16WV T
C737 F2H1C331A023 Electrolytic, 330 F 16WV T
C741 F1H1E103A086 Ceramic, 0.01 F 25WV T
16

Ref. No. Part No. Part Name & Description Remarks
C743 F1H1E103A086 Ceramic, 0.01 F 25WV T
C744 F2H1C331A023 Electrolytic, 330 F 16WV T
C745 F2H1C331A023 Electrolytic, 330 F 16WV T
C761 F1H1C104A107 Ceramic, 0.01 F 16WV T
C762 ECA1CM100I Electrolytic, 10 F 16WV T
C763 F2A1C101A029 Electrolytic, 100 F 16WV T
C773 F2H1C331A023 Electrolytic, 330 F 16WV T
C774 F2H1C331A023 Electrolytic, 330 F 16WV T
C779 F1J1C105A173 Ceramic, 0.1 F 16WV T
C801 F1J2A103A027 Ceramic, 0.01 F 100WV T
C802 ECA0JM101I Electrolytic, 100 F 6.3WV T
C803 F1H1E103A086 Ceramic, 0.01 F 25WV T
C804 F1H1H270A841 Ceramic, 27PF 50WV T
C805 F1H1H270A841 Ceramic, 27PF 50WV T
C806 F1H1H3R0A839 Ceramic, 3PF 50WV T
C807 F1J1H120A732 Ceramic, 12PF 50WV T
C808 F1J1H120A732 Ceramic, 12PF 50WV T
C809 F1H1E103A086 Ceramic, 0.01 F 25WV T
C810 ECA0JM101I Electrolytic, 100 F 6.3WV T
C811 F1H1E103A086 Ceramic, 0.01 F 25WV T
C812 F1H1E103A086 Ceramic, 0.01 F 25WV T
C813 F1H0J1050010 Ceramic, 1 F 6.3WV T
C814 ECA1CM100I Electrolytic, 10 F 16WV T
C815 F1J0J4750003 Ceramic, 4.7 F 6.3WV T
C817 ECA0JM471I Electrolytic, 470 F 6.3WV T
C818 ECA1AM101I Electrolytic, 100 F 10WV T
C820 F1H1C104A107 Ceramic, 0.1 F 16WV T
C821 ECA1AM101I Electrolytic, 100 F 10WV T
C822 ECA1AM101I Electrolytic, 100 F 10WV T
C823 ECA1CM220I Electrolytic, 22 F 16WV T
C824 F1J0J4750003 Ceramic, 4.7 F 6.3WV T
C825 F1J0J4750003 Ceramic, 4.7 F 6.3WV T
C826 ECA1CM220I Electrolytic, 22 F 16WV T
C827 ECA1AM101I Electrolytic, 100 F 10WV T
C828 F1K0J1060017 Ceramic, 10 F 6.3WV T
C829 F1H0J1050010 Ceramic, 1 F 6.3WV T
C830 F1H1H331A900 Ceramic, 330PF 50WV T
C831 F1H0J1050010 Ceramic, 1 F 6.3WV T
C832 ECA1AM101I Electrolytic, 100 F 10WV T
C833 F1H1E102A034 Ceramic, 1000PF 25WV T
C834 F1H1H181A842 Ceramic, 180PF 50WV T
C835 F1H1H153A842 Ceramic, 0.01 F 25WV T
C836 F1J0J4750003 Ceramic, 4.7 F 6.3WV T
17

Ref. No. Part No. Part Name & Description Remarks
C837 F1H0J1050010 Ceramic, 1 F 6.3WV T
C840 F1H1H560A841 Ceramic, 56PF 50WV T
C841 F1H1H103A842 Ceramic, 0.01 F 50WV T
C842 F1H1H103A842 Ceramic, 0.01 F 50WV T
C843 ECA0JM221I Electrolytic, 220 F 6.3WV T
C844 F1J1C104A148 Ceramic, 0.1 F 16WV T
C845 F1J1C104A148 Ceramic, 0.1 F 16WV T
C846 ECA0JM221I Electrolytic, 220 F 6.3WV T
C847 ECA0JM221I Electrolytic, 220 F 6.3WV T
C848 F1H1H103A842 Ceramic, 0.01 F 50WV T
RESISTORs
R1 D0GD391JA017 Chip, 390 1/8W T
R2 D0GD391JA017 Chip, 390 1/8W T
R3 D0GD391JA017 Chip, 390 1/8W T
R4 D0GD391JA017 Chip, 390 1/8W T
R6 D0GD391JA017 Chip, 390 1/8W T
R7 D0GD103JA017 Chip, 10k 1/8W T
R8 D0GD102JA017 Chip, 1k 1/8W T
R9 D0GD102JA017 Chip, 1k 1/8W T
R10 D0GD102JA017 Chip, 1k 1/8W T
R11 D0GD102JA017 Chip, 1k 1/8W T
R12 D0GDR00JA017 Chip, 0 1/8W T
R13 D0GD222JA017 Chip, 2.2k 1/8W T
R14 D0GD103JA017 Chip, 10k 1/8W T
R15 D0GD331JA017 Chip, 330 1/8W T
R16 D0GD330JA017 Chip, 33 1/8W T
R17 D0GD151JA017 Chip, 150 1/8W T
R18 D0GB561JA008 Chip, 560 1/10W T
R19 D0GB392JA008 Chip, 3.9k 1/10W T
R20 D0GB330JA008 Chip, 33 1/10W T
R21 D0GB181JA008 Chip, 180 1/10W T
R22 D0GB272JA008 Chip, 2.7k 1/10W T
R23 D0GD472JA017 Chip, 4.7k 1/8W T
R24 D0GB101JA008 Chip, 100 1/10W T
R25 D0GB331JA008 Chip, 330 1/10W T
R26 D0GB823JA008 Chip, 82k 1/10W T
R27 D0GB102JA008 Chip, 1k 1/10W T
R28 D0GD181JA017 Chip, 180 1/8W T
R29 D0GB102JA008 Chip, 1k 1/10W T
R30 D0GB102JA008 Chip, 1k 1/10W T
R31 D0GB102JA008 Chip, 1k 1/10W T
R32 D0GB102JA008 Chip, 1k 1/10W T
R33 D0GB471JA008 Chip, 470 1/10W T
R34 D0GB392JA008 Chip, 3.9k 1/10W T
18

Ref. No. Part No. Part Name & Description Remarks
R35 D0GB432JA008 Chip, 4.3k 1/10W T
R36 D0GD392JA017 Chip, 3.9 1/8W T
R37 D0GB102JA008 Chip, 1k 1/10W T
R38 D0GDR00JA017 Chip, 0 1/8W T
R39 D0GB102JA008 Chip, 1k 1/10W T
R40 D0GBR00JA008 Chip, 0 1/10W T
R41 ERJ3RBD151V Chip, 150 1/16W T
R42 ERJ3RBD181V Chip, 180 1/16W T
R43 D0GB472JA008 Chip, 4.7k 1/10W T
R44 D0GBR00JA008 Chip, 0 1/10W T
R45 D0GB102JA008 Chip, 1k 1/10W T
R46 D0GB393JA008 Chip, 39k 1/10W T
R47 D0GB103JA008 Chip, 10k 1/10W T
R48 D0GB272JA008 Chip, 2.7k 1/10W T
R49 D0GD333JA017 Chip, 33k 1/8W T
R50 D0GD102JA017 Chip, 1k 1/8W T
R51 D0GD101JA017 Chip, 100 1/8W T
R52 D0GD563JA017 Chip, 56k 1/8W T
R53 D0GB473JA008 Chip, 47k 1/10W T
R54 D0GB563JA008 Chip, 56k 1/10W T
R55 D0GB472JA008 Chip, 4.7k 1/10W T
R56 D0GB272JA008 Chip, 2.7k 1/10W T
R58 D0GB562JA008 Chip, 5.6 1/10W T
R59 D0GDR00JA017 Chip, 0 1/8W T
R100 D0GB223JA008 Chip, 22k 1/10W T
R101 D0GB333JA008 Chip, 33k 1/10W T
R102 D0GB123JA008 Chip, 12k 1/10W T
R103 D0GB102JA008 Chip, 1k 1/10W T
R104 D0GB473JA008 Chip, 47k 1/10W T
R106 D0GB101JA008 Chip, 100k 1/10W T
R107 D0GD472JA017 Chip, 4.7k 1/8W T
R108 D0GD472JA017 Chip, 4.7k 1/8W T
R110 D0GD202JA017 Chip, 2k 1/8W T
R114 D0GB103JA008 Chip, 10k 1/10W T
R115 D0GB222JA008 Chip, 2.2k 1/10W T
R116 D0GD272JA017 Chip, 2.7k 1/8W T
R117 D0GBR00JA008 Chip, 0 1/10W T
R148 D0GB103JA008 Chip, 10k 1/10W T
R168 D0GBR00JA008 Chip, 0 1/10W T
R201 D0GB102JA008 Chip, 1k 1/10W T
R202 D0GB103JA008 Chip, 10k 1/10W T
R209 D0GB103JA008 Chip, 10k 1/10W T
R210 D0GB103JA008 Chip, 10k 1/10W T
R213 D0GD104JA017 Chip, 100k 1/8W T
R214 D0GD562JA017 Chip, 5.6k 1/8W T
R215 D0GB273JA008 Chip, 27k 1/10W T
R216 D0GD561JA017 Chip, 560 1/8W T
19

Ref. No. Part No. Part Name & Description Remarks
R217 D0GD473JA017 Chip, 47k 1/8W T
R313 D0GD104JA017 Chip, 100k 1/8W T
R314 D0GD562JA017 Chip, 5.6k 1/8W T
R315 D0GB273JA008 Chip, 27k 1/10W T
R316 D0GD561JA017 Chip, 560 1/8W T
R317 D0GD473JA017 Chip, 47k 1/8W T
R600 D0GD473JA017 Chip, 47k 1/8W T
R601 D0GB102JA008 Chip, 1k 1/10W T
R602 D0GD101JA017 Chip, 100 1/8W T
R603 D0GB102JA008 Chip, 1k 1/10W T
R604 D0GB473JA008 Chip, 47k 1/10W T
R605 D0GB473JA008 Chip, 47k 1/10W T
R608 D0GB102JA008 Chip, 1k 1/10W T
R609 D0GB102JA008 Chip, 1k 1/10W T
R610 D0GB102JA008 Chip, 1k 1/10W T
R611 D0GB102JA008 Chip, 1k 1/10W T
R612 D0GD101JA017 Chip, 100 1/8W T
R613 D0GB103JA008 Chip, 10k 1/10W T
R614 D0GB102JA008 Chip, 1k 1/10W T
R615 D1BB2703A012 270k 1/10W T
R616 D1BB1503A056 150k 1/16W T
R617 D1BB3902A012 39k 1/10W T
R618 ERJ3RBD433V Chip, 43k 1/16W T
R619 D0GB102JA008 Chip, 1k 1/10W T
R622 D0GD331JA017 Chip, 330 1/8W T
R623 D0GB103JA008 Chip, 10k 1/10W T
R624 D0GD102JA017 Chip, 1k 1/8W T
R625 D0GB102JA008 Chip, 1k 1/10W T
R626 D0GB102JA008 Chip, 1k 1/10W T
R652 D0GBR00JA008 Chip, 0k 1/10W T
R654 D0GB473JA008 Chip, 47k 1/10W T
R721 D0GN2R7JA005 Chip, 2.7k 1/2W T
R731 D1BD1201A030 1.2k 1/8W T
R732 D1BB7501A012 7.5k 1/10W T
R741 D0GDR00JA017 Chip, 0 1/8W T
R743 D0YFR00J0001 Chip, 0 1/8W T
R744 D0YFR00J0001 Chip, 0 1/8W T
R745 D0GG150JA012 Chip, 15 1/4W T
R751 D0GB473JA008 Chip, 47k 1/10W T
R752 D0GN102JA005 Chip, 1k 1/2W T
R753 D0GN102JA005 Chip, 1k 1/2W T
R754 D0GN102JA005 Chip, 1k 1/2W T
R759 D0YFR00J0001 Chip, 0 1/8W T
R760 D0YFR00J0001 Chip, 0 1/8W T
R761 D0GG100JA012 Chip, 10 1/4W T
R762 D0GB103JA008 Chip, 10k 1/10W T
R763 D0GD102JA017 Chip, 1k 1/8W T
20
