SCT Livewire TS+ User manual

SECTION 2:
PRE-INSTALL CHECKLIST
BUSINESS HOURS
Technical Support is available Monday – Friday between the hours
of 9am and 6pm EST and can be contacted via phone at (407)
774-2447 or through live chat at : www.sctflash.com. If you need to
contact Tech Support, please be sure to have your device with you
before initiating contact.
INTERNET ACCESS
In the unlikely event that technical support is needed, Internet access
may be required to troubleshoot. Our Technical Support team may
also need to remotely connect to your computer to fix any issues you
may be having.
ALLOW TIME FOR INITIAL SETUP
Make sure you have at least an hour to complete the initial setup,
update, and installation process.
READ LIVEWIRE TS+ USER MANUAL
SCT highly recommends taking a moment to read through your
Livewire TS+ user guide found on our website at: www.sctflash.com/
support before your initial installation. There is a lot of in depth and
useful information inside the manual that won’t be covered in this Quick
Start Guide.
This device is not legal for sale or use in California on pollution controlled vehicles.
SECTION 3:
IMPORTANT ON-DEVICE INFO.
From the Main Menu, select Device Info.
Within Device Info, you will find :
SERIAL NUMBER:
Needed for dealers to create custom tunes for your vehicle
and device.
FIRMWARE VERSION:
This is essentially your device’s operating system.
TUNE REVISION
The version number of your preloaded tunes.
UNLOCKS LEF T:
Number of unlocks remaining. An unlock is used when the tuned
vehicle is returned to stock and a different vehicle is programmed.
MARRIED STATUS:
Unmarried = Unlocked and ready for vehicle pairing.
Married = Locked to a vehicle.
VBAT T:
The amount of voltage being run through the device from your ve-
hicle’s battery. As a general rule, 12.75+ volts is needed to flash a tune
to a vehicle.
SECTION 4:
UPDATING YOUR LIVEWIRE TS+ DEVICE
INSTALLING THE UPDATER SOFTWARE
1. Go to www.sctflash.com
2. Click “Support” tab at the top of the page.
3. Click the Livewire TS+ button (Part Number 5015P/5416P).
4. Click the “Downloads” button and then click the “Download Now”
button under the “Updater” menu item.
5. Wait for that program to download, then double click and “Run” the
SCTDeviceUpdater.exe file if it does not open automatically.
6. Follow the on-screen directions of the SCT Device Update Soft-
ware Installer until it allows you to click “Finish”.
7. Follow the on-screen directions of the SCT Drivers Installer until it
allows you to click “Finish”.
8. Your SCT Device Updater Software and Drivers are now fully
installed and ready for use.
UPDATING YOUR LIVEWIRE TS+
1. Prior to updating your Livewire TS+ you will need to return the
vehicle back to stock, if not at stock already.
2. Connect your Livewire TS+ Device to your Windows™ based PC
using the provided Micro USB™ cable. Unfortunately, we do not
offer support for Apple computers at this time.
3. Double click and open the SCT Device Updater Software.
4. Click “Automatically Check for Updates”.
5. Confirm the update by pressing the “Update” button. The update
will now begin.
6. Let the updater run until it says “Your device is now up to date”.
7. You may now unplug your device from your computer and load a
tune to your vehicle.
[phone] / WWW.SCTFLASH.COM

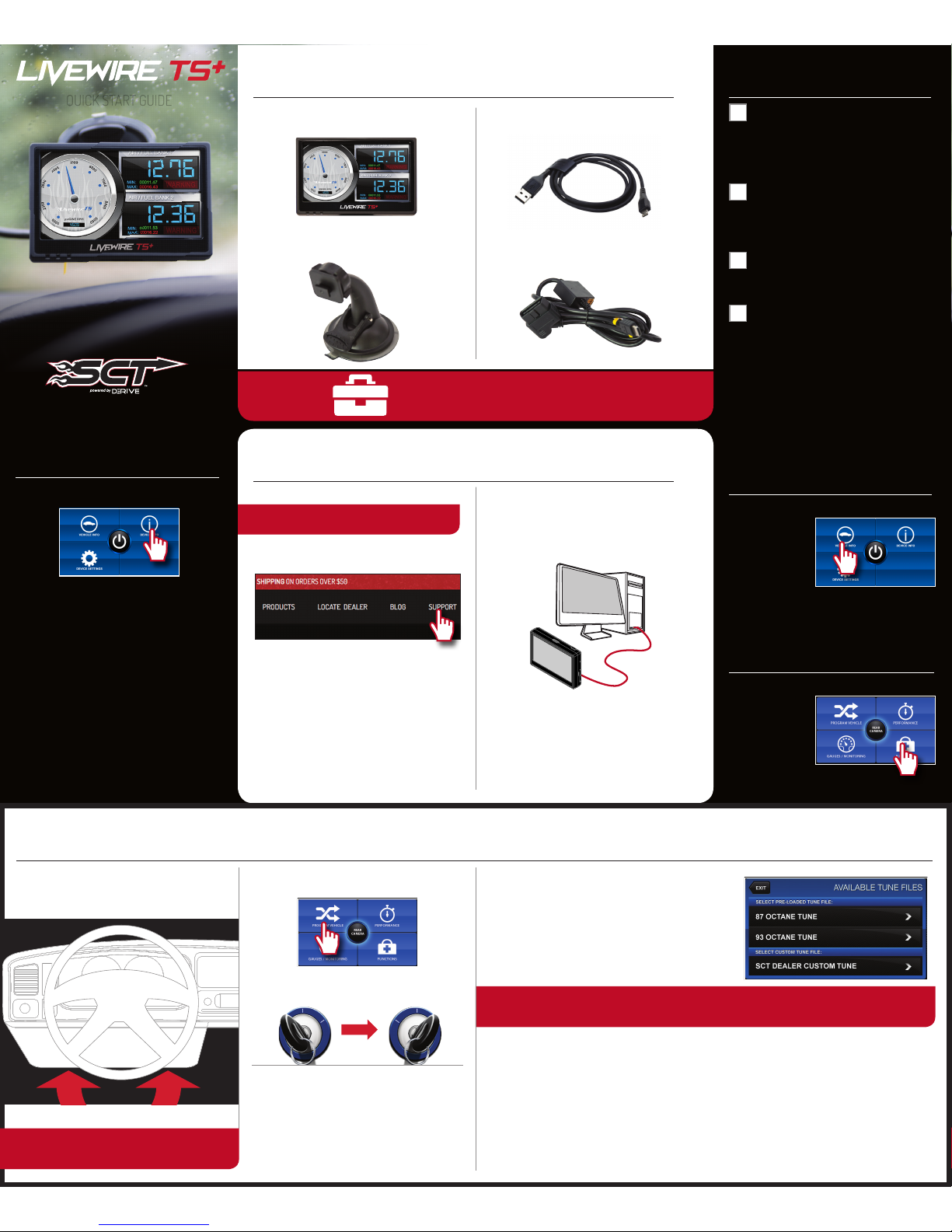

QUICK START GUIDE
SECTION 1:
PARTS CHECKLIST
LIVEWIRE TS+ DEVICE
LIVEWIRE TS+WINDOW MOUNT
MICRO USB™CABLE
LIVEWIRE TS+ OBDII CABLE
NOTE: Make sure the Livewire TS+is unplugged from your
computer before starting this process.
SECTION 5:
READING VEHICLE VIN & STRATEGY/
OS PART#’S
From the Main Menu, select Vehicle Info.
Once on the Vehicle Info
screen, you’ll be asked to
turn the key on. The VIN#
will display as well as the
Strategy for Ford vehicle/
device. GM vehicle/device,
will display the OS
Part Numbers.
SECTION 6:
CHECKING/CLEARING VEHICLE
TROUBLE CODES
From the Main Menu, select Vehicle Functions.
Within this menu, you will
be given the option to read
or clear DTCs (Diagnostic
Trouble Codes). Make your
selection and follow the
on-screen prompts.
SECTION 7:
PROGRAMMING THE VEHICLE
POWERING ON THE LIVEWIRE TS+
To power up your device using the provided HDMI to OBDII cable, connect
to the vehicle’s OBDII port. The OBDII port is most commonly found within
24” of the steering column under the driver’s side dash.
BEGIN PROGRAMMING
1. From the Main Menu, select Program Vehicle.
2. At this point, the key should be in the ignition, but in the OFF
position until prompted to turn key ON/RUN position.
Within Program Vehicle, there are 2-3 selections depending on the
state of the vehicle.
• Pre-Loaded Tune Files = Preloaded SCT tunes for use on stock
vehicles only.
• Custom Tune = Custom Tuning Dealer files, if there are any on
the device.
• Return to Stock = Restore original factory file to vehicle.
USING PRE-LOADED TUNE FILES
Once you follow the first “Key On” prompt, the device will show you a selection
of vehicles and engine sizes. Select yours here. This will take you to Adjustable
Options where you will be able to adjust to different performance levels, vehicle
characteristics, and options including, but not limited to, speed limiters, axle ratio
and tire size. (Adjustable Options are vehicle specific). For more information on
Adjustable Options, please see the Adjustable Options Explained section of this guide
USING CUSTOM TUNES
To install Custom Tunes, select Program Vehicle, and scroll down to the Custom Tunes section. If your device contains any custom tunes for your
vehicle, this is where they will be listed. Once you’ve found your desired tune, select it by pressing on it and follow the on-screen instructions to load the
tune to your vehicle.
RETURNING TO STOCK
With SCT devices, your stock file is stored during the initial programming. The stock file stays on the programmer until the vehicle is returned to stock.
From Program Vehicle, select Return to Stock and follow the on-screen instructions to advance through the programming process.
NOTE: Custom Tunes are built by SCT’s network of Custom Tuning Dealers and any questions related to them need to be directed
toward the tuning dealer.
Two clicks
Fuse Puller | Voltage Tester | Battery Charger | Pliers
TOOLS NEEDED:
NOTE: Please make sure that all stock electronics are turned off
and disconnect any aftermarket electronics as well.

SECTION 8:
LOADING CUSTOM TUNES
Download and install the SCT Device Updater Software and drivers from : www.sctflash.com/support
1. From your e-mail, save your custom tunes
(.cef files) to your computer’s Desktop.
2. Open the SCT Device Updater software and
click the Load Custom Tune File button.
3. Click Browse and locate your custom tunes on
your Desktop. Alternatively, click Locate
Custom Tunes.
4. Highlight the Tune you wish to load.
5. The tune you selected should move to the Available
Tunes section.
6. Select the listed tune in the Available Tunes section,
then click the >> button to move the selected tune
to the On Device section.
7. Highlight the tune under the On Device section,
then click program. Tunes can only be loaded
one at a time. Repeat steps 3-7 for each tune, the
device can hold up to ten custom tunes.
SECTION 9:
ON–DEVICE DATA LOGGING
1. Connect the Livewire TS+ to the OBDII port.
2. From the Main Menu, select the Gauges/Datalog on the
Livewire TS+.
3. On initial setup, you will need to select the Configuration icon
at the bottom left and select your vehicle from a list of data log
files. In the future, you can continue without going through the
vehicle selection.
4. Once you select your vehicle, Default Gauges will show up and you
can now monitor these gauges.
5. The items being monitored can be adjusted by double tapping
on the item you’d like to change. Within this menu, you can
change the item you’re monitoring, and the units in which it
will be displaying.
6. To start or stop data logging,Tap the screen once to bring up
the options and select the top right icon that says REC.
7. While monitoring, you can pull up the Gauges/Datalog menu
by tapping the screen once. From this menu, you may start re-
cording, select a data log file with which to log, change the gauge
layout, and reset the min/max values on the monitor. By tapping
on the screen twice you can change the gauge layout.
SECTION 10:
ADJUSTABLE OPTIONS EXPLAINED
DIESEL VEHICLE SPECIFIC OPTIONS
Performance
The most aggressive preloaded diesel tune. Good for everyday
use, racing, or economy but not recommended for towing.
Street
The Street tune has less power than Performance with a mod-
erate gain over stock, safe for light towing, under 5,000 lbs.
Towing
This tune should be used when towing any significant load as
the shifting is specific for towing.
Trans Only
For heavy loads, the engine and boost are left stock and only
the transmission shift points are tuned.
Jake Brake
Exhaust brake to increase engine braking while coasting to help
lower braking temperatures.
Locked at CT
Keeps the torque converter locked during deceleration to aid in
engine braking.
Lock In 1-2-3
Locks the torque converter in 1st, 2nd and 3rd gear.
Agg. Tow Haul
More aggressive shift schedule keeping the engine in its
power band longer.
DIESEL & GAS VEHICLE OPTIONS:
Axle Ratio
Corrects shift patters / speedometer for aftermarket axles /
parts. (Not available on all vehicles)
Tire Size
Sets tire size to correct shift patterns/speedometer. (Not avail-
able on all vehicles)
Idle Speed
Sets idle speed in RPM.
Traction Control
On/Off setting disables traction control without using the TCS
button.
WOT Shift
Increase or Decrease the WOT shift points of each gear individ-
ually by MPH.
Shift Pressure
% change in transmission pressure during shifts. (+ equals
firmer,- equals softer)
GAS VEHICLE SPECIFIC OPTIONS:
Tune Type
Performance levels vary by the octane you select. Higher
octane will provide higher performance increase. 93 octane
would be the highest increase.
Global Spark
Add or remove timing advance to the entire RPM range.
Spark by RPM
Add or remove timing by RPM range. (0-2,000) (2,000-40,00)
(4,000-8,000)
WOT Fuel
Add or remove fuel at wide open throttle. (WOT)
Fuel Injectors
Allows you to adjust for different sized injectors. (Not available
on all vehicles)
CMCV Deletes
Updates tune for the CMCV/IMRC delete plates modification
Fan Control
Lowers the temperature at which the fan turns on.
Rev Limiter Drive
Sets rev limit in RPM while in drive.
Rev Limiter Neutral
Sets rev limit in RPM while in neutral.
Speed Limit
Remove, increase, or decrease the vehicle speed limiter.
(AKA Governor)
Doc. #5015-99 v1.2
NOTE: To edit the name of the file as it appears on your device, you must highlight the file after transferring the file to the “On
Device” section of Updater. Next to “Edit Name”, change the name of the file here. Select “Save”, then “Program”.
SECTION 11:
FREQUENTLY ASKED QUESTIONS
Q: When I try to update my tuner, it says “Please connect SCT device” but it’s already plugged in.
A: This is an issue with your PC’s driver software. If problem persists, contact SCT Tech Support
at [phone] and our support staff will walk you through fixing this issue.
Q: When I connect the tuner to the vehicle, it doesn’t power on.
A: Check for blown fuses specific to the OBDII port for your vehicle.
Q: Does the tuner have to stay plugged in to keep the vehicle tuned?
A: No, after tuning the vehicle you can disconnect the programmer and store it.
Q: Can I stack/combine the Livewire TS+ with another chip or tuning module?
A: All chips/tuning products must be removed prior to tuning with any SCT device.
Q: Can I tune more than one vehicle with this programmer?
A: Yes, but only one vehicle may be tuned at a time and you MUST return the vehicle to the stock
to before tuning another vehicle.
Q: Can the vehicle be tuned while the engine is running?
A: We do not recommend tuning the vehicle while the engine is running as this can cause severe
damage to the vehicle and the PCM.
Q: Should I return to stock before taking my car to the dealer?
A: We recommend that you always return your vehicle to stock before returning to the dealership
as this prevents the tuner from becoming locked if the dealer updates the PCM.
Q: My device is telling me my car is a Shelby GT500 when I go to program vehicle or My device
says Demo Mode when I read Device Info.
A: Check device settings and look for Demo Mode. If it is on disable it by turning it to off.
This will cause the device to stop identifying your vehicle as a Shelby GT500 and will now
operate as needed.
Q: My vehicle is modified and I loaded a preloaded tune. Now it won’t run as expected.
A: In most cases a modified vehicle requires a custom tune. There are set ups in the preloaded
tune options to adapt to certain cold air intakes, however this is per vehicle and what works for
one vehicle may not work on another. Please contact a SCT Custom Tune Dealer for a custom
tune if your vehicle is heavily modified.
Q: I keep getting error code 110AF/110AE. The device tells me to update my device, but it is already
up to date.
A: You need to read vehicle info and write down your ECU Strategy/ECM OS Part Number. After
you’ve read vehicle info you need to go to your computer and update the device using SCT
Device Updater to download the additional files needed to tune your vehicle.
Q. what is the difference between an unlock and a reset?
A. An Unlock is required when a device is “Locked/Married” to a vehicle that is no longer available.
A Reset is needed when you have exceeded the “5 unlocks” on the device. Please call SCT Tech
Support to have your device Unlocked / Reset.
Q: I brought my vehicle to get work done at a dealership and they flashed the vehicle now the
device is telling me it is the incorrect vehicle.
A: Contact SCT Technical Support at: [phone].
NOTE: Devices have five unlocks. An unlock is used when the device is transferred
from one vehicle to another.
2.
5.
3.
7.
6.
NOTE: Adjustable Options vary for each vehicle and are
not available on all vehicles.
NOTE: If you cant display a specific value from the preloaded
config files, you can download and build custom config files via
our Live Link software. If you are not seeing the value or the
PID option you want, you can download and build your own
configuration file using the Live Link datalogging software from
https://www.sctflash.com/support.
[phone] / WWW.SCTFLASH.COM
