Sculpt SEGUIN Aurore Operation manual

1
1. SPECIFICATIONS AND CLEARANCES
2. PRELIMINARY INSTALL GUIDE
3. INSTALL GUIDE
4. OPERATION & MAINTENANCE
5. TEST REPORTS
6. WARRANTY
Aurore, Topaze, Saphir & Jade
INSTALLATION & USER GUIDE
SEGUIN
NOTICE TO INSTALLER:
These instructions must be left with the owner, who should keep them for future use.

2
COMPLIANCE PLATE AND SERIAL NUMBER.
The instructions in this manual are recommendations only, the distributor and manufacturer bears no liability to the interpretation of these instructions.

3
Thank you for choosing Sculpt Fireplaces as your heater of choice.
Your replace is the result of careful design, artisan engineering and safety tests.
If it is properly installed, used and maintained, you may be sure that you will have an outstanding
heating feature in your home for years to come.
We advise you to read through this guide in order to become acquainted with the installation
methods specic to your replace.
It is recommended that this replace be installed by a qualied and licensed trades professional.
You will nd in this guide the answers to most of your questions, should you require further
assistance we recommend you contact your retailer.
Before igniting your replace for the rst time, please carefully read this manual.
Follow @sculptreplacecollection on Instagram, SculptFireplaceCollection on Facebook and be
sure to post your latest masterpiece installed with the hashtag #sculptres.
We hope we’ve helped make you the envy of your friends this winter and for years to come.
From all of us,
Sculpt Fireplace Collection
CONGRATULATIONS!

4
IMPORTANT
Heating capacity of the following appliances are a guide only and refers to areas with 2.4m ceilings
and 6 or more star rated buildings. Heating output may vary depending on factors such as building
characteristics, quality of insulation, type of rewood used and climate zone.
All dimensions shown are approximate. Check all dimensions accurately prior to installation. In line with
our policy of continuous improvement, we reserve the right to alter specications without notice.
All units comply and MUST be installed to Australian & New Zealand Standard AS/NZS 2918:2018.
When in use some parts may become hot. A suitable re guard is recommended where very young,
elderly or inrm are concerned.
ALL FIREPLACES IN THIS MANUAL CONFORM TO AUSTRALIAN AND NEW ZEALAND STANDARDS
AS/NZS 2918:2018 DOMESTIC SOLID FUEL BURNING APPLIANCES & AS/NZS 4012/4013(2014).
The instructions in this manual are recommendations only, the distributor and manufacturer bears no liability to the interpretation of these instructions.
© Copyright 2019 Sculpt Fireplaces Collection

5
1. SPECIFICATIONS

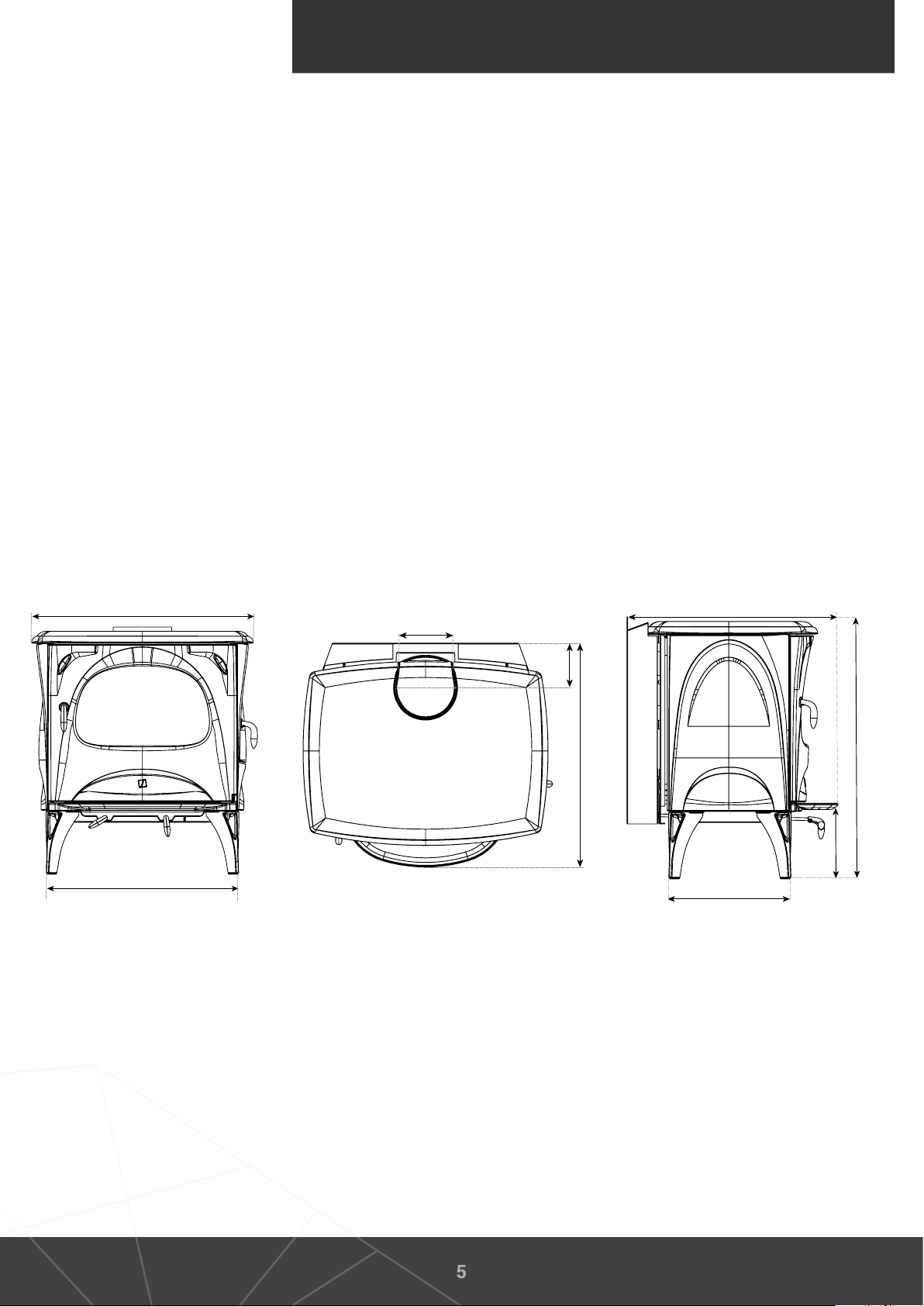

Seguin Aurore
*Heating capacity of the following appliances are a guide only and refers to areas with 2.4m ceilings
and 6 or more star rated buildings. Heating output may vary depending on factors such as building
characteristics, quality of insulation, type of rewood used and climate zone.

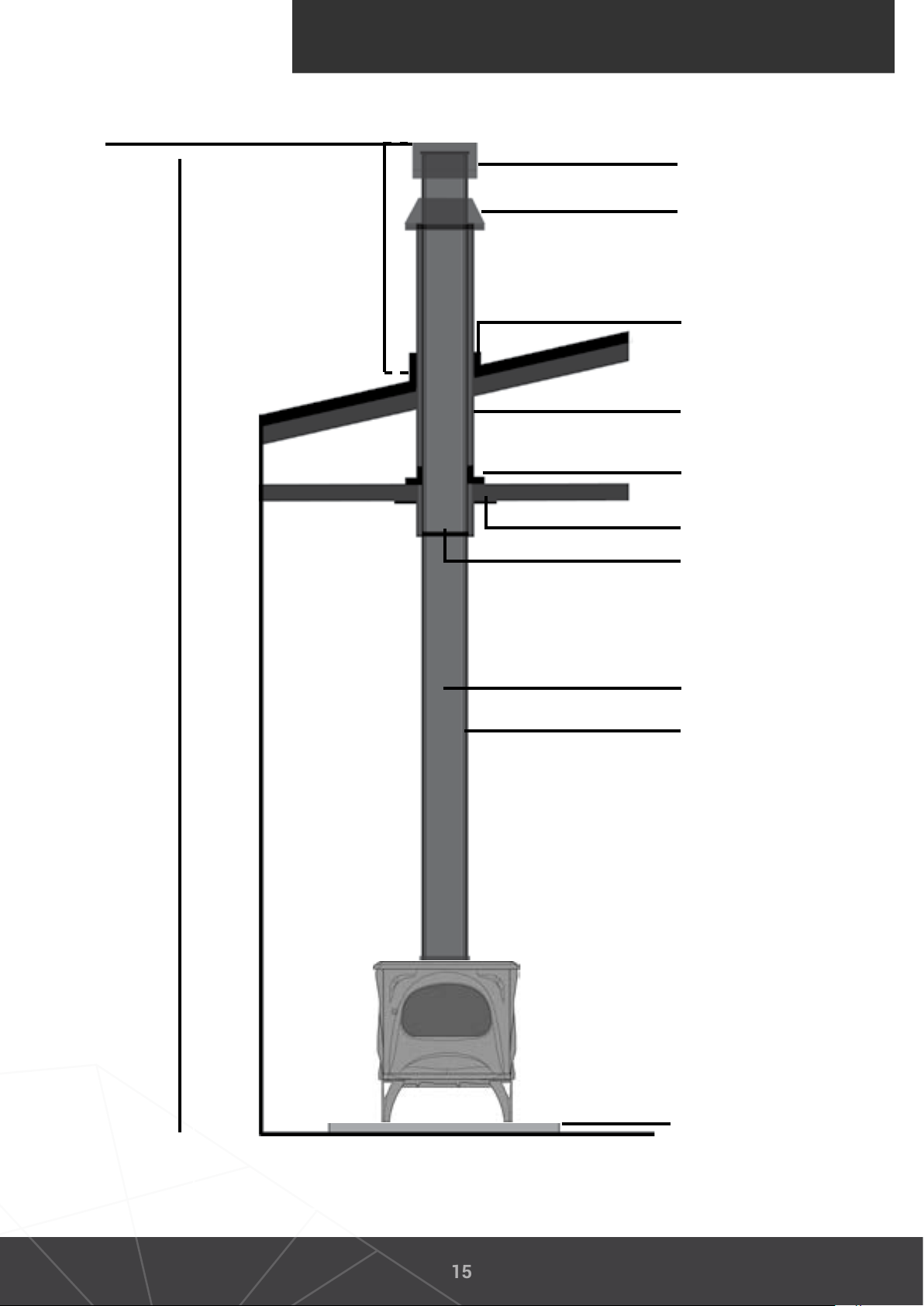

** Refer to pg. 15 & 16 for flue system installation
*** See warranty pg. 29 of the manual
FRONT SIDE
Cast iron rebox with vermiculite lining
Combustion air & glass air wash control
Up to 140m2*
9kW
1.5g/kg
63%
Two secure swing door opening system
4.6m from the hearth**
150mm, 200mm, 250mm solid
10 year rebox warranty***
170 kg
Width: 850mm Depth: 1130mm Thickness: 9mm***
Material
Dual Damper Control
Heating Capacity
KW Output
Avg Emissions
Avg Efciency
Door Operation
Minimum Flue Height
Flue Dimensions
Warranty
Weight
Minimum Hearth
Dimensions
683
592
766
624
221
361
624
Ø 150
124
TOP

6
1. SPECIFICATIONS
Seguin Saphir
*Heating capacity of the following appliances are a guide only and refers to areas with 2.4m ceilings
and 6 or more star rated buildings. Heating output may vary depending on factors such as building
characteristics, quality of insulation, type of rewood used and climate zone.
** Refer to pg. 15 & 16 for flue system installation
*** See warranty pg. 29 of the manual
FRONT SIDE
Cast iron rebox with vermiculite lining
Combustion air & glass air wash control
Up to 140m2*
9kW
1.5g/kg
63%
Two secure swing door opening system
4.6m from the hearth**
150mm, 200mm, 250mm solid
10 year rebox warranty***
165 kg
Width: 850mm Depth: 1130mm Thickness: 9mm***
Material
Dual Damper Control
Heating Capacity
KW Output
Avg Emissions
Avg Efciency
Door Operation
Minimum Flue Height
Flue Dimensions
Warranty
Weight
Minimum Hearth
Dimensions
656
635
766
602
410
200
602
Ø 150
127
TOP

7
1. SPECIFICATIONS
This appliance and flue were tested with the following minimum clearances.
The Seguin Aurore free standing appliance and triple skin flue kit with Solid 8” casing were tested in two
positions in a manner conforming to Australian & New Zealand Standards 2918:2018, Appendix B.
A minimum 1130mm deep X 850mm wide and 9mm thick non-combustible hearth should be installed,
refer to AS/NZS 2918:2018 3.3 Floor Protector. The floor protector/hearth should extend 480mm in front
of the appliance fuel loading door and be placed centrally in the 850mm width.

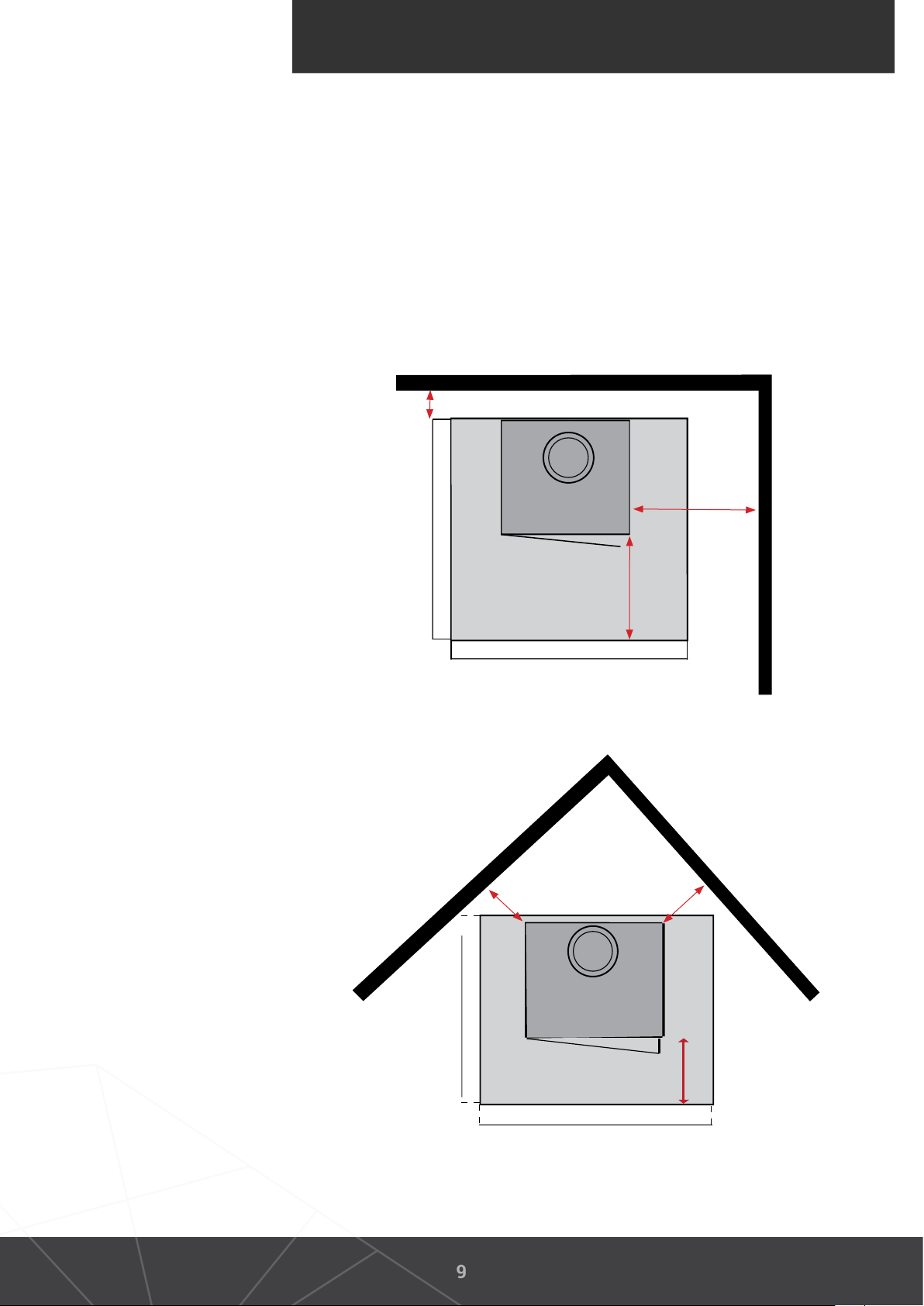

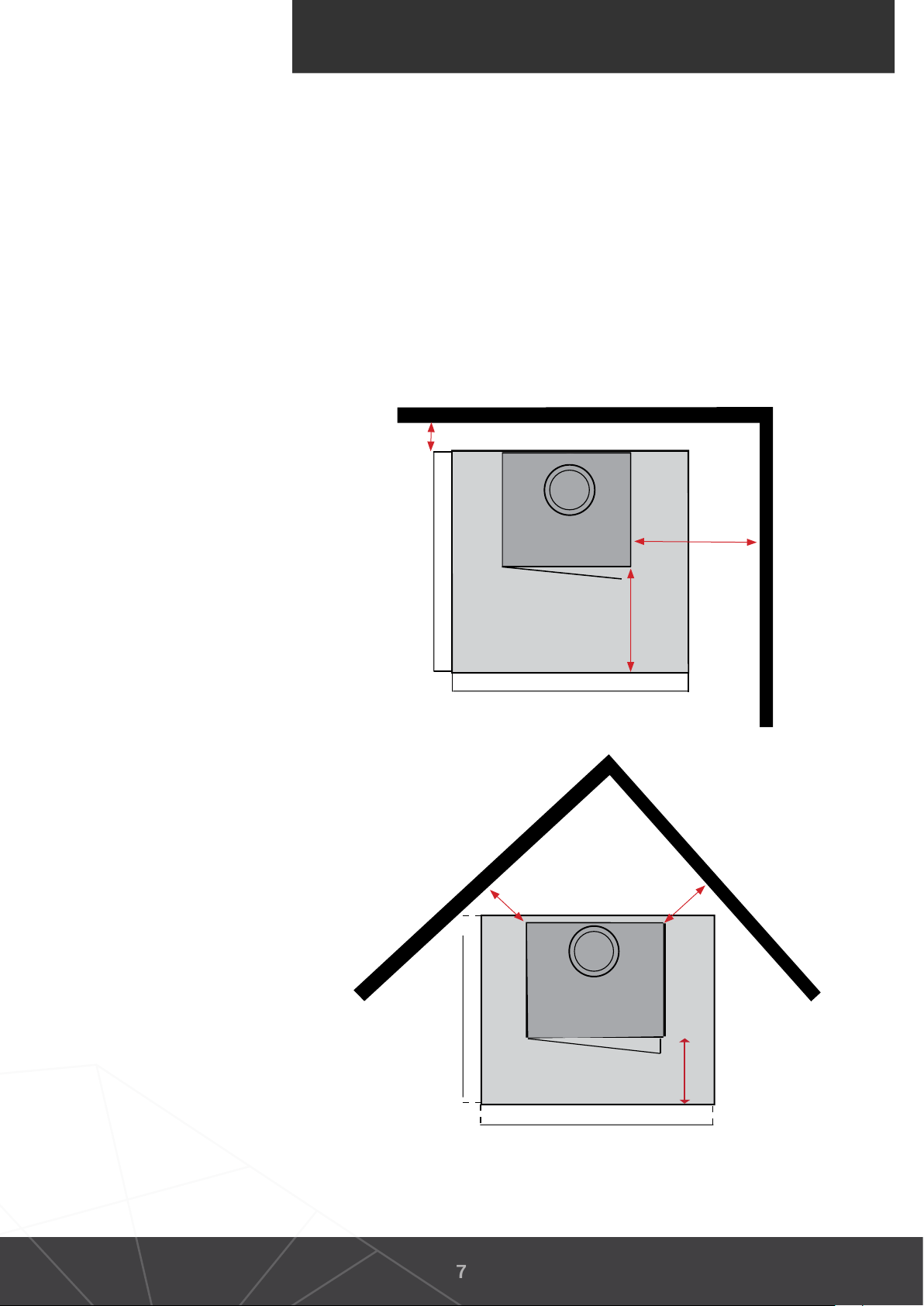

Clearances & Hearth- Seguin Aurore & Saphir
COMBUSTIBLE WALLS
COMBUSTIBLE WALLS
675MM
150MM
SWING DOOR
APPLIANCE
480MM
HEARTH
1130MM
850MM
POSITION A PARALLEL POSITION
Diagram not to scale
POSITION B CORNER POSITION
Diagram not to scale
COMBUSTIBLE WALLS
COMBUSTIBLE WALLS
HEARTH
1130MM
850MM
475MM
SWING DOOR
IMPORTANT
Please note this appliance has been tested with the installation of a heat shield. These clearances outlined are
for an appliance with a heat shield installed. If the heatshield is not installed, the clearances will increase to
1.2m from combustiable material/walls as per AS/NZS 2918:2018 3.2 Clearances & Heat Shielding.
475MM
APPLIANCE
480MM

8
1. SPECIFICATIONS

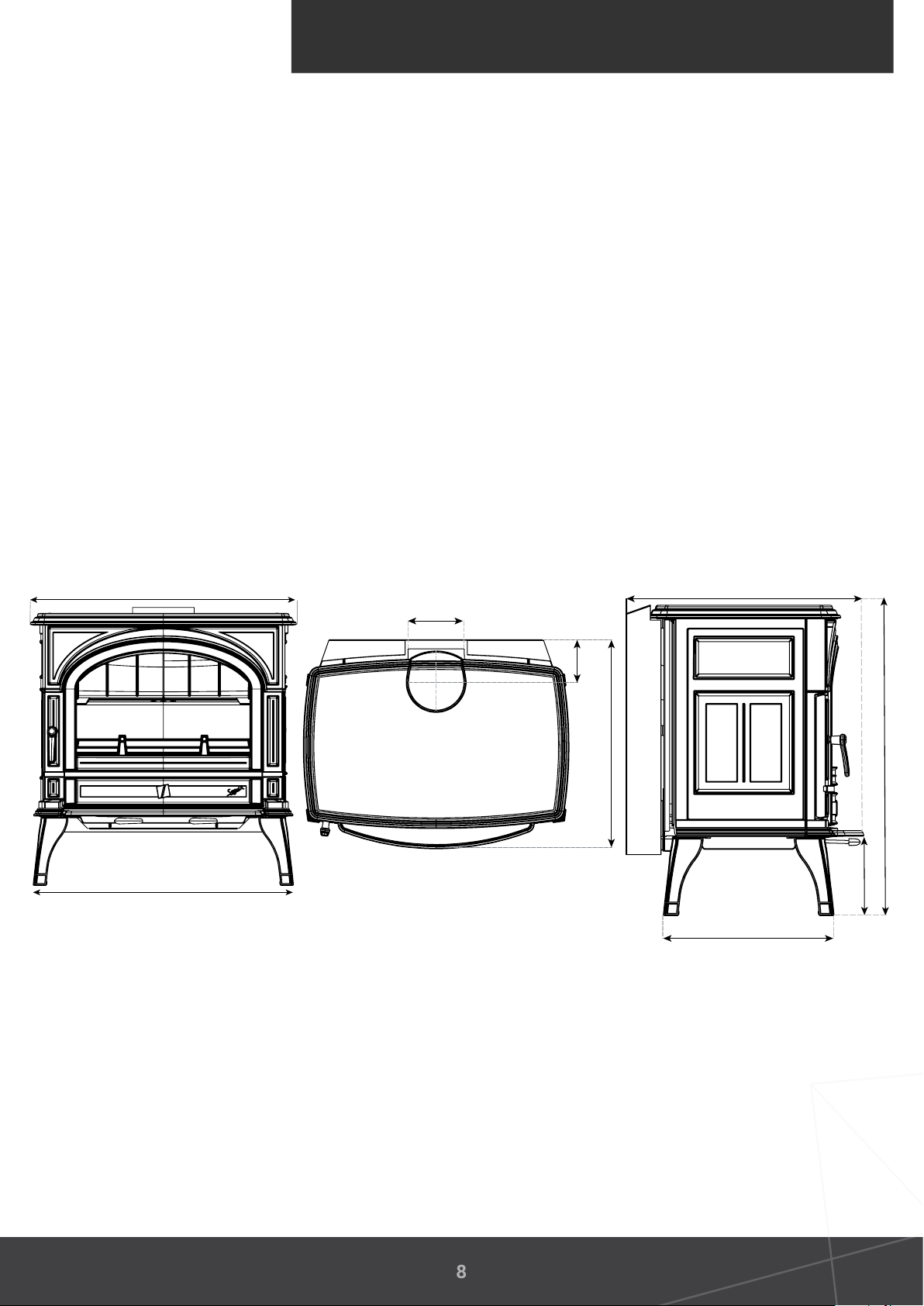

Seguin Topaze
*Heating capacity of the following appliances are a guide only and refers to areas with 2.4m ceilings
and 6 or more star rated buildings. Heating output may vary depending on factors such as building
characteristics, quality of insulation, type of rewood used and climate zone.
** Refer to pg. 15 & 16 for flue system installation
*** See warranty pg. 29 of the manual
FRONT SIDE
Cast iron rebox with vermiculite lining
Combustion air & glass air wash control
Up to 160m2*
10.8kW
1.3g/kg
64%
Two secure swing door opening system
4.6m from the hearth**
150mm, 200mm, 250mm solid
10 year rebox warranty***
215 kg
Width: 940mm Depth: 1120mm Thickness: 18mm***
Material
Dual Damper Control
Heating Capacity
KW Output
Avg Emissions
Avg Efciency
Door Operation
Minimum Flue Height
Flue Dimensions
Warranty
Weight
Minimum Hearth
Dimensions
778
760
813
610
437
203
610
Ø 150
122
TOP

9
1. SPECIFICATIONS
This appliance and flue were tested with the following minimum clearances.
The Seguin Topaze free standing appliance and triple skin flue kit with Solid 8” casing were tested in
two positions in a manner conforming to Australian & New Zealand Standards 2918:2018, Appendix B.
A minimum 1120mm deep X 940mm wide and 18mm thick non-combustible hearth should be installed,
refer to AS/NZS 2918:2018 3.3 Floor Protector. The floor protector/hearth should extend 500mm in front
of the appliance fuel loading door and be placed centrally in the 940mm width.
Clearances & Hearth- Seguin Topaze
POSITION B CORNER POSITION
Diagram not to scale
COMBUSTIBLE WALLS
COMBUSTIBLE WALLS
HEARTH
1120MM
940MM
450MM
SWING DOOR
IMPORTANT
Please note this appliance has been tested with the installation of a heat shield. These clearances outlined are
for an appliance with a heat shield installed. If the heatshield is not installed, the clearances will increase to
1.2m from combustiable material/walls as per AS/NZS 2918:2018 3.2 Clearances & Heat Shielding.
APPLIANCE
500MM
450MM
COMBUSTIBLE WALLS
COMBUSTIBLE WALLS
700MM
225MM
SWING DOOR
APPLIANCE
500MM
HEARTH
1120MM
940MM
POSITION A PARALLEL POSITION
Diagram not to scale

10
1. SPECIFICATIONS
Seguin Jade
*Heating capacity of the following appliances are a guide only and refers to areas with 2.4m ceilings
and 6 or more star rated buildings. Heating output may vary depending on factors such as building
characteristics, quality of insulation, type of rewood used and climate zone.
** Refer to pg. 15 & 16 for flue system installation
*** See warranty pg. 29 of the manual
FRONT SIDE
Cast iron rebox with vermiculite lining
Combustion air & glass air wash control
Up to 120m2*
7.4kW
1.1g/kg
68%
Secure swing door opening system
4.6m from the hearth**
150mm, 200mm, 250mm solid
10 year rebox warranty***
165 kg
Width: 770mm Depth: 810mm Thickness: 6mm***
Material
Dual Damper Control
Heating Capacity
KW Output
Avg Emissions
Avg Efciency
Door Operation
Minimum Flue Height
Flue Dimensions
Warranty
Weight
Minimum Hearth
Dimensions
525
924
240
542
335
510
Ø 150
232
TOP

11
1. SPECIFICATIONS
This appliance and flue were tested with the following minimum clearances.
The Seguin Topaze free standing appliance and triple skin flue kit with Solid 8” casing were tested in
two positions in a manner conforming to Australian & New Zealand Standards 2918:2018, Appendix B.
A minimum 810mm deep X 770mm wide and 6mm thick non-combustible hearth should be installed,
refer to AS/NZS 2918:2018 3.3 Floor Protector. The floor protector/hearth should extend 300mm in front
of the appliance fuel loading door and be placed centrally in the 770mm width.
Clearances & Hearth- Seguin Jade
POSITION B CORNER POSITION
Diagram not to scale
COMBUSTIBLE WALLS
COMBUSTIBLE WALLS
HEARTH
810MM
770MM
300MM
SWING DOOR
IMPORTANT
Please note this appliance has been tested with the installation of a heat shield. These clearances outlined are
for an appliance with a heat shield installed. If the heatshield is not installed, the clearances will increase to
1.2m from combustiable material/walls as per AS/NZS 2918:2018 3.2 Clearances & Heat Shielding.
APPLIANCE
300MM
300MM
COMBUSTIBLE WALLS
COMBUSTIBLE WALLS
400MM
50MM
SWING DOOR
APPLIANCE
300MM
HEARTH
810MM
770MM
POSITION A PARALLEL POSITION
Diagram not to scale

12
It is the users duty to make themselves aware of and apply all national or more restrictive local
standards and instructions (AS/NZS 2918:2018).
IMPORTANT
Prior to unpacking and installation ensure the appliance has not been damaged during transit. Please
ensure you check the glass, the door, the air flow damper controls and the door locking mechanism.
Before any work is carried out, as per local and national regulations and laws, this appliance MUST be
installed by a licensed professional as per and AS/NZS 2918:2018.
IMPORTANT WARNING
It is strictly forbidden to use any combustible materials (ie; wooden framing, plaster, etc) near or around
this appliance. Any exception from this rule is a health and safety hazard which will result in a non-
compliant installation and a void of warranties.
Electrical cables and components must not be placed in the vicinity of the appliance as it is a re
hazard.
2. PRELIMINARY INSTALL GUIDE

13
For the installation and use of this appliance, the tter and the user should strictly adhere to local and
national regulations in addition to AS/NZS 2918:2018. The installer should comply with the instructions
and recommendations detailed in this manual. The safety and operation of the replace is directly
dependent thereon. The liability of the manufacturer or distributor can neither be retained nor assured
following failure of installation or incorrect use which does not comply with AS/NZS 2918:2018.
As each installation is unique, a qualied and licensed trades professional should take all required
preliminary precautions depending on the technical elements inherent to each job.
In-observance of the assembly instructions in conjunction with AS/NZS 2918:2018 entails the liability
of the person who carries it out.
As a result of faulty assembly, irrational use of parts or additional components that were not supplied
by the manufacturer, and/or modifying of the appliance or components will result in inferior or unsafe
operation. Should this occur the manufacturer bears no liability, and will result in a null and void product
warranty.
PRELIMINARY INSTALL INFORMATION
All images and diagrams in this manual are for installation reference purposes only and are not to
scale, the distributor and manufacturer bears no accuracy of these images and accepts no liability. The
purpose of these images and diagrams is to act as a guide in conjunction with the written components,
and are NOT to be used to instruct independently. The order of steps listed in this manual are
recommendation only.
It is strongly recommended that the licensed trade professional who is performing the installation of
this appliance, completely read and comprehend all instructions in this manual prior to proceeding.
Sculpt Fireplaces & Seguin reserves the right to change these specications without prior notice.
ACCEPTABLE VARIANCE ALLOWANCE
Due to the production of these hand assembled and manufactured replaces, there is an acceptable
allowance of 3-5mm variance of the unit, including the door frame. This variance in production is non-
claimable under any warranties.
HEAT RESISTANT MATERIALS
Heat resistant materials must meet AS/NZS 2918:2018 clause 1:4.27 a material with an allowable
service temperature of 600° Celsius or greater.
PLEASE READ PRIOR TO INSTALL
2. PRELIMINARY INSTALL GUIDE

14
3. INSTALL GUIDE
Step 1. Ensure all components required are prepared.
Step 2. If a floor protector (hearth) is to be used, position now, refer to clearances (in specications) for
a guide on the appropriate positioning to accompany clearances and the floor protector (hearth).
Step 3. Position the appliance, refer to clearances (in specications) for minimum requirements.
Step 4. Prior to proceeding ensure both the rebox and hearth are xed in position.
IMPORTANT: The appliance is required to be installed on floors with an adequate load bearing capacity
Step 5. Refer to Flue System Installation (pg. 15 - 16) & AS/NZS 2918:2018.
PART A - FIREBOX INSTALLATION
Prior to proceeding with installation thoroughly investigate the materials composing the surrounding
back walls, floor and ceiling of the desired position of the rebox. Combustible heat degrading
materials, electric wiring or gas piping MUST NOT be located within the distance specied by the
clearances (see specications). Ensure the flooring can support the weight of the appliance (see weight
in specications). ALL preparatory work required prior to installing the rebox (external air intake etc)
must be completed before proceeding with the installation.
We strongly recommend installing the appliance in a weather tight room. Dust from works may be
deposited on the appliance and burned when it is commissioned, causing ceilings to blacken. It is
therefore recommended that all preparatory works be completed prior to installing the appliance.
FIREBOX LOCATION

15
3. INSTALL GUIDE
ROOF CAVITY
CEILING PLATE
DROPPER BOX
MIN 150MM BELOW
CEILING
TRIPLE SKIN FLUE
BRACES
TO SUPPORT FLUE
ROOF FLASHING
VENTED COWL
COVER CONE
FLUE OUTER
FLUE INNER (ACTIVE)
ROOF LINE
CEILING
FLUE
This diagram is not to scale, the author of this manual bears no liability to the misinterpretation of this diagram.
*Refer to specications on previous pages for dimensions and thickness.
MIN 1000MM
CLEARANCE MIN 3000MM (IN ALL DIRECTIONS)
MIN 4600MM FROM THE HEARTH TO THE TOP OF THE FLUE
HEARTH*

16
3. INSTALL GUIDE
Listed below are the general instructions for flue system installation. Please refer to these during the
flue installation process.
• Inner active flue installed crimped/narrow end down
• Outer casing installed crimped/narrow end up (critical when exposed above the roof line).
• Flue pipes, seal all joints including at rebox spigot. Fix with a minimum of 3 stainless steel rivets.
• Flue pipe spaces, afx to flue pipe.
• Flue system termination point (Refer to AS/NZS 2918:2018 4.9.1)
• Overall flue height (including heater height) from the hearth to the cowl must be a minimum of 4.6m
as per AS/NZS 2918:2018 4.9.1(a)
• Roof penetration and flashing method refer AS/NZS 2918:2018
IMPORTANT
It is the installers duty to check that the flue is compliant with all relevant regulations and standards.
The specied flue diameter must be the same from the heater to the cowl.
Step 1.Locate the appliance in position or by measuring at the ceiling, ensuring the flue pipe is in centre
position.
IMPORTANT: Ensure you check that the outer casing is not obstructed prior to proceeding with the
installation.
Step 2. Spike the centre with a nail. Transfer this position to the next surface above.
Step 3. Cut the ceiling penetration (as required), perform the same at the roof penetration.
Step 4. Frame the penetration with roong material or timber as required. Refer to minimum
requirement for roof penetration AS/NZS 2918:2018.
Step 5. Install the lower casing so that the lower end is flush with the underside of the ceiling material
and with the addition of the metal “L” brackets, afx to the outer casing at 90°.
Step 6. Flash the outer casing to the roof material with the appropriate approved flashing.
Step 7. If using an outer/inner casing combination, now install the inner casing ensuring it extends
a minimum 1000mm above the high side of the roof line, ensuring a 3m clearance to the cowl in
conformance as AS/NZS 2918:2018.
Step 8. Prepare the ceiling plate and place upside down over the flue spigot.
Step 9. Extend the flue pipe above the outer casing to suit the casing cover/cowl assembly.
Step 10. Install the cowl assembly (cover cone and cowl).
FLUE SYSTEM INSTALLATION
PROCESS FOR FLUE SYSTEM INSTALLATION

17
3. INSTALL GUIDE
**IMPORTANT**
The flue should not include more than two bends. The angle of these bends cannot exceed more than
45° and can have no more than one length of 900mm flue between them.
Step 11. Position and secure the ceiling plate with the screws and spacers.
Step 12. Clean the flue pipe to ensure all marks (nger or otherwise) are removed prior to proceeding.
Step 13. If flue offset is required, refer to AS/NZS 2918:2018 Section 4 Flue System installation
PROCESS FOR FLUE SYSTEM INSTALLATION (CONT.)
These instructions are to be kept by the user, the installer under any circumstances MUST NOT dispose
of this manual. Following installation it is recommended the installer review any questions or queries
the new user might have, this should include lighting the re and explaining the various functioning
components of the appliance. Insist on the wood quality, on the need to light the re correctly and have
correct combustion in order to avoid all problems related to smoke emission in the room or blackened
glass.
THESE INSTALLATION INSTRUCTIONS ARE AN INTEGRAL PART OF THE APPLIANCE
AND SHOULD BE KEPT INDEFINITELY. IF THE FIREPLACE IS SOLD THIS MANUAL MUST
ACCOMPANY THE UNIT.
COMMISSIONING THE APPLIANCE

18
1. Unscrew the four screws at the back of the appliance and use these screws to attach the brackets.
INSTALLING THE HEAT SHIELD
2. Unscrew the screws from the brackets
3. Align the heat shield to the brackets and screw in place
3. INSTALL GUIDE

19
3. INSTALL GUIDE
This appliance cannot operate in a de-pressurised room. The presence of a hood, mechanically
controlled ventilation or another heating appliance requiring air in a well insulated dwelling may cause
disturbances (incorrect combustion, smoke drawn back into the room, etc.). It is important that there
is sufcient quantity of air that can be drawn from the room as it is needed to burn the wood. When the
room’s air intake is insufcient (well insulated homes - eg. 6 Star or more rated homes), a specic air
intake must be installed in conjunction with the appliance (outdoor air kit).
In the case of an unconnected appliance, the air intake specic to the wood heater must have a
minimum 225cm2surface area (150cm x 150cm). It must be located either directly outside, or in a room
ventilated to the outside, and must arrive at the base of the inset wood heater (see diagram below -
Point Aor B). It must also be protected by a vermin proof grate. Possible heat losses due to the creation
of a duct that is too long should also be taken into consideration.
It is preferable to connect to outdoor air in order to optimise combustion control even for homes that
are not well insulated or rated 6 or more stars. Depending on specic building-related conditions (air
tightness, presence of mechanically controlled ventilation, presence of a kitchen hood, etc), this will
make it possible to renew the air when the wood heater is in use and will guarantee that the correct
pressure is maintained inside the room. It is important to indicate that any future alteration of the usage
conditions (installation of mechanical ventilation, a hood or any other appliance requiring air, etc.) may
result in a malfunction such as the emission of smoke inside the room.
COMBUSTION AIR (OPTIONAL OUTDOOR AIR KIT)
A - Bottom connection
B - Rear connection

20
4. OPERATION & MAINTENANCE
OPERATION & USER GUIDE
IGNITION INSTRUCTIONS
Before any ignition ensure all airways are fully open in order to accelerate combustion and evacuate the
fumes. This adjustment should then be reduced as the re has stabilised in order to maintain a longer re
term and avoid any possible overheating. The door of the replace should be closed in order to avoid any
risk of back-flow.
Always slowly and gradually light the re; split wood and re starters are recommended. It is strictly
forbidden to use any volatile substances including; methylated spirits, gasoline, solvents or the likes as
these will result in a risk of explosion or thermal shocks by a sudden rise of temperature.
OPERATING THE WOOD BURNER WITH THE DOOR OPEN EXPOSES YOU TO MULTIPLE
HAZARDS (FALLING EMBERS, SMOKE EMISSIONS IN THE ROOM, ETC.). ALWAYS OPERATE
THE APPLIANCE WITH THE DOOR CLOSED.
PRECAUTIONS FOR THE FIRST IGNITION - CURE WITH 10 SMALL FIRES
The rst ten res should be light, moderate and not overly loaded with wood. We recommend a small re
consisting of 3-4 logs weighing around 3kg in total.
PAINT
It is strongly recommended that no person(s) come into contact with the external faces of the appliance
without the protective gloves provided, this will avoid any ‘marking’ on the paint surface prior to it being
cured. The paint will polymerise after several res. Do not scrub or clean the replace with any rough
surface (such as a sponge). In the case of accidental scratches, make several res until the paint is
cured, at which time you can delicately clean the outside of the appliance with a hot sponge. Do not
scratch or rub the replace while it is lit. It is recommended contact with the replace should be kept to
a minimum. Do not paint the replace using products NOT recommended by the supplier, please contact
your authorised dealer should you require further assistance.
Avoid scratches and markings on your appliance by not placing any objects on your appliance during
operation and when not in use.
VENTILATION
A strong burning smoke odour may be smelt during the rst several res, it is therefore recommended to
ventilate the premises by opening windows/doors in order for the paint to cure. This phenomenon will
disappear after these initial burn cycles.
LIGHTING THE FIRE
The re is started with the airways open. The re-lighting starter and the combustion control must allow
maximum air intake. In order to limit smoke emission, it is preferable to use the inverted or top-down re
lighting method (see illustration below). An initial load of 3kg of wood provides a good layer of embers.
Glass air wash control OPEN
