MANUAL FOR END USER AND INSTALLER
Thank you for purchasing the Alpha fixture. This manual contains all the information needed to quickly familiarize yourself with
the product. Please review this information carefully, before installing and/or operating the product.
We recommend you keep this manual on hand for future reference.
For further information please contact:
SCYNCE
4641 East Ivy Street, Mesa, AZ 85205
T: 480 256-0017 E: [email protected]
www.scynceled.com
Page 3
Page 3
Page 4
Page 4
Page 5
Page 5
Page 6
Page 7
Page 8
Page 9
Product description
Specifications
Thermal management
Light output
Light energy distribution
Precautions and safety instructions
Installation
Maintenance
Troubleshooting
Dragon Alpha Dimensions
TABLE OF CONTENTS

4641 East Ivy Street, Mesa, AZ 85205 | [phone] | [email protected] | scynceled.com
3
the science of yield
PRODUCT DESCRIPTION
SPECIFICATIONS
INTENDED USE/S
The Alpha fixture is intended for overhead illumination of
horticultural crops. For other applications in professional
horticulture, please contact a representative at Scynce.
Any use other than the approved intended use described
above is considered an unintended use. Scynce cannot be
held responsible for possible consequential damage caused
by improper, incorrect or inadvisable use.
SYMBOLS USED
The following symbols are used in this manual to draw attention to
specific topics or actions
A warning indicates the possibility
of injury to the user and/or damage
to the product should the user
not perform the procedures as
described.
A note alerts the user to potential
problems which may occur if a
procedure is not carried out as
described.
WARNING
ATTENTION
Optic Manufacture’s ID Size
Dimmable Ambient
Operating Temp
Wheight Ingress
Protection Rating
Installation
Environment
Power Draw Power Factor Color Spectrum
Four Channels
Main Voltage
+/- 10%(VAC) 50/60 Hz
Dragon Alpha 70° 25 lbs IP66 Suitable for
Damp Loactions
52702 (1124 x 203 x 131)mm
(44.25 x 8 x 5)in
120-277 600 watts -40 ~ 40°
>0.95
Four Channel
independent
dimming,
0%-100% with
Scheduling
2700K White
6500K White
660nm Red
720nm Red
Product Name

4641 East Ivy Street, Mesa, AZ 85205 | [phone] | [email protected] | scynceled.com
4
the science of yield
LIGHT OUTPUT
The Alpha features Scynce’s newest optical technology called the Linear 70. The 70˚ distribution angle has eective penetration of
light into the crop and is typically used in high ceiling single-level indoor or greenhouse applications where the fixtures need to be
mount 3+ feet over the canopy.
LINEAR 70 OPTIC
Luminous Intensity Distribution Curve
OPTICAL DISTRIBUTION
The luminosity distribution curve for the Linear 70 is depicted below. This optic oers a higher intensity that is evenly distributed
across the 70˚ beam. By controlling the beam with optics, light energy is gathered and focused, taking full advantage of the LED
directed radiation pattern. If you need assistance with fixture layout to achieve a desired PAR level at the canopy contact your sales
representative, we can help.
THERMAL MANAGEMENT
All Scynce fixtures have built-in dynamic thermal
monitoring. In addition, the Alpha fixture utilizes
an active cooling system. Should the light begin
to overheat, the fan will automatically increase
in speed. If the light continues to overheat the
onboard processor will automatically reduce output
to protect the light while still maintaining a minimal
level of output.
To ensure safe operation of the lighting equipment
it is necessary to control the temperature of
the room by mechanical ventilation or cooling
system to below the maximum ambient operating
temperature of 40°C (104°F).
Never block the cooling ports on the Dragon Fixtures.
Doing so will cause the performance of the product to
reduce and may cause permanent damage.
Dynamic cooling air flow
WARNING

4641 East Ivy Street, Mesa, AZ 85205 | [phone] | [email protected] | scynceled.com
5
the science of yield
PRECAUTIONARY MEASURES AND
SAFETY INSTRUCTIONS
WARNING
• Always adhere to the local building and electrical codes
when installing or using the fixture.
• HIGH VOLTAGE- Switch o the main voltage before
commencing installation or maintenance work.
• Do not open or disassemble the fixture, it contains no
serviceable parts inside. Opening the fixture can be
dangerous and will void the warranty.
• Never look directly into the light source while fixture is
turned on. Doing so can cause damage to the eyes.
• The end user is responsible for ensuring correct installation
and use of the product. Incorrect installation can cause
damage to the product. The warranty shall become void if
the product and/or electronic components are damaged due
to incorrect installation.
• The performance of the fixture may be compromised
if operated outside of the recommended ambient
temperature guidelines.
ATTENTION
Risk Group 2
CAUTION. Possibly hazardous optical radiation emitted
from this product. Do not stare at operating lamp. May
be harmful to the eye.
Product tested against IEC62471
MISE EN GARDE. Rayonnement optique potentiellement
dangereux émis par ce produit. Ne regardez pas la lampe en
marche. Peut être nocif pour les yeux.
Groupe de Risque 2
Produit testé contre IEC62471

4641 East Ivy Street, Mesa, AZ 85205 | [phone] | [email protected] | scynceled.com
6
the science of yield
ELECTRICAL CONNECTION
Alpha fixture equipped with a NEMA L7-15 plug on the cowling.
Installed the cable provided by Scynce into the plug and rotate
clockwise to lock. Make sure that the plug is fully seated prior
to rotating to lock (See Fig. 2). Slip the rubber boot over the
plug collar on the cowling, this is to insure that water does not
enter the plug. Plug the light in and you are ready to go. Always
ensure that fixture installation is compliant with local
When routing the fixture power cord ensure that;
• The cord is not concealed or extended through a
wall, floor, ceiling, or other parts of the building
structure.
• The cord is not located above a suspended ceiling
or dropped ceiling.
• The cord is not permanently axed to the
building structure.
• The cord is routed so that it is not subject to
strain and is protected from physical damage.
• The cord is visible over its entire length.
To ensure safe operation of the lighting equipment it is necessary to
control the temperature of the room by mechanical ventilation or
cooling system to below the maximum ambient operating temperature
of 40ºC (104ºF).
• THIS PRODUCT MUST BE INSTALLED IN
ACCORDANCE WITH THE APPLICABLE
INSTALLATION CODE BY A PERSON FAMILIAR WITH
THE CONSTRUCTION AND OPERATION OF THE
PRODUCT AND THE HAZARDS INVOLVED
ATTENTION
INSTALLING THE FIXTURE
INSTALLATION PREP
1. Switch o main voltage
2. Refer to your light plan. Arrange boxed light fixtures in
specified mounting locations.
3. Remove the fixture from the packaging and
check contents.
4. Gather any additional tools and/or hardware that may
be required to mount the fixture.
MOUNTING THE LIGHT FIXTURE
The Alpha fixture is designed to be hung using the hangers at either end
of the fixture’s cowling. The hangers can be installed to the cowling by;
a. Orientate the hanger parallel to the cowling and align the ends of the hanger with
the insert tabs in the cowling.
b. Insert the hanger ends into the tabs in the cowling.
c. Rotate the hanger upward through the tabs in the cowling
The Alpha fixture hangers are equipped with three featured shapes to assist when
hanging; 1-3/8” (35 mm) square, 1-3/8” (35 mm) round, and 3/4” (19 mm) round.
When mounting the Dragon fixtures in an array, a minimum distance of 8 inches
side to side and a minimum distance of 1 inch end to end must be maintained. When
mounting next to a ceiling or wall, movable partitions, and the like, insure a minimum
distance of 1.5 inches (38 mm) is between the fixture and the ceiling and 8 inches
(203 mm) between the fixture and the wall and other surfaces.
SINGLE
PHASE CORD
TERMINATION
BLACK Line
WHITE Neutral
GREEN Ground
DOUBLE
PHASE CORD
TERMINATION
BLACK Line
WHITE Line
GREEN Ground

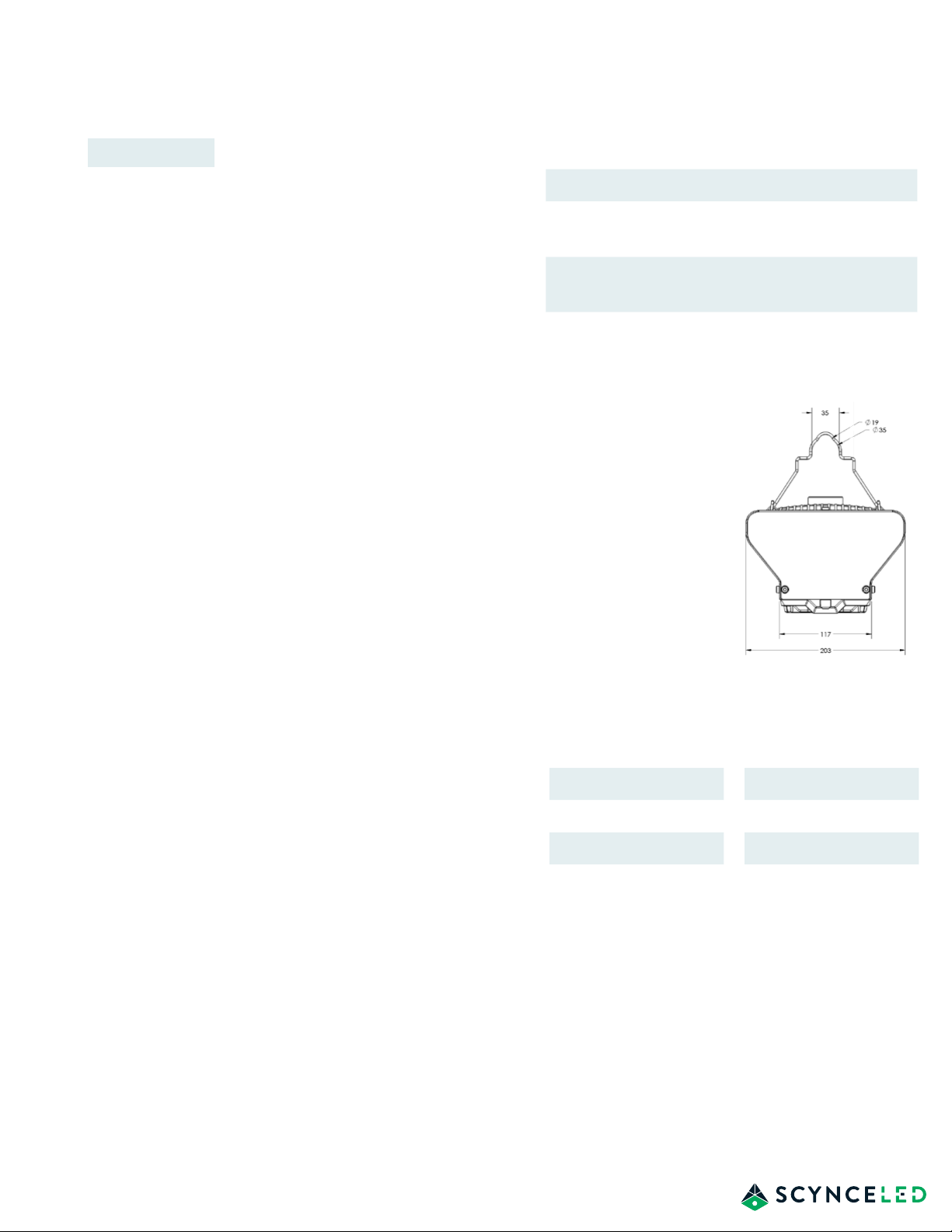

Figure 1: Fixture
mounting detail
in mm.
Figure 2: Provided
cable by Scynce with
rubber boot
CONTROLING THE LIGHT
Dragon fixtures are equipped with four independent
channels of LEDs (White 3000K, White 6500K,
Red 660nm, and Red 720nm. Each channel can be
independently dimmed from 0% to 100%. Channel
dimming can be adjusted on-demand using the mobile
app (See Mobile App Instructions for details) or by
setting up an embedded schedule in the light (See
Scheduling Instructions for details).

4641 East Ivy Street, Mesa, AZ 85205 | [phone] | [email protected] | scynceled.com
7
the science of yield
MAINTENANCE
WARNING
• High Voltage - Switch o the main voltage before commencing maintenance work.
• Caution - Fixture reaches high temps while in use.
• Do not open or disassemble the product. Opening the product can prove hazardous and will void the warranty.
• Caution - Risk of Fire
• Caution - Risk of shock
CLEANING
ATTENTION
• Check the product at regular intervals for build-up of dust and dirt. Clean the product if necessary.
Contamination can lead to overheating and reduced light output performance.
• Clean the fixture with water and a damp cloth or a polycarbonate safe cleaner such as Novus #1 Cleaner. Ensure
that the polycarbonate lens is always clean.
In the event that the product is defective or damaged, contact the dealer from whom you purchased the fixtures, or
SCYNCE directly. Never switch on a defective or damaged fixture.
Do Not remove or damage the Gore breathers. Removal or damage of the
breather could allow condensation and contaminants to enter the fixture.
Gore Breather (white)
• Always allow the fixture to cool to room temperature before cleaning it.
• Never clean the fixture with corrosive cleaning agents or other aggressive liquids. The following cleaners are
known to cause damage to polycarbonate.
o Solvents; Acetone, Alcohol…
o Window Cleaner; Windex, 409…
o Alkaline Cleaners
• Never use abrasive cleaners, abrasive pads, or gritty cloths to clean, the polycarbonate lenses will scratch.
• Never scrape the polycarbonate lenses to remove build-up. Only use a vinegar and water solution (1:100
ratio) to remove build-up of limescale on the lens.
• Fixtures have been tested under Chlorine gas exposure at manufacturer’s recommended dosage with no
adverse eects.
• Oil based and non oil based fungicides and pesticides used at manufactures recommendations will not
degrade lenses or the fixture.

4641 East Ivy Street, Mesa, AZ 85205 | [phone] | [email protected] | scynceled.com
8
the science of yield
The fixture does not emit any light. Reset the fixture by disconnecting the main voltage for more than 5 seconds and
then reconnect.
In the event that the fixture switches o again, lower the ambient temperature.
Check main voltage line for correct voltage range (120-277vac).
Reload default settings.
If the issue persists, contact supplier for assistance.
Only half of the fixture lights turn on Reset the fixture by disconnecting the main voltage from the fixture for more than
5 seconds and then reconnecting.
If the issue persists, contact supplier for assistance.
The fixture emits too little light when
compared to the other fixture(s).
Reload default settings.
Contact the installer and have the wiring checked.
If the issue persists, contact supplier for assistance.
Fixture will not respond to Dim Control. Reload default settings.
Contact the installer and have the wiring checked.
If the issue persists, contact supplier for assistance.
TROUBLESHOOTING
WARNING ATTENTION
Never switch on a defective or damaged fixture. In the event the
product is defective or damaged, contact the dealer where you
purchased the fixture or contact SCYNCE directly.
In the event a single fixture is not working correctly, disconnect power from circuit
and re-apply power prior to any other trouble shooting.
WHAT CAN YOU SEE? WHAT SHOULD I DO?
Do not open or disassemble the product. Opening the
product can prove hazardous and will void the warranty.

4641 East Ivy Street, Mesa, AZ 85205 | [phone] | [email protected] | scynceled.com
9
the science of yield
PRODUCT DIMENSIONS (IN MM)
