Seada HBT100UB User manual

VER 1.0
HDMI USB KVM Extender over
Cat5e/Cat6(HDBaseT)
HBT100UB

1/11
Thank you for purchasing this product
Surge protection device recommended
Table of Contents
1. Introduction.............................................................................................................................
2. Features.....................................................................................................................................
3. Package Contents..................................................................................................................
4. Specifications..........................................................................................................................
5. Operation Controls and Functions..................................................................................
6. IR Cable Pin Assignments...................................................................................................
7. Connection Diagram............................................................................................................
8. Aplication Example...............................................................................................................
For optimum performance and safety, please read these instructions carefully before
connecting, operating or adjusting this product. Please keep this manual for future
reference.
This product contains sensitive electrical components that may bedamaged by electrical
spikes, surges, electric shook, lighting strikes, etc. Use of surge protection systems is
highly recommended in order to protect andextend the life of your eauipment.
Caution:
The extender using UTP cable termination follows the standard of IEEE-568B.
2
2
2
3
4
7
8
11

1. Introduction
2. Features
3. Package Contents
2/11
The HDMI USB KVM (Keyboard, Video, Mouse) Extender is a tool which can extend
your HDMI signal over 328fts/100meters to a compatible display. It is designed to
convert HDMI signal to standard HDBaseT signal which can be transmitted by CAT5e/
CAT6/CAT7 cable. It also supports Transfer Bidirectional Infrared control signal and
RS232 control signal. With LAN serving connection and external digital and analog
audio capability that gives users the convenience of additional audio connection. It also
supports the connection of USB host and 2 USB device ports. So you can control the
Source in the Sink side which is 328fts outside, also you can control the Sink in the
Source side which is 328fts outside using the HDMI Extender.
☆Fully compliant with HDMI 1.4, and compatible with HDMI 2.0 (4K2K@60Hz with
YCbCr 4:2:0 ).
☆HDCP2.2 and DVI compatible.
☆Supports HDBaseT 2.0 specification over a single CAT5e/6/7 cable up to 100m/328ft.
☆Supports pass-through of HD audio formats: LPCM2/5.1/7.1 CH, Dolby Digital,
DTS, Dolby TrueHD, DTS-HD Master Audio and more.
☆POE(Power Over Ethernet)function support, either TX or RX powered 24V@1A,
another don’t need power form the DC jack.
☆Full HD support: 1080p@60Hz@24/36/48bit/pixels.
☆Supports USB 2.0 control.
☆Supports external Bi-Directional SPDIF IN/OUT and available for multichannel audio.
☆Supports stereo audio with PCM 2CH.
☆Transfer Bidirectional Infrared control signal together with the HDMI signal.
☆Transfer Bidirectional RS232 control signal together with the HDMI signal.
☆Transfer Bidirectional Ethernet signal together with the HDM signal.
1.HDMI USB KVM Extender Transmitter --------------------------------------------------- 1PCS
2.HDMI USB KVM Extender Receiver -------------------------------------------------------1PCS
3.Wideband IR Tx -------------------------------------------------------------------------------- 2PCS
4.Wideband IR Rx -------------------------------------------------------------------------------- 2PCS
5.24V/1A DC power adaptor ------------------------------------------------------------------- 1PCS
6.Operation Manual ------------------------------------------------------------------------------ 1PCS
7.Phoenix male jack-------------------------------------------------------------------------------2PCS
8.Mounting ears-------------------------------------------------------------------------------------4PCS

4. Specifications
Video Bandwidth
Human-body Model:±8kV (Air-gapdischarge) ,
±4kV (Contact discharge)
Power Supply
Dimensions
Weight
Operating Temperature
Storage Temparature
Relative Humidity 20~90% RH (non-condensing)
Power Consumption
ESD Protection
3/11
Technical
340MHz[10.2Gbps]
1x HDMI,1×LAN,1×USB-H,1x IR in,
1×Optical(Spdif in),1×Audio in,1×RS-232
DC 24V 1A
160(W) X 97 (D) X 28 (H)
450g x 2
0°C ~ 40°C / 32°F ~ 104°F
-20°C ~ 60°C / -4°F ~ 140°F
12W
1xIR out, 1xOptical (Spdif out),
1xHDBaseT OUT, 2xUSB-D
1xIR in, 1xOptical (Spdif in),
1xHDBaseT IN, 1xUSB-H
1x HDMI, 1xLAN, 2xUSB, 1xIR out, 1x Audio out,
1xRS232,1xOptical (Spdif out),
Transmitter input
ports
Transmitter output
ports
Receiver input
ports
Receiver output
ports
Technical

5. Operation Controls and Functions

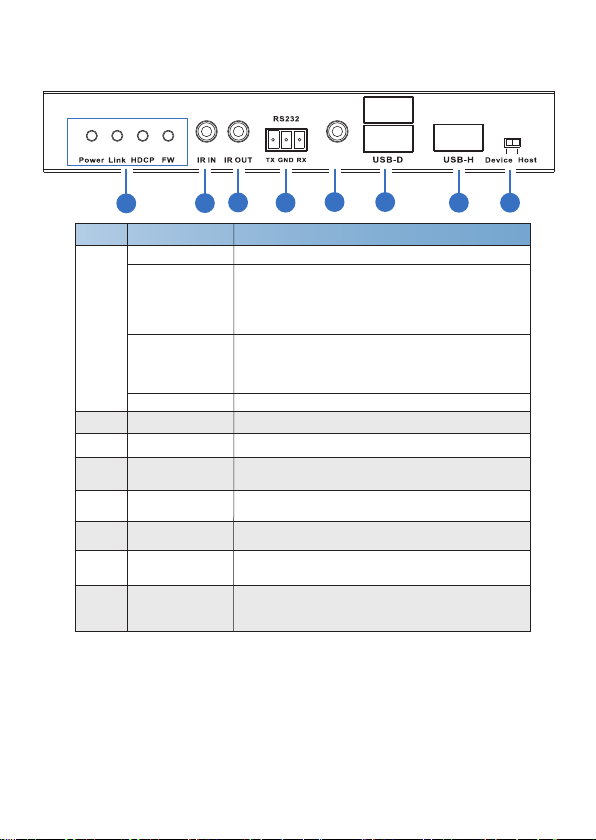

☆Transmitter Front Panel
34
Number Function description
1
Name
4/11
67 81 23 4 5
AUDIO IN
Power LED illuminates when power has been supplied to the unit
Link LED
The connection status indicating lamp.
Illuminate: The Transmitter and Receiver is good
connections.
Flashing: The Transmitter and Receiver is poor
connections.
Dark: The Transmitter and Receiver is no connections
HDCP LED
The HDCP status indicating lamp.
Illuminate: The HDMI signal with HDCP.
Flashing: The HDMI signal without HDCP.
Dark: No HDMI signal.
FW LED Light is flashing on behalf of the unit work normally
2 IR IN Chanel 1 IR Receiver. Connect with Wideband IR Rx
3IR OUT Chanel 2 IR Transmitter. Connect with Wideband IR Tx
4RS232 TX/RX Connect to a PC or Laptop with 3-pin Relay cable for
the transmission of RS-232 commands.
5AUDIO IN Connect to a PC or Laptop stereo output port via
3.5mm audio cable.
6USB-D Connect to USB peripheral devices such as printer,
keyboard, mouse, flash driver or …etc.
7USB-H Connect from PC or Laptop for data transmit to or
control from the Receiver’s USB-D slots.
8USB-H/USB-D
SELECT
Select USB host or USB device.
Note: If the unit work to change the state, required
again to power

5/11

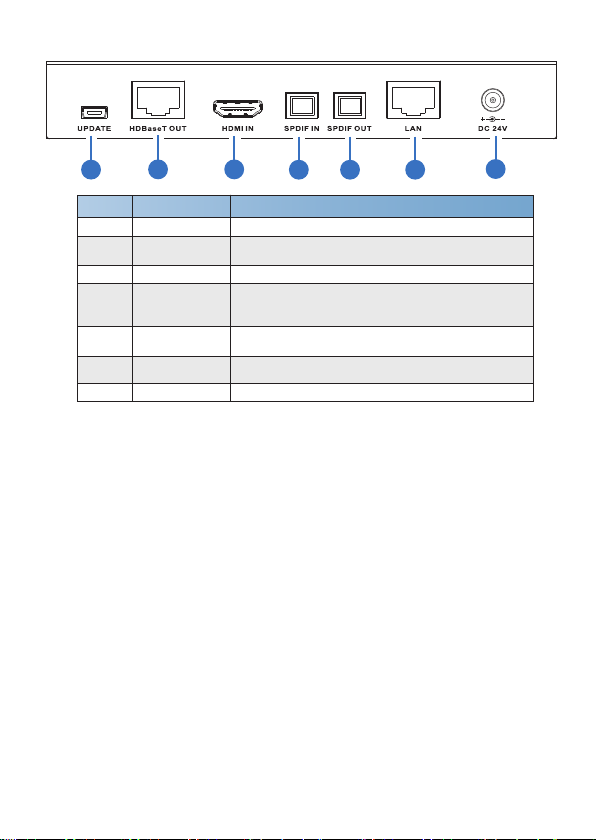

☆Transmitter Rear Panel
67
12345
34
Number Function description
Name
1UPDATE Reserved for manufacturer use only
2HDBaseT OUT Standard HDBaseT signal output port. Connect
HDBaseT receiver with a Cat5e/6/7 cable.
3HDMI IN This slot is where you connect the HDMI source
4SPDIF IN
(Optical in)
Connect to audio source equipment such as DVD or
Blu-ray player for audio signal sending to Receiver’s
SPDIF OUT(Optical out).
5SPDIF OUT
(Optical out)
Connect to speaker with coaxial input for audio signal
output from Receiver’s SPDIF IN(Optical in)
6LAN This slot provide Internet signal from receiver or to
receiver
7DC IN Plug the 24V DC power supply into the unit

6/11
☆Receiver Front Panel
67 81 23 4 5
34
Number Function description
1
Name
Power LED illuminates when power has been supplied to the unit
Link LED
The connection status indicating lamp.
Illuminate: The Transmitter and Receiver is good
connections.
Flashing: The Transmitter and Receiver is poor
connections.
Dark: The Transmitter and Receiver is no connections
HDCP LED
The HDCP status indicating lamp.
Illuminate: The HDMI signal with HDCP.
Flashing: The HDMI signal without HDCP.
Dark: No HDMI signal.
FW LED Light is flashing on behalf of the unit work normally
2 IR IN Chanel 1 IR Receiver. Connect with Wideband IR Rx
3IR OUT Chanel 2 IR Transmitter. Connect with Wideband IR Tx
4RS232 TX/RX Connect to a PC or Laptop with 3-pin Relay cable for
the transmission of RS-232 commands.
5AUDIO OUT
6USB-D Connect to USB peripheral devices such as printer,
keyboard, mouse, flash driver or …etc.
7USB-H Connect from PC or Laptop for data transmit to or
control from the Receiver’s USB-D slots.
8USB-H/USB-D
SELECT
Select USB host or USB device.
Note: If the unit work to change the state, required
again to power supply.
Connect to speaker via 3.5mm audio cable

7/11
☆Receiver Rear Panel
67
12345
HDBaseT IN HDMI OUT
34
Number Function description
Name
1UPDATE Reserved for manufacturer use only
2HDBaseT IN
3HDMI OUT
4SPDIF IN
(Optical in)
Connect to audio source equipment such as DVD or
Blu-ray player for audio signal sending to Receiver’s
SPDIF OUT(Optical out).
5SPDIF OUT
(Optical out)
Connect to speaker with coaxial input for audio signal
output from Receiver’s SPDIF IN(Optical in)
6LAN This slot provide Internet signal from receiver or to
receiver
7DC IN Plug the 24V DC power supply into the unit
Standard HDBaseT signal output port. Connect
HDBaseT Transmitter with a Cat5e/6/7 cable
This slot is where you connect the a HDMI equipped
TV/monitor.

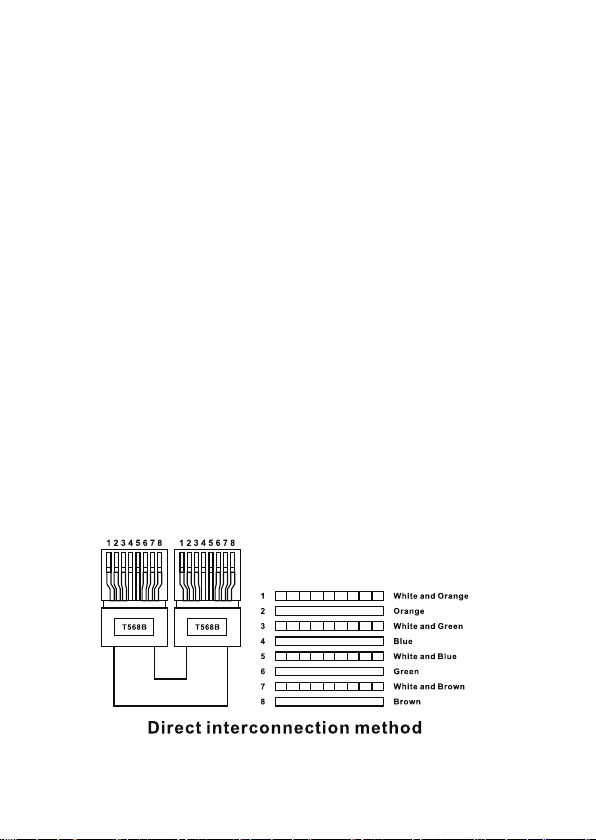

6. IR Cable Pin Assignments

8/11
CAT5e/6/7
CAT5e/6/7
TX RX
TV
TX 1
HDMI Cable HDMI Cable
TX 2
Rx1
Rx2
TV Remote DVD R em ote
UTP Cable
7. Connection Diagram
※Picture 1
POE(Power Over Ethernet) Application Example
※Picture 2
Bidirectional Infrared control Application Example

9/11
※Picture 3
Bidirectional RS232 control Application Example
※Picture 4
Bidirectional Ethernet signal Application Example

10/11
※Picture 5
USB control Application Example
※Picture 6
Digital Audio bidirectional transmission Application Example
TX RX
SPDIF Cable
DVD
SPDIF Cable
Amplifier
TX RX
SPDIF Cable
DVD
SPDIF Cable
Amplifier
CAT5e/6/7
CAT5e/6/7
PC
RX
USB Cable USB Cable
USB Cable
Mouse
Keyboard
TX
TX RX
USB Cable USB Cable
Printer
TV
HDMI Cable
Notebook
CAT5e/6/7
CAT5e/6/7
