Sealite BargeSafe 3NM Supplement
Version 2.3
BargeSafe™ 3NM
LED Barge Light
Installation & Service Manual
BargeSafe™ 3NM
LED Barge Light
Latest products and information available at www.sealite.com
3
BargeSafe™ 3NM LED Barge Light
UL 1104 Certied & COLREG-72
Introduction..........................................................................................Page 4
Operating Principle .............................................................................Page 4
Technology...........................................................................................Page 4
BargeSafe™ 3NM Model .....................................................................Page 5
Application...........................................................................................Page 6
Installation............................................................................................Page 7
Maintenance & Servicing....................................................................Page 8
Trouble Shooting.................................................................................Page 8
Sealite LED Light Warranty ..............................................................Page 10
Table of Contents
Version No. Description Date Approved
1.0 Manual Launch May 2009 K. Paton
1.1 Logo and Warranty Update July 2010 K.Paton
2.0 Update: Spec Table May 2012 J.Dore
2.1 Remove rechargeable batteries August 2015 M. Walker
2.2 Update: Contact details January 2016 J. Dore
2.3 Update: Mounting Spec April 2018 M.Nicholson
Latest products and information available at www.sealite.com
4
BargeSafe™ 3NM LED Barge Light
UL 1104 Certied & COLREG-72
Introduction
Congratulations! By choosing a Sealite BargeSafe™ 3NM you are the owner of one of the
most advanced LED marine lights available.
Sealite Pty Ltd has been manufacturing lanterns for over 25 years, and particular care has been taken to
ensure your light gives years of service.
The Sealite BL Series comply with requirements for a 3 mile light under international standard UL 1104,
Marine Navigation Lights, and has been tested and certied to the relevant sections by Independent Testing
Laboratories Inc. Boulder, CO, in 2008.
A Sealite Warranty Registration Card accompanies your lantern and must be returned to validate your
warranty.
Operating Principle
The BL Series LED Barge light utilises a small microprocessor to control the required ash rates and monitor
the light levels to enable the lantern to turn on automatically at night.
During the day, the BL Series LED Barge light runs a number of self-diagnostic functions.
The power, to a single 1W LED, is provided by a DC/DC convertor, permitting the light to operate on a voltage
range of 4V-9V and consistently maintain the required light source intensity.
The BL Series barge lights use the latest advancements in LED (Light Emitting Diode) technology as a
light source. As a user, you can expect in excess of 100,000 hours of LED operation, with minimal power
consumption.
Technology
Sealite is the world’s fastest growing manufacturer of marine aids to navigation. We
employ leading mechanical, optical, hardware & software engineers to create innovative
products to service the needs of our customers worldwide, and oer the widest range of
solar-powered LED lanterns in the marketplace.
Electronics
Sealite employs leading in-house electronic engineers in the design and development of software and related
circuitry. All individual electronic components are sourced directly by Sealite procurement sta ensuring that
only the highest quality components are used in our products.
LED Technology
All marine lanterns use the latest advancements in LED (Light Emitting Diode) technology as a light source.
The major advantage of LED’s over traditional light sources is well established in that they typically have an
operational life in excess of 100,000 hours, resulting in substantial savings to maintenance and servicing
costs.
Precision Construction
Commitment to investing in the design and construction of injection-moulded parts including optic lenses, light
bases and a range of other components ensures that all Sealite products are of a consistent & superior quality.
Optical Performance
Sealite manufactures a range of marine LED lenses moulded from multi-cavity dies. Complex shapes such as
the SL70, BargeSafe™ and 16-segment multi-focus lenses are a testament to the company’s superior
in-house lens manufacturing capabilities and outstanding optical performance.
Award-winning, Patented Technology
Several United States and Australian patent registrations are held on Sealite’s range of innovative designs,
with other regional patents pending in Canada, United Kingdom and Europe.
Latest products and information available at www.sealite.com
5
BargeSafe™ 3NM LED Barge Light
UL 1104 Certied & COLREG-72
BargeSafe™ 3NM Model
The Sealite BargeSafe™ 3NM range of LED barge lights are certied to UL 1104 with >3NM
visible range.
The LED barge light is one of the most advanced in its class, and incorporates a host of
innovative features designed to make the unit extremely user-friendly.
The world-class LED lens is designed by Sealite and achieves precise intensity and sectoring
requirements from a single LED light source. This design helps achieve a lower operational
current compared with alternate LED barge lights - making the unit ultra ecient and oering a
battery run time of up to 75 nights (Air Alkaline Battery).
•Specifications subject to change or variation without notice
*Subject to standard terms and conditions
†Intensity setting subject to solar availability
SPECIFICATIONS•* BargeSafe™ 3NM
Light Characteristics
Light Source 1 x 1 watt ultra-high intensity LED (sectored configuration).
Available Colours Red, Green, White, Yellow as per UL 1104 & COLREG-72
Maximum Available Intensity (cd)† As per UL 1104 & COLREG-72
Visible Range (NM) AT @ 0.74: >3NM as per UL 1104 & COLREG-72
AT @ 0.85: >3.5NM as per UL 1104 & COLREG-72
Horizontal Output (degrees) Red - 112.5° Green - 112.5° White - 135° Yellow - 225° as per
UL 1104 & COLREG-72.
Flash Characteristics As per UL 1104 & COLREG-72 (steady-on & flashing). All round flashing RED
LED Life Expectancy (hours) >100,000
Electrical Characteristics
Circuit Protection Integrated
Working Voltage Range (V) 4 - 9
Temperature Range -40 to 80°C
Power Supply
Battery Type Air Alkaline (recommended)
Battery Capacity (Ah) 45Ah (Air Alkaline)
Nominal Voltage (V) 6V (Air Alkaline)
Autonomy (days) >45
Physical Characteristics
Battery Housing LEXAN® Polycarbonate – UV-stabilised
Lens Material Acrylic
Lens Mount & Top Anodised aluminium
Lens Design Internal single LED cavity with individual sectoring compartments to meet all UL
1104 & COLREG-72 angles for light output. Internal 3 x LED cavities to suit 360° all
round light configuration
Mounting 2 x magnets

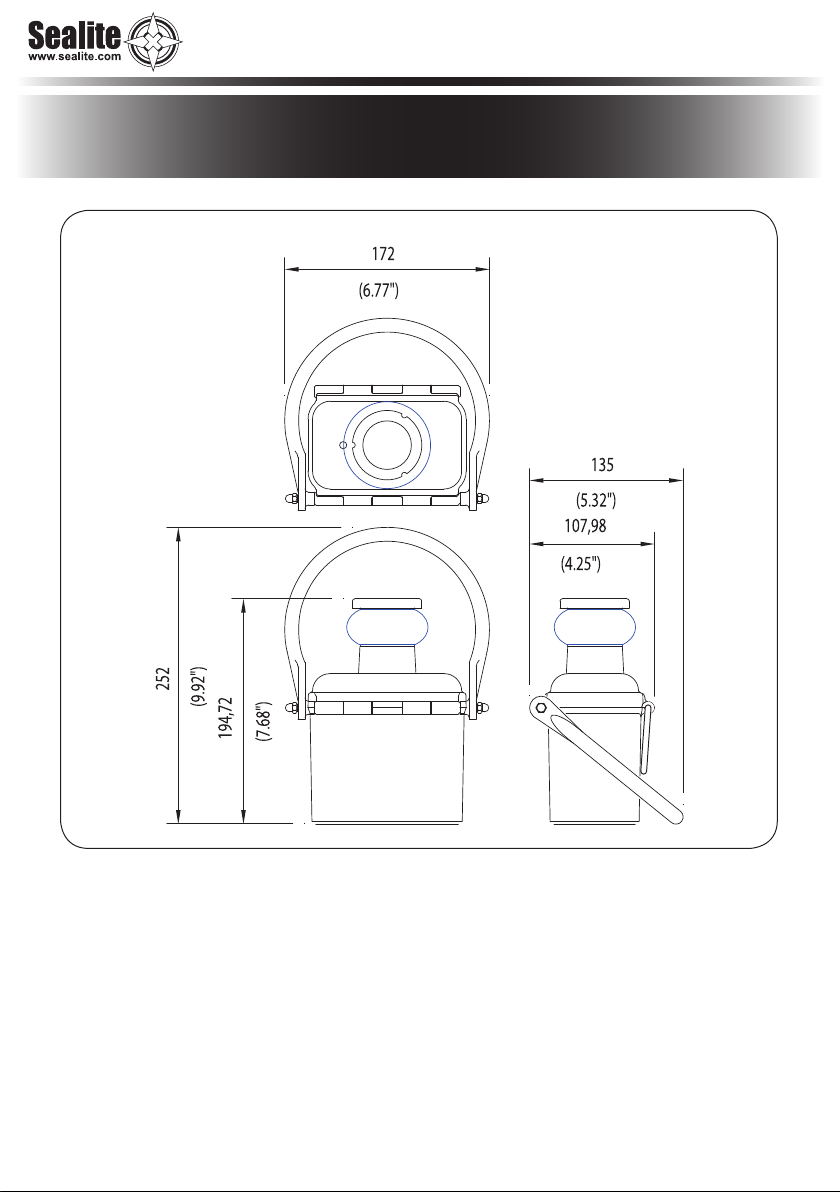

Height (mm/inches) 195 / 72/3
Width (mm/inches) 172 / 67/8
Depth (mm/inches) 108 / 41/4
Mass (kg/lbs) 1.5 / 31/3
Product Life Expectancy Up to 12 years
Certifications
Approvals UL 1104. COLREG-72
IALA Signal colours compliant to IALA E-200-1
Quality Assurance ISO9001:2008
Waterproof IP67
Intellectual Property
Trademarks SEALITE® is a registered trademark of Sealite Pty Ltd
BargeSafe™ is a trademark of Sealite Pty Ltd
Warranty * 1 year
Latest products and information available at www.sealite.com
6
BargeSafe™ 3NM LED Barge Light
UL 1104 Certied & COLREG-72
Illustrative purposes only.
Application
Please check with your local authority before installing the Sealite BargeSafe™ lantern to ensure the
position and range is appropriate for your requirements.
• The Stern (White) Barge light provides an angle of 135°.
• The Port (Red) Barge lights provide an angle of 112.5°.
• The Starboard (Green) Barge lights provide an angle of 112.5°.
• The Flashing (Yellow) Barge light provides an angle of 225°.
Latest products and information available at www.sealite.com
7
BargeSafe™ 3NM LED Barge Light
UL 1104 Certied & COLREG-72
Installation
Installing a 6V Battery
1. Remove any packing material from the light and withdraw the Locking Pin.
2. Open the Lid and insert the battery into the compartment.
3. Ensure the battery is fully inserted in the case. The terminals on the battery must be positioned at
the top so they make contact with the contact plate in the lid of the light.
4. Close the lid and insert the Locking Pin.
Testing the BargeSafe™ 3NM Light
1. Activate the BargeSafe™ 3NM by turning the toggle switch to the ‘ON’ position.
2. Place the light in darkness for approximately 1 minute. E.g. a dark room or cover over the light.
3. If the light does not activate within this time, check the following.
• Is the light turned on?
• Is the battery correctly installed?
• Is it dark enough?
Low Battery Status
The BargeSafe™ 3NM will run for many nights on a single 6V Dry Cell Battery. As a number of battery
brands may be used in this unit, the number of nights the BargeSafe™ 3NM will operate for will vary.
The BargeSafe™ 3NM will start to ash once every 10 seconds when the battery charge drops below
3.7V.
The BargeSafe™ 3NM will stop operating when the battery drops below 3.5V.
Latest products and information available at www.sealite.com
8
BargeSafe™ 3NM LED Barge Light
UL 1104 Certied & COLREG-72
Maintenance and Servicing
Designed to be almost maintenance-free, the BargeSafe™ 3NM light requires minimal attention,
though the following maintenance information is provided to help ensure the operation of your product.
1. Cleaning Light Sensor - occasional cleaning of the light sensor panel, located on the lid, may
be required. Using a cloth and warm soapy water, wipe o any foreign matter before rinsing the
panels with fresh water.
2. Replacing the Battery – the battery used in this lantern will require regular replacement. This will
depend on the amount of time the lantern is operating. To replace the battery please follow the
steps set out under Installation of the BargeSafe™ 3NM.
3. Removal of Discharged Batteries – please remove any discharged dry cell batteries immediately
from the lantern to minimise the chance of corrosion and possible damage to the light.
4. Inspecting the Lid Seal – BargeSafe™ 3NM uses a metric o-ring Ø118 x 3.5mm or imperial o-ring
BS247. Check the o-ring periodically for any signs of deterioration. Replace if necessary.
Always dispose of batteries in a manner that cares for the environment.
Please recycle where possible.
Low Battery Status
The BargeSafe™ 3NM will run for many nights on a single 6V Dry Cell Battery. As a number of battery
brands may be used in this unit, the number of nights the BargeSafe™ 3NM will operate for will vary.
The BargeSafe™ 3NM will start to ash once every 10 seconds when the battery charge drops below
3.7V.
The BargeSafe™ 3NM will stop operating when the battery drops below 3.5V.
Problem Remedy
Lantern will not activate • Ensure lantern is in darkness.
• Wait at least 60 seconds for the program to initialise in darkness.
• Ensure battery is properly connected.
• Ensure battery has sucient voltage.
• Check the Status LED in the light sensor port. If it is ashing the
battery charge is insucient to power the light.
Lantern will not operate for the
entire night
• Battery needs either recharging or replacement.
Battery is corroding due to water in
the compartment
• Check the rubber seal is tted correctly. Make sure there are no
cracks or holes in the seal. Make sure a silicon grease is used on
the seal for added sealing.
• Check the polycarbonate case for cracks or holes.
Lantern will not turn o • Ensure the light sensor is not covered with debris.
Light is ashing, not steady on • Battery charge is low, (below 3.7V) please change battery to
ensure safe operation. When the light senses a low battery it will
ash for 0.5 seconds every 10 seconds.
Trouble Shooting
Latest products and information available at www.sealite.com
9
BargeSafe™ 3NM LED Barge Light
UL 1104 Certied & COLREG-72
Problem Remedy
Lantern will not activate • Ensure lantern is in darkness.
• Wait at least 60 seconds for the program to initialise in darkness.
• Ensure battery is properly connected.
• Ensure battery has sucient voltage.
• Check the Status LED in the light sensor port. If it is ashing the
battery charge is insucient to power the light.
Lantern will not operate for the
entire night
• Battery needs either recharging or replacement.
Battery is corroding due to water in
the compartment
• Check the rubber seal is tted correctly. Make sure there are no
cracks or holes in the seal. Make sure a silicon grease is used on
the seal for added sealing.
• Check the polycarbonate case for cracks or holes.
Lantern will not turn o • Ensure the light sensor is not covered with debris.
Light is ashing, not steady on • Battery charge is low, (below 3.7V) please change battery to
ensure safe operation. When the light senses a low battery it will
ash for 0.5 seconds every 10 seconds.
Latest products and information available at www.sealite.com
10
BargeSafe™ 3NM LED Barge Light
UL 1104 Certied & COLREG-72
Activating the Warranty
Upon purchase, the Sealite Pty Ltd warranty must be activated for recognition of future claims. To do this you
need to register on-line. Please complete the Online Registration Form at:
www.sealite.com
Sealite Pty Ltd will repair or replace your LED light in the event of electronic failure for a period of up
to three years from the date of purchase, as per the terms & conditions below.
Sealite Pty Ltd will repair or replace any ancillary or accessory products in the event of failure for a
period of up to one year from the date of purchase, as per the terms & conditions below.
The unit(s) must be returned to Sealite freight prepaid.
Warranty Terms
1. Sealite Pty Ltd warrants that any Sealite marine products tted with telemetry equipment including but
not limited to AIS, GSM, GPS or RF (“Telemetry Products”) will be free from defective materials and
workmanship under normal and intended use, subject to the conditions hereinafter set forth, for a period of
twelve (12) months from the date of purchase by the original purchaser.
2. Sealite Pty Ltd warrants that any BargeSafe™ Series of LED barge light products (“BargeSafe™
Products”) will be free from defective materials and workmanship under normal and intended use, subject
to the conditions hereinafter set forth, for a period of twelve (12) months from the date of purchase by the
original purchaser.
3. Sealite Pty Ltd warrants that any LED area lighting products (“Area Lighting Products”) but not including
sign lighting products will be free from defective materials and workmanship under normal and intended
use, subject to the conditions hereinafter set forth, for a period of twelve (12) months from the date of
purchase by the original purchaser.
4. Sealite Pty Ltd warrants that any ancillary products and accessories, not mentioned in other clauses in this
section, will be free from defective materials and workmanship under normal and intended use, subject
to the conditions hereinafter set forth, for a period of twelve (12) months from the date of purchase by the
original purchaser.
5. Sealite Pty Ltd warrants that any LED sign lighting products (“Sign Lighting Products”) will be free from
defective materials and workmanship under normal and intended use, subject to the conditions hereinafter
set forth, for a period of three (3) years from the date of purchase by the original purchaser.
6. Sealite Pty Ltd warrants that any Sealite marine lighting products other than the Telemetry Products,
BargeSafe™ Products, and Area Lighting Products (“Sealite Products”) will be free from defective
materials and workmanship under normal and intended use, subject to the conditions hereinafter set forth,
for a period of three (3) years from the date of purchase by the original purchaser.
7. Sealite Pty Ltd will repair or replace, at Sealite’s sole discretion, any Telemetry Products, BargeSafe™
Products, Area Lighting Products or Sealite Products found to be defective in material and workmanship in
the relevant warranty period so long as the Warranty Conditions (set out below) are satised.
8. If any Telemetry Products, BargeSafe™ Products, Area Lighting Products or Sealite Products are tted
with a rechargeable battery, Sealite Pty Ltd warrants the battery will be free from defect for a period of one
(1) year when used within original manufacturer’s specications and instructions.
9. Buoy products are covered by a separate ‘Sealite Buoy Warranty’.
Warranty Conditions
This Warranty is subject to the following conditions and limitations;
1. The warranty is applicable to lanterns manufactured from 1/1/2009.
2. The warranty is void and inapplicable if:
a. the product has been used or handled other than in accordance with the instructions in the owner’s
manual and any other information or instructions provided to the customer by Sealite;
b. the product has been deliberately abused, or misused, damaged by accident or neglect or in being
transported; or
c. the defect is due to the product being repaired or tampered with by anyone other than Sealite or
Sealite LED Light Warranty V2.2
Latest products and information available at www.sealite.com
11
BargeSafe™ 3NM LED Barge Light
UL 1104 Certied & COLREG-72
Information in this manual is subject to change without notice and does not represent a commitment on the part of the vendor.
Sealite products are subject to certain Australian and worldwide patent applications.
authorised Sealite repair personnel.
3. The customer must give Sealite Pty Ltd notice of any defect with the product within 30 days of the
customer becoming aware of the defect.
4. Rechargeable batteries have a limited number of charge cycles and may eventually need to be replaced.
Typical battery replacement period is 3-4 years. Long term exposure to high temperatures will shorten the
battery life. Batteries used or stored in a manner inconsistent with the manufacturer’s specications and
instructions shall not be covered by this warranty.
5. No modications to the original specications determined by Sealite shall be made without written
approval of Sealite Pty Ltd.
6. Sealite lights can be tted with 3rd party power supplies and accessories but are covered by the 3rd party
warranty terms and conditions.
7. The product must be packed and returned to Sealite Pty Ltd by the customer at his or her sole expense.
Sealite Pty Ltd will pay return freight of its choice. A returned product must be accompanied by a written
description of the defect and a photocopy of the original purchase receipt. This receipt must clearly list
model and serial number, the date of purchase, the name and address of the purchaser and authorised
dealer and the price paid by the purchaser. On receipt of the product, Sealite Pty Ltd will assess the
product and advise the customer as to whether the claimed defect is covered by this warranty.
8. Sealite Pty Ltd reserves the right to modify the design of any product without obligation to purchasers of
previously manufactured products and to change the prices or specications of any product without notice
or obligation to any person.
9. Input voltage shall not exceed those recommended for the product.
10. Warranty does not cover damage caused by the incorrect replacement of battery in solar lantern models.
11. This warranty does not cover any damage or defect caused to any product as a result of water ooding or
any other acts of nature.
12. There are no representations or warranties of any kind by Sealite or any other person who is an agent,
employee, or other representative or aliate of Sealite, express or implied, with respect to condition of
performance of any product, their merchantability, or tness for a particular purpose, or with respect to any
other matter relating to any products.
Limitation of Liability
To the extent permitted by acts and regulations applicable in the country of manufacture, the liability of Sealite
Pty Ltd under this Warranty will be, at the option of Sealite Pty Ltd, limited to either the replacement or repair of
any defective product covered by this Warranty. Sealite will not be liable to Buyer for consequential damages
resulting from any defect or deciencies.
Limited to Original Purchaser
This Warranty is for the sole benet of the original purchaser of the covered product and shall not extend to
any subsequent purchaser of the product.
Miscellaneous
Apart from the specic warranties provided under this warranty, all other express or implied warranties relating
to the above product is hereby excluded to the fullest extent allowable under law. The warranty does not
extend to any lost prots, loss of good will or any indirect, incidental or consequential costs or damages or
losses incurred by the purchaser as a result of any defect with the covered product.
Warrantor
Sealite Pty Ltd has authorised distribution in many countries of the world. In each country, the authorised
importing distributor has accepted the responsibility for warranty of products sold by distributor. Warranty
service should normally be obtained from the importing distributor from whom you purchased your product. In
the event of service required beyond the capability of the importer, Sealite Pty Ltd will full the conditions of
the warranty. Such product must be returned at the owner’s expense to the Sealite Pty Ltd factory, together
with a photocopy of the bill of sale for that product, a detailed description of the problem, and any information
necessary for return shipment.
BargeSafe™ 3NM LED Barge Light
UL 1104 Certied & COLREG-72
Sealite Pty Lty
Australia
+61 (0)3 5977 6128
Sealite Asia Pte Ltd
Singapore
+65 6908 2917
Sealite United Kingdom Ltd
UK
+44 (0) 1502 588026
Sealite USA LLC
USA
+1 (603) 737 1311
We believe technology improves navigationTM
sealite.com info@sealite.com
Table of contents
Other Sealite Floodlight manuals
