Sealite SL-PEL-05 User manual

Version 2.6

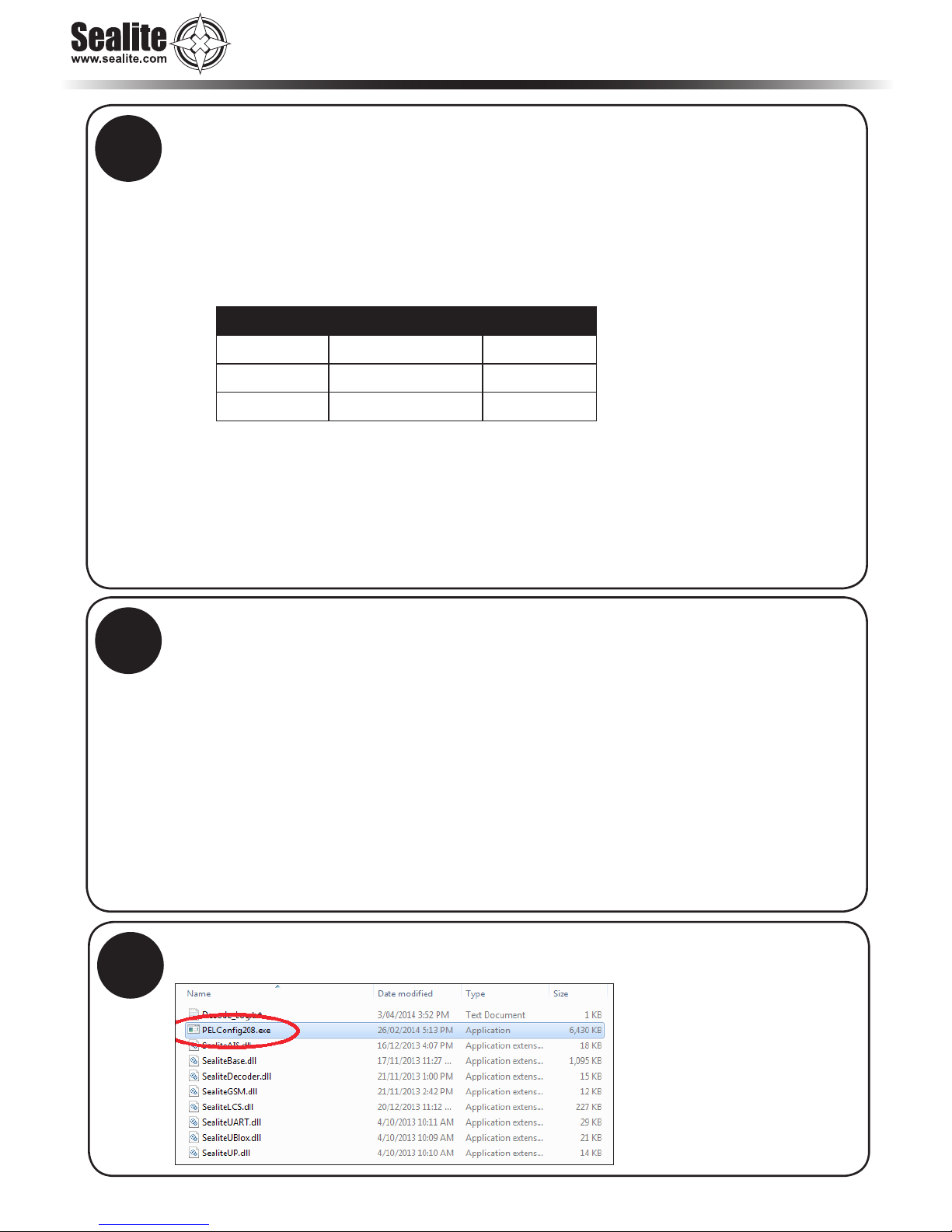

SL-PEL Series
Sectored Port Entry Light
Installation
& Software Guide

Version No. Description Date Author Approved
1.0 Manual Launch March 2014 D. Tomaszewicz
2.0 Quick Start Guide April 2014 D. Tomaszewicz
2.1 Quick Start Guide (wires) April 2014 D. Tomaszewicz
2.2 Trouble Shooting July 2014 D. Tomaszewicz
2.3 Update: Contact details & Spec table January 2016 J. Dore
2.4 Update: PEL Cong & Footer Sep 2016 B. Gielen
2.5 Update: Flash Codes Dec 2016 B. Gielen M.Nicholson
2.6 Update: Diagrams Feb 2017 B. Gielen M.Nicholson

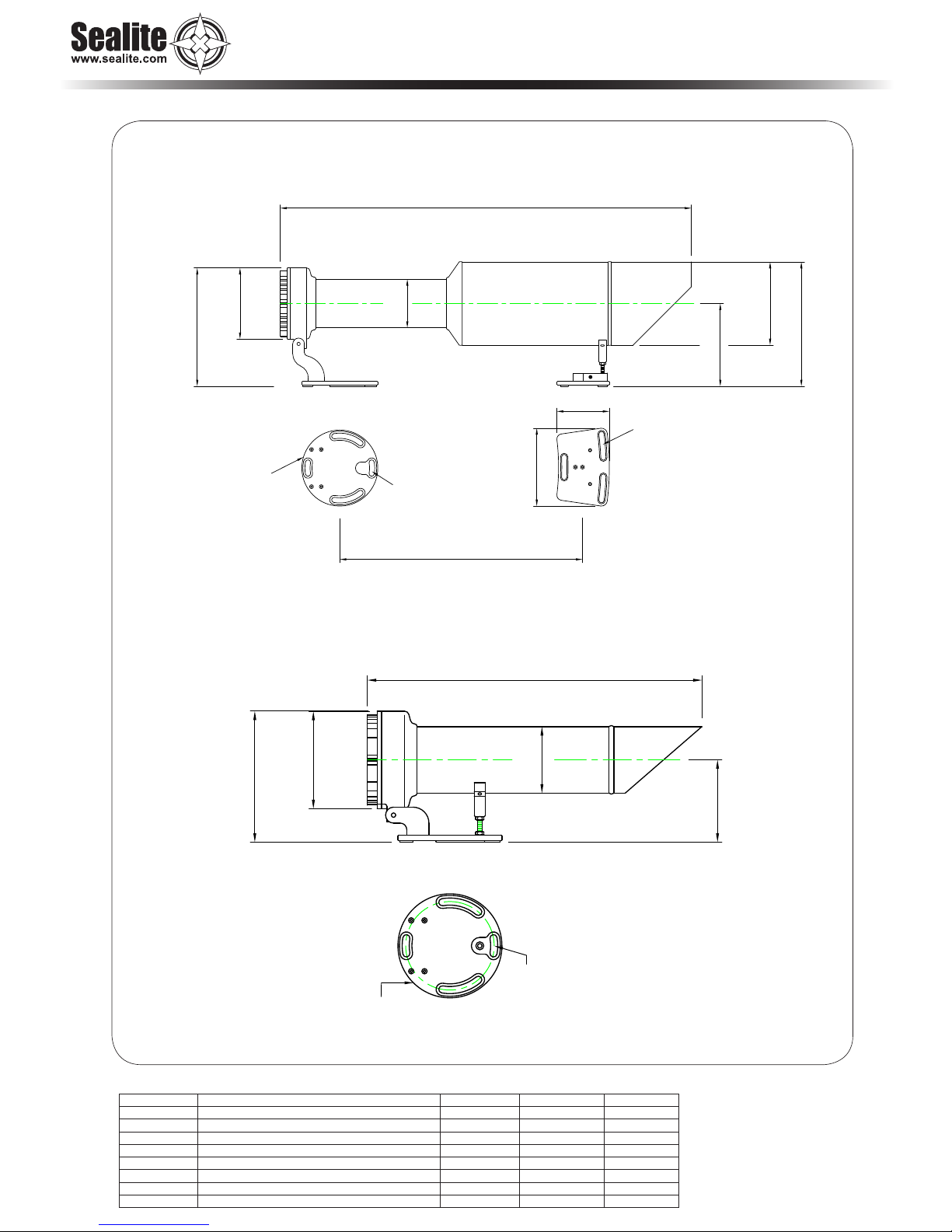

10 SL-PEL-10 Model
5 SL-PEL-05 Model
SlottedHoles
onPCD200mm
MOUNTPLATE1 MOUNTPLATE2
1272
366
384
16mmwide
SlottedHoles
750
Diam235mm
756
296
SlottedHoles
onPCD200mm
BASE(HolePattern)
Diam235mm
Ø 150
162
241
Ø 220
Ø 150
Ø 220
Model 5° SL-PEL-05 Model 10° SL-PEL-10
186
256
Ø 257
SlottedHoles
onPCD200mm
MOUNTPLATE1 MOUNTPLATE2
1272
366
384
16mmwide
SlottedHoles
750
Diam235mm
756
296
SlottedHoles
onPCD200mm
BASE(HolePattern)
Diam235mm
Ø 150
162
241
Ø 220
Ø 150
Ø 220
Model 5° SL-PEL-05 Model 10° SL-PEL-10
186
256
Ø 257

SL-PEL Series
Sectored Port Entry Light
SL-PEL Series
Sectored Port Entry Light
Advanced triple-optic
design for precision
sectoring
Slotted mounting holes
for initial alignment
Power, RS232, GPS
antenna output & USB
conguration
Powder coated, marine grade
aluminium alloy to resist the
elements
Vertical adjustment
SL-PEL-10 Model
The Sealite Port Entry Light (PEL) is a low-powered, high-intensity precision sector light,
suitable for day or night-time use.
Providing over 120,000cd (10Model) and 500,000cd (5Model) at 30 watts, the Sealite PEL is
extraordinarily efcient and ideal for solar power systems. The light is designed to suit high-
precision sector applications and provides a measured changeover between colour sectors of
typically one minute of arc.

SL-PEL Series
Sectored Port Entry Light
QUICK START GUIDE
Load USB SW onto Computer
1
Connect power cable to PEL
2
For full Installation Guide see page 10.

SL-PEL Series
Sectored Port Entry Light
Connect power cable to a Power Supply set to 12.5V / 3A:
a. If you’ve purchased a power supply, simply connect to mains.
b. If you’ve purchased a standalone unit, the
power connections are:
c. If you’ve purchased a GSM Unit, please consult your GSM Manual.
Connect the USB cable from the
PEL to the Computer
Label Colour Connect to:
BATTERY + RED 12.5V +
BATTERY - BLUE 12.5V -
GND GREEN Ground
3
4
Start the PEL Conguration Software
5
Note: For Trouble Shooting during setup, please refer to the ‘Trouble Shooting’ section of this manual

Latest products and information available at www.sealite.com
6
SL-PEL Series
Sectored Port Entry Light
Table of Contents
Introduction......................................................................................... Page 8
Technology.......................................................................................... Page 8
SL-PEL Series ..................................................................................... Page 9
INSTALLATION GUIDE ..................................................................... Page 10
Prior to installation ....................................................................................... Page 10
Considering tower rigidity ........................................................................ Page 10
Considering height .................................................................................. Page 10
Considering tower colour......................................................................... Page 10
Improving traditional leads with a PEL......................................................... Page 11
Considering daymarks............................................................................. Page 11
Considering twin or leading marks .......................................................... Page 11
Night-time use ......................................................................................... Page 12
Day-time use ........................................................................................... Page 12
Day and night use ................................................................................... Page 12
Considering site selection ....................................................................... Page 12
Supporting aids ....................................................................................... Page 13
Commissioning the PEL sector light........................................................ Page 13
Alignment of the PEL Sector light............................................................ Page 14
Final sea check ....................................................................................... Page 17
Synchronisation with other aids............................................................... Page 17
Care and handling of the PEL ......................................................... Page 18
SOFTWARE GUIDE........................................................................... Page 19
USB interface setup ......................................................................... Page 19
Info tab............................................................................................... Page 22
Name ........................................................................................................... Page 22
LED Colours................................................................................................. Page 22
Event Log..................................................................................................... Page 23
Operation Mode tab.......................................................................... Page 24
Operation Mode Settings ............................................................................. Page 24
Factory Reset............................................................................................... Page 25
Intensity tab ...................................................................................... Page 26
Adjusting Intensities ..................................................................................... Page 26
Viewing Adjusted Intensities ........................................................................ Page 27

Latest products and information available at www.sealite.com
7
SL-PEL Series
Sectored Port Entry Light
Flash Code tab.................................................................................. Page 28
Setting ash codes....................................................................................... Page 28
Custom ash codes ..................................................................................... Page 29
Sensor tab......................................................................................... Page 30
Battery Sensor ............................................................................................. Page 30
Changing Battery Thresholds.................................................................. Page 31
Disabling/Enabling Low Battery Voltage Options .................................... Page 31
Temperature Sensor .................................................................................... Page 32
Changing Temperature Thresholds ......................................................... Page 32
Disabling/Enabling Temperature Threshold Options............................... Page 33
LED Sensor (LED Diagnostics).................................................................... Page 34
Disabling/Enabling Alarm Options ........................................................... Page 34
Light Sensor................................................................................................. Page 36
Managing Light Sensor Thresholds......................................................... Page 37
Changing Light Thresholds ..................................................................... Page 37
Advanced tab.................................................................................... Page 38
Lantern Information...................................................................................... Page 38
Lantern Setup .............................................................................................. Page 39
Intensity........................................................................................................ Page 40
Changing LED Intensities........................................................................ Page 40
Flashcode .................................................................................................... Page 41
Sync Offset .................................................................................................. Page 41
Writing LED Synchronisation................................................................... Page 41
AIS tab ............................................................................................... Page 42
GPS Synchronisation....................................................................... Page 43
Examples of PEL Beam Congurations......................................... Page 45
Flash Codes ...................................................................................... Page 46
Optional GSM Cell Phone Monitoring & Control ........................... Page 52
Maintenance and Servicing ............................................................. Page 53
Trouble shooting .............................................................................. Page 54
PEL Warranty Statement.................................................................. Page 54
Sealite LED Light Warranty ............................................................. Page 55

Latest products and information available at www.sealite.com
8
SL-PEL Series
Sectored Port Entry Light
Introduction
Congratulations! By choosing to purchase a Sealite Sectored Port Entry Light you have
become the owner of one of the most advanced LED marine lights in the world.
Sealite Pty Ltd has been manufacturing lanterns for over 25 years, and particular care has been taken to
ensure your lantern gives years of service.
As a commitment to producing the highest quality products for our customers, Sealite has been independently
certied as complying with the requirements of ISO9001:2008 quality management system.
By taking a few moments to browse through this booklet, you will become familiar with the versatility of your
light, and be able to maximise its operating function.
Technology
Sealite is the world’s fastest growing manufacturer of marine aids to navigation. We
employ leading mechanical, optical, hardware & software engineers to create innovative
products to service the needs of our customers worldwide, and offer the widest range of
solar-powered LED lanterns in the marketplace.
Electronics
Sealite employs leading in-house electronic engineers in the design and development of software and related
circuitry. All individual electronic components are sourced directly by Sealite procurement staff ensuring that
only the highest quality components are used in our products.
LED Technology
All marine lanterns use the latest advancements in LED (Light Emitting Diode) technology as a light source.
The major advantage of LED’s over traditional light sources is well established in that they typically have an
operational life in excess of 100,000 hours, resulting in substantial savings to maintenance and servicing
costs.
Precision Construction
Commitment to investing in the design and construction of injection-moulded parts including optic lenses, light
bases and a range of other components ensures that all Sealite products are of a consistent & superior quality.
Optical Performance
Sealite manufactures a range of marine LED lenses moulded from multi-cavity dies. The company has
superior in-house lens manufacturing capabilities to support outstanding optical performance.
Award-winning, Patented Technology
Several United States and Australian patent registrations are held on Sealite’s range of innovative designs,
with other regional patents pending in Canada, United Kingdom and Europe.
•Specications subject to change or variation without notice *Subject to standard terms and conditions § White intensity can be balanced with coloured intensity or increased to match historical filament lantern performance

Latest products and information available at www.sealite.com
9
SL-PEL Series
Sectored Port Entry Light
SL-PEL Series
•Specications subject to change or variation without notice *Subject to standard terms and conditions § White intensity can be balanced with coloured intensity or increased to match historical filament lantern performance
SPECIFICATIONS•* SL-PEL-05 SL-PEL-10
5 Model 10 Model
Light Characteristics
Light Source LED LED
Available Colours Red, Green, White Red, Green, White
Typical Maximum Peak Intensity
(cd)
Red - 380,000
Green - 345,000
White §- 505,000
Red - 95,000
Green - 85,000
White §- 120,000
Visible Range (NM) AT @ 0.74: White sector, nighttime: up
to 23.5
AT @ 0.85: White sector, nighttime: up
to 37.5
AT @ 0.74: White sector, nighttime: up
to 20
AT @ 0.85: White sector, nighttime: up
to 31.3
Vertical Divergence (degrees) @ 50% peak intensity: 0.85 @ 50% peak intensity: 1.7
Beam Width Overall (degrees) 5 10
Minimum Sector (degrees) 0.5 1.0
Available Flash Characteristics User adjustable User adjustable
Intensity Adjustments Fully adjustable Fully adjustable
LED Life Expectancy (hours) >50,000 >50,000
Electrical Characteristics
Power (watts) 30 watts peak x character ratio 30 watts peak x character ratio
Voltage Range (VDC) 12-24 12-24
Nominal Voltage (VDC) 12.5 12.5
Temperature Range -40 to 80°C -40 to 80°C
Physical Characteristics
Body Material Marine grade aluminium alloy & carbon
bre, enamel baking
Marine grade aluminium alloy, subject
to enamel baking
Lens Material Anti-reection coated glass Anti-reection coated glass
Mounting 4 x 12mm slotted holes equally spaced
on 200mm PCD with additional front
mounting plate consisting of 16mm
slotted holes
4 x 12mm slotted holes equally
spaced on 200mm PCD
Length (mm/inches) 1272 / 50 756 / 29¾
Mass (kg/lbs) 20 / 44 12 / 26½
Product Life Expectancy Up to 12 years Up to 12 years
Environmental Factors
Driving Rain MIL-STD-810F Method 506.4 MIL-STD-810F Method 506.4
Low Temperature MIL-STD-810G Method 502.5 MIL-STD-810G Method 502.5
High Temperature MIL-STD-810G Method 501.5 MIL-STD-810G Method 501.5
Humidity MIL-STD-810F Method 507.4 MIL-STD-810F Method 507.4
Salt Fog MIL-STD-810F Method 509.4 MIL-STD-810F Method 509.4
Shock IEC 60068-2-29 Test Eb IEC 60068-2-29 Test Eb
Vibration ASTM D4169-05 cl.12.3 ASTM D4169-05 cl.12.3
Certications
CE EN61000-6-1: 2007. EN61000-6-3: 2007. EN61000-6-1: 2007. EN61000-6-3: 2007.
IALA Signal colours compliant to IALA E-200-1 Signal colours compliant to IALA
E-200-1
Waterproof IP67.AS 60529-2004 (IEC 60529:2001) IP67. AS 60529-2004 (IEC 60529:2001)
Intellectual Property
Trademarks SEALITE® is a registered trademark of
Sealite Pty Ltd
SEALITE® is a registered trademark of
Sealite Pty Ltd
Warranty * 3 years 3 years
Options Available • AIS Type 1 or Type 3
• GSM Remote Monitoring & Control
Capabilities
• GPS Synchronisation
• Variety of solar/battery congurations
• AIS Type 1 or Type 3
• GSM Remote Monitoring & Control
Capabilities
• GPS Synchronisation
• Variety of solar/battery
congurations

Latest products and information available at www.sealite.com
10
SL-PEL Series
Sectored Port Entry Light
CONSIDERING TOWER RIGIDITY:
It is important to remember that the PEL sectored light has a precision of typically one min of arc and
any structure or mounting bracket used to support it must have that rigidity in terms of horizontal twist.
When considering the PEL’s mounting, the following items need to be reviewed if these structures will
be utilised: size of daymark, its age, ladder and platform access. In addition, while the light-weight
nature of the PEL will permit mounting on a tilted column, its slender nature and the need to align the
light when fully erect precludes its use.
The structure must therefore be able to support the following: the PEL itself, its required power supply,
any daymarks, and at least two maintenance staff without twisting in heavy gale force winds (up to 100
MPH).
CONSIDERING HEIGHT:
The height of the structure above chart datum must suit not only the tallest bridge height but also
the smallest bridge height during all states of the tide, and not only at the extremity of the channel,
but from the nearest point of exit or to that point where other port lights take over. This is a function
of the vertical divergence of the PEL and the centre line of the PEL can be arranged to point into
mid-channel, ensuring that the top of the beam to 50% equates to the tallest bridge height on the
largest tide. The reverse is true for the smallest vessel on the lowest tide and the point of exit. Sealite
engineers can offer advice in this regard upon request.
CONSIDERING TOWER COLOUR:
In most cases the PEL sector light will supplement an existing mark which may be a well-recognised
building, solid stone tower, or steel lattice construction. It could be that the nature and type of use
of this structure and surrounding background has changed over the years. While the PEL itself will
enhance and improve the structures identication in day time, it is important to review.
Perhaps the original building or structure was white when viewed against a jungle or sloping green
elds and with modern build up around the port it is now surrounded by concrete buildings or tanks.
During project review and implementation a simple inbound trip on the pilot or suitable vessel whilst
taking pictures at one mile intervals will reveal many simple opportunities for further enhancement.
Changing the tower colour or adding colour to the structure will assist the mariner in improving its
recognition. It is not essential to retain its original colour just because it has always been so.
INSTALLATION GUIDE
Thank you for choosing a Sealite SL LED series precision sector light. The unit has been pre-
programmed to suit your order which includes the colour of each sector. All other parameters are user
programmable. These parameters have been factory set.
Prior to installation

Latest products and information available at www.sealite.com
11
SL-PEL Series
Sectored Port Entry Light
CONSIDERING DAYMARKS:
While the PEL will be used as a single station aid, this does not mean that daymarks are no longer
required. For example, a steel lattice tower or single column pole will be almost invisible from seaward.
By cladding the tower in vertical or horizontal boards its recognition will improve in daylight hours. Its
colour should be in contrast to the normal back ground.
If this is an established approach bearing, most pilots and masters will have their own “back-marks” to
create a natural leading line if no back-mark exists. This could be a church or mosque spire, telecoms
tower, natural dip in a mountainous sky line, or even a mountain or hill itself. It could however just be
another building.
Natural marks or buildings owned by others are unable to be enhanced, however buildings owned by
the ports themselves can have daymark squares painted on their edges to improve the bearing line
recognition. Again, by taking a series of pictures on the approach line can improve this process and
Sealite engineers can offer recommendations.
These additions and suggestions to the project are usually very cost-effective in enhancing the PEL
performance and an age old proven method of assisting the mariner which can sometimes be overlooked
when considering the overall project.
CONSIDERING TWIN OR LEADING MARKS:
While the PEL is predominately used as a single station aid, they should be retained as an unlit structure
to assist day use if a “back-mark” or “front-mark” exists where the bearing line is still relevant, provided
there is no signicant cost to its retention.
If it is the “back-mark” that is to be retained, consideration should be given to supplementing this
mark with an omni-directional light synchronised to the PEL. Even if the channel has been extended,
destroying the sensitivity of the system, keeping a light synchronised with the sectored light is another
way of maintaining the approach to the bearing line. This is true of whether the structure is to be lit or to
remain unlit.
The “series of pictures” method can be extended to include approach to the bearing line noting beacons
and buoys used in the passage of which further mention will be made later in this manual.
Improving traditional leads with a PEL

Latest products and information available at www.sealite.com
12
SL-PEL Series
Sectored Port Entry Light
NIGHT-TIME USE:
Usually one of the main reasons a port considers upgrading its leading line is due to a growth of port
infrastructure around the bearing, making it impossible for the mariner to pick out the leads. Again, a
photographic record of an approach noting possible interfering lights at night time will help to enhance
the new system. A simple addition of ood lights or an adjustment of current ood light direction could
improve recognition signicantly. This exercise is also useful when determining the level of automatic
night dimming which will be discussed later in the manual.
DAY-TIME USE:
Providing a light for day use is expensive in terms of the power required to generate bright lights which is
visible in daytime. Reference to the approach bearing will determine if this is to be directly in a rising or
setting sun. Any viewing in this direction without the assistance of a dark skyline will reduce the range of
the light. The higher the mountain range or building behind the light which will create a large silhouette
will increase the range the light can achieve. Summer and winter variations of the sun’s position relative
to the bearing angle should also be considered.
It is recommended that during the project’s engineering stage that a series of pictures are taken of the
ship’s view during approach during the time of a rising or setting sun, or any other harsh conditions to
make a valid assessment of light intensity required. Sealite engineers may also be consulted for their
recommendations.
DAY AND NIGHT USE:
If the light is to be used in both day and night time applications it will most certainly require to be dimmed
for night use. This is an automatic feature built into the PEL where the user can congure the intensities
to be set. Sealite engineers have created a programme supplied with the PEL which enables the
commissioning engineer to adjust this intensity via the USB port provided.
CONSIDERING SITE SELECTION:
If the project is brand new with a new bearing line and the Harbour Master or Pilots have a choice to
select the approach line over and above any geographical restrictions on the position of rocks or reefs, it
is a useful exercise to draw the “ideal approach line.” This could be angled to suit a particular approach
if vessels will always approach from a given direction. If from either Port or Starboard of the line then the
line will need to be centralised. However, if the approach for a given size of vessel is always from the
Port side of the bearing line then the line should be angled to diminish his course change. Amounts of
dredging (if required) is always an item to be taken into consideration in terms of cost.
Once selected, the extremity of the channel or to the edge of any rocks or reefs should be drawn on
either side of this bearing line. These lines should be extended back to shore or the location from which
the PEL will be driven. Once the points have been selected, the land or sea within these two vectors can
be reviewed for suitability. Points to be considered include:
1. Ownership of the land.
2. Background on the leading line.

Latest products and information available at www.sealite.com
13
SL-PEL Series
Sectored Port Entry Light
3. Obstructions in front of any position selected.
4. Height of that point naturally above Chart Datum.
5. Light pollution around this spot.
6. Any shadows which will affect solar applications.
Through a combination of suitability and cost implications a theoretical position can be determined and
proposed to dene safe passage through the channel and any obstacles. This latitude and longitude
point should be recorded and lled into the Sealite PEL Information Checklist and sent to Sealite to aid
discussions.
SUPPORTING AIDS:
Previously, Aids to Navigation (AtoNs) were considered stand-alone devices due to restrictions on
technology. With the improvements of radio and satellite communications however, it is now possible to
link these previous stand-alone aids. This is true for buoy synchronised channels and pairs of leading
lights, as well as channels and isolated buoys on leading line approaches.
It is now possible to select leads to be synchronised with specic beacons and buoys to increase the
mariner’s total eld of vision in one time during approach. By revisiting the ash characters of previously
isolated aids it is now possible to create better approaches and combine these isolated beacons and
buoys to the approach character of the leading or sectored light.
Here again Sealite can assist in offering recommendations to enhance the approach to the leading
bearing. There are distinct advantages in reviewing supporting aids to enhance the overall marking of the
port and to save on power consumption. This can help increase the range of these aids to offset the ever
increasing background lighting in a port.
COMMISSIONING THE PEL SECTOR LIGHT:
Prior to installation it is recommended that the relative position of the site be checked against both the
charts and other prominent navigation marks used around the port. These can be breakwater or quay
edges, and church spires or lighthouses which have specic points of sight (i.e.: wind vanes and masts).
These can be used to check the relative bearing angle to each other and ensure the proposed leading
line is correct.
It is not unusual to discover small inaccuracies of charted rocks or quay extensions from those currently
on the chart due to the date and accuracy of the most recent surveys.

Latest products and information available at www.sealite.com
14
SL-PEL Series
Sectored Port Entry Light
ALIGNMENT OF THE PEL SECTOR LIGHT:
While there is no best single method of achieving a commissioned alignment, there are many variants on
how alignment may be achieved. The PEL sector light is an accurate instrument but it should be noted
that the centre line of the beam is theoretical, and the only points of accurate reference are the edges of
the total beam (light cut off) or between colours. It is these reference lines which should be used to set up
the light and these bearing lines should be drawn on the chart and bearings noted.
Option 1 (Preferred method)
Refer to the chart and select known dened points on land at a distance of approximately 1/2 to 3/4 of
a mile from the sectored light. This may be the edge of a quay or rock with established beacon which is
identiable on the chart from which a distance to one of the bearing lines can be measured by tape over
land. This point can be determined prior to the installation and marked by a wooden peg or spray painted
spot on a rock or quay wall.
Option 2
If such a point is not available over land, the same can be achieved using a measure line of
Polypropylene oating rope which can be laid out from a small boat and held in tension in a given
direction previously determined from the chart.
Option 3
If none of the bearing lines make land fall or the distance from land is greater than 100 to 200 metres
then the operation of alignment must be conducted dynamically by boat with reference to a Theodolite
alignment. Method 3 will require the Theodolite to be set up at the base of the tower directly below the
light on the centre line of the theoretical bearing or on the balcony of the tower itself. It must be on the
centre line of the approach with reference to all other local marks.
Clear Line of Sight
The position selected must have a clear line of sight of the bearing lines on the day of alignment and not
be obstructed by any vessel.
Time of Alignment
The best time to align the light is when light levels are at their softest (early morning or dusk). Viewing the
light in the direction of a rising and setting sun should be avoided and a time selected where the tide suits
those marks which have been selected for reference. This is important in areas with high tidal ranges,
both for access to the mark and draft of the vessel (if used to get to the location).
Personnel required
At the reference point:
One competent observer with VHF radio or mobile phone who can communicate in the same language
as the commissioning technician without the need of a translator.

Latest products and information available at www.sealite.com
15
SL-PEL Series
Sectored Port Entry Light
If Method 2 or 3 is being used, a small motor powered boat with both helmsman and able-bodied seamen
to lay out the line and act as a safety man. The observer must be free of all duties and concentrate only
on reporting what he can see.
At the PEL:
One technician with VHF radio or GSM phone if methods 1 or 2 are being utilised.
If method 3 is being used, a skilled Theodolite operator with shared VHF radio.
Approximately 1 hour should be allowed for Method 1 and 2-3 hours for Methods 2 or 3 ensuring that all
operations are complete before the hours of darkness. All parties should gather for a discussion on what
is required of each person. It is recommended that the acceptance ofcer who will endorse the alignment
of the light is positioned at the light during alignment. They may verify the completed alignment from
seaward at a later time, however acceptance and verication shall be completed at the tower.
Alignment Procedure:
It is recommended that the lantern is set to a xed ash character (00) and 100% intensity with the PEL
set to the required operation mode. Be mindful of covering the light sensor when testing night conditions.
To set this, refer to the programming section in the manual.
Methods 1 and 2:
1. With the observer in position, switch on the PEL. Both the observer and technician should be in voice
contact.
2. Swing the light around until the observer sees the light. It is not important which colour he sees. The
observer should report the colour.
3. The PEL can now be loosely tightened down to its xings.
4. Depending on colour seen, the technician can determine whether the light has to be moved to the
right or left.
a. Method 1: by instruction from the tower the observer can be asked to walk to the left or right to
determine how much the light is off the mark and inform the tower.
b. Method 2: by instruction from the tower the boat can be asked to be moved to the left or right to
determine how much the light is off the mark and inform the tower.
5. Using electrical tape and a pen mark the original position on the ange of the light.
6. The light can now be loosened and adjusted.
7. By repeating the adjustments in small increments, the light can gradually be moved until the observer
on the mark can move in and out of the colour boundary selected by moving his head to the left and
right by approximately 300 mm.
8. When the technician and acceptance ofcer are satised, the light may be tightened into position.

Latest products and information available at www.sealite.com
16
SL-PEL Series
Sectored Port Entry Light
Method 3:
NOTE: During the alignment process using Method 3, port trafc should be held from passage.
1. The helmsman of the boat MUST accept all instructions from the Theodolite operator. The Observer
MUST stay in a single xed position on the vessel in clear view of the tower. It is suggested to assist
in his recognition that he stand alone or wear a High-VIS vest of a different colour than all other staff
to remain clearly visible.
2. The vessel will position himself at either 1/2 to 1 mile range from the tower on the approximate
bearing line and await instructions.
3. The Theodolite operator will use the telescope to nd the observer
4. With the light switched on the Theodolite operator will instruct the vessel to make a slow passage
perpendicular to the bearing line.
5. The observer will call on the radio e.g.: “Nothing, nothing, nothing, red” and then remove his nger
from the transmission button. At this point the vessel stands awaiting further instructions.
6. The Theodolite operator can then work out the approximate position of the light and instruct the
technician to move the light accordingly in a given direction.
7. It is recommended that if this position is very near the nal position that no adjustment be made on
the rst passage. Instead, the vessel should be instructed to come about and proceed on a reciprocal
bearing to last followed and repeat the procedure. (It should be noted that during this time the vessel
may have drifted and the observer may call “red, red, red” for a long period until he calls nothing.
This is to be expected but should he call a colour change at the same point and the light can then be
moved accordingly.)
8. After a number of passes the team will achieve alignment. NOTE: The speed of the vessel will need to
be tuned to tide movements and in the nal stages this should be a nearly stopped passage.
9. Prior to nal tightening of the PEL the process should be repeated for another boundary check.
10. When the technician and acceptance ofcer are satised, the light may be fully tightened into position.
Horizontal Alignment:
During the alignment it may be necessary to
angle the beam of the light towards the observer
especially if conducted in a small boat. This
should be performed by adjusting the adjustment
screw beneath the barrel and locked as pictured.
A small spirit level placed on the barrel will assist.

Latest products and information available at www.sealite.com
17
SL-PEL Series
Sectored Port Entry Light
FINAL SEA CHECK:
It may be necessary to make a night passage to determine if the automatic night dimming level selected
suits the port and its particular night-time background light.
This is particularly important while making the approaches to the sector light as the port’s ood light or
any nearby lighting drown the mark as they pass behind the sector light. The Harbour Master or Pilots
representative must realise that the light is adjustable and setting a high intensity to assist in long range
identication may perhaps destroy night vision at close range. It is therefore a compromise as the
operators become accustomed to this aid that intensities are not xed in stone and adjustable.
Pilots and Masters will use their own personal marks during both day and night passages to verify the
accuracy of the new aid before they become comfortable with the new addition. In order to make the
most of the PEL, it is necessary to stand in a single position on the bridge without moving from Port to
Starboard. If it is necessary for observations to be made from another point, it is important to remember
only to observe the light from a given point to get a consistent indication of position.
SYNCHRONISATION WITH OTHER AIDS:
It may be part of the scheme to synchronise the PEL with other aids.
If an identication light on the same structure is employed it may be switched on after alignment. The
distance of vertical separation should be selected depending on its purpose.
If the identication light has a sector complimenting and extending the PEL boundaries, this should be
positioned on the centre line within 500mm vertically below the PEL.
If it is an omnidirectional light of a different colour intended to be seen separately from the sector, it
should be positioned (ideally) on the centre line, or at least between 3 and 6 metres below the sector
depending on range.

Latest products and information available at www.sealite.com
18
SL-PEL Series
Sectored Port Entry Light
Care & handling of the PEL
Special care should be taken when handling the Port Entry light. Optics can be easily damaged from
poor handling and incorrect cleaning methods. Be sure to consider the following guidelines:
- The PEL has been supplied in suit packing. Upon arrival of the PEL, inspect for any damage and
immediately notify the carrier. Goods should bot be signed for without unpacking and checking for
damage
- Retain Sealite packing for safe transportation of the PEL to the tower.
- Never place hard or rough surfaces on PEL optics as the lens can be easily scratched and chipped.
- Optics should never be handled with bare ngers as oils from the skin may remove and damage
coated and uncoated surfaces.
- Use only lint-free cloths or lens tissue when cleaning surface of the PEL lens.
- Apply isopropyl alcohol (IPA) directly to your cloth – NEVER directly to the lens. Use slow, even,
light pressure working from edge to edge across the PEL Lens allowing IPA to evaporate.
- If storing the PEL ensure the optics and connectors are protected.

Latest products and information available at www.sealite.com
19
SL-PEL Series
Sectored Port Entry Light
SOFTWARE GUIDE
1. Load the Sealite programme to your PC from the memory stick provided. Save the PEL Conguration
program and all associated drivers (.dll les) onto a local drive.
2. Connect the USB cable between the PEL USB port and the test PC as shown below:
3. Connect the 10 pin connector to the PEL ensuring that it is correctly oriented to the key in the socket.
Ensure at least 12.5 Volts DC is being supplied to the PEL and enable power.
Power/RS232 Port for
monitoring via GSM or AIS
Antenna Connection for
GPS synchronisation
USB Port for programming
Viewed from socket of PEL
A
Key
E
F
GH
D
C
I
B
J
Viewed from plug
H
Key
D
C
IA
E
F
G
J
B
USB interface setup

Latest products and information available at www.sealite.com
20
SL-PEL Series
Sectored Port Entry Light
4. Open the PEL Conguration tool on the PC (.exe le).
5. Choose “COM Setup” from the menu at the top of the screen.
PEL CABLING DIAGRAM
PIN FUNCTION CABLE COLOUR
APAIR COMM GREY
BNC PINK
CPAIR NO YELLOW
DGND GREEN and SHIELD
EPAIR TxD BROWN
FRxD WHITE
GPAIR ALL +ve VIOLET
HALL -ve BLACK
IPAIR VBATT +ve RED
JVBATT -ve BLUE
