Seamax Inflatable Boat – English User Manual
- 1 -
Thank You for your purchase
All of us at SEAMAX CANADA want to thank you for choosing a SEAMAX Inflatable boat. This Owners Manual
contains all the safety and operating information you will need to get the most out of your Inflatable boat. It
also contains information on how to provide care and maintenance to protect your investment. Store this
manual in a safe place for future reference and remember. You may download this manual from our website if
you happen to lose this copy.
The operator, passengers and craft are governed by local, national, and when applicable, international rules
and regulations of the waterways. If you are not familiar with these rules and regulations, your local
Department of Natural Resources can assist you. Safety courses are available from national and local
organizations and are highly recommended for anyone who is not familiar with the rules and regulations of
safe operation of water vessels.
The product you have purchased comes with a limited warranty from SEAMAX CANADA. The terms and
conditions of the warranty are in the Warranty Information Section of this manual. Keep this booklet and your
sales slip together for future reference. You may be asked to provide proof of purchase for in-warranty service.
For any questions or concerns about our products, please email us and we will respond as quickly as possible.
We DO NOT recommend using a high pressure air compressor to inflate your new boat (Except 12 volt battery
powered air pumps). Inflatable boats are not design to be inflated with high pressure air compressors. This
may cause the seams to rupture or the air valves to malfunction. This in turn could create a dangerous
situation and personal injury could occur if a seam was to rupture.
This type of inflation will void your warranty.
NOTE
Record your Hull Identification Number (HIN) and engine mode / serial number. The HIN is located on the
back of the boat on the starboard side. The engine model / serial number is located on the swivel bracket. You
will need this information to obtain parts, warranty service or provide information to your local law
enforcement agency if your boat is lost or stolen.
Boat Model & HIN:
Engine Model & Serial #:
Owner’s Name & Tel:
Place of Purchase:
Invoice Date & Invoice Number:

Seamax Inflatable Boat – English User Manual
- 2 -
1. WARRANTY AND SERVICE
Warranty Information
SEAMAX Inflatable Boats are warranted to be free of defects in material and workmanship during the
following prescribed warranty period. All warranty claims are handled in Canada by Seamax Canada or local
Seamax dealer.
The boat’ hull, floor, all hull attachments and accessories, but not limited to, floorboards. seats, rope holders,
oar locks, oars, rope, air pump, lifting handles, d-rings, oar holders, valves, seat webbings, and transom
integrity are covered by this Limited Warranty for one (1) year from the date the product is first sold. All the
air holding fabrics are warranted against defects in material or workmanship that cause blistering and
delaminating for three (3) years for seams and five (5) years for (PVC) fabrics. The repair, replacement of
parts, or the performance of service under this warranty does not extend the life of this warranty beyond its
original expiration date. Unexpired warranty coverage can be transferred to a subsequent purchaser upon
proper registration of the product.
This Warranty applies only to defects in material and workmanship; it does not apply to normal wear and tear,
or to damage caused by: (1). Neglect, lack of maintenance, accident, abnormal or improper use; (2)
Incorrect assembly or over inflation; (3). Use of an accessory or part neither manufactured or sold by
Seamax; (4). Participating in or preparing for races or other competitive activity; (5). Alteration or
removal of parts; (6). Improper Protection against UV-light; (7). Commercial use.
SEAMAX limited warranty does not cover incidental or consequential costs and expenses such as haul-out,
launching, towing transport and storage charge, telephone or rental charges of any type, inconvenience,
waste of time or income losses, or other consequential damages.
Product Registration
To be eligible for warranty coverage, the product must be registered with SEAMAX CANADA within 90 days
from purchase other than purchasing from Seamax Directly or Seamax Online. When you receive the product,
you will be required to complete the warranty registration card and submit to SEAMAX CANADA via E-mail,
FAX or mail.
SEAMAX limited warranty is transferable to a subsequent purchaser for the remainder of the unused portion
of the warranty. This will not apply to products used for commercial applications. To transfer the warranty to
the subsequent owner, send us the new owner Boat registration Card and a copy of the bill of sale or purchase
agreement within 30 days of transfer. You may request a new warranty card from Seamax Canada.

Seamax Inflatable Boat – English User Manual
- 3 -
Submitting the SEAMAX Inflatable Boat Registration Card is the only valid warranty registration identification.
Warranty Claims may not be accepted without presentation of this registration card.
The consumer must provide COMPLETE access to the product for warranty service by delivering the product
for inspection to SEAMAX CANADA or a dealer authorized to service the purchaser’s product.
Our obligation under this warranty shall be limited to repairing a defective part, or at our discretion,
refunding the purchase price or replacing such part or parts as shall be necessary to remedy ANY defect in
material or workmanship as covered by this warranty.
Product purchase & Support
Headquarter (Canada)
120-11791 Machrina Way, Richmond, BC, Canada V7A 4V3
http://www.seamaxcanada.com http://www.seamaxboat.com
Email: [email protected] [email protected]
TEL: [phone] Fax: [phone]
If you need assistance or service, please first refer to this booklet. Additional help is available by
visiting our website www.seamaxcanada.com or visiting any local Seamax dealers. Remember,
your satisfaction with your inflatable boat is very important to us.

Seamax Inflatable Boat – English User Manual
- 4 -
2. GENERAL INFORMATION
Boater’s Responsibilities
The operator (driver) is responsible for the correct and safe operation of the boat and safety of its occupants
and general public. It is strongly recommended that each operator (driver) read and understand this entire
manual before operating the boat. Be sure at least one additional person on board is instructed in the basics
of starting and operating the outboard and boat handling in case the driver is unable to operate the
boat .Remember in Canada you must have a boating certification license for all motorized watercraft .All
local rules and regulations apply to all waterways.
Operating Your Boat
Read and understand this manual carefully. Learn how to operate your boat properly. If you have any
questions or concerns, please feel free to contact your local dealer or SEAMAX CANADA .Safety and operating
information that is practiced, along with using good common sense, can help prevent personal injury and
product damage. You can visit the following websites for more information on boat safety.
CANADA - www.boatingsafety.gc.ca USA - www.uscgboating.org
Lanyard Stop Switch
The purpose of a lanyard stop switch is to shut down the engine in an emergency situation when the operator
moves from a safe operating distance (as in accidental ejection from the operator's position) to activate the
switch. Tiller handle outboards and some remote control units are equipped with a lanyard stop switch. A
lanyard stop switch can be installed as an accessory, generally on the dashboard or side adjacent to the
operator's position.

Seamax Inflatable Boat – English User Manual
- 5 -
Protecting People While Cruising
It is very difficult for a person standing or floating in the water to take quick action to avoid a boat heading
in his or her direction, even at slow speed. Always slow down and exercise extreme caution any time you are
boating in an area where there might be people in the water. Whenever a boat is moving (coasting) and the
outboard gear shift is in the neutral position, there is sufficient force by the water on the propeller to cause
the propeller to rotate. This neutral propeller rotation can cause serious injury. Shift outboard into neutral
and shut off the engine before allowing people to swim or be in the water near your boat.
Wave and Wake Jumping
Operating recreational boats over waves and wakes is a natural part of boating. However, when this activity
is done with sufficient speed to force the boat hull partially or completely out of the water, certain hazards
arise, particularly when the boat re-enters the water.
The primary concern is the boat changing direction while in the midst of the jump. In such a case the landing
may cause the boat to veer violently in a new direction. A sharp change in direction can cause occupants to
be thrown out of their seats or out of the boat. Use extreme caution when near other boats.
There is another hazard from allowing your boat to launch off a wave or wake. If the bow of your boat pitches
down far enough while airborne, upon water contact it may penetrate under the water surface and submarine
for an instant. This will bring the boat to an instant stop and can send the occupants flying forward. The boat
may also steer sharply to one side on impact with the water .please be aware of these wave and wake
hazards and use extreme caution.

Seamax Inflatable Boat – English User Manual
- 6 -
Impact with Underwater Hazards
Reduce speed and proceed with caution whenever you drive a boat in shallow water areas, or in areas where
you suspect underwater obstacles may exist. These obstacles could be struck by the bottom leg of the
outboard or the boat bottom and cause severe damage to the boat and or motor.
Travel these areas with extreme caution, to reduce injury or impact damage from striking a floating or
submerged object reduce your boat speed.
Boating Safety
In order to safely enjoy the waterways, familiarize yourself with local and other governmental boating
regulations and restrictions, and consider the following suggestions. . Have an approved personal flotation
device of suitable size for each person aboard the vessel (it is the law) and have it readily accessible. Do not
overload your boat. Most boats are rated and certified for maximum load (weight) capacities (refer to your
boat capacity plate). Perform safety checks and required maintenance. Follow a regular schedule and ensure
that all repairs are properly made. Know and obey all nautical rules and laws of the waterways. Boat
operators should complete a boating safety course. And the boat operator may need to pass a Pleasure Craft
License to operate any motorized craft on the water (mandatory in Canada)

Seamax Inflatable Boat – English User Manual
- 7 -
IMPORTANT NOTE
1) Always have on hand enough life-Jackets (or personal floatation devices) with you for all your
Passengers, this is a legal requirement.
2) Check the pressure and the condition of the boat before you start sailing.
3) Pay close attention to the weather conditions for your safety.
4) Do not forget important papers like maps or a sailing license.
5) Make sure you take repair kits, first aid kit and a pump with you.
6) Make sure you do not exceed the maximum recommended number of persons on the capacity plate
7) Do not exceed the recommended maximum horsepower rating.
.
Use of alcohol or drugs is prohibited while operating a water craft. Alcohol or drug use impairs your judgment and
greatly reduces your ability to react quickly. This carries the same penalty as driving a car if convicted.
Prepare other boat operators. Instruct at least one other person on board in the basics of starting and
operating the outboard, and boat handling, in case the driver becomes disabled or falls overboard. Stop the
engine whenever passengers are boarding, unloading, or are near the back (stern) of the boat. Just shifting
the outboard into neutral is not sufficient. The operator of the boat is responsible by law to maintain a proper
lookout by sight and sound. The operator must have an unobstructed view particularly to the front. Never
operate your boat directly behind a water skier in case the skier loses control and hits the water .Use extreme
caution around any swimmer, diver or persons in the water.
Boat Capacity Plate
Seamax inflatable boats are certified by transport Canada and carry our own manufacture's identification
code. Each Seamax boat carries a capacity plate along with a warning plate on the transom as required by
Transport Canada .This certification along with the CE certification allows Seamax Boats to be sold world
wide.
Boat Category
This table shows that boat is designed and constructed for:
Categories Navigation Wind Force and Wave Height
C
Inshore
Designed for voyages in coastal waters, large bays, estuaries, lakes and
rivers where conditions may experience wind force 6 (Beaufort scale) and
wave heights up to 2 m (6.5 ft.)
D
Sheltered
Water
Designed for voyages on sheltered coastal waters, small bays, small lakes,
rivers, and canals where conditions may experience wind force 4 (Beaufort
scale) and wave heights up to 0.5 m (1.5 ft.).

Seamax Inflatable Boat – English User Manual
- 8 -
3. OPENING your BOAT

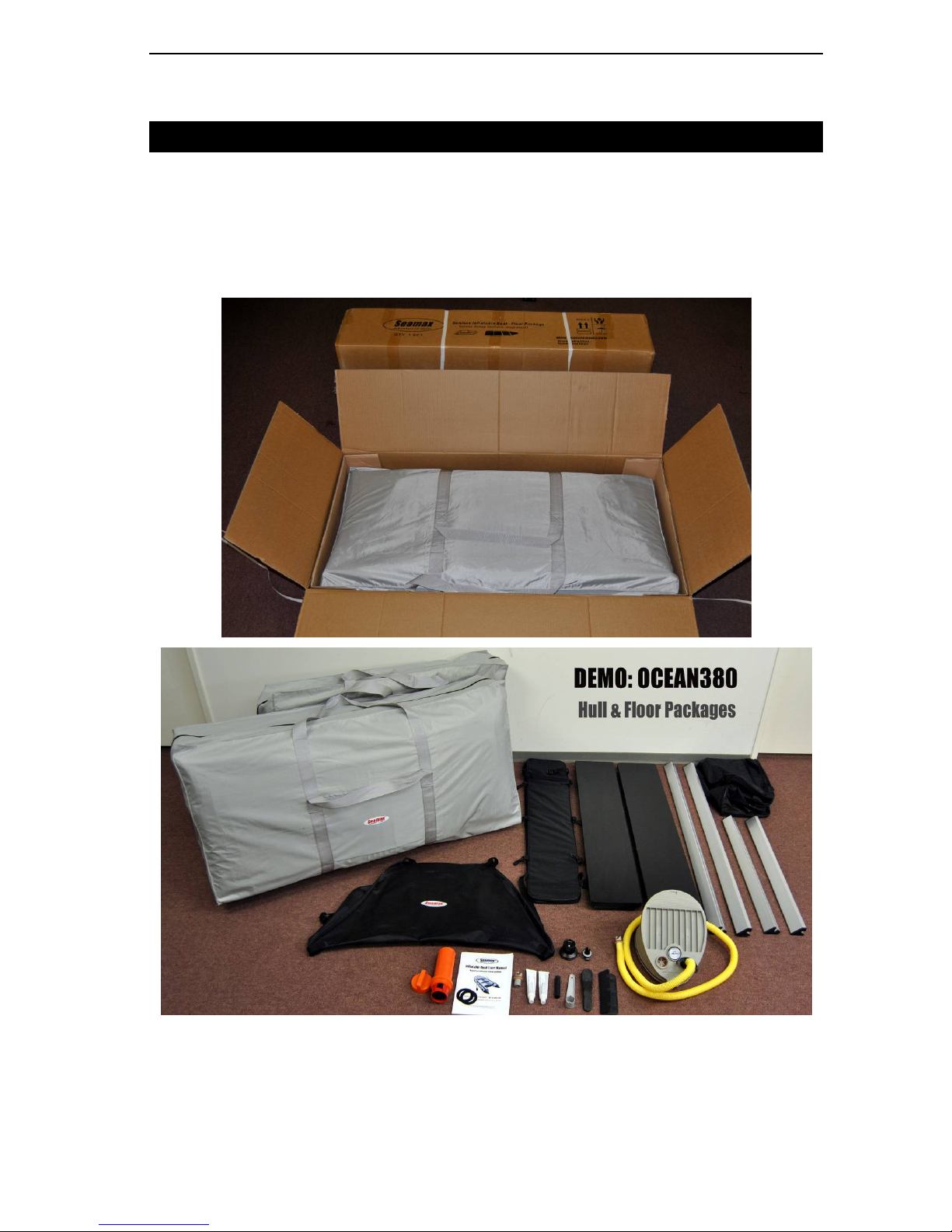

The Unpacking
Never use a sharp knife to open the box, it may damage the boat.
Before you unfold the boat, take a good look at how the boat is folded together. Unfold the boat on a flat
surface, inspect and check if all the components are in new condition and not damaged in anyway such as:
valves, plywood seat, foot pump, oars, aluminum side joiners, floor boards, repair kit and carrying-bag.
Remove all components from the box, Find a flat surface and unfold the boat, take the floor boards out along

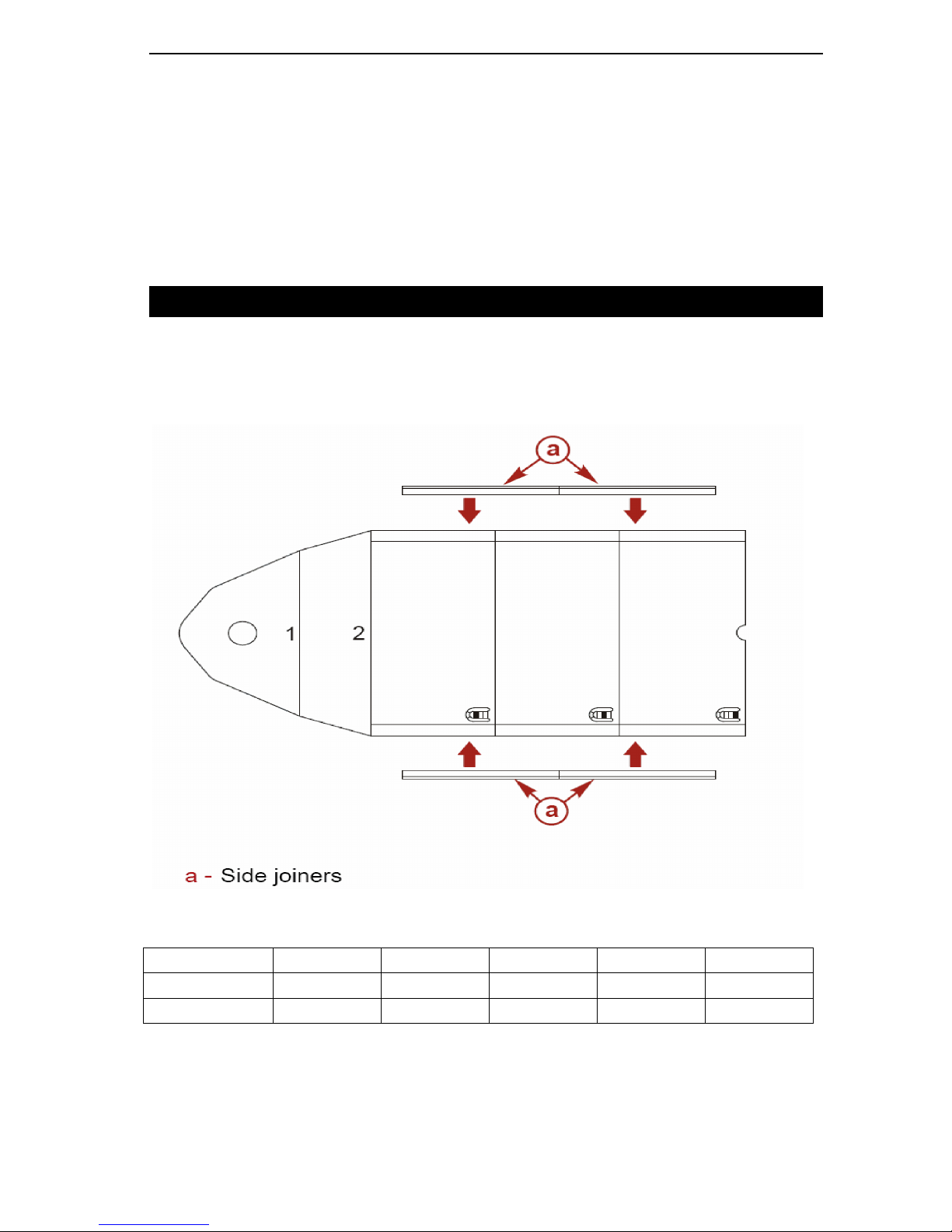

with the side joiners. Inspect and familiarize yourself with all the components and the safety features of your
new inflatable boat. Knowing the functions of all the components of your boat is very important .Not only for
safety reasons but to assist in any questions or concerns you may have.
Valves
All air valves are preassembled and tested for leaks. To fill remove the front cap and insert pump-hose twist
to lock, ensure that the air valve is in the inflate position. You will notice that there is a 2 position valve
stem .push and twist for the inflate position repeat the opposite direction for the deflate position Each
SEAMAX inflatable boat comes with a spare valve and valve wrench.
Getting started
Locate the foot pump and familiarize yourself with the operation and installation of the air hose into the side
chamber air valves. Inflate the side chambers to about 20% of capacity .this is done to pull the floor fabric

Seamax Inflatable Boat – English User Manual
- 9 -
away from the side chambers and makes the floor installation much easier.
Before Assemble check over
Double check all valves and make sure they are all in the closed position, you can also use the included valve
wrench to ensure all the valves are seated tightly against the floor material. To ensure that the valves are in
the correct position push in and twist the valve stem should be in the up position. To determine this use the
foot pump to pump some air in the floor and then remove hose .if the valve stem is in the correct position the
air will not escape, if it does push down valve stem and twist until valve stem pops up.

Seamax Inflatable Boat – English User Manual
- 10 -
4. Air Floor boat setup
About ARMAT Floor
The air floor is designed to be light weight and installed once, its design allows the floor to remain in the boat
and be deflated and folded up with the rest of the boat. Seamax air mat floors are specially designed using
two layers of fabric held together by thousands of polyester cross threads. Inflating this type of fabric with
high pressure air provides a very rigid yet light weight floor. This provides the versatility of a tradition hard
floor with the ease of installation.
AIRMAT FLOOR WITH GAS TANK PAD
PLYWOOD SUPPORT AT THE BACK

Seamax Inflatable Boat – English User Manual
- 11 -
Air floor Boat Assemble
Unfold the floor on a clean flat surface that is free of any sharp objects that could damage the air mat
Lay the floor flat and ensure that all valves are snug and the air valve is in the closed position. Install plywood
slat in holder(under the 2 strap) this is to provide the support to push down the inflatable keel to provide a
deep V keel under the boat .check over to make sure there are defects.
Inflate floor with provided foot pump, once inflated inspect and become familiar with the design and how it
will fit in the boat. Once you are familiar with the floor deflate (push the valve stem in and twist) the air mat.
Take the air series boat and lay out on a clean flat surface, pump the air champers of the boat to about 50%.
This will pull the fabric away from the inner sides of the chambers of the boat to make installing the air mat
much easier. Install the air mat with plywood support down into the boat.
Make sure that the hole in the front lines up with the valve on the inflatable keel, once installed in the bottom
of the boat finish inflating the sides , once that is done inflate the air mat floor. You can double check the
positioning as you go along by pushing down on the edges of the floor as you inflate it .When you have the
floor inflated and in the proper position, inflate the keel. The plywood support will force the keel down to
provide a deep V on the bottom of the boat; this will provide added stability in the water
Tip: You can inflate and deflate the boat and air mat floor together and roll up as one piece
Tip: Wash and clean the sand and dirt from the air mat floor after each use to avoid sand or dirt from
getting inside and damaging the air valve
Note: Inflate the keel chamber only after you have inflated all other chambers of the boat and floor.
Note: The first time you install floor and inflate the boat it may take up to 45 minutes to complete.
Pressure Standard:
•Tube air chambers – Max 3.6PSI / 25kPa
•Inflatable Keel chamber – Max 5.0 PSI / 35kPa
•Airmat floor chamber – Max 10 PSI / 70 kPa
NOTE: Detail Photo Instruction for Setup is available on www.seamaxboat.com.

Seamax Inflatable Boat – English User Manual
- 12 -
Special Pump for Seamax Airmat floor inflatable boats:
•We will give double stages foot pump for Seamax Air Series from 2011 model. It can support 4.4PSI
at lower pressure and 14.7 PSI at high pressure.
•We also have 12V electronic pump for sale, maximum pressure 11.6 PSI.
5. Aluminum Floor Boat setup
Aluminum Floorboards
The floor boards included with each series will vary according to the size of the boat .The floor boards must
be installed into the boat before the boat is inflated. Make sure you place the floorboards in the boat in
numerical order. 1 fits into 2, 2 fits into 3, 3 fits into 4 (if required) 4 fits into 5 (if required)
•Floor boards (Aluminum & Plywood) and side joiners number for each model
Model Ocean290 Ocean320 Ocean380/T Ocean430/T Ocean500T
Floor Boards 4 4 5 6 6
Side Joiners 2 4 4 4 4

Seamax Inflatable Boat – English User Manual
- 13 -
Model eMarine305 eMarine365 Sport240 Sport270 Sport360 Sport420
Floor Boards 4 5 4 4 5 5
Side Joiners 2 4 2 2 4 4
Model HD330 HD360 HD380 HD470 AIR270 AIR320
Floor Boards 4 5 5 6 4 4
Side Joiners 4 4 4 4 2 4
Placement of the floorboards
Tips:
•You will notice that the first couple of times you install the floorboards it will be a little difficult this
is normal, After a while it will all go easier because the material will have stretched.
•When you place the floorboards, pull up the fabric a bit to avoid damage to the outside chambers.
•Once inflated a few times the installation of the floor board will be very easy.

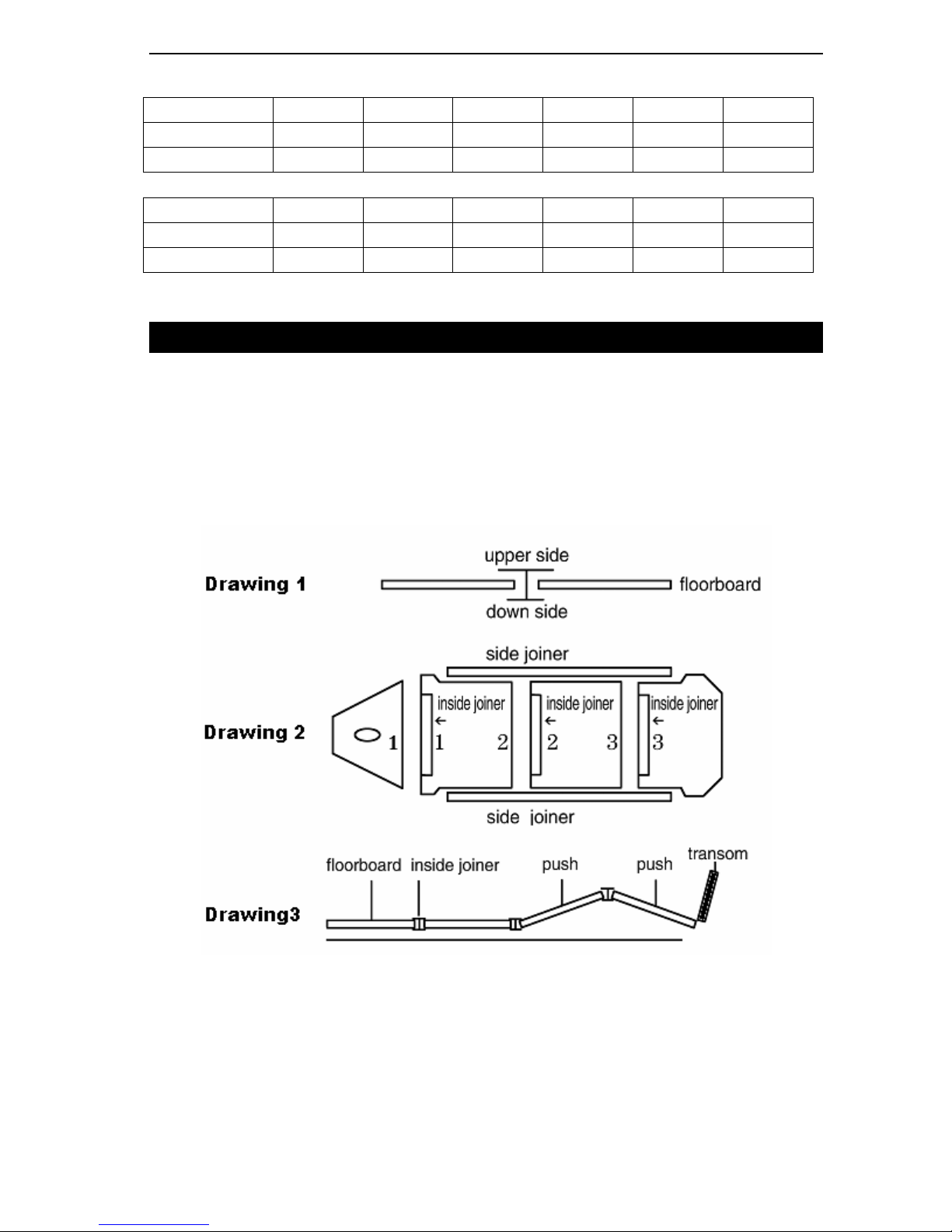

Between each floorboard you have to install an inside-joiner. Place the inside-joiners with the broad side up
(See drawing 1, 2). With each boat there are two side-joiners which you have to install on the sides of the
floorboards. These joiners lock the floor in place to become a very stable platform for the boat

Seamax Inflatable Boat – English User Manual
- 14 -
A. Clear a flat surface that is clean and free of sharp objects.
Unfold the boat and spread it out flat. Start with the front floorboard; slide it into the bow, push this as far in
the nose as possible or until the valve base of the keel is in the middle of the opening in the front
floorboard.
B. Place the rear floorboard (the highest number on the board); push this one as far as
possible under the transom.

Seamax Inflatable Boat – English User Manual
- 15 -
C. Slightly inflate the keel in order to raise the floorboards off the floor. Attach the side
joiner onto each side of floorboards within the recessed floor portion.

Seamax Inflatable Boat – English User Manual
- 16 -

Seamax Inflatable Boat – English User Manual
- 17 -
About Inflating
IMPORTANT:Do not inflate or deflate one air chamber at a time. When inflating or deflating, maintain a
balanced air pressure between air chambers to prevent stress or potential damage to the inside diaphragms
that separate the air chambers.
NOTE: Install the removable seat before the boat is fully inflated. Hook the flanges that are located on the
bottom of the seat into the nylon straps on the side air chambers.
Inflate Tube chambers As Follows:
1. Fit the floorboards into the boat. Refer to Floorboard Assembly.
2. Unscrew the valve; make sure the valve stems are in the closed (intake) position.
3. Attach the air hose adapter to the air valve. Starting at one of the air valves, inflate each air
chamber in turn, inflating only a quarter of the way full.
4. Repeat this procedure to evenly fill the air chambers until the air chambers are filled to the
recommended air pressure of 0.25 bar (3.6 psi).
5. A good indication that the air chambers are filled correctly is the firmness of the chambers.
Unscrew the valve cap from the keel air chamber valve by turning a quarter of a turn counterclockwise. Push
in on the valve stem and rotate to the closed position. Attach the air hose adapter to the air valve. Inflate the
keel to the recommended air pressure of 3.6 psi. After inflation, install the valve caps tight (turn clockwise).
Now place the oars on the oar pins and lock into the holders and your boat is ready to sail.
TIP:
•Do not inflate the keel until floorboards are installed.
•Start by inflating both side chambers. Then inflate the nose.
•After you have inflated these three compartments you can start inflating the keel.
•Remember that air temperature and direct sunlight can have an effect on the air pressure.
•( +1℃degree changing = Pressure + 0.004 bar / 0.576 PSI )

Seamax Inflatable Boat – English User Manual
- 18 -
Oar’s installation
Two Pieces of foldable oars
•Two pieces oar, Blade piece & Handle piece
•Standard: Gray & Black Color; 4.3FT & 5.3FT Total Length
•Oar handle diameter: 1 ¼ inch
•Hole diameter of oar lock stick: 3/8 inch
Step 1:
•Insert the Blade piece to the oar holder, not just click in since new holder may be tight.
Step 2:
•Put the rear piece into the oar lock stick. Join two pieces together, click the oar click in.
•If it is not fitting well, switch over to other piece to try again. Screw up the oar lock cap.
•Finished & ready for use.

Seamax Inflatable Boat – English User Manual
- 19 -
Using an Outboard Motor
Choose an outboard for the boat that is in accordance with the horsepower range and limit. Refer to the
Specification table in this manual or the manufacturer's plate on the boat for the maximum outboard capacity.
Install the outboard along the centerline of the boat transom. Fasten the outboard to the transom following
the recommended installation instructions provided with the outboard or its manufacturer.
Check outboard for tightness on transom before each use. When you install an outboard motor, make sure
you place it on the motor bracket at the transom and tighten the butterfly bolts to the transom Check after
15 minutes of boating to ensure the butterfly bolts are still tight to the transom.
Self Draining
SEAMAX inflatable boats come with two styles of self draining system. To test the valve, while in a forward
motion remove the plug from the drain and the water will automatically run out. The inner diaphragm will
prevent water from returning. After the water has been drained, replace the plug. Make sure you have pulled
out the black plug when you are sailing or towing the boat. It is important to keep the self-draining system
clear.
