PREFACE
The Searchlight increases safety onboard with a fast and accurate rescue via automatic AIS
emergency signal, perfect for tracking other vessels, objects or PAB/SART signal by using the
AIS data combined with GPS, Compass, and Radar information.
NOTE! When a PAB/SART signal is detected the SEARCHMASTER will automatically start
tracking the signal with the light beam.
The SEARCHMASTER is capable of tracking on a position, which means that the searchlight will
automatically maintain a heading when your vessel is moving
The SEARCHMASTER is fully automatic and does not require any personnel and therefore
provides you with an extra set of hands onboard.
The SEARCHMASTER can also be used in manual mode and be controlled by personnel during
operations.
The SEARCHMASTER has an integrated pitch/roll sensor for tracking in high seas (360° in
horizontal light beam rotation and +/- 40° vertical light beam movement and compared to
other searchlights on the market the SEARCHMASTER has the best and most stable light focus
on all selected targets

multiple targets in the water
The SEARCHMASTER Searchlight can be used on all vessels and in various segments.
Currently available in two models:
Searchlight SL170 w/170 Watt
Searchlight SL340 w/340 Watt
*The searchlight must be tested minimum once a week to ensure that everything works
optimally*
Legal disclaimer


SEARCHMASTER ApS will not be held responsible for loss, injuries or damages arising from
uauthorized installation, poorly maintenance, incorrect or inappropriate use and technical
interventions made without our written consent and in compliance with our regulations.
www.searchmaster.dk
The SEARCHMASTER is a lifesaving, intelligent searchlight with unique features and increases onboard
safety.

SEARCHMASTER
INTELLIGENT SEARCHLIGHT
SEARCHMASTER INSTRUCTIONS
4
Table of content
1 TECHNICAL SPECIFICATIONS 6
SPECIFICATIONS 6
2 TECHNICAL MANUAL 7
TECHNICAL MANUAL 7
2.1 MANUAL 7
2.2 AUTO (TRACKING) 7
2.3 REMOTE 7
2.4 PAB / SART 7
2.5 KEYBOARD FUNCTIONS 7
2.6 DISPLAY FUNCTIONS 8
2.7 POSITION & HEADING INFO 8
2.8 NAVIGATION DISPLAY 8
2.9 NAVIGATION DISPLAY 9
2.10 DISCLAIMER AND ERROR CODES 10
2.11 DECLARATION OF CONFORMITY 11
3 INSTALLATION 12
3.1 INSTALLATION START 12
3.2 BEFORE MOUNTING 12
3.3 PARTS 12
3.4 CONNECTION ILLUSTRATION 13
3.5 CONNECTION DIAGRAM 14
3.6 CONTROLLER PORTS 15
DUPLEX 15
PC USB PORT 15
SLRX / TX 15
INPUT 15
NMEA 1-4 15
OUTPUT 15
LOG 15
CONFIGURATION 16
3.7 CALIBRATION 16
3.8 SETTINGS MENU 17
4 COC & RISK ASSESMENT 18
RISK ASSESMENT ACCORDING TO EN ISO12100 18
4.1 LIMITATIONS OF THE MACHINE 18
4.2 18
4.3 18
4.4 18
4.5 IDENTIFICATION OF DANGER SOURCES 18
5.3 CONTACT INFORMATION 19
5.4 TECHNICAL SUPPORT 19
5.8 SALES 19
6 TERMS OF SALE AND DELIVERY 20
7.1 ABBREVIATIONS 22

SEARCHMASTER
INTELLIGENT SEARCHLIGHT
5

SEARCHMASTER ApS | [phone] | [e-mail] | www.searchmaster.dk
6
SEARCHMASTER
INTELLIGENT SEARCHLIGHT
Voltage
18 - 32 volt DC
Electrical eect
170 watt / 340 watt
Light eect
SL170: 18.000 lumen / 1 LUX - 700 m
SL340: 36.000 lumen / 1 LUX - 1000 m
Interface
Power cable 24 Volt, max 20 m of 4 x 2.5 mm2wire shielded
Controller cable, max 20 m of 0,75 mm2wire - 2 x 2 twisted pair, shielded
Operating temperature
-25° to +55° celsius
Pitch/Roll
+/- 40° stabilized
Input
NMEA HDT, GGA, TTM and AIS VDO
Uptput
1 Data - and 1 alarm
Minimum light beam width
Width: 6°- Light beam accuracy: Better than 3°- within 1 second
Magnetic Safety Distance
0,95 meter
Vibration test 2-100 Hz
Approved
International Standard
IEC 60945: Ed. 4
- Category 1 Scope B & C
Ingress Protection Marking
IP 66 Dust and spray sealed
International Association of Classication Societies
ACS E10: Rev. 7
Country of origin
Denmark
Rights
Patented and Trademark protected

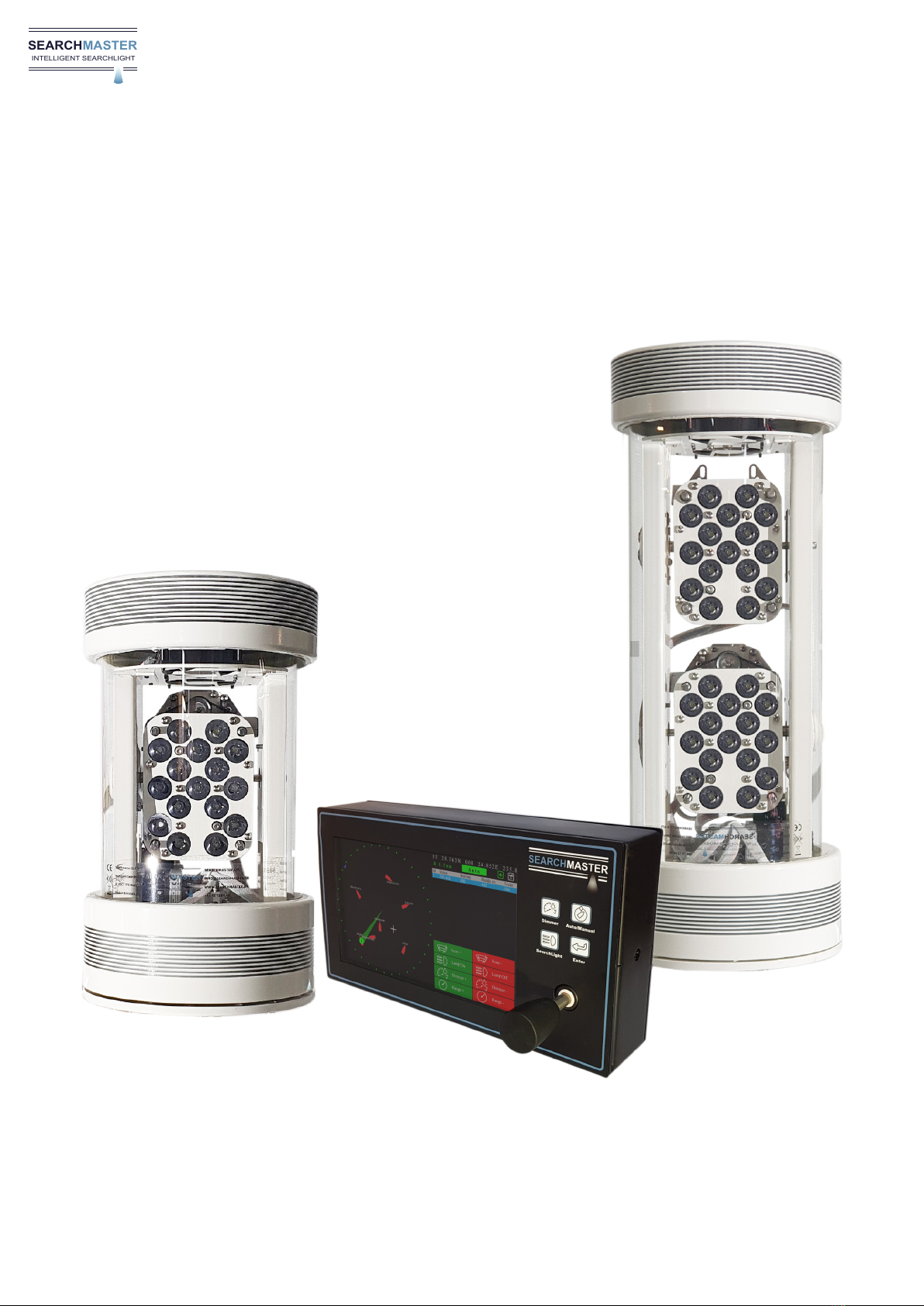

SPECIFICATIONS
1 TECHNICAL SPECIFICATIONS
SL170
Dimensions: ø24 x 40 cm
Weight: 14,3 kg.
Lumen: 18.000 L
Light beam: 700 m / 1 LUX
SL340
Dimensions: ø24 x 60 cm
Weight: 19,4 kg.
Lumen: 36.000 L
Light beam: 1000 m / 1 LUX
CONTROLLER
Dimensions: 33 x 18 x 18 cm
Weight: 2,3 kg.

7
SEARCHMASTER
INTELLIGENT SEARCHLIGHT
SEARCHMASTER ApS | [phone] | [e-mail] | www.searchmaster.dk
TECHNICAL MANUAL
2.1 Manual In Manual mode the searchlight will only move when the user moves the joystick, except for
pitch and roll which is still automated
2.2 Auto (Tracking) In Auto mode the searchlight will hold a position, selected on the target display.
If a ship or object is selected, the SEARCHMASTER will maintain the target lock regardless of
target and vessel movement, using AIS, GPS, compass and radar data. This also applies to ship
pitch and roll.
2.3 Remote
If a PAB / SART signal is detected, the SEARCHMASTER will automatically activate the
searchlight, and locate the signal using the light beam.
A PAB / SART alarm will overrule all other modes until another target is selected by the user or

2.4 PAB / SART
In Remote mode the SEARCHMASTER Searchlight will follow the cursor on the radar screen.
When a radar target is selected, the searchlight will follow that target, as if the target were
selected on the SEARCHMASTER controller.

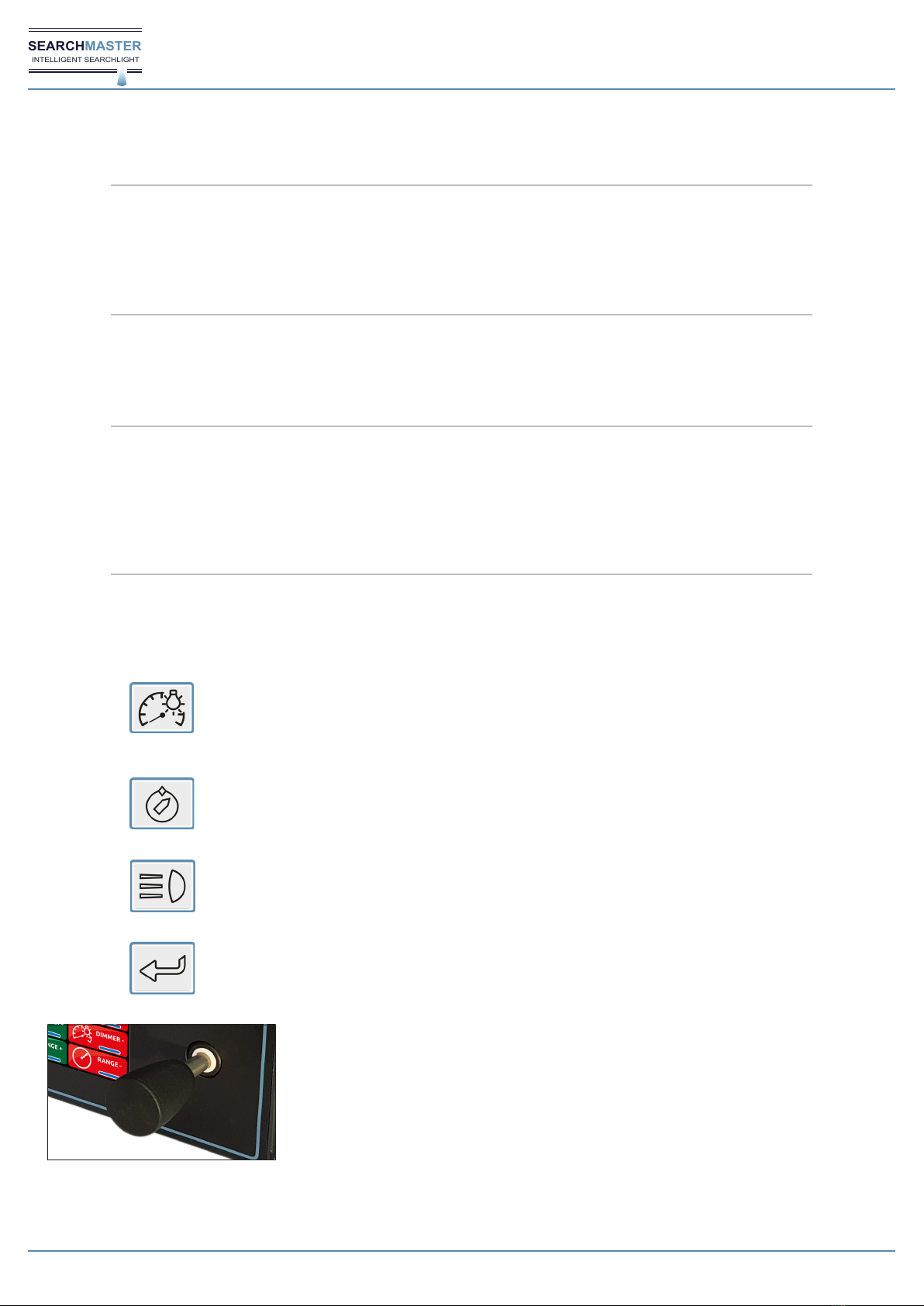

2.5 Keyboard functions The keypad on the SEARCHMASTER Intelligent Searchlight is indicated by 4 buttons and a
multi-movement joystick.
Dimmer adjusts the screen brightness. When the button is pressed continuous, the brightness
will dim to the lowest possible brightness. If the button is still pressed when the lowest


reversed yet again.
Manual / Auto / Remote switches between Manual, Auto and Remote mode as described in
2.1 Manual, 2.2 Auto (Tracking) and 2.3 Remote by pressing the button to switch between
the three modes.
SearchLight 
If pushed while tracking a MOB/PAB/SART alarm it will release the lock on that target and
allow other targets to be tracked.
Enter 
audible alarms.
The joystick can be used to move the searchlight in MANUAL mode
In AUTO mode the user moves the curser on the display and can choose a target on the target
display.
By pressing the joystick the searchlight will then follow the target automatically.
The distance is adjusted directly by the joystick.
To manually adjust the lamp focus, press and hold the joystick.
After 2 seconds the joystick can be moved right or left to adjust the lamp focus, while pressed
down.
Move the joystick right to get a narrow beam, and move the joystick left to get a wider beam
2 TECHNICAL MANUAL

SEARCHMASTER ApS | [phone] | [e-mail] | www.searchmaster.dk
8
SEARCHMASTER
INTELLIGENT SEARCHLIGHT
2.6 Display functions The on-screen keys on the SEARCHMASTER Searchlight is the functions accessible on the
display.
The scan mode can be selected by pressing SCAN ON with the joystick cursor.
When pressing SCAN ON the SEARCHMASTER will start a scanning pattern within a range of
40° of the current lamp heading.
By pressing SCAN ON again, the scanning pattern range will increase to 90° of the current
lamp heading.
By pressing SCAN ON a third time the scanning pattern will increase the arc to 180° of the
SCAN OFF with the joystick cursor.
The LAMP ON button and LAMP OFF button activates and deactivates the searchlight. The
PAB / SART alarm will override this function and automatically turn on the searchlight, if

The Dimmer buttons allow the user to adjust the brightness level in the display. The brightness
adjustment stops when max or min. is reached.
The adjustment is stepless.
The Range buttons are used to adjust the range shown on the controller display. Min. and max.
range are 0.25nm. and 2.00nm.
When adjusting the range, the interval doubles:
0.25nm - 0.50nm - 1.00nm - 2.00nm.
When tracking a target, the range will automatically change if the target range increases out
of the present range area.
55 28.563N 008 24.852E 235.8 is the position of the vessel with the SEARCHMASTER
Searchlight installed.
R 0.5nm stands for Range 0.5 nautical miles and is the present ranges shown in the controller
display, as described in 2.6 Display functions
AUTO is to show the present searchlight mode. This can also show MANUAL or REMOTE as
described in 2.1 Manual, 2.2 Auto (Tracking) and 2.3 Remote
The speaker icon is to disabl the alarm when the ship is in harbour.
The ship icon is to activate or deactivate target names
2.7 Position & Heading info
LampOff
Dimmer -
Range -
Scan -
LampOn
Scan +
Dimmer +
Range +
Id Status BrgRng, m Fcs Hw status
1 AIS trck 000 465 046 Good
55 28.563N 008 24.852E 235.8
R 0.5nm Auto
1
BLUE ORCA
ARCTIC OCEAN
WIND SUPPLIER
ARCTIC HUNTER
WILSON BALTIC
WILSON ARCTIC
MHO GURLI
abc
The Target Display is displayed as small lines, with a north indicator. The indicator will always
point to the north, based on the data received from the GPS.
LampOff
Dimmer -
Range -
Scan -
LampOn
Scan +
Dimmer +
Range +
Id Status BrgRng, m Fcs Hw status
1 AIS trck 000 465 046 Good
55 28.563N 008 24.852E 235.8
R 0.5nm Auto
1
BLUE ORCA
ARCTIC OCEAN
WIND SUPPLIER
ARCTIC HUNTER
WILSON BALTIC
WILSON ARCTIC
MHO GURLI
abc
The Target Selector is indicated as a cone with a circle at the end. The ring is the selected
position where the user wants the searchlight to move to. The 1 indicates which searchlight
the user is moving
LampOff
Dimmer -
Range -
Scan -
LampOn
Scan +
Dimmer +
Range +
Id Status BrgRng, m Fcs Hw status
1 AIS trck 000 465 046 Good
55 28.563N 008 24.852E 235.8
R 0.5nm Auto
1
BLUE ORCA
ARCTIC OCEAN
WIND SUPPLIER
ARCTIC HUNTER
WILSON BALTIC
WILSON ARCTIC
MHO GURLI
abc
2.8 Navigation display
2 TECHNICAL MANUAL

9
SEARCHMASTER
INTELLIGENT SEARCHLIGHT
SEARCHMASTER ApS | [phone] | [e-mail] | www.searchmaster.dk
The Selector icon is moved by the joystick and is placed over the button, radar target or
selection box the user want to select.
The Lifesaver icon is displayed on the target display when a PAB /SART alarm is detected.
This will display the position of the alarm while the lamp is turned on and will point to the
position with the light beam if the position is within the SEARCHMASTER’s operating range.
The SEARCHMASTER controller loading screen contains the SEARCHMASTER logo, a loading
bar and lamp serial number.
The serial number is unique to every searchlight and is shown in the bottom left corner of the
loading screen.
When contacting us about SEARCHMASTER, please provide the serial number.
The serial number will be shown on the controller screen every time the controller starts.
SEARCHMASTER
Intelligent Searchlight
Serial Number : Waiting for lamp...
LampOff
Dimmer -
Range -
Scan -
LampOn
Scan +
Dimmer +
Range +
Id Status BrgRng, m Fcs Hw status
1 AIS trck 000 465 046 Good
55 28.563N 008 24.852E 235.8
R 0.5nm Auto
1
BLUE ORCA
ARCTIC OCEAN
WIND SUPPLIER
ARCTIC HUNTER
WILSON BALTIC
WILSON ARCTIC
MHO GURLI
abc
2.9 Navigation display
2 TECHNICAL MANUAL

SEARCHMASTER ApS | [phone] | [e-mail] | www.searchmaster.dk
10
SEARCHMASTER
INTELLIGENT SEARCHLIGHT
2.10 Disclaimer and Error codes
Disclaimer and Error Codes
Dealing with an error of any kind can lead to damaging the equipment. Please do not try to repair or dismantle the
searchlight, controller or other components regarding the SEARCHMASTER searchlight.
If in any doubt, please contact SEARCHMASTER ApS by phone or email for consulting, before any action is taken.
IMPORTANT NOTE!
The error codes is continuously revised and may be replaced with a newer version without notice. The latest version of this
manual can be downloaded from our website www.SEARCHMASTER.dk:
In order to protect and optimize hardware, overheating temp. is controlled to 70Ocelcius.
GOOD No errors detected
EL Error, Elevation
The searchlight can not elevate due to an
error on the motor or motorbelt.
Check motor and belt.
Contact SEARCHMASTER ApS for consulting
or spareparts.
AZ Error, Azimuth
The azimuth has encountered a error and is
not working properly.
Check motor and belt.
Contact SEARCHMASTER ApS for consulting
or spareparts.
FC Error, Focus
The focus has encountered a error and is
not working properly.
Check motor and belt.
Contact SEARCHMASTER ApS for consulting
or spareparts.
DL Daylight Sensor Error
The daylight sensor is defective.
Contact SEARCHMASTER ApS for
consulting.
TM Temperature
The searchlight temperature is to high.
Contact SEARCHMASTER ApS for
consulting.
NO LAMP Lamp Error
The SEARCHMASTER Searchlight is missing
communication due to an cable error.
Check cable and cable connections.
Contact SEARCHMASTER ApS for
consulting or spareparts.
Disclaimer
Dealing with an error of any kind can lead to damaging the equipment.
Please do not try to repair or dismantle the searchlight, controller or other components
regarding the SEARCHMASTER searchlight.
If in any doubt, please contact SEARCHMASTER ApS by phone or email for consulting, before
any action is taken.
2 TECHNICAL MANUAL
If heading or position is lost, due to an error in the system or connection, a message is
displayed between the buttons and position information on the controller display and are
indicated by a red dot with a yellow exclamation mark.
If the cause can´t be pinpointed, please contact SeaMaster ApS for consultation. Contact
information can be found on page 18.
If a MOB /PAB /SART alarm is detected, a text will appear under the error messages as
well as the lifesaver icon on the target display (look on page 15), visually alerting other crew
members that an alarm has been detected.

11
SEARCHMASTER
INTELLIGENT SEARCHLIGHT
SEARCHMASTER ApS | [phone] | [e-mail] | www.searchmaster.dk
Declaration of Conformity
Certicate owner
Product
SEARCHMASTER ApS
Vesterhavsgade 133, DK-6700 Esbjerg,
Denmark
SEARCHMASTER Intelligent Searchlight
Models SL170 - 170 Watt Searchlight
SL340 - 340 Watt Searchlight
Conformità - Överensstämmelse - Konformität - Overensstemmelse
Approved by Force Technology - Report no.: 118-33438-1
Note: The product has been produced and thoroughly tested by SEARCHMASTER ApS, Vesterhavsgade
133, DK-6700 Esbjerg.
All employees involved in the production of the SEARCHMASTER searchlight, have undergone a
thorough training that complies with both internal and external rules.
The certicate was issued on 20.08.2021
Owner
Søren Mogensen
SEARCHMASTER APS | Vesterhavsgade 133 | DK-6700 Esbjerg
www.searchmaster.dk | [email protected] | [phone]
Classication
approvals
IEC 60945 - Edition 4
IEC 60068-2-1/2:2007
IEC 60068-2-30:2005
IEC 60068-2-6:2007
IEC 61000-4-2:2007
IEC 61000-4-3:2006 + A1:2007 + A2:2010
IEC 61000-4-6:2013
IEC 61000-4-4:2012
IEC 61000-4-5:2014
CISPR 16-2-3:2010
CISPR 16-2-1:2014
IEC 60529:2013
Test report no.: 118-33438-1 / IEC 60945:2002Compass safe distance
Test Report Force Technology Report can be obtained by
sending an email to: [e-mail]
Responsibility This declaration of conformity is issued under the
sole responsibility of the manufacturer.
2.11 Declaration of Conformity
2 TECHNICAL MANUAL

SEARCHMASTER ApS | [phone] | [e-mail] | www.searchmaster.dk
12
SEARCHMASTER
INTELLIGENT SEARCHLIGHT
Installation process and use of the recommended SEARCHMASTER components are applicable.
3.1 Installation start The Searchlight must be installed on a platform designed for SEARCHMASTER searchlight to
avoid accidental damage to the product.
When the SEARCHMASTER Searchlight and controller are installed in their respective
locations, the correct cables are routed between the searchlight and the controller according
to the diagram in the manual (page 13).
The cables are mounted in the controller according to the instructions in the diagram in the
manual (page 13).
When installing the cables in the SEARCHMASTER Searchlight, the cables must be routed
through the 2 cable glands at the bottom and then mounted in the searchlight as shown in the
diagram in the manual (page 13).
3.2 Before mounting 
properly tightened after the SEARCHMASTER Searchlight is installed.
When the SEARCHMASTER Searchlight is installed on the designed platform, the delivered
rubber gasket must be mounted between the searchlight and the ship.
3.3 Parts NOTE! Use only the supplied bolts to secure the SEARCHMASTER Searchlight. If other bolts
are necessary authorized SEARCHMASTER personnel must be consulted.
If it is necessary to deviate from the recommended installation process, authorized
SEARCMASTER personnel must be consulted.
All cables must be marked during wireing.
3 INSTALLATION

13
SEARCHMASTER
INTELLIGENT SEARCHLIGHT
SEARCHMASTER ApS | [phone] | [e-mail] | www.searchmaster.dk

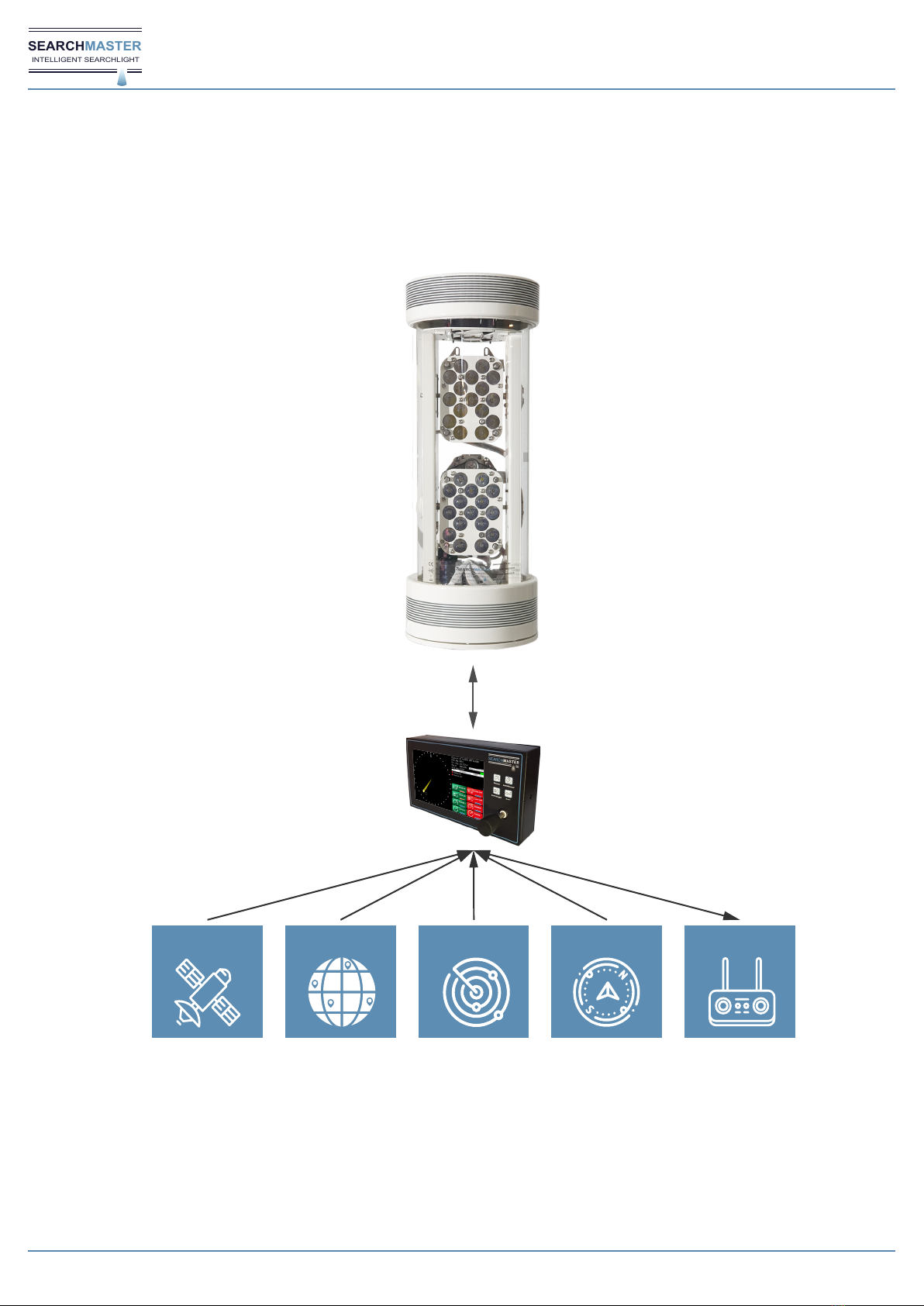

3.4 Connection illustration
GPS AIS RADAR COMPASS REMOTE
3 INSTALLATION

SEARCHMASTER ApS | [phone] | [e-mail] | www.searchmaster.dk
14
SEARCHMASTER
INTELLIGENT SEARCHLIGHT
Dierent data sources can
be connected on NMEA 1-4
eg. radar, GPS, compass
data etc.
3.5 Connection diagram
+ 24 VDC

+ 24 VDC

+12V
0V

+ SEARCH DATA
SEARCHLIGHT
GREY
BLACK
BROWN
BLUE SHIELDED 4X2,50
   
GREY
BLACK
BROWN
BLUE
WHITE 1
BLUE 1
WHITE 2
BLUE 2
 
EXTERNAL POWER SOURCE EXTERNAL POWER SOURCE
 
CONTROLLER
RED
BLUE
RED
BLUE
+ 12V SEARCH 
2X1,5
+ SEARCHDATA 
WHITE 1
BLUE 1
WHITE 2
BLUE 2
SHIELDED 2X2X0,75
+ AIS  + NMEA 1  + NMEA 2  + NMEA 3  + NMEA 4 
YELLOW
GREEN
YELLOW
GREEN
YELLOW
GREEN
YELLOW
GREEN
YELLOW
GREEN
+ AIS DATA 38400

+ NMEA 1

+ NMEA 2

+ NMEA 3

+ NMEA 4

YELLOW
GREEN
YELLOW
GREEN
YELLOW
GREEN
YELLOW
GREEN
YELLOW
GREEN
SHIELDED 1X2X0,75 SHIELDED 1X2X0,75
SHIELDED 1X2X0,75
SHIELDED 1X2X0,75 SHIELDED 1X2X0,75
EXTERNAL DATA SOURCE
3 INSTALLATION

15
SEARCHMASTER
INTELLIGENT SEARCHLIGHT
SEARCHMASTER ApS | [phone] | [e-mail] | www.searchmaster.dk
DUPLEX
PC USB PORT
SLRX / TX SLRX /TX is used for connection between the controller and the Searchlight. Without this
connection there is no way to control the searchlight.
This port is only used for debugging.
INPUT
NMEA 1-4 AIS is receive only and accepts the AIS data of other ships and own ship.
GPS position is needed for the SEARCHMASTER to track on the AIS positions.
The accepted string formats to get data are AIVDM and AIVDO.
NMEANMEA 0183 data such a GPHDT, HEHDT,
GPRMC and GPGGA for positioning and heading.
RARSD and RATTM from radar
RATLL is reserved for further use.
LOG Reserved for further use.
OUTPUT
3.6 Controller ports
Port Baud RX / TX Sentences Interface
SLRX / TX 115200 RX / TX Searchlight RS485
AIS 38400 RX AIS, VDO, VDM RS422
NMEA 4800 RX HDT RS422
Radar 4800 RX TTM RS422
REM 4800 RX RSD RS422
Position 4800 RX GGA RS422
3 INSTALLATION

SEARCHMASTER ApS | [phone] | [e-mail] | www.searchmaster.dk
16
SEARCHMASTER
INTELLIGENT SEARCHLIGHT
CONFIGURATION

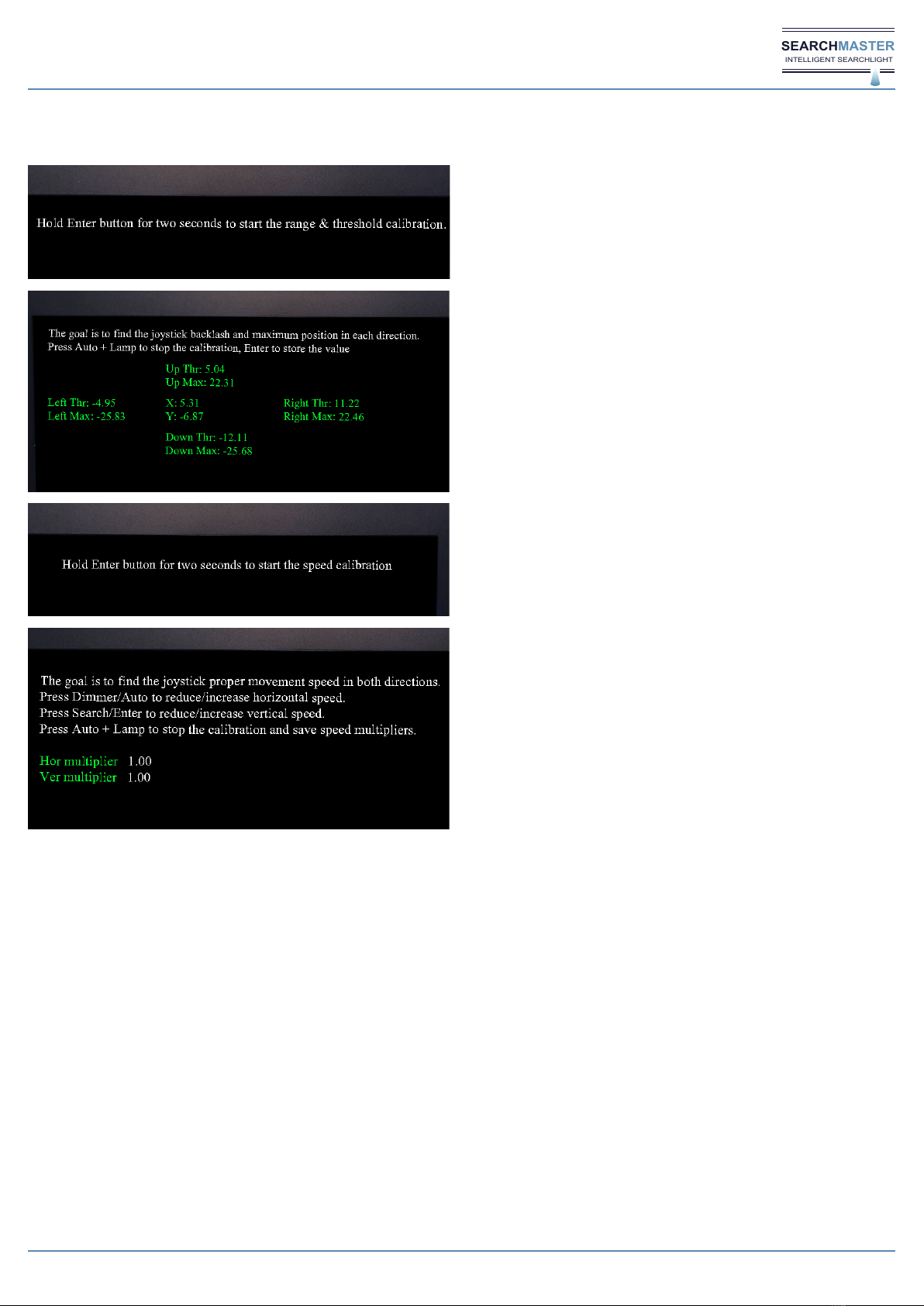

In the controller start up process, it is possible to enter Range and
threshold calibration. (Joystick calibration)
Follow the guide in the display.
When calibrating the Thr: setting it is important just to apply so
much pressure to the joystick that you are at the edge of the ”dead
zone” (The zone where the joystick do not register any movement.)
if the joystick is not calibrated properly, it may drift a bit.
All controllers are calibrated from the factory.
In the controller start up process, it is also possible to enter Speed
calibration of the joystick. Enter the settings by following the
instructions on the display.
3.7 Calibration
3 INSTALLATION

17
SEARCHMASTER
INTELLIGENT SEARCHLIGHT
SEARCHMASTER ApS | [phone] | [e-mail] | www.searchmaster.dk
[A] GPS offset from port side
[B] GPS offset from stern
[C] Lamp offset from bow
[D] Lamp offset from port side
[E] Lamp elevation over water
[F] Vessel length overall
[G] Vessel width
Bearing correction angle
70
0
0
0
4
0
0
1800
Lamp Settings
Lamp ID 01 Lamp Serial 202008B0005
7 8 9
Can
456
123
Ok
0 <<
3.8 Settings Menu To access the settings menu, press the mechanical DIMMER and ENTER buttons at the same
time or press the GEAR icon in the top right corner of the display.
The settings menu is then shown as a pop-up box. From the top and down you have the
posibillity to enter the values that are nessesary for the SEARCHMASTER to be calibrated
corectly.

Normally it will be trained personel that will do the calibrating when the SEARCHMASTER is
installed on the vessel.
The dierent measurements are as follows
[A] GPS oset from port side
Number of meters that the GPS receiver is placed from the port side of the vessel.
[B] GPS oset from stern
Number of meters that the GPS receiver is placed from the stern of the vessel.
[C] Lamp oset from bow
Number of meters that the lamp is placed from the bow of the vessel.
[D] Lamp oset from port side
Number of meters that the lamp is placed from the port side of the vessel.
[E] Lamp elevation over water
Number of meters that the lamp is placed over the waterline.
[F] Vessel length overall
The total length of the vessel from stern to bow.
[G] Vessel width
The total width of the vessel from port side to starboard side.
Bearing correction angle
Is used to adjust the lamp to absolute 0° during the installation.
The following paragraph is only to inform about the settings menu. The setting values is entered during
installation and should NOT be edited by other that trained personel.
7 8 9
Can
456
123
Ok
0 <<
When selecting a value box, in the setup menu, a number pad will appear.

The number pad contains the following:
0 - 9 Is used to enter the values.
CIs used to clear the value box from any numbers.
<< Is used to move the cursor backwards in the value box without deleting an existing
value.
Save Will save the entered value in the chosen box.
When pressing Save the number pad will disappear again.
The calibration is necessary to give a correct alignment of the lamp, especially at short
distances.
3 INSTALLATION

SEARCHMASTER ApS | [phone] | [e-mail] | www.searchmaster.dk
18
SEARCHMASTER
INTELLIGENT SEARCHLIGHT
RISK ASSESMENT ACCORDING TO EN ISO12100
4.1 Limitations of the machine SEARCHMASTER Searchlight complies with the IEC60945 standard.
SEARCHMASTER Searchlight can work in manual, auto and remote and in all there are no
options for intervention.
4.2
The searchlight is for industrial use on ships and it is expected that the operator or technician
has the expected abilities to operate the searchlight and also has health corresponding to

4.3
It is recommended that the searchlight be inspected every 3 years by authorized personnel to
detect any wear on motors and belts.
4.4
Danger source 1:

Avoid looking directly into the light as you may be blinded.

Danger source 2:
Risk of the searchlight motor stopping unintentionally.
The software has a built-in warning in the controller, which shows where the error is located.
Arrange for service as soon as possible, by authorized personnel.
The searchlight can be used until service is performed, but with risk of further damage. Check
error codes in manual.
Danger source 3:
The searchlight contains electronic parts that must be scrapped separately.
When the searchlight is dismantled to be scrapped, the electronic parts must be scrapped in
accordance with the applicable environmental regulations or sent back to the manufacturer.
Danger source 4:
Risk of incorrect installation.
When installing, the enclosed materials must be used to ensure that the searchlight complies
with IP66 and the installation must be carried out by an authorized person.
Installation instructions are described in the manual.

by SEARCHMASTER employees.
Danger source 5:

If this happens the Watch Dog timer is activated and will reboot the controller and searchlight,
respectively.
Danger source 6:

A physical check is recommended daily.
Danger source 7:
Risk of icing in certain geographical areas. The ice melts when using the searchlight.
4 COC & RISK ASSESMENT

19
SEARCHMASTER
INTELLIGENT SEARCHLIGHT
SEARCHMASTER ApS | [phone] | [e-mail] | www.searchmaster.dk
5.3 Contact information
5.4 Technical support Søren Mogensen [phone]
[e-mail]

Oce hours
Monday - Thursday 07.30-15.30
Friday 07.30-15.00
Phone [phone]
5.8 Sales Heidi Enemark [phone]
[e-mail]
5 INFORMATION

SEARCHMASTER ApS | [phone] | [e-mail] | www.searchmaster.dk
20
SEARCHMASTER
INTELLIGENT SEARCHLIGHT
6 TERMS OF SALE AND DELIVERY
TERMS OF SALE AND DELIVERY
Most recently updated on 8 November 2021
1.
1.1.
Duty to inform
The customer must provide SEARCHMASTER ApS with the necessary and correct information for the implementation of the services.
Any expenses incurred as a result of the customer’s incorrect information or failure to provide information must be covered by the custo-
mer. Similarly, the customer is responsible for defects or weaknesses in the customer’s other equipment.
2.
2.1.
Legality
SEARCHMASTER ApS is responsible for the legality of the products sold, whereas the customer is responsible for the legality of working
on the customer’s equipment.
3.
3.1.
3.2.
3.3.
O󰀨ers
Only written o󰀨ers are binding for SEARCHMASTER ApS.
SEARCHMASTER ApS reserves the right to revise any forwarded o󰀨ers/order conrmations if
– regardless of the reason – execution turns out to be unreasonably burdensome.
All o󰀨ers shall lapse 30 days after they have been made.
4.
4.1.
Connection
Unless otherwise stipulated in the order conrmation, the customer is in charge of mechanical assembly according to the instructions of
SEARCHMASTER ApS.
5.
5.1.
5.2.
5.3.
5.4.
Defects
If the customer documents, that products delivered are defective, SEARCHMASTER ApS undertakes at its own choice to replace the
products at SEARCHMASTER ApS’ domicile, repair the products at SEARCHMASTER ApS’ domicile, or refund the purchase price
provided the products are returned to SEARCHMASTER ApS’ domicile.
The customer carries the risk of the accidental destruction of the products during a possible return transport in connection with the
exercising of such remedies for breach and shall therefore cover all transport and freight costs involved.
Every right lapses if the customer does not provide a written notice of Claims within eight days from the time when the defect in question
is or ought to have been discovered by the customer.
SEARCHMASTER ApS’ liability for defects lapses one year after deliver.
6.
6.1.
6.1.1
6.1.2
6.1.3
6.1.4
Product liability
SEARCHMASTER ApS undertakes product liability according to current legislation and the following limitations:
SEARCHMASTER ApS is not liable for damage to products made by the customer or products including such products.
SEARCHMASTER ApS is not liable for operating loss, loss of prot, costs of recreating lost data on data carriers, or other types of
indirect loss as a consequence of documented product liability.
The amount of the product liability cannot exceed the cover of the product liability insurance of SEARCHMASTER ApS of DKK 4,000,000.
To the extent that product liability is imposed on SEARCHMASTER ApS towards a third party, the customer is obliged to in demnify
SEARCHMASTER ApS to the extent that third party liability exceeds the liability limitation in item 6.1.3.
6.1.5 The customer is obliged to accept legal action against the customer before the same court/arbitration court which processes claims for
compensation against SEARCHMASTER ApS from a third party because of articles delivered to the customer.
7.
7.1
7.2
Anticipated breach
Regardless of other stipulations, SEARCHMASTER ApS is entitled to cancel orders and the consequent obligations, if it is clear from the
circumstances, that the customer will not be fullling his obligatons.
In such cases, SEARCHMASTER ApS must immediately inform the customer in writing.
