Sears Craftsman 919.152340 User manual

D20449
$£AR$
OWNER'S
MANUAL
IMPORTANT:
Read the Safety Guidelines and
All Instructions Carefully Before
Operating.
CR No
COMPACT AIR COMPRESSOR
(With and Without Accumulator Tank)
For Household Use Only
• SAFETY GUIDELINES
• OPERATION
• TROUBLESHOOTING
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
D20449 Rev.O 2/15/00

Page
SAFETY GUIDELINES-DEFINITIONS ..................... 2
WARNING CHART .............................................. 3-5
GLOSSARY ............................................................. 6
GENERAL INFORMATION ...................................... 6
DESCRIPTION OF OPERATION ............................. 7
UNPACKING INSTRUCTIONS ................................ 7
INSTALLATION AND BREAK-IN PROCEDURES ...8
Location of Air Compressor ................................. 8
Extension Cords .................................................. 8
Page
Grounding Instructions ........................................ 8
Air Hose ............................................................... 9
OPERATING PROCEDURES .................................. 9
STORAGE ............................................................... 9

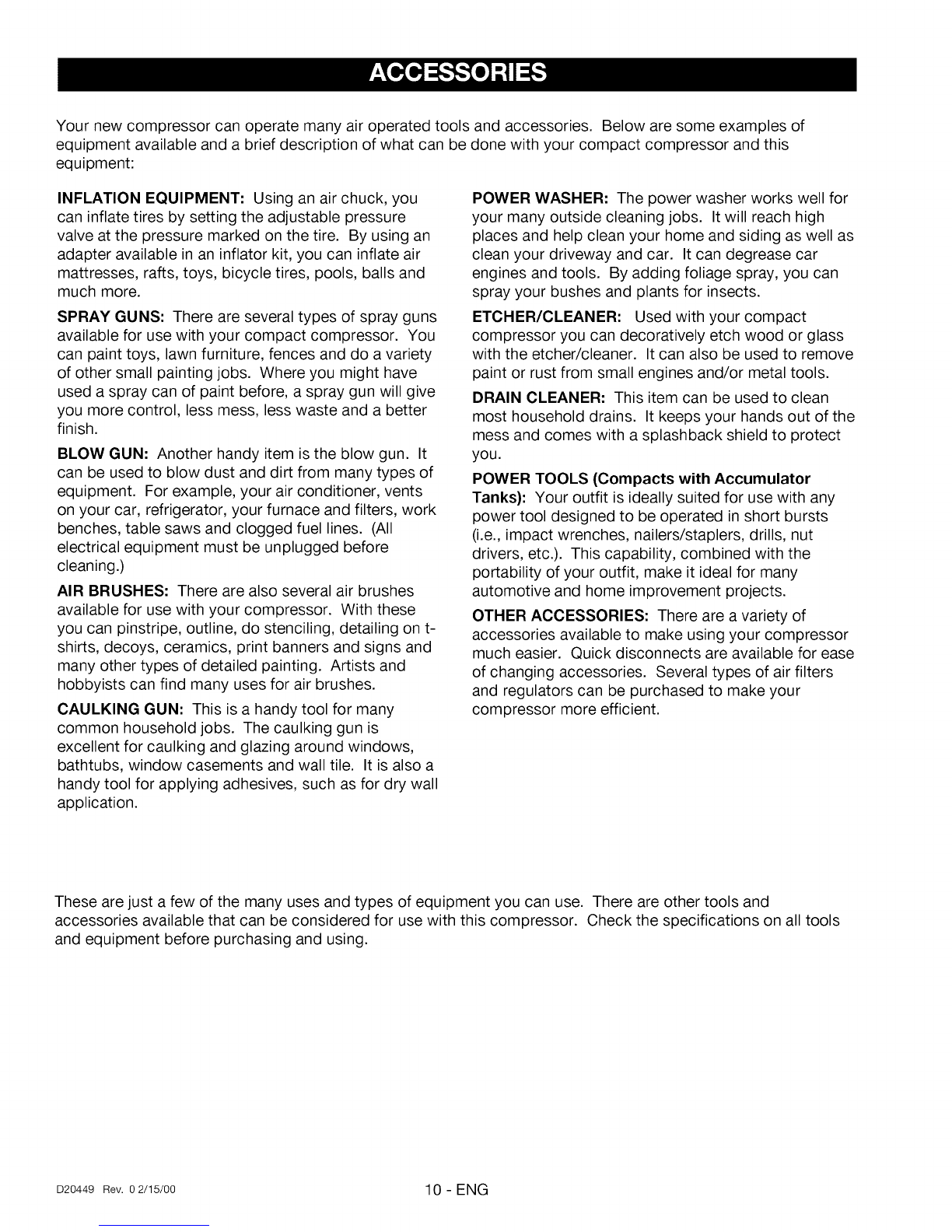

ACCESSORIES ..................................................... 10
TROUBLESHOOTING GUIDE ............................... 11
HOW TO ORDER REPAIR PARTS ........................ 12
WARRANTY .......................................................... 12
This manual contains information that is important for you to know and understand. This information relates to
protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information,
we use the symbols to the right. Please read the manual and pay attention to these sections.
DANGER indicates an imminently hazardous situa-
tion which, if not avoided, will result in death or
serious injury.
WARNING indicates a potentially hazardous situ-
ation which, if not avoided, could result in death of
serious injury.
CAUTION indicates a potentially hazardous situation
which, if not avoided, _ result in minor or moder-
ate injury.
CAUTION used without the safety alert symbol indi-
cates a potentially hazardous situation which, if not
avoided, _ result in DroDerty damage.
D20449 Rev. 02/15/00 2 - ENG

SAVE THESE INSTRUCTIONS
IMPROPER OPERATION OR MAINTENANCE OF THIS PRODUCT COULD RESULT IN SERIOUS INJURY AND PROPERTY DAM-
AGE, READ AND UNDERSTAND ALL WARNINGS AND OPERATING INSTRUCTIONS BEFORE USING THIS EQUIPMENT.
RISK OF EXPLOSION OR FIRE
WHAT CAN HAPPEN
IT IS NORMAL FOR ELECTRICAL CONTACTS WITHIN THE
MOTOR AND PRESSURE SWITCH TO SPARK,
IF ELECTRICAL SPARKS FROM COMPRESSOR COME INTO
CONTACT WITH FLAMMABLE VAPORS, THEY MAY IGNITE,
CAUSING FIRE OR EXPLOSION.
RESTRICTING ANY OF THE COMPRESSOR VENTILATION
OPENINGS WILL CAUSE SERIOUS OVERHEATING AND
COULD CAUSE FIRE.
UNATTENDED OPERATION OF THIS PRODUCT COULD
RESULT IN PERSONAL INJURY OR PROPERTY DAMAGE.
HOW TO PREVENT IT
ALWAYS OPERATE THE COMPRESSOR IN A WELL VENTI-
LATED AREA FREE OF COMBUSTIBLE MATERIALS, GASO-
LINE OR SOLVENT VAPORS.
IF SPRAYING FLAMMABLE MATERIALS, LOCATE COMPRES-
SOR AT LEAST 20 FEET AWAY FROM SPRAY AREA. AN
ADDITIONAL LENGTH OF HOSE MAY BE REQUIRED.
STORE FLAMMABLE MATERIALS IN A SECURE LOCATION
AWAY FROM COMPRESSOR,
NEVER PLACE OBJECTS AGAINST OR ON TOP OF COM-
PRESSOR. OPERATE COMPRESSOR IN AN OPEN AREA AT
LEAST 12 INCHES AWAY FROM ANY WALL OR OBSTRUC-
TION THAT WOULD RESTRICT THE FLOW OF FRESH AIR TO
THE VENTILATION OPENINGS.
OPERATE COMPRESSOR IN A CLEAN, DRY,WELL VENTILATED
AREA. DO NOT OPERATE UNIT INDOORS OR IN ANY
CONFINED AREA.
ALWAYS REMAIN IN ATTENDANCE WITH THE PRODUCT
WHEN IT IS OPERATING.
RISK OF BURSTING
AIR TANK: THE FOLLOWING CONDITIONS COULD LEAD TO A WEAKENING OF THE TANK, AND RESULT IN A
VIOLENT TANK EXPLOSION AND COULD CAUSE PROPERTY DAMAGE OR SERIOUS INJURY.
WHAT CAN HAPPEN
1. FAILURE TO PROPERLY DRAIN CONDENSED WATER
FROM THE TANK, CAUSING RUST AND THINNING OF THE
STEEL TANK.
2. MODIFICATIONS OR ATTEMPTED REPAIRS TO THE TANK.
3. UNAUTHORIZED MODIFICATIONS TO THE UNLOADER
VALVE, SAFETY VALVE, OR ANY OTHER COMPONENTS
WHICH CONTROL TANK PRESSURE.
4. EXCESSIVE VIBRATION CAN WEAKEN THE AIR TANK AND
CAUSE RUPTURE OR EXPLOSION.
ATTACHMENTS & ACCESSORIES:
EXCEEDING THE PRESSURE RATING OF AIR TOOLS, SPRAY
GUNS, AIR OPERATED ACCESSORIES, TIRES AND OTHER
INFLATABLES CAN CAUSE THEM TO EXPLODE OR FLY
APART, AND COULD RESULT IN SERIOUS INJURY.
HOW TO PREVENT IT
DRAIN TANK DAILY OR AFTER EACH USE, IF TANK DEVELOPS
A LEAK, REPLACE IT IMMEDIATELY WITH A NEW TANK OR
REPLACE THE ENTIRE COMPRESSOR.
NEVER DRILL INTO, WELD, OR MAKE ANY MODIFICATIONS TO
THE TANK OR ITS ATTACHMENTS.
THETANKIS DESIGNED TO WITHSTAND SPECIFIC OPERATING
PRESSURES. NEVER MAKE ADJUSTMENTS OR PARTS
SUBSTITUTIONS TO ALTER THE FACTORY SET OPERATING
PRESSURES.
FOR ESSENTIAL CONTROL OF AIR PRESSURE, YOU MUST
INSTALL A PRESSURE REGULATOR AND PRESSURE GAUGE
TO THE AIR OUTLET OF YOUR COMPRESSOR. FOLLOW THE
EQUIPMENT MANUFACTURERS RECOMMENDATION AND NEVER
EXCEED THE MAXIMUM ALLOWABLE PRESSURE RATING OF
ATTACHMENTS. NEVER USE COMPRESSOR TO INFLATE SMALL
LOW-PRESSURE OBJECTS SUCH AS CHILDREN'S TOYS,
FOOTBALLS, BASKETBALLS. ETC.
3 - ENG D20449 Rev. 0 2/15/00

RISK FROM FLYING OBJECTS
WHAT CAN HAPPEN
THE COMPRESSED AIR STREAM CAN CAUSE SOFT TISSUE
DAMAGE TO EXPOSED SKIN AND CAN PROPEL DIRT, CHIPS,
LOOSE PARTICLES AND SMALL OBJECTS AT HIGH SPEED,
RESULTING IN PROPERTY DAMAGE OR PERSONAL INJURY.
HOW TO PREVENT IT
ALWAYS WEAR ANSI Z87.1 APPROVED SAFETY GLASSES WITH
SIDE SHIELDS WHEN USING THE COMPRESSOR.
NEVER POINT ANY NOZZLE OR SPRAYER TOWARD ANY PART
OF THE BODY OR AT OTHER PEOPLE OR ANIMALS.
ALWAYS TURN THE COMPRESSOR OFF AND BLEED PRESSURE
FROM THE AIR HOSE AND TANK BEFORE ATTEMPTING MAINTE-
NANCE, ATTACHING TOOLS OR ACCESSORIES.
RISK TO BREATHING
WHAT CAN HAPPEN
THE COMPRESSED AIR FROM YOUR COMPRESSOR IS NOT
SAFE FOR BREATHING! THE AIR STREAM MAY CONTAIN
CARBON MONOXIDE, TOXIC VAPORS OR SOLID PARTICLES
FROM THE TANK.
SPRAYED MATERIALS SUCH AS PAINT, PAINT SOLVENTS, PAINT
REMOVER, INSECTICIDES, WEED KILLERS, CONTAIN HARMFUL
VAPORS AND POISONS.
HOW TO PREVENT IT
ALWAYS OPERATE AIR COMPRESSOR OUTSIDE IN A CLEAN,
WELL VENTILATED AREA. AVOID ENCLOSED AREAS SUCH AS
GARAGES, BASEMENTS, STORAGE SHEDS, WHICH LACK A
STEADY EXCHANGE OF AIR. KEEP CHILDREN, PETS AND OTHERS
AWAY FROM AREA OF OPERATION.
NEVER INHALE AIR FROM THE COMPRESSOR EITHER DI-
RECTLY OR FROM A BREATHING DEVICE CONNECTED TO THE
COMPRESSOR.
WORK IN AN AREA WITH GOOD CROSS-VENTILATION. READ
AND FOLLOW THE SAFETY INSTRUCTIONS PROVIDED ON THE
LABEL OR SAFETY DATA SHEETS FOR THE MATERIAL YOU ARE
SPRAYING. USE A NIOSH/MSHA APPROVED RESPIRATOR
DESIGNED FOR USE WITH YOUR SPECIFIC APPLICATION.
RISK OF ELECTRICAL SHOCK
WHAT CAN HAPPEN
YOUR AIR COMPRESSOR IS POWERED BY ELECTRICITY. LIKE
ANY OTHER ELECTRICALLY POWERED DEVICE, IF IT IS NOT
USED PROPERLY IT MAY CAUSE ELECTRIC SHOCK.
REPAIRS ATTEMPTED BY UNQUALIFIED PERSONNEL CAN
RESULT IN SERIOUS INJURY OR DEATH BY ELECTROCUTION.
ELECTRICAL GROUNDING: FAILURE TO PROVIDE ADEQUATE
GROUNDING TO THIS PRODUCT COULD RESULT IN SERIOUS
INJURY OR DEATH FROM ELECTROCUTION. SEE GROUNDING
INSTRUCTIONS.
HOW TO PREVENT IT
NEVER OPERATE THE COMPRESSOR OUTDOORS WHEN IT IS
RAINING OR IN WET CONDITIONS.
NEVER OPERATE COMPRESSOR WITH COVER COMPONENTS
REMOVED OR DAMAGED.
ANY ELECTRICAL WIRING OR REPAIRS REQUIRED ON THIS
PRODUCT SHOULD BE PERFORMED BY AUTHORIZED SERVICE
CENTER PERSONNEL IN ACCORDANCE WITH NATIONAL AND
LOCAL ELECTRICAL CODES.
MAKE CERTAIN THAT THE ELECTRICAL CIRCUIT TO WHICH
THE COMPRESSOR IS CONNECTED PROVIDES PROPER
ELECTRICAL GROUNDING, CORRECT VOLTAGE AND AD-
EQUATE FUSE PROTECTION.
D20449 Rev. 02/15/00 4 - ENG

RISK FROM MOVING PARTS
WHAT CAN HAPPEN
MOVING PARTS SUCH AS THE PULLEY, FLYWHEEL AND BELT
CAN CAUSE SERIOUS INJURY IF THEY COME INTO CONTACT
WITH YOU OR YOUR CLOTHING.
ATTEMPTING TO OPERATE COMPRESSOR WITH DAMAGED
OR MISSING PARTS OR ATTEMPTING TO REPAIR COMPRES-
SOR WITH PROTECTIVE SHROUDS REMOVED CAN EXPOSE
YOU TO MOVING PARTS AND CAN RESULT IN SERIOUS
INJURY.
HOW TO PREVENT IT
NEVER OPERATE THE COMPRESSOR WITH GUARDS OR
COVERS WHICH ARE DAMAGED OR REMOVED.
ANY REPAIRS REQUIRED ON THIS PRODUCT SHOULD BE
PERFORMED BY AUTHORIZED SERVICE CENTER PERSONNEL.
RISK OF BURNS
WHAT CAN HAPPEN
TOUCHING EXPOSED METAL SUCH AS THE COMPRESSOR
HEAD OR OUTLET TUBES, CAN RESULT IN SERIOUS BURNS.
HOW TO PREVENT IT
NEVER TOUCH ANY EXPOSED METAL PARTS ON COMPRES-
SOR DURING OR IMMEDIATELY AFTER OPERATION. COMPRES-
SOR WILL REMAIN HOT FOR SEVERAL MINUTES AFTER
OPERATION.
DO NOT REACH AROUND PROTECTIVE SHROUDS OR ATTEMPT
MAINTENANCE UNTIL UNIT HAS BEEN ALLOWED TO COOL.
RISK OF FALLING
WHAT CAN HAPPEN
A PORTABLE COMPRESSOR CAN FALL FROM A TABLE,
WORKBENCH OR ROOF CAUSING DAMAGE TO THE COMPRES-
SOR AND COULD RESULT IN SERIOUS INJURY OR DEATH TO
THE OPERATOR,
HOW TO PREVENT IT
ALWAYS OPERATE COMPRESSOR IN A STABLE SECURE
POSITION TO PREVENT ACCIDENTAL MOVEMENT OF THE UNIT.
NEVER OPERATE COMPRESSOR ON A ROOF OR OTHER
ELEVATED POSITION. USE ADDITIONAL AIR HOSE TO REACH
HIGH LOCATIONS.
RISK OF PROPERTY DAMAGE WHEN TRANSPORTING
COMPRESSOR
(Fire, Inhalation, Damage to Vehicle Surfaces)
WHAT CAN HAPPEN
OIL CAN LEAK OR SPILL AND COULD RESULT IN FIRE OR
BREATHING HAZARD, SERIOUS INJURY OR DEATH CAN RESULT.
OIL LEAKS WILL DAMAGE CARPET, PAINT OR OTHER SURFACES
IN VEHICLES OR TRAILERS.
HOW TO PREVENT IT
ALWAYS PLACE COMPRESSOR ON A PROTECTIVE MAT WHEN
TRANSPORTING TO PROTECT AGAINST DAMAGE TO VEHICLE
FROM LEAKS. REMOVE COMPRESSOR FROM VEHICLE IMMEDI-
ATELY UPON ARRIVAL AT YOUR DESTINATION.
ESW-99 i9/26/99
5 - ENG D20449 Rev. 0 2/15/00

SCFM or CFM: Standard Cubic Feet per Minute; a
unit of measurement of air delivery.
PSIG or PSI: Pounds per square inch gauge.
U.L. Listed: Products that are listed by Underwriters
Laboratories, Inc. (UL) have been evaluated by UL and
meet applicable UL Standards of Safety.
Congratulations! You have purchased a one cylinder,
compact, permanently lubricated compressor. The
absence of a tank and the ultra light weight gives you
added mobility as well as ease in storage, while it
allows you to utilize many air tools, including inflators,
blow guns, spray guns, air brushes, caulking guns and
etchers. Permanently lubricated (oilless) design
means you never have to add oil which also guaran-
tees that you will spray entirely oilfree air.
A 1/4" x 15' air hose with integral pressure adjusting
valve is supplied with your compressor, as well as an
air chuck. Accessories for use with your new com-
pressor are available through the current Sears Power
and Hand Tools Catalog or at full line Sears stores.
Your compressor will operate many accessories.
Check the pressure and flow rating recommended by
the accessory manufacturer. Make sure it is compat-
ible with the air delivery of your compressor.
The compressor outfit you have chosen is unique in
that it combines the portability of a compact with
many of the capabilities of a much larger tank outfit.
With your new compressor outfit you can operate
many of the power tools that until now required a
much larger and more costly compressor outfit,
without sacrificing portability or operating features
normally found only on compact compressors. The
pump is a state-of-the-art, lightweight, permanently
lubricated design powered by a motor. The perma-
nent lube design means you never have to add oil
which also guarantees that you will spray entirely
oilfree air.
A 1/4" x 15' air hose with integral pressure adjusting
valve is supplied with your compressor, as well as an
air chuck. Accessories for use with your new com-
pressor are available through the current Sears Power
and Hand Tools Catalog or at full line Sears stores.
Your compressor will operate many accessories.
Check the pressure and flow rating recommended by
the accessory manufacturer. Make sure it is compat-
ible with the air delivery of your compressor.
D20449 Rev. 02/15/00 6- ENG

AirCompressorPump:Tocompressair,thepiston
movesupanddowninthecylinder.Onthedown-
stroke,airisdrawninthroughtheairintakemuffler
(valves).Theexhaustvalveremainsclosed.Onthe
upstrokeofthepiston,airiscompressed.Theintake
valvescloseandcompressedairisforcedoutthrough
theexhaustvalveandthenthroughtheairhose.
AdjustablePressureValve:Thepressurevalve
controlstheamountofpressuregoingfromtheair
compressortotheaccessory.Thepressureadjusting
valvecanbeusedtosetapproximatepressure
between10and125P.S.I.(125P.S.I.isthehighest
pressurethiscompressorwilldeliver).
ALWAYSSETTHEPRESSUREVALVEAT
ORBELOWTHEREQUIREDPRESSURE
FORTHEACCESSORYBEINGUSED
BEFORESTARTINGYOURCOMPRESSOR.
FORINFLATIONOROTHERUSESRE-
QUIRINGACCURATEPRESSURE,USEA
PRESSUREGAUGE.
Accumulator Tank (not included on some models):
Your accumulator tank is equipped with a relief (pop-
off) valve to prevent an over pressure condition in the
tank. This 2 gallon tank is not designed to store air,
but rather to provide the additional volume of com-
pressed air necessary to operate a wide variety of air
tools. When starting your compressor, attach the tool
to the hose, set the pressure adjusting valve at the
required pressure, wait a few moments until the tank
fills with air. You will know the tank is filled when you
hear air bleeding through the pressure adjusting valve.
Depending on the type and size of tool being used,
you will occasionally need to wait for the tank to refill
before continuing. When you are finished or changing
tools, turn the compressor switch off and set the
pressure adjusting valve to 10 PSI and wait for the
tank to discharge completely.
Grasp the handle and lift the air compressor out of the carton. Remove the styrofoam and/or cardboard and
discard.
7 - ENG D20449 Rev. 0 2/15/00

Location of the Air Compressor
Your compressor comes to you completely as-
sembled and ready for use. Operate the air compres-
sor in a dry, clean, cool and well ventilated area. The
air compressor pump and case are designed to allow
for proper cooling. Clean or blow off dust or dirt that
collects on the air compressor. A clean air compres-
sor runs cooler and provides longer service. The
ventilation openings on your air compressor are
necessary to maintain proper operating temperature.
Do not place rags or other containers on or near
these openings.
Extension Cords
Use extra air hose instead of an extension cord to
avoid voltage drop and power loss to the motor.
If an extension cord must be used, be sure it is:
• a 3-wire extension cord that has a 3-blade
grounding plug, and a 3-slot receptacle that will
accept the plug on the compressor
• in good condition
• no longer than 50 feet
• 14 gauge (AWG) or larger. (Wire size increases as
gauge number decreases.) 12 AWG, 10 AWG
and 8 AWG may also be used. DO NOT USE 16
OR 18 AWG.
GROUNDING INSTRUCTIONS
IMPROPER GROUNDING CAN RESULT IN
ELECTRICAL SHOCK. IN THE EVENT OF A
SHORT CIRCUIT, GROUNDING REDUCES
THE RISK OF SHOCK BY PROVIDING AN
ESCAPE WIRE FOR THE ELECTRIC CUR-
RENT. THIS AIR COMPRESSOR MUST BE
PROPERLY GROUNDED. READ THE
FOLLOWING:
1. The air compressor is designed for 120 volt
operation only and is equipped with a cord having
a grounding wire with an appropriate grounding
plug. The plug must be used with an outlet that
has been installed and grounded in accordance
with all local codes and ordinances (see Figure
below). The outlet must have the same configu-
ration as the plug. DO NOT USE AN ADAPTER.
2. Do not modify the plug that has been provided. If
.
it does not fit the available outlet, the correct
outlet should be installed by a qualified electri-
cian.
Inspect the plug and cord before each use. Do
not use if there are signs of damage.
RISK OF ELECTRICAL SHOCK. IF REPAIR-
ING OR REPLACING CORD OR PLUG, THE
GROUNDING WIRE MUST BE KEPT SEPA-
RATE FROM THE CURRENT-CARRYING
WIRES. NEVER CONNECT THE GROUND-
ING WIRE TO A FLAT BLADE PLUG TERMI-
NAL. (THE GROUNDING WIRE HAS INSU-
LATION WITH AN OUTER SURFACE THAT
IS GREEN - WITH OR WITHOUT YELLOW
STRIPES.)
If these grounding instructions are not completely
understood, or if in doubt as to whether the compres-
sor is properly grounded, have the installation
checked by a qualified electrician.
120 Volt Models
White
i5 AMP PLUG
GROUNDING _)i
PIN
OUTLET
Q
120 Volts, 15 Amps
D20449 Rev. 02/15/00 8- ENG

Air Hose
The air hose attached to your compressor has an
integral pressure adjusting valve at the working end of
the hose. Should service or replacement be required,
make sure that the pressure adjusting valve is present
in the air hose line.
Do not allow hose to become kinked or
pinched at any time. This is important to
avoid damage to your compressor and to
maintain pressure adjusting valve control.
Do NOT replace the hose with standard
hose that is not equipped with the pressure
adjusting valve. The appropriate hose
assembly for your compressor is available
at Sears.
1. Before plugging in the air compressor, set the
adjustable pressure valve to "10" PSI. Make sure
the "ON/OFF" switch is in the "OFF" position.
2. Connect the air tool or accessory to the air hose.
Tighten securely.
3. Plug the power cord into the grounded outlet.
4. Start the compressor by setting the "ON/OFF"
switch to the "ON" position.
TOO MUCH AIR PRESSURE COULD
CAUSE AN AIR TOOL OR VEHICLE TIRE TO
RUPTURE OR EXPLODE. CAREFULLY
FOLLOW STEPS 5 AND 6 EACH TIME YOU
USE YOUR COMPRESSOR.
.
.
Check the manufacturer's maximum pressure
rating for the air tool, accessory or vehicle tire
being used. The air compressor outlet pressure
must never exceed the maximum pressure rating.
Slowly increase the pressure setting of the adjust-
able pressure valve. You should be able to hear
and feel air pressure being relieved by the adjust-
able pressure valve. If pressure is not being
relieved, turn the air compressor off immediately.
The pressure valve must be replaced.
Compressed air from the outfit may contain
water condensation. Do not spray unfil-
tered air at an item that could be damaged.
Some air operated tools or devices may
require filtered air. Read the instructions
for the air tool or device.
.
.
When you have finished using the air compressor:
Set the "ON/OFF" switch to "OFF" and unplug the
cord.
Relieve all pressure from the air compressor head
and air hose by turning the adjustable pressure
valve to 10 P.S.I.
3. Protect the electrical cord and air hose from
damage by winding them loosely around the air
com pressor.
4. Store the air compressor in a clean and dry
location.
9 - ENG D20449 Rev. 0 2/15/00

Your new compressor can operate many air operated tools and accessories. Below are some examples of
equipment available and a brief description of what can be done with your compact compressor and this
equipment:
INFLATION EQUIPMENT: Using an air chuck, you
can inflate tires by setting the adjustable pressure
valve at the pressure marked on the tire. By using an
adapter available in an inflator kit, you can inflate air
mattresses, rafts, toys, bicycle tires, pools, balls and
much more.
SPRAY GUNS: There are several types of spray guns
available for use with your compact compressor. You
can paint toys, lawn furniture, fences and do a variety
of other small painting jobs. Where you might have
used a spray can of paint before, a spray gun will give
you more control, less mess, less waste and a better
finish.
BLOW GUN: Another handy item is the blow gun. It
can be used to blow dust and dirt from many types of
equipment. For example, your air conditioner, vents
on your car, refrigerator, your furnace and filters, work
benches, table saws and clogged fuel lines. (All
electrical equipment must be unplugged before
cleaning.)
AIR BRUSHES: There are also several air brushes
available for use with your compressor. With these
you can pinstripe, outline, do stenciling, detailing on t-
shirts, decoys, ceramics, print banners and signs and
many other types of detailed painting. Artists and
hobbyists can find many uses for air brushes.
CAULKING GUN: This is a handy tool for many
common household jobs. The caulking gun is
excellent for caulking and glazing around windows,
bathtubs, window casements and wall tile. It is also a
handy tool for applying adhesives, such as for dry wall
application.
POWER WASHER: The power washer works well for
your many outside cleaning jobs. It will reach high
places and help clean your home and siding as well as
clean your driveway and car. It can degrease car
engines and tools. By adding foliage spray, you can
spray your bushes and plants for insects.
ETCHER/CLEANER: Used with your compact
compressor you can decoratively etch wood or glass
with the etcher/cleaner. It can also be used to remove
paint or rust from small engines and/or metal tools.
DRAIN CLEANER: This item can be used to clean
most household drains. It keeps your hands out of the
mess and comes with a splashback shield to protect
you.
POWER TOOLS (Compacts with Accumulator
Tanks): Your outfit is ideally suited for use with any
power tool designed to be operated in short bursts
(i.e., impact wrenches, nailers/staplers, drills, nut
drivers, etc.). This capability, combined with the
portability of your outfit, make it ideal for many
automotive and home improvement projects.
OTHER ACCESSORIES: There are a variety of
accessories available to make using your compressor
much easier. Quick disconnects are available for ease
of changing accessories. Several types of air filters
and regulators can be purchased to make your
compressor more efficient.
These are just a few of the many uses and types of equipment you can use. There are other tools and
accessories available that can be considered for use with this compressor. Check the specifications on all tools
and equipment before purchasing and using.
D20449 Rev. 02/15/00 10 - ENG

VOLTAGE SOURCES, MOVING PARTS OR COMPRESSED AIR SOURCES ARE EX-
POSED WHEN REPAIRING THE COMPRESSOR. PERSONAL INJURY CAN OCCUR.
UNPLUG THE COMPRESSOR BEFORE ATTEMPTING ANY REPAIRS.
PROBLEM CAUSE CORRECTION
Air Leaks Hose fitting loose. Tighten fitting.
Prolonged excessive use of air. Decrease the amount of air usage. Your com-
pressor is not large enough for the air require-
ment.
Replace the hose.
Tighten fittings.
Compressor is not deliver-
ing enough air.
Motor will not run.
High discharge pressure.
Cannot be adjusted lower.
Hole in hose.
Air leaks.
Fuse blown, circuit breakertripped.
Extension cord is wrong length or
gauge.
Loose electrical connections.
Faulty motor.
Adjustable pressure valve not func-
tioning.
.
.
.
4.
5.
Check fuse box for blown fuse and replace
as necessary. Reset circuit breaker. Do not
use a fuse or circuit breaker with higher
rating than that specified for your particular
branch circuit.
Check for proper fuse. You should be using
a Quick Acting fuse.
Check for low voltage problem.
Check the extension cord.
Disconnect the other electrical appliances
from circuit or operate the compressor on
its own branch circuit.
Check the extension cord.
Check wiring connection inside terminal box
area.
Have checked at a local Sears Service Center.
RISK OF BURSTING. DO NOT OPERATE
THE COMPRESSOR IF THIS PROBLEM
EXISTS. ADJUSTABLE PRESSU REVALVE
MUST BE REPLACED.
11 - ENG D20449Rev.0 2/15/00

$£AR$
OWNER'S
MANUAL
When requesting service or ordering
parts, always provide the following
information:
°Model Number
° Part Number
° Part Description
° Name of Item
FULL ONE YEAR
WARRANTY
AIR COMPRESSOR
Ifthis air compressor fails due to a defect in
material or workmanship within one year
from the date of purchase, RETURN IT TO
THE NEAREST SEARS REPAIR CENTER
THROUGHOUTTHE UNITED STATES AN D
SEARS WILL REPAIR IT,FREE OFCHARGE.
IF PURCHASED FROM ORCHARD SUP-
PLY HARDWARE, RETU RNTO THE NEAR-
EST ORCHARD STORE AND ORCHARD
WILL REPAIR IT, FREE OF CHARGE.
If this air compressor is used for commer-
cial or rental purposes, the warranty will
apply for ninety days from the date of pur-
chase.
This warranty gives you specific legal rights
and you may have other rights which vary
from state to state.
CRR I:111o
COMPACT AIR COMPRESSOR
(With and Without Accumulator Tank)
For Household Use Only
For the repair or replacement parts you need
Call 7am - 7 pm, 7 days aweek
1-800-366- PART
(1-800-366-7278)
For in-home major brand repair service
Call 24 hours a day, 7 days aweek
1-800-4- R E PAl R
(1-800-473-7247)
For the location of a
Sears Parts and Repair Center in your area
Call 24 hours a day, 7 days a week
1-800-488-1222
For information on purchasing a Sears
Maintenance Agreement or to inquire
about an existing Agreement
call 9 am - 5 pm, Monday-Saturday
1-800-827-6655
America's Repair Specialists
Sears, Roebuck and Co., Hoffrnan Estates, IL 60179 U.S.A.

SEARS
MANUAL DEL
OPERADOR
IMPORTANTE:
Leer las Pautas de Seguridad y
Todas las Instrucciones Cuidado-
samente Antes de Operar.
CRA AN+
COMPRESOR
COMPACTO DE AIRE
(Con y Sin Tanque de Acumulacibn)
$61o para Uso Dom_stico
• PAUTAS DE SEGURIDAD
• OPERACION
• DIAGNOSTICO DE PROBLEMAS
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
D20449 Rev. 0 2/15/00

Pagina
PAUTAS DE SEGURIDAD ................................................ 2
TABLA DE ADVERTENCIAS ......................................... 3-5
GLOSARIO ........................................................................ 6
INFORMACION GENERAL ............................................... 6
DESCRIPCION DE LA OPERACION ................................ 7
INSTRUCCIONES PARA DESEMBALAR ......................... 7
INSTALACION Y PROCEDIMIENTO PARA EL
ASENTAMIENTO .............................................................. 8
Ubicaci6n del Compresor de Aire ................................ 8
Pagina
Cordones de Extensi6n .................................................... 8
Instrucciones para Conexi6n a Tierra .......................... 8
Manguera Neumatica ................................................... 9
PROCEDIMIENTOS PARA OPERAR ................................ 9
ALMACENAMIENTO ........................................................ 9
ACCESORIOS ................................................................. 10
GU[A DE DIAGNOSTICO DE PROBLEMAS .................. 11
COMO ORDENAR REPUESTOS .................................... 12
GARANTIA ...................................................................... 12
Este manual contiene informacion que es importante que usted conozca y comprenda. Dicha informacion se
relaciona con la proteccion de SU SEGURIDAD PERSONAL y LA PREVENCION DE PROBLEMAS PARA SU
EQUlPO. A fin de ayudarlo a reconocer dicha informacion usamos los sfmbolos que se muestran a la derecha.
Sirvase leer este manual y prestar atencion a
PELIGRO indica una situacion de inminente riesgo,
la cual, si no evitada, causar,_ la muerte o lesiones
serias.!
V!V_4 D_v_=.-gn=_[_E1 I_#[_o,][o] _I
ADVERTENCIA indica una situacion potencialmente
riesgosa, que si no es evitada, podria resultar en la
muerte o lesiones serias.
VI| "._:| :(o_:_l[o_ [o] _I
PRECAUCION indica una situacion potencialmente
peligrosa, la cual, si no es evitada, podria resultar en
lesiones menores.
PRECAUCION usado sin el sfmbolo de seguridad de
alerta indica una situacion potencialmente riesgosa la
que, si no es evitada, podria causar da_os en la
propiedad.
D20449 Rev. 0 2/15/00 2 - SP

GUARDE ESTAS INSTRUCCIONES
LA OPERACION O EL MANTENIMIENTO INADECUADOS DE ESTE PRODUCTO PODRIAN OCASIONAR SERIAS LESIONES Y DAI_IOS
A LA PROPIEDAD. LEA Y COMPRENDA TODAS LAS ADVERTENCIAS E INSTRUCCIONES DE FUNCIONAMIENTO ANTES DE UTILIZAR
ESTE EQUlPO.
RIESGO DE EXPLOSION O INCENDIO
&QUle PUEDE OCURRIR?
PARA LOS CONTACTOS ELleCTRICOS ES NORMAL LA EXlSTENCIA DE
CHISPAS ENTRE EL MOTOR Y EL INTERRUPTOR A PRESION.
SI LAS CHISPAS ELECTRICAS PROVENIENTES DEL COMPRESOR TOMARAN
CONTACTO CON EMANAClONES DE MATERIALES INFLAMABLES, ELLOS
PODR|AN ARDER ORIGINANDO INCENDIO O EXPLOSION.
RESTRINGIR CUALQUIERA DE LAS ABERTURAS DE VENTILACION
CAUSARA UN SERIO RECALENTAMIENTO Y PODR|A PRODUCIR UN
INCENDIO.
DEJAR DESATENDIDO ESTE PRODUCTO MIENTRAS EL MISMO ESTA EN
FUNCIONAMIENTO PUEDE RESULTAR EN LESIONES PERSONALES O
DAI_IOS A LA PROPIEDAD.
RIESGO DE EXPLOSION
&COMO PREVENIRLO?
OPERE SIEMPRE EL COMPRESOR EN UN SECTOR BIEN VENTILADO Y LIBRE
DE MATERIALES COMBUSTIBLES, GASOLINA O EMANACIONES DE
SOLVENTE.
EN UN AREA DE ROCIADO DE MATERIALES INFLAMABLES, UBIQUE AL
COMPRESOR POR LO MENOS A 6,1M (20 PIES) DE DISTANCIA DEL AREA
DE ROClADO. PODRJA REQUERIRSE UNA EXTENSION DE LA MANGUERA.
ALMACENE LOS MATERIALES INFLAMABLES EN UNA UBICACION
SEGURA, ALEJADOS DEL COMPRESOR.
JAMAS COLOQUE OBJETOS APOYADOS O SOBRE EL COMPRESOR.
OPERE EL COMPRESOR EN UN SECTOR ABIERTO, POR LO MENOS A 30
CM (12 PULGADAS) ALEJADOS DE CUALQUIER PARED U OBSTRUCCION
QUE RESTRINJA EL FLUJO DE AIRE FRESCO A LAS ABERTURAS DE
VENTILACION.
OPERE EL COMPRESOR EN UN SECTOR LIMPIO, SECO, Y BIEN VENTILADO,.
NO OPERE LA UNIDAD EN ESPAClOS CERRADOS O CUALQUIER AREA
CONFINADA.
MANTleNGASE SIEMPRE ALERTA CADA VEZ QUE EL PRODUCTO ESTE
FUNCIONANDO.
TANQUE DEAIRE: LAS SlGUlENTES CONDIClONES PUEDEN DETERMINAR EL DEBILITAMIENTO DEL TANQUE, Y ORIGINAR
UNA VIOLENTA EXPLOSION DEL MISMO, SlENDO CAUSA DE DAI_IOS A LA PROPIEDAD O LESlONES SERIAS.
1,
2.
3.
4.
&QUle PUEDE OCURRIR?
DRENAJE INADECUADO DEL AGUA CONDENSADA EN EL TANQUE,
SIENDO LA CAUSA DEL OXIDO QUE REDUCE EL ESPESOR DEL
TANQUE DE ACERO.
MODIFICAClONES O INTENTO DE REPARACIONES AL TANQUE.
MODIFICAClONES NO AUTORIZADAS A LA VALVULA DE
DESCARGA, VALVULA DE SEGURIDAD O CUALQUIER OTRO
COMPONENTE QUE CONTROLE LA PRESlON DEL TANQUE.
LA VIBRAClON EXCESlVA PUEDE DEBILITAR EL TANQUE DE AIRE
Y CAUSAR SU RUPTURA O EXPLOSION. DICHA VIBRACION
EXCESlVA OCURRIRA Sl EL COMPRESOR NO ESTA
ADECUADAMENTE MONTADO.
AGREGADOS YACCESORIOS
EL EXCESO A LOS VALORES DE PRESlON ESTABLEClDOS PARA LA
HERRAMIENTAS NEUMATICAS, PISTOLAS ROCIADORAS, ACCESORIOS
ACTIVADOS POR AIRE, CUBIERTAS Y OTROS OBJETOS INFLABLES, PUEDE
CAUSAR SU EXPLOSION O SER ARROJADOS, PUDIENDO OCASIONAR
SERIAS LESIONES.
3 -SP
&COMO PREVENIRLO?
DRENE EL TANQUE DIARIAMENTE O DESPUI_S DE CADA USO, Sl EL TANOUE
GENERA UNA PERDIDA, REEMPLACELO INMEDIATAMENTE CON UN NUEVO
TANQUE O REEMPLACE EL COMPRESOR COMPLETO.
JAMAS PERFORE, SUELDE, O EFECTUE MODIFICAClON ALGUNA AL
TANQUE O SUS ACCESORIOS.
EL TANQUE ESTA DISENADO PARA RESISTIR PRESIONES OPERATIVAS
ESPECJFICAS. JAMAS EFECTUE AJUSTES O SUSTITUYA PARTES QUE
ALTEREN LAS REGULACIONES DE PRESlON ORIGINALES DE FABRICA.
PARA UN CONTROL ESENCIAL DE LA PRESION, DEBE USTED INSTALAR UN
REGULADOR Y UN MEDIDOR DE PRESlON A LA SALIDA DEL AIRE DE SU
COMPRESOR. SIGA LAS RECOMENDACIONES DE LOS FABRICANTES DE SU
EQUIPO Y JAMAS EXCEDA LOS VALORES MAXIMOS DE PRESION PERMITIDOS
PARA LOS ACCESORIOS. JAMAS USE EL COMPRESOR PARA INFLAR
OBJETOS QUE REQUlEREN POCA O BAJA PRESlON, TALES COMO
JUGUETES PARA LOS NII_IOS, PELOTAS DE FOTBOL, PELOTAS DE
BASQUET, ETC.
D20449 Rev. 0 2/15/00

RIESGO DE OBJETOS ARROJADOS POR EL AIRE.
&QU¢: PUEDE OCURRIR?
EL CHORRO DE AIRE COMPRIMIDO PUEDE CAUSAR DAI_IOS SOBRE LOS
TEJIDOS BLANDOS DE LA PIEL EXPUESTA, Y PUEDE PROPULSAR
SUCIEDAD, ASTILLAS, PARTICULAS SU ELTAS Y PEQUENOS OBJETOS AALTA
VELOCIDAD, OCASIONANDO DAi<JOS A LA PROPIEDAD O LESIONES
PERSONALES.
&COMO PREVENIRLO?
AL UTILIZAR EL COMPRESOR, USE SIEMPRE ANTEOJOS DE SEGURIDAD
Z87.1 APROBADOS, CON PROTECCION LATERAL.
JAMAS APUNTE NINGUNA BOQUILLA O PULVERIZADOR HACIA PARTES
DEL CUERPO, A OTRAS PERSONAS O ANIMALES.
APAGUE SIEMPRE EL COMPRESOR Y PURGUE LA PRESION DE LA
MANGUERA DEL AIRE Y DEL TANQUE, ANTES DE INTENTAR EL
MANTENIMIENTO, EL ACOPLE DE HERRAMIENTAS O ACCESORIOS.
RIESGO DE INHALACION
&QU¢: PUEDE OCURRIR?
EL AIRE COMPRIMIDO DE SU COMPRESOR iNO ES SANO PARA SER
INHALADO! EL CHORRO DE AIRE PUEDE CONTENER MONOXIDO DE
CARBONO, EMANACIONES TOXICAS O PARTJCULAS SOLIDAS
PROVENIENTES DEL TANQUE.
EL ROClADO DE MATERIALES TALES COMO PINTURA, SOLVENTES,
REMOVEDORES DE PINTURA, INSECTICIDAS, MATA HIERBAS, CONTIENEN
EMANACIONES DAI_INAS Y VENENOSAS.
&COMO PREVENIRLO?
OPERE SIEMPRE EL COMPRESOR DE AIRE EN UNA ZONA EXTERNA,
LIMPIA Y BIEN VENTILADA. EVITE LAS AREAS CERRADAS TALES COMO
GARAJES, SOTANOS, AREAS CUBIERTAS DE ALMACENAJE, QUE CARECEN
DE CONTINUO RECAMBIO DE AIRE. MANTENGA ALEJADOS A LO NINOS,
ANIMALES DOMt_STICOS Y OTROS FUERA DEL SECTOR DE OPERACIONES.
JAMAS INHALE EL AIRE PROVENIENTE DEL COMPRESOR TANTO
DIRECTAMENTE O DESDE UN RESPIRADOR INSTALADO AL COMPRESOR.
TRABAJE EN UN AREA CON BUENA VENTILACION CRUZADA. LEA YSIGA
LAS INSTRUCClONES DE SEGURIDAD PROVISTAS EN EL ROTULO O EN LOS
DATOS DE LAS HOJAS DE SEGURIDAD DEL MATERIAL QUE ESTA
PULVERIZANDO. USE EL RESPIRADOR APROBADO NIOSH/MSHA
DESIGNADO PARA UTILIZARSE CON SU APLICACION ESPECJFICA.
RIESGO DE DESCARGA ELC:CTRICA
&QU¢: PUEDE OCURRIR?
SU COMPRESOR DE AIRE ESTA ACCIONADO POR ELECTRICIDAD. COMO
CUALQUIER OTRO DISPOSITIVO ELECTRICO IMPULSADO ELt_CTRICAM ENTE,
Sl NO SE LO UTILIZA ADECUADAMENTE, PODRiA CAUSARLE UNA
DESCARGA ELleCTRICA.
LAS REPARAClONES INTENTADAS POR PERSONAL NO CALIFICADO
PODRiAN OCASlONAR SERIAS LESlONES O LA MUERTE POR
ELECTROCUCION.
CONEXION A TERRA: DEJAR DE PROVEER UNA ADECUADA CONEXION A
TIERRA A ESTE PRODUCTO PODR|A OCASlONAR LESlONES SERIAS O LA
MUERTE POR ELECTROCUClON. VER INSTRUCCIONES PARA LA PUESTA A
TERRA.
&COMO PREVENIRLO?
JAMAS OPERE EL COMPRESOR A LA INTEMPERIE CUANDO ESTA LLOVIENDO
O EN CONDICIONES DE HUMEDAD.
NUNCA OPERE EL COMPRESOR SIN SUS DEFENSAS O SUS CUBIERTAS
REMOVIDAS O DAI_ADAS.
CUALQUIER CONEXION ELleCTRICA O REPARACION REQUERIDA POR ESTE
PRODUCTO DEBE SER EFECTUADA POR PERSONAL AUTORIZADO DE LOS
SERVICENTROS DE ACUERDO A LOS CODIGO ELECTRICOS NACIONALES Y
LOCALES.
ASEGURESE QUE EL ClRCUlTO ELleCTRICO AL CUAL ESTA CONECTADO
EL COM PRESOR, SUMINISTRA APROPIADA CONEXlON A TIERRA, TENSION
CORRECTA Y UNA ADECUADA PROTECClON DE FUSlBLES.
D20449 Rev. 0 2/15/00 4 - SP

RIESGO DE PARTES MOVILES
&QUI_ PUEDE OCURRIR?
PARTES MOVIBLES TALES COMO LA POLEA, EL VOLANTE Y LA CORREA
PODRJAN SER LA CAUSA DE SERIAS LESlONES SI ELLAS ENTRARAN EN
CONTACTO CON USTED O SUS ROPAS.
INTENTAR OPERAR EL COMPRESOR CON SUS PARTES DAI_IADAS O
FALTANTES, O LA REPARAClON DEL COMPRESOR CON SUS
PROTECClONES REMOVIDAS, PUEDE EXPONERLO A USTED A PARTES
MOVIBLES, QUE PODR|AN RESULTAR EN LESlONES SERIAS.
&COMO PREVENIRLO?
NUNCA OPERE EL COMPRESOR SIN SUS DEFENSAS O SUS CUBIERTAS
REMOVIDAS O DANADAS.
CUALQUIER REPARACION REQUERIDA POR ESTE PRODUCTO DEBE SER
EFECTUADA POR PERSONAL AUTORIZADO DE LOS SERVICENTROS.
RIESGO DE QUEMADURAS
&QUI_ PUEDE OCURRIR? &COMO PREVENIRLO?
TOCAR EL METAL EXPUESTO TAL COMO EL CABEZAL DEL COMPRESOR ()
LOS TUBOS DE SALIDA DEL ESCAPE, PUEDEN OCASlONARLE SERIAS
QUEMADURAS.
JAMAS TOQUE PARTES DE METAL EXPUESTAS, EL COMPRESOR DURANTE
O INMEDIATAMENTE DESPUES DE LA OPERACION. EL COMPRESOR
PERMANECERAN CALIENTES POR VARIOS MINUTOS LUEGO DE LA
OPERACION.
NO LO CUBRA CON FUNDAS PROTECTORAS O INTENTE EL MANTENIMIENTO
HASTA QUE LA UNIDAD HAYA ALCANZADO SU ENFRIAMIENTO.
RIESGO DE CAIDAS
&QUI_ PUEDE OCURRIR?
UN COMPRESOR PORTATIL PUEDE CAERSE DE LA MESA, EL BANCO DE
TRABAJO O DEL TECHO DAI_IANDO AL COMPRESOR Y PUDIENDO
RESULTAR EN SERIAS LESIONES O LA MUERTE DEL OPERADOR.
&COMO PREVENIRLO?
OPERE SlEMPRE EL COMPRESOR EN UNA POSlClON ESTABLE Y SEGURA
A FIN DE PREVENIR EL MOVIMIENTO ACCIDENTAL DE LA UNIDAD. JAMAS
OPERE EL COMPRESOR SOBRE UN TECHO U OTRA POSlClON ELEVADA.
UTILICE MANGUERAS ADIClONALES DE AIRE PARA ALCANZAR
POSlCIONES ALTAS.
RIESGO DE DAI_IOS A LA PROPIEDAD AL TRANSPORTAR
EL COMPRESOR
(Fuego, inhalaci6n, da#o a la superficie de vehiculos)
&QUI_ PUEDE OCURRIR?
EL ACEITE PUEDE DERRAMARSE Y ELLO PODRiA RESULTAR EN SERIAS
LESIONES O LA MUERTE DEBIDO AL RIESGO DE INCENDIO O INHALACION.
EL DERRAME DE ACEITE DANA ALFOMBRAS, PINTURAS U OTRAS SUPERFI-
CIES DE VEHfCULOS O REMOLQUES.
&COMO PREVENIRLO?
DEPOSITE EL COMPRESOR SOBRE UNA ALFOMBRILLA PROTECTORA
CUANDO LO TRANSPORTE, A FIN DE PROTEGER ALVEHiCULO DE PERDIDAS
POR GOTEO. RETIRE EL COMPRESOR DEL VEHiCULO INMEDIATAMENTE
DESPUES DE SU ARRIBO AL DESTINO.
5 - SP D20449 Rev. 0 2/15/00

SCFM o CFM: Pies cQbicos estandar por minuto; una
unidad de medida del aire producido.
PSIG o PSI: Libras por pulgada cuadrada leidas en el
man6metro, una unidad de medida de presi6n.
Registrado por UL: Los productos registrados por
Underwriters Laboratories, Inc. (UL), han sido evaluados por
UL y cumplen con los EstAndares de Seguridad de UL que
se apliquen.
iFelicitaciones! Usted ha comprado un compresor
compacto de un s61o cilindro de lubricaci6n permanente.
La falta de un tanque y el peso ultra liviano le brinda mayor
movilidad, asi como facilidad de almacenaje, a la vez que le
permite usar varias herramientas neumaticas, incluyendo
infladores, pistolas sopladoras, pistolas pulverizadoras,
pistolas limpiadoras, pistolas aplicadoras de masilla y
canteadores. Lubricaci6n permanente (sin aceite) significa
que nunca hay que agregar aceite Io cual tambi6n garantiza
que el aire rociado estarA completamente libre de aceite.
Con el compresor de aire se provee una manguera
neumatica de 1/4" x 15' con una valvula integral de
regulaci6n de presi6n asi como un mandril neumatico.
Accesorios para su nuevo compresor estan disponibles
mediante el catAIogo actual de ventas de Sears o en
tiendas Sears de linea completa. El compresor operarA
varios accesorios. Verificar la presi6n y flujo de aire
recomendados por el fabricante de los accesorios.
Asegurarse que sean compatibles con el suministro de aire
del compresor.
El unidad compresora que ha escogido es Qnica porque
combina la portabilidad de un compresor compacto con
muchas de las opciones de una unidad mayor con tanque.
Con el nuevo compresor, se pueden operar muchas de las
herramientas neumaticas que hasta ahora requerian de una
unidad compresora mas grande y mas costosa, sin
sacrificar la portabilidad o las caracteristicas de operaci6n
que normalmente s61o se encuentran en compresores
compactos. La bomba es de un disefio liviano, de
lubricaci6n permanente, de alta tecnologia, propulsada por
un motor de 3/4 HP. El disefio de lubricaci6n permanente
significa que nunca hay que agregar aceite Io cual tambi6n
garantiza que el aire rociado estarA completamente libre de
aceite.
Con el compresor de aire se provee una manguera
neumatica de 1/4" x 15' con una valvula integral de
regulaci6n de presi6n asi como un mandril neumatico.
Accesorios para su nuevo compresor estan disponibles
mediante el catAIogo actual de ventas de Sears o en
tiendas Sears de linea completa. El compresor operarA
varios accesorios. Verificar la presi6n y flujo de aire
recomendados por el fabricante de los accesorios.
Asegurarse que sean compatibles con el suministro de aire
del compresor.
D20449 Rev. 0 2/15/00 6 - SP

Bomba del Compresor de Aire: Para comprimir aire, el
pist6n se mueve de arriba a abajo en el cilindro. En la
carrera hacia abajo, el aire ingresa por las vAIvulas de
admisi6n. La vAIvula de salida permanece cerrada.
Cuando el pist6n corre hacia arriba, el aire se comprime.
Las valvulas de admisi6n se cierran y el aire comprimido es
forzado a salir por la vAIvula de salida y por la manguera
neumatica.
Valvula de Presibn Regulable: La valvula de presi6n
controla la presi6n que va del compresor de aire al
accesorio. La valvula de regulaci6n de presi6n puede
usarse para aproximadamente fijar la presi6n entre 10 y 125
PSI. (125 PSI es lamas alta presi6n que este compresor
suministrarA).
ANTES DE ARRANCAR EL COMPRESOR,
SIEMPRE FIJAR LA VALVULA POR DEBAJO DE
LA PRESION REQUERIDA POR EL ACCESORIO
QUE SE EST.&.USANDO. PARA INFLAR Y
OTROS TRABAJOS QUE REQUlERAN DE UNA
PRESION EXACTA, USAR UN MEDIDOR DE
PRESION.
Tanque de Acumulacibn (no se incluye en algunos
modelos): Su tanque esta equipado con una valvula de
alivio (que salta) para evitar una condici6n de sobrepresi6n
en el tanque. Este tanque de 2 galones no ha sido
disefiado para almacenar aire, sino para proveer de un
volumen adicional de aire comprimido necesario para
operar una amplia variedad de herramientas neumaticas. AI
arrancar el compresor, fijar la herramienta a la manguera,
fijar la vAIvula de regulaci6n de presi6n a la presi6n
requerida, esperar un momento a que el tanque se Ilene de
aire. Usted sabra que el tanque esta Ileno cuando escuche
el aire escapar de la vAIvula de regulaci6n de presi6n.
Dependiendo del tipo y tamafio de la herramienta que se
usa, ocasionalmente tendrA que esperar que el tanque se
vuelva a Ilenar antes de continuar. AI terminar o cambiar de
herramienta, apagar el compresor de aire y fijar la valvula de
regulaci6n de presi6n a 10 PSI y esperar a que el tanque se
descargue por completo.
Agarrar el asa y sacar el compresor de aire de la caja. Quitar la espuma y/o cart6n y descartar.
7 - SP D20449 Rev. 0 2/15/00

Ubicacion del Compresor de Aire
Su compresor de aire viene completamente ensamblado y
listo para usar. Operar el compresor de aire en un Area
limpia, seca y bien ventilada. La bombay el casco del
compresor de aire estAn dise_ados para permitir un
enfriamiento apropiado. Limpiar o soplar la tierra y el polvo
que se acumula en el compresor de aire. Un compresor de
aire limpio funciona a mas bajas temperaturas y tiene una
vida 0til mas larga. Las aberturas de ventilaci6n en el
compresor de aire son necesarias para mantener una
temperatura de operaci6n apropiada. No colocar alfombras
u otros contenedores encima o cerca de esta aberturas.
Cordones de Extension
Para evitar la caida de voltaje, perdida de potencia del
motor, usar una manguera mas larga en vez de cord6n de
extensi6n.
Si se hace necesario usar un cord6n de extensi6n:
• Utilizar s61o cordones de extensi6n de 3 alambres,
enchufe con espiga para conexi6n a tierra, y un
tomacorriente que acepte el enchufe del compresor
• que est6 en buenas condiciones
• que no tenga mas de 50 pies de largo
• Calibre 14 (AWG) o mas grueso. (El grosor del cable es
mayor cuanto menor sea su n0mero.) Tambien pueden
usarse cordones de calibre 12 AWG, 10 AWG y 8 AWG.
NO USAR CORDONES DE CALIBRE 16 NI 18 AWG.
INSTRUCCIONES PARA CONECTAR A TIERRA
LA CONEXION INADECUADA A TIERRA PUEDE
RESULTAR EN CHOQUE ELleCTRICO. EN
CASO DE CORTOCIRCUlTO, LA CONEXION A
TIERRA REDUCE EL RIESGO DE CHOQUE
ELleCTRICO FACILITANDO EL ESCAPE DE LA
CORRIENTE. ESTE COMPRESOR DE AIRE
DEBE CONECTARSE A TIERRA
APROPIADAMENTE. LEER LO SIGUlENTE:
1, El compresor de aire estA dise_ado para operar
0nicamente con 120 voltios y esta equipado con un
cord6n provisto de un alambre de conexi6n a tierra con
un enchufe apropiado para conexi6n a tierra. El
enchufe debe conectarse en un tomacorriente que haya
sido instalado y conectado a tierra de acuerdo con
todos los c6digos y ordenanzas locales (ver Figura
siguiente). El tomacorriente debe tener la misma
configuraci6n que el enchufe. NO USAR
ADAPTADORES.
2,
3,
No modificar el enchufe provisto. Si no encaja en el
tomacorriente, un electricista calificado debe instalar
un tomacorriente adecuado.
Inspeccionar el cord6n y el enchufe antes de usarlo.
No usarlo si muestra se_as de estar da_ado.
RIESGO DE CHOQUE ELleCTRICO. SI SE VA A
REPARAR O REEMPLAZAR EL CORDON O
ENCHUFE, EL ALAMBRE PARA TIERRA DEBE
MANTENERSE SEPARADO DE LOS ALAMBRES
CONDUCTORES DE CORRIENTE. NUNCA
CONECTAR EL ALAMBRE PARA TIERRA A UN
ORIFICIO PARA ESPIGA PLANA DEL ENCHUFE.
(EL ALAMBRE PARA CONEXION A TIERRA
TIENE AISLAMIENTO DE COLOR VERDE QUE
PUEDE TENER FRANJAS AMARILLAS.)
Si no se entienden completamente estas instrucciones, o si
se tienen dudas en cuanto a que el compresor est6
conectado a tierra apropiadamente, hacer revisar la
instalaci6n por un electricista calificado.
Modelos de 120 Voltios
Alambre
Blanco _
Tierra
Enchufede 15
Amperios
_ Tomacorriente
con conexlon
Espiga para .__
Tierra
Tomacorriente
0
120 Voltios, 15 Amperios
D20449 Rev. 0 2/15/00 8 - SP
