10FT X 13FT POP UP SUN
SHELTER WITH NETTING
MODEL: OV-GZ029
Pay attention
Missing a Part?
If you need parts,
whether they are missing or damaged.
Please email the Customer
service any time
Warranty Coverage Requirements:
1. Copy of your Original Store Receipt.
2. Pictures of the damaged parts.
3. You must know the name of your product and any corresponding item
numbers as well as the name of the store where you purchased the item.
4. Please gather all of this information BEFORE you contact customer service.

MADE IN CHINA
ASSEMBLY INSTRUCTIONS
SPECIAL NOTICE:

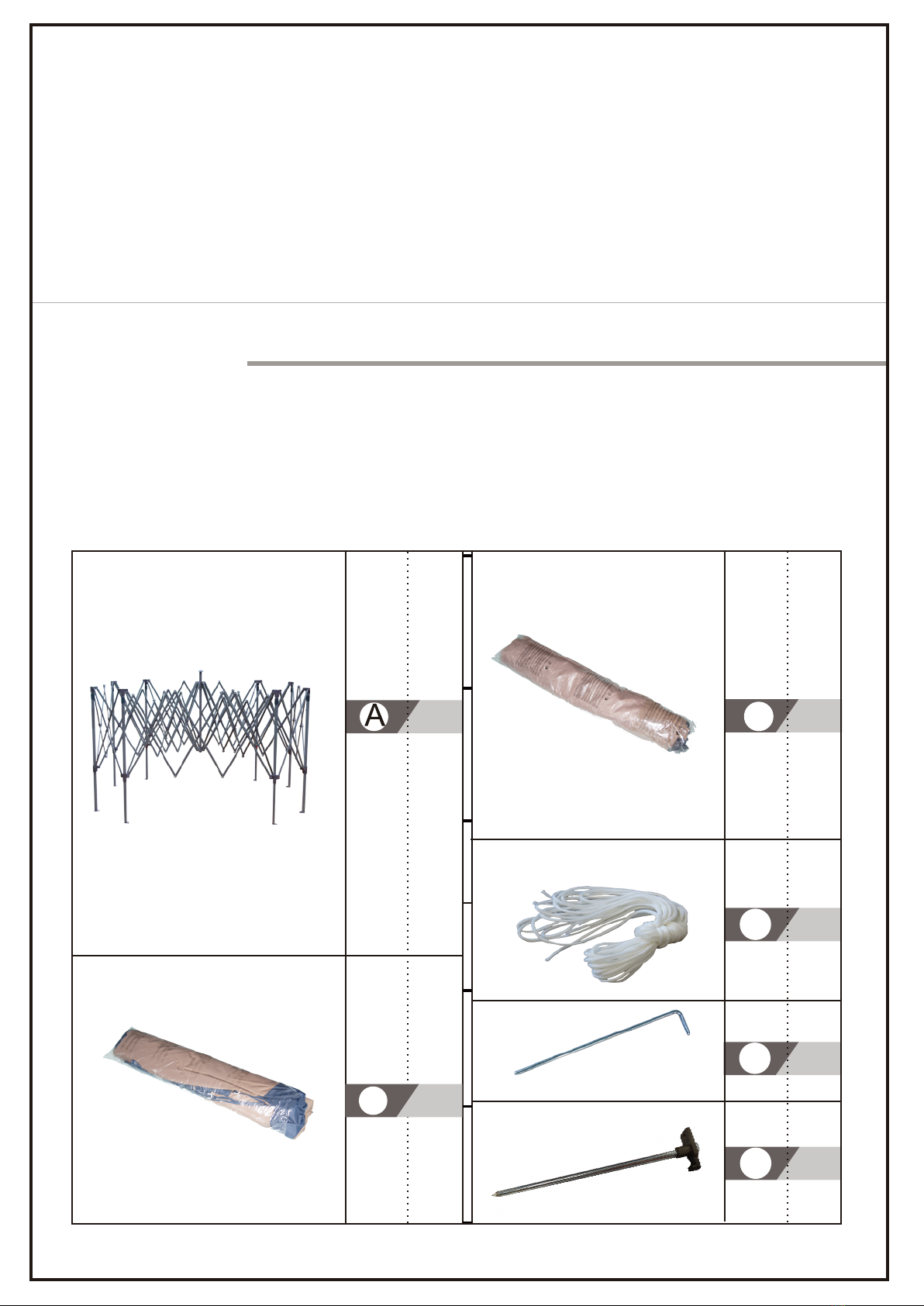

* Make sure that you lay out and identify all parts listed below in the part list.
* It is recommended to open this product with 4 or more people.
11
D8
E16
C
1
B
WARNING:
* Keep all flame and heat sources away from this sun shelter fabric.
* This sun shelter is made with fabric that meets CPAI-84 specifications for flame resistance.
* It is not fire proof.The fabric will burn if left in continuous contact with any flame source.
* The application of any foreign substance to the sun shelter fabric may render the flame-resistant
properties ineffective.
* This is not a permanent structure.This is a temporary structure,and is not meant to be left up during
stormy weather.A high wind and heavy rain can damage your sun shelter.
* Please do not leave your sun shelter up during these conditions.
MADE IN CHINA
This warranty is non-transferable.
16
F

ASSEMBLY INSTRUCTIONS
MADE IN CHINA
A
B
Easily open the sun shelter in eight
directions until partially extended.
Step 1:
Put on the big sun shelter B,
each leg covers with a leg fabric.
Step 2:

ASSEMBLY INSTRUCTIONS
MADE IN CHINA
4
FIGURE 2
FIGURE 1
E
Step 4:
1) Step on the leg plastic base.Adjust the canopy height by lifting the leg until the leg locks into place,please see FIGURE 1.Do the
same for the remaining 7 legs.
2) Hook the fabric of legs to bottom hole on inner pole,please see FIGURE 2.
NOTE:
Pls push this red button when you close the sun shelter.
Step 3:
Hold the black movable spring buckle on the leg.Slide it up until you hear it lock into place.Do the same for the
remaining 7 legs.

ASSEMBLY INSTRUCTIONS
MADE IN CHINA
C
Step 5:
Hang the netting around the cross bar by velcros.The netting should be hanged between the canopy
leg and the leg fabric.

ASSEMBLY INSTRUCTIONS
MADE IN CHINA
D
F
FIGURE 1
Step 6:
1) Insert one steel stake E into a hole on the leg plastic base,please see FIGURE 1, secure the canopy to the round,do
the same on the other 7 bases.
2) Tie rope D to the plastic ring on the corner of the canopy fabric,please see FIGURE 2.Tie the other end to the ground
stake,please see FIGURE 3.Adjust the tension on all 8 ropes for additional support.
FIGURE 2
FIGURE 3
ATTENTION:
Please remove the canopy when not in use to avoid any damage when folding the frame.
If you have any questions about this product, pls feel free to contact our
customer service directly.
rope
