Sears SG60 User manual

Robotic Vacuum Cleaner Instructions Manual
Before using this product, please carefully read this manual and keep it properly.

Table of Contents
Troubleshooting................................................................................................................................................................. 20
Use Instructions.................................................................................................................................................................11
About Robot........................................................................................................................................................................1
Installation.......................................................................................................................................................................... 6
APP Connection................................................................................................................................................................. 9
Routine Maintenance.........................................................................................................................................................14
Parameters................................................................................................................................................................15
Common Problems............................................................................................................................................................19
Safety Instructions.............................................................................................................................................................22

Side Brush
Charging Station
Cleaning Brush
󾙓
About Robot

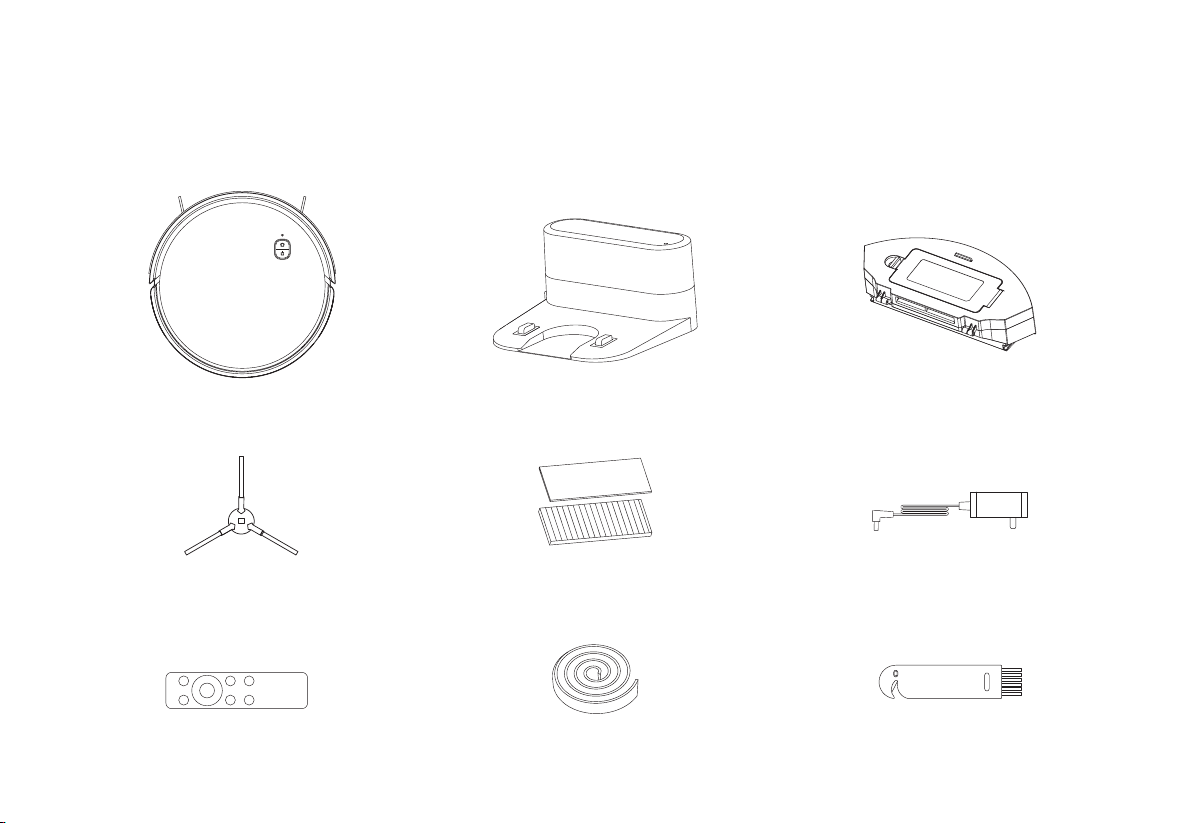

What's in the Box

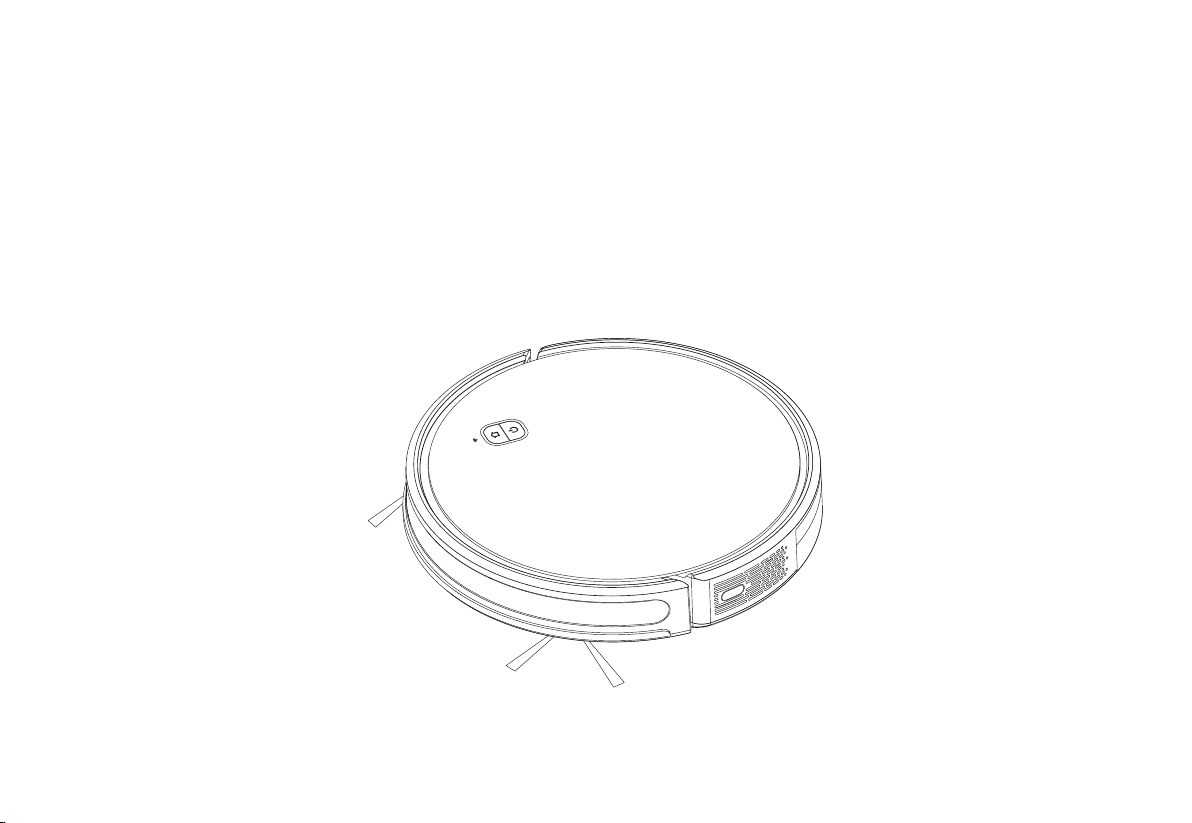

Robotic Vacuum Cleaner
Spare HEPA Filter and Sponge Power Adapter
(for Charging Station)
Remote Controller with Battery(Optional) Magnetic Strip(Optional)
Dust Bin

Home Button
·Return to Charging Station: Short press
this button
Main Unit
󾙔
About Robot
Clean/Power Button
·Start/ Stop Cleaning: Short press this
button
·Powe r on or Power off Robot Press and
hold this button 3s
Wi-Fi Status Light
·Flash: Wi-Fi not connected
·Off: Sleep or Power off
·ON: Wi-Fi Connected
Reset Button
Use a needle to press this button to reset device

Sensor and Structure
Anti-collision sensor
Charging Contact
Universal Wheel
Side Brush
Battery Cover
Drive Wheel
Rolling Brush
Cliff Sensor
Bumper
Search Key
Dust Bin
󾙕
Infrared receiver sensor
About Robot

Dust Bin Charging Station
Power Status Light
Charging
Contacts
Infrared Signal
Emitter
Power Socket
󾙖
About Robot
Filter Cover
HEPA Filter
Sponge
Pre-filter
Dust Bin
Open Button

Start recharging
Pause/ start
Edge cleaning
Suction level
Automatic cleaning
Spot cleaning
Direction buttons
󾙗
Remote Control
About Robot
Note
Set High,robot says 3“Di”
Set Middle,robot says 2“Di”
Set Low,robot says 1“Di”
Mop Water Control:
High/Middle/Low

Precautions
Before starting the vacuum cleaner, clean up wires and sundries scattered on the ground, and remove easy-to-fall, fragile, valuable and potentially dangerous items. Avoid being
entangled,jammed, dragged, or knocked down by the main unit; otherwise, personal or property damage may be caused.
When used in a suspended circumstance, it shall be protected by rails to avoid
accidental falling or pushing other articles from falling; otherwise,personal or
property damage may be caused.
Do not use the robot to clean liquid.
Installation
󾙘

·Ensure a space more than 0.5 m from the left and right of the charging dock
and 1.5 m in front of the charging dock.
·The charging indicator is kept on when electrified.
·The power line perpendicular to the ground may be dragged by the main unit,
resulting in the dock power-off.
Note:
3. Connect the power line and keep it in a proper length.
>󾙓.󾙗m
>󾙒.󾙗m
>󾙒.󾙗m
4. Place the charging dock on a flat ground against the wall; connect to the
power supply.
󾙙

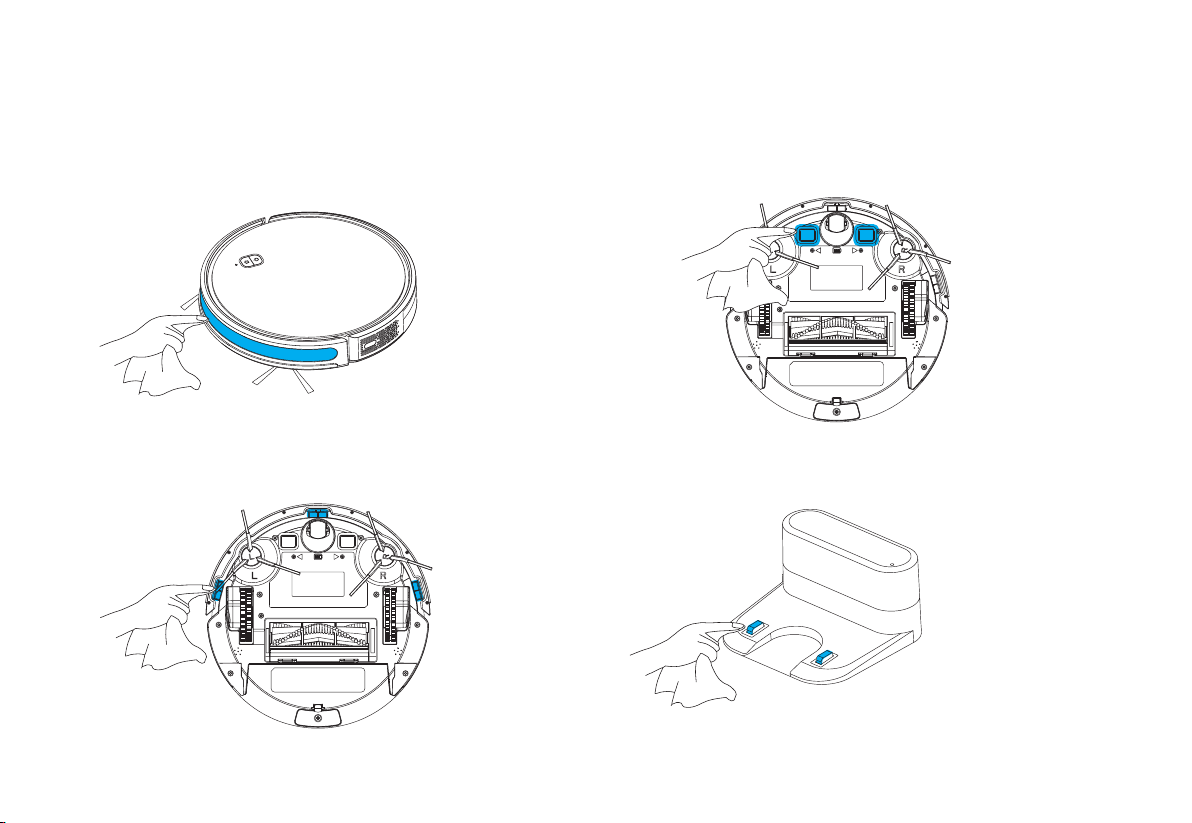

1. Remove the protection material from both sides of the robot
󾙔. Install side brushes
Put the left brush (L) and right brush (R) against the letters
L and R on the bottom respectively; move down for “click”
to finish installation.
Installation
