Seastar Solutions i7700 User manual

i7700 Shift & Throttle System
OPERATION INSTRUCTIONS
AND USER’S MANUAL
Before you do it your way,
please try it our way
www.seastarsolutions.com
79
SEVENTY NINE
ISO 9001

All information, illustrations and specifications in this manual are
based on the latest information available at the time of publishing.
The illustrations used in this manual are intended as representative
reference views only. Moreover, because of our continuous product
improvement policy, we may modify information, illustrations and/or
specifications to explain and/or exemplify a product, service or
maintenance improvement. We reserve the right to make any
change at any time without notice.
©2017 SeaStar Solutions.
All Rights Reserved. This document, subject matter and all information
herein is the sole, exclusive and confidential property of SeaStar
Solutions and shall not be disclosed, copied, reproduced or used in
whole or in part for any purpose other than as specifically authorized
in writing by Marine Canada Acquisition (DBA SEASTAR SOLUTIONS).
is a registered trademark of the American Boat &
Yacht Council (http://www.abycinc.org)
NMEA 2000®is a registered trademark of the National Marine
Electronics Association.
i7700 and SeaStar are trademarks of SeaStar Solutions.
California
Proposition 65 Warning
Battery posts, terminals, and related
accessories contain lead and lead
compounds, chemicals known to the
state of California to cause cancer
and reproductive ham.
Wash hands after handling.

© 2017 SeaStar Solutions i7700 Shift & Throttle System User’s Manual, Rev. A i
This User’s manual contains the information you need to safely operate
and maintain your shift and throttle system. It must remain on the boat.
Thank you for choosing an i7700 Shift and Throttle Control System
by SeaStar Solutions. You have chosen a state of the art system
that will provide years of effortless and trouble free performance.
About this Book
Notice to the Operator
IMMEDIATE HAZARDS WHICH, IF NOT ACTED UPON, WILL RESULT
IN SEVERE PERSONAL INJURY OR DEATH.
DANGER
HAZARDS OR UNSAFE PRACTICES WHICH, IF NOT ACTED UPON,
COULD RESULT IN SEVERE PERSONAL INJURY OR DEATH.
WARNING
Hazards or unsafe practices which could result in minor injury or
product or property damage.
CAUTION
Information which is important to proper use or maintenance, but is
not hazard-related.
NOTICE
Throughout this publication, Dangers, Warnings and Cautions
(accompanied by the International Hazard Symbol ) are used
to alert the user to special instructions concerning a particular
service or operation that may be hazardous if ignored or performed
incorrectly or carelessly. Observe them carefully!
These safety alerts alone cannot eliminate the hazards that they
signal. Strict compliance with these special instructions during
installation, operation, and maintenance, plus common sense
operation, are important measures to prevent accidents.
Failure to adhere to these notices may result in the loss of steering
and shift/throttle control, leading to possible ejection from the
vessel, causing property damage, injury and/or death.

© 2017 SeaStar Solutions i7700 Shift & Throttle System User’s Manual, Rev. A
ii
ABYC American Boat & Yacht Council
AP Autopilot
AUX Auxiliary
BAT Battery
CAN Controller Area Network
CAN Bus
Controller Area Network (data) Bus. (A harness of wires that
carry digital signals and power between electronic modules)
ENG Engine
EPS Electronic Power Steering
EST Electronic Shift and Throttle
FWD Forward
GND Ground
HI High
LED Light Emitting Diode
Lo Low
MPH Miles Per Hour
N Neutral
NMEA National Marine Electronics Association
NMEA 2000® A protocol for digital communication on a CAN Bus
NTW Neutral Throttle Warmup
N/C No Connection
PCM Pump Control Module
PTS Power Train Sync
R Reverse
RPM Revolutions Per Minute
STBD Starboard (right when facing forward)
SW Switch
TM Trolling Mode
WOT Wide Open Throttle
Note: Some abbreviations not listed here may be found in their
respective sections.
ABBREVIATIONS
The following abbreviations are used in this manual:

© 2017 SeaStar Solutions i7700 Shift & Throttle System User’s Manual, Rev. A iii
INDEX
Abbreviations ..................................................................... ii
1.0 Safety Information........................................................... 1-1
1.1 Safety Labels ............................................................ 1-3
2.0 System Overview............................................................. 2-1
2.1 System Description ................................................... 2-1
2.2 System Overview Diagram.......................................... 2-2
3.0 System Operation ............................................................ 3-1
3.1 Before Each use........................................................ 3-1
3.2 First Time Use........................................................... 3-1
3.3 Control Head Operation ............................................. 3-2

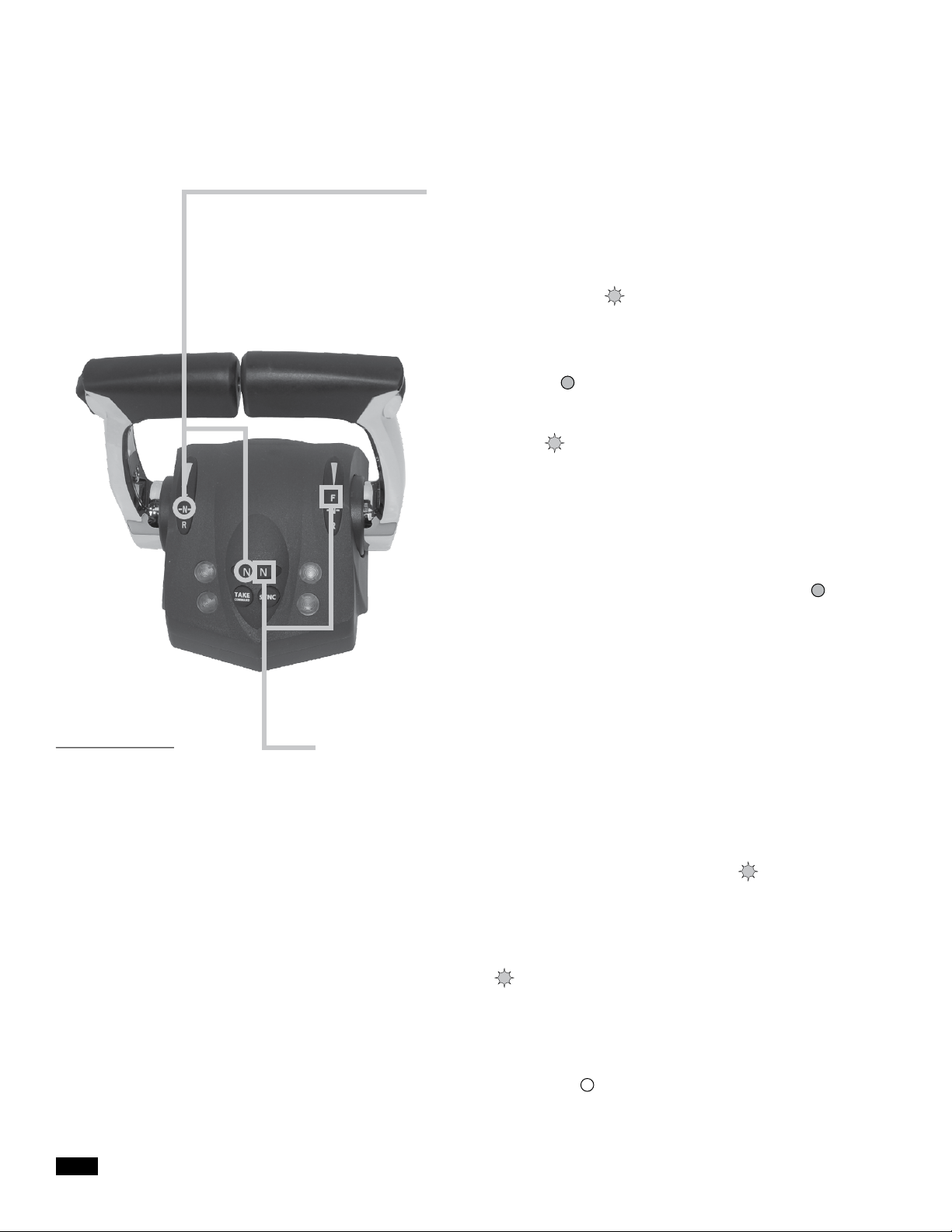

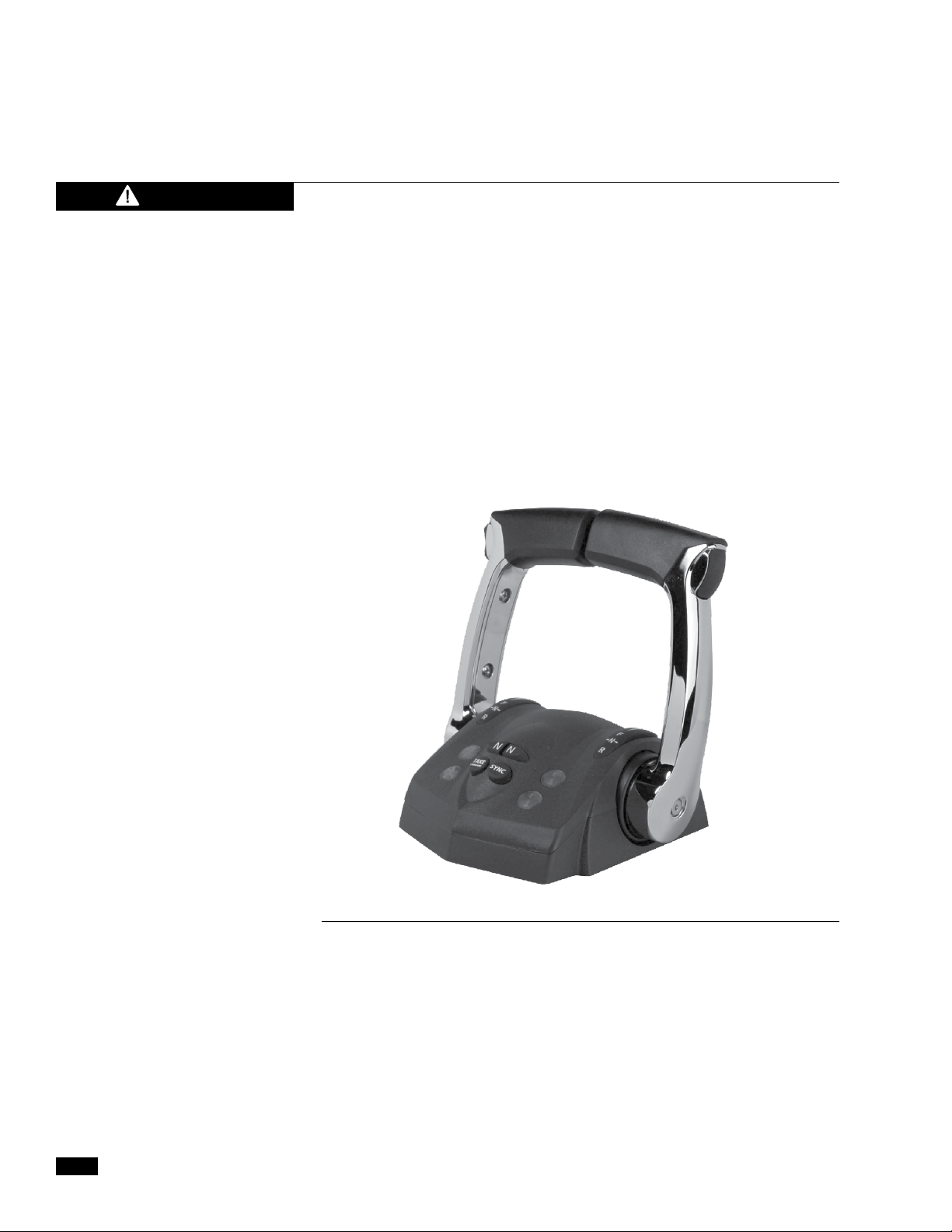

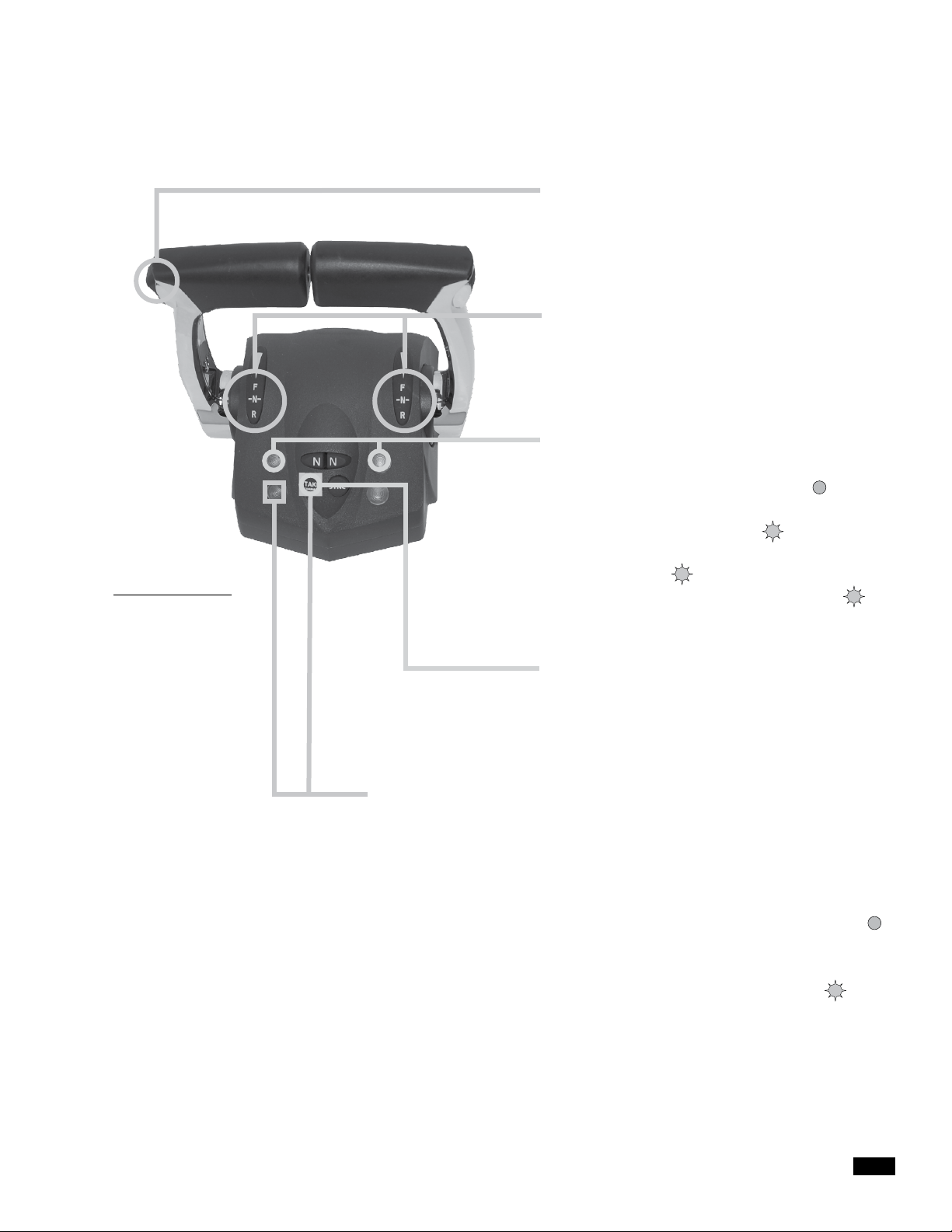

3.3.1 Identification – Dual Lever (DTM) ....................... 3-2
3.3.2 Identification – Single Lever (STM) ..................... 3-6
3.3.3 Lever Adjustment ............................................. 3-8
3.3.4
Station Selection and Station Select Protection .... 3-9
3.3.5 Two-Lever Sync............................................... 3-10
4.0 System Faults & Hazards ................................................. 4-1
4.1 Hazard Definitions...................................................... 4-1
4.1.1 Danger ............................................................ 4-1
4.1.2 Warning ........................................................... 4-1
4.2 Manual Override........................................................ 4-2
5.0 Maintenance ................................................................... 5-1
6.0 Warranty ......................................................................... 6-1
6.1 Statement of Limited Warranty ................................... 6-1
6.2 Return Goods Procedure ........................................... 6-1

© 2017 SeaStar Solutions i7700 Shift & Throttle System User’s Manual, Rev. A
iv
This page left intentionally blank.

© 2017 SeaStar Solutions i7700 Shift & Throttle System User’s Manual, Rev. A 1-1
1.0 SAFETY INFORMATION
THE SAFETY INFORMATION PROVIDED BELOW IS INTENDED TO
INFORM YOU OF THE DANGERS THAT MAY BE PRESENT BEFORE,
DURING AND AFTER USE. IT IS CRITICAL THAT YOU READ AND
UNDERSTAND ALL THE POINTS NOTED.
Safe operation of the shift and throttle system depends upon proper
installation and maintenance of the system, and the common sense, safe
judgment, knowledge, and expertise of the operator. Every installer
and operator of the shift and throttle system should know the
following requirements before installing or operating the system.
If you have any questions regarding any of these warnings, contact
SeaStar Solutions.
Perform a system inspection as outlined below. Refer to Section 3.1
for further details.
1. Check your vessel’s steering system.
2. I
nspect all mechanical and electrical cables for wear, kinks, or leaks.
3. Check for binding, loose or worn shift/throttle control components.
6. Verify proper shift and throttle response for all control levers.
DO NOT OPERATE BOAT IF ANY COMPONENT IS NOT IN PROPER
WORKING CONDITION.
Prior to every use
To reduce the risk of severe injury or death:
1. Always wear a Coast Guard Approved personal flotation device
(PFD) and use an engine shut-off cord (lanyard).
2. Read and understand this User’s manual and the Quick Reference
Card provided with your vessel control components.
3.
SeaStar and i7700 components are highly engineered and safety
tested to ensure system integrity. DO NOT substitute any component.
Substitution with non-SeaStar or non-i7700 components may
compromise system safety, performance, and reliability.
WARNING
WARNING THE I7700 SYSTEM MUST ONLY BE INSTALLED BY AN AUTHORIZED
DEALER OR OEM.
WARNING

© 2017 SeaStar Solutions i7700 Shift & Throttle System User’s Manual, Rev. A
1-2
No special care is required after using the i7700 system. Periodically
clean the control head with a damp cloth and a mild detergent, if
necessary.
Maintain your i7700 System as directed in Section 5 of this manual.
After use
Maintenance
1. WEAR A COAST GUARD-APPROVED PERSONAL FLOTATION
DEVICE (PFD).
2. Attach engine shut-off cord (lanyard) to your pfd.
3. Never allow anyone not familiar with the operation of the vessel
control system to operate the boat at ANY time.
4. Know and adhere to all applicable federal, state, and municipal
laws and regulations that govern boating in your area.
DO NOT OPERATE BOAT IF ANY COMPONENT IS NOT IN PROPER
WORKING CONDITION.
During use
1.0 Safety information (continued)
WARNING

Figure 1-1. Actuator decal, PID# 277045.
Figure 1-2. Actuator decal sheet, PID# 277044.
The labels shown below are found on the i7700 actuators .
© 2017 SeaStar Solutions i7700 Shift & Throttle System User’s Manual, Rev. A 1-3
1.1 Safety Labels
THE LABELS BELOW SHOULD CALL ATTENTION TO THE POSSIBLE
HAZARDS ASSOCIATED WITH THE EQUIPMENT SHOWN LATER IN
THIS MANUAL.
WARNING
Component labels

© 2017 SeaStar Solutions i7700 Shift & Throttle System User’s Manual, Rev. A
1-4
This page left intentionally blank.

© 2017 SeaStar Solutions i7700 Shift & Throttle System User’s Manual, Rev. A 2-1
SeaStar i7700 is an electromechanical system that replaces a
traditional cable-operated engine remote control with an electronic
control. Shift and throttle settings are sent over a serial data network
to electro-mechanical actuators, where they are converted to cable
motion. The elimination of mechanical cables to the control head
simplifies multi-station installations, especially when a station is
installed onto a flybridge or tower that is removed for shipping. The
system supports the installation of up to three control heads.
The i7700 system consists of the major components listed below.
CAN Network
CAN (controller area network) is a serial network protocol that is
widely used in marine and automotive control systems. Each device
(node) on the network can send and receive data using specially
formatted messages. The ability to reliably communicate data
between devices is what enables the functionality of i7700.
i7700 implements the high-speed CAN protocol using DeviceNet
harnesses and connectors. We refer to the network as CAN2 in the
documentation to distinguish it from other CAN protocols used on
SeaStar products.

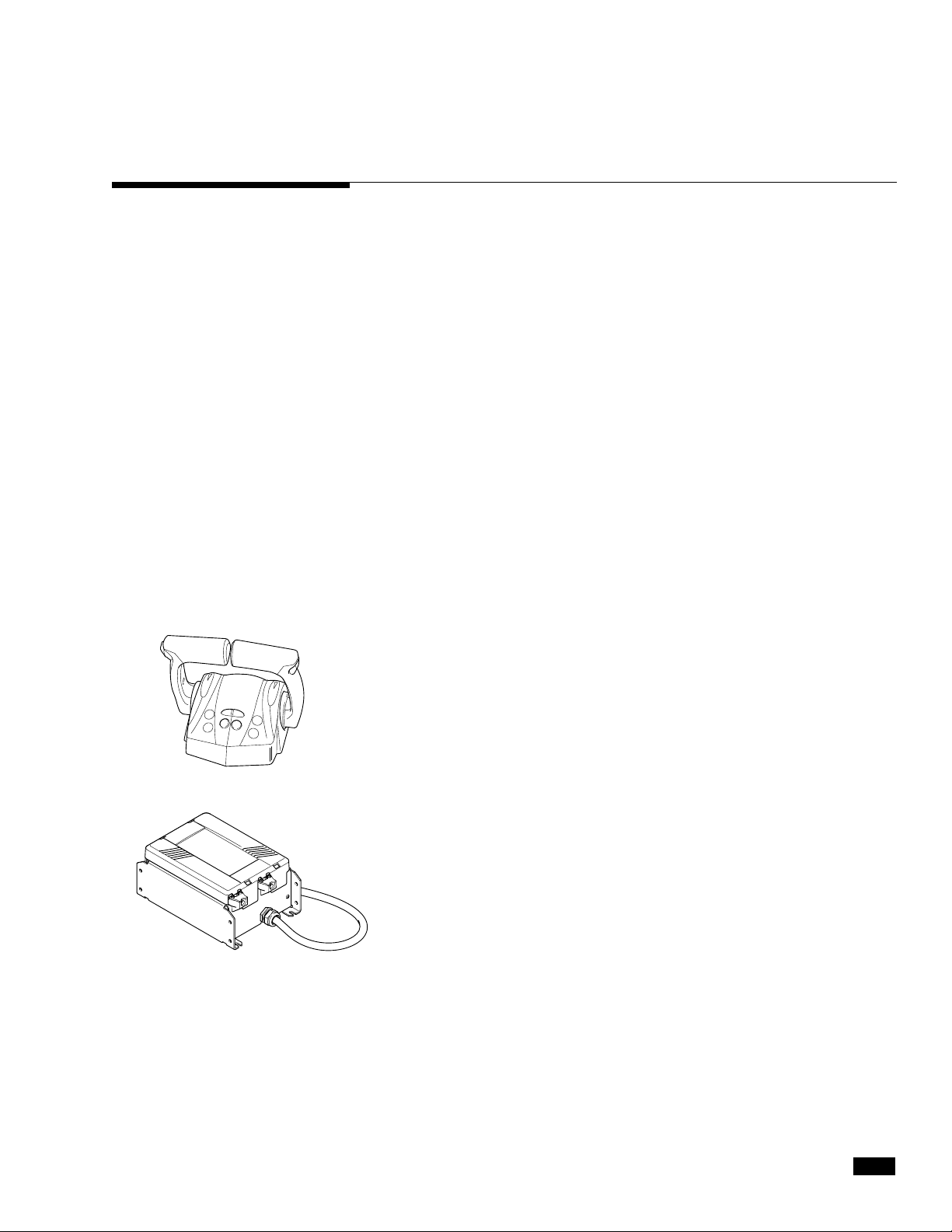

Control Head
The control head looks much like a conventional mechanical remote
control, but it is an electromechanical device that converts lever
position into digital messages that are sent over CAN2 to the shift
and throttle actuators. The control head features adjustable lever feel,
status lights, a synchronous trim switch (optional), and control buttons
for added functionality.
Shift and Throttle Actuator
The actuators are electromechanical devices that receive digital
commands on the CAN2 network and convert these commands into
movement of a mechanical cable for gear selection and throttle control.
2.1 System Description
2.0 SYSTEM OVERVIEW

DUAL STATION/DUAL ENGINETRIPLE STATION/DUAL ENGINE
1. Control Head
2. Throttle/Shift Actuator
3. CAN Network Bus
1
2 3
1
2222 3
1
1
1 1
3
SINGLE STATION/SINGLE ENGINE
Figure 2-1. System Overview.
© 2017 SeaStar Solutions i7700 Shift & Throttle System User’s Manual, Rev. A
2-2
2.2 System Overview Diagram

© 2017 SeaStar Solutions i7700 Shift & Throttle System User’s Manual, Rev. A 3-1
3.0 SYSTEM OPERATION
3.1 Before Each Use
1. Check your steering system.
If your vessel has a hydraulic steering system, ensure that the
fluid level is correct. Check that the steering responds
immediately and correctly when you turn the steering wheel(s),
and that the hydraulic hoses move freely through the range
without snags or hang-ups.
2. Inspect all and mechanical cables and electrical harnesses for
wear, kinks, or damage.
Check all electrical harnesses and mechanical cabling for
abrasion, wear, rubbing or chafing. Check that all connections
are tight and free of corrosion.
3.
Check for binding, loose or worn shift/throttle control components.
Check all shift and throttle cables and harnesses for signs of wear,
damage or chafing. Check that all linkages and cables move freely
and are not binding or corroded.
4. Verify proper shift and throttle response for all control levers.
Check that all shift and throttle levers operate freely and cause the
engines to shift accordingly. Put the engines in neutral idle mode
and confirm that the throttle responds correctly and returns to idle.
5. Verify that no faults or warnings are indicated on the Shift and
Throttle Control Head.
Rapidly flashing
LEDs on the control head indicate that there is a
Warning or Danger fault. Refer to section 4 for more information.
FAILURE TO ADHERE TO THESE WARNINGS MAY RESULT IN LOSS
OF BOAT CONTROL, LEADING TO POSSIBLE EJECTION FROM VESSEL;
CAUSING PROPERTY DAMAGE, PERSONAL INJURY AND/OR DEATH.
WARNING
IT IS RECOMMENDED THE FULL SYSTEM INSPECTION BE REVIEWED
ON A REGULAR BASIS TO RETAIN FAMILIARITY.
DO NOT OPERATE THE BOAT IF ANY COMPONENT IS NOT IN PROPER
WORKING CONDITION.
WARNING
WARNING
3.2 First Time Use
Before starting the engines for the first time, familiarize yourself with
the shift and throttle controls and the features described in section
3.3. With the engines and control system off, move the control
levers over the full range until you are familiar with the feel. The lever
feel can be adjusted if desired. See section 3.3.3.

© 2017 SeaStar Solutions i7700 Shift & Throttle System User’s Manual, Rev. A
3-2
3.3 Control Head Operation
The control head is the user interface for shift and throttle control.
There are two types of control head used with the i7700 system: single
lever (STM), used on single-engine applications, and dual lever (DTM),
used on multi-engine applications. Both types of control head are
top-mounted; a side-mount single lever control head is not available
for the i7700 system.
The i7700 Quick Reference Guide provides a summary of the control
head operation and should be kept on the vessel at all times.
BE VERY CAUTIOUS WHEN FIRST ENGAGING THE GEARS TO ESTABLISH
THAT FORWARD IS TRULY FORWARD AND REVERSE IS TRULY REVERSE.
A QUICK IN-AND-OUT OF GEAR TEST IS RECOMMENDED. ENSURE
THAT THE BOAT IS CLEAR OF ALL OBSTACLES FORWARD AND AFT
BEFORE CONDUCTING THIS TEST.
WARNING
Figure 3-1. i7700 Dual Lever Control Head.
Identification – Dual Lever (DTM)
The following figures identify the components and features of the
control head. This information is also found on your i7700 Quick
Reference Guide. Please take some time to familiarize yourself
with the controls and features before going out on the water for
the first time.
3.3.1

© 2017 SeaStar Solutions i7700 Shift & Throttle System User’s Manual, Rev. A 3-3
ENGINE TRIM CONTROL (OPTIONAL):
Provides simultaneous trim control of all engines.
LEVER POSITION
INDICATORS
INDICATOR DIMMING FEATURE:
When the control head is active, pressing
Take Command repeatedly will cycle through
five available indicator brightness levels.
NEUTRAL INDICATOR LAMPS:
These lamps have four states:
Steady green – engine is in neutral
Slow flashing green (0.5s on, 0.5s off) – Neutral
Throttle Warmup is engaged
Very slow flashing green (1s on, 2s off) – Trolling
Mode is engaged
Fast flashing red – A danger fault is active
See section 4.
TAKE COMMAND BUTTON AND LAMP:
Used to activate a control head.
To take command with a control head:
• Put control levers in neutral and press Take Command.
• The adjacent lamp signals the transfer status as follows:
Steady blue – station is active and in control of shift and throttle.
Flashing blue – station transfer from one station to another is
underway. You have five seconds to match the control lever positions
with those of the active station to complete the transfer.
Fast flashing blue – A warning fault is active. See section 4.
Lamp off – station is inactive
Note: If the lamp does not come on when you press Take Command,
Station Protection may be enabled. See section 3.3.4.
Figure 3-2.

© 2017 SeaStar Solutions i7700 Shift & Throttle System User’s Manual, Rev. A
3-4
NEUTRAL THROTTLE WARMUP (NTW):
NTW allows you to control engine throttle without gear
engagement, so that you can warm up your engines
at a higher RPM. A slow flashing green neutral
indicator lamp tells you that NTW is engaged for the
corresponding engine.
To engage Neutral Throttle Warmup:
• Move the engine’s control lever to the Neutral
position. The neutral indicator lamp will light
steady green.
• Press the corresponding Nbutton. The neutral
indicator lamp will flash green to indicate that NTW
is engaged.
• You can now increase throttle and the engine will
stay in neutral.
To disengage Neutral Throttle Warmup:
• Return the engine’s lever to the Neutral position.
• Press the corresponding Nbutton. The lamp will
light steady green. The engine and transmission
will now respond normally to lever commands.
TROLLING MODE (TM):
• Provides greater throttle sensitivity: moving an engine’s control
lever to full forward will only produce a percentage of wide open
throttle. The default TM throttle limit is 50% in forward gear, 100%
in reverse gear.
• Very slow flashing (one second on, two seconds off) green neutral
indicator lamps indicate that trolling mode is engaged.
TO ENGAGE Trolling Mode:
• Move one or both control levers to the forward idle or reverse idle
positions. The other lever must be in the same position or in neutral.
• Press either Nbutton. Both lamps will flash green slowly to indicate
that TM is engaged.
TO DISENGAGE Trolling Mode:
• Move both control levers to forward idle, reverse idle, or neutral
position.
• Press either Nbutton. The flashing green lamps will go out to
indicate that TM is disengaged.
Figure 3-3.

© 2017 SeaStar Solutions i7700 Shift & Throttle System User’s Manual, Rev. A 3-5
POWER TRAIN SYNC (PTS) BUTTON AND LAMP:
PTS synchronizes engines and transmissions so that the port lever
controls shift and throttle of all engines.
The lamp adjacent to the Sync button indicates PTS status. A steady
blue lamp means PTS is engaged.
To engage Power Train Sync:
• Press Sync. The blue lamp will flash.
• Match control lever positions within 5% of each other. The lamp will
go steady blue to indicate that power trains are in sync.
To disengage Power Train Sync:
• Press Sync. The blue lamp will flash.
• Match control lever positions within 5% of each other. The blue
lamp will go off – PTS is now disengaged.
ADJUSTABLE LEVER FEEL
Turn screw in to tighten the lever
feel, and turn screw out to loosen
the lever feel.
SHIFT
DETENT
THROTTLE
FRICTION
PORT
STARBOARD
Figure 3-4.

© 2017 SeaStar Solutions i7700 Shift & Throttle System User’s Manual, Rev. A
3-6
Identification – Single Lever (STM)3.3.2
ENGINE TRIM CONTROL (OPTIONAL)
LEVER POSITION
INDICATOR
INDICATOR DIMMING FEATURE:
When the control head is active, pressing SEL
repeatedly will cycle through the available
indicator brightness levels.
NEUTRAL INDICATOR LAMP:
This lamp has four states:
Steady green – engine is in neutral
Slow flashing green (0.5s on, 0.5s off) – Neutral
Throttle Warmup is engaged
Very slow flashing green (1s on, 2s off) – Trolling
Mode is engaged
Fast flashing green, with fast flashing amber – A
danger fault is active See section 4.
SEL BUTTON:
Used to activate a control head.
To activate a control head:
• Put control lever in neutral and press SEL.
• The amber lamp signals the transfer status as follows:
Steady amber – station is active and in control of shift and throttle.
Slow flashing amber – station transfer from one station to another
is underway. You have five seconds to match the control lever positions
with those of the active station to complete the transfer.
Fast flashing amber – A warning fault is active. See section 4.
Lamp off – station is inactive
Note: If the lamp does not come on when you press SEL, Station
Protection may be enabled. See section 3.3.4.
Figure 3-5.

© 2017 SeaStar Solutions i7700 Shift & Throttle System User’s Manual, Rev. A 3-7
NEUTRAL THROTTLE WARMUP (NTW):
NTW allows you to control engine throttle without gear
engagement, so that you can warm up your engine at
a higher RPM. A slow flashing green neutral indicator
lamp tells you that NTW is engaged.
To engage Neutral Throttle Warmup:
• Move the control lever to the Neutral position. The
neutral indicator lamp will light steady green.
• Press the Nbutton. The neutral indicator lamp will
flash green to indicate that NTW is engaged.
• You can now increase throttle and the engine will
stay in neutral.
To disengage Neutral Throttle Warmup:
• Return the lever to the Neutral position.
•
Press the Nbutton. The lamp will light steady green.
The engine and transmission will now respond
normally to lever commands.
TROLLING MODE (TM):
• Provides greater throttle sensitivity: moving the control lever to full
forward will only produce a percentage of wide open throttle. The
default TM throttle limit is 50% in forward gear, 100% in reverse gear.
• A very slow flashing (one second on, two seconds off) green neutral
indicator
lamp indicates that trolling mode is engaged.
TO ENGAGE Trolling Mode:
• Move the control lever to the forward idle or reverse idle
positions.
• Press the Nbutton. The lamp will flash green slowly to indicate that
TM is engaged.
TO DISENGAGE Trolling Mode:
• Move the control lever to forward idle or reverse idle position.
• Press the Nbutton. The flashing green lamp will go out to indicate
that TM is disengaged.
Figure 3-6.

© 2017 SeaStar Solutions i7700 Shift & Throttle System User’s Manual, Rev. A
3-8
SHIFT
DETENT
THROTTLE
FRICTION
Figure 3-7.
Lever Adjustment
The control lever feel can be adjusted by means of adjusting screws
on the forward face of the control head.
• The friction drag on the lever is adjusted with the throttle friction
adjuster screw (see figure 3-4 or figure 3-7). Turn the screw clockwise
to increase the friction on the lever, counter-clockwise to reduce
the friction.
•
The force required to move in and out of the shift detents is adjusted
with the Shift Detent adjuster screw. The detents are meant to prevent
accidental gear engagement, so bear that in mind as you make
adjustments. Clockwise increases force, counter-clockwise decreases.
3.3.3
Figure 3-8. Control Head lever positions.
Adjusting
Screws
