INDEX
1 TURBOCHARGER.................................................................................................................... 3
Turbocharger, exploded view ....................................................................................... 31.1
Turbo compressor: removing and fitting ...................................................................... 91.2
2 IGNITION SYSTEM................................................................................................................ 18
Ignition system: Assembly overview ........................................................................... 182.1
Ignition coils with output stage: removing and fitting................................................ 202.2
3 OIL SUMP............................................................................................................................. 22
Assembly overview - sump, oil pump ......................................................................... 223.1
Removing and installing oil level/oil temperature sender -G266-.............................. 283.2
Remove and install the lower element of the oil tray ................................................ 293.3
Remove and install the upper element of the oil tray ................................................ 333.4
4 INTAKE MANIFOLD WITH THROTTLE................................................................................... 39
Intake manifold: Assembly overview .......................................................................... 394.1
Exploded view - fuel rail, direct injection.................................................................... 41
4.2
Exploded view - fuel rail, intake manifold injection.................................................... 444.3
Intake manifold: Removing and installing................................................................... 464.4
Removing and installing throttle valve module -GX3- ................................................ 534.5
5 ALTERNATOR ....................................................................................................................... 56
Alternator without sliding bushes -exploded view-.................................................... 565.1
Removing and installing the alternator, vehicles with 1.8 litre TSI engine................. 575.2
Tightening torques: Alternator: .................................................................................. 615.3
6 DIFFERENTIAL ...................................................................................................................... 62
Assembly overview –Front differential lock............................................................... 626.1
Removing front differential lock ................................................................................. 636.2
Installing front differential lock................................................................................... 676.3

WORKSHOP MANUAL LEON CUP RACER
3 de 69
1TURBOCHARGER

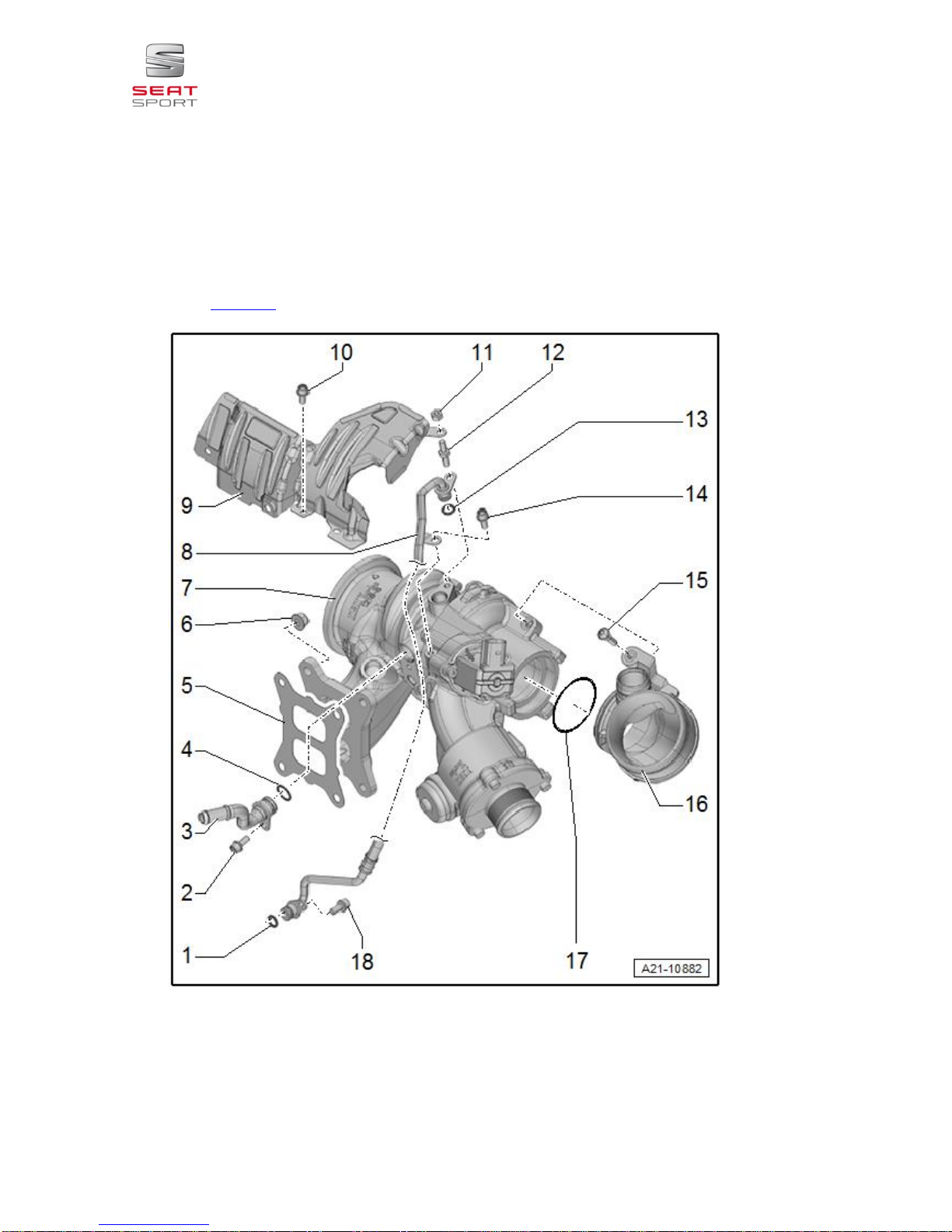

Turbocharger, exploded view
1.1
Part I
Part II →Anchor
1 -
O-ring

Renew

Lubricate lightly with engine oil

WORKSHOP MANUAL LEON CUP RACER
4 de 69
2 -
Bolt

9 Nm.
3 -
Coolant supply line
4 -
O-ring

Renew

Lubricate with coolant
5 -
Seal

Renew
6 -
Nut

Renew

25 Nm.
7 -
Turbocharger

remove and install →Chapter
8 -
Oil supply line
9 -
Heat shield
10 -
Bolt

9 Nm.
11 -
Nut

9 Nm.
12 -
Bolt

9 Nm.
13 -
O-ring

Renew

Lubricate lightly with engine oil
14 -
Bolt

WORKSHOP MANUAL LEON CUP RACER
5 de 69

9 Nm.
15 -
Bolt

9 Nm.
16 -
Coupling
17 -
O-ring

replace
18 -
Bolt

9 Nm.

WORKSHOP MANUAL LEON CUP RACER
6 de 69
Part II
Part I →Anchor
1 -
Bolt

9 Nm.
2 -
Oil return line
3 -
O-ring

Renew

WORKSHOP MANUAL LEON CUP RACER
7 de 69

Lubricate lightly with engine oil
4 -
Bolt

9 Nm.
5 -
Charge pressure positioner -V465-
6 -
Nut

If nut has been loosened, charge pressure positioner -V465- must be renewed

10 Nm.
7 -
Bolt

10 Nm.
8 -
Coupling
9 -
O-ring

replace
10 -
Bolt

7 Nm.
11 -
Turbocharger air recirculation valve -N249-

Note installation position →Fig.
12 -
O-ring

Renew
13 -
Turbocharger

remove and install →Chapter
14 -
O-ring

Renew

Lubricate with coolant
15 -
Bolt

9 Nm.

WORKSHOP MANUAL LEON CUP RACER
8 de 69
16 -
Bolt

9 Nm.
17 -
Bolt

9 Nm.
18 -
Coolant return line
19 -
O-ring

Renew

Lubricate with coolant
20 -
O-ring

Renew

Lubricate lightly with engine oil
21 -
Bolt

Coat thread with high-temperature paste; for high-temperature paste refer to
→Electronic parts catalogue

30 Nm.
22 -
Support

For turbocharger
23 -
Bolt

30 Nm.
24 -
Bolt

9 Nm.

WORKSHOP MANUAL LEON CUP RACER
9 de 69
Fitting location of turbocharger
air recirculation valve -N249-
–
Note installation position -
arrows-.
Turbo compressor: removing and
1.2
fitting
Caution
If a mechanical fault is discovered on the turbocharger
(e.g. a destroyed compressor impeller), it is not
sufficient to just renew the turbocharger. To avoid any
subsequent damage, the following work must be
carried out:

Check air cleaner housing, air filter element and air
hoses for dirt and foreign particles.

Check the whole charge air path and charge air
cooler for foreign objects.

If foreign matter is found in the charge air system,
clean all relevant ducts and hoses and renew
charge air cooler if necessary.
Special tools and workshop equipment required

WORKSHOP MANUAL LEON CUP RACER
10 de 69

Engine bung set -VAS 6122-

Hose clip pliers -VAS 6362-

Support tool -T10038-
Removing
Caution
Risk of malfunctions caused
by dirt.
Observe →Chapter „Cleaning
rules“.
–
Drain coolant →Chapter.
–
Removing front exhaust pipe
with catalytic converter
→Chapter
–
Remove the air filter housing
→Chapter.
–
Remove Lambda probe -
G39- →Chapter „Lambda
probe - overview“.

WORKSHOP MANUAL LEON CUP RACER
11 de 69
–

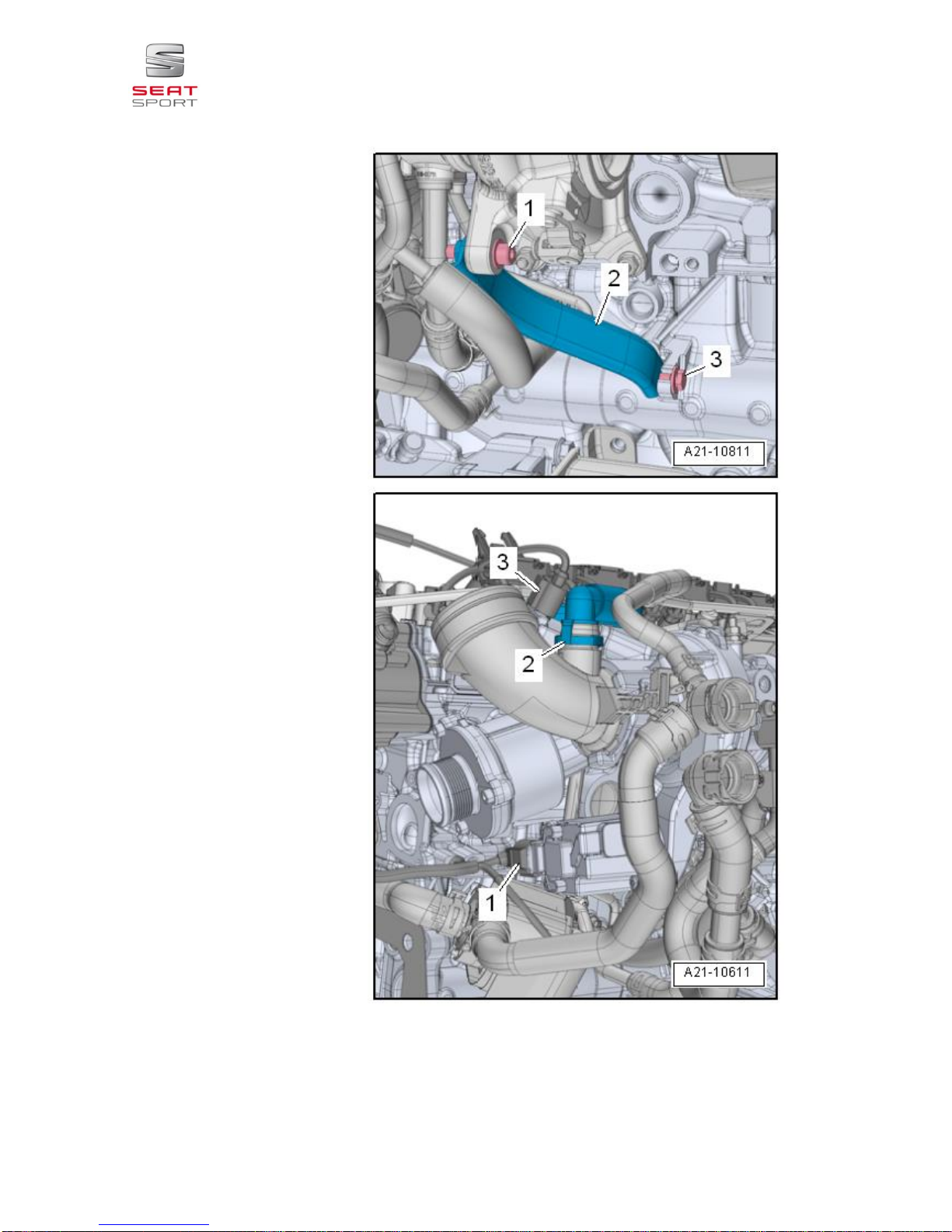

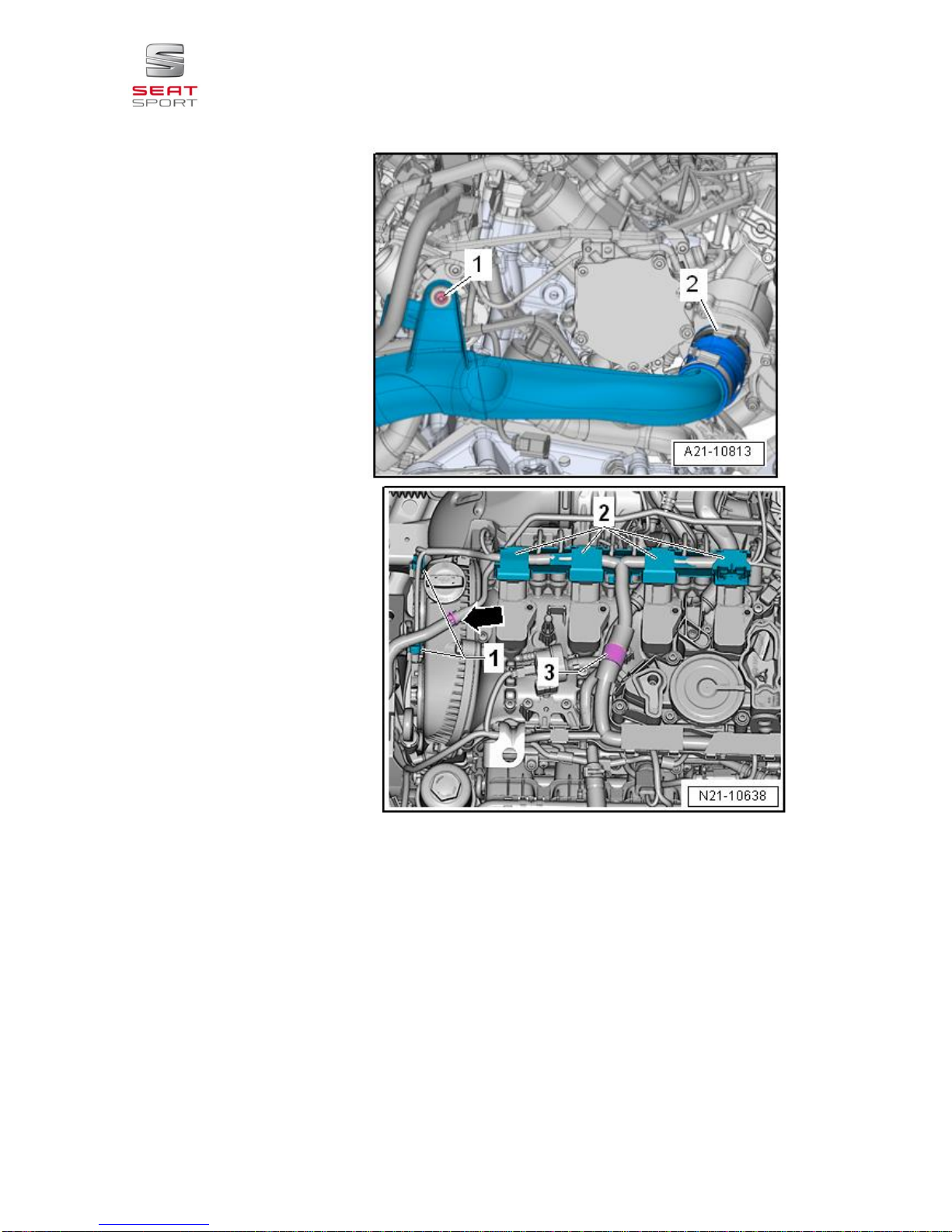

Release the hose clamp -
2-.
–
Remove bolt -1- and press
air pipe (left-side) towards
left slightly.
–
Remove coolant hose -
arrow-.
–

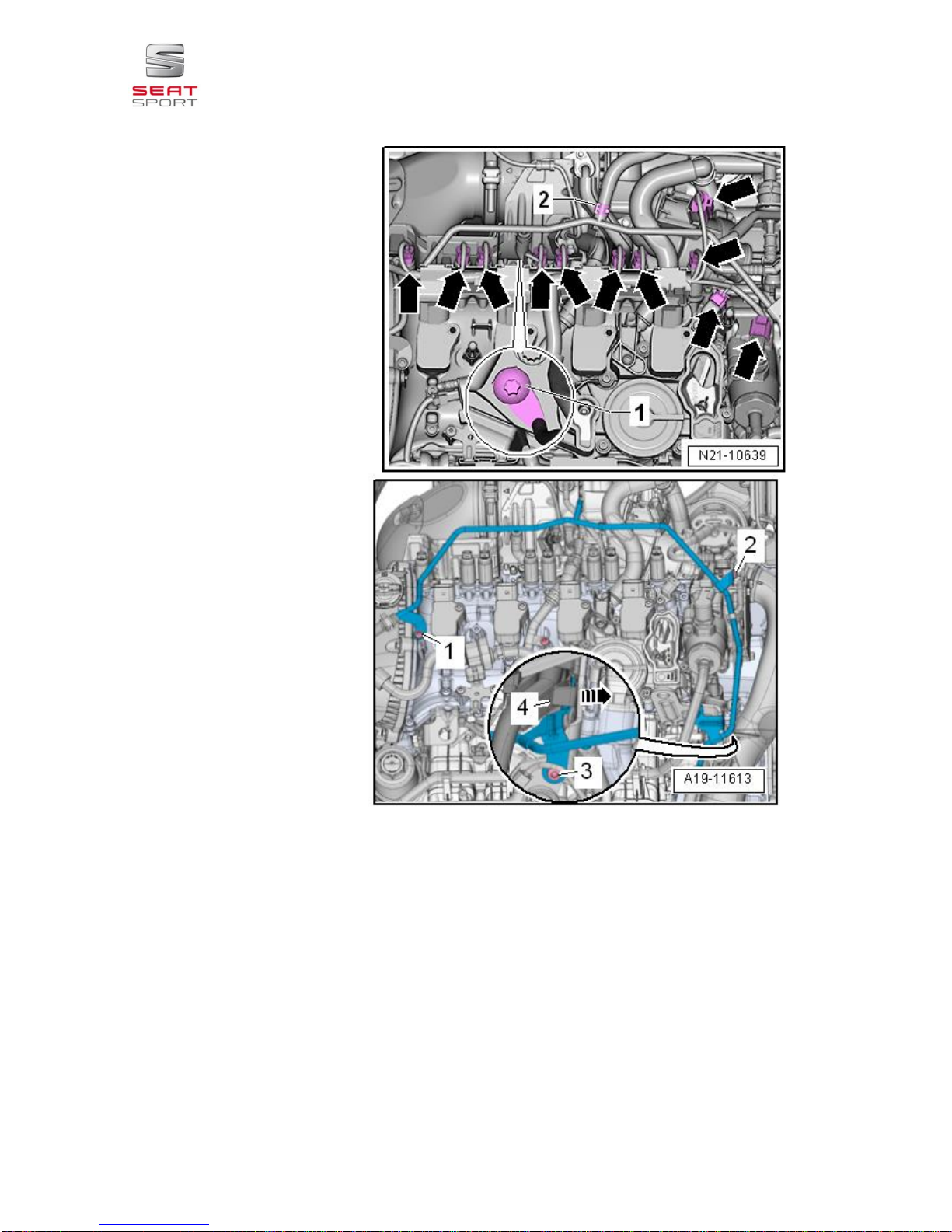

Separate connectors -1- and
-2-. Open retainer -3-.

WORKSHOP MANUAL LEON CUP RACER
12 de 69
–
Remove bolt -1- for earth
cable and remove coolant
hose -2-.
–
Pull off connector -arrows-.
–
Release fastener -arrow-
and remove wiring duct -4-
upwards from bracket.
–
Unscrew the bolts -1, 2
and 3-. Swivel coolant
pipe to the side.
–
Remove Lambda probe 1
before catalytic converter -
GX10- →Chapter.

WORKSHOP MANUAL LEON CUP RACER
13 de 69
–
Remove actuators for
camshaft adjustment -
arrows-.
–
Removing ignition coils
with output stages
→Chapter
–

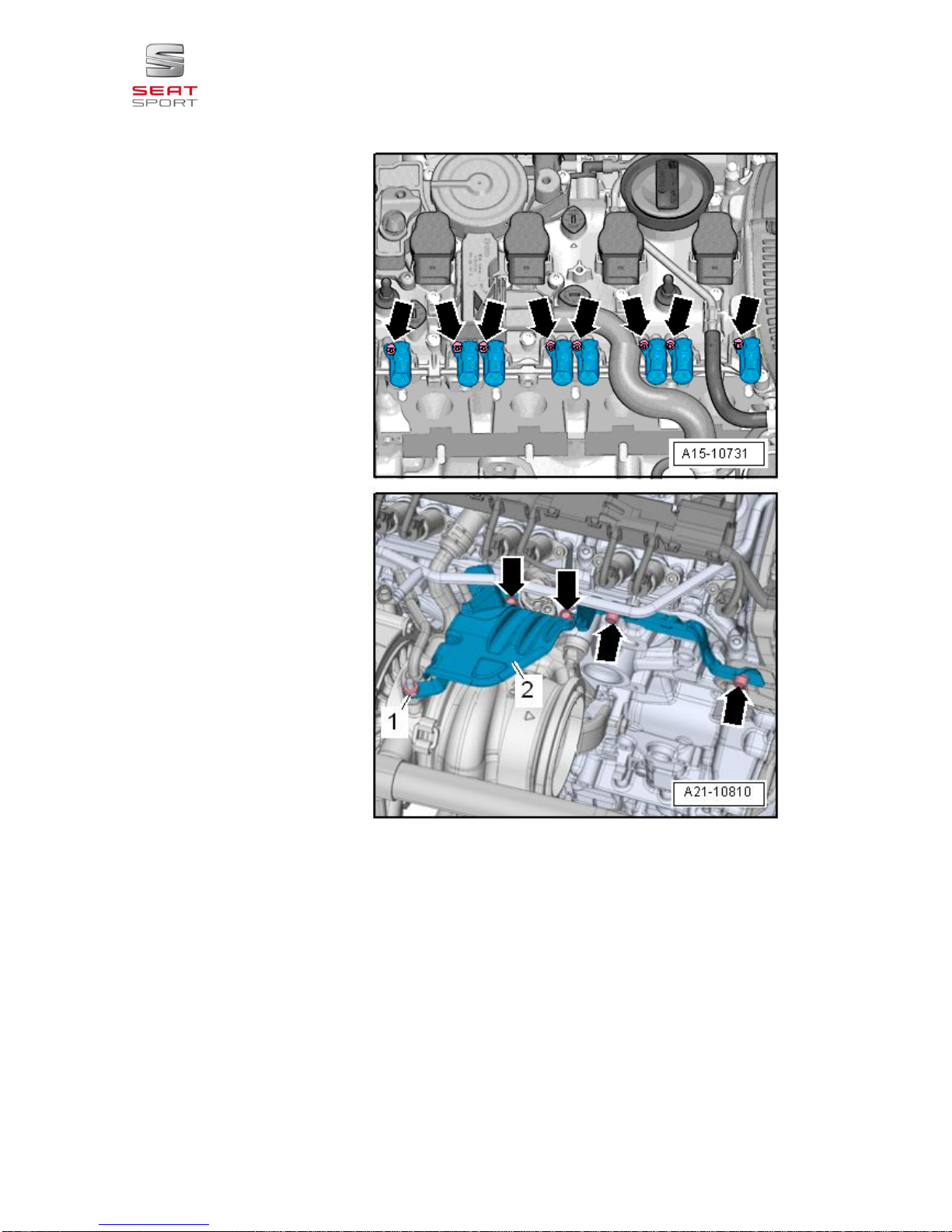

Remove bolts -arrows-
and nut -1-.
–
Detach heat shield -2-.

WORKSHOP MANUAL LEON CUP RACER
14 de 69
–
Remove bolt -1- and
loosen bolt -3-.
–
Remove bracket -2- for
turbocharger.
–
Detach electrical
connectors -1, 3-.
–
Press release tabs on
crankcase breather hose -
2- and detach hose.

WORKSHOP MANUAL LEON CUP RACER
15 de 69
–
Remove bolts -1- and
detach connection.
–
Unscrew bolts -2, 3- and
detach oil supply line and
oil return line.
–
Release hose clip -arrow-.
Note
The following procedure is
necessary to provide more
space between the cylinder
head and bulkhead.
–
Unscrew bolts -1, 2, 3-
and remove pendulum
support.

WORKSHOP MANUAL LEON CUP RACER
16 de 69
–

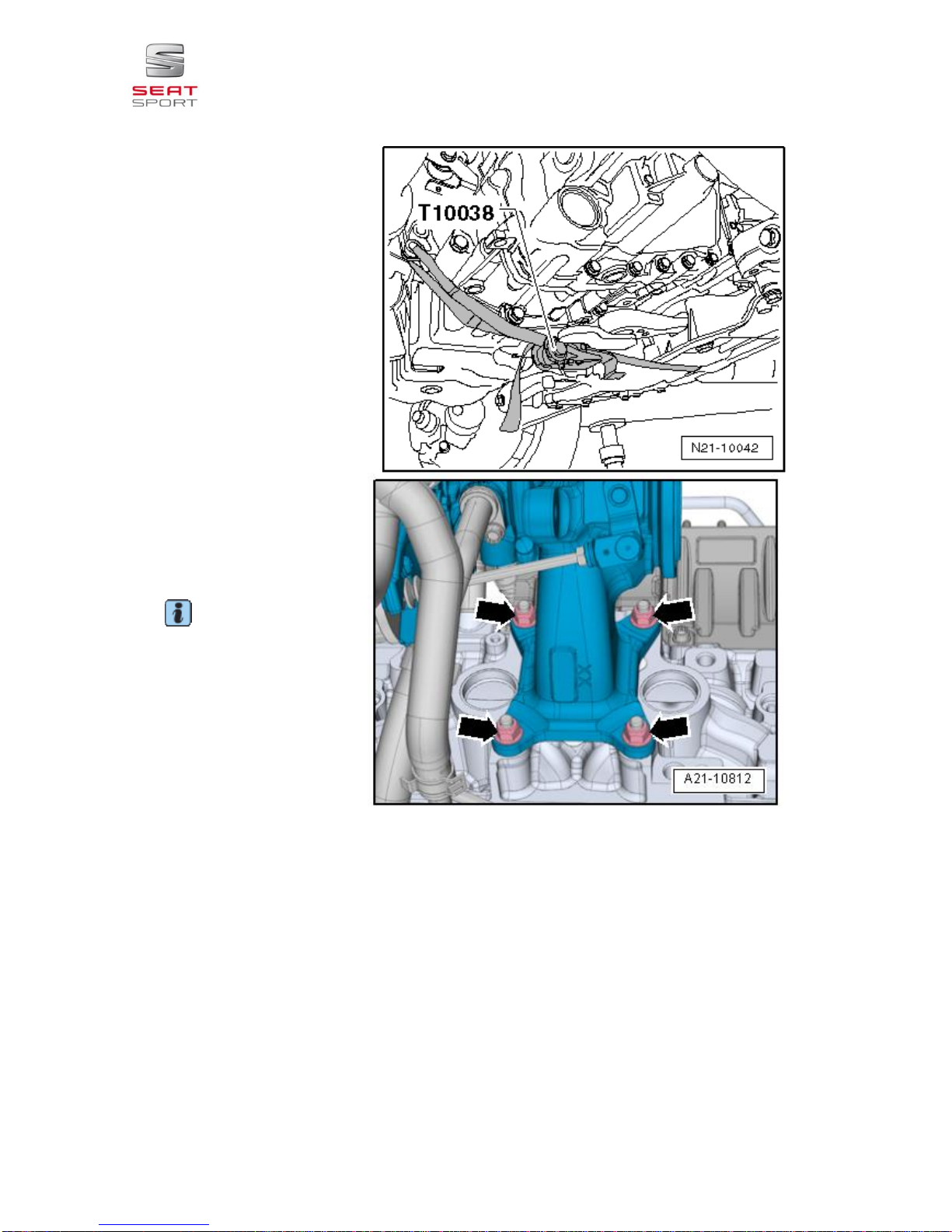

Pull engine back approx. 20
mm with tensioning strap -
T10038-.
–
Remove nuts -arrows-.
–
Detach turbocharger from
cylinder head.
Installation
Installation is carried out in
the reverse order; note the
following:
Note

Replace the seals, the
gaskets, O-rings and the
self-locking nuts.

Lubricate studs for
turbocharger with high-
temperature paste. For
high-temperature paste
refer to →Electronic parts
catalogue.

Fill turbocharger with
engine oil at connection
for oil supply line.

The brackets for the hoses
and the supercharger air
system tubes must be free
from oil and grease for
fitting.

Secure all hose
connections with the
correct type of hose clips
(same as original
equipment) →Electronic
parts catalogue.
–
Install front exhaust pipe
with catalytic converter
→Chapter.
–
Align the exhaust system
so it is free of stress

WORKSHOP MANUAL LEON CUP RACER
17 de 69
→Chapter.
–
Fill up with coolant
→Anchor.
–
Check oil level
→Booklet501.
Note
After installing turbocharger,
allow engine to idle for
approx. 1 minute and do not
rev up immediately to ensure
turbocharger is supplied with
oil.
Tightening torques

→Chapter „Turbocharger,
exploded view“

→Chapter „Air filter
cartridge: Assembly
overview“

→Chapter „Lambda probe
- overview“

WORKSHOP MANUAL LEON CUP RACER
18 de 69
2IGNITION SYSTEM
Ignition system: Assembly overview
2.1
1 -
Bolt

replace

20 Nm.

Tightening torque influences functions of knock sensor
2 -
Knock sensor I -G61-

remove and install →Chapter „Knock sensor 1 -G61-: Removing and installing“
3 -
Spark plug

WORKSHOP MANUAL LEON CUP RACER
19 de 69

30 Nm.

Remove and install with key -3122 B-
Intervals for changing filter
→Booklet 501
4 -
Ignition coil with output stage

Ignition coil 1 with output stage -N70-

Ignition coil 2 with output stage -N127-

Ignition coil 3 with output stage -N291-

Ignition coil 4 with output stage -N292-

Tightening torque: 10 Nm

remove and install →Chapter „Ignition coils with output stage: removing and fitting“
5 -
Bolt.

9 Nm
6 -
Hall sender 3 -G300-

Removing and installing Hall sender 3 -G300- →Chapter „Removing and installing
Hall sender 3 -G300-“

Renew O-ring.
7 -
O-ring

Renew if damaged
8 -
O-ring

Renew if damaged
9 -
Hall sender -G40-

Removing and installing Hall sender -G40- →Chapter „Removing and installing Hall
sender“.
10 -
Bolt

9 Nm
11 -
O-ring

Renew if damaged
12 -
Engine speed sender -G28-

Check O-ring for damage

remove and install →Chapter „Removing and installing engine speed sender -G28-“
13 -
Bolt
