Seatcraft ANTHEM Operating manual

Sofa with Drop-Down Table
ASSEMBLY & GENERAL USE GUIDE
2216
Rev. 5-23-2018
ANTHEM

What’s Inside the Box
Step 1: Connect the Power Headrest Cables
Step 2: Attach the Backrests to the Seat Base
Step 3: Connect the Power Cables
Step 4: Attach the Tray Tables
Step 5: Opening the Drop-Down Table
Using the Power Control Panel
Using the Reading Light
Using the USB/Power Panel
Troubleshooting Guide
Seat Part Lists
Proposition 65 Information
Important Safety Information
Warranty Info & Contact Information
2
3
4
5
6
7
8
9
10
11-13
14-16
17
18
19
Table of Contents
PAGE 1

PAGE 2
D. RED BAG
F. RED BAG
A.
B.
C.
D.
E.
F.
BACKREST
BACKREST WITH FOLD-DOWN TABLE
BACKREST
RED BAG
FOLD-DOWN TABLE RED BAG
RED BAG
What’s Inside the Box
C. BACKREST
E. FOLD-DOWN
TABLE RED BAG
A. BACKREST
B. BACKREST
WITH FOLD-DOWN
TABLE

PAGE 3
Connect each Powered Headrest Female Cable to each Powered Headrest Male Cable.
Connect the Power Headrest Cables
STEP 1

PAGE 4
Slide the Backrest Female Brackets onto the Backrest Male Brackets.
Push until you hear a click on both sides. This will indicate that each backrest is secured.
STEP 2
Attach the Backrests to the Seat Base

Power
Adapter
Power
Adapter
Power Adapter
Cable
Power Adapter
Cable
Headrest Light
Power Cable
USB/110V
Power Cable
PAGE 5
End Seats: Plug in the Power Adapter Cable to the Power Adapter. Connect the Power Adapter to the seat base.
Middle Seat: Plug in the Headrest Light Power Cable to seat base.
Plug in all four cables to a power source.

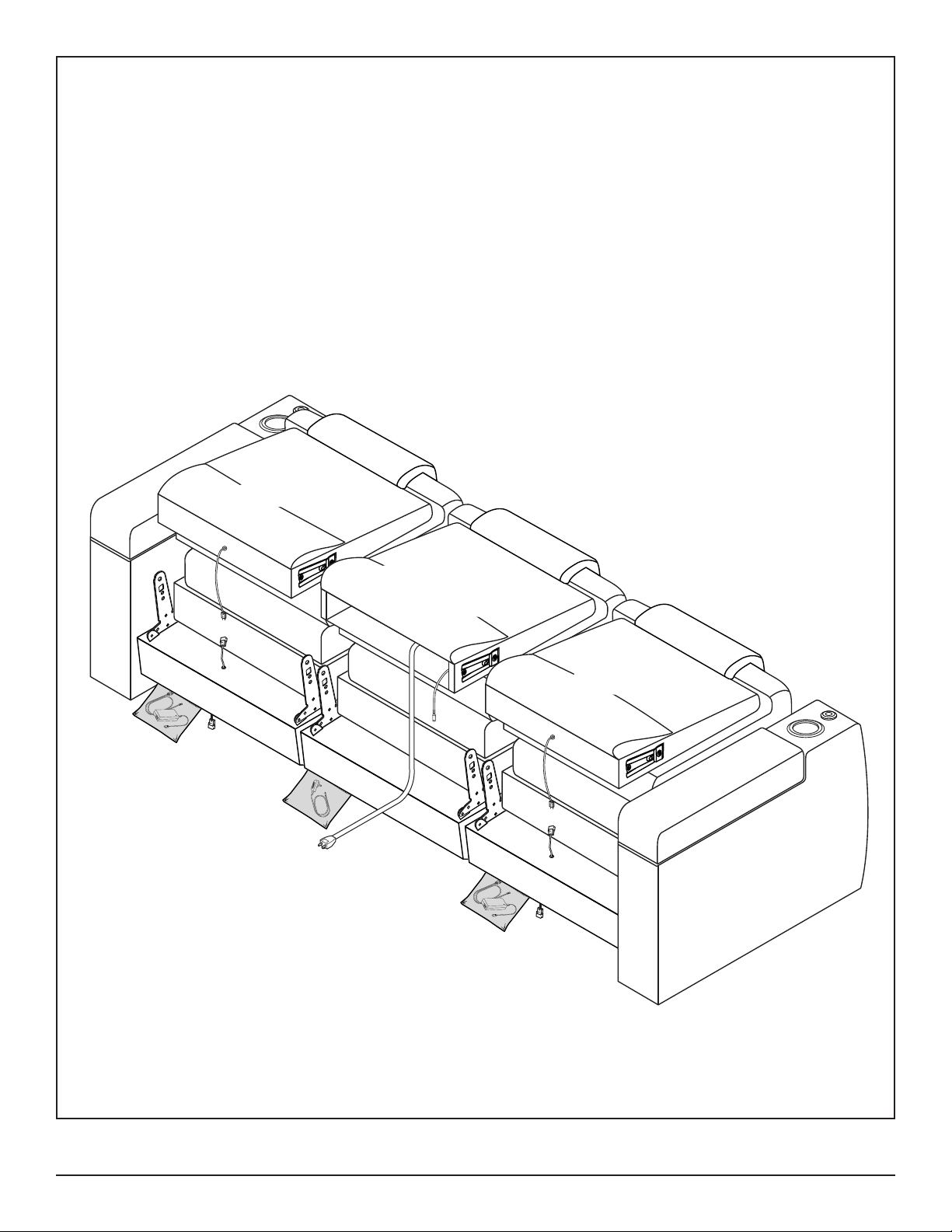

Connect the Power Cables
STEP 3

1
2
PAGE 7
STEP 4
Using the Fold-Down Table
Lift the headrest then pull down on the backrest to open the Fold-Down Table. Push the button on
the USB/110V Panel to access it. Push the USB/110V Panel shut when returning the Fold-Down
Table to its upright position.

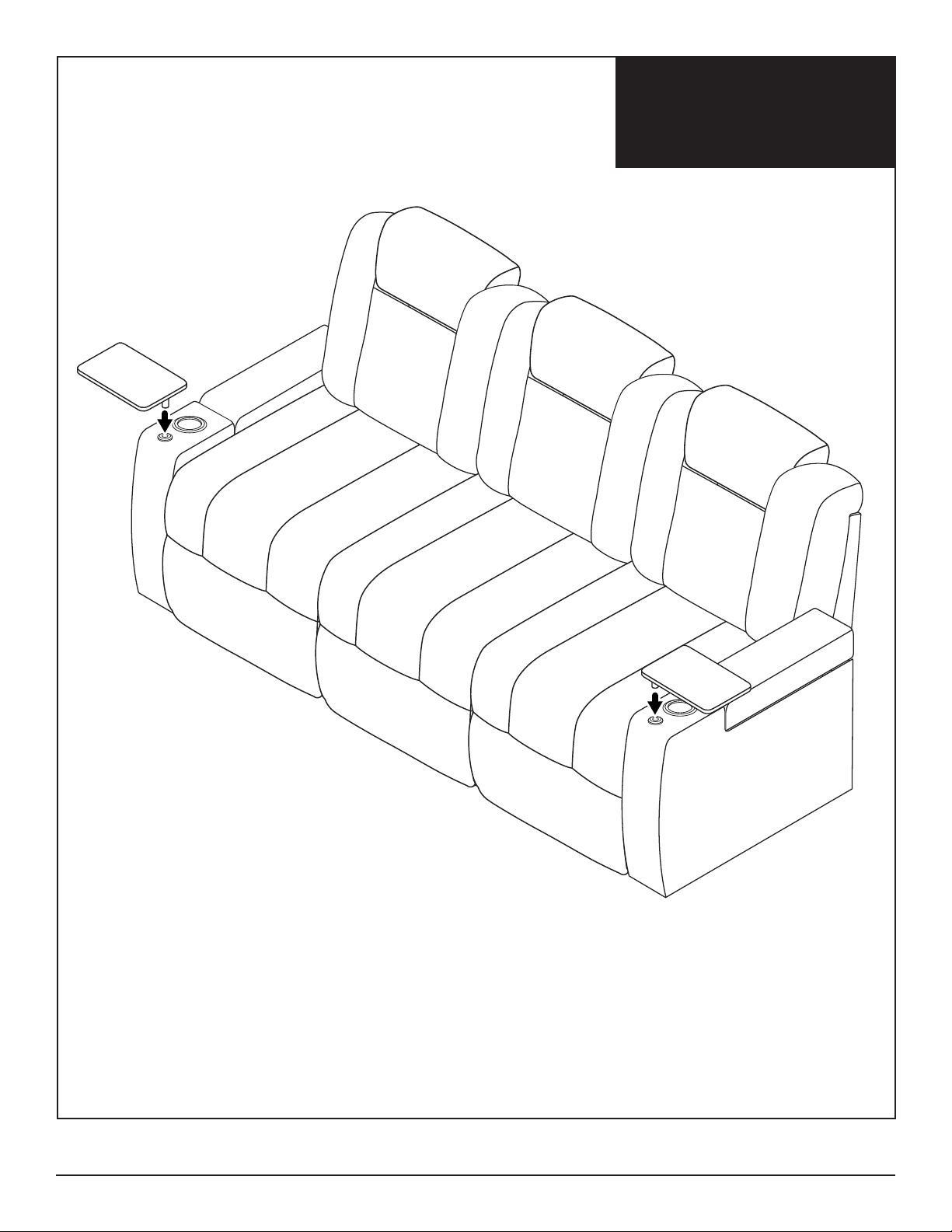

Attach the Tray Tables
PAGE 6
Open the in-arm storages to find your Tray Tables. Place each Tray Table into an accessory mount.
STEP 5

AMBIENT
LIGHT

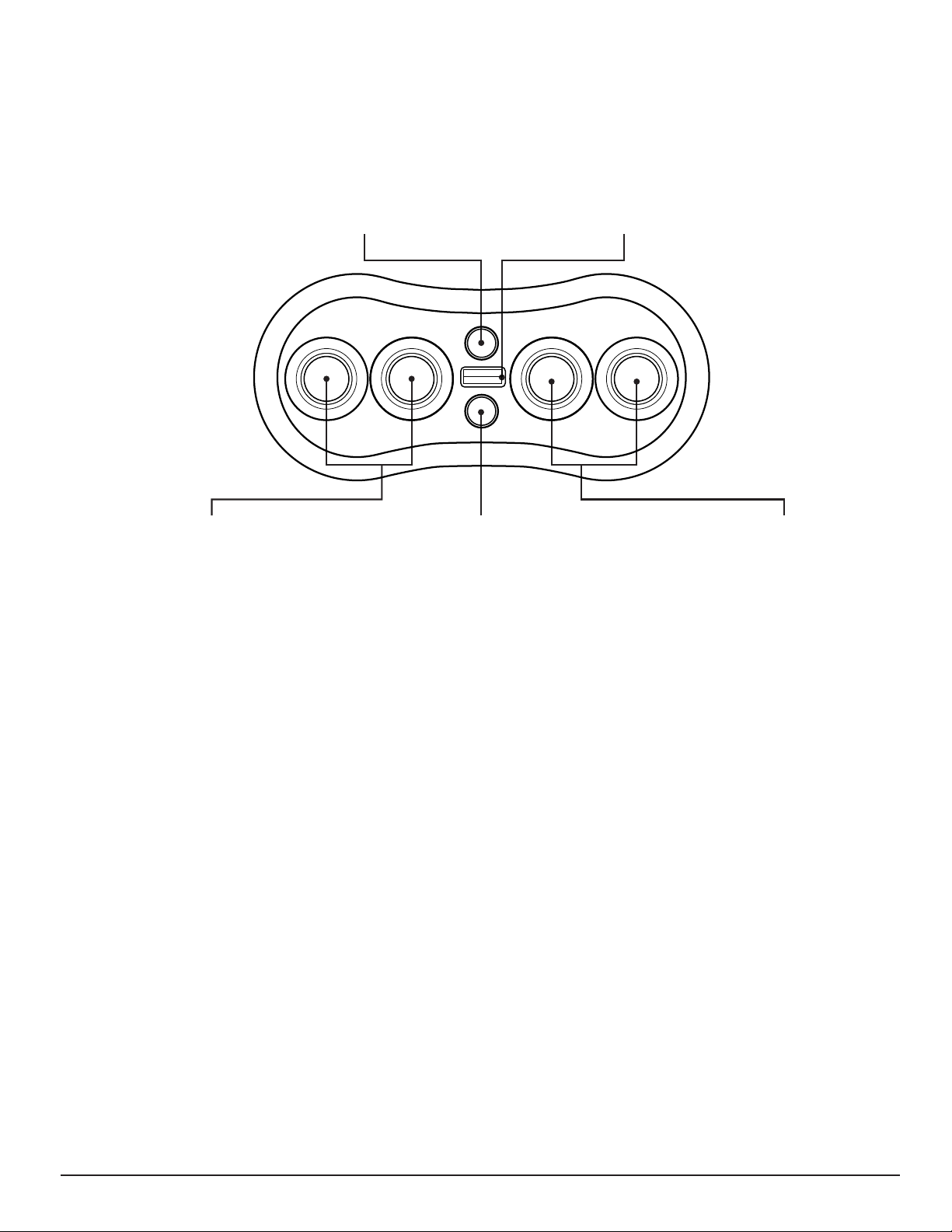

1. USB CHARGING
PORT
HOME BUTTON POWERED
HEADREST
POWERED
RECLINE
2.
3. 4. 5.
Using the Power Control Panel
AMBIENT LIGHT CONTROL
Push to turn the ambient base lighting and the lighted cupholders on or off.
1.
USB CHARGING PORT
Plug in any USB-powered device to charge it.
2.
POWERED RECLINE
Push to set the powered recline to your preferred position.
3.
HOME BUTTON
Hold to return the seat, headrest, and lumbar to its upright position.
4.
POWERED HEADREST
Push to adjust the powered headrest to your desired position.
5.
PAGE 8

LEFT READING
LIGHT
1.
RIGHT READING
LIGHT
2.
Using the Reading Light
LEFT LIGHT POWER SWITCH
Push to turn the left reading light on or off.
1.
RIGHT LIGHT POWER SWITCH
Push to turn the right reading light on or off.
2.
PAGE 9

110V
OUTLETS
1.
USB CHARGING
OUTLETS
2.
Using the USB/Power Panel
110V OUTLETS
Plug device in to power it.
1.
USB CHARGING OUTLETS
Plug in USB-powered device to charge it.
2.
PAGE 10

PAGE 11
Troubleshooting Guide
Why aren’t my chairs reclining?
Q.
A. The Power Adapters have become loose or disconnected.
213
Unplug and re-plug in the
Power Adapter to a wall
outlet.

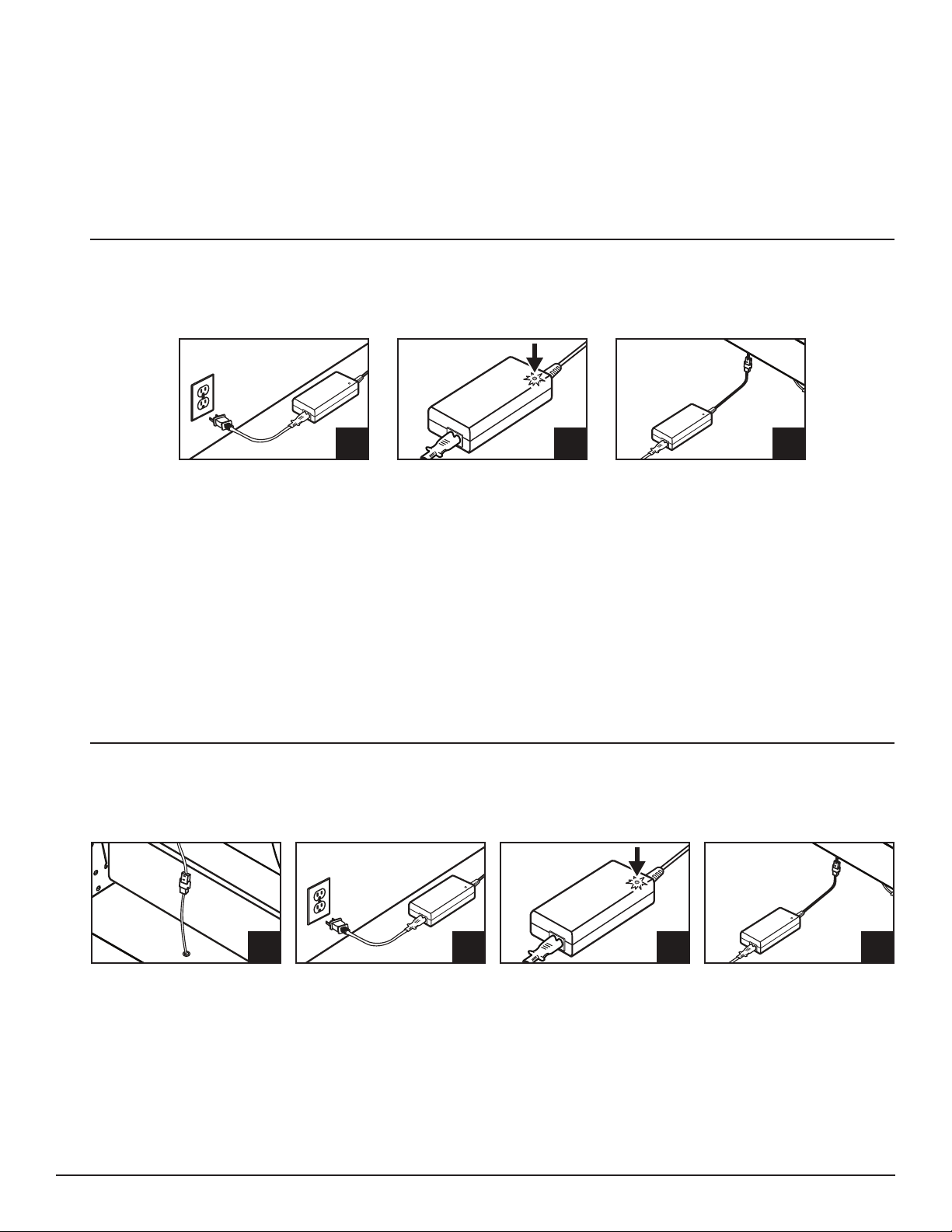

The green light on the
Power Adapter should be
illuminated.
Unplug and re-plug in
the Power Adapter to the
Powered Recline Cable.
The Powered Headrest Cables have become loose or disconnected.
Why isn’t my chair’s power headrest functioning?
Q.
A.
2134
Unplug and re-plug
the Powered Headrest
Cables to each other.
Unplug and re-plug in
the Power Adapter to
a wall outlet.
The green light on the
Power Adapter should
be illuminated.
Unplug and re-plug in
the Power Adapter to
the Powered Recline
Cable.

PAGE 12
Troubleshooting Guide
Why won’t the reading light on the fold-down table turn on?
Q.
A. The Reading Light Power Cable has become loose or disconnected.
The USB/110V Panel Power Cable has become loose or disconnected.
Why won’t my USB/110V Panel power any devices?
Q.
A.
Unplug and re-plug in
the Reading Light Power
Cable.
Unplug and re-plug in
the Power Adapter to a
wall outlet.
Unplug and re-plug in the
USB/110V Panel Power
Cable to a wall outlet.

PAGE 13
Troubleshooting Guide
How come the lights on my cupholder are not lighting up?
Q.
A. The Power Adapter has become loose or disconnected.
213
Unplug and re-plug in the
Power Adapter to a wall
outlet.
The green light on the
Power Adapter should be
illuminated.
Unplug and re-plug in
the Power Adapter to the
Powered Recline Cable.
How do I remove the backrest from the seat base?
Q.
A.
Pull up on the locking tab on the
Backrest Female Bracket and firmly
pull the backrest upward.
The Backrest Female Bracket has a locking tab.

Seatcraft Omega
Single Arm LAF Home Theater Seat
4057
PRODUCTION DATE:
2/1/2017 - CURRENT
Revised 5-21-2018

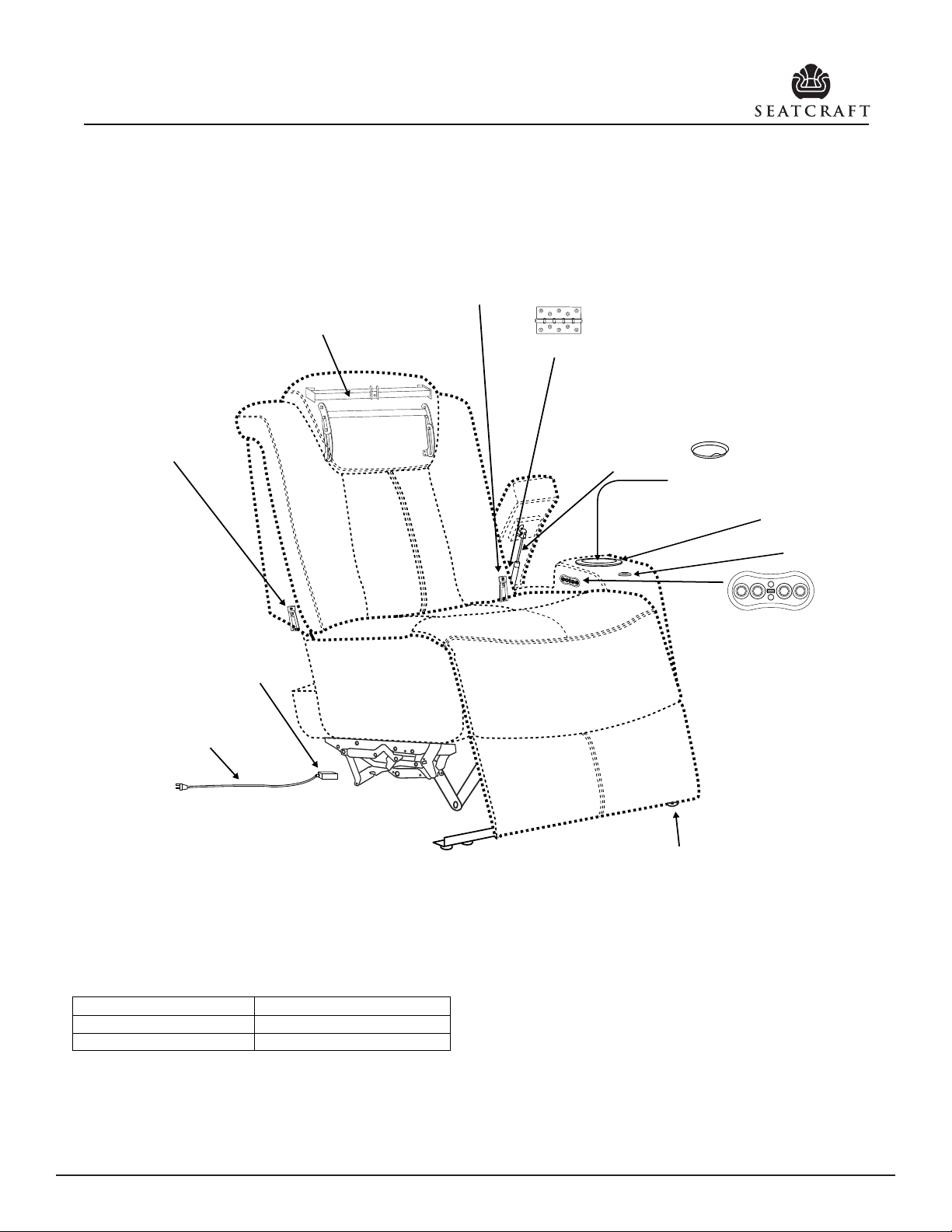

Recline Mechanism - Power
Recline Motor
Headrest Motor
Backrest Only
LAF Armrest - Power
PT-CE5318H-2
PT-ML8-184
PT-ML12-010
4057-(Material)-BC01
4057-(Material)-7406A01
PT-STT-1
BLACK TRAY TABLE
PT-EAS16027
POWER HEADREST
MECHANISM BRACKET
PT-H5-3
HINGE FOR ARMREST
PT-EAS16005
GAS SHOCK SET
PT-EAS16011
POWER ADAPTER
POWER ADAPTER CABLE
PT-MLTR006
PT-EAS16012
BACKREST BRACKET
(INTERNAL)
PT-EAS16012
BACKREST BRACKET
(INTERNAL)
PT-EAS16008
PLASTIC GLIDES FOR
MECHANISM
PT-CHI-24
CUP HOLDER INSERT
SILICONE SC LOGO
PT-STM-100
SWIVEL TABLE MOUNT
PT-LCH-402A
LIGHTED CUPHOLDER
POWER CONTROL
PANEL
PT-MLSK46-E-L
PAGE 14
Seatcraft Anthem Left Recliner
2216

Seatcraft Omega
Armless Chair with Drop-Down Table
4057
PRODUCTION DATE:
2/2017 - CURRENT
Revised 5-21-2018
PT-EAS16036
BLACK PLASTIC FOOT
PT-MLCZ005
USB/110V PANEL
PT-EAS16044
TWO HOLES PLASTIC TABLE
ON FOLD-DOWN TABLE
PT-LTDLR12
READING LIGHT
PT-EAS16046
READING LIGHT POWER ADAPTER
PT-EAS16047
HINGE FOR HEADREST
PAGE 15
Seatcraft Anthem Middle Seat
2216

Seatcraft Omega
Single Arm RAF Home Theater Seat
4057
PRODUCTION DATE:
2/1/2017 - CURRENT
Recline Mechanism - Power
Recline Motor
Headrest Motor
Backrest Only
RAF Armrest - Power
PT-CE5318H-2
PT-ML8-184
PT-ML12-010
4057-(Material)-BC01
4057-(Material)-7406C01
Revised 5-21-2018
PT-EAS16027
POWER HEADREST
MECHANISM BRACKET
PT-H5-3
HINGE FOR ARMREST
PT-EAS16005
GAS SHOCK SET
PT-EAS16011
POWER ADAPTER
POWER ADAPTER CABLE
PT-MLTR006
PT-EAS16012
BACKREST BRACKET
(INTERNAL)
PT-EAS16012
BACKREST BRACKET
(INTERNAL)
PT-EAS16008
PLASTIC GLIDES FOR
MECHANISM
PT-CHI-24
CUP HOLDER INSERT
SILICONE SC LOGO
PT-STM-100
SWIVEL TABLE MOUNT
PT-LCH-402A
LIGHTED CUPHOLDER
POWER CONTROL
PANEL
PT-MLSK46-E-R
PAGE 16
Seatcraft Anthem Right Recliner
2216

Proposition 65 Information
PAGE 17
Why did I find a Proposition 65 warning on my furniture product?
Q.
A. This warning label is very common and can be found on almost every piece of
furniture sold in the state of California. By law the state of California requires that
we include a Proposition 65 warning on all of our products.
A. You might have seen Proposition 65 warning labels at hotels, banks, restaurants,
and even at theme parks. Proposition 65 is a California law that requires warning
labels on products that may contain one of more than 800-plus chemicals or
ingredients that the California Office of Environmental Health Hazard Assessment
(OEHHA) has deemed to cause cancer or other reproductive toxicity. Chemicals
and elements on this list include saw dust, brass, and other everyday substances,
which can be found in very common household items, such as lamps, tableware,
jewelry, crystal glasses, electric cords, beauty products, automobiles, and furniture.
What is Proposition 65?
Q.

Important Safety Instructions
• Do not operate the unit until the back is installed and
locked.
• Closely supervise children and disabled persons using this
product.
• This product has many moving parts, serious injury can
occur if not used properly. Keep children and pets away
from the mechanism. Keep hands, ngers and body parts
away from the mechanism.
• Sit down in the unit slowly. To avoid tip over, do not throw
your weight against the back of the unit. Move the unit into
or out of the reclining position slowly, making sure that no
children or pets are in close proximity.
• Only the occupant should operate the unit. Never attempt
to open the leg rest by pulling on it.
• Do not stand, sit or place extra weight on the arms, back or
open leg rest.
• To safely exit the unit and prevent a tripping hazard bring
the back upright and close the leg rest.
• Provide a clear path for operation of the chair, back and leg
rest. Place tables and area rugs at a distance to allow the
leg rest to fully extend without rubbing or interference.
• Keep hands, arms and body parts away from the open area
between a reclined back and an upright back on a motion
sofa. This area must remain clear at all times to provide
unobstructed movement and prevent injury that could
occur when a reclined back is returning toward the upright
position.
PAGE 18
TO REDUCE THE RISK OF ELECTRIC
SHOCK OR SERIOUS INJURY:
TO REDUCE THE RISK OF BURNS, FIRE,
ELECTRIC SHOCK OR SERIOUS INJURY.
DANGER
WARNING
• Disconnect the electrical plug from the wall outlet before
cleaning, moving, servicing or when not in use for an
extended period of time.
• Do not use this product if it is wet, in water, around water or
any liquid.
• Use care when moving the product. Before lifting the
product, secure the mechanism to prevent unexpected
opening or movement. Never move the product by the
mechanism, leg rest, handle, reclining back or swivel base.
Disconnect modular units. Securely grip non-moving parts
only.
• Do not use this product if it is damaged. Do not use
attachments or substitute parts.
• Check the condition of the power transformer, electrical
cord, plug, and connectors regularly. Keep the power
transformer and electrical cords away from heat sources.
Never operate the unit with a damaged power transformer,
electrical cord, plug or connector.
• Do not use unit if power control is damaged or wet. Do not
use unit if the hand wand has been dropped in water or any
liquid.
• This product is not intended for use as a healthcare device.
• Users of medical devices should contact their healthcare
provider before using this product. Do not use this product
if you have poor circulation, are immobile or cannot sense
heat, except as directed by your healthcare provider.
• This product is intended for indoor residential use only.
• Always keep open ame and lit cigarettes away from
upholstered furniture. Upholstered furniture may burn
rapidly with toxic gas and thick smoke.

PAGE 19
Warranty Information
Seatcraft is proud of its high standards of quality and workmanship that go into our products.
The customer is protected by the following Limited Warranty, which applies to seats under
normal indoor residential use. This warranty does not apply to seats used for commercial,
institutional, or other non-residential uses.
ONE YEAR LIMITED WARRANTY: Seatcraft provides (1) one year comprehensive coverage
for all components such as materials, foam and frame parts, and mechanisms including
motorized parts from defective materials or workmanship.
MATERIAL: Normal fabric fading, shrinking, or stretching is not covered by this warranty.
Similarly, the natural markings, stretching, and shrinking of leather is a proud mark of
authenticity and therefore not covered by this warranty. Evidence of improper cleaning, abuse,
or abnormal use of the materials will void this warranty.
FOAM AND FRAME PARTS: Seatcraft warrants these components for (1) one year from the
time of delivery, against manufacturing defects. Foam compression is natural, and therefore
not covered by this warranty.
MECHANISMS: Seatcraft warrants these components for (1) one year from the time of delivery,
against manufacturing defects. After the warranty period, the customer is responsible for
inspection, labor and transportation costs.
No warranties, express or implied, apply after the expiration of this Limited Warranty. The
warranty period covers repair, substitution, and replacement. No returns or refunds are
covered. A proof of purchase is required to service a claim; simply present the bill of sale to the
dealer from whom the item was purchased, to request warranty service. Seatcraft is not liable
for incidental or consequential damages occurring outside the terms of this warranty, even if
advance knowledge of such damages was possible.
Contact Information
We’re here to help. For any missing or damaged parts or installation assistance please call us
at 1-855-244-0170.
HOURS
Mon-Fri 6AM - 7PM PST
Sat 9AM - 5PM PST
Sun 10AM - 5PM PST
