PRINCESS MODEL:2286
OWNER’S MANUAL
Installation –Operation -Maintenance
Serial Number:
CNG GAS COOKTOP
IMPORTANT:
Read all instructions before operating cooktop.
Save the Owner’s Manual / Installation instructions
for local inspector’s use.
Installer:
Provide this manual to theowner.
Owner:
Keep this manual for future reference.

2
WARNING
If the information in this manual is not followed exactly, a fire or explosion may
result causing property damage, personal injury or death.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in the vicinity
of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
•Evacuate all persons from vehicle.
•Shut off the gas supply at the gas container or source.
•Do not touch any electrical switch, or use any phone or radio in the vehicle.
•Do not start the vehicle’s engine or electrical generator.
•Contact the nearest gas supplier or qualified service technician, contact
nearest fire department.
•Do not turn on the gas supply until the gas leak(s) has been repaired.
Installation and service must be performed by a qualified installer, service agency
or the gas supplier.
FIRE HAZARD
Do not obstruct the flow of combustion and ventilation air.
PERSONAL INJURY HAZARD
To eliminate the risk of burns or fire by reaching over heated surface units,
cabinet storage space located above the surface unit should be avoided. If
cabinet space is to be provided, the risk can be reduced by installing a range
hood that projects horizontally a minimum of 5 inches beyond the bottom of the
cabinets.
Reaching over a heated cooking surface could result in a serious burn or other
personal injury.
CARBON MONOXIDE POISONING
•Do not use any cooking appliance for space heating because of potential
danger to occupantsand damage to the cooktop.
•A window or air vent should be open slightly while using any cooking
appliance. Gas flame consumes oxygen which must be replaced to assure
proper combustion and prevent carbon monoxide.

3
INSTALLATION
Installation must conform with local codes.
It is the responsibility of the installer to comply with the insulation clearances
specified on the serial / rating plate. The serial / rating plate is located on the
bottom of cooktop.
Check location where cooktop will be installed. The location should be away
from strong draft areas, such as windows, doors and strong heating vents or
fans.
CABINET INSTALLATION MODEL 2286
INSTALLATION DIAGRAM CUTOUT
11.375 (11 3/8") H
20.375 (20 3/8") W
* SEE PAGE 8 FOR MINIMUM OVERHEAD
NON-COMBUSTIBLE MATERIAL HEIGHT
AND ANSI STANDARDS FOR INSTALLATION
DC ELECTRICAL CONNECTION
**USE 9 to 12 VDC ONLY**
IGNITION WIRES:
RED to (+) Positive
WHITE to (-) Negative
1. Locate Cooktop according to the istallation diagram.
2. Cut-out counter top to dimensions shown.
3. Remove protective paper from the factory installed adhesive tape located on the
bottom side of the glass around the perimeter.
4. Set cooktop into cutout. Press down to engage adhesive tape on glass top to the
surface of the counter top.

4
CAUTION

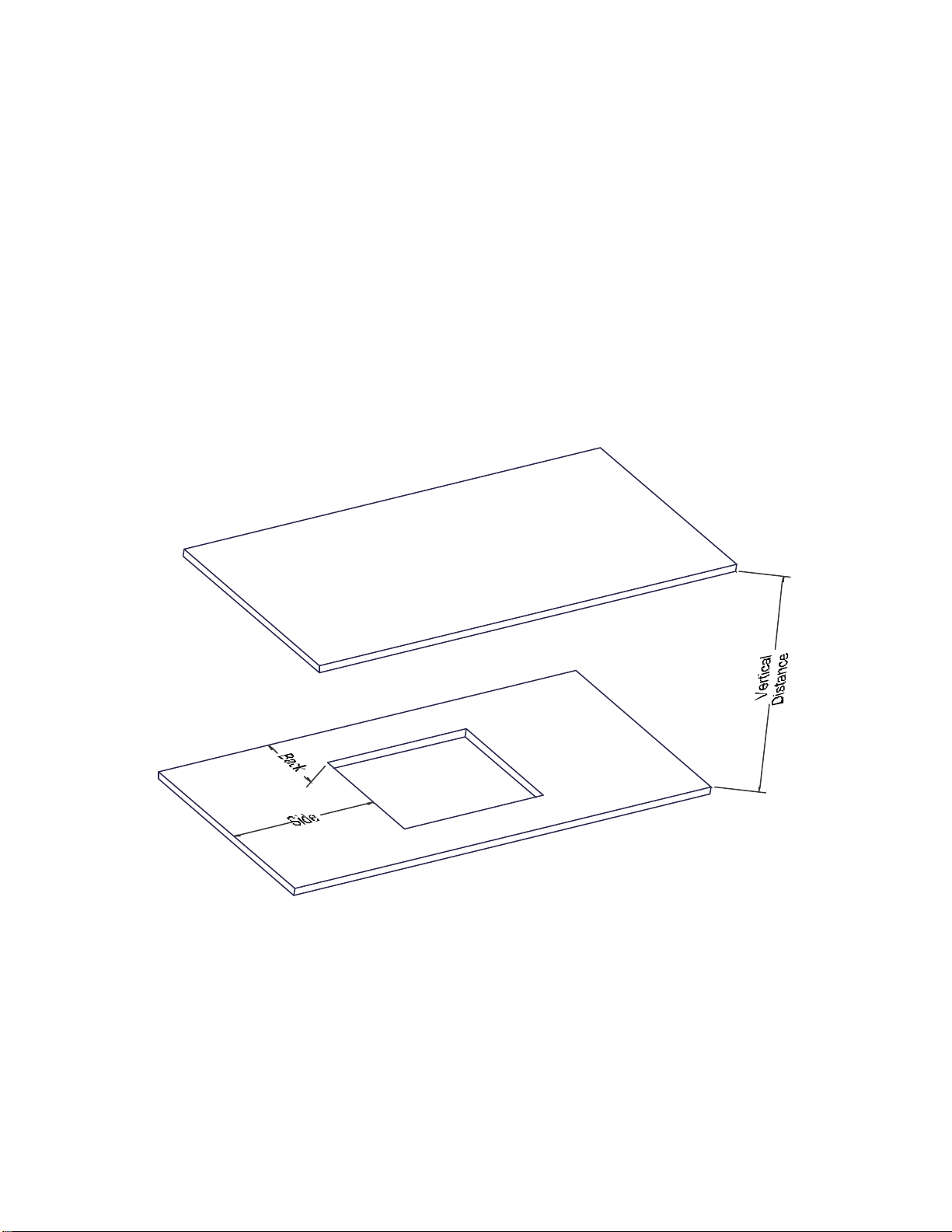

The minimum vertical distance to combustible material above the cooktop is 30
inches. This distance may be reduced to 24 inches if the combustible material
above the cooktop is protected by no less than ¼ inch thick insulating millboard
covered with 28 gauge sheet metal extending 9 inches beyond the sides of the
cooktop and covering the entire bottom of the material to be protected extending
over the top of the cooktop. In lieu of 28 gauge sheet metal, a hood, 28 gauge
sheet metal may be used. Hood shall not be less than the width of the cooktop
and shall be centered over the cooktop and cover the entire bottom of the
material to be protected.
The minimum horizontaldistance, outside edge to vertical walls:Back: 2”
Side: 2”

5
LEAK CHECK & LEAK DOWN TEST
Check all connections for gas leaks with a non-corrosive and non-toxic leak
detection fluid.
Ammonia, which is present in some soaps and detergents, attacks brass fittings.
Undetectable at first, in a matter of months these fittings may develop cracks and
leaks.
WARNING
DO NOT USE OPEN FLAME TO CHECK FITTINGS AND GAS LINES FOR LEAKS.
Checking for leaks with an open flame may result in a fire or explosion.
TO LIGHT THE BURNERS
1. Push down the knob and turn counterclockwise to “IGNITE” position.
2. Hold the knob down fully until the spark ignites the gas and continue to
hold the knob down for approximately 5 to 10 seconds. The
thermocouple will be heated to activate the safety mechanism.
3. Release the knob and set to desired setting.
4. To turn off the burner flame, turn the knob clockwise to “OFF” position.

6
CAUTION
•Be sure your cooktop is installed properly.
•Do not operate cooktop if it is damaged or not working properly.
•Do not store flammable materials on or near the cooktop.
•Never leave lit burners unattended. A boil-over may result, causing smoke or fire.
•Do not use your cooktop for warming or heating the room.
•The handle of utensil should be positioned so that it is turned inward but not
extending over adjacent burner.
•To reduce the risk of burns and ignition of flammable materials, the burner flame
should not extend beyond the edge of the cooking utensil.
•Grease is flammable. Never allow grease to collect around top burners or
cooktop surface. Wipe spillovers immediately.
•Only certain types of glass, glass / ceramic, earth ware, or other glazed utensils
are suitable for cooktop use without breaking due to sudden change in
temperature.
•Do not use water on grease fire. Smother the fire or flame or use baking soda,
multipurpose dry chemical or foam type fire extinguisher.
•Children should not be left alone or unattended in area where cooktop is in use.
Children should never be allowed to sit or stand on any part of the cooktop.
•Do not heat unopened containers. They could explode.
•Do not touch burners, grates or areas near cooktop after use. Units may be hot
even thought it may not be obvious. Areas near burners and grates may become
hot enough to cause burns. During and after use, do not touch, or let clothing or
other flammable material contact cooktop or areas near it until they have had
sufficient time to cool.
CARE AND CLEANING
Regular cleaning with a soft cloth and a warm detergent solution is generally enough to
keep your cooktop clean and beautiful. This is done when the cooktop is cool. Use a
dry cloth or paper towel to clean splatters and spills when surfaces are warm.
GLASS
We recommend the use of HOPE’S CLEANING CREAM for care and maintenance of
the glass surfaces. For more information about this product and a dealer near you,
contact: THE HOPE COMPANY, Inc. [phone]
STAINLESSSTEEL
The best way to clean metal surfaces on your stove is to wipe them down with a damp
cloth, and then dry thoroughly, stubborn spots caused by spillage and discoloration
from heat may be removed by the use of lemon juice, vinegar, or chrome polish. Care
must be used to keep these away from porcelain enamel surfaces. NEVER use coarse
cleaners, steel-wool scouring pads or metal brushes to clean chrome. These will make
deep scratches on chrome. These scratches cannot be removed.

7
EXPLODED VIEW & PARTS LIST
PRINCESS 2286
ITEM NO.
PART NO.
DESCRIPTION
173420 Grate
2 75710 Burner, Cap
3 75711 Burner, Ring
4 75712 Burner, Base
5 80777 Bowl, Spill
6 80292 Assy. ,Top
7 80421 Knob, With Insert
8 73884 Seal, Knob
9 74075 Manifold
ITEM NO.
PART N
O.
DESCRIPTION
10 75727 Switch, Ignition
11 75723 Valve
12 75724 Bracket, Valve
13 73666 Cover, Bottom
14 75228 Module, Ignition
15 73592 Regulator
16 72906 Fitting, 3/8” NPT X 3/8” Flare
17 75720 Thermocouple
18 75470 Fuel Line, Short
19 75462 Fuel Line, Long
1
2
3
4
5
6
7
8
9
10
11
12
13
14
18
17
16
15
19

8
LIMITED TWO YEAR WARRANTY
REPAIR PARTS
Repair parts listed herein may be ordered through Seaward Products. Seaward Distributors and
Dealers, or Dealer’s Authorized Service Centers. All parts will be shipped at prevailing prices.
When ordering repair parts, please give the following information:
(1) The part number
(2) The part description
(3) The model number of the cooktop
(4) The serial number of the cooktop
The model number and serial number of the water heater will be found on the rating plate located on
the front panel. For the Authorized Service Center nearest you, please contact Seward Products.
Seaward Products
3721 Capitol Avenue
Whittier, CA 90601-1732
Tel. [phone] Fax. [phone]
www.seawardproducts.com
SEAWARD PRODUCTS warrants the products delivered will be:
A. Free from (1) encumbrances and (2) defects in material and workmanship under the normal use and
service.
B. Will meet applicable specifications and descriptions at time of delivery to BUYER.
The obligation of SEAWARD under this warranty is limited to the repair,
Rework, or r
eplacement, at SEAWARD’S option, any part or component thereof, which examination
discloses to our satisfaction to have been nonconforming or defective. SEAWARD, after establishing
customer’s purchase date and determining problem to be under warranty, will
either repair the product at
their factory or authorized service center and allow labor and parts for (2) two years from purchase date.
Transportation charges are the responsibility of the customer. Conditions not covered under warranty are:
(1) Porcelain Enamel
(2) Glass
(3) Routine maintenance that may be required
The foregoing warranty and condition shall apply to any repaired, reworked, or replaced products, part or
component supplied by SEAWARD and shall in no event be liable to BUYER or BUYER’S customers for an
y
incidental or consequential damages, or loss of use, or other losses, however occasioned.
Implied warranties of merchantability and of the fitness of the product for any purpose are warranted for a
period of two years on parts and labor.
SEAWARD makes no warranties, expressed or implied after that time.
Some states do not allow limitation on how long an implied warranty lasts or for the exclusion or
limitations of incidental or consequential damages, therefore, the above limitations may not apply to you.
This warranty is extended to the original purchaser only, unless purchased for purpose of resale. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
