SECURITON GmbH, Von-Drais-Straße 33 77855 Achern, Germany TD 004 032d en

Filter-box FBS 25 (small)

Technical Documentation

Manufacturer:

SECURITON GmbH

Von-Drais-Straße 33

77855 Achern, Germany

www.securiton.de

The product

(hardware, software and technical documentation) is subject to the copyright of the manufacturer. Any prohibited

modification, misuse, copying or prohibited sale of this product represents a violation of the copyright and will be legally prose-

cuted.

Validity

Filter-box FBS 25 (small), Technical Documentation, TD 004 032d en 3 / 19

Validity

NOTICE

This document is valid only for the product described in this chapter and may be changed or withdrawn without

prior notice. The validity of the statements made in this document applies until the statements are revised by a

new edition of the document (TD 004 032 with new index). The user of this document is responsible for staying

up to date with its current status through the editor/publisher. We accept no responsibility for claims against any

incorrect statements in this document that were unknown to the publisher at the time of publication. Handwritten

changes and additions are invalid.

Foreign language documents as listed in this document are always released or changed at the same time as the

German edition. If there are inconsistencies between the foreign language document and the German document,

the German text is binding.

Some words in this document are highlighted in blue. These terms and designations are the same in all lan-

guages and are not translated. Users are encouraged to contact the editor/publisher if there are statements

which are unintelligible, misleading, incorrect or which contain errors.

This document is intended for trained specialists for mounting, installation, commissioning and maintenance of

the product.

NOTICE

The following document is applicable to the filter-box FBS 25 (small) with the following production version:

Production version

from 10716

The validity of older production versions is guaranteed, with the exception of the new functionalities described in

this edition. Additional information about the new functionalities can be found in the document history.

Document history

4 / 19 Filter-box FBS 25 (small), Technical Documentation, TD 004 032d en

Document history

First edition Date 01.02.2018

Index "a" Date 12/01/2012

Most important changes compared with previous issue:

Chapter New (n) / changed (c) / deleted (d) What / Reason

•6 c Article numbers Correction

•7 c Technical data New format

Index "b" Date 25/01/2013

Most important changes compared with previous issue:

Chapter New (n) / changed (c) / deleted (d) What / Reason

•6 c Article numbers Correction

•9 n List of figures Addition

•All c Documentation page format adjusted New document format

Index "c" Date 01/07/2016

Most important changes compared with previous issue:

Chapter New (n) / changed (c) / deleted (d) What / Reason

•c Manufacturing status update

•6 c Article numbers Correction

Index „d“ Datum 01.07.2019

Wichtigste Änderungen gegenüber Vorausgabe:

Kapitel Neu (n) / geändert (c) / gelöscht (d) Was / Grund

•All c Order, names of headings New template documentation

•5 c Update Fig.2 & Fig. 3 Supplement labeling, dimensioning

•6 c Update Fig.4 Supplement labeling, dimensioning

•8 c Article numbers New document format

Content

Filter-box FBS 25 (small), Technical Documentation, TD 004 032d en 5 / 19

Content

_________________________________________________________________________________________

General 7

1.1.1

Notice and warning symbols 7

1.1.2

Safety information 8

1.1.3

Regulation EC No. 1907/2006 (REACH) 9

1.1.4

Disposal 9

1.1

Product identification 9

1.2

Guarantee 9

1.3

Product changes 9

_________________________________________________________________________________________

Application area 10

_________________________________________________________________________________________

Construction 11

_________________________________________________________________________________________

Function 12

_________________________________________________________________________________________

Mounting guidelines 13

_________________________________________________________________________________________

Mounting / Commissioning 15

4.1

Mounting oft the filter mat filter-box FBS 25 (small) 15

_________________________________________________________________________________________

Maintenance / Service 16

_________________________________________________________________________________________

Article numbers 17

_________________________________________________________________________________________

Technical data 18

_________________________________________________________________________________________

List of figures 19

General

Filter-box FBS 25 (small), Technical Documentation, TD 004 032d en 7 / 19

1 General

Provided the product is deployed by trained and qualified personnel in accordance with this document, and provided the safety

symbols all notices are observed, there is no danger to persons or property under normal conditions and when used properly.

The product fulfils the requirements ensuring personal safety and environmental protection during operation. National and

state-specific laws, regulations and directives must be observed and adhered to in all cases.

Observe these danger notices. They help prevent accidents and damage.

1.1.1 Notice and warning symbols

The following notice and warning symbols are used to draw attention to hazards and special properties.

DANGER

The product may represent an immediate danger with a high level of risk to persons if the notice is not duly ob-

served. If the danger is not avoided, death or serious injury may result.

WARNING

The product may represent a possibly imminent danger with a medium level of risk to persons if the notice is not

duly observed. If the danger is not avoided, death or serious injury may result.

CAUTION

The product may represent a possibly imminent danger with a low level of risk to persons if the notice is not duly

observed. If the danger is not avoided, a minor injury may result.

NOTICE

If this notice is not observed, the product may malfunction, may cause property damage, or may be harmful to

the environment.

General

8 / 19 Filter-box FBS 25 (small), Technical Documentation, TD 004 032d en

1.1.2 Safety information

ELECTRICAL SHOCK

The product is operated with electrical current. In the event of incorrect mounting, installation, commissioning or

maintenance, an electrical shock may be life-threatening or there is the danger of serious injury. It is imperative

that the safety information is observed.

READ THE USER INSTRUCTIONS

To ensure safe and proper use, it is absolutely necessary to read the instructions and other documentation ac-

companying the product before use and to keep such documentation at hand for later reference. It is imperative

that the danger information in particular is observed.

ELECTROSTATIC DISCHARGE

The product includes electronic components that are sensitive to electrostatic discharge (ESD). Contact with

persons or objects can cause an electrostatic discharge that damages or destroys the product. ESD bands for

preventing electrostatic discharge are used for grounding persons and for equipotential bonding.

General

Filter-box FBS 25 (small), Technical Documentation, TD 004 032d en 9 / 19

1.1.3 Regulation EC No. 1907/2006 (REACH)

REGULATION EC NO. 1907/2006 (REACH)

General note: Declaration on the Regulation EC No. 1907/2006 on the Registration, Evaluation, Authorization and

Restriction of Chemicals (REACH).

If the products contain substances from the candidate list in a concentration of >0.1% in accordance with Article

33 of Regulation (EC) No. 1907/2006 (REACH) and with regard to the associated safe handling, please visit the

following website: https://www.securiton.de/.

1.1.4 Disposal

Electrical and electronic devices and batteries

It is not permitted to dispose of electrical and electronic devices or batteries in the domestic rubbish. As the end

user you are legally obliged to return them. Used electrical and electronic devices as well as batteries can be re-

turned to the seller or taken to a designated recycling centre (e.g. a community collection point or dealer) at no

cost.

RECYCLING

The product and its components including their packaging consist of recyclable material and can be disposed of

for recycling purposes as described in this document.

1.1 Product identification

NOTICE

The rating plates, type designations and/or identifications on devices and printed circuit boards must not be re-

moved, written over or defaced in any way.

1.2 Guarantee

NOTICE

The product may be operated only with the hardware, software and commissioning media designated and deliv-

ered by the manufacturer. Any unauthorised intervention in the hardware and/or software or the use of non-

system products is prohibited and may result in malfunctions and/or damage to the product. If this is not ob-

served, all guarantee and warranty rights with respect to the manufacturer of the product will become null and

void. Further, non-observance of the user instructions as well as improper maintenance and repair work void the

guarantee and product liability.

1.3 Product changes

NOTICE

It is always recommended to use the latest version of the product software. A change to hardware or software of

a product made by the manufacturer, is not a right to an update for existing products.

Application area

10 / 19 Filter-box FBS 25 (small), Technical Documentation, TD 004 032d en

2 Application area

The filter-box small FBS 25 is used as an accessory part for aspirating smoke detectors SecuriRAS

in areas with low tem-

perature conditions (below 0°C) and high dust levels to prevent false alarms and to increase the lifespan of the smoke sen-

sors substantially.

The filter insert is designed for the separation of particles and impurities. Due their particle size, smoke particles can pass

through this filter unhindered. Reliable and fast fire detection is thus ensured.

Construction

Filter-box FBS 25 (small), Technical Documentation, TD 004 032d en 11 / 19

3 Construction

The filter-box FBS 25 (small) is part of the sampling pipe. The housing is made of polycarbonate, light grey paint (RAL 7035).

The filter box can be opened using the four cover screws in order to clean the filter mat small to change it.

Fig. 1 Filter-box small FBS 25 open

Function

12 / 19 Filter-box FBS 25 (small), Technical Documentation, TD 004 032d en

4 Function

The air polluted with dust particles is also aspirated by the aspirating smoke detector. To prevent false alarms, the aspirated

air must be purified of these particles. The filter-box FBS 25 (small) can be used for this purpose as an additional accessory

component.

This is to be arranged directly in front of the evaluation unit in the sampling pipe (see Mounting guidelines). The aspirated air is

conducted across the filter mat to filter the dust particles. If the filter mat is contaminated, it should be replaced during mainte-

nance.

Advantages of the filter-box FBS 25 (small):

•Prevention or substantial reduction of false alarms

•Lengthening of lifespan of smoke sensors

•Very low installation costs

•Subsequent installation possible at any time

•Low operating costs

•Applicable for all aspirating smoke detectors

•Quick, clean and inexpensive solution

•Field of application deep freeze area

Mounting guidelines

Filter-box FBS 25 (small), Technical Documentation, TD 004 032d en 13 / 19

5 Mounting guidelines

265mm

348 mm

82 mm

80 mm

Aspirating smoke detector

SecuriRAS

ASD 535

Filter-box FBS 25

(small)

Manual ball valve

MV 25

S ecu ri ton

Fau lt

Ala rm

Det.

dusty

Re set

2-wire connection

cable

Wiring connection unit

WCU 535 PC

300 mm

82 mm

150 mm150 mm

80 mm

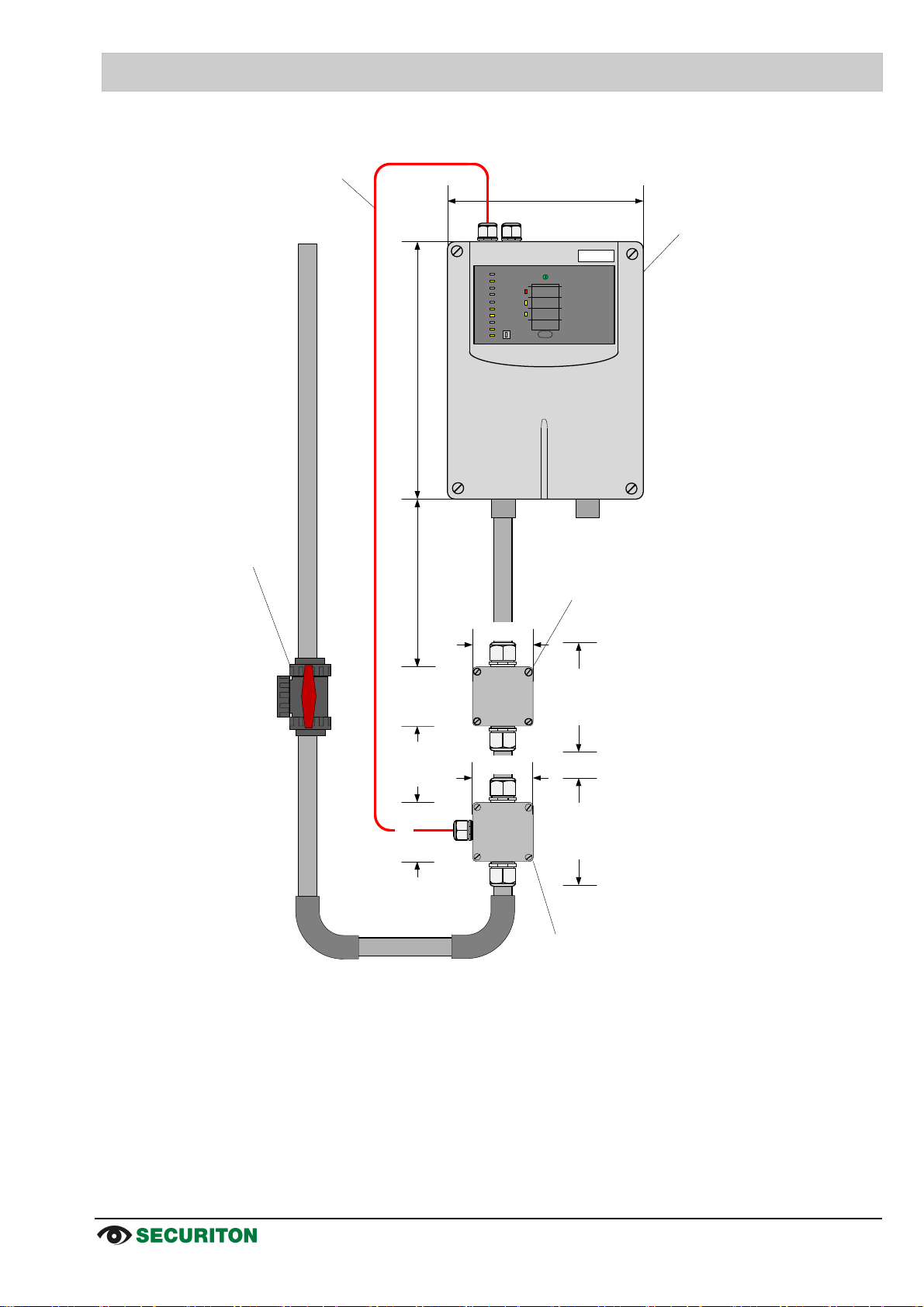

Fig. 2 Standard-Installation for use in deep freeze area with the Wiring connection unit WCU 535 PC

Mounting guidelines

14 / 19 Filter-box FBS 25 (small), Technical Documentation, TD 004 032d en

Optional:

S ecu ri ton

Fau lt

Ala rm

Det.

du sty

Re set

265mm

348 mm

82 mm

Aspirating smoke

detector SecuriRAS

ASD 535

Filter-box FBS 25

(small)

Manual ball valve

MV 25

300 mm

150 mm

80 mm

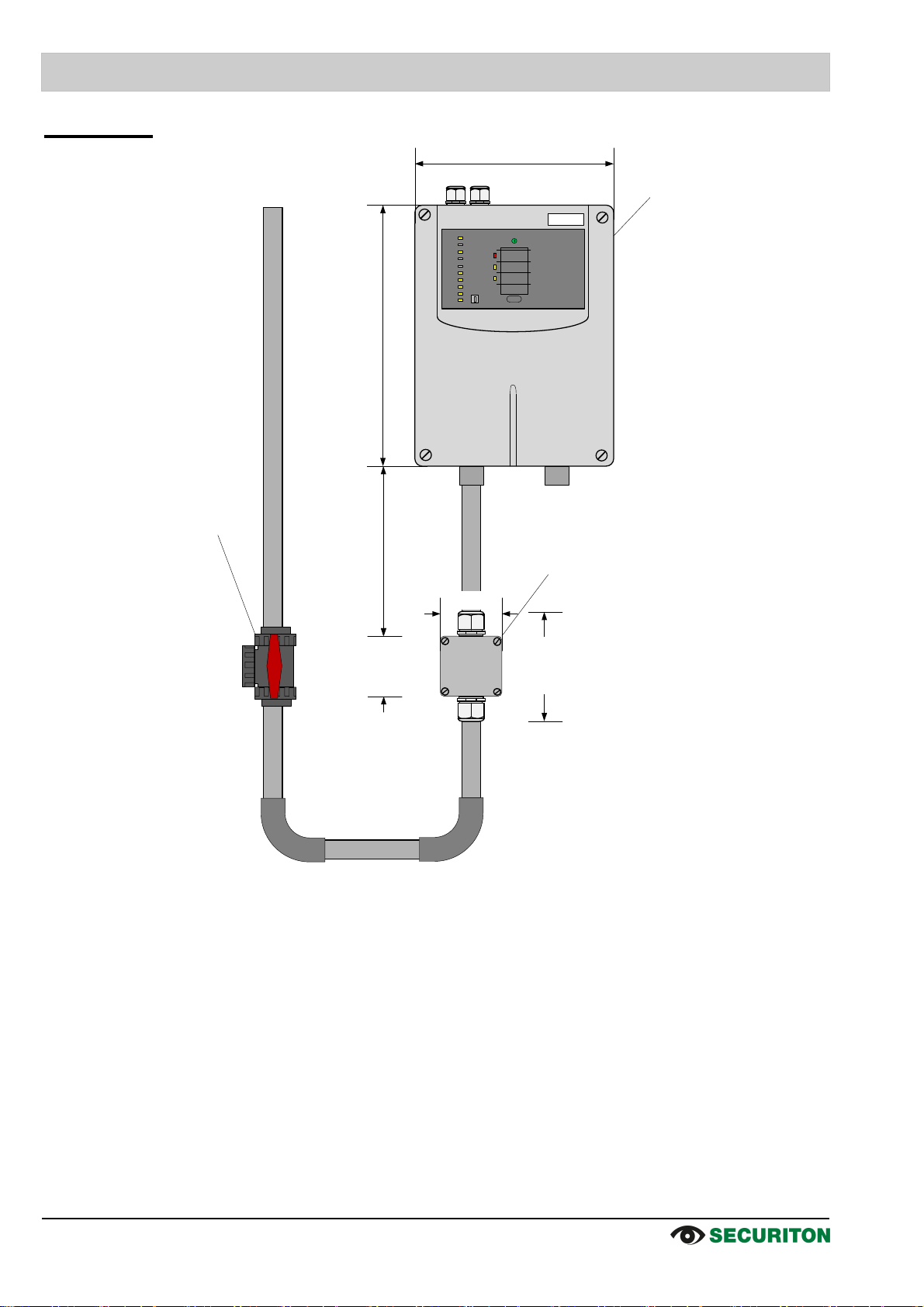

Fig. 3 Installation without the Wiring connection unit WCU 535 PC

Mounting / Commissioning

Filter-box FBS 25 (small), Technical Documentation, TD 004 032d en 15 / 19

6 Mounting / Commissioning

The filter-box FBS 25 (small) must always be installed below the aspirating smoke detector to prevent false alarms due falling

dust particles. If the formation of ice (at temperatures up to -30°C) can be expected at the sampling holes, a wire connection

unit WCU 535 should be installed in front of the filter box in accordance with the application guidelines for deep freeze stores

(T131390). Assembly and arrangement should be carried out in accordance with the Mounting guidelines.

4.1 Mounting of the filter mat filter-box FBS 25 (small)

The Filter mat has to be placed with the mash side to the ASD and the fleece side in direction of the sampling pipe.

80 mm

82 mm

reinforced

mash

to the aspirating smoke detector

SecuriRAS® ASD 53-x

to the sampling pipe

Fig. 4 Mounting orientation filter-box FBS 25 (small)

Maintenance / Service

16 / 19 Filter-box FBS 25 (small), Technical Documentation, TD 004 032d en

7 Maintenance / Service

NOTICE

Maintenance and service work on fire alarm systems are subject in part to country-specific laws and directives.

Maintenance and service work may be performed only by persons trained and authorised by the manufacturer of

the aspirating smoke detector.

The technical documentation of the respective aspirating smoke detector must always be considered.

When carrying out maintenance work on the aspirating smoke detector, the filter mat should be replaced for the filter box

"small", if necessary, and contamination within the filter box should be removed.

Article numbers

Filter-box FBS 25 (small), Technical Documentation, TD 004 032d en 17 / 19

8 Article numbers

Abbreviated designation

Art. No. SECURITON

Aspirating smoke detector SecuriRAS® ASD 535-1 ASD 535-1 5000623-0101

Aspirating smoke detector SecuriRAS® ASD 535-2 ASD 535-2 5000623-0102

Aspirating smoke detector SecuriRAS® ASD 535-3 ASD 535-3 5000623-0103

Aspirating smoke detector SecuriRAS® ASD 535-4 ASD 535-4 5000623-0104

Smoke sensor SSD 535-1 SSD 535-1 5000613-0101

Smoke sensor SSD 535-1 CP SSD 535-1 CP 5000613-2201

Smoke sensor SSD 535-2 SSD 535-2 5000613-0102

Smoke sensor SSD 535-2 CP SSD 535-2 CP 5000613-2202

Smoke sensor SSD 535-3 SSD 535-3 5000613-0103

Smoke sensor SSD 535-3 SSD 535-3 CP 5000613-2203

Filter-box FBS 25 (small) FBS 25 PC 50-0500143-01-xx

Filter mat filter-box FBS 25 FBS 25 filter mat 50-0500112-01-xx

Wire connection unit WCU 535 PC WCU 535 PC 11-2300046-01-xx

Manual ball valve MV 25 PVC MV 25 PVC 50-0500175-01-xx

Manual ball valve with safety lock MV 25 PVC MV 25 PVC (SH) 50-0500175-02-xx

Manual ball valve MV 25 ABS MV 25 ABS 50-0500174-01-xx

Manual ball valve with safety lock MV 25 ABS MV 25 ABS (SH) 50-0500174-02-xx

Technical data

18 / 19 Filter-box FBS 25 (small), Technical Documentation, TD 004 032d en

9 Technical data

Features

Environmental conditions

Expanded environmental conditions:

•Temperature range -30 to +60

°C

Introduction 2x screw connections M32

incl. sealing

Housing material Polycarbonate (PC)

Housing colour Light grey 7035

RAL

Approval

VdS G208154

Building product approval 0768-CPR-20600

Dimensions (H x W x D)

- without fittings: 80 x 82 x 85

- with fittings: 150 x 82 x 85

Weight

- without packaging: 0,279

- with packaging: 0,330

List of figures

Filter-box FBS 25 (small), Technical Documentation, TD 004 032d en 19 / 19

10 List of figures

Fig. 1 Filter-box small FBS 25 open......................................................................................................................................................11

Fig. 2 Standard-Installation for use in deep freeze area with the Wiring connection unit WCU 535 PC.................................................13

Fig. 3 Installation without the Wiring connection unit WCU 535 PC.......................................................................................................14

Fig. 4 Mounting orientation filter-box FBS 25 (small).............................................................................................................................15

Table of contents
