Securitytronix ST-DLI600VP3.6-B-W User manual

v1.0 12/20/11
1

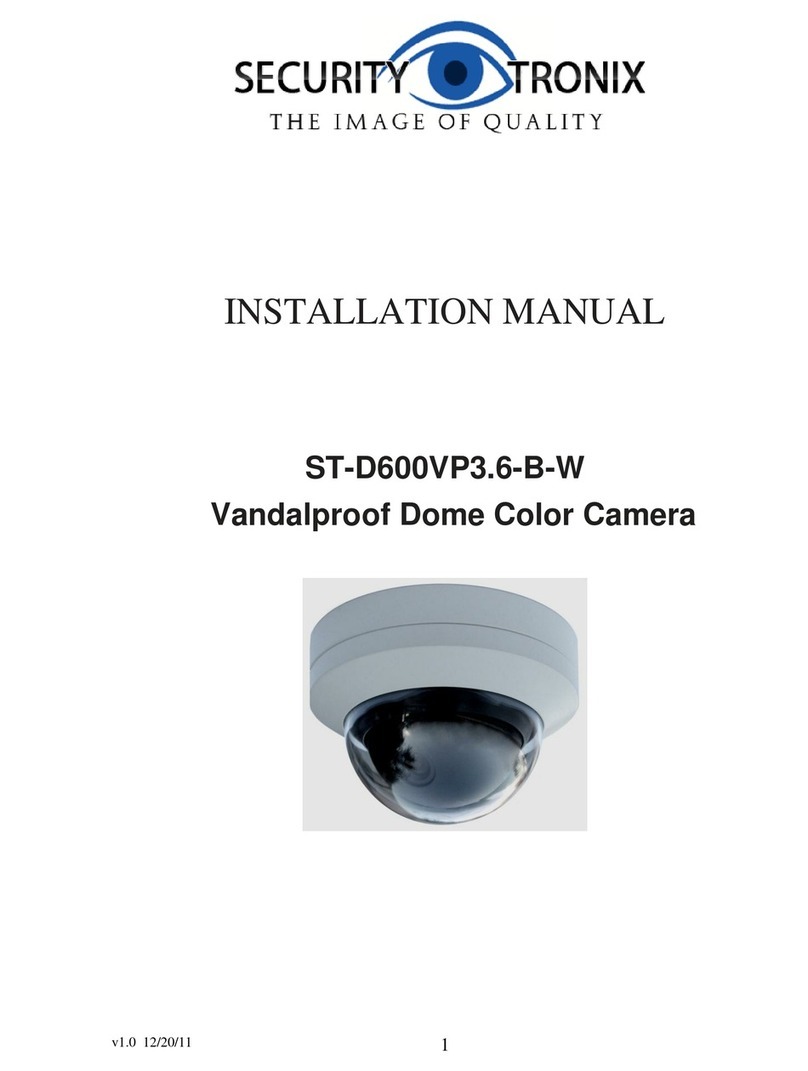

INSTALLATION MANUAL
ST-DLI600VP3.6-B-W
Vandal proof Dome Color Camera

v1.0 12/20/11
2
PACKAGE CONTENTS
This package contains:
One ST-DLI600VP3.6 vandalproof color camera
One installation manual
Note: The ST-DLI600VP3.6 requires a minimum12VDC 150mA power supply such as the
ST-PS12VDC1A or ST-PS12VDC2A.
PRODUCT DESCRIPTION
The ST-DLI600VP3.6 is a vandalproof dome color camera designed around a 1/3” Color SONY
Super HAD CCD with 600TVL of resolution. The camera’s 3.6mm lens provides an optimal field of
view for close-monitoring applications. The ST-DLI600VP3.6 size and packaging allow it to be
easily and discretely installed. Its rich color, high definition and on-screen menu setup make it
attractive for CCTV security applications.
SPECIFICATIONS
ST-DLI600VP3.6
Specifications (Typical)
1. Image Sensor
1/3” SONY Super HAD CCD
2. Pixels (HxV)
811x508
3. Scanning System
NTSC
4. Horizontal Resolution
600TV Lines
5. Synchronization
Internal, Negative Synch
6. Minimum Illumination
0.001Lux
7. Scanning System
2 :1 interlace
8. Auto Electronic Shutter
1/60s ~ 1/100,000s
9. Auto Gain Control
Automatic
10. Lens
3.6mm Board Lens
11. S/N Ratio
>48dB
12. Gamma Characteristic
0.45
13. Video Output
1.0Vp-p/75
14. Environmental tolerances
14F - 113F, 95% maximum, IP65 rated
15. User Interface
On Screen Display
16. Power Requirements
DC12V 150mA
17. Dimensions
3.75”x2.7”
18. Weight
16 oz.

v1.0 12/20/11
3
INSTALLATION AND OPERATION
CAUTION: To reduce the risk of electrical shock do not remove the cover or back of this
unit. No user serviceable parts are inside.
CAUTION: To prevent electric shocks and risk of fire hazards, do not use other than
specified power source.
1. UNPACKING and HANDLING
Each unit is shipped assembled and factory tested.
Ensure that all accessories are removed from the container before discarding packing material
2. MECHANICAL INSPECTION
Inspect the front and rear of the equipment for shipping damage. Make sure the equipment is
clean, and no connectors are broken, damaged, or loose. If equipment appears to be damaged
or defective please contact your distributor or Securitytronix at 1-610-429-1511 for assistance.
3. SPECIAL ATTENTION
a. The installer must comply with electrical safety standards. There must be sufficient
space between the camera’s power supply and video line and any high voltage
equipment and/or cables.
b. To help ensure the camera’s life and proper operation do not point the camera towards
the sun or strong light.
c. Do not install the camera in an environment where the temperature is above 113F.
d. Do not install the camera near a magnetic field or a high-power motor.
e. Do not mount the camera near a radiator or heater.
f. Only use a dry cloth to clean the camera. If there is dirt that is difficult to remove wipe
gently with a mild detergent. Never use strong or abrasive detergents.
g. A minimum 12VDC 150mA power supply must be used. AC power cannot be applied.
Using an AC or other incorrect power supply will damage the camera.
h. Only qualified installers are allowed to install, test and disassemble the camera.
i. The camera is a low voltage product. If installed outdoors proper safety and lightening
grounding are required.
This symbol is intended to alert the user to the presence of important operating and
maintenance (servicing) instructions.
This symbol is intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a
risk of electrical shock.

v1.0 12/20/11
4
4. WIRING CONNECTIONS
a. Connect the power supply’s DC plug to the camera’s power outlet.
b. Connect the camera to the monitor with a 75coaxial video cable.
c. Connect power supply’s AC plug to a suitable AC power outlet.
d. Adjust the lens direction according to the required surveillance area and environment.
5. ON SCEEEN DISPLAY (OSD)
This camera includes an On Screen Display (OSD) and OSD control pad for selecting
parameters and making camera settings. The table below describes the camera’s OSD
settings menu.

v1.0 12/20/11
5

v1.0 12/20/11
6
6. TROUBLESHOOTING
a. No picture after applying power –(i) check all plugs and cables are securely connected
to the proper connectors; (ii) ensure your power supply is providing the correct voltage
and current.
b. The picture has ripples –(i) check to see if the power supply is experiencing AC ripple,
if so a filter may be required; (ii) determine if the monitor is faulty; (iii) determine if other
peripheral equipment is causing ripple and if so make the necessary adjustments.
c. The picture background continuously changes color –a fluorescent lamp’s magnetic
field may cause color roll, therefore, reduce the number of fluorescent lamps or
increase the distance between the camera and the lamps.
d. The picture appears smeared –(i) the power supply voltage level may be unstable,
therefore, try another power supply; (ii) ensure the cables are correctly connected
and/or the cables are of the correct impedance.
e. Other interference may require a Securitytronix ground loop isolation filter.
f. Additional troubleshooting assistance can be found on-line at www.securitytronix.com
in addition to support from Securitytronix sales engineers at 1-610-429-1511.
