SecurView HDMIEXTMINI50M User manual

50m 1080p Mini HDMI
Cat5e/6 Extender
User Manual
HDMIEXTMINI50M

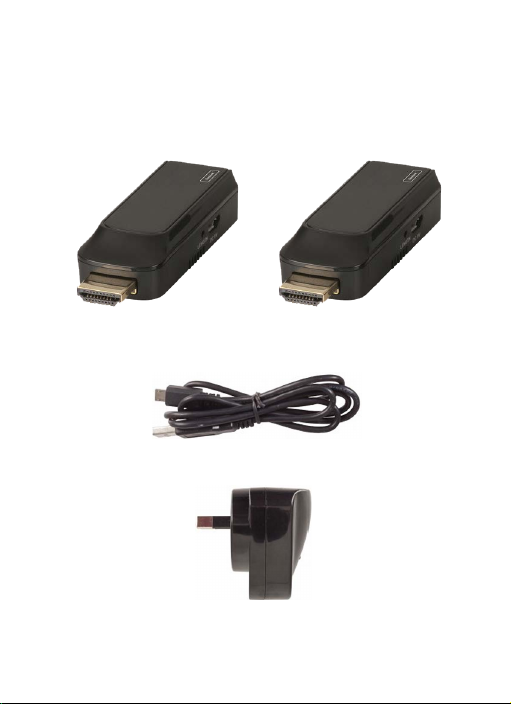

Box Contents:
1 x HDMI Transmitter 1 x HDMI Receiver
1 x USB Micro-B Power Cable
1 x USB Mains Power Adapter

Product Diagram:
Transmitter:
#
Feature: Description:
1 Ethernet Output Connect to the CatSe/6 Ethernet Cable
2 HDMI Input Connect to the HDMI source device
3 USB Power Socket Connect to the SVDC mains power adaptor
Receiver;
# Feature: Description:
1 Ethernet Input Connect to the CatSe/6 Ethernet Cable
2 HDMI Output Connect to a TV or Monitor
3 Length Equaliser Adjusts length of CatSe/6 cable (40m Default)
4 USB Power Socket Connect to a USB power cable (Optional)

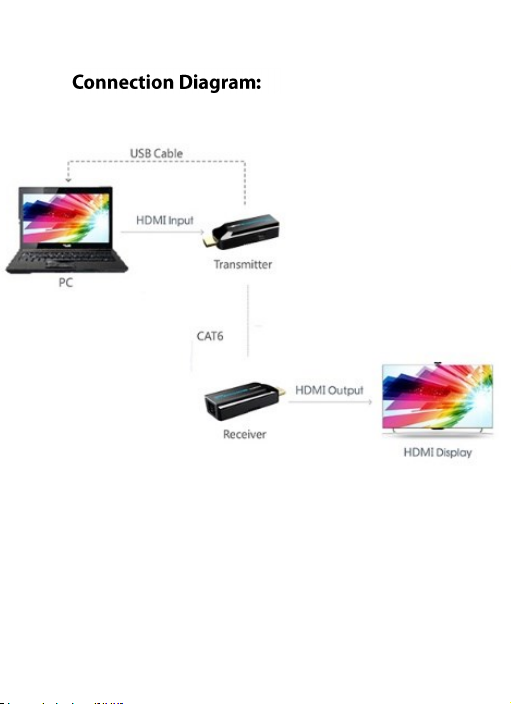

Operation:
Transmitter:
1. Connect the USB Micro-B power cable to the USB
power socket of the transmitter. Plug the opposite end
of the USB power cable to the USB mains power adaptor
or a suitable 1
A socket. Plug in the mains power adaptor
to a 240VAC wall socket.
2. Connect the HDMI input plug of the transmitter to the
HDMI socket of your source device such as Pay TV, DVD
player or media player.
3. Connect a CatSe or Cat6 ethernet network cable to
the ethernet output of the transmitter.

Receiver:
1. Connect opposite end of the CatSe or Cat6 ethernet
network cable to the ethernet input of the receiver.
2. Connect the HDMI output plug of the receiver to the
HDMI input socket of your TV or monitor.
3. The video should now be displayed once your source
device and TV /monitor has been turned on.
If you notice the video not being displayed, then please
press the length button located on the side of the
receiver.
The default length is set at 40m, if you have a different
length ethernet cable then please keep pressing the
length button until the video is displayed.
Note: This unit has power over catS/6 cable (PoC)
technology so only the transmitter needs to be
powered.
The receiver has a USB power socket incase the
transmitter is not receiving enough power from the USB
charger, TV USB socket or third party mains charger.

Length Equaliser:
The default length setting of the ethernet Cat5e/Cat6
cable is 40m. If you're using a different cable length,
then please keep pressing the button until the video is
displayed. The receiver has a memory function so it will
use the last used level when the device has been turned
off and on. The length equaliser has 12 levels in total
which consist of the following lengths below:
Note: If the default length is not working, then only
press the button once which will automatically set the
resolution to best work with your cable length. Only set
the manual level as below if absolute necessary.
Level: Length: Level: Length:
0 40m (Default) 6 Manual 20m-25m
1 Automatic 7 Manual 25m-30m
2 Automatic Scaling 8 Manual 30m-35m
3 Manual 5m-10m 9 Manual 35m-40m
4 Manual 10m-15m 10 Manual 40m-45m
5 Manual 15m-20m 11 Manual 45m-50m

Troubleshooting:
Problem Solution
Adjust the length equaliser settings depending on the
Cat5e/Cat6 ethernet cable length. The default is set at
40m, keep pressing the button until video is displayed
Check to see your source device and monitors/TV's
resolution and frequency matches the supported
resolution of the HDMI extender.
Check to see if your source device and TV's/monitors are
No Video Output
all switched on
Ensure you have a Cat5e/Cat6 standard ethernet cable
connector, crossover cables will not work
Check to see if the USB mains power adaptor and USB
charging cable is connected properly and switched on
Reconnect the HDMI input and output plugs on both the
transmitter and receiver

Problem Solution
Adjust the length equaliser settings depending on the
Cat5e/Cat6 ethernet cable length. The default is set at
40m, keep pressing the button until video is displayed
Check to see your source device and monitors/TV's
Image is flickering resolution and frequency matches the supported
or unstable
resolution of the HDMI extender.
It is recommended to use an ethernet Cat5e/Cat6 cable
between 15-S0m otherwise image may be unstable.
Ensure the USB charging cable is connected to a 1A USB
mains power adaptor or USB charging port.

Safety:
1. Do not open or repair the device without professional
assistance to avoid electrical shock.
2. Do not expose this unit to water, moisture or any
liquid
3.Position the unit in a well ventilated area to prevent
the unit from overheating.
4. Only use the supplied SVDC, 1 A power adaptor.
If you use any third party power supplies, ensure the
voltage is the same to prevent the unit from damage.

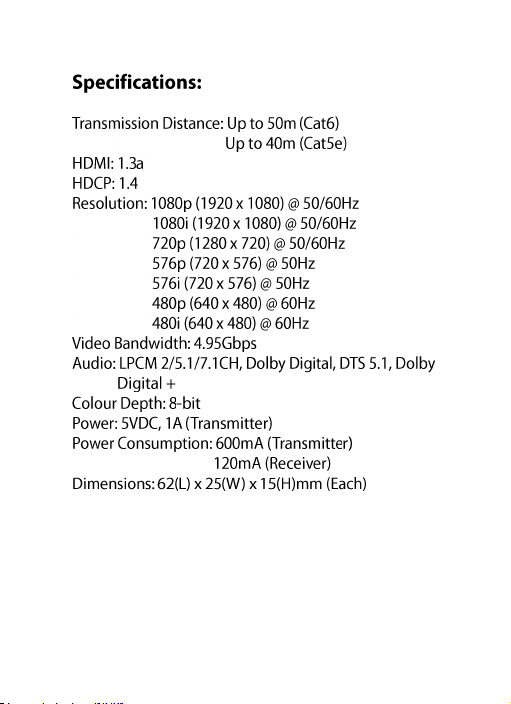

Features:
. 50m(Cat6), 40m(Cat5e) Transmission Range
. Power Over Cat5e/Cat6 Cable (Poe)
. HDCP & 3D Support
. Adjustable Equaliser
