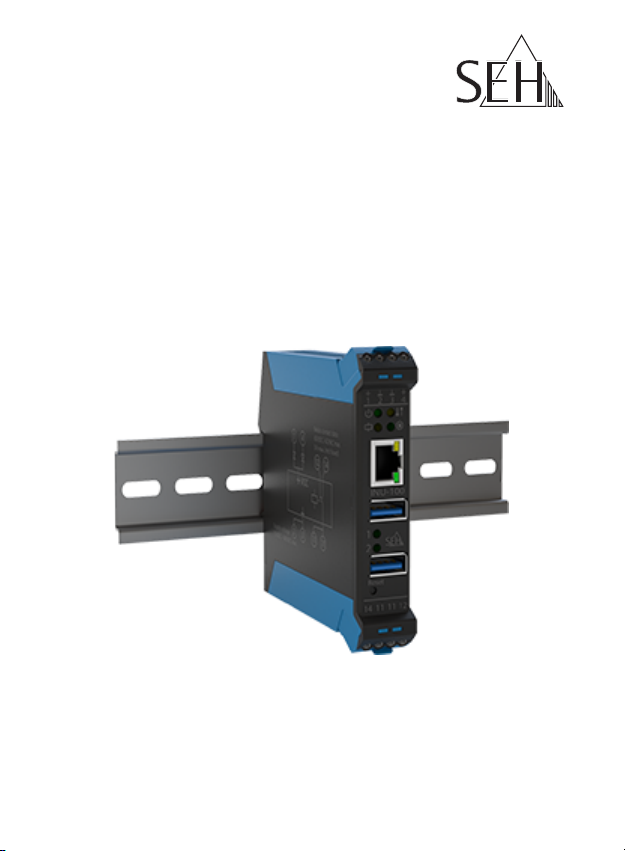

SEH INU-100 Manual

USB Deviceserver
INU-100
Hardware Installation Guide
MHAB-EB-INU100
Version: 1.5 | 2022-10

Overview
This 'Hardware Installation Guide' provides a description of
the hardware installation of the INU-100. The initial setup is
described in the 'Quick Installation Guide'.
Table of contents 1.
Do you need assistance? Contact us!
Customers from the United States of America and Canada
please contact the North American support.
Monday to Thursday
Friday 8:00 a.m. to 4:45 p.m. and 8:00 a.m. to 3:15 p.m. (CET)
[phone]
[email protected]
www.seh-technology.com
Monday to Friday 9:00 a.m. to 5:00 p.m. (EST/EDT)
[phone]
[e-mail]
www.seh-technology.com

Überblick
Dieser 'Hardware Installation Guide' beschreibt die Hardware-
Installation des INU-100. Die Inbetriebnahme wird im 'Quick
Installation Guide' erklärt.
Inhaltsverzeichnis 18.
Benötigen Sie Hilfe? Kontaktieren Sie uns!
Montag–Donnerstag
Freitag 8:00–16:45 Uhr 8:00–15:15 Uhr
[phone]
[email protected]
www.seh.de

1 [en] Hardware Installation Guide
Contents
Scope of Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Device Overview ..............................................................................3
Dimensions & Weight .....................................................................4
Connectors .........................................................................................5
Type Plate ...........................................................................................7
LED Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Safety Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Combination with Associated Products ................................15
After the Hardware Installation . . . . . . . . . . . . . . . . . . . . . . 17
Regulatory Compliance Information . . . . . . . . . . . . . . . . . 35
EC – Declaration of Conformity ................................................35
UK – Declaration of Conformity ................................................37
Federal Communication Commission (FCC) Notice ..........39

Hardware Installation Guide [en] 2
Scope of Supply
Please check the package content before getting started:
INU server USB Deviceserver 'INU-100'
Hardware
Installation
Guide
The Hardware Installation
Guide provides a brief
description of the installation of
the INU-100.
(This document)
Quick
Installation
Guide
The Quick Installation Guide
provides a brief description of
the initial setup of the INU-100.
microSD
card Inserted into microSD card reader.

3 [en] Hardware Installation Guide
Technical Data
Device Overview
reset button relay
connectors
USB port LEDs
network
connector
power LED
activity LED
status LED
relay LED
power connectors
USB ports
micro SD
card reader
snap lock

Hardware Installation Guide [en] 4
Dimensions & Weight
Properties Values
Network connection
logical:
physical:
IEEE 802.3 (1000BaseT, 100BaseTX
and 10BaseT)
1 × RJ-45
Device connection - 2 × USB 3.0 SuperSpeed
- 1 × microSD card reader
Operating
Environment - ambient temperature: 5–40 °C - relative humidity: 20–80 %
150 g
114 mm
105.5 mm 117.3 mm 117.3 mm
22.5 mm

5 [en] Hardware Installation Guide
Connectors
(You can find this circuit diagram on the INU server's side.)
Power supply
The INU server can be fed by 2 power supplies. While one
power supply is actively supplying, the other serves as
backup.
WARNING
The INU server and the power supply or power
supplies must be installed in the same control
cabinet. And the low-voltage cable between the
power supply or power supplies and the INU
server must not be longer than 3 m.
Power supply 1:
2:
connection:
Connectors 1 + 2
Connectors 3 + 4
via screw terminals
power supply 1
power supply 2
normally
closed normally open

Hardware Installation Guide [en] 6
Relay
You can use the INU server's relay for various purposes in your
environment. For more information see the INU User Manual;
available at:
http://www.seh-technology.com/services/
downloads/industrial/inu-100.html
supply voltage - 12 V to 48 V DC
- power consumption max. 15 W
- redundant
Current input at 12 V:
at 24 V:
- approx. 200 mA without load
- approx. 1200 mA with full load
on the USB ports
- approx. 110 mA without load
- approx. 550 mA with full load on
the USB ports
Cable
Required stripping:
Insertion: approx. 7 mm
stripped end with or without end
terminals
Type potential-free changeover switch
Contact data:
switching voltage:
switching current:
switching power:
max. 60 V DC or 42 V AC
max. 3 A
max. 180 VA for DC or max. 126 VA
for AC

7 [en] Hardware Installation Guide
Type Plate
The type plate gives important product information, such as
hardware and certification information as well as the serial
number. The serial number contains the production date:
nnn YYYY MM nnnnn.
This information helps you e.g. during maintenance and you
needit for support requests as well as for the guarantee
extension.
Cable IEC:
UL:
Required stripping:
Insertion:
400 V / 0.2–2.5mm²
300 V / 10 A / AWG 26–AWG 12
approx. 7 mm
stripped end with or without end
terminals
Fuse none

Hardware Installation Guide [en] 8
LED Display
The LEDs of the INU server provide information about its
status.
LED Action Color Description
Power permanently
off
permanently
on
–
green
INU server is on.
INU server is off.
Activity blinks at
irregular
intervals
yellow Indicates the exchange
of network data packets.
Status permanently
off
blinks 3
times
blinks 2
times
–
green
green
If the activity LED blinks
periodically at the same
time, the BIOS mode is
signalized.
Indicates the assignment
of a Zeroconf IP address.
Indicates the assignment
of an IP address that does
not correspond to 0.0.0.0
or that comes from
outside the Zeroconf
range.

9 [en] Hardware Installation Guide
USB
ports
1–2
permanently
off
permanently
on
permanently
on
–
green
orange
No USB device is
connected to the
respective port.
A USB device is
connected to the
respective port.
The connection to the
respective port and the
attached USB device is
activated.
Relay permanently
off
permanently
on
–
yellow
Default state (normally
open is open).
Switched (normally open
is closed).
Important:
When the device starts up, the behavior of the
LEDs differs from this description.
LED Action Color Description

Hardware Installation Guide [en] 10
Safety Regulations
INU servers are network devices for use in industrial
environments. The INU-100 is designed for the integration of
USB devices into TCP/IP networks.
• Read the documentation and make sure that your system
meets the requirements listed therein.
• The device must only be connected to the mains and to
the network by qualified personnel.
• Avoid contact with humidity or liquids.
• The device must only be connected and operated if it is in
perfect condition.
• Do not connect a telephone cable to the RJ-45 connector.
The RJ-45 connector may only be connected to SELV volt-
ages. For the connection to the RJ-45 connector only STP
cabling (category 5 or better) may be used. The shielding
must fit flushly to the connector.
• Do not open the housing. Unauthorized modifications to
the device can affect the product certification and are for-
bidden.
• Only use a certified USB cable (< 3 m) listed at
www.usb.org.
• The device and the power supply or power supplies must
Important:
Before starting the installation and the initial
setup procedure as well during the operation of
the INU server, please note the following safety
regulations. Their purpose is to protect yourself
and others from personal injuries, and avoid
damage to the equipment.

11 [en] Hardware Installation Guide
be installed in the same control cabinet.
• The low-voltage cable between the power supply and the
device must not be longer than 3 m.
• The maximum load for the relay contacts is 60 V for DC /
42 V for AC and a current of max. 3 A.
• Choose cables with a suitable wire cross-section for the
connection to power supply and relay.

Hardware Installation Guide [en] 12
Hardware Installation
Install the INU-100 on a top-hat rail (DIN rail according to DIN
EN 60715, 35 mm wide). You can directly connect up to two
USB devices to the INU-100. In addition, you can connect a
load to the relay.
1. Install the INU server on a top-hat rail:
network
USB devices
relay output
power 1
power 2
INU-100
clients

13 [en] Hardware Installation Guide
2. Connect the power supply/supplies (5) of your server
rack to the INU-100:
3. (Optional) Connect an electrical load to the INU server's
relay (6):

Hardware Installation Guide [en] 14
4. Connect the network cable (RJ-45) to the INU server.
5. Connect the USB devices to the USB ports of the INU server:
Important:
Upon delivery, the microSD card is already
inserted into the microSD card reader and ready
for use (installation or formatting are not
required).

15 [en] Hardware Installation Guide
Combination with Associated Products
You can combine the INU server with additional SEH
Computertechnik GmbH products to ideally adapt the use of
your devices to your environment!
Industrial Solution 'IH-304 USB Hub'
The industrial solution IH-304 is a USB hub with four USB 3.0
ports. If it is connected to the INU server, up to four USB
devices can be used per INU server USB port. This is a most
efficient solution for control cabinets with little space.
The IH-304 must be purchased separately. Detailed information:
http://www.seh-technology.com/products/
industrial-solutions/ih-304.html
Industrial Solution 'SU-302 Serial to USB Converter
The industrial solution SU-302 is a serial to USB converter. It
can be connected to the INU server via USB and allows for the
use of two serial devices via its interfaces RS-232 (for plug
type D-Sub, DE-9) and RS-485 (also known as EIA-485;
compatible with RS-422/EIA-422).
By combining the INU server and SU-302 you make your serial
devices available via network (TCP/IP, Internet)!
http://www.seh-technology.com/products/
industrial-solutions/su-302.html

Hardware Installation Guide [en] 16
Industrial Solutions 'Top-Hat Rail Power Supplies'
All Industrial Solutions are mounted on a top-hat rail in a
control cabinet. The USB Deviceserver INU-100 and the USB
Hub IH-304 are to be connected to a power supply. You either
use your existing power supply or—if there is none or no
vacancy—you can buy a new one.
Spare yourself the search and use the top-hat rail power
supplies DRP-20 and DRP-75 which are specifically selected to
perfectly match the industrial solutions!
http://www.seh-technology.com/products/
industrial-solutions/accessories.html

17 [en] Hardware Installation Guide
After the Hardware Installation
As soon as the hardware has been installed, the INU server
can be set up for operation. All information on how to do this
you will find in the enclosed document 'Quick Installation
Guide'.
