Intelligent Spooling Device
ISD300-PoE
Quick Installation Guide
Overview [en]
This Quick Installation Guide provides
a brief description of the installation
of the ISD300-PoE. It contains the
following information:
General Information
Safety Regulations
First Steps
ISD Quick Setup
ISD Software Package
Please note the table of contents on
page 3. Should you have any further
questions, please contact our support
hotline.
Überblick [de]
Dieser Quick Installation Guide be-
inhaltet eine kurze Beschreibung der
ISD300-PoE Installation. Sie erhalten
die folgenden Informationen:
Allgemeine Information
Sicherheitsvorschriften
 Erste Schritte
ISD Quick Setup
ISD-Softwarepaket
Beachten Sie das Inhaltsverzeichnis
auf Seite 19. Falls Sie noch Fragen
haben, kontaktieren Sie unsere
Support-Hotline.

2 Quick Installation Guide

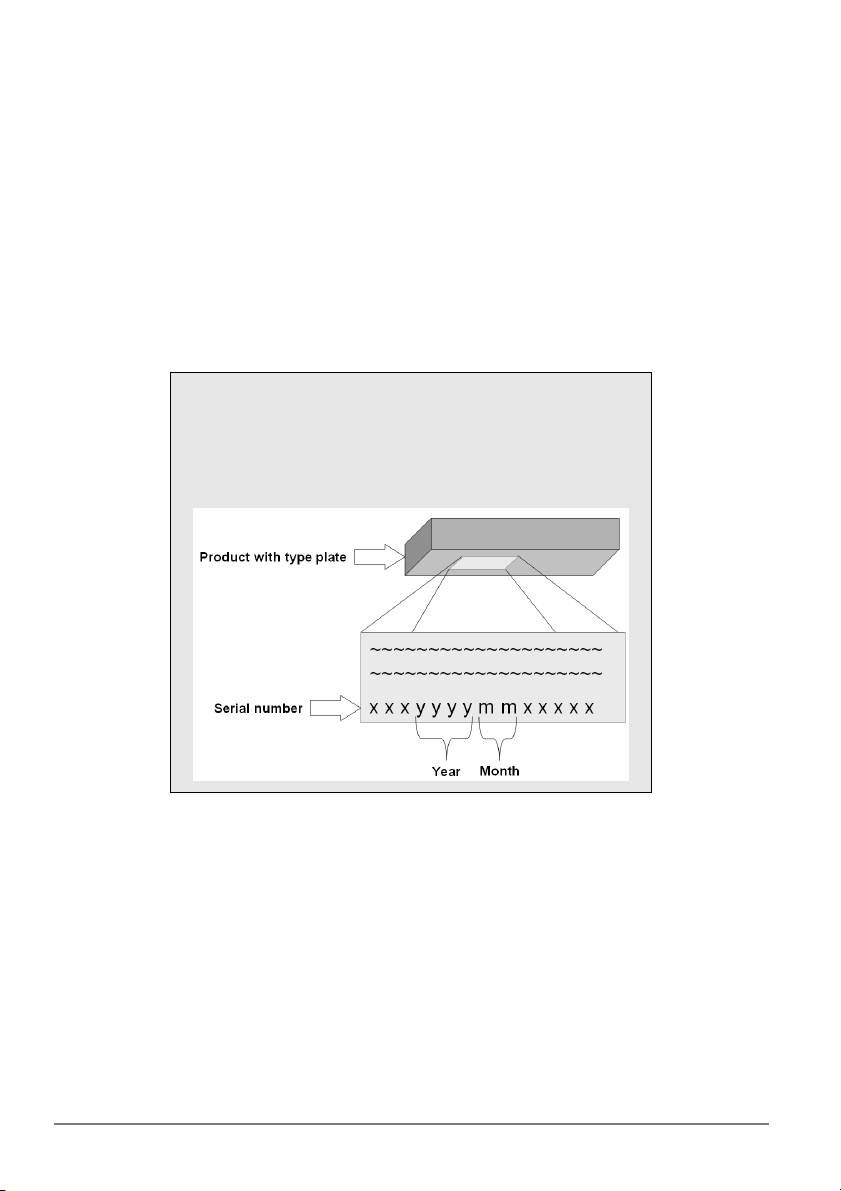

Date of Manufacture
The serial number includes the date of manufacture.
The serial number can be found on the type plate.

Quick Installation Guide [en] 3
2 General Information . . . . . . . . . . . . . . . . . . . . . . . . 4
Purpose. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Scope of Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
2 Safety Regulations. . . . . . . . . . . . . . . . . . . . . . . . . . 7
2 First Steps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Connecting the ISD300-PoE . . . . . . . . . . . . . . . . . . . .8
Switching the ISD300-PoE On/Off . . . . . . . . . . . . . . .9
ISD300-PoE Assigning TCP/IP Parameters . . . . . 10
Using the ISD Control Center . . . . . . . . . . . . . . . . . 12
2 ISD Quick Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2 ISD Software Package. . . . . . . . . . . . . . . . . . . . . . 16
 Table of Contents

4 [en] Quick Installation Guide
General Information
Purpose
The ISD300-PoE was developed to spool and manage print jobs and to handle
print queues.
In complex networks with high volumes of data traffic and in large-scale
structures, the ISD300-PoE can substantially relieve server load and remove strain
from the network. This results in better performance and enhanced system
stability.
The ISD300-PoE adds server qualities to the printing in peer-to-peer networks.
Enhanced transparency, higher performance and the central management of all
print processes result in maximum efficiency and very little time required for
maintenance and system updates.
The ISD300-PoE is able to accept print jobs from various operating systems and
to forward them to the printer via Socket, LPD, or IPP.
Documentation

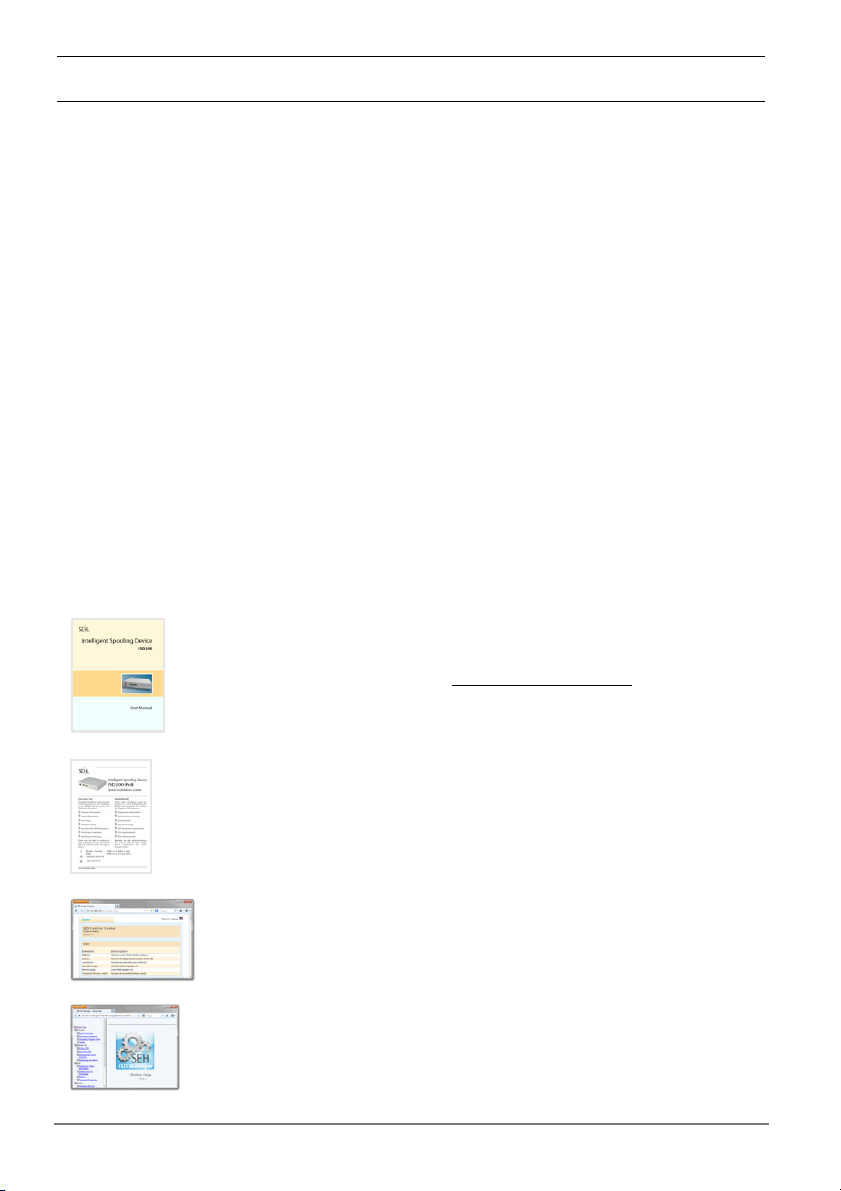

The ISD documentation consists of the following documents:
User Manual
Detailed description of the ISD configuration and administration. You
can find the PDF file at www.seh-technology.com or on the ISD hard
disk (see: 'Service-Area' 5).
Quick Installation Guide
The Quick Installation Guide contains information about security,
hardware installation, and the initial operation procedure of the ISD
.
(This document)
Online Help (ISD Control Center)
The Online Help contains detailed information about how to use the
ISD Control Center.
Online Help (SEH ISD Manager)
The Online Help contains detailed information about how to use the
software tool 'SEH ISD Manager'.
PDF
Printed
PDF
HTML
HTML

Quick Installation Guide [en] 5
Scope of Supply
Please check the package content before getting started.

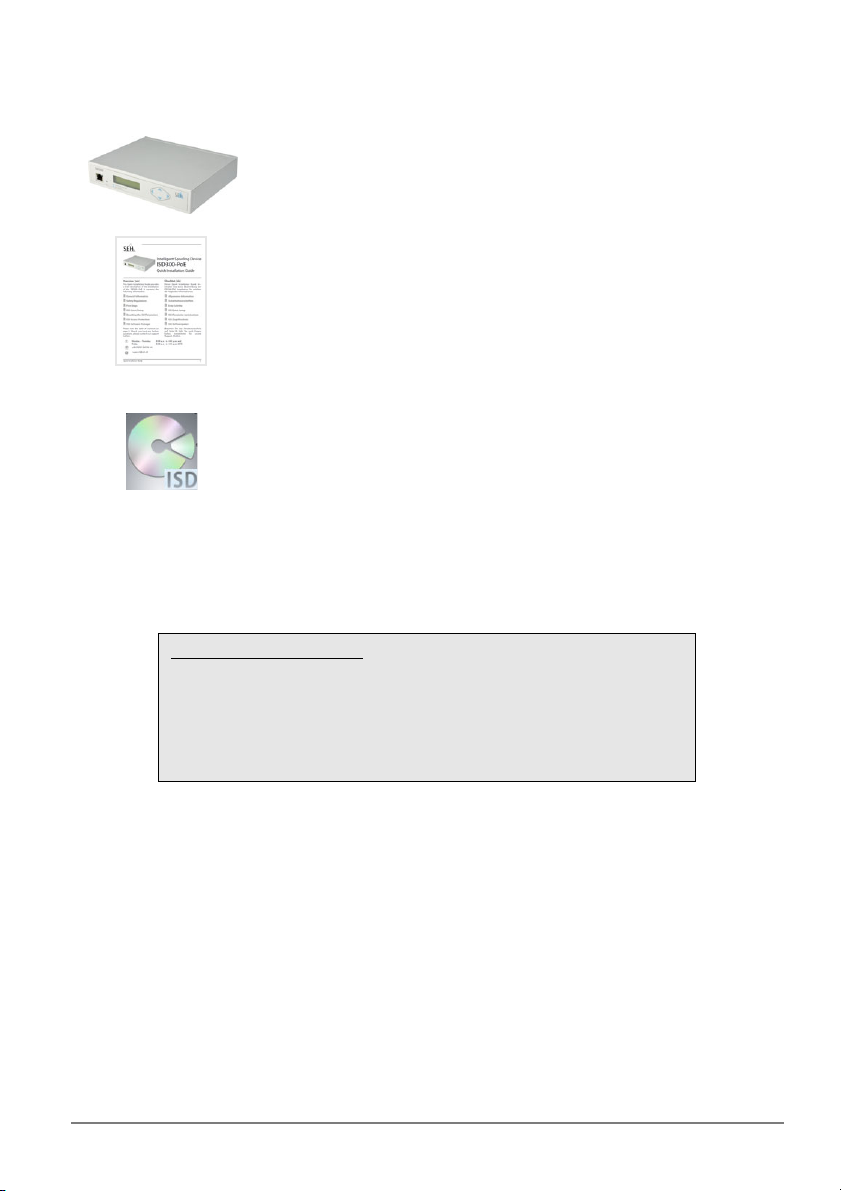

ISD300-PoE
Intelligent Spooling Device 300 - Power over Ethernet
Quick Installation Guide
The Quick Installation Guide contains information about security,
hardware installation, and the initial operation procedure of the
ISD. (This document)
Service-Area
The service area is a defined memory area on the ISD hard disk.
The service area contains:
- ISD300 User Manual
- Quick Installation Guide ISD300-PoE (this document)
- SEH ISD Manager
- SEH Print Monitor
- ISD Printer Driver Wizard
- Driver Wizard Plugin 'CSR DLL'
Displaying the service area
The service area can be displayed via the ISD Control Center.
Start the ISD Control Center with the user profile 'Admin' and select
'Manuals & Tools'.
Note: To start the ISD Control Center follow the instructions in the
chapter 'First Steps' 8.

6 [en] Quick Installation Guide
Technical Data
Properties Values
Network connector logical:
physical:
- 10BaseT Ethernet (IEEE 802.3)
- 100BaseTX Fast Ethernet (IEEE 802.3)
- 1000BaseT Gigabit Ethernet Ethernet (IEEE 802.3)
- RJ-45 (STP cat. 5)
Interfaces 2 x USB 2.0 HS
Print protocols
Client ISD:
ISD printer: - LPD, SMB, Socket, IPP, ThinPrint®
- LPD, Socket, IPP
Supply voltage 48 VDC - Power over Ethernet -
The ISD receives the DC voltage directly from the STP cat. 5 cable
via the RJ-45 connector.
Current input 350 mA
Operating environment Ambient temperature: 5 - 30 °Celsius
Relative humidity 20 - 80 %
Dimensions - Length: 215 mm
- Height: 47 mm
- Width: 186 mm
Weight 1,450 g

Quick Installation Guide [en] 7
Safety Regulations
Before starting the initial setup procedure and during the operation of the ISD-
PoE, please note the following safety regulations. Their purpose is to protect
yourself and others from personal injuries, and avoid damage to the equipment.
CAUTION: Failure to follow these directions could result in bodily harm
or loss of life.
Basic Personal Security Precautions
Read the documentation and make sure that your system meets the
requirements listed therein.
 Do not open the housing of the device. The ISD300-PoE may only be connected
and operated if the housing is not opened and if the ISD300-PoE is in perfect
condition.
Do not put objects on top of the housing.
Unauthorised modifications to the device can affect the product certification
and are forbidden.
Operating Environment Prerequisites
The ISD300-PoE must be placed on a solid surface with no vibration.
The ISD300-PoE must not be operated in dusty places and direct sunlight.
Avoid contact with humidity or liquids.
The ISD300-PoE may only be connected and operated if the installation
location meets the ambient conditions.
Security Precautions for Cabeling and Power Cords
 Make sure that no-one steps on or stumbles over the cables.
Do not connect a telephone cable to the RJ-45 connector. The RJ-45
connector may only be connected to SELV voltages. For the connection to the
RJ-45 connector only STP cabling (category 5 or better) may be used. The
shielding must fit flushly to the connector.
Only use a certified USB Hi-Speed cable for the connection to the printer. You
will find a list of certified cables at www.usb.org!
Ambient temperature: 5 - 30 °Celsius
Relative humidity: 20 - 80 %

8 [en] Quick Installation Guide
First Steps
Connecting the ISD300-PoE
Proceed as follows:
1. Connect the network cable (RJ-45) to the network connector (2).
8

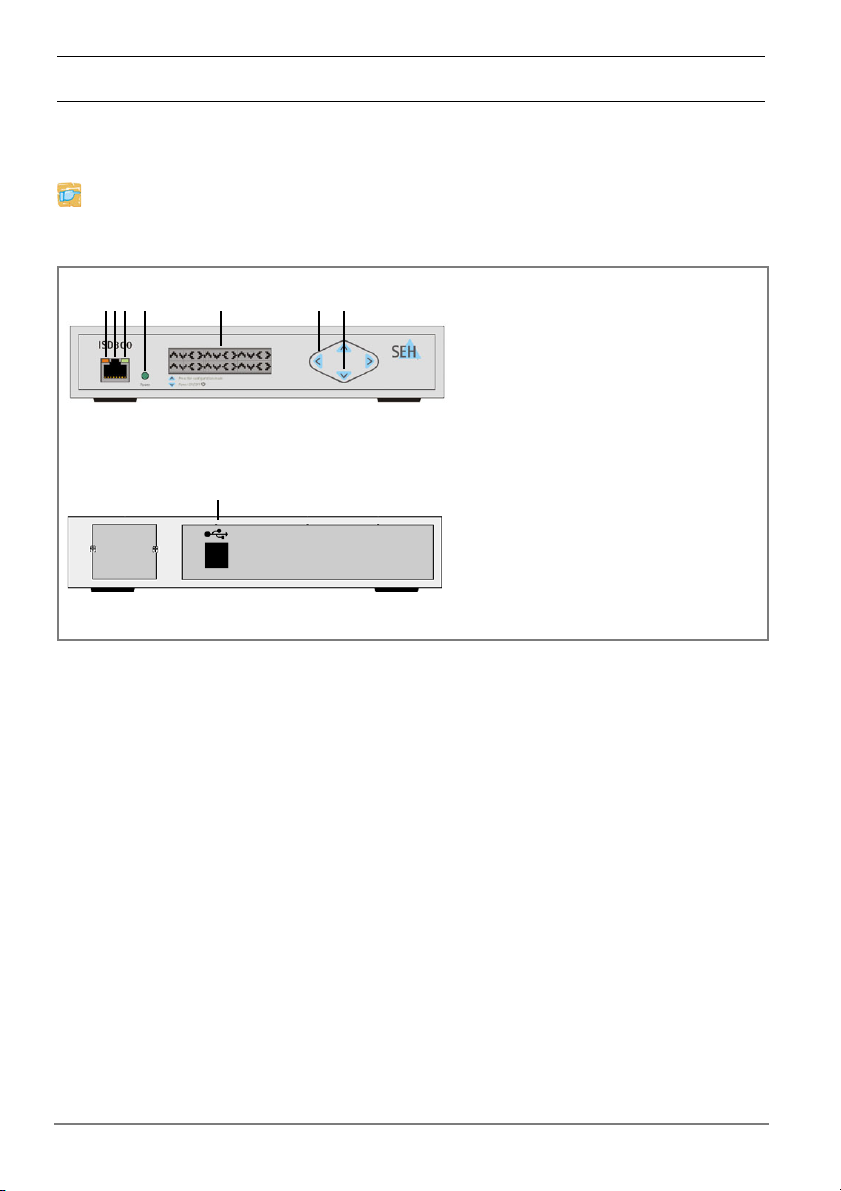

1) Activity LED (yellow):
The LED indicates the exchange of
network data packages.
2) Network connector (RJ-45 connector)
3) Link LED (green):
The LED indicates a (physical)
connection to the network.
4) Power LED
5) Display
6) Navigation keys
7) Soft power switch
8) USB connector
1234 5 6 7
Front view
Rear view

Quick Installation Guide [en] 9
Switching the ISD300-PoE On/Off
Switching the Device On
The ISD300-PoE system software boots automatically if the device receives the
power it needs. The power supply can be started by plugging in the network cable
or by turning on the PoE device (device that is used to supply power to the
ISD300-PoE).
Switching the Device Off
Print jobs that are processed while the ISD shuts down cannot be completed.
Print jobs that are stored in a queue will be completed when the device reboots.
To turn off the device, shut down the system software manually.
Booting/Shutting down the System Software
The system software can be booted/shut down manually.
To boot the software, press the soft power switch for a short moment.
To shut down the software, keep the soft power switch pressed for five
seconds.
What Happens in the Case of a Power Failure?
When the ISD receives again the necessary power, it takes on the same status as
before the power failure.

10 [en] Quick Installation Guide
ISD300-PoE Assigning TCP/IP Parameters
TCP/IP network protocols require the storing of the IP address in the ISD so that
the device can be addressed within the network and be configured via the ISD
Control Center.
You can assign the TCP/IP parameter manually or have it assigned automatically
via DHCP (Dynamic Host Configuration Protocol). The manually assignment is
default.
Assigning TCP/IP Parameters Manually
Use the navigation keys at the front of the device to assign the TCP/IP
parameters.
Proceed as follows:
1. Press . The display shows:
2. Press .
The display shows the current IP configuration ('Manual' or 'DHCP'):
3. Select 'Manual' via or and press to confirm.
The display shows:
4. Enter the IP address.
Use to navigate to individual numerical values within the IP address.
You can change the numerical values via .
5. Press to confirm. The display shows:
6. Enter the netmask.
7. Press to confirm. The display shows:
8. Enter the gateway.
IP Setup >
Cancel <
IP Configuration
Manual
IP Address:
000.000.000.000
Netmask:
000.000.000.000
Gateway:
000.000.000.000

Quick Installation Guide [en] 11
9. Press to confirm. The display shows:
10. Press to confirm. The display shows:
The settings will be saved.
Assigning TCP/IP Parameters Automatically (DHCP)
Make sure that:
- An active DHCP server is integrated into the network.
Use the navigation keys at the front of the device to assign the TCP/IP
parameters via DHCP.
Proceed as follows:
1. Press . The display shows:
2. Press .
The display shows the current IP configuration ('Manual' or 'DHCP'):
3. Select 'DHCP' via or and press to confirm. The display shows:
4. Press to confirm.
The settings will be saved.
Upon booting DHCP will be applied automatically. TCP/IP parameters are assigned
by a DHCP server.
> Apply
< Back
Applying Network
Settings ...
IP Setup >
Cancel <
IP Configuration
Manual
> Apply
< Back

12 [en] Quick Installation Guide
Using the ISD Control Center
The ISD Control Center is a user interface for the administration of the ISD. The
ISD Control Center is stored in the ISD and can be displayed on a client by means
of an Internet browser (Internet Explorer, Firefox, Safari).
Make sure that:
- The ISD is connected to the network and was booted.
- The ISD has a valid IP address.
Starting the ISD Control Center
Proceed as follows:
1. Start your browser.
2. Enter the IP address of the ISD as the URL.
The ISD Control Center will be displayed.
If the ISD Control Center is not displayed, check the proxy settings of your
browser.

Quick Installation Guide [en] 13

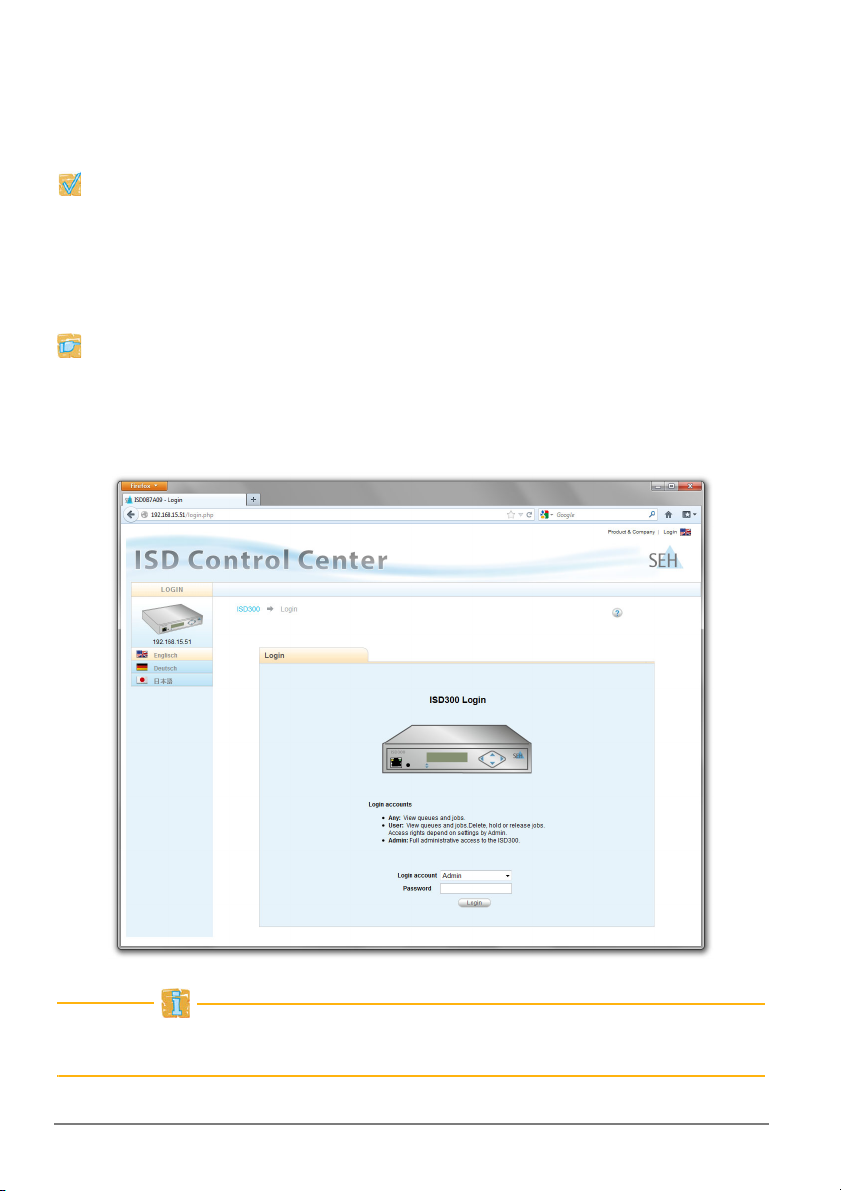

Logging on to the ISD Control Center
After starting the ISD Control Center a 'login' dialog appears. The access to the
ISD Control Center is granted to the user profiles ’Any’, ’User’, and ’Admin’. You
will also need a password.
The table shows which access rights are assigned to the different user profiles.
The following describes access as 'Admin' with the default password. Change the
default password when you use the ISD in a real situation; see: ISD300 User
Manual.
Proceed as follows:
1. Start the ISD Control Center.
2. Select 'Admin' from the Login account list.
3. Enter the password 'admin'.
4. Click Login.
The ISD Control Center shows the menu structure for the user profile 'Admin'.
The main menu is displayed at the top of the dialog. After selecting a menu item,
the available submenu items are displayed on the left side. The content of the
menu is displayed in the middle of the dialog.
User profile Access rights password
Any - calling status information about queues and print jobs no password
required
User - calling status information about queues and print jobs
- deleting, halting, and changing the priority of one’s own
print jobs
(These access rights are defined by the administrator.)
user
(Default)
Admin - calling status information
- setting up and administrating queues
- deleting, halting, and changing priority of all print jobs
- installation, configuration, and maintenance of the ISD
admin
(Default)

14 [en] Quick Installation Guide
ISD Quick Setup
The 'Quick Setup' assists you with the initial configuration. The Quick Setup
involves four steps:
the configuration of the host name and device time,
the configuration of the TCP/IPv4 parameters and DNS server,
the search for available printers in the network, and
the setting up of queues.
Proceed as follows:
1. Start the ISD Control Center with the user profile 'Admin'.
2. Select QUICK SETUP.
3. Enter the host name and the device time.
4. Click Next.
5. Verify the TCP/IP parameters and change them, if required.
6. Click Next.

Quick Installation Guide [en] 15

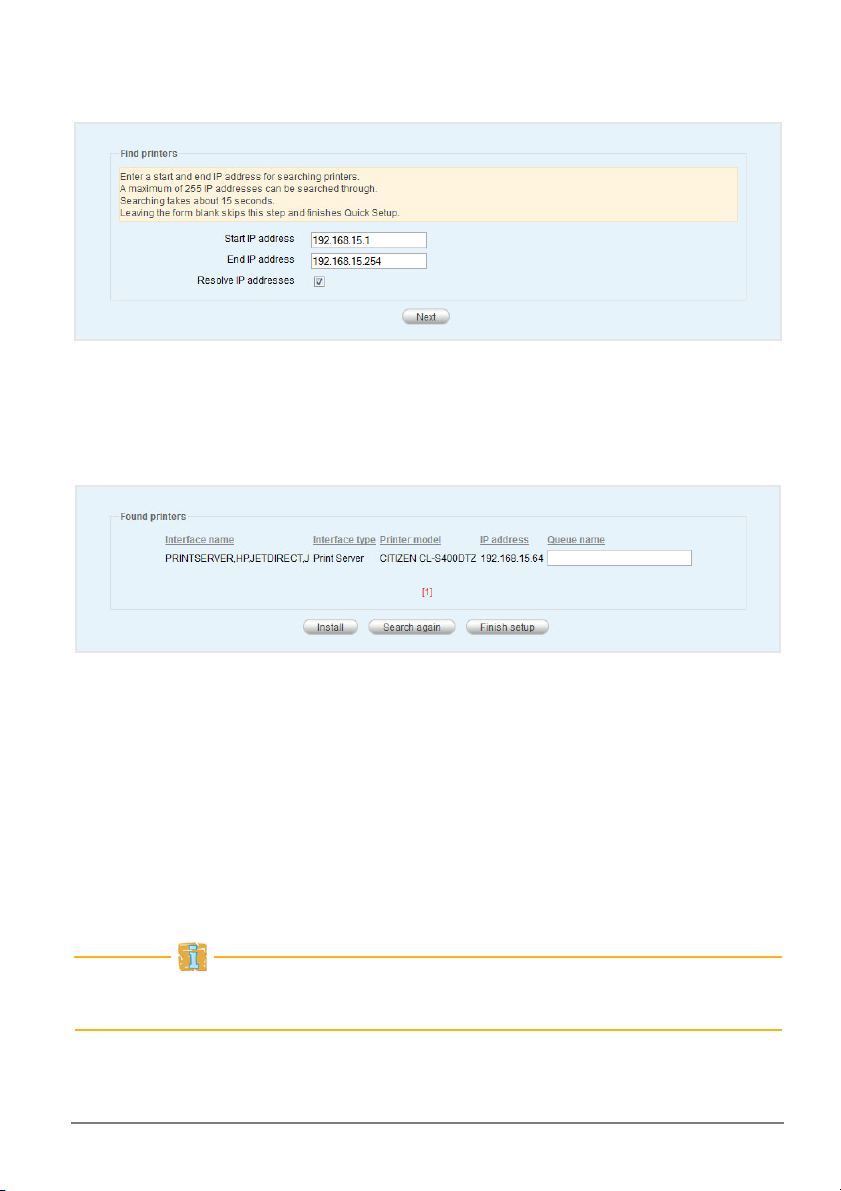

7. Define search parameters for the search for printers in the network.
You can search a maximum of 255 IP addresses.
8. Click Next.
The number of the printers found in the network is displayed.
9. Click OK to confirm.
The printer list is displayed.
10. Assign names to the queues (that are not resolved via DNS) in the Queue
name column.
- letters, numbers, hyphens and underscores are allowed
- no space characters are allowed
- no more than 32 characters (Windows 98 max. 15 characters) are allowed
11. Click Install.
The names of the queues will be shown in the column Queue name.
12. Click Finish setup to confirm.
The settings will be saved.
Further information on the configuration and administration can be found in the
ISD300 User Manual.

16 [en] Quick Installation Guide
ISD Software Package
Apart from the integrated user interface (ISD Control Center), the following tools
are available for the administration of the ISD:
 The SEH ISD Manager is a software that has been developed by SEH
Computertechnik GmbH for a simple administration of the ISD. The SEH ISD
Manager offers the following features to assist you in your work:
- monitoring
- backup and update management
- queues and printer drivers
- restart
The SEH Print Monitor is an SEH-specific extension for the printing service of
a Windows operating system. The software ensures the transfer of
unencrypted and encrypted (SSL/TLS) print data from the client to the ISD by
means of direct TCP/IP ports. The SEH Print Monitor can be installed on every
client intended for printing.
The ISD Printer Driver Wizard helps you to install printer drivers on the ISD.
For this purpose the Wizard will be installed on a client running Windows 2000
or later. The client must be specified as 'Printer Administrator' on the ISD.
The Driver Wizard Plugin (CSR DLL) is used to check if original printer drivers
support CSR. The printer drivers are then configured in such a way that the
client will be automatically able to spool the rendered print job to the ISD
according to the CSR principle.
All ISD tools are available on the service area (see  5) and at www.seh-
technology.com. For further information; see: ISD300 User Manual.
Product Update
We recommend the use of the SEH ISD Manager to keep your product up-to-date.
The SEH ISD Manager automatically searches for current software packages. You
will be automatically informed if SEH Computertechnik GmbH deploys a new
software package for your product. You can then download the current software
package via the SEH ISD Manager and install it to your device.

Quick Installation Guide [en] 17

18 [en] Quick Installation Guide

Quick Installation Guide [de] 19
2 Allgemeine Informationen . . . . . . . . . . . . . . . . . 20
Verwendungszweck . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Dokumentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Lieferumfang . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Technische Daten . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
2 Sicherheitsvorschriften . . . . . . . . . . . . . . . . . . . . 23
2 Erste Schritte . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
ISD300-PoE anschließen . . . . . . . . . . . . . . . . . . . . . . 24
ISD300-PoE ein-/ausschalten . . . . . . . . . . . . . . . . . 25
ISD300-PoE TCP/IP-Parameter zuweisen. . . . . . . 26
ISD Control Center verwenden. . . . . . . . . . . . . . . . 28
2 ISD Quick Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
2 ISD-Softwarepaket. . . . . . . . . . . . . . . . . . . . . . . . . 32
 Inhaltsverzeichnis

20 [de] Quick Installation Guide
Allgemeine Informationen
Verwendungszweck
Das ISD300-PoE wurde für das Spoolen und Managen von Druckaufträgen sowie
die Verwaltung von Druckerwarteschlangen (Queues) entwickelt.
Das ISD300-PoE trägt in komplexen Netzwerken mit hohen Datenaufkommen
oder weitläufigen Strukturen zu einer starken Entlastung des Servers und ggf. des
Datennetzes bei. Höhere Performanz und Stabilität sind zwei der positiven
Folgen.
In Peer-to-Peer-Netzen sorgt das ISD300-PoE für Server-Qualitäten beim
Drucken. Mehr Transparenz, höhere Performanz und eine zentrale Verwaltung der
Druckvorgänge sorgen für mehr Effizienz und geringeren Zeitaufwand bei
Wartung und Systempflege.
Das ISD300-PoE kann Druckaufträge von unterschiedlichen Betriebssystemen
annehmen und an Drucker via Socket-, LPD- oder IPP-Printing weiterleiten.
Dokumentation
Die ISD-Dokumentation besteht aus den folgenden Dokumenten:
Benutzerdokumentation
Detaillierte Beschreibung der ISD-Konfiguration und -Administration.
Sie finden die PDF-Datei unter www.seh.de oder auf der ISD-
Festplatte (siehe: 'Service-Area' 21).
Quick Installation Guide
Der Quick Installation Guide beinhaltet Informationen zur Sicherheit,
Hardwareinstallation sowie zur Inbetriebnahme des ISD.
(Dieses Dokument)
Online Hilfe (ISD Control Center)
Die Online Hilfe enthält detaillierte Informationen zur Bedienung des
ISD Control Centers.
Online Hilfe (SEH ISD Manager)
Die Online Hilfe enthält detaillierte Informationen zur Bedienung des
Software-Tools 'SEH ISD Manager'.
PDF
Print
PDF
HTML
HTML
