Seko POOLDOSE DOUBLE User manual

0000138994 Rev. 1.1
POOLDOSE DOUBLE
INSTRUCTIONS MANUAL
HANDBUCH
MANUAL DE INSTRUCCIONES
MANUEL D'INSTRUCTIONS
MANUALE D’INSTALLAZIONE
EN
DE
ES
FR
IT

0000138994 Rev. 1.1

PoolDose | pH · ORP · Chlorine
0000138994 rev. 1.1 EN
1
1. PACKAGE CONTENT
System
Item*
Double pump
PoolDose pH / ORP
PoolDose pH / ORP / CL
A
2
2
B
2
2
C
2
2
D
2
-
E
4(*1)
4(*1)
F
2
2
G
2
2
H
1
1
L
1 (*2)
1 (*2)
M
1
1
N
1
1
O
-
1
P
-
1
Q
-
1
R
-
1
S
1
1
T
1
1
U
1
1
V
1
1
*NOTE: The values from the table represent the number of items inside the package.
(*1 Five pieces for the WiFi model only)
(*2 One piece for the WiFi model only)
A: PVC Crystal 4x6
suction hose (4 m)
B: Polyethylene
delivery hose (5m)
C: FPM Lip valve
(3/8” GAS)
D: PSS3 probe-
holder (1/2” GAS)
E: Tapping saddle
(f=50mm)
F: Reducer for
injection valve
(1/2” M to 3/8” F)
G: Foot filter
(PP riser)
H: Mounting bracket
kit (f=6 mm screws)
L: Temperature
sensor
M: pH probe
N: ORP probe
O: Probes holder +
Chlorine probe
P: Filter Minor (5”) +
PSS3 probe-holder
(1/2” GAS)
Q: Cleaning brush
chlorine probe
R: Balls for chlorine
probe
S: pH 4 Buffer
solution
T: pH 7 Buffer
solution
U: 465 mv Calibration
solution
V: Water
WARNING!
Before carrying out ANY work inside control panel of the PoolDose
device, make sure you disconnect it from the power supply.
Failure to comply with the instructions contained in this manual
could cause injury to people and/or damage to the appliance and the
system.

PoolDose | pH · ORP · Chlorine
0000138994 rev. 1.1 EN
2
WARNING!
These products are DANGEROUS (IÓA) and require special precautions during use, handling and storage.
• NEVER mix chemical products.
• NEVER allow children or people who have not read this manual to use or tamper with PoolDose or any
of its peripheral components (including chemical products).
pH chemical products:
• ABSOLUTELY not recommended => pure sulphuric acid
• Recommended for lowering pH => negative pH (with a sulphuric acid base)
• Recommended for raising pH => positive pH (sodium carbonate or bicarbonate)
ORP chemical products:
• ABSOLUTELY not recommended => all types of organic chlorine
• Liquid chlorine or 12% bleach can be used neat. If the product has a concentration of 48%, it is necessary to
dilute it in water in a 1:3 ratio.
The pH / ORP probes are subject to wear and tear and therefore are not covered by the warranty.
2. INSTALLATION INSTRUCTIONS
Use with salt chlorinator:
For the pH systems, to prevent the
risk of system malfunctioning or
damage, observe the following
instructions:
1. Position the pH measuring
probe prior to the chlorinator
cell.
2. To eliminate eddy currents,
connect the pool water to an
electrical ground point
3. Position the product injection
point after the chlorinator cell.
The probe’s angle of
inclination must never
exceed 45° from
vertical.
For optimum probe
reading, position it
perpendicular to the
tubing.
Probe positioning
Installation plant
Warning!
Make sure that the injection pressure is below 1.5 bar
2 m
Warning!

PoolDose | pH · ORP · Chlorine
0000138994 rev. 1.1 EN
3
3. ELECTRICAL CONNECTIONS
Label connections
Double pump system
Clamp
Description
PoolDose
pH · ORP
PoolDose
pH · ORP · CL
1
Input Probe
ORP
ORP
2
Input Probe
pH
pH
3
Input Probe
TEMP (PT100)
TEMP (PT100)
4
Input Probe
Not used
Free Chlorine
5
Input Freq. signal
Flow Rate (Freq. Input)
Flow Rate (Freq. Input)
6
Level (product tank)
pH Level probe
pH Level probe
7
Level (product tank)
Chlorine (ORP) level probe
Chlorine level probe
8
Level (External Reed flow sensor)
Flow (REED sensor)
Flow (REED sensor)
9
Serial Port
Not present
Not present
10
Trigger Input 220Vac (High Voltage)
Circulation Pump
(220Vac input)
Circulation Pump
(220Vac input)
11
Output Relay R1
RL1 AUX1 pH
RL1 AUX1 pH
12
Output Relay R2
RL2 AUX2 OPR/Chlorine
RL2 AUX2 OPR/Chlorine
13
Output Relay R3
RL3 Alarm
RL3 Alarm
14
Earth connector
Earth
Earth
15
Power Supply
220-240 Vac 50-60 Hz (F/N)
220-240 Vac 50-60 Hz (F/N)
P1
Peristaltic pump connection
pH
pH
P2
Peristaltic pump connection
Chlorine (ORP)
Chlorine
P3
Peristaltic pump connection
Not used
Not used
SekoNet
WiFi Module
WiFi card (dedicate code)
WiFi card (dedicate code)

PoolDose | pH · ORP · Chlorine
0000138994 rev. 1.1 EN
4
4. TECHNICAL SPECIFICATIONS
Specifications
PoolDose Double
PH/ORP
PoolDose Double
PH/ORP/Chorine
Dimensions (H–W–D)
H:194,5x W:205,1x D:132,8 mm
H:194,5x W:205,1x D:132,8 mm
Weight
3,5 Kg
3,5 Kg
Pump state
Pause – Supply
Pause – Supply
Probe calibration
Automatic
Automatic
Power supply
220-240 VAC 50-60 Hz
220-240 VAC 50-60 Hz
Consumption (W)
28 Watt
28 Watt
Device precision
± 0.1 pH; ±10mV; ±1°C
± 0.1 pH; ±10mV; 0.1 ppm; ±1°C
Accuracy
±0,02pH, ±3mV; ±0,5°C
±0,02pH, ±3mV; 0,05 ppm; ±0,5°C
Range
0-14pH; -99 -1000mV; 0…+55°C
0-14pH; -99 -1000mV; 0-5 ppm; 0…+55°C
Flow rate pump (l/h)
1.5 l/h
1.5 l/h
Max. back-pressure
1.5bar
1.5bar
Relay contact (number 3)
250 Vac 10A (resistive load)
250 Vac 10A (resistive load)
Fuse
500 mA (fast)
500 mA (fast)

PoolDose | pH · ORP · Chlorine
0000138994 rev. 1.1 EN
5
5. SETTING PROGRAM
Program Setup – Press for 5 seconds
At the entry of each menu item, the parameter can be directly modified using the arrow keys ( and ).
Confirmation of the current setting and switching to the next item is done by pressing the button.
The menu has a circular structure: once you arrive at last item, the confirmation of the parameter set by pressing
, determines the return to the first menu item.
1 Language – It is possible to select between 5 available languages: EN, FR, IT, DE, ES
2 pH
§ Setpoint – 7.4pH (5-9pH)
§ Setpoint Type: – Acid (Acid/Alka)
§ Time on = 30seconds (range from 1 to 360 seconds)
§ Time off = 60seconds (range from 1 to 360 seconds)
§ Temperature: 25°C; set °C/°F and the manual value
§ OFA Alarm: Off, 1-60’ (minutes)
3 ORP
§ Setpoint – 700 mV (400-850mV)
§ Setpoint Type: Low (Low/High)
§ Time on = 30seconds (range from 1 to 360 seconds)
§ Time off = 60seconds (range from 1 to 360 seconds)
§ OFA Alarm: Off, 1-60’ (minutes)
§ Note: The ORP dosing, in the presence of Chlorine has no effect on the dosing pump,
but can handle the Aux2 Relay with ON/OFF activation with respect to the setpoint.
4 Chlorine
§ Setpoint – 1.2 ppm(0.3-3.0 ppm)
§ Setpoint Type: Low (Low/High)
§ Time on = 30seconds (range from 1 to 360 seconds)
§ Time off = 60seconds (range from 1 to 360 seconds)
§ OFA Alarm: Off, 1-60’ (minutes)
5 Advanced menu
§ Circulation pump – (Enabled/Disabled)
§ In Freq (Input flow rate)
• OFF/ON
• Pulse/Liter:1 or Liter/pulse:1 – Set value
• Unit: L or m³
§ Calibration pH: 2 points, 1 point, Reference, Disable
§ Calibration ORP: 1 point, Reference, Disable
1) Button to increase the value
2) Button to decrease the value
3) Button Menu/Esc
4) Button Cal/OK
5) Button to set the setpoint
6) Digital display
1
2
3
4
5
6
* Timed dosing only
* Timed dosing only
* Timed dosing only

PoolDose | pH · ORP · Chlorine
0000138994 rev. 1.1 EN
6
§ Calibration CL: 2 points, Disable,
§ Calibration Temp: Reference, Disable,

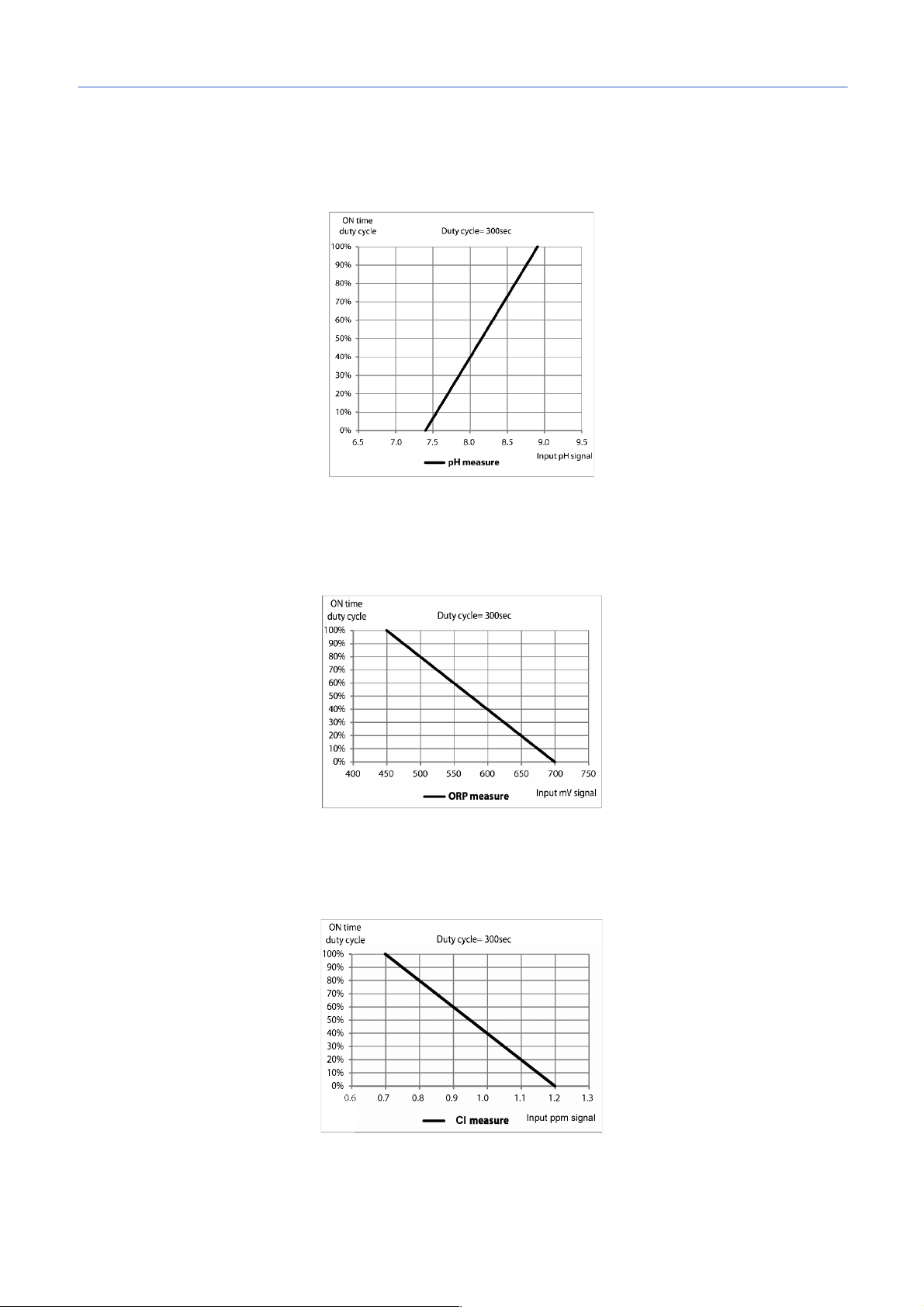

§ Dosing Type pH: Proportional, OFF, Timed, On/OFF
§ Dosing Type ORP: Proportional, OFF, Timed, On/OFF
o Note: The ORP dosing is disabled if Dosing type chlorine is different than
OFF
§ Dosing Type Chlorine: Proportional, OFF, Timed, On/OFF
§ Aux Relay
• Aux1 Relay: pH, Disable
• Aux2 Relay: Chlorine, ORP, Disable
o Note: Aux1 and Aux2 relays dose with ON/OFF method
§ Password: 0000 (Note: password disabled, set a value other than: 0000)
§ Reset Calibration: (Note: select the measure to reset: pH; Chlorine; ORP)
§ Reset All Parameters
§ PROG Control Panel: displays the electrical signals
§ Reed (display error, when red): NO/NC
§ Power ON Delay: Disables the dosing pumps for the set time
§ Flow Delay: Disables the dosing pumps for the set time
Note: Timeout setting menu, after 120 seconds without action the controller escape itself without saving parameters.
View Parameters
Calibration Menu:
Press (3 seconds) and calibrate probe pH, Chlorine, Temperature, ORP
1.4ppm 7.4pH
25°C 720mV
ORP
Measure
Alarms:
Lev CL(ORP)
OFA ORP
pH
measure
Alarms:
Lel pH
OFA CL
Free Chlorine Measure
Alarms
Lev CL
OFA CL
Temperature or Totalizer
Flowrate measure,
Moreover:
Alarms sharing messages
• Circ. Pump OFF
• Flow (Reed OFF)
• WiFi OFF
• Remote standby
deletes all measures

PoolDose | pH · ORP · Chlorine
0000138994 rev. 1.1 EN
7
6. PH CALIBRATION
Note: If you have selected the “1 point cal.”, the calibration will be made only in 1 point using the 7 pH buffer
solution.
Reference calibration
5 s
Set pH calibration
7 pH
60 s
4 pH
60 s
7 pH calibration
4 pH calibration
H2O
H2O
H2O
Save and exit
H2O
16
15
13
14
12
9
10
4
5
6
7
1
2
3
8
11
The unit will flash a pH value
Set the temperature
measured with the instrument
Ex. 7.4 pH
CAL Reference
7.2 pH
CAL Reference
7.4 pH

PoolDose | pH · ORP · Chlorine
0000138994 rev. 1.1 EN
8
7. ORP CALIBRATION
Reference calibration
5 s
Set Redox calibration
465mV
60 s
H2O
H2O
465 mV calibration
H2O
Save and exit
9
10
4
5
6
7
1
2
3
8
11
The unit will flash a redox value
Set the value measured with
the instrument
Ex. 750 mV
CAL Reference
720 mV
CAL Reference
750 mV

PoolDose | pH · ORP · Chlorine
0000138994 rev. 1.1 EN
9
8. CHLORINE CALIBRATION
9. TEMPERATURE CALIBRATION
The unit saves the
parameters.
H2O
3 s
Select Cl calibration
10 s
10 s
10 s
Close flowrate
If flowrate is closed
Save and exit
100 s
The unit will flash a Cl value
Set the Cl value measured
with the instrument
Ex. 1.0 ppm Free Cl
15
13
14
12
9
10
4
5
6
7
1
2
3
8
11
The unit will flash a temperature
value
Set the temperature value
measured with the instrument
Ex. 27°C
CAL Reference
26°C
CAL Reference
27°C

PoolDose | pH · ORP · Chlorine
0000138994 rev. 1.1 EN
10
Set menu:
Press (3 seconds) and adjust set point value and press SET to confirm.
Calibration Menu:
Press (3 seconds) and calibrate probe pH, Chlorine, Temperature, ORP,
StandBy system
Press (5 seconds) the system sets in StandBy mode; all functions are disabled.
Reset OFA Timer
Press (click) and reset countdown OFA time
Priming pumps
Only while the pump is in “stand-by mode” press down to reset flow totalizer, to run pH pump, press
to run ORP/Chlorine pump, press to run the Aux1 Relay, press to run the Aux2 Relay.
To restore the default parameters, follow the steps below:
• Power off the PoolDose unit
• Keep and pressed and power on the unit
• The unit will flash Init.default__no
• Press Init.default__Yes
• Press to restore the default parameters.
Default parameters:
• Language = EN
• Set Point value = 7.4 pH; 700 mV; 1.2 ppm
• Dosing method = Acid (pH); Low (Redox)
• OFA Time = OFF
• Calibration = Full
• Flow Input = OFF
• Dosing type = PROP; ON/OFF Relay Aux1 e Aux2
1.2 ppm SetPoint
7.4 pH 720mV
ORP
measure
pH
measure
Free Chlorine
measure
Quick setpoint menu

PoolDose | pH · ORP · Chlorine
0000138994 rev. 1.1 EN
11
10. DOSING METHOD
Setpoint = 7.4 pH
Dosing mode = Acid
Prop. Band= 1.5 pH) (* Fixed value)
Setpoint = 700 mV
Dosing mode = Low
Prop. Band= 250mV (* Fixed value)
Setpoint =1.2ppm free Chlorine
Dosing mode = Low
Prop. Band: 0.5ppm (* Fixed value)

PoolDose | pH · ORP · Chlorine
0000138994 rev. 1.1 EN
12

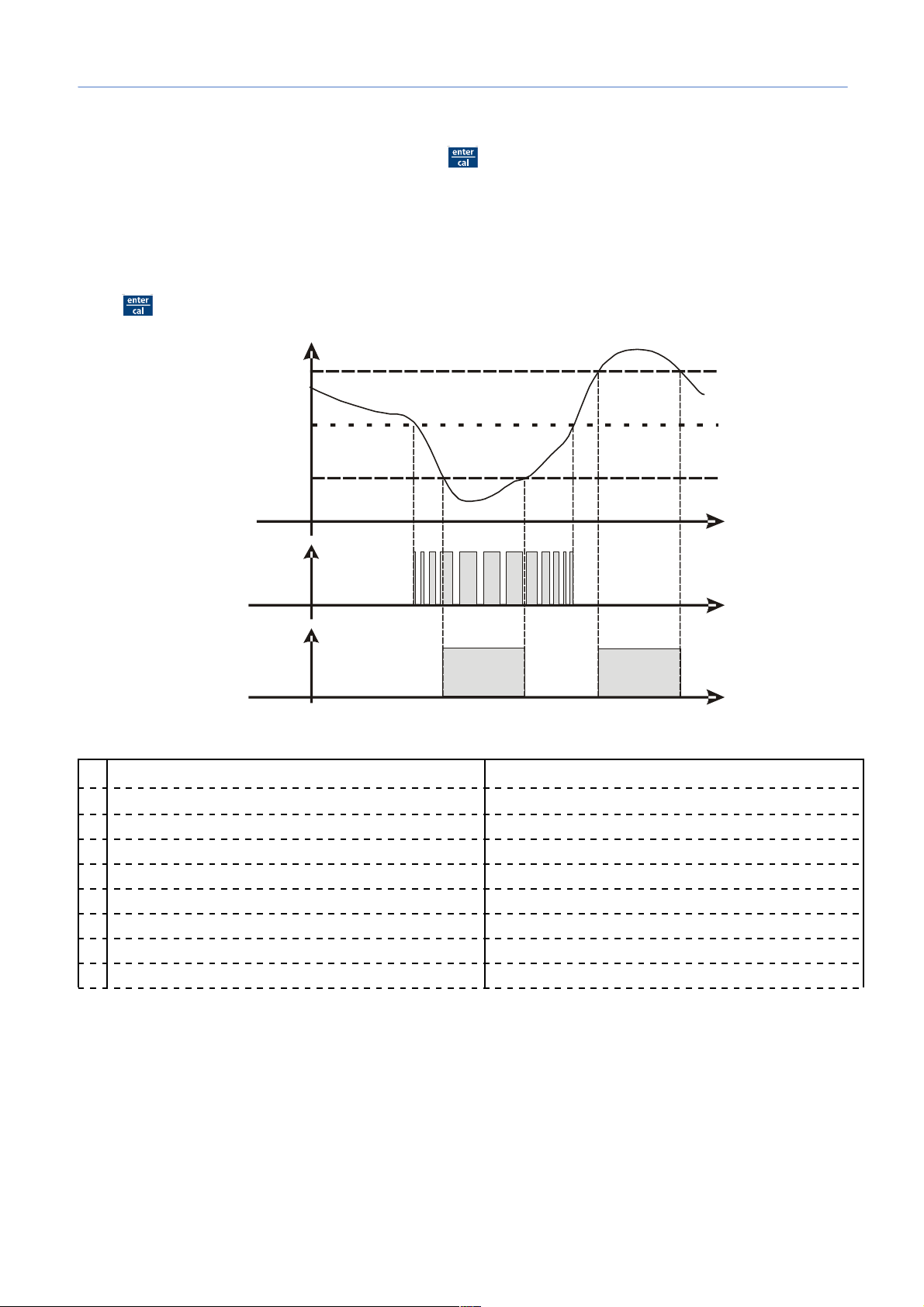

Alarm for the pH/ORP Set Point
When the alarm band is set, a work window is created. If the allowed limits are exceeded the alarm relay closes
and remains closed until the measurement is reset or is pressed to deactivate the alarm.
When the OFA time (Over Feed Alarm) is set, the dosing time of Set Point pH/ORP in time is controlled with two
alarms:
Ø First alarm at 70% of the time set is seen on the display, the alarm relay closes.
Ø Second alarm at 100% of the time set is seen on the display and the alarm relay closes and the
pH/ORP pump is blocked.
Press to eliminate the alarm and initialize the OFA time.
(*1 Measure alarm Ranges - fixed values)
n
Item
Limits
1
Temp. Measure min
+ 10°C
2
Temp. Measure Max
+ 38°C
3
pH Measure min
6 pH
4
pH Measure Max
8 pH
5
ORP Measure min
+ 600 mV
6
ORP Measure Max
+ 800 mV
7
CL Measure min
0,50 ppm
8
CL Measure Max
2 ppm
Pump pH
Set Point pH
ALR Relay
ALR Band
ALR Band

PoolDose | pH · ORP · Chlorine
0000138994 rev. 1.1 EN
13
11. INTERNAL WEB SERVER
Download SekoLink
Register your account
Thanks to QrCode login in internal webpages
Set:
User name= ADMIN
Password= 0000
Set your WiFi lan name and Password and confirm.
Complete your device registration

PoolDose | pH · ORP · Chlorine
0000138994 rev. 1.1 EN
14
Thanks to your registration it is possible to use sekolink and sekoweb.
Thanks to sekolink it is possible to mange your pool:
• Monitoring and limited management
• Smartphone app compatible with iPhone or Android
• For end users
Use sekoweb address link www.sekoweb.com or APP
to manage your pools with professional webportal:
• Monitoring and complete management
• Internet portal accessible via online login or by
scanning a product’s QR code
• For pool and spa installers, technicians and engineers

PoolDose | pH · ORP · Chlorine
0000138994 rev. 1.1 EN
15
12. ALARMS
Alarm
Display
Actions to do
Level
Level_____7.2_pH
Level_____750_mv
Level_____1.2_ppm
- Push to open Alarm Relay
- Restore Product tank
Out of Range measure
Alr_band
- Replace or check the measure probe
- Push to open Alarm Relay
- Restore measure
OFA First Alarm (time >70%)
OFA_Alarm___7.2_pH
OFA_Alarm
- Push to reset
OFA Second Alarm (time 100%)
OFA_STOP____7.2_pH
OFA_STOP
- Push to reset
Flow Rate
Flow______7.2_pH
Flow
- Restore Flow Rate
Calibration Function
Error_____7_pH
Error_____4_pH
Error_____465_mV
- Restore Probe or Buffer solution and repeat
calibration procedure
System Error
Parameter error
- Press to restore Default parameter
- Broken Unit
Alarm measure (*1)
High Measure
Low Measure
- Adjust the chemical concentration
(*1 Measure Alarm Ranges)
n
Item
Limits
1
Temp. Measure min
+ 10°C
2
Temp. Measure Max
+ 38°C
3
pH Measure min
6 pH
4
pH Measure Max
8 pH
5
ORP Measure min
+ 600 mV
6
ORP Measure Max
+ 800 mV
7
CL Measure min
0,50 ppm
8
CL Measure Max
2 ppm

PoolDose | pH · ORP · Chlorine
0000138994 rev. 1.1 EN
16
13. HANDLING
Hose replacement:
Open the pump’s lid and release the
hose by pulling the left connector
upward.
Position the roller at 7h05, turning it
in the direction of the circular arrow.
Completely release the left
connector, holding it taut towards
the outside, and turn the roller in the
direction of the circular arrow so that
the hose is freed up to the right
connector.
Position the roller at 7h05, turning
it in the direction of the circular
arrow.
Insert the left connector into the
relative housing and pass the hose
under the roller’s guide. Turn the
roller in the direction of the circular
arrow, simultaneously accompanying
the hose into the pump’s head, until
the right connector is reached.
Close the pump’s lid and press its
surface hard so that it is properly
locked into place.

PoolDose | pH · ORP · Chlorine
0000138994 rev. 1.1 EN
17
14. STORING THE PUMP AFTER USE
When the regulation device must be stored, clean water should be pumped through the hose in order to rinse it.
Then position the roller at 7h05, turning in the direction indicated by the circular arrow.
These two precautions will facilitate the subsequent reactivation of the unit.

PoolDose | pH · ORP · Chlorine
0000138994 rev. 1.1 EN
18
Wires connection:
Label connection:
Clamp
Description
PoolDose pH · ORP
1
Input Probe
ORP
ORP Probe
2
Input Probe
pH
pH Probe
3
Input Probe
TEMP (PT100)
A= two wires sensor
B= three wires sensor
4
Input Free Chlorine
sensor
Input free chlorine probe:
Pt: Platinum sensor
Cu: Cupper sensor
5
Input Freq. signal
Flow Rate (Freq.Input)
A= Mechanical reed
B= Padwheel hall sensor
6
Level (product tank)
pH Level probe
Level probe for chemical tank
7
Level (product tank)
Chlorine (ORP) level probe
Level probe for chemical tank
8
Level (product tank)
Flow (REED sensor)
Flow Sensor
9
Serial Port
Not present
None
10
Trigger Input
Circulation Pump
(220Vac input)
Fase/Neutral wires
11
Output Relay
RL1 AUX1 pH
Dry contact
12
Output Relay
RL2 AUX2 OPR/Chlorine
Dry contact
13
Output Relay
RL3 Alarm
Dry contact
14
Earth connector
Earth
---
15
Power Supply
220-240 Vac 50-60 Hz (F/N)
---
B
A
B
A
