Thank you for purchasing this SN-258 PLUS cordless
telephone, one of the high-quality products produced by
SENAO. To obtain optimum performance, please be sure
to read this manual carefully before starting operation
and keep it for future reference.
Before Initial Use

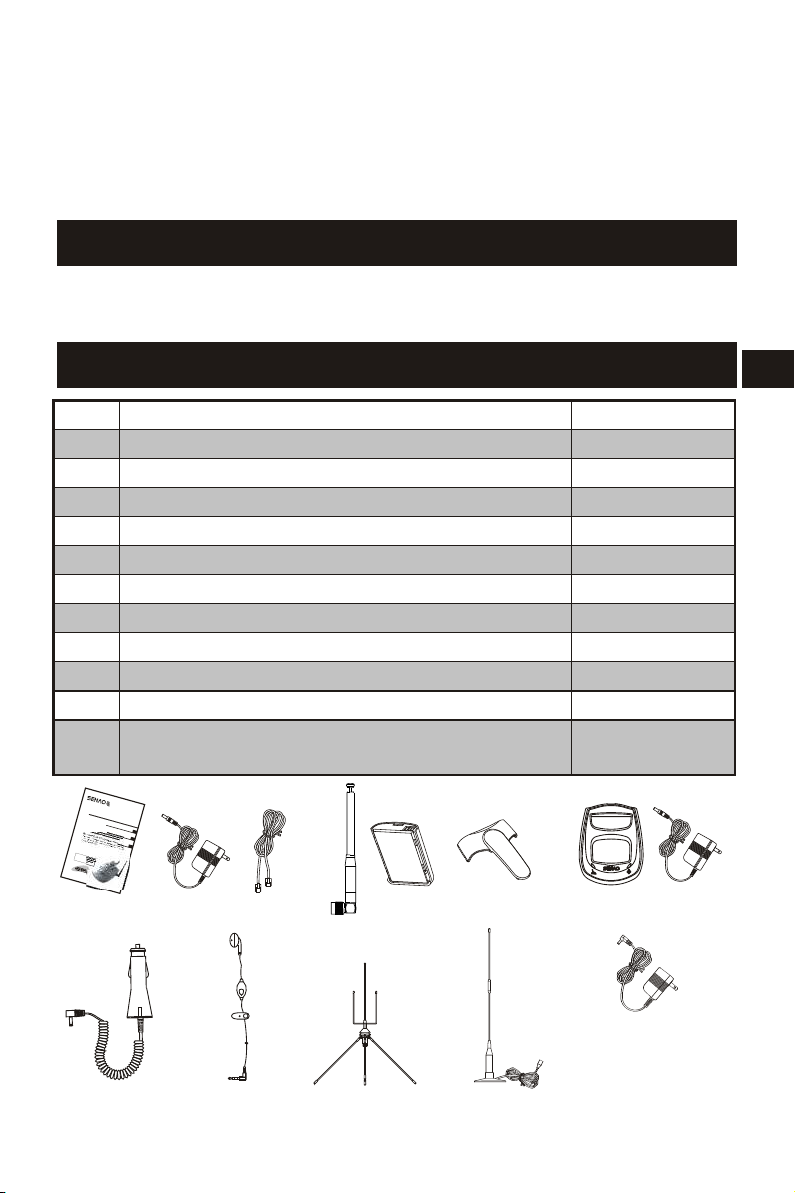

Accessories
For the efficient and safe operation of your SN-258 PLUS, please read the
page 34~35 before use.
1
2
3
4
5
6
7
8
9
10
11
12
1 book
1 pc
1pc
1pc
1pc
(optional)
(optional)
(optional)
(optional)
(optional)
(optional)
Instruction manual
AC adaptor for base unit (DC 12V/ 800mA)
Telephone line
Telescopic antenna for base unit
Battery pack (Ni-Mh 750mAh)
Belt clip
Charger with AC adaptor
Vehicle charger

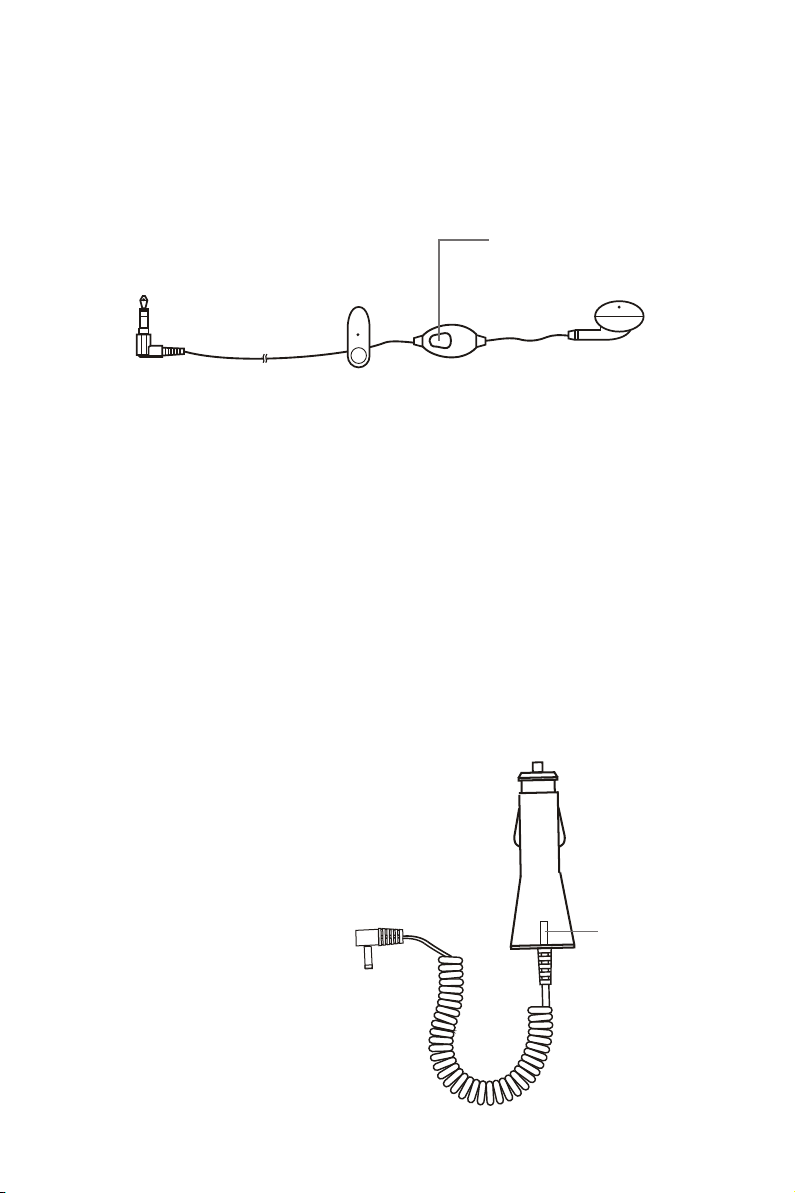

Ear-microphone
Outdoor antenna with cable for base unit
Car antenna
Travel charger
(7) (optional)
(8) (optional)
(12) (Attached with
additional handset)
(11) (optional)
1-EN
(1) (2) (3) (4) (5) (6) (optional)
(10) (optional)
(9) (optional)
(Attached with
additional handset)
Instruction Manual
Beforeoperating the unit, please read this manual thoroughly,
andretain it for future reference.
SN-258 PLUS
EN
Thisproduct is prohibited to be
usedwithout permission from the
governmentauthorities in the
relevantjurisdictions
Manual instrucciones
Antesde unidad, lea detenidamente este manual de
instruccinesy conservelo para futuras referencias.
,
ES
RU
EN

To power the handset, install
the battery (p.9) and charge
it for about 12 hours before
initial use (p.10).

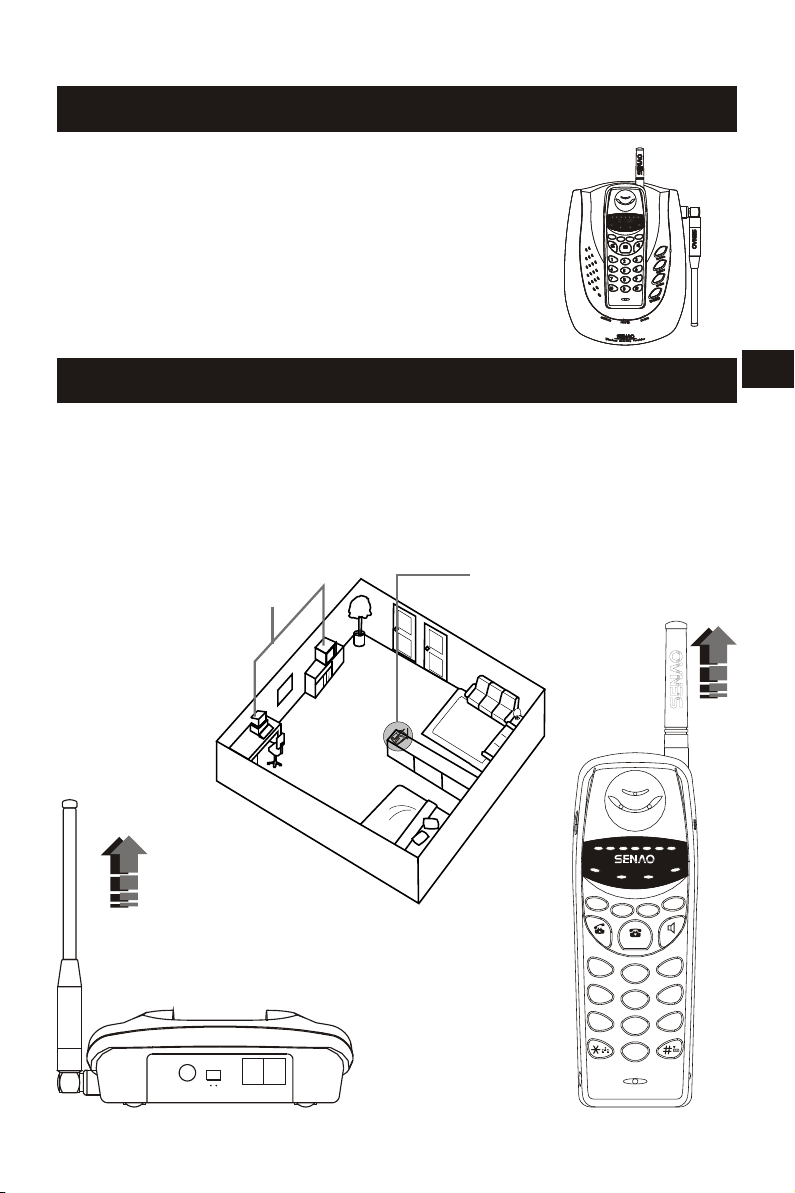

Away from electronic appliances
such as a TV, personal computer,
or another cordless phone.
At a HIGH and CENTRAL
location with no obstructions
such as walls.
For Best Performance
Operating Distance/Noise
Calls are transmitted between the base unit and the handset using
wireless radio waves. For maximum distance and noise free operation, the
recommended base unit location is:
Raise the base unit antenna and extend
fully both the telescopic antenna of
base unit and handset.
Battery Charge
IN USE
H2 VOL
H1 VOL
H3 RING
INT-COM MEMO
W
ir
r
el
e
e
d
s
i
s
v
o
r
S
P
o
lun
tio
CHARGE
POWER
IN USE
H2 VOL
H1 VOL
H3 RING
INT-COM MEMO
W
ir
r
el
e
e
d
s
i
s
v
o
r
S
P
o
lun
tio
CHARGE
POWER
P VOL
REDIAL
MEMO
FUNC
1
4
7
GHI
PQ
RS
2
5
8
ABC
JKL
TUV
3DEF
6
MNO
9WX
YZ
0
Oper
IN USE
KEY LOCK
BATT.LOW
SCRAMBLER
/
ON OFF
/
FLASH INT
2-EN
EN

Features.....................5
Location of Controls . . . . . . . . . . . . . . . 6
A. Base Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
B. Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
C. Charger (optional) . . . . . . . . . . . . . . . . . . . . . . .7
Installation . . . . . . . . . . . . . . . . . . . . . 8
A. Base Unit . . . . . . . . . . . . . . . . . . . . . . . . . .8
B. Handset . . . . . . . . . . . . . . . . . . . . . . . . . . 9
C. Twin Charger (Optional) . . . . . . . . . . . . . . . . . . . . .9
D. Charging Battery . . . . . . . . . . . . . . . . . . . . . 10
E. Travel Charger (For Additional Handset) . . . . . . . . . . . .10
F. Ear-microphone (Optional) . . . . . . . . . . . . . . . . .11
G. Vehicle charger (Optional) . . . . . . . . . . . . . . . . . . . . 11
H. Outdoor Antenna (Optional). . . . . . . . . . . . . . .
Basic Operation. . . . . . . . . . . . . . . . 15
A. Turn On/ Off the Handset . . . . . . . . . . . . . . . 15
B. Making Calls . . . . . . . . . . . . . . . . . . . . 15
C. Redial . . . . . . . . . . . . . . . . . . . . . . . . . 15
D. Automatic Dialling . . . . . . . . . . . . . . . . . . . 16
E. Answering Calls. . . . . . . . . . . . . . . . . . . . . . 16
F. Intercom . . . . . . . . . . . . . . . . . . . . . .17
G. Intercom during a Call . . . . . . . . . . . . . . . . 18
H. Call Waiting . . . . . . . . . . . . . . . . . . . . .19
I. Walkie-Talkie between handsets . . . . . . . . . . . 19
J. Group Call (Walkie-Talkie Mode) . . . . . . . . . . . 20
Contents
3-EN
12
EN

B. Setting the Handset . . . . . . . . . . . . . . . . . . . . . 29
1. Change Handset's ID . . . . . . . . . . . . . . . . . .29
2. Setting Ring Mode for each Handset . . . . . . . . . . 29
3. Setting Stand-by Time for each Handset . . . . . . . . . 30
Registering Handset for Multi-handset System . .
. . . . . . . . . . . . . . . . . . . . . . . . . . 31
A. Handset Registration . . . . . . . . . . . . . . . . . . . 31
B. De-registering Handset . . . . . . . . . . . . . . . . . . 32
C. Checking the Handset's IID Number. . . . . . . . . . . . . . 32
D. Checking the Parameters . . . . . . . . . . . . . . . . . . 32
Troubleshootings . . . . . . . . . . . . . 33
Specification. . . . . . . . . . . . . . 34
Important Safety Instructions . . . . . . . . . 35
Features Setting. . . . . . . . . . . . . . . . . 27
A. Setting the Base Unit. . . . . . . . . . . . . . . . . . 27
1. Setting Pause duration. . . . . . . . . . . . . . . . . 27
2. Setting Dialling Mode. . . . . . . . . . . . . . . . . . . 27
3. Setting Flash Duration. . . . . . . . . . . . . . . . . . . 27
4. Setting amount of Handsets in the System. . . . . . . . 28
5. Setting Transferring Waiting Time . . . . . . . . . . . . . 28
6. Setting Call-back Waiting Time . . . . . . . . . . . . . . 28
Advanced Operation. . . . . . . . . . . . . . 23
A. Adjusting Ringer Volume. . . . . . . . . . . . . . . . . 23
B. Adjusting Voice Volume . . . . . . . . . . . . . . . . 24
C. Selecting Voice Mode . . . . . . . . . . . . . . . . . . . . . 25
D. Transferring a Call among Handsets. . . . . . . . . . . . . 25
E. Changing the Channel during a Conversation. . . . . . . .26
F. Display the Battery Status. . . . . . . . . . . . . . . . . . . . . 26
4-EN
EN

Features
* Multi-channel access with auto-scan.
*Multi-handset system (up to 15).
* Multi-base system (up to 4).
*Walkie-talkie between handsets (up to 15 handsets).
* Half-Duplex group call.
*Two-way paging and hands-free intercom.
*10-set memory dial for each handset (20 digits).
*Last number redial.
*Tone/Pulse dialling mode selectable.
*Change channel during conversation.
*Keypad lock function.
*Flash time programmable.
*Ring volume adjustable.
*Voice volume adjustable.
*Music on hold.
*Touch any key answer.
*Handset with power saving circuit.
*Low battery alert and indicator.
* Out of range alert.
*Battery power status display.
* Fast charge.
*Built-in noise cancellation circuit (Compander).
*Built-in voice security and mutation circuit (Scrambler).
*Auto answer and auto hang up.
*Transferring a call among handsets.
* Hands-free kit for handset (optional).
*Separate charger (optional).
* Vibration alert (Vibration version only).
5-EN
EN

Speaker
Microphone
Handset charging slot
INT-COM: Paging all of the handsets
/ Memo key
H1: Paging handset 1/
voice volume up
DC IN jack
Antenna
TONE/PULSE switch
Line jack

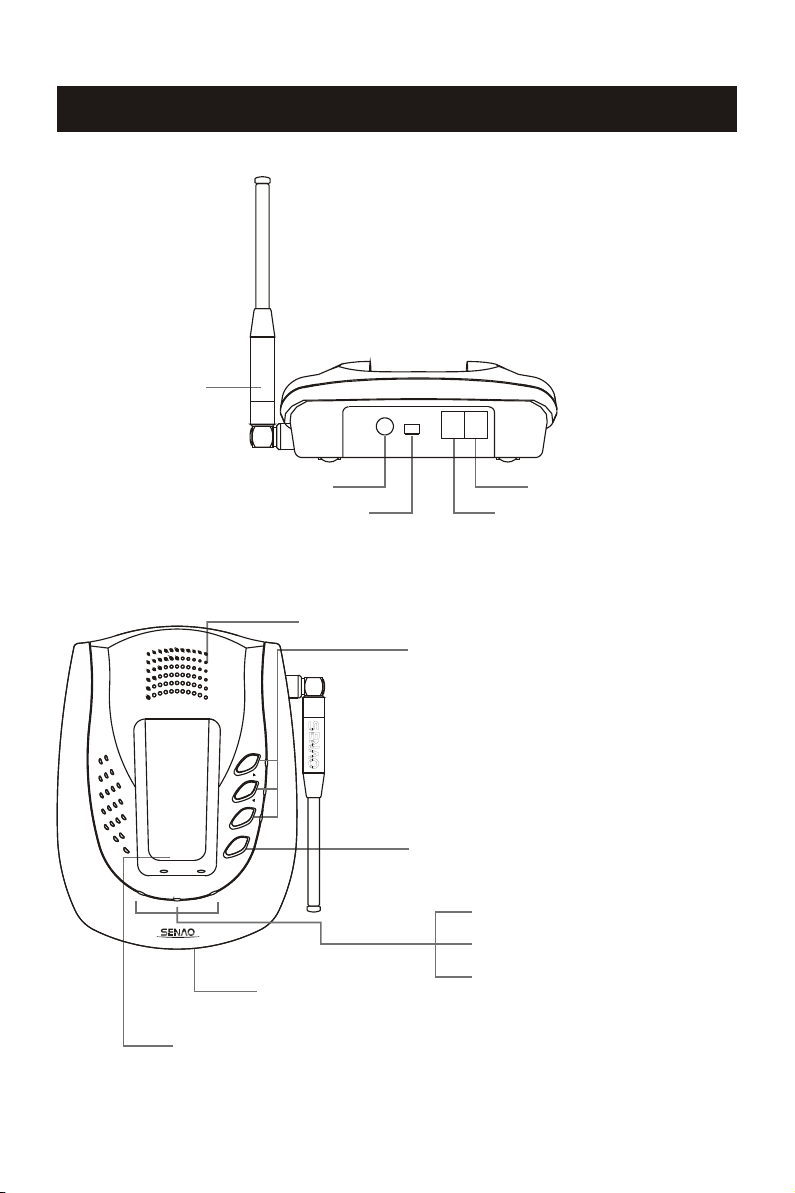

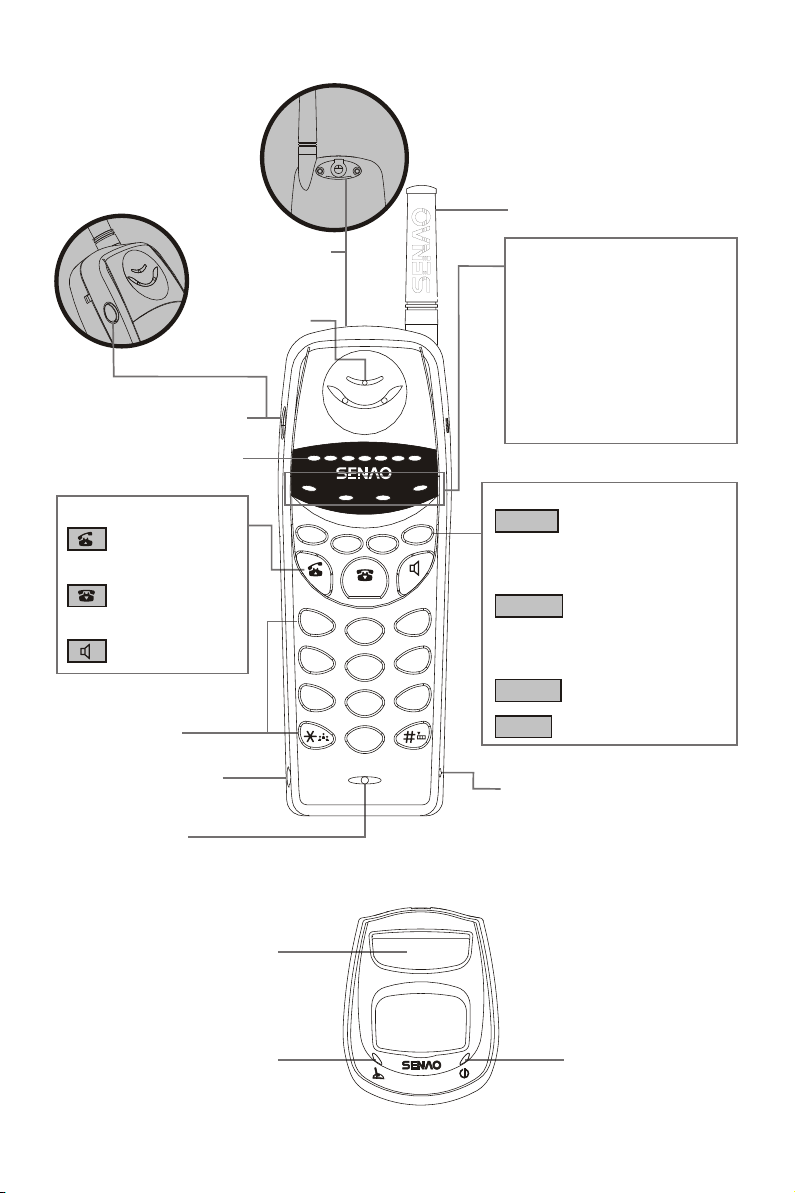

A. Base Unit
Location of Controls
TEL. jack
IN USE
H2 VOL
/
H1 VOL
/
H3 RING
INT-COM MEMO
/
/
W
i
r
r
e
l
e
e
d
s
i
s
v
o
r
S
P
o
lu
n
tio
CHARGE
POWER
CHARGE: CHARGE indicator
POWER: POWER indicator
IN USE: IN USE indicator
6-EN
H2: Paging handset 2 /
voice volume down
H3: Paging handset 3/
Ringer volume adjustable key

Antenna
Car Antenna
jack
B. Handset
Receiver
PTT KEY: Lock Keypad
/ Push To Talk
Scan LED array
DC IN jack
C. Twin Charger (Optional)
Microphone
Dialling keys
ear-Microphone
jack
P VOL
REDIAL
MEMO
FUNC
1
4
7
GHI
PQ
RS
2
5
8
ABC
JKL
TUV
3DEF
6
MNO
9WX
YZ
0
Oper
IN USE
KEY LOCK
BATT.LOW
SCRAMBLER
/
ON OFF
/
FLASH INT
7-EN
Power indicator
Spare battery indicator
Spare battery slot
Operation keys
: Talk key/
Flash key
: End key/
Power On/Off
: Intercom key
Indicators
KEY LOCK: Lock Keypad
IN USE: In use indicator
BATT. LOW: Low battery
indicator
SCRAMBLER: Scrambler
indicator
Function keys
P/VOL : Pause/ Ringer
volume/ Speaker
volume key
FUNC : Function key
MEMO : Memory key
REDIAL : Last number
redial/ Battery
status display key

A. Base Unit
Installation

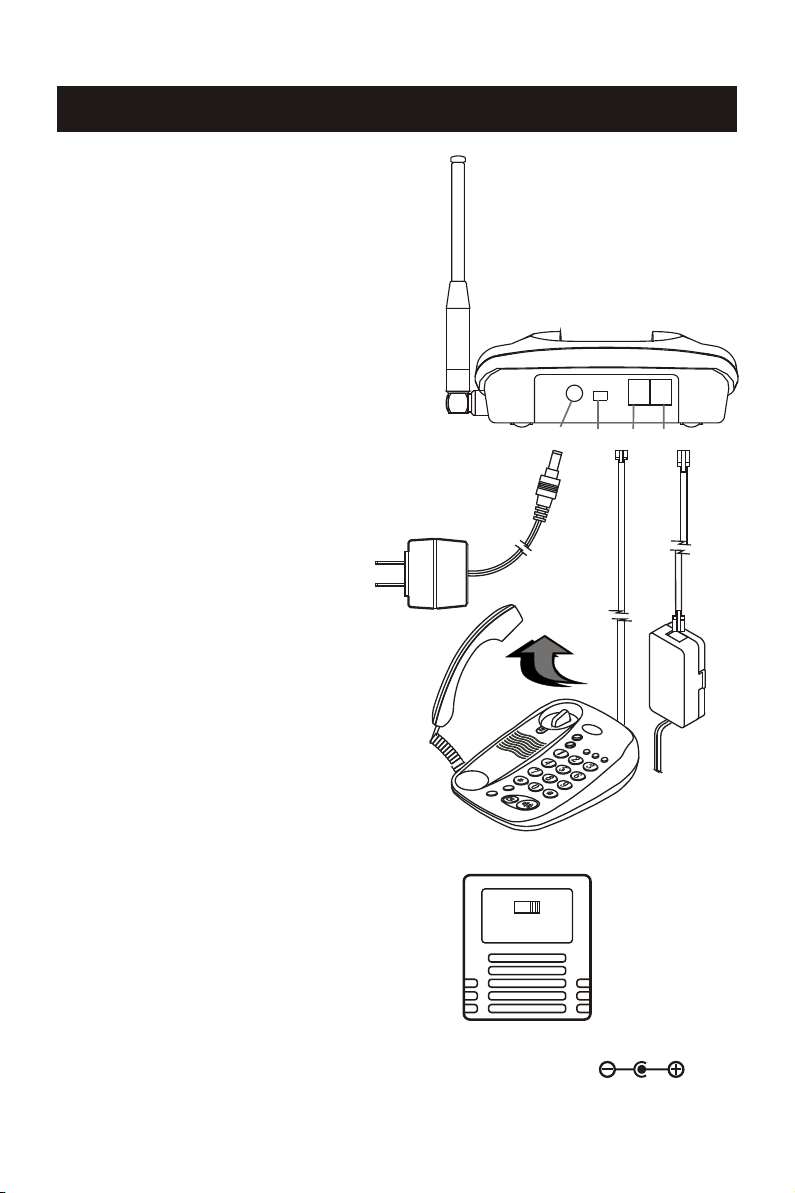

Please set up the base unit according to
the following steps (1)~(8).
(1) Install the telescopic antenna of the
base unit and extend it fully and
vertically.
(5) Set the dialling mode to
TONE. If you can not dial,
set it to PULSE.
(8) Plug the AC adaptor
into power outlet.
(6) Please use only the SENAO
AC adaptor supplied with
the base unit, and connect the
AC adaptor to the DC IN jack.
(4) Connect the telephone line
to the LINE jack with the
local telephone system.
(3) During installation, pick up the hand
held of the standard telephone to avoid
electric shock caused by an incoming call.
(2) Connect the standard telephone to
the TEL. jack.
(7) The AC adaptor is
set on 220V. If your
power source is 110V,
please switch it to
110V before installing.
(7)
220V110V
AC adaptor
(Output DC 12V )
(3)
(8)
(6)
(1)
(5) (4) (2)
8-EN

9-EN
B. Handset

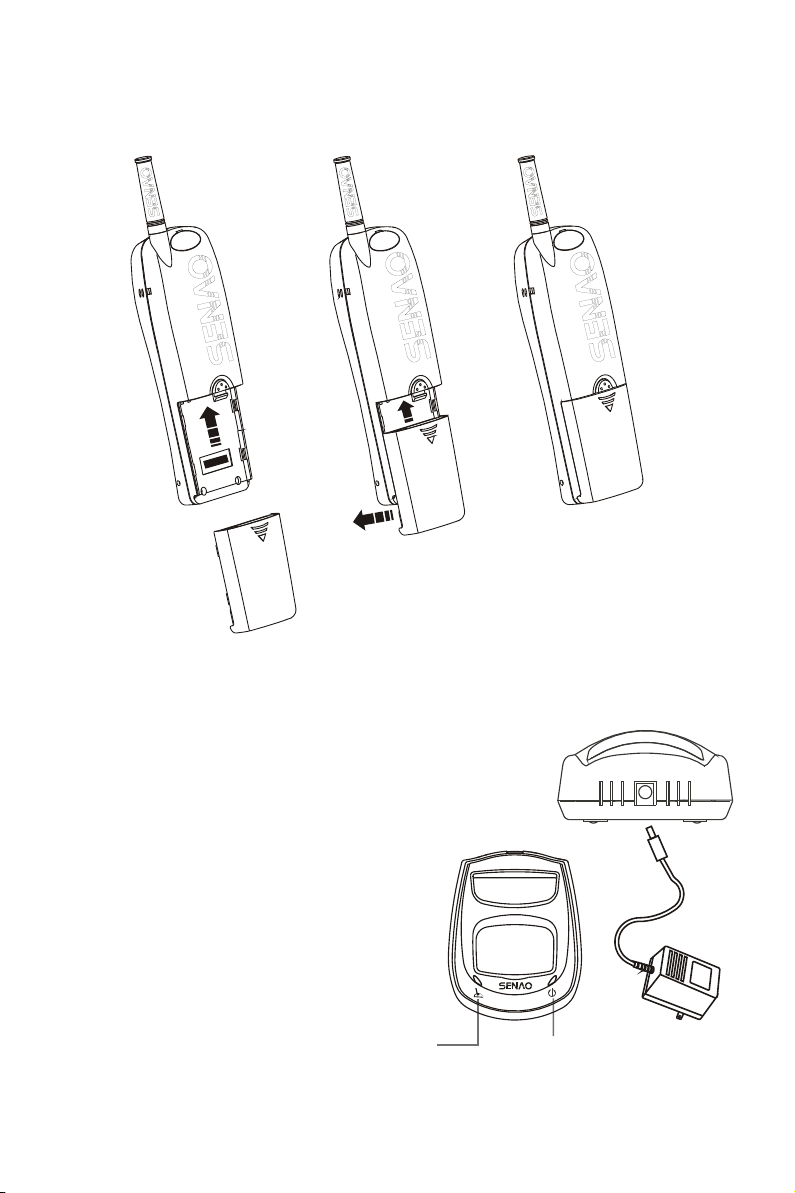

Take the battery from gift box and clip it into the handset.
(1) (2) (3)
C. Twin Charger (Optional)
(1) Plug the AC adaptor to the DC IN jack.
(2) Plug the AC adaptor into the electric
wall outlet.
(3) The spare battery indicator will
becomes flash while is in charge.
It becomes green while the battery
is fully charged. It takes around 2 hrs.
to fully charge Ni-Mh battery pack.
Note: Please use only the SENAO AC adaptor supplied with this charger.
Power indicator
Spare battery indicator

10-EN

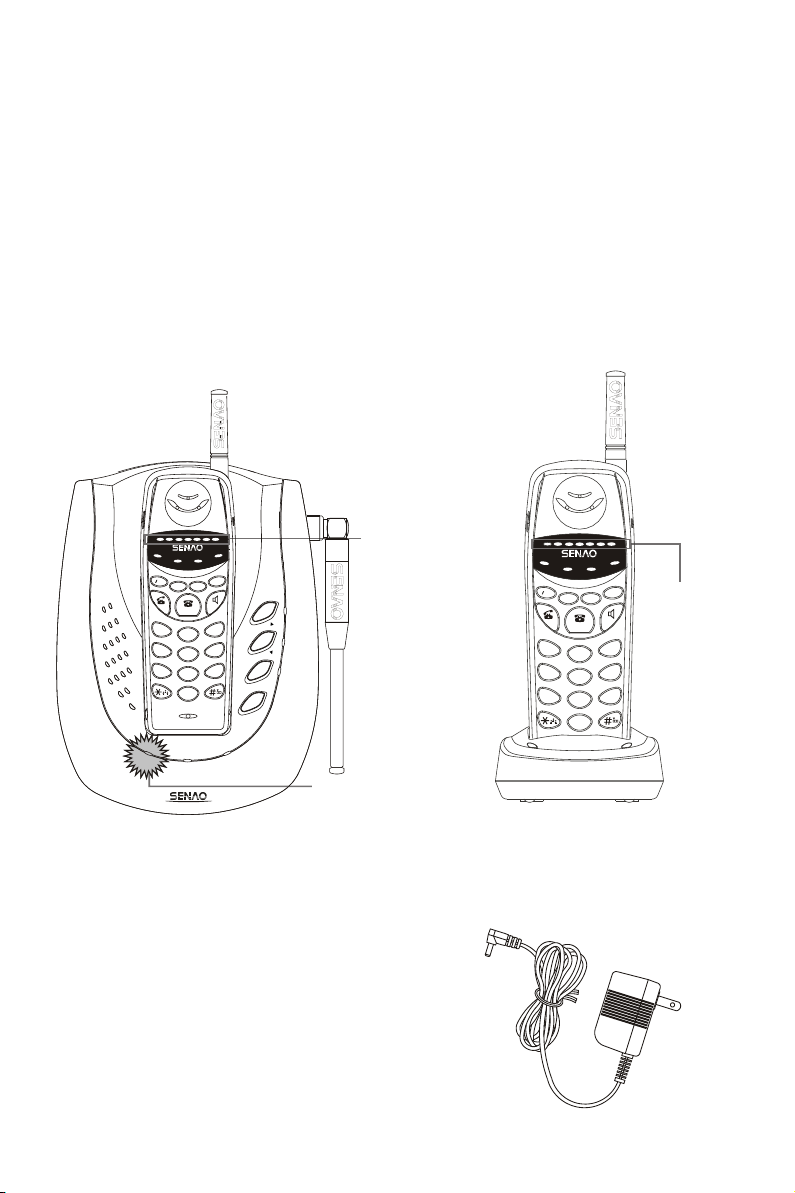

The handset can be charged on the base unit or the charger.
(1) Place the handset on the base unit with facing up.
The
(2) Place the handset on the charger with standing up.
The scan LED array will run up.
(3) The fast charging will be activated automatically, and the scan
LED array runs fast indicating this operation.
(4) The slow charging automatically starts once the fast charging is
finished. The scan LED array runs slowly for slow charging.
CHARGE indicator will light up.
D. Charging Battery Charge
CHARGE indicator
Scan LED array
Scan LED
array
Plug the charger into a wall socket and insert the plug to the DC IN jack
of your handset. The charging times
is approximately 5 hours. Check
the charging status on the
LED array. The operation of handset could
be executed during the charging process.
E. Travel charger (For Additional Handset)
IN USE
H2 VOL
/
H1 VOL
/
H3 RING
INT-COM MEMO
/
/
W
i
r
r
e
l
e
e
d
s
i
s
v
o
r
S
P
o
lu
n
tio
CHARGE
POWER
P VOL
REDIAL
MEMO
FUNC
1
4
7
GHI
PQ
RS
2
5
8
ABC
JKL
TUV
3DEF
6
MNO
9WX
YZ
0
Oper
IN USE
BATT.LOW
SCRAMBLER
ON OFF
/
FLASH INT
KEY LOCK
P VOL
REDIAL
MEMO
FUNC
1
4
7
GHI
PQ
RS
2
5
8
ABC
JKL
TUV
3DEF
6
MNO
9WX
YZ
0
Oper
IN USE
KEY LOCK
BATT.LOW
SCRAMBLER
ON OFF
/
FLASH INT

The vehicle charger's ensures your phone is ready for use
wherever you travel. This small functional design fits
most car lights and interiors. The charging time is about 5
hours, and you can use your phone freely during charging. A
green light indicates that is ready for charging. Check the
charging status on the phone display. The input voltage can
be 12 or 24 V DC, negative grounding.
charger's
Note: To end calls, please keep pressing button for more than 2 sec.
You can answer and end calls by pressing the button on the microphone
part of the ear-microphone. It also could be used as the Walkie-Talkie
function. You can press button to talk, then release it to listen.
F. Ear-Microphone (Optional)
Avoid prolonged charging when the car engine
is not running, this may cause the battery of
your car to drain. Note also that in some cars
the cigarette lighter plug is not provided with
electricity if the ignition is switched off. Verify
that green LED light is on.
G. Vehicle charger (Optional)
11-EN
Answer / End / Push to Talk
Key
Power indicator

H. Outdoor Antenna (Optional)
NOTE:
NOTE:
Installation of the outdoor antenna is very
important for communication range and
quality. Be sure to follow the following
procedures.

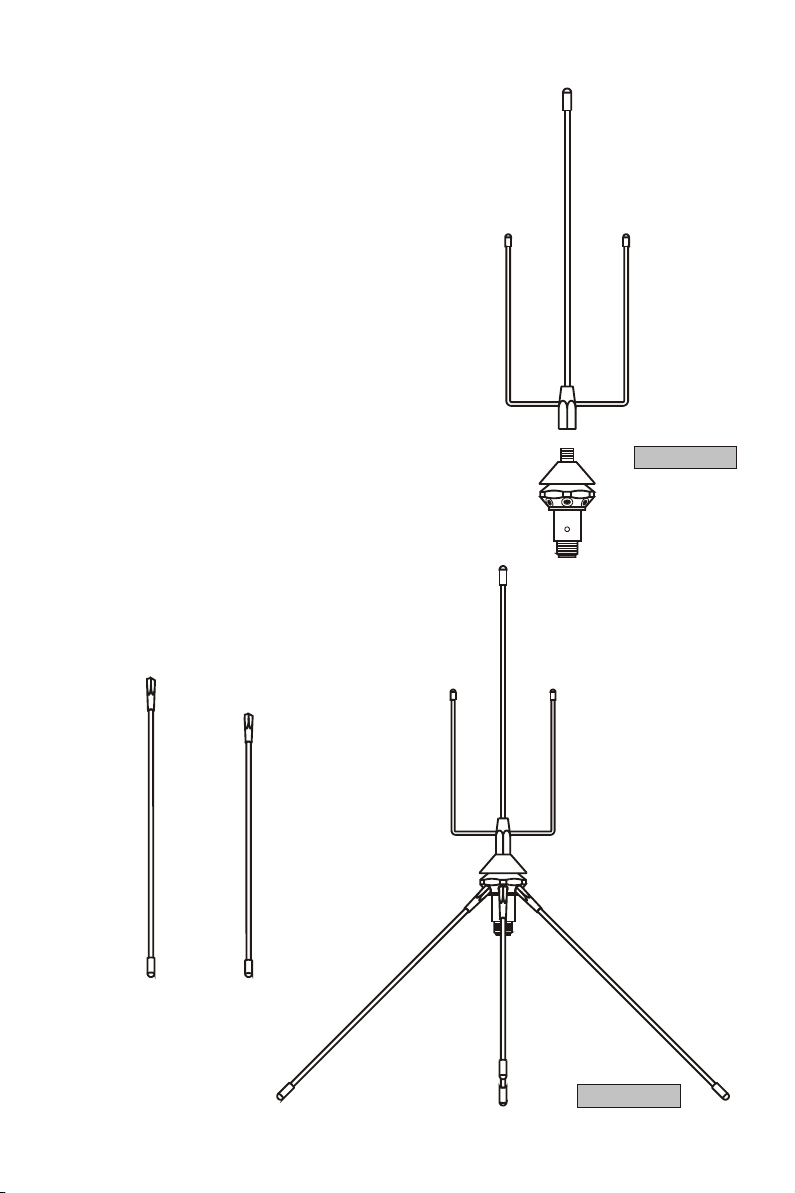

1. The tops of the base unit should be
matched with the marks on the
antenna, as illustrated in Figure 1.
Use the screw driver to screw
the antenna tight.
2. Lock the 6 ground planes with the
base part as illustrated in Figure 2.
Long and short ground planes
should be alternately arranged.
Figure 2
Figure 1
Ground planes x 3 Ground planes x 3
12-EN

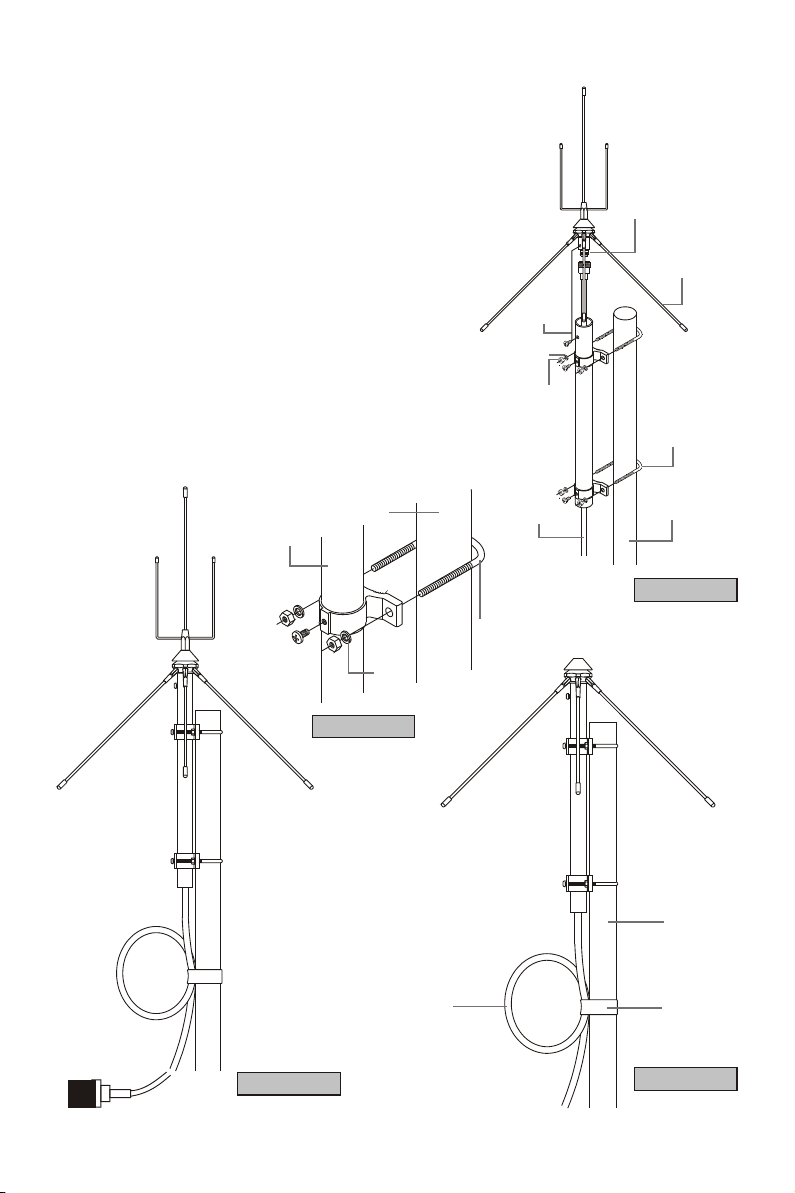

3. Assemble cable jack with the base part
as illustrated in Figure 3.
4. Find a pole which is over 5 M long and
22~39 mm in diameter and connect it
with the base tube as indicated in
Figure 4.
A bamboo pole is preferred if a
metal one is used, be sure it is
isolated.
5. Put up the pole and make a loop with
the cable cord. The loop which is 15 cm
in diameter is made to prevent water
from going down into the base unit (as
figure 5).
6. The assembled outdoor antenna (as
indicated in Figure 6).
NOTE:
Figure 3
Figure 4
Figure 5
Figure 6
Pole
Tape
Loop
Washer
U-bracket
Pole
Base tube
Cable cord
connector
Ground
planes
Screw
Screw
U-bracket
Pole
Washer
Cable
13-EN

NOTES
(1) Make sure that the cable is tied to the cable connector in order to
maintain the radio frequency transmission performance.
(2) The ground plane should be at least 3 meters above the ground.
(3) No obstruction can be present within 3 meters from the antenna (as
shown in Fig 7~9).
(4) Straighten the remaining cable.
(5) Bending cable cord will increase loss of transmission power.
(6) Make a loop before pulling the cable into the house. The loop can
prevent rain from going into the house.
(7) The higher the antenna is installed the better the communication will
be.
(8) Keep the antenna and cable from high-voltage sources to avoid
electric shocks. Don't install the antenna in the rain to avoid
thunder striking.

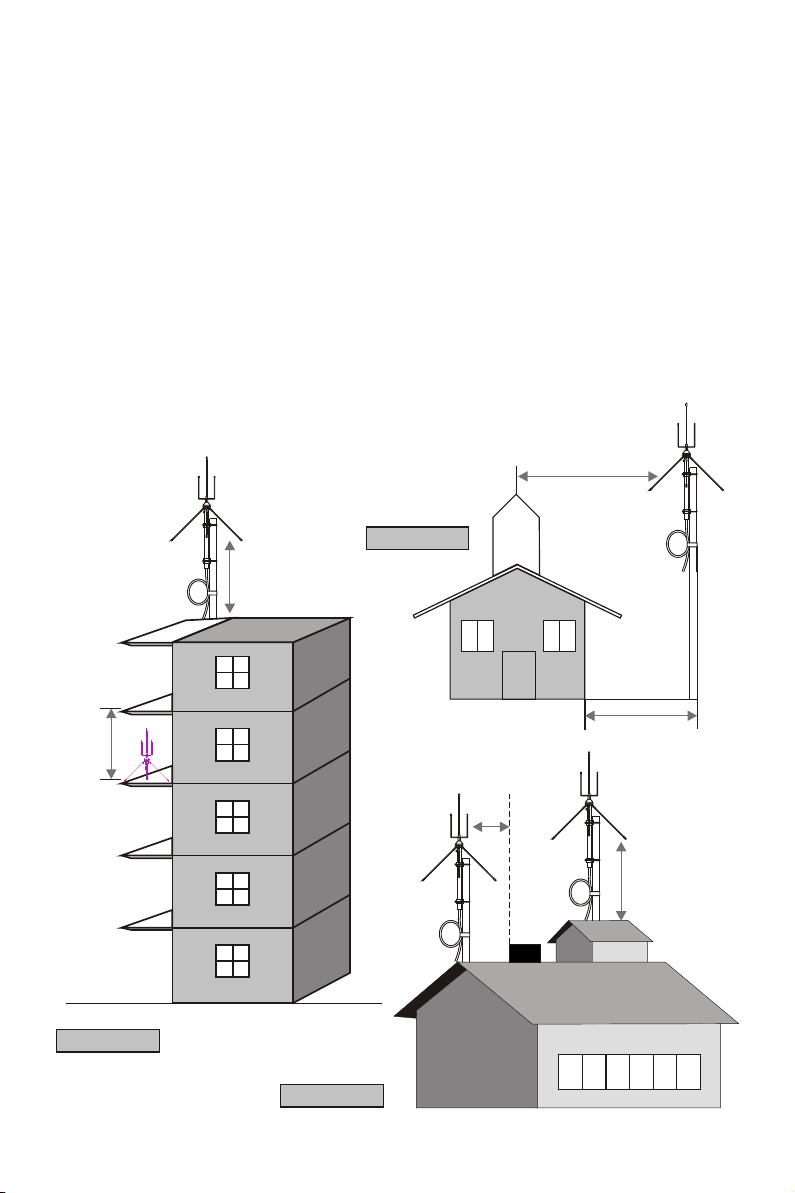

Over 3 M (correct)
Over 3 M (correct)
Over 3 M (correct)
Over 3 M
(correct)
Less than 3 M
(incorrect)
Less than 3 M (incorrect)
Figure 7
Figure 8
Figure 9
14-EN

2 seconds
Basic Operation
A. Turn On / Off the Handset
1. Turn on the handset
When the handset is power off, press to turn it on. A power on
tone "DO-MI-SO-DO" sounds.
B. Making calls
C. Redial
REDIAL
While in stand-by, press first, then press REDIAL .
During a call, press REDIAL to redial the last number dialled
For example, dial the phone number 22183588
2 2 1 8 3 5 8 8
Phone No.
Press first, then dial the number after hearing the dial tone.
To hang up, press or place the handset on the base unit or on
the charger to hang up the phone.
2. Turn off the handset
When the handset is in stand-by mode, press and hold about 2
seconds until a power off tone "SO-MI-DO" sounds.
Power off
Power on
(stand-by)
Power on
Power off
"DO-MI-SO-DO"
" DO"SO-MI-
15-EN

D. Automatic Dialling
stand-by)
2. If the base unit is connected to a PBX
We recommend you press P/VOL (PAUSE) between the access
number 0 or 9 for an outside line and the phone number.
MEMO 0 P/VOL 2 2 1 8 3 5 8 8 MEMO N (stand-by)
Access No. PAUSE Phone Number Store Location(N:0~9)
Pressing P/VOL (PAUSE) once creates a 6 second pause (P. 27). This
prevents mis-dialling when you redial or dial a stored number.
When finished, a confirmation tone "bi-bi" sounds.
When failed, an error tone "bi-bi-bi" sounds.
If misdialed, press to end storing, then restart.
3. Dialling a stored number
MEMO N (N: 0~9) (stand-by)
Auto dial the phone number stored in location " N ".
Press first, then press MEMO N after hearing the dial tone.
E. Answering Calls
Press (or any key except ) on the handset to answer a call.
If the handset is placed on the base unit or on the charger, pick it up
to answer a call.
To hang up, press or place the handset on the base unit or on
the charger.
1. Storing phone numbers in memory (10 sets of 20-digit number
maximum) (in stand-by mode)
MEMO 2 2 1 8 3 5 8 8 MEMO N (
Phone No. Store Location (N: 0~9)
16-EN

F. Intercom
2. Paging all the handsets from the base unit
(1) Base unit: While in stand-by press INT-COM and all the
handsets ring for 30 seconds.
To stop paging, press INT-COM again.
(2) Handset: Press any key except or pick it up if it is placed on
the base unit or on the charger to answer.
(3) Handset: To end the intercom, press or place the handset
on the base unit or on the charger.
3. Paging the desired handset from the base unit
(1) Base unit: Press H1 (or H2 , H3 ) and the handset 1 (or 2,3) rings
for 30 seconds.
To stop paging, press H1 (or H2 , H3 ) again.
(2) Handset 1 (or 2, 3): Press any key except or pick it up if it is
placed on the base unit or on the charger to
answer.
(3) Handset 1 (or 2, 3): To end the intercom, press or place the
handset 1 (or 2,3) on the base unit or on the
charger.
1. Paging the base unit from the handset
(1) Handset: Press and the intercom is automatically established.
(2) Base unit: When the other party's voice is heard, answer through the
microphone.
(3) Handset: To end the intercom, press or place the handset on
the base unit or on the charger.
17-EN

4. Paging the desired handset which number is over 3 from the base unit
For example: Page the handset No.5 through the handset No. 2.
(1) Base unit: Press INT-COM or H2 .
(2) Handset No. 2: Press any key except to answer.
(3) Handset No. 2: Press FUNC 5 to transfer the paging and the
handset No. 5 rings for 30 seconds (P. 28).
(4) Handset No. 5: Press any key except to answer.
If the handset No. 5 dosen't answer, the paging will
be back to handset No.2 which will ring for 50
seconds (P. 28).
NOTE:
1. During paging from the base unit:
A confirmed melody sounds if the base unit receives the response
from handsets. If the melody does not sound, it means that:
(1) The handset is off.
(2) The handset is out of communication range.
(3) The handset's ring mode is set at "4" (P. 29).
2. During the intercom:
(1) Intercom can only be ended by the handset.
(2) If a bell sounds, an incoming call has been received. To answer,
press and the intercom is ended.
G. Intercom during a call
During a call, press .
The call is put on hold and the hold music is heard on line.
A warning beep sounds every 30 seconds.
To resume the call, press .
To end the intercom and hang up, press .
18-EN

H. Call Waiting
You can answer another incoming call by using call waiting service.
During a call, press (FLASH) on handset if you hear a call waiting
tone.
The first call is put on hold and you can answer the second call.
To return to the first caller, press (FLASH) again.
Users should apply for the call waiting service from your local
telephone company.
Duration of "FLASH" is adjustable; see page 27 for reference.
I. Walkie-Talkie
The multi-handset system enables you to talk between the handsets in
Walkie-Talkie mode. The communication between the handsets is by way
of the base unit.
1. Walkie-Talkie between two handsets (ex: No. 5 paging No.8)
(1) Handset No. 5: Press FUNC 8 and the handset No. 8 rings
for 30 seconds.
If during a call, the call is put on hold.
If during the intercom, the intercom is ended.
To stop paging and resume the call, press .
To stop paging and resume the intercom, press
.
To stop paging and hang up, press .
(2) Handset No. 8: Press any key except to answer and enter
the Walkie-Talkie mode.
If the handset No. 8 doesn't answer, during a
call or intercom, the paging will be back to the
handset No. 5 which will ring for 30 seconds.
(3) Handset: Press and hold PTT key to talk.
Release PTT key to listen.
(4) Handset: To end the Walkie-Talkie and resume the call, press .
To end the Walkie-Talkie and resume the intercom, press
.
To end the Walkie-Talkie and hang up, press .
19-EN
