Sennheiser VMX 100 3in1 User manual

Instruction Manual
Bedienungsanleitung
Notice d’emploi
Istruzioni per l’uso
Instrucciones de uso
Gebruiksaanwijzing
VMX 100 3in1
VMX 100

2

3
Contents
Features of the VMX 100 .......................................................... 8
Delivery includes ........................................................................ 9
Operating elements ................................................................. 10
Button overview....................................................................... 11
Quick setup guide..................................................................... 12
Setting up the VMX 100.......................................................... 14
Charging the battery in the headset .................................... 14
Switching the headset on/off ................................................ 15
Pairing the headset to mobile phones or other Bluetooth
devices........................................................................................ 16
Wearing the headset ............................................................... 18
Operating the VMX 100........................................................... 19
Telephoning with the VMX 100 ............................................. 19
Changing the speaker volume................................................ 22
Changing the ring tone volume ............................................. 22
Muting/un-muting the headset microphone...................... 23
Restoring factory settings ...................................................... 23
Maintenance and care ............................................................. 24
Accessories................................................................................ 24
Specifications............................................................................ 25
Manufacturer declarations ..................................................... 26

4
We have designed this product to give you reliable operation over
many years. Over half a century of accumulated expertise in the
design and manufacture of high-quality electro-acoustic equipment
have made Sennheiser a world-leading company in this field.
Please take a few moments to read these instructions carefully, as
we want you to enjoy your new Sennheiser product quickly and to
the fullest.

5
Important safety information
The VMX 100 has been manufactured according to
the accepted rules of safety and current technol-
ogy. However, there is still a danger of damage to
equipment if the following general safety instruc-
tions are not complied with.
•Read these instructions.
•Follow these instructions.
•Keep these instructions in a location where they are acces-
sible to all users at all times.
•Always include the operating instructions when you pass
the VMX 100 on to third parties.
Intended use:
The VMX 100 is an accessory for mobile phones or any Blue-
tooth compliant device with a “hands free” or a “headset”
profile intended for wireless communication via Bluetooth in
dry environments.
It is considered improper use when the VMX 100 is used
•for any application not named in these instructions,
•under operating conditions that deviate from those de-
scribed in these instructions.
General instructions
•Never disassemble or modify components of the VMX 100.
•The built-in rechargeable battery may present a fire or
chemical burn hazard if mistreated. Therefore, do not dis-

6
assemble, heat above 40 °C (104 °F) or incinerate the re-
chargeable battery.
•Sennheiser Communications is not liable for damages re-
sulting from the loss of connection due to a run flat bat-
tery, an old battery or exceeding the transmitting range.
Before operation
•Use the VMX 100 in dry places only and keep liquids and
small electrically conductive parts away from the VMX 100
and its connecting sockets.
•Do not expose the VMX 100 to extreme temperatures.
Normal operating temperatures are 10 °C (50 °F) to 40 °C
(104 °F).
•Store the headset in a clean, dust-free environment.
During charging
•Do not wear the headset when charging.
•Sennheiser Communications is not liable for damages to
USB devices that are not consistent with the USB specifica-
tions.
•The headset must be charged either with the VMX 100
power supply, or the VMX 100 car charger unit or a USB
socket of a computer. Never try to charge batteries other
than the one in the VMX 100 headset with the VMX 100
power supply (EU: 502310, UK: 502311, US: 502312) or
the VMX 100 car charger unit (502313).
During operation
•Avoid listening at high volume levels for long periods since
this leads to permanent hearing defects.

7
•Observe your country’s regulations for the use of mobile
phones, headsets and hands-free equipment in traffic. Al-
ways focus your attention on driving safely!
•This equipment generates, uses and can radiate radio
frequency energy and, if not used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that in-
terference will not occur in a particular installation.
Cleaning
•For cleaning the VMX 100, use a dry cloth only. Do not use
any solvents or cleansing agents.
Disposal
•Dispose of the used built-in rechargeable battery and the
VMX 100 according to the legal regulations of your coun-
try.

8
Features of the VMX 100
•VoiceMax™ Dual Microphone technology
•Adaptive Intelligence,
automatically compensating for ambient noise and “re-
membering” the user's preferred settings
•3D ball joint for individual wearing comfort
•Automatic power off/on when closed/opened
•ActiveGard™ protection against acoustic shocks
•Bluetooth 2.0
compatible with all Bluetooth 1.1, 1.2 and 2.0 devices that
support the “hands free” or “headset” profile
•Up to five hours talk time
•Up to 100 hours standby time
•Charging directly from USB
•Superior Sennheiser audio quality
•Two way speaker for choice of left/right side wearing
•Steel mesh protected speaker unit
•Extremely lightweight and comfortable (15 grams)
•Small microphone boom impairs neither the user's freedom
of movement nor his or her field of vision

9
Delivery includes
1 VMX 100 Bluetooth headset with built-in rechargeable Li-
polymer battery
1 VMX 100 power supply
1 USB charging cable
1 Car charger unit (only VMX 100 3in1)
1 Carrys case (only VMX 100 3in1)
1 Instruction manual

10

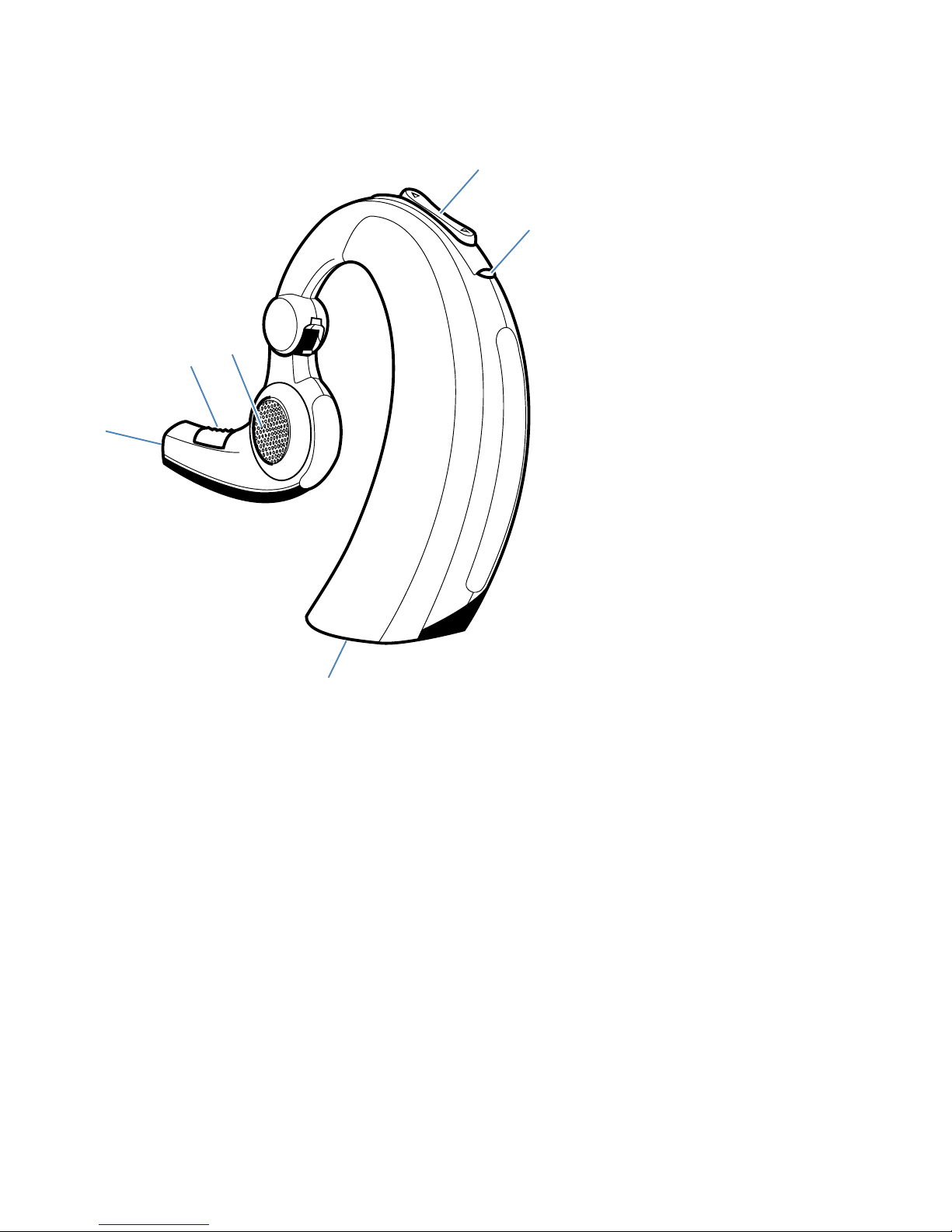

Operating elements
쐃
쐇쐋
쐏
쐄
쐂
쐃microphone boom
쐇hook button
쐋speaker
쐏volume buttons
쐄LED
쐂socket for power supply

11
Button overview
Button Function See
page
microphone
boom 쐃
•switch the headset on or off
•answer the phone
15
19
hook but-
ton 쐇
•answer the phone
•reject a call
•end a call
•transfer a call from the mobile
phone to the headset
•activate redialling
•activate voice dialling
•mute the microphone
•un-mute the microphone
19
19
21
21
20
20
23
23
volume
button 쐏
change the speaker volume
change the ring tone volume
un-mute the microphone
answer the phone
enter pairing mode
22
22
23
19
16

12

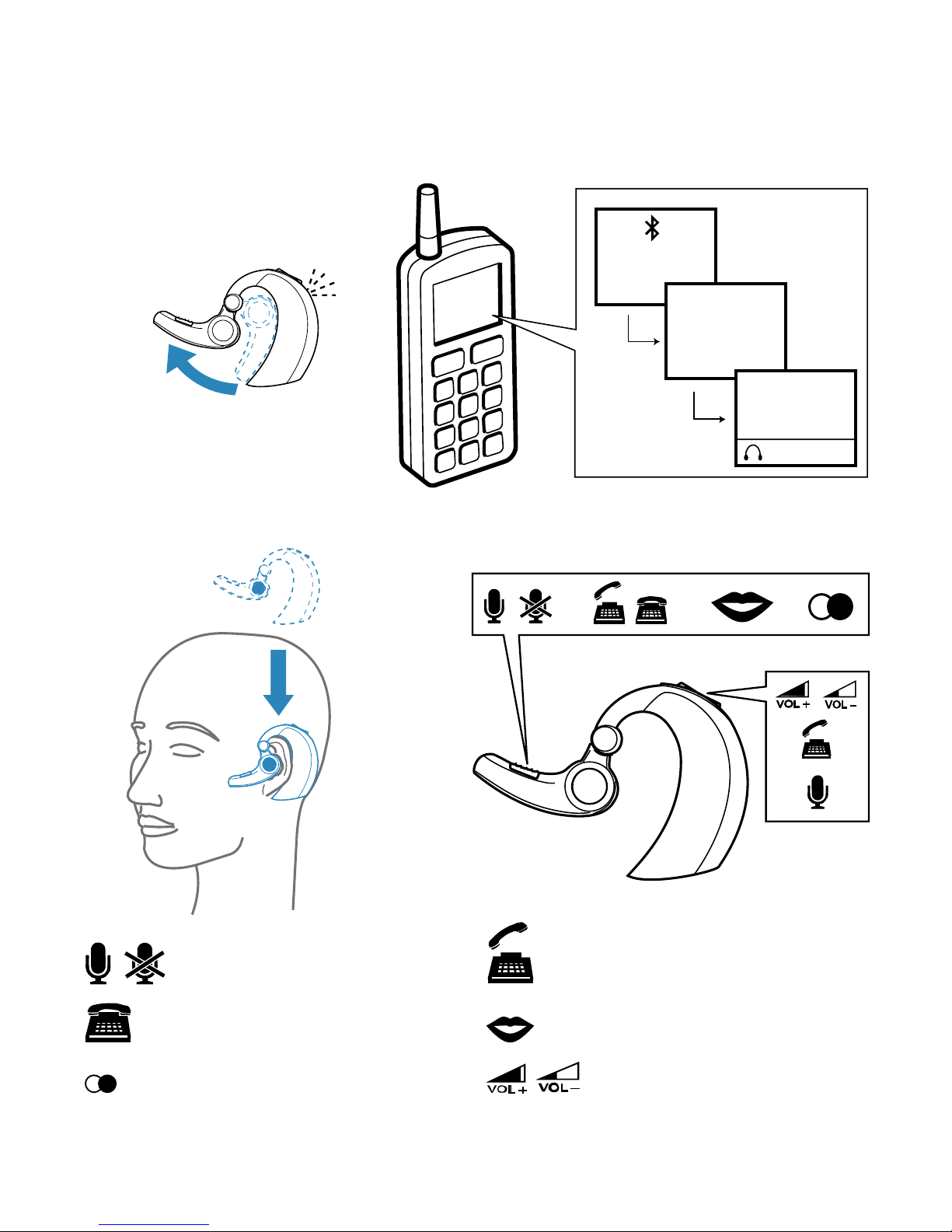

Quick Setup Guide
fAt first charge the headset.
On first charging allow 4 hours. Later, 2.5 hours suffice to
fully charge the battery. For details see page 14.
*)
*) The car charger unit is only included in the VMX 100
3in1 version.

13
fThen switch on the headset (details on page 15) and pair
it to your mobile phone. For details and information on
how to pair to another Bluetooth device see page 17.
VMX 100
OK
Keyword
0000
ON
fPut the headset on your ear.
(un)muting (p. 23) accepting calls (p. 19)
ending calls (p.21) voice dialling (p.20)
redialling (p. 20) volume (p. 22)

14
Setting up the VMX 100
Charging the battery in the headset
If you charge the battery for the first time, allow charging for
at least 4 hours without interruption.
Later, 2.5 hours suffice to fully charge the battery.
To charge the battery in the headset:

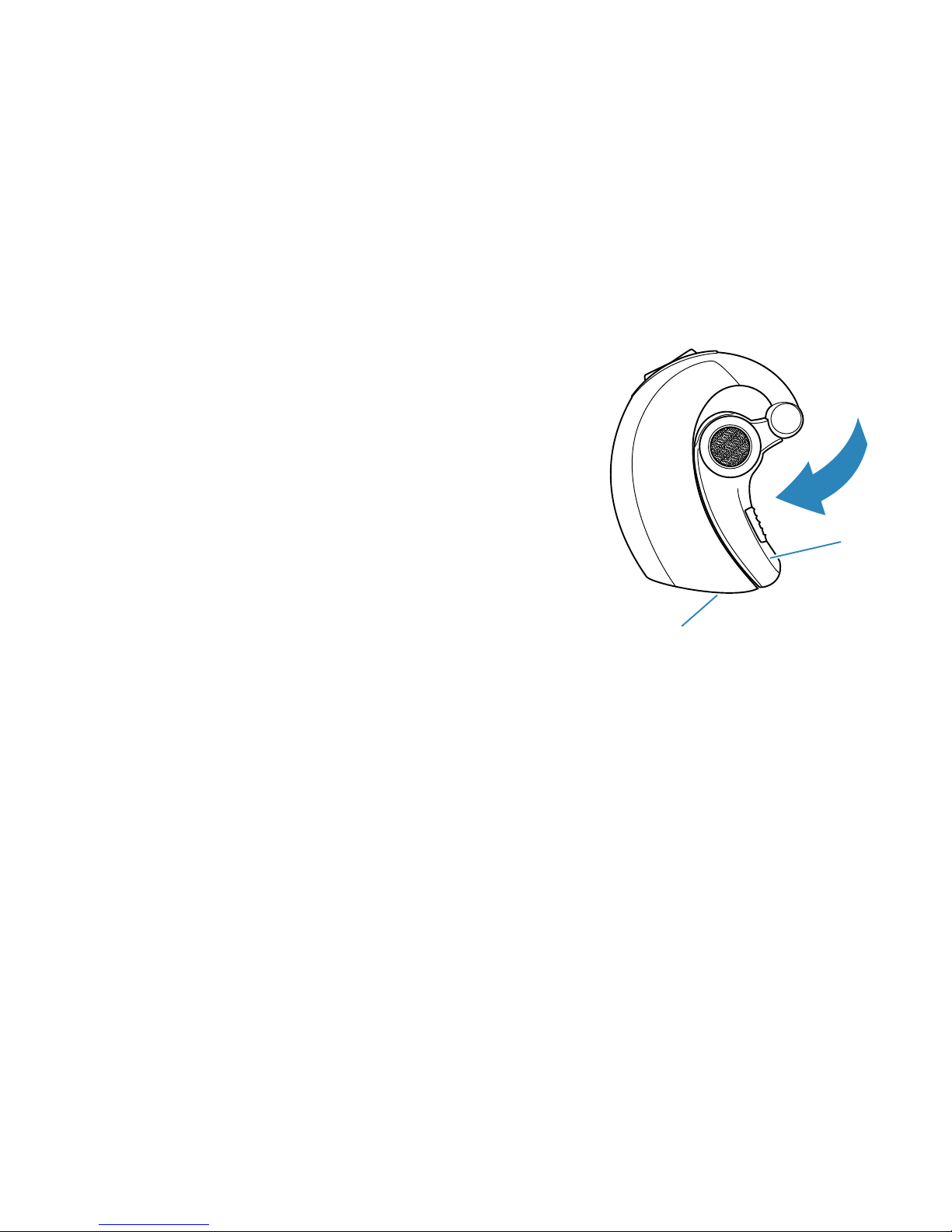

fTake off the headset and close the
microphone boom 쐃.
The headset is switched off.
fConnect the USB charging cable to
the headset’s socket for power
supply 쐂.
fConnect the USB plug of the USB
charging cable to:
•either the USB socket of the VMX 100 power supply
•or the USB socket of the VMX 100 car charger unit (only
VMX 100 3in1)
•or a USB socket of a computer.
fConnect the power supply or the car charger unit, respec-
tively, to the appropriate power outlet.
If the battery was completely drained, the LED 쐄flashes
red in the beginning of the charging process. During
charging, the LED
쐄lights red. When charging is com-
plete, the LED 쐄lights blue.
쐃
쐂

15
The charging process cannot be started during an ongoing
call. A fully charged battery provides a talk time of up to five
hours or a standby time of up to 100 hours. When the bat-
tery is about to run flat:
•The LED 쐄flashes red.
•Three beeps are heard in the headset every 30 seconds.
•Less than five minutes of talk time are left.
Switching the headset on/off

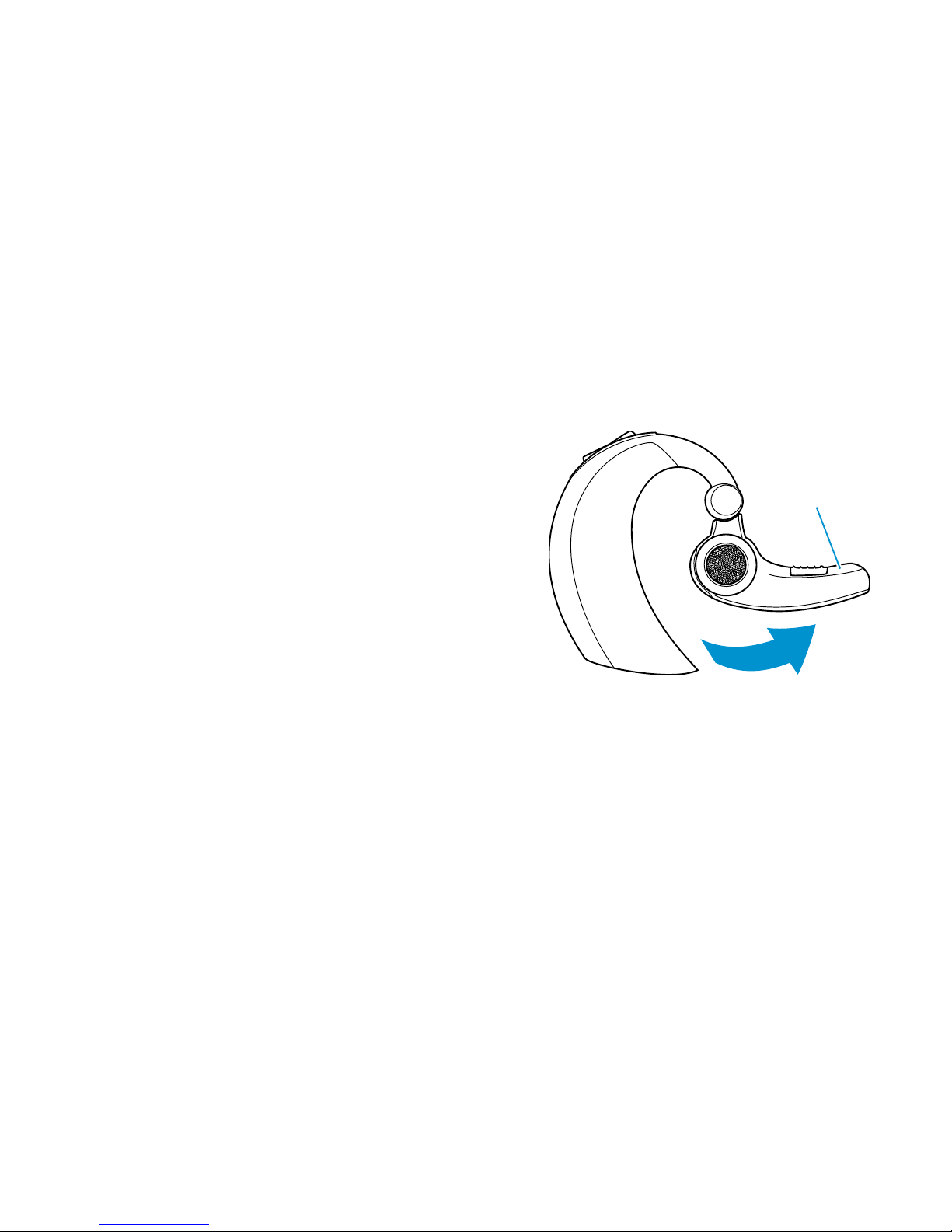

fOpen the microphone boom 쐃.
The headset is switched on. The
LED 쐄indicates the current op-
erating mode:
•If the LED 쐄flashes slowly in
blue, the headset is already
paired to a mobile phone. The
headset is therefore ready to
use.
•If the LED
쐄flashes alternatingly in red and blue, the
headset is not yet paired to a mobile phone. Pair it as
described under “Pairing the headset to mobile phones
or other Bluetooth devices” on page 16.
•If the headset is already paired to a mobile phone and if
there is an incoming call on your mobile phone, the call
is answered immediately by opening the microphone
boom 쐃without any further action.
쐃

16
To switch off the headset:
fClose the microphone boom 쐃.
The headset is switched off. The
LED 쐄stops flashing.
All settings are saved. The battery
lasts longer, if you switch off the
headset when not telephoning with
it.
Pairing the headset to mobile phones or other
Bluetooth devices
Pairing to a mobile phone
To be able to use the headset, you must first pair it to your
mobile phone or a similar device with a Bluetooth hands-free
or headset profile. Once you have paired the headset to a
mobile phone, the headset is connected automatically each
time this mobile phone and the headset detect each other.

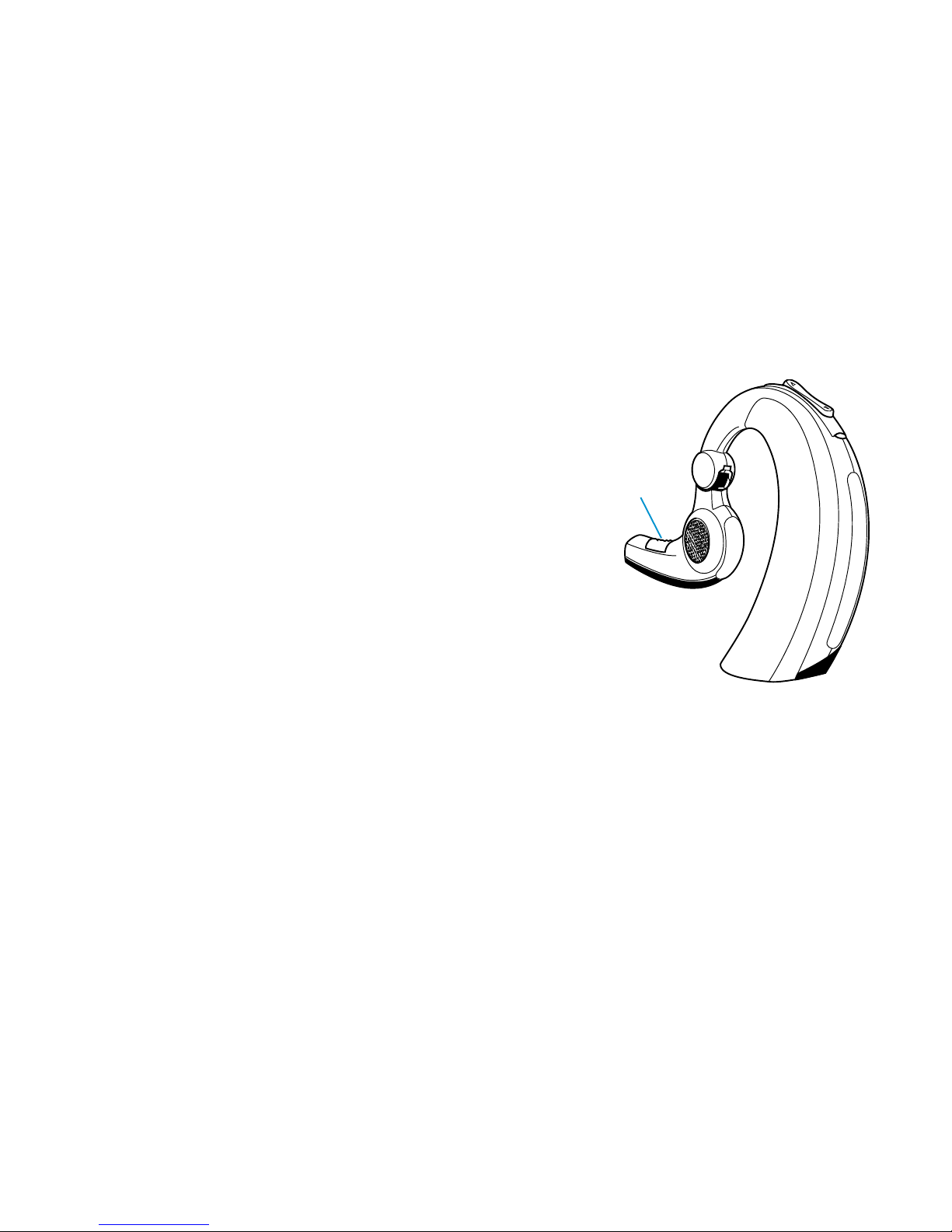

fMake sure the headset is switched
on and placed close to your mobile
phone.
•If you have not yet paired the
headset to a mobile phone, the
headset enters the pairing mode
automatically.
•If you have already paired the
headset to another mobile phone
쐃
쐄

17
before, you have to enter the pairing mode manually by
opening the microphone boom
쐃while pressing the
volume button 쐏at the same time.
•The LED 쐄flashes alternatingly in red and blue to indi-
cate that the headset is in the pairing mode.
fOn your mobile phone, start a
search for Bluetooth devices
(see the manual of your mo-
bile phone) and follow any in-
struction displayed on your
mobile phone display.
fOnce the headset is detected
by your mobile phone, select “VMX 100”.
When the Bluetooth connection is successfully estab-
lished, the headset is identified as “VMX 100” in the mo-
bile phone’s display.
fWhen your mobile phone prompts a keyword, enter four
zeros (0000).
If pairing was successful, the LED 쐄flashes slowly in blue.
Once paired, your mobile phone will be able to transfer the
call audio to the headset – either automatically or manu-
ally (please see your mobile phone’s manual whether the
call audio is transferred automatically or manually). Most
mobile phones show a headset symbol in their display, if
successfully paired.
Pairing to other Bluetooth devices
If you wish to pair the headset to other Bluetooth devices,
please see the Bluetooth device’s manual.
VMX 100
OK
Keyword
0000

18
Pairing to several mobile phones
If you wish to pair the headset to a second mobile phone, you
first have to disconnect from the first mobile phone (see the
manual of the first mobile phone). The headset saves up to
four pairing profiles. As soon as the headset is switched on it
tries to connect to the mobile phone that it was last con-
nected to. If this mobile phone is not detected by the head-
set, you can manually connect it with one of the other three
mobile phones (see the manual of the respective mobile
phone).
Wearing the headset
fOpen the microphone boom 쐃.
The headset is turned on. The
LED 쐄starts flashing slowly in
blue.
fPut the headset on. You can
wear the headset on either the
left or right ear without chang-
ing it.
fTurn the microphone boom 쐃towards your mouth.
The speaker 쐋operates in two directions so that you can
wear the headset on either your left or right ear without
changing it. However, the speaker is designed in a way that
other people in the vicinity cannot listen in the other party
and are not disturbed by the speaker.
쐃

19
Operating the VMX 100
Telephoning with the VMX 100
Accepting an incoming call
fMake sure the headset is paired to your mobile phone (see
“Pairing the headset to mobile phones or other Bluetooth
devices” on page 16).
When you receive a call, you hear a ring
tone in the speaker
쐋and the LED 쐄
flashes blue quickly when you receive a
call. To accept the call if the headset is
already switched on:
fPress the hook button 쐇or the vol-
ume button 쐏.
A beep is heard in the headset.
fStart to talk.
To accept the call if the headset is not switched on:
fOpen the microphone boom 쐃.
The headset is switched on and the call is answered im-
mediately without any further action.
fPut the headset on your ear.
fStart to talk.
Rejecting an incoming call
fPress and hold the hook button 쐇while the mobile phone
is ringing until a beep is heard in the headset.
쐇

20
The ring tone stops. Depending on the mobile phone set-
tings, the call is either rejected or transferred to a voice
mailbox.
Making a call
fDial the number on your mobile phone as usual.
If your mobile phone automatically transfers the call audio
to the headset, a beep is heard in the headset.
If your mobile phone does not automatically transfer the
call audio to the headset, you must press a button on your
mobile phone to transfer the call audio to the headset
manually.
fStart to talk.
Redialling
fPress and hold the hook button 쐇for
1.5 seconds.
A beep is heard in the headset. The
mobile phone redials the last dialled
number automatically.
Voice dialling
The voice dialling function must be
supported by your mobile phone
and be activated.
fPress the hook button 쐇.
fSay the name of the other party.
The mobile phone dials the cor-
쐇
쐃
쐇
