Sensormate GE1029-A User manual

Operating Manual
GE1029-A
TIE-BAR STRAIN SENSOR WITH AMPLIFIER
C-0074_v2.0_ENG

2 / 16 Subject to technical modications

3 / 16
Subject to technical modications
TABLE OF CONTENTS
PREFACE ���������������������������������������������������������������������������������������������������������������������������������������������������4
Device data ..................................................................................................................................... ........4
Warnings and safety........................................................................................................................ ........4
Disposal ...................................................................................................................................................4
Disclaimer........................................................................................................................................ ........4
Copyright ......................................................................................................................................... ........4
WEEE INFORMATION������������������������������������������������������������������������������������������������������������������������ ��������5
1� GENERAL DESCRIPTION ���������������������������������������������������������������������������������������������������������� ��������6
1.1. GE1029-A.......................................................................................................................... ........6
1.2. Function ............................................................................................................................ ........6
1.3. Dimension ......................................................................................................................... ........7
1.4. Reset Function.................................................................................................................. ........7
2� MOUNTING AND INSTALLATION���������������������������������������������������������������������������������������������� ��������8
2.1. Electrical connection ......................................................................................................... ........8
2.2. Mounting ........................................................................................................................... ........9
3� MAINTENANCE��������������������������������������������������������������������������������������������������������������������������� ������12
3.1. Inspection.......................................................................................................................... ......12
3.2. Maintenance...................................................................................................................... ......12
4� TECHNICAL DATA���������������������������������������������������������������������������������������������������������������������� ������12
5� ORDER CODE ����������������������������������������������������������������������������������������������������������������������������� ������13
5.1. Accessories....................................................................................................................... ......14

4 / 16 Subject to technical modications
PREFACE
Device data
Warnings and safety
Disposal
Disclaimer
Copyright
Note the device serial number, order code and type,
which are listed on the label, here:
Should you need technical assistance, they must be
communicated to Gefran Customer Service.
Tie-Bar Strain Sensor With Amplier
Serial No.
Order code
Type
Always make sure you have the latest manual version,
that can be freely downloaded from the Gefran website
(www.gefran.com).
The devices illustrated in the manual must be installed by
qualied technicians, following the laws and regulations
in effect and according to the instructions contained in
this manual.
Installation and/or maintenance technicians must read
this manual and strictly follow the instructions herein and
found in the annexes since Gefran cannot be held liable
for personal, property and/or product damages should
the following conditions not be met.
The Tie-Bar strain sensor with amplier must be disposed of in accordance with applicable
regulations.
Some of the components used in the devices can cause damage to the environment if
incorrectly disposed.
Although all information contained within this document
has been carefully checked, Gefran S.p.A. cannot be
held liable for the possible presence of errors, or damage
to persons or property due to improper use of this
manual.
Gefran S.p.A. also reserves the right to make changes
to the content and form of this document as well as the
characteristics of the illustrated devices at any time
without prior notice.
The technical and performance data indicated in this
manual are to be considered as a guide for the user to
determine the suitability for a certain use, and are not
guarantees. They may be the result of Gefran S.p.A. test
conditions and the user must compare them to his/her
real application requirements.
Gefran S.p.A. cannot be held in any way liable for any
damage to persons or property resulting from IN Sensor
and indicator tampering, incorrect and improper use or
otherwise non compliant with controller features and
instructions in this manual.
This document and its annexes may be freely repro-
duced, provided that the contents are not modied in
any way and each copy includes this warning and the
statement of Gefran S.p.A. ownership.
Gefran and Sensormate are trademarks of Gefran S.p.A.
The document may mention or reproduce trademarks
and logos of third parties. Gefran S.p.A. acknowledges
the ownership of these trademarks or logos by their
respective owners.

5 / 16
Subject to technical modications
WEEE INFORMATION
“Attuazione della direttiva 2012/19/UE sui
riuti di apparec¬chiature elettriche ed elett-
roniche (RAEE)”
Il simbolo del cassonetto barrato riportato sull’ap-
parecchiatura o sulla sua confezione indica che
il prodotto alla ne della propria vita utile deve
essere raccolto separatamen¬te dagli altri riuti.
La raccolta differenziata della presente ap-pa-
recchiatura giunta a ne vita è organizza¬ta e
gestita dal produttore.
L’utente che desideri disfarsi dell’apparec-chi-
atura dovrà quindi contattare il produt¬tore per
ricevere indicazioni sul sistema da quest’ultimo
adottato per consentire la rac¬colta separata
dell’apparecchiatura giunta a ne vita.
L’adeguata raccolta differenziata per l’avvio
successivo dell’apparecchiatura dismessa al
riciclaggio, al trattamento e allo smaltimento
ambientalmente compatibile contribuisce ad
evitare possibili effetti negativi sull’ambiente e
sulla salute e favorisce il reimpiego e/o riciclo dei
materiali di cui è composta l’ap¬parecchiatura.
“Implementation of Directive 2012/19/EU on
waste electrical and electronic equip¬ment
(WEEE)”
The symbol showing a crossed-out wheeled bin
on equipment or its packaging indicates that the
product must be collected separately from other
waste at the end of its useful life.
The manufacturer is responsible for organ¬ising
and managing the separate collection of this
piece of equipment at the end of its useful life.
Users wishing to dispose of the equipment must
therefore contact the manufacturer to obtain
instructions from the same on how to have the
equipment collected separately at the end of its
useful life.
By collecting the disused equipment sepa¬rately,
it can be recycled, treated or disposed of in an
environmentally friendly manner, thus helping to
prevent the environment and public health from
being affected negatively and enabling reuse
and/or recycling of the materials forming the
same equipment.
„Umsetzung der Richtlinie 2012/19/EU über
Elektro- und Elektronik-Altgeräte (EEA)“
Das Symbol der durchgekreuzten Mülltonne auf
dem Gerät oder der Geräteverpackung weist da-
rauf hin, dass Sie das Produkt am Ende seines
Lebenszyklus separat entsor¬gen müssen.
Die Getrenntsammlung dieses Geräts an seinem
Lebenszyklusende wird vom Her¬steller organi-
siert und besorgt.
Der Nutzer, der das Gerät entsorgen möchte,
muss sich daher an den Hersteller wenden,
um Auskunft über seine Vorgehensweise zur Ge-
trenntsammlung des Geräts an dessen Lebens-
zyklusende zu erhalten.
Die entsprechende Getrenntsammlung für die
anschließende Zuführung des Altgeräts zum
Recycling, zur Wiederaufbereitung und zur
umweltverträglichen Entsorgung trägt dazu bei,
negative Auswirkungen auf die Umwelt und die
Gesundheit zu unterbinden und begünstigt die
Wiederverwendung und/oder das Recycling von
Werkstoffen, aus denen das Gerät besteht.
“Transposition de la Directive 2012/19/UE re-
lative aux déchets d’équipements électriques
et électroniques (RAEE)”
Le pictogramme de la poubelle barrée, gu¬rant
sur l’équipement ou sur son emballage, indique
que le produit en n de vie doit être traité séparé-
ment des autres déchets.
Le ramassage sélectif de cet équipement en n
de vie est organisé et géré par le constructeur.
Tout utilisateur qui souhaiterait se débarras¬ser
de l’équipement devra donc contacter le const-
ructeur pour obtenir des informations concernant
la méthode adoptée pour per¬mettre le ramassa-
ge sélectif de l’équipe¬ment en n de vie.
Un ramassage sélectif correct, en vue de l’ache-
minement de l’équipement vers des opérations
de recyclage, de traitement et de mise au rebut
respectueuses de l’environne-ment, contribue
à réduire les impacts poten-tiellement néfastes
sur l’environnement et la santé, outre à favoriser
la réutilisation des matériaux/composants dont
l’équipement est constitué.
DE EN
FR IT

6 / 16 Subject to technical modications
1� GENERAL DESCRIPTION
1�1� GE1029-A
1�2� Function
Main features:
• Direct measurement of surface strain
• With integrated digital amplier
• Quick and easy non-destructive assembly
• High accuracy and linearity in tension and pressure
(like bonded strain gauges)
• Ideal for use on presses, injection-moulding and
die-casting machines
• One system for many different tie bar diameters
(25…250mm)
• Dynamic applications
• Ideal for online monitoring of clamping force
• Ideal for self-made load cells
The strain gauge sensor GE1029-A measure the surface-strain directly at the mounting location in the same quality as
bonded strain gages. The integrated variable digital amplier amplies the signal on the spot, avoiding EMC problems.
The sensor does not have to be recalibrated between remove and re-installation. The press-on technology, developed
by Sensormate AG, presses the strain gauges under the stainless protective lm so strongly against the surface to be
measured that frictional contact occurs.
The sensor is mounted using stainless steel straps, is non-destructive, very fast and simple. For each tie-bar diameter
outside tolerance of ± 2.5mm a different pair of steel straps is required. The sensor can not be overloaded. The
GE1029-A sensors require a cyclic reset.

7 / 16
Subject to technical modications
1�3� Dimension
1�4� Reset Function
22
D
5
3,3
21,5
Dimensions in mm
Reset control input Reset 16...30V
Operate 0V / open
Minimum reset pulse duration >25ms
Operate Operate

8 / 16 Subject to technical modications
2� MOUNTING AND INSTALLATION
2�1� Electrical connection
Warning! The installation of the devices described in the manual must be carried out by qua-
lied personnel, following the laws and regulations and in accordance with the instructions
contained in this manual.
Warning! Use extreme caution when installing and xing the sensor unit.
If the sensor unit is installed at a height of more than 1.8 meters, all persons near the moul-
ding machine must wear the protective helmet.
Warning! If even one of the above-mentioned requirements is not met, suspend installation
and contact your Gefran dealer or Gefran Customer Service.
Option C
with connector Function
1 Power (20...28VDC)
2 n.c.
3 Power ground
4 Reset
5 Signal-Output
6 Signal ground
7 Power ground
Option O
with open leads Function
white Power (20...28VDC)
braun Power ground
grey Reset
black Signal-Output
blue Signal ground
6
2
3
1
4
5
7
Option O
PUR screened cable (standard); 5 x 0.09 mm2; Ø 3.3mm
Option C

9 / 16
Subject to technical modications
2�2� Mounting
2�2�1� Preparation
2�2�2� Mounting procedure
These sensors are precision instruments. The devices must be handled with the appropriate care.
These instructions must be read and understood by every user.
- Oil and other surface impurities as well as paint must be removed from the place of installation.
- The surface roughness of the place of installation has not to be rougher than N7.
- Check the foil of the sensor GE1029-A for damage.
- The foil of the sensor GE1029-A must be absolutely clean.

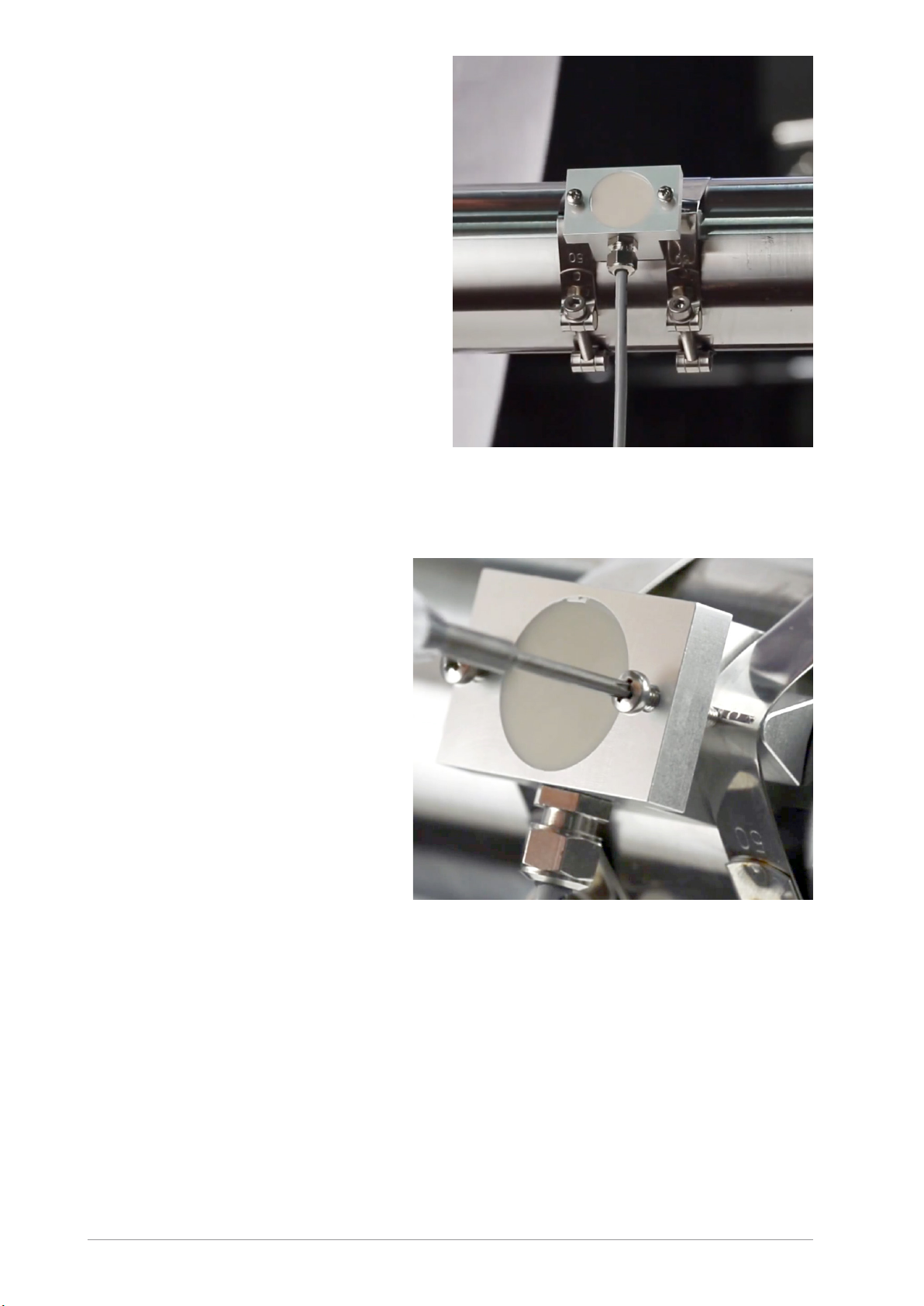

1:
There are markings on the stainless steel bands.
(The distance between these markings depends on the diameter of the object to be measured)
2:
The stainless steel strips are xed at the marked position with the individual measuring modules.
(In the following pictures of this chapter the sensor GE1029 is shown.
In the mounting there is no difference to the GE1029-A).

10 / 16 Subject to technical modications
3:
Place the sensor around the object to be
measured and screw it on carefully.
Do not tighten with nal torque yet!
Cables must not be jammed.
4:
Slightly loosen the xing so that the individual
measuring modules can rest perfectly on the
circumference of the measuring object.

11 / 16
Subject to technical modications
5:
The contact points must lie exactly in the axial direction on the surface to be measured.
6:
Screw the sensors hand-tight. Torque = 2 Nm
The two measuring modules must be exactly opposite each other.
The system is now ready to measure.
Torque = 2 Nm
Contact points
Attention:
It is important that the screws are checked with the above torque after the
machine has warmed up or after two days of operation at the latest.

12 / 16 Subject to technical modications
3� MAINTENANCE
3�1� Inspection
3�2� Maintenance
4� TECHNICAL DATA
To prevent damage to the lm, it should always be checked before using the sensor.
Remove any impurities immediately.
The sensor GE1029-A should be checked every 12 months. For maintenance the sensor
must be sent to Sensormate AG.
Strain gauge type Foil (GF 2.0)
Measuring range ± 1000 με
Sampling rate 4 kHz
Output rate 4 kHz
Low-pass lter 500 Hz
Output signal (0...+100% FS) +0...+10VDC,+1...+10VDC
Noise < 25mV
Accuracy < ±0.5% FS
Accuracy of zero point < ±0.15% FS (typ) < ±0.25% FS (max)
Linearity < ± 0.5% FS
Hysteresis < ± 0.2% FS
Repeatability < 0.1% FS
Output resistance 5 kΩ
Reset time > 25ms
Reset voltage 16...30VDC
Supply voltage 16...30VDC
Supply current < 30mA
Inverse polarity protection YES
Accidental short-circuit protection YES
Operating temperature range -20...70°C
Storage temperature range -20...70°C
Overload capability indenite (offset occurs)
Protection class IP64
EMC 2014/30/EU
Case material Anodized aluminium
Weight, including cable 150g

13 / 16
Subject to technical modications
5� ORDER CODE
Sinal output
0...10 VDC 0
1...10 VDC 1
Calibration
0500 µε 0500
0750 µε 0750
1000 µε 1000
Cable length
0.5 m 005
3 m 030
5 m 050
10 m 100
Connection
Cable with open leads O
Cable with connector C
- - - -
Tie-bar sensor with amplier GE1029-A
Example: GE1029-A - 0 - 0500 - 030 - C
Tie-bar sensor with amplier GE1029-A, Output signal = 0...10VDC, Calibration = 500µε,
Cable lenght = 3m, Cable with connector

14 / 16 Subject to technical modications
5�1� Accessories
Description Order code Code Description Order code Code
Stainless steel belt (in pairs)
(tie-bar diameter 25...148 mm)
Stainless steel belt (in pairs)
(tie-bar diameter 150...250 mm)
25 mm GB-29-025 F062437 150 mm GB-29-150 F060628
28 mm GB-29-028 F062438 152 mm GB-29-152 F071309
30 mm GB-29-030 F062439 155 mm GB-29-155 F061256
35 mm GB-29-035 F062009 160 mm GB-29-160 F061989
38 mm GB-29-038 F062440 165 mm GB-29-165 F062383
40 mm GB-29-040 F062441 170 mm GB-29-170 F065814
45 mm GB-29-045 F062431 175 mm GB-29-175 F065815
50 mm GB-29-050 F062432 180 mm GB-29-180 F061259
53 mm GB-29-053 F062442 185 mm GB-29-185 F065816
55 mm GB-29-055 F061809 190 mm GB-29-190 F061257
56 mm GB-29-056 F062443 195 mm GB-29-195 F066931
58 mm GB-29-058 F062444 200 mm GB-29-200 F062108
60 mm GB-29-060 F062011 205 mm GB-29-205 F071306
62 mm GB-29-062 F064215 210 mm GB-29-210 F060009
64 mm GB-29-064 F062445 215 mm GB-29-215 F064224
65 mm GB-29-065 F062446 220 mm GB-29-220 F061475
68 mm GB-29-068 F071302 225 mm GB-29-225 F069667
70 mm GB-29-070 F061400 230 mm GB-29-230 F061255
75 mm GB-29-075 F062094 240 mm GB-29-240 F060626
80 mm GB-29-080 F065817 250 mm GB-29-250 F071322
82 mm GB-29-082 F064216
85 mm GB-29-085 F061258
90 mm GB-29-090 F065839
92 mm GB-29-092 F064247
95 mm GB-29-095 F061251
100 mm GB-29-100 F062450
105 mm GB-29-105 F061474
110 mm GB-29-110 F062284
115 mm GB-29-115 F061253
118 mm GB-29-118 F064214
120 mm GB-29-120 F065834
125 mm GB-29-125 F062408
127 mm GB-29-127 F062453
130 mm GB-29-130 F061252
132 mm GB-29-132 F064219
135 mm GB-29-135 F061401
140 mm GB-29-140 F061988
145 mm GB-29-145 F062435
148 mm GB-29-148 F071273

15 / 16
Subject to technical modications
Notes:

SENSORMATE AG
Steigweg 8
CH-8355 Aadorf
Schweiz
Tel. [phone]
Fax [phone]
[email protected]
www.sensormate.ch
