Thank you for choosing this Servis FD91185SS American Style Fridge Freezer, which has been
designed and manufactured to give you many years of trouble-free service.
You may already be familiar with using a similar product but please take time to read these
instructions, which have been written to ensure you get the very best from your purchase.
Servis provides you with a guarantee which will protect you should your Fridge Freezer develop
an electrical or mechanical fault during the guarantee period. To ensure that you get a prompt
and efficient service, please register your Fridge Freezer immediately.
You will find a warranty card included within the packaging. To register, complete the form, or:
Visit us at www.servis.co.uk
Call us on 0800 0124 382
WARRANTY
ITEMS INCLUDED
Figure 1
Egg Holder
Ice Cube Tray
Fridge Freezer
Complete with Shelves
and Drawers

02
T: 0800 0124 382
SAFETY INSTRUCTIONS
To ensure your safety and the safety of others, please read the following safety
precautions before you use your Fridge Freezer.
Your Fridge Freezer conforms to current safety requirements. Inappropriate use can,
however, lead to personal injury and damage to property. To avoid the risk of accidents and
damage to your Fridge Freezer, read this user manual carefully before using it for the first
time. It contains important information on the installation, safety, use and maintenance
of your Fridge Freezer. Retain this user manual for future use and pass it on to any new
owners. Read this user manual before using or installing your Fridge Freezer.
Do not expose your Fridge Freezer to moisture or rain.
Always remove the mains plug from the wall socket when not in use or before any service
operation.
Your Fridge Freezer is designed to be operated by adults. Children should not be allowed to
play with the Fridge Freezer or tamper with the controls.
Before setting up your Fridge Freezer, check for any external visible damage. Do not install
or use your Fridge Freezer if it is damaged.
Before connecting your Fridge Freezer, ensure that the information on the data plate (voltage
and connected load) matches that of the mains electricity supply. If in doubt, consult a
qualified electrician.
Do not store any containers with flammable materials, such as spray cans or fire extinguisher
refill cartridges in the vicinity of the Fridge Freezer.
WARNING: Do not damage the refrigerant circuit.

03 T: 0800 0124 382
SAFETY INSTRUCTIONS
Do not connect your Fridge Freezer to the mains electricity supply using an extension lead.
A damaged power cord/plug can cause fire or give you an electric shock. When damaged it
must be replaced, this should only be done by qualified personnel.
Never remove the plug from the socket by pulling the cord. Always hold the plug.
Never touch the power cord/plug with wet hands as this could cause a short circuit or
electric shock.
Never let the power cord be crushed by the Fridge Freezer itself or other heavy objects.
Never bend the power cord excessively.
Never let the power cord touch or pass over heating appliances.
Do not remove items from the freezer if your hands are damp/wet. This could cause skin
abrasions or frost/freezer burns.
Do not place fizzy drinks, bottles and cans in the freezer compartment as they can burst as
the contents freeze.
Unauthorised repairs could result in unforeseen dangers for the user. Repairs should only be
undertaken by an approved service agent using genuine spare parts.
WARNING: Do not use other electrical appliances inside the Fridge Freezer.
Do not refreeze food once it has thawed out.
Do not make any alterations to your Fridge Freezer, unless authorised to do so by Servis.

04
T: 0800 0124 382
The packaging of the machine could be hazardous to children. Please refer to the disposal
instructions on the rear cover.
This Fridge Freezer is intended to be used in household and similar applications such as:
- Staff kitchen areas in shops, offices and other working environments
- Farm houses and by clients in hotels, motels and other residential type environments
- Bed and breakfast type environments
- Catering and similar non-retail applications
Please take care when moving your Fridge Freezer. It is heavy and we recommend that a
minimum of four people lift it. Your Fridge Freezer has a wheel in each back corner. You
will find it easiest to move your Fridge Freezer when it is tilted backwards and pushed into
position.
The small quantity of refrigerant used in the Fridge Freezer is eco-friendly R600a (an
isobutene) and is flammable/explosive if ignited in enclosed conditions.
Because of the very low temperatures in the Freezer compartment, some foods, such as ice
lollies could cause frost burns if consumed immediately.
WARNING: Keep the ventilation openings of the Fridge Freezer clear from obstruction.
Do not store medicine or academic research samples that require strict temperature control
in the Fridge Freezer.
When cleaning, do not use sharp implements as they may damage the Fridge Freezer.
Store pre-packed frozen foods in accordance with their instructions and use by date.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting
process.

05 T: 0800 0124 382
SAFETY INSTRUCTIONS
Ecological Hints and Tips:
We have provided a few important hints and tips, so that you can save on the cost of energy and
help protect the environment.
Do not install the Fridge Freezer close to sources of heat such as a radiator.
Install the Fridge Freezer in a well ventilated room and keep the openings clear from
obstruction.
Do not install the Fridge Freezer on a wet floor or in a location with high humidity/moisture
content.
Food which is to be frozen (when cool) should be placed in the fridge compartment before
being transferred to the freezer.
Pack all foods into airtight packages before placing them into the freezer compartment.
Ensure there are no obstructions preventing the doors from closing properly.
Try to avoid keeping the doors open for long periods or opening the doors too frequently as
warm air will enter the cabinet and cause the compressor to switch on unnecessarily often.
Environmental Information:
Once installation is complete, please dispose of the packaging with due regard to safety
and the environment. Disposal instructions can be found on the rear cover.
Your Fridge Freezer does not contain gases which damage the ozone layer, in either its
refrigerant circuit or insulation materials.

06
T: 0800 0124 382
Your Servis Fridge Freezer contains several advanced features including:
Multi-Zone Technology; this allows you to independently control the different zones
of your Fridge Freezer. For example you may wish to decrease your freezer capacity while
increasing your refrigerator capacity. For more information please refer to page 25.
Energy Efficiency; the fan runs independently of the compressor. This maintains and
balances air circulation between the cooler shelves.
Anti-Finger Inox Doors; a special layer over the coated stainless door sheet prevents
unsightly finger marks from appearing.
Advanced Features

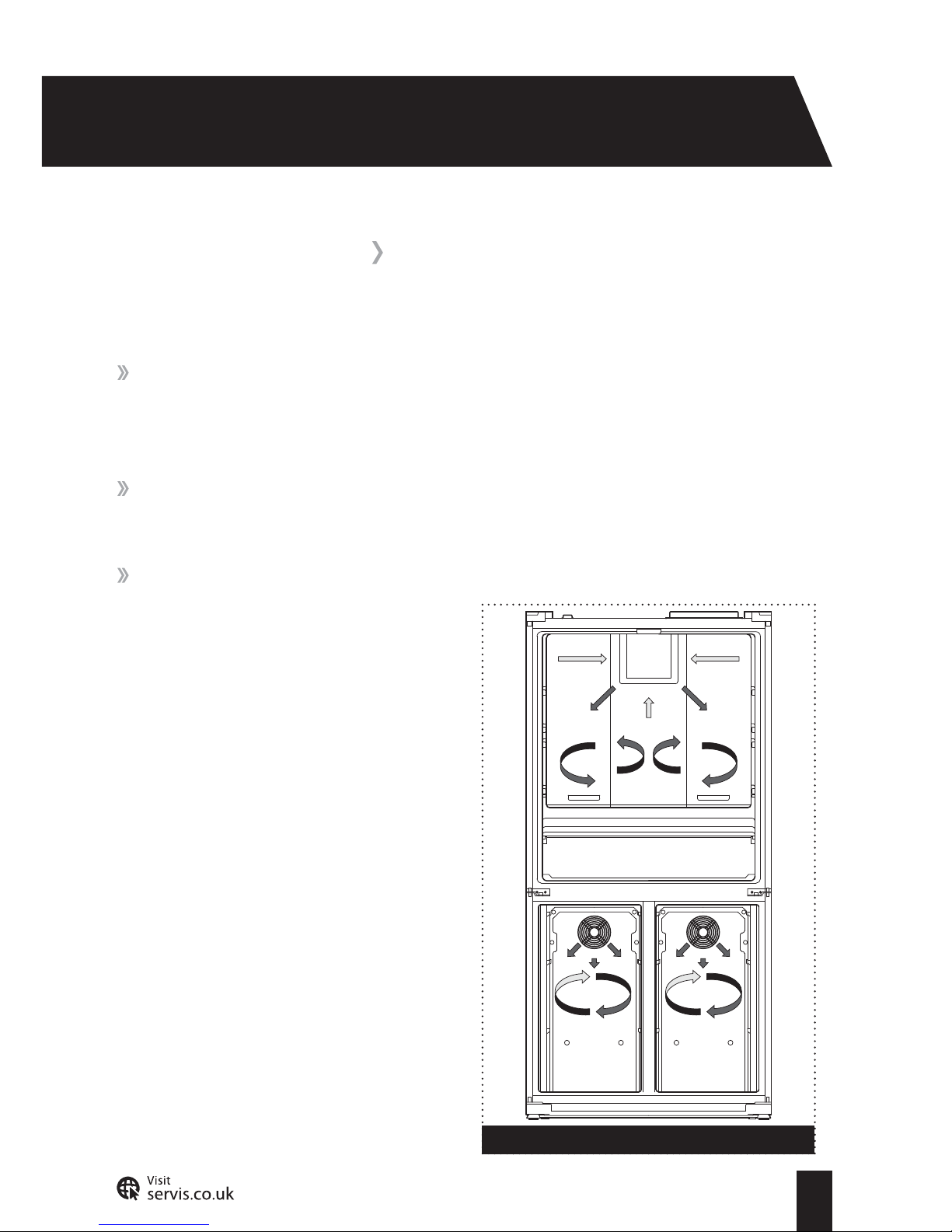

No Frost Technology
Your Fridge Freezer differs from many other
standard Fridge Freezers.
Other Fridge Freezers may experience
freezing in the freezer compartment due to
door openings and the humidity in the food.
In such Fridge Freezers defrosting is required;
the fridge has to be periodically turned
off, the frozen food moved to a suitable
container and the ice gathered in the freezer
compartment removed.
Your ‘No Frost’ Fridge Freezer prevents such
problems by evenly blowing dry cold air into
the fridge and freezer compartments through
a blower fan. This cools your food evenly and
uniformly, preventing humidity and freezing.
Figure 2

YOUR FRIDGE FREEZER
FRONT VIEW
Figure 3
Bottom
basket
Top
basket
9
Crispers
Adjustable
glass shelf
(1 of 3)
Bottom
door shelf
Middle
door
shelves
8
7
Top door
shelf
Chiller
Cooler Zone
Zone 1: Left Freezer
Zone 2: Right Freezer
2
3
4
5
6
1
10
11
07 T: 0800 0124 382

08
T: 0800 0124 382
The following information will help you to identify the different parts of your Fridge Freezer and
provide suggestions on the best way to use them.
1Cooler Zone; the main refrigeration compartment
2Top door shelf; for storing butter and cheese
3Middle door shelf; for storing smaller items of food
4Bottom door shelf; for storing smaller items of food
5Zone 2; right freezer compartment
6Zone 1; left freezer compartment
7Bottom basket; place food that has been in the top basket for more than 24 hours here
8Top basket; place food to be frozen here
9Crispers; for storing loose vegetables
Chiller; preserves food at 2-3OC and is suitable defrosting and short term food storage
Adjustable glass shelf; for storing commonly accessed foods
10
11

09 T: 0800 0124 382
YOUR FRIDGE FREEZER
CONTROL PANEL OVERVIEW
Figure 4
Your Fridge Freezer has a touch screen control panel to allow you to easily select the required
function.
Buttons
Mode Button
Cooler (refrigerator Control Button)
Beverage Cooling Alarm Button
Zone 1 Control Button
Zone 2 Control Button
Screen Saver Button

10
T: 0800 0124 382
Icons
Beverage Cooling Timer Segment
Holiday Mode
Eco ModeBeverage Cooling Alarm Door Light On
Door Light Off Night Sensor
Child Lock
Low Voltge Warning
Alarm
Cooler
Information
Zone 1
Information
Zone 2
Information
SC indicates that the
Supercool function is
in use.
SF indicates that the
Superfreeze function is
in use.
Figure 5

11 T: 0800 0124 382
YOUR FRIDGE FREEZER
1
REAR VIEW
2
Figure 6
Vaporisation
Container
Condenser

12
T: 0800 0124 382
1Condenser.
2Vaporisation Container; Part of the ‘No Frost’ technology which allows water collected
during automatic defrosting to naturally evaporate.
ELECTRICAL INFORMATION
Your Fridge Freezer requires a 220-240V, 50Hz mains supply. Do not use any other supply.
Your Fridge Freezer may be fitted with a moulded, earthed plug, which cannot be rewired.
If the fuse cover becomes damaged, you must not use the plug.
If your plug requires changing because it is not suitable for your socket, or it is damaged,
you should consult a qualified electrician.
Fuse:
Replacement fuses should be ASTA-approved to BS1362 and have the correct 13 Amp
rating.
Replacement fuses can be purchased from an electrical supplier.
ELECTRICAL INFORMATION

13 T: 0800 0124 382
TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION
Model Number FD91185SS
Power Source 220-240 V AC, 50Hz
Power Consumption (W) 481 KW/year
Energy Efficiency Rating A+ Class
Climate Class T/N (160C - 430C)
Refrigerant Gas R600a
Star Class 4 (-180C or cooler)
Total Gross/Net Volume 620 lt/526 lt
Refrigerator Compartment Gross/Net Volume 410 lt/362 lt
Freezer Compartment Gross/Net Volume 210 lt/164 lt
Zone 1 Compartment Volume 82 lt
Zone 2 Compartment Volume 82 lt
Freezing Capacity 18 kg/24 hours
Noise Level 45 dB(A)
Height x Width x Depth 1850 x 910 x 780 mm
Weight 147.5 kg
Total Power 268 W
50

14
T: 0800 0124 382
INSTALLATION
INSTALLATION REQUIREMENTS
Before unpacking and manoeuvring your Fridge Freezer, please take the time to read and become
familiar with the following points:
Make sure that your Fridge Freezer can fit through all doorways on route to its final location.
The dimensions of your Fridge Freezer are 1850 mm high x 910 mm wide x 780 mm deep.
To avoid risk of injury, please take care when moving your Fridge Freezer. It is heavy and we
recommend that a minimum of four people lift it. Your Fridge Freezer has a wheel in each
back corner. You will find it easiest to move your Fridge Freezer when it is tilted backwards
and pushed into position.
Your Fridge Freezer should be positioned in a location that meets the following requirements:
In a dry room that can be ventilated and out of direct sunlight.
Away from any heat source such as a radiator. If this is unavoidable, a suitable heat
insulator should be used (this is not supplied).
On a suitable floor that will not become damaged, or sag under the weight of the Fridge
Freezer.
At least 500 mm away from stoves, ovens and heater cores and 50 mm away from electrical
ovens.
At least 20 mm away from another freezer.
Clearance of at least 150 mm is required at the top and back of your Fridge Freezer. Do not
place anything on top of your Fridge Freezer.

15 T: 0800 0124 382
INSTALLATION
ADJUSTING THE FEET
For safe operation, it is important that your Fridge Freezer is stable and balanced. The two
adjustable feet at the front are used to level your Fridge Freezer. Make sure that your Fridge
Freezer is level before placing any foodstuffs inside it.
1To increase the height of the front of the Fridge Freezer, turn the feet clockwise (Figure 7).
2To decrease the height of the front of Fridge Freezer, turn the feet anti-clockwise (Figure 7).

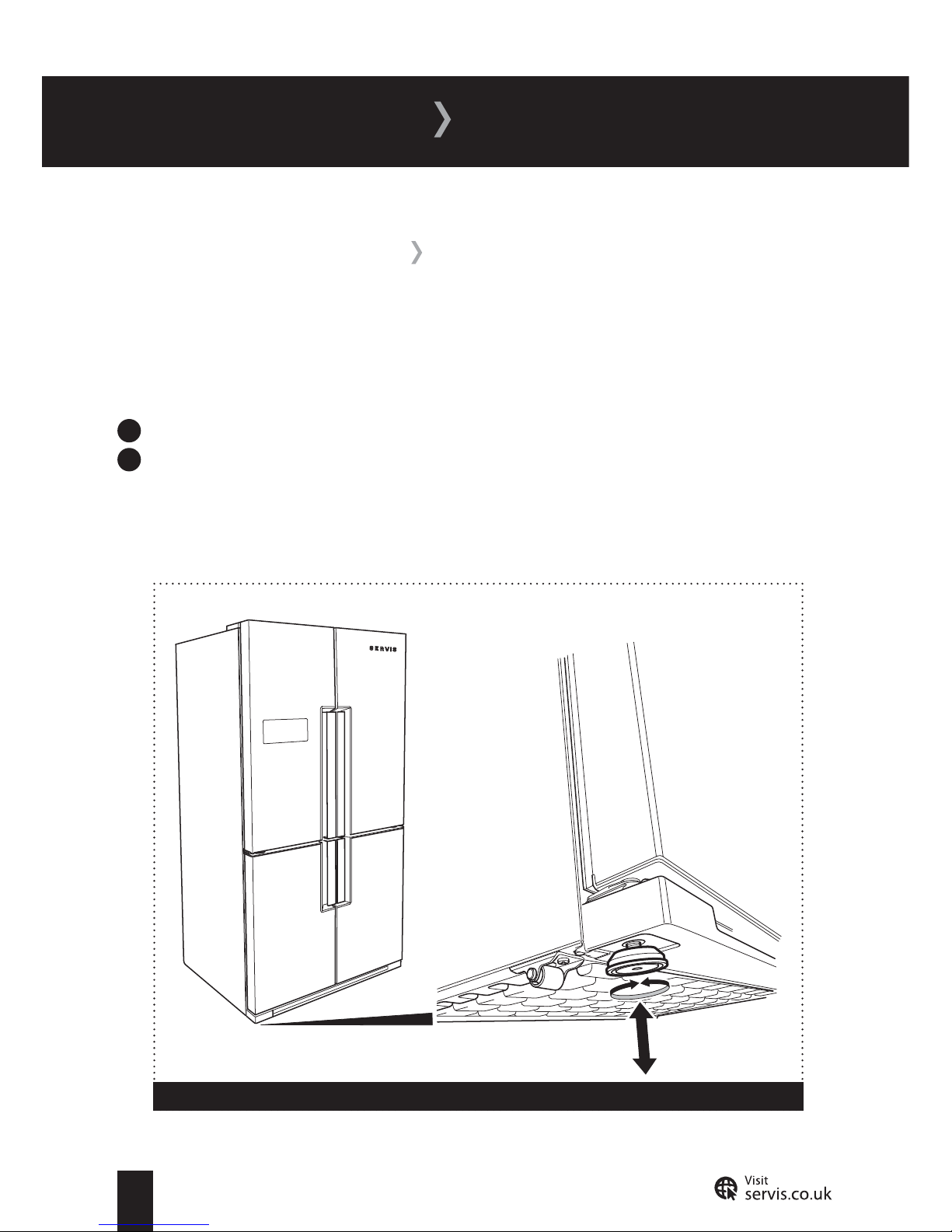

Figure 7

16
T: 0800 0124 382
When using your Fridge Freezer for the first time, or after transportation, keep it in an
upright position for at least 3 hours before plugging into the mains. This allows efficient
operation and prevents damage to the compressor.
We recommend that you wipe all shelving and trays with a cloth soaked in warm water
mixed with a teaspoon of sodium bicarbonate before use. After cleaning, rinse with warm
water and dry.
You may notice a slight odour when using your Fridge Freezer for the first time. This is
perfectly normal and will fade away once the fridge starts to cool.
Before using your Fridge Freezer, make sure that it has been connected to an appropriate
mains power supply and is switched on at the socket.
When using your Fridge Freezer for the first time, set the refrigerator compartment to 40C
and zones 1 and 2 to -180C. Please see page 17 for information on setting the temperature.
Your Fridge Freezer has a 5 minute built in delay function, designed to prevent damage
to the compressor. When power is applied to your Fridge Freezer, it will begin to operate
normally after 5 minutes.
BEFORE USING YOUR FRIDGE FREEZER

17 T: 0800 0124 382
USAGE
The Control Panel (Figure 4) is used to regulate the temperature in the fridge and freezer
compartments.
Refrigerator Compartment
You can select a temperature setting for the refrigerator compartment by using the
button:
Press the button until the desired temperature is reached. The available
temperatures are: 2, 3, 4, 5, 6, 7 or 80C.
Freezer Zone 1
You can adjust the temperature of the Zone 1 compartment by pressing the button until
the desired temperature is reached:
If this compartment is set as a freezer the available temperatures are: -16, -17, -18, -19, -20,
-21, -22, -23 or -240C.
If this compartment is set as a refrigerator the available temperatures are: 2, 3, 4, 5, 6, 7 or
80C.
Please Note: Pressing the button for 3 seconds will allow your Fridge Freezer to toggle
between refrigerator and freezer modes.
TEMPERATURE CONTROL
