SERVIS T54160 User manual

User Manual
Visit
Servis.co.uk
Tel: [phone]
EFFICIENCY BY DESIGN
Fridge - Freezer
Model Number: T54160

EN - 1 -
Index
BEFORE USING THE APPLIANCE ........................................................ 2
General warnings ........................................................................................... 2
Safety warnings ............................................................................................. 4
Old and out-of-order fridges ............................................................................ 4
Installing and operating your fridge ................................................................. 5
Electrical connection (For UK type plug) ........................................................ 6
THE VARIOUS FUNCTION AND POSSIBILITIES .................................. 7
Thermostat setting ......................................................................................... 7
Warnings for temperature settings.................................................................. 7
Accessories .................................................................................................. 8
Ice tray ........................................................................................................................... 8
ARRANGING FOOD IN THE APPLIANCE .............................................. 8
Refrigerator compartment ............................................................................... 8
Freezer compartment ..................................................................................... 8
CLEANING AND MAINTENANCE ......................................................... 10
Defrosting ..................................................................................................... 11
Replacing the light bulb ................................................................................. 12
SHIPMENT AND REPOSITIONING ...................................................... 12
Repositioning the door .................................................................................. 12
BEFORE CALLING FOR AFTER SALES SERVICE ............................. 13
Tips for saving energy ................................................................................... 14
THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ....... 15

EN - 2 -
PART - 1. BEFORE USING THE APPLIANCE
General warnings
WARNING: Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended
by the manufacturer.
WARNING: Do not use electrical appliances inside the food storage
compartments of the
appliance, unless they are of the type recommended by the
manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: To avoid a hazard due to the instability of the appliance,
it must be fixed in accordance with the instructions.
• If your appliance uses R600a as a refrigerant – you can learn
this information from the label on the cooler- you should be careful
during shipment and handling to prevent your appliance’s cooler
elements from being damaged. Although R600a is a
environmental friendly and natural gas, as it is explosive, in case
of a leakage to be occurred due to a damage in the cooler
elements move your fridge from open flame or heat sources and
ventilate the room where the appliance is located for a few
minutes.
• Whilst carrying and positioning the fridge, do not damage the
cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
• It is not designed for commercial use.
• If the socket does not match the refrigerator plug, it must be

EN - 3 -
replaced by the manufacturer, it’s service agent or similar
qualified persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
• A specially grounded plug has been connected to the power
cable of your refrigerator. This plug should be used with a
specially grounded socket of 13 amperes. If there is no such
socket in your house, please have it installed by an authorized
electrician.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understandt the hazard involved.
Children shall not play with the appliance. Cleaning and user
maintenance, shall not be made by children without supervision.
• If the supply cord is demaged, it must be replaced by the
manufacturer, its service agent or similar qualified persons in
order to avoid a hazard.

EN - 4 -
Safety warnings
• Do not use multiple sockets or extension cords.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• This appliance is designed for use by adults, do not allow children
to play with the appliance or let them to hang over the door.
• Do not plug-in or un-plug from the socket with wet hands to prevent
electrocution!
• Do not place glass bottles or beverage can s in the freezer
compartment. Bottles or cans may explode.
• Do not place explosive or flammable material in your fridge for your
safety. Place drinks with higher alcohol amount vertically and by
closing their necks tightly in the fridge compartment.
• When taking ice made in the freezer department, do not touch it, ice
may cause ice burns and/or cuts.
• Do not touch frozen goods with wet hands! Do not eat ice-cream and ice
cubes immediately after you take them out of the freezer compartment!
• Do not re-freeze the frozen goods after being melted. This may cause
health issues like food poisoning.
• Do not cover the body or top of fridge with lace. This affects the performance of your
fridge.
• Fix the accessories in the fridge during transportation to prevent damage to
accessories.
Old and out-of-order fridges
• If your old fridge has a lock, break or remove the lock before discarding it, because
children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with
CFC. Therefore, take care not to harm environment when you are discarding
your old fridges.
Please ask your local authority about the disposal of the W EEE for the
reuse, recycle and recovery purposes.
Notes:
• Please read the instruction manual carefully before installing and using your
appliance. We are not responsible for the damage incurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this
manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic
environments and for the specified purposes. It is not suitable for commercial or
common use. Such use will cause the guarantee of the appliance to be cancelled
and our company will not be responsible for losses incurred.

EN - 5 -
Installing and operating your fridge
Before starting to use your fridge, you should pay attention to the following points:
• Operating voltage for your fridge is 220-240 V at 50Hz.
• The plug must be accessible after installation.
• There can be an odour when you first switch on the appliance. It will disappear after
the appliance starts to cool.
• Before making the connection to the power supply, ensure that the voltage on the
nameplate corresponds to the voltage of electrical system in your home.
• Insert the plug into a socket with an efficient ground connection. If the socket has no
ground contact or the plug does not match, we suggest you to call an authorized
electrician for assistance.
• The appliance must be connected with a properly installed fused socket. Power
supply (AC) and voltage at the operating point must correspond with the details on
the name plate of the appliance (name plate is located on the inside left of the
appliance).
• We do not take responsibility for damages that occur due to ungrounded usage.
• Place your fridge in a place where it won't be exposed to direct sunlight.
• Your fridge should never be used outdoors or left under the rain.
• Your appliance should be at least 50 cm away from stoves, Gas ovens and heaters,
and should be at least 5 cm away from electrical ovens.
• When your fridge is placed next to a deep freezer, there should be at
least 2 cm between them to prevent humidity on the outer surface.
• Do not place heavy items on the appliance.
• Clean the appliance thoroughly, especially in the interior, before use
(See Cleaning and Maintenance).
• Installation procedure into the kitchen unit is given in the installation
manual. This product is intended to be used in proper kitchen units
only.
• The adjustable front legs should be adjusted to make sure your appliance is level
and stable. You can adjust the legs by turning them clockwise (or in the opposite
direction). This should be done before placing food in the fridge.
• Before using your fridge, wipe all parts back with warm water added with a tea
spoonful of sodium bicarbonate, and then rinse with clean water
and dry. Replace all parts after cleaning.
• Install the plastic distance guide (the part with black vanes at the
rear) by turning it 90° as shown in the figure to prevent the condenser
from touching the wall.
• The refrigerator should be placed against a wall with a free distance
not exceeding 75 mm.

EN - 6 -
Electrical connection (For UK type plug)
For your safety please read the following information
Warning: This appliance must be earthed.
This appliance operates from 220-240 volts and should be protected by a 13 amp fuse in
the plug.
The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp
fuse. Should the fuse require replacement, it must be replaced with a fuse rated at 13
amp and approved to BS1362.
If the mains plug which is fitted is unsuitable for the socket outlet in your home or is
removed for any other reason, please follow the instructions below on how to wire a 13
amp 3 pin plug..
How to wire a 13 amp plug.
Important
The wires in the mains lead on this appliance are coloured in accordance with the following
code:
Green and Yellow - Earth
Blue – Neutral
Brown – Live
As the colours may not correspond with the
markings identifying the terminals in your
plug proceed as follows.
The green and yellow wire must be connected
to the terminal in the plug which is marked with
the letter E or with the earth symbol or coloured
green and yellow.
The blue wire must be connected to the terminal marked N.
The brown wire must be connected to the terminal marked L.
You must make sure the lead is firmly secured under the cord clamp.
GREEN / YELLOW
Earth
BLUE
Neutral
Cord Clamp
BROWN
Live
FUSE
13 Amps

EN - 7 -
PART - 2. THE VARIOUS FUNCTION AND POSSIBILITIES
Thermostat setting
The thermostat automatically regulates the inside temperature of the refrigerator
compartment and freezer compartment.By rotating the knob from position 1 to 5, colder
temperatures can be obtained.
Important note: Do not try to rotate knob beyond 1 position it will stop your appliance.
• For short-term storage of food in the freezer compartment, you can set the knob
between 1 and 3 position.
• For long-term storage of food in the freezer compartment, you can set the knob 3-4
position.
Note that ; the ambient temperature, temperature of the freshly stored food and how often
the door is opened, affects the temperature in the refrigerator compartment. If
required,change the temperature setting.
Warnings for temperature settings
• It is not recommended that you operate your fridge in environments colder than 10°C
in terms of its efficiency.
• Temperature adjustments should be made according to the frequency of door openings
and the quantity of food kept inside the fridge.
• Your fridge should be operated up to 24 hours according to the ambient temperature
without interruption after being plugged in to be completely cooled. Do not open
doors of your fridge frequently and do not place much food inside it in this period.
• A 5 minute delaying function is applied to prevent damage to the compressor of your
fridge, when you take the plug out and then plug it in again to operate it or when an
energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.
• Your fridge is designed to operate in the ambient temperature intervals stated in the
standards, according to the climate class stated in the information label. We do not
recommend operating your fridge out of stated temperatures value limits in terms of
cooling effectiveness.
Climate
Class Ambient Temperature (°C)
TBetween 16 and 43 (°C)
ST Between 16 and 38 (°C)
NBetween 16 and 32 (°C)
SN Between 10 and 32 (°C)

EN - 8 -
Ice tray
• Fill the ice tray with water and place in freezer compartment.
• After the water completely turned into ice, you can twist the tray as shown below to get
the ice cube.
Accessories
Refrigerator compartment
• The refrigerator compartment is used for storing fresh food for a few days.
• Do not place food in direct contact with the rear wall of the refrigerator compartment.
Leave some space around food to allow circulation of air.
• Do not place hot food or evaporating liquid in the refrigerator.
• Always store food in closed containers or wrapped.
• To reduce humidity and avoid formation of frost, never place liquids in unsealed
containers in the refrigerator.
• Meat of all types, wrapped in packages, is recommended to be placed on the glass
shelf just above the vegetable bin, where the air is colder.
• You can put fruit and vegetables into the crisper without packaging.
• To avoid cold air escaping, try not to open the door too often, and not leave the door
open for a long time.
Freezer compartment
• The use of the freezer is, storing of deep-frozen or frozen foods for long periods of
time and making ice cubes.
• To freeze fresh food, ensure that as much of the surface as possible of food to be
frozen is in contact with the cooling surface.
• Do not put fresh food next to frozen food as it can thaw the frozen food.
• While freezing fresh foods(i.e meat,fish and mincemeat), divide them in parts you
will use in one time.
• Once the unit has been defrosted replace the foods into the freezer and remember to
consume them in as short period of time.
• Never place warm food in the freezer compartment as it will disturb the frozen foods.
• For storing the frozen foods;the instructions shown on frozen food packages should
always be followed carefully and if no information is provided food should not be
stored for more than 3 months from the purchased date.
PART - 3. ARRANGING FOOD IN THE APPLIANCE

EN - 9 -
• When buying frozen foods ensure that these have been frozen at suitable temperatures
and that the packing is intact.
• Frozen foods should be transported in appropriate containers to maintain the quality
of the food and should be returned to the freezing surfaces of the unit in the shortest
possible time.
• If a package of frozen food shows the sign of humidity and abnormal swelling it is
probable that it has been previously stored at an unsuitable temperature and that
the contents have deteriorated.
• The storage life of frozen foods depends on the room temperature, thermostat setting,
how often the door is opened, the type of food and the length of time required to
transport the product from the shop to your home. Always follow the instructions
printed on the package and never exceed the maximum storage life indicated.
Note that; if you want to open again immediately after closing the freezer door, it will not be
opened easily. It’s quite normal! After reaching the required temperature, the door will be
opened easily.

EN - 10 -
PART - 4. CLEANING AND MAINTENANCE
• Make sure to unplug the fridge before starting to clean it.
• Do not wash your fridge by pouring water onto it.
• You can wipe the inner and outer sides of your appliance with a
soft cloth or a sponge using warm and soapy water.
• Clean the accessories separately with soap and
water Do not clean them in the dishwasher.
• Never use flammable, explosive or corrosive material like thinner,
gas, acid for cleaning.
• The condenser (the back part with black wings) should
be cleaned using a vacuum cleaner or a dry brush at
least once a year. This will help your fridge to operate
more efficiently and save energy.

EN - 11 -
Defrosting
Refrigerator compartment;
• Defrosting occurs automatically in the refrigerator compartment during operation ;
the defrost water is collected by the evaporating tray and evaporates automatically.
• The evaporating tray and the defrost water drain hole should be cleaned periodically
with defrost drain plug to prevent the water from collecting on the bottom of the
refrigerator instead of flowing out.
• You can also pour 1/2 glass of the water in the drain hole to clean inside.
Freezer compartment;
The frost, accumulated in the freezer compartment, should be removed periodically. (Use
the plastic scraper provided) The freezer compartment should be cleaned in the same
way as the refrigerator compartment, with the defrost operations of the compartment at
least twice a year.
For this;
• The day before you defrost, set the thermostat dial to “5” position to freeze the foods
completely.
• During defrosting, frozen foods should be wrapped in several layers of paper and
kept in a cool place. The inevitable rise in temperature will shorten their storage life.
Remember to use these foods within a relatively short period of time.
• Set the thermostat knob to position “•” or unplug the unit; leave the door open until
completely defrosted.
• To accelerate the defrosting process one or more basins of warm water can be
placed in the freezer compartment.
• Dry the inside of the unit carefully and set the thermostat knob to MAX position.

EN - 12 -

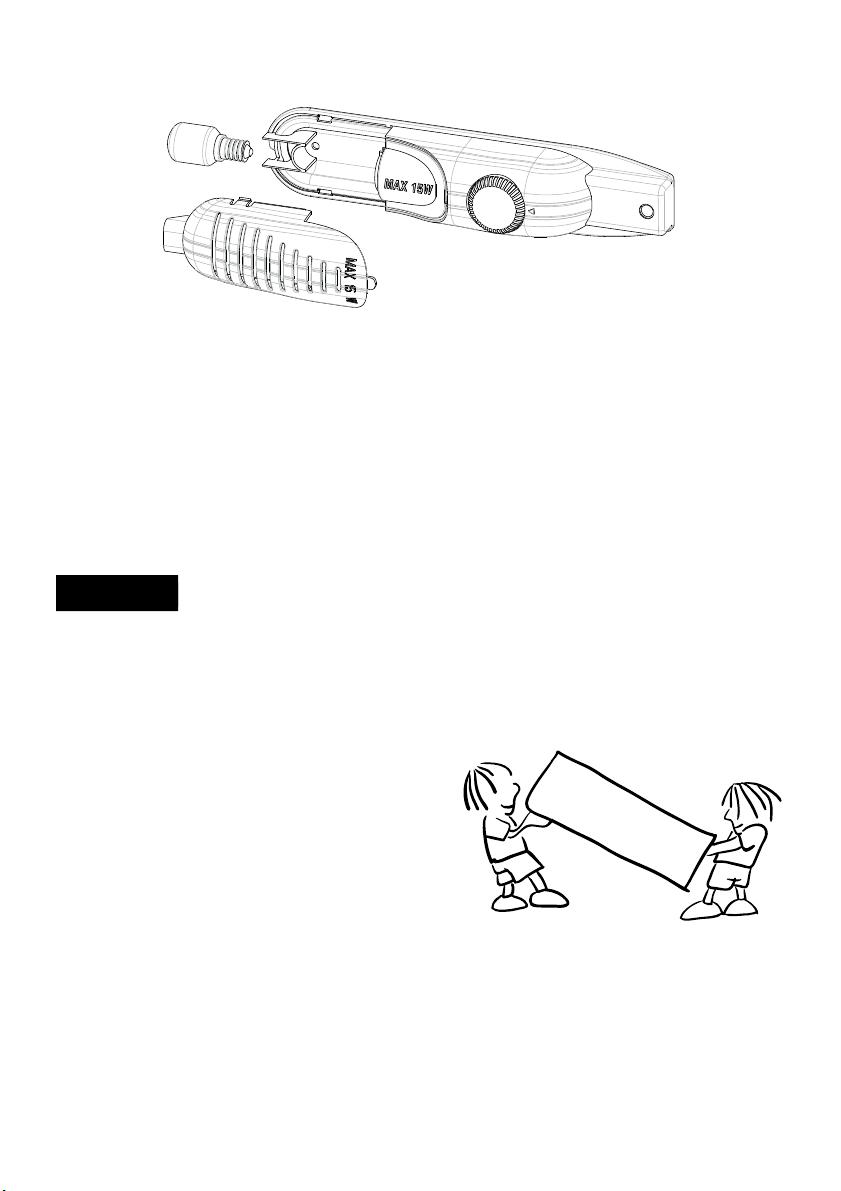

Replacing the light bulb
To replace the bulb in freezer and fridge departments;
1- Unplug your fridge.
2- Remove the cover of the box from the claws using a screwdriver.
3- Replace with a bulb of maximum 15 Watts.
4- Install the cover.
5- Wait for 5 minutes before re-plugging and bring the thermostat to its original position.
PART - 5. SHIPMENT AND REPOSITIONING
Repositioning the door
• It is not possible to change the opening direction of your fridge door, if the door
handles on your fridge are installed from the front surface of the door.
• It is possible to change the opening direction of the door on models without any
handles.
• If the door opening direction of your fridge may be changed, you should contact an
authorised service centre to have the opening direction changed.
Transportation and changing of installation position
• Original package and foam may be kept for re-transportation (optionally).
• You should fasten your fridge with thick packaging, bands or strong cords and follow
the instructions for transportation on the package for re-transportation.
• Remove movable parts (shelves,
accessories, vegetable bins etc.) or fix
them into the fridge against shocks using
bands during re-p ositioning an d
transportation.
Carry your fridge in the upright position.
Replacing LED lighting
If your refrigerator has LED lighting contact the help desk as this should be changed by
authorized personnel only.

EN - 13 -
PART - 6. BEFORE CALLING FOR AFTER SALES SERVICE
If your refrigerator is not working properly,it may be a minor problem, therefore check the
following, before calling an electrician to save time and money.
What to do if your refrigerator does not operate ;
Check if ;
• There is no power.
• The general switch in your home is disconnected.
• The thermostat setting is on “•” position.
• The socket is not working. To check this, plug in another appliance that you know
which is working into the same socket.
What to do if your refrigerator performs poorly ;
Check if ;
• You have not overloaded the appliance ,
• The doors are closed perfectly ,
• There is no dust on the condenser ,
• There is enough place at the rear and side walls.
If there is noise ;
The cooling gas which circulates in the refrigerator circuit may make a slight
noise(bubbling sound) even when the compressor is not running. Do not worry this is
quite normal. If these sounds are different check that ;
The appliance is well levelled ,
• Nothing is touching the rear.
• Items on the appliance are vibrating.
If there is water in the lower part of the refrigerator ;
Check that ;
The drain hole for defrost water is not clogged(Use defrost drain plug to clean the drain
hole)
Recommendations
• When there is a power cut, to prevent any compressor problem you should unplug
the refrigerator. You should delay plugging in 5 – 10 minutes after you power supply.
If you plug out the refrigerator for a reason you should wait at least 5 min to replug. It
is important for avoiding damage to refrigerator’s components.
• The cooling unit of your refrigerator is hidden in the rear wall. Therefore, water droplets
or icing may occur on the rear surface of your fridge due to the operation of the
compressor in specified intervals. This is normal. There is no need to perform a
defrosting operation unless the icing is excessive.
• If you will not use your fridge for a long time (e.g. in summer holidays), put the
thermostat to “•” position. After defrosting, clean your fridge and leave the door open
to prevent humidity and smell.

EN - 14 -
Conformity Information
• This appliance is designed for use at an ambient temperature within the 16°C - 32°C
range.
• The appliance is designed in compliance with the EN62552, IEC60335-1 /
IEC60335-2-24, 2004/108/EC standards.
Tips for saving energy
1– Install the appliance in a cool, well ventilated room , but not in direct sunlight and
not near heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2– Allow food and drinks to cool down outside the appliance.
3– When thawing frozen food, place it in the refrigerator compartment. The low tem-
perature of the frozen food will help to cool the refrigerator compartment when it is
thawing. So it saves energy.
4– W hen placing, drinks and slops they must be covered. Otherwise humidity in-
creases in the appliance. Therefore the working time gets longer. Also covering
drinks and slops helps to save smell and taste.
5– When placing food and drinks, open the appliance door as briefly as possible.
6– Keep close the covers of any different temperature compartment in the appliance
(crisper, chiller ...etc ).
7– Door gasket must be clean and pliable. Replace gaskets if worn.
• If the problem persists after you have followed all the instructions above, please
contact an authorised service centre.
• The appliance you have purchased is designed for home type use and can be used
only at home and for the stated purposes. It is not suitable for commercial or common
use. If the consumer use the appliance in a way that does not comply with these
features, we emphasise that the producer and the retailer will not be responsible for
any repair and failure within the guarantee period.

EN - 15 -
PART - 7. THE PARTS OF THE APPLIANCE AND THE
COMPARTMENTS
This presentation is only for information about the parts of the appliance.
Parts may vary according to the appliance model.
A) Freezer compartment
B) Refrigerator compartment
1) Plastic ice blade
2) Ice tray
3) Freezer shelf
4) Thermostat box
5) Refrigerator shelves
6) Crisper cover
7) Crisper
8) Levelling feet
9) Bottle shelf
10) Butter/Cheese shelves
11) Butter/Cheese shelf cover *
12) Egg holder
* In some models

52187557
The symbol on the product or on its packaging indicates that this product may not be treated as
household waste. Instead it shall be handed over to the applicable collection point for the recycling
of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will
help prevent potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. For more detailed information
about recycling of this product, please contact your local city offi ce, your household waste disposal
service or the shop where you purchased the product.
EFFICIENCY BY DESIGN
Visit
Servis.co.uk
Tel: [phone]
e: [email protected]
