Shadowspec SS-1 User manual

SS-1 Bluetooth®LED Battery & Charger
WHAT IS IN THE BOX
SS-1 Bluetooth Battery
Shadowspec Charger Adapter
AC Power Lead for Charger
(AU / EU / US available on request)
1. User Manual
(www.shadowspec.com/smart-battery for more information)
2. x1 Shadowspec™ SS-1 Bluetooth®LED Battery
3. x1 Shadowspec Charger Adapter with AC Lead
(Check you’ve received the correct plug adapter for your region.)
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
2. AnyChangesormodicationsnotexpresslyapprovedbythepartyresponsiblefor  
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a installation. If this equipment does cause harmful interference
toradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoandon,theuseris
encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connecttheequipmentintoanoutletonacircuitdierentfromthattowhichthereceiveris
connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolledenvironment.This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
TIPS & TROUBLESHOOTING
The LED Light won’t come on:
Charge your batter using the provided Shadowspec Charger. Please note that the SS-1 will
shut down if the battery discharge below a minimum threshold; this protects the battery from
permanent damage. Please charge to revive.
Tip: The Shadowspec Mobile Application shows the battery status. (The app won’t nd your battery if it’s
discharged.)
The Battery is charged but Light is no longer working:
Check the battery plug is attached to the SS-1 Battery.
Cycle the battery by holding the power button for 10 seconds.
Tip: Hold the button for 10 seconds to reset the SS-1 Battery.
Mobile Application won’t detect the device:
Unit is fully discharged and not in Stand-by mode.
Tip: The default factory password word Shadowspec devices are “12345678”
FCC STATEMENT
www.shadowspec.com/smart-battery
VER-001

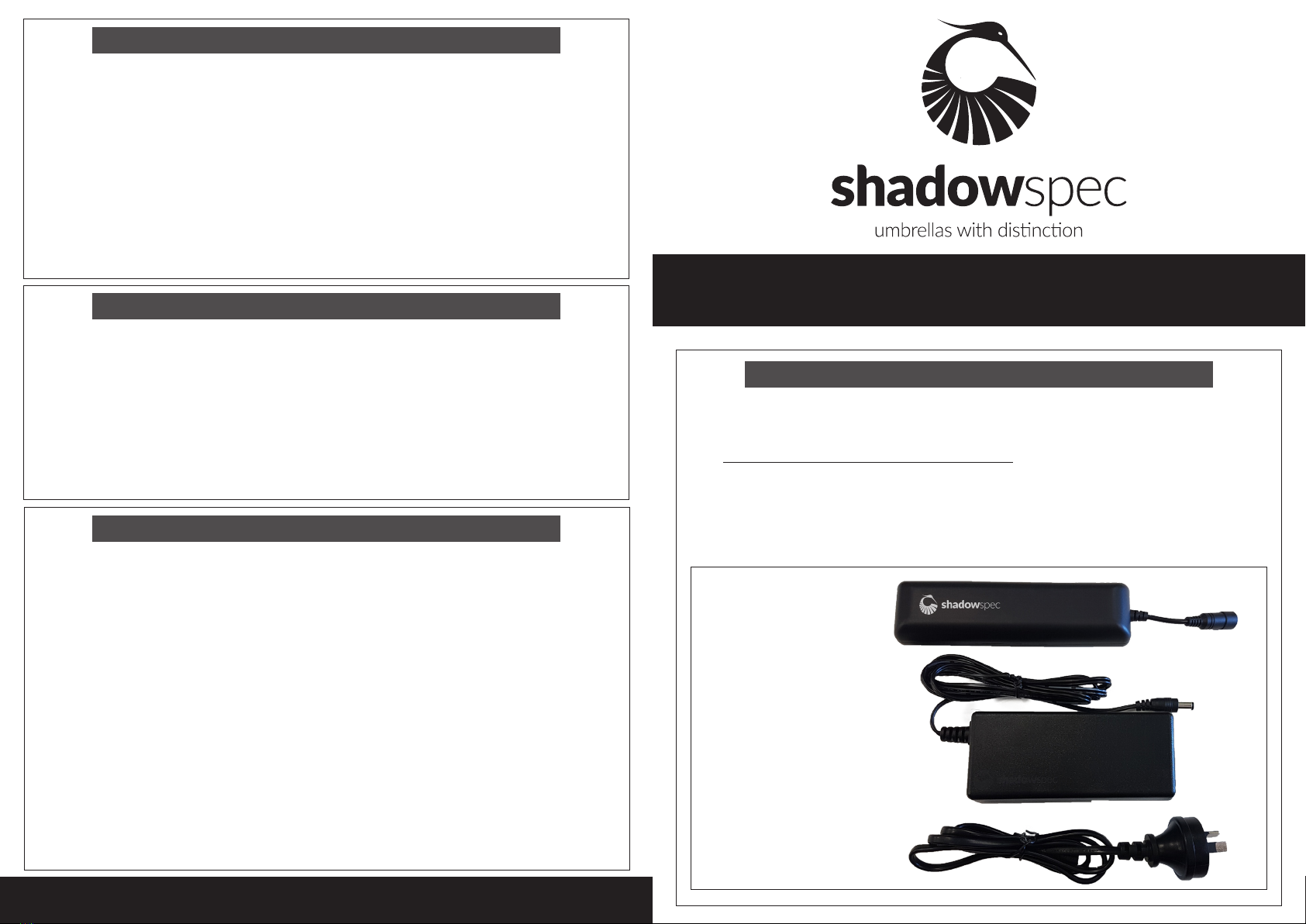

Fig 1. Box Contents
• Only use the Shadowspec Charger Adapter to charge the Shadowspec SS-1 Bluetooth LED Controller.
• Please charge your SS-1 Smart Baery completely before the very rst me it is used.
• Do not charge the SS-1 Smart Baery whilst ed to the umbrella. (Always use the AC powered
charger indoors and in a dry, safe environment – charge at room temperature.)
• Do not puncture the SS-1 Controller as it contains a Lithium Ion Baery. Do not store your SS-1
Controller on the umbrella when not in use.
• Your SS-1 should not be stored for long me periods when fully charged or uncharged. Opmum
long-term storage condion is between 40% -50% charged.
• Do not expose the SS-1 Controller to temperatures higher than +55 °C.
• Do not dispose of the SS-1 Controller via normal trash disposal. Please recycle responsibly.
CARE FOR USE

SHADOWSPEC APP (ANDROID MOBILE DEVICES)
GET TO KNOW YOUR SS-1 SMART BATTERY
Warning:
1. Only use the Shadowspec Charger Adapter to charge the Shadowspec SS-1
Bluetooth LED Battery.
2. DonotChargetheSS-1BatterywhenitisttedtotheUmbrella.(Always use
the AC powered chargers indoors and in a dry, safe environment)
3. Do not puncture the SS-1 Battery (it contains a Lithium Ion Battery).
4. Do not store the SS-1 Battery on the Umbrella when not in use.
FUNCTION BUTTON / BATTERY STATUS LIGHT
The Function Button also serves as a pilot light indicating battery and /or
charging status. The LED light can be operated by pushing this button or via
your Shadowspec Mobile Application for Android™ devices. Please download
from the Google Play Store.
Button function:
Push once - Light on - 100% full power (brightness).
Push again - Light on - 50% full power (brightness).
Push again -Lighto (stand-by mode to accept Bluetooth commands).
Battery status light function:
Red Light on - Unit charging.
Green Light on - Unit charged.
Red Light ashing - Battery requires charging.
INSTALLATION
Fig 3. Slide SS-1 Battery hooks into
key-slots located on the umbrella main spar
Fig 4. Plug the LED Light into the SS-1
Battery socket
1. Slide the fully charged SS-1 Battery onto the main umbrella spar at the
LED-light end.
2. Plug the LED light into the SS-1 Battery (Push in all the way, ensuring a
waterproof connection)
3. Remove the SS-1 Battery by sliding it back to release the hooks from the
key-slots. (See the Android Application manual for software installation and
Bluetooth Battery pairing.)
Please go to www.shadowspec.com/smart-battery for the software installation
guide and Play Store download link.
The Shadowspec App allows you to control your Shadowspec LED light via
Bluetooth using your Android mobile device.
Multiple Umbrella lights can be stored in memory allowing control over
switching and dimming the light to create the desired ambience. (Note: only one
device can be controlled at any given time. Scrolling and pairing between devices will
allow for separate control)
The App allows password setup, custom device naming, a battery status monitor
as well as a handy timer for switching the LED lights. (Tip: Factory device password
is “12345678” – please feel free to change this at any time).
SPECIFICATIONS
Shadowspec LED-Light
(Unity and Serenity models)
Input Voltage: 9V DC
Power Consumption: 900mA
Socket polarity: tip + / ring –
Shadowspec Charger
Input Voltage: 100V–240V AC
@ 50/60 Hz
Output Voltage: 24V @ 1000Ma
Plug polarity: tip + / ring –
Function Button /
Battery Status Light
LED Light / Charger
Socket (dual function)

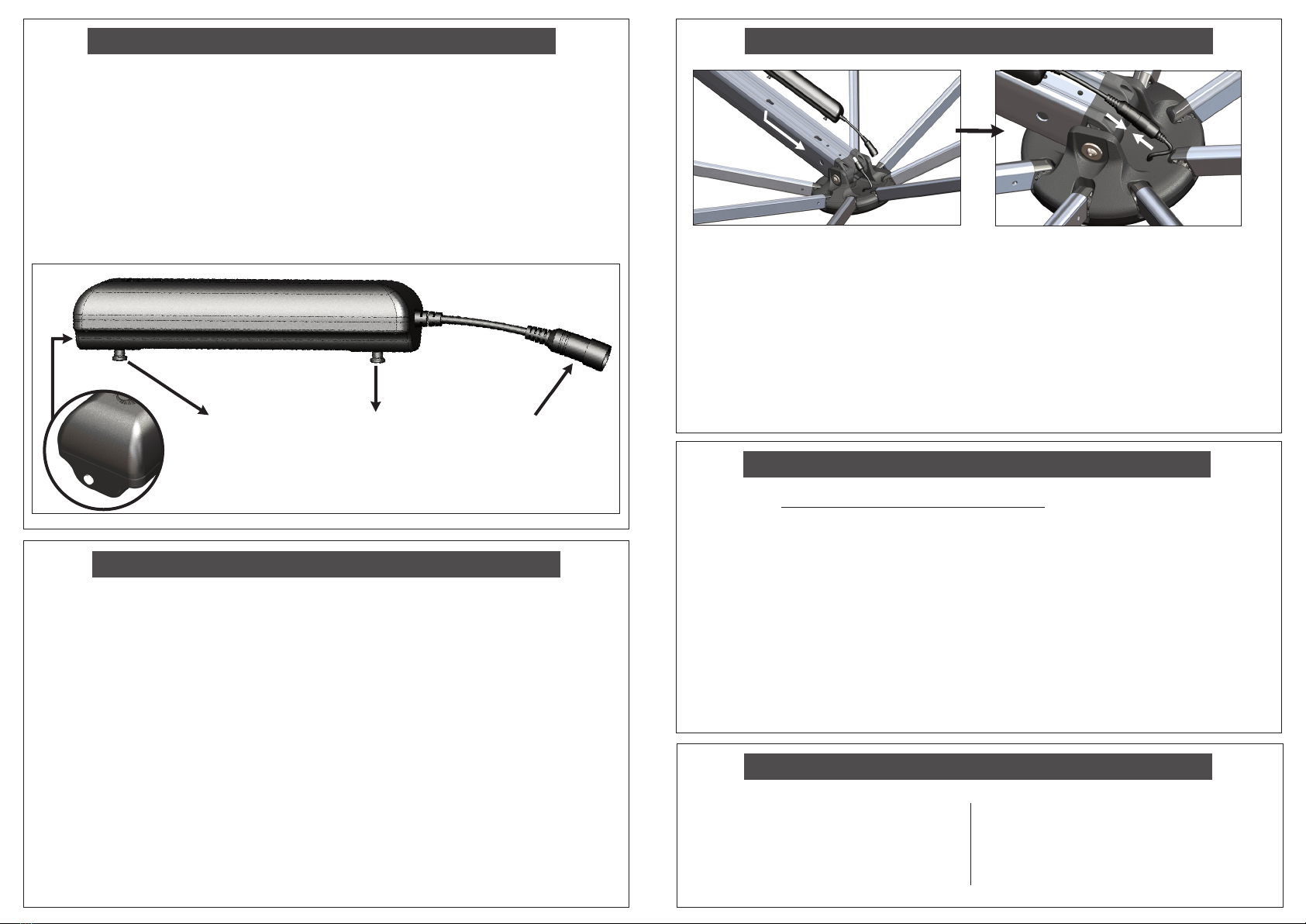

Fig 2. SS-1 Smart Battery
Locking hooks for mounting
