SHANY MZC-EX1000B User manual

36x Auto Focus Zoom Camera
MZC-EX1000B
Thanks for purchasing our product. Before operating the unit, please read the instructions
carefully and keep this manual for future reference.

FY2111B
- 2 -
Safety Warnings
1. Read manual carefully before installing the unit.
Please read this manual first for correct installation and operation.
2. Never install the camera on a ceiling that cannot hold its weight.
The product may fall down and cause damages.
3. Never install the camera near electric or magnetic fields.
Install the camera away from TV, radio transmitter, magnet, electric motor, transformer,
audio speakers since the magnetic fields generate from above devices would distort the
video image.
4. Never install or use the camera in areas exposed to water, oil or gas.
The water, oil or gas may result in operation failure, electric shock or fire. Do not use
this unit near water-for example, near a bath tub, wash bowl, kitchen sink, or laundry tub,
in a wet basement, near a swimming pool, in an unprotected outdoor installation, or any
area which is classified as a wet location.
5. Never face the camera toward the sun.
Direct sunlight or severe ray may cause fatal damage to sensor and internal circuit.
6. Power Cord Protection.
Touching the wet power cord with hands or touching the power cord with wet hands may
result in electric shock. Power supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or against them, playing
particular attention to cords and plugs, convenience receptacles, and the point where
they exit from the appliance.
7. Attachments
Do not use attachment not recommended by the product manufacturer as they may
cause hazards.
8. Object and Liquid Entry
Never push objects of any kind into this product through openings as they may touch
dangerous voltage points or short-out parts that could result in a fire or electric shock,
Never spill liquid of any kind onto the product.
9. Do not operate the camera in environments where the temperature, humidity or
power source is beyond the specified ones.
Use the camera in suitable environments where the temperature is within -10℃~ 50℃
and humidity below 90%. The input power source is DC12V.

FY2111B
- 3 -
10. Cleaning
Unplug the unit from the outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
11. Never disassemble the camera nor put impurities in it.
Disassembly or impurities may result in trouble or fire.
12. Stop using when the product emits smoke or abnormal heat.
13. Servicing
Do not attempt to repair this unit yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all servicing to qualified service
personnel.
14. Retain Instructions
The safety and operating instructions should be retained for future reference.
Notice: The information in this manual was current when published. The manufacturer
reserves the right to revise and improve its products. All specifications are
therefore subject to change without notice.

FY2111B
- 4 -
Table of Contents
1 Product Overview……….………………..………………………………..…………….…..4
1.1 Main Features.…..…………..………………………………………………………....4
1.2 Content List……………………………………………………………………….…….4
1.3 Specifications……………..……….………………………………………………..….5
2 Dimension………………………………………………………………………………………6
2.1 Dimension…………….……………………………………………………………………
2.2 Descriptions…………………………………………………………………………………
3 Camera Setup operations……………………………………………………………………6
3.1 Menu Tree……………………………………………………….…………….…....6
3.2 Main Menu…………………………...………………………………………………….6
3.3 Submenus of the Main Menu…………………………………………………………
3.3.1 SYSTEM……………………………………………………………………………..7
3.3.2 DISPLAY……………………………………………………………………………..8
3.3.3 PRESET……………………………………………………………………………..9
3.3.4 CAMERA…………………………………………………………………………...10
3.3.4.1 CAMERA –LENS………………………………………………………..11
3.3.4.2 CAMERA - IMAGE………….........................................................…..13
3.3.5 ALARM………..........................................................................................…..15
3.3.6 REBOOT……...........................................................................................…..15
3.3.7 EXIT……..................................................................................................…..15
5
5
5
6
7
7
8
9
9
10
10
11
12
13
14
14
17
20
20
20

FY2111B
- 5 -
1. Product Overview
MZC-EX1000B, a newly developed powerful 36x Zoom Camera, is built with 1/4" Sony
Exview HAD CCD. Featured with 36x optical auto focus, this camera reproduces sharp
and clear images whether zooming-in or zooming-out.
1.1 Main Features:
1/4" Sony Exview HAD CCD
36x Optical Auto Focus/ Auto Iris Zoom Lens
Sony HQ1 DSP
Color: 540TVL; B&W: 560TVL
[email protected] (30IRE)
Multi-language OSD Setting Menu
Mechanical IR Cut Filter (ICR)/ Infrared Compensation
Auto/ Ext/ Schedule Day & Night Mode
Privacy Zone Masking/ Alarm Function
Timer Clock
RS485 Interface (Pelco-D, Pelco P)
1.2 Content List
MZC-EX1000B 36x Auto Focus Zoom Camera
User’s manual

FY2111B
- 6 -
1.3 Specifications
TV System
PAL
NTSC
Image Sensor
1/4 Sony Exview HAD CCD
Total Pixels
470,000 Pixels
410,000 Pixels
Resolution ; DSP
Color: 540TVL, B&W: 560TVL ; SONY HQ1
Minimum Illumination
Color: [email protected] (30IRE) ;
B&W: [email protected] (30IRE)
Video Output
1.0Vp-p Composite, 75Ω; Y/C
Signal to Noise Ratio
More than 50dB
Mechanical IR Cut Filter
(ICR)
IR cut filter removable, Lux level adjustable, 16 steps
Day & Night Mode
Color/ B&W/ Auto/ External/ Schedule
Synchronization System
INTERNAL / EXTERNAL (V-Lock)
Automatic Electronic
Shutter
1/50(60)sec, 1/120(100)sec, 1/250sec, 1/500sec,
1/1,000sec, 1/2,000sec, 1/4,000sec, 1/10,000sec,
1/100,000sec, 9 steps
White Balance
ATW/ Auto/ One Push/ Manual/ 3200K/ 6300K
Back Light Compensation
ON (6 Areas) / OFF
Flickerless
ON / OFF
Auto Gain Control
Auto/ Manual (-3 to 28dB, 16x2dB steps)
Language
English, Traditional Chinese, Simplified Chinese,
Japanese
Picture Effects
Negative/ Mirror/ Black & White
Privacy Zone Masking
ON / OFF (8 Zones)
Camera Control Interface
PELCO P/ PELCO D
Alarm Function
Alarm In, Alarm Out
Timer Clock
YY/MM/DD
Focusing System
Real time AF/ One push AF/ Manual/ Infrared
Compensation
Minimum Working
Distance
35mm (Wide end) to 1,500mm (Tele end)
Angle of View
H: 57.8o(Wide) ~1.7 o (Tele) /
V: 43.7o(Wide) ~1.3 o (Tele)
Lens
36x optical zoom f3.4mm(Wide)~122.4mm(Tele),
F1.6 to F4.5
Power Supply
12Vdc±10%
Power Consumption
4.5W (Motor Inactive), 5.8W (Motor Active)
Operating Temperature/
Humidity
-10°C~+50°C
80% RH Max.
Storage Temperature/
Humidity
-20°C~+60°C /
20%~90% RH
Dimensions
57.8(W)×61.6(H)×110(L)mm
Weight
400g

FY2111B
7
2. Dimension
2.1 Dimension

FY2111B
8
+

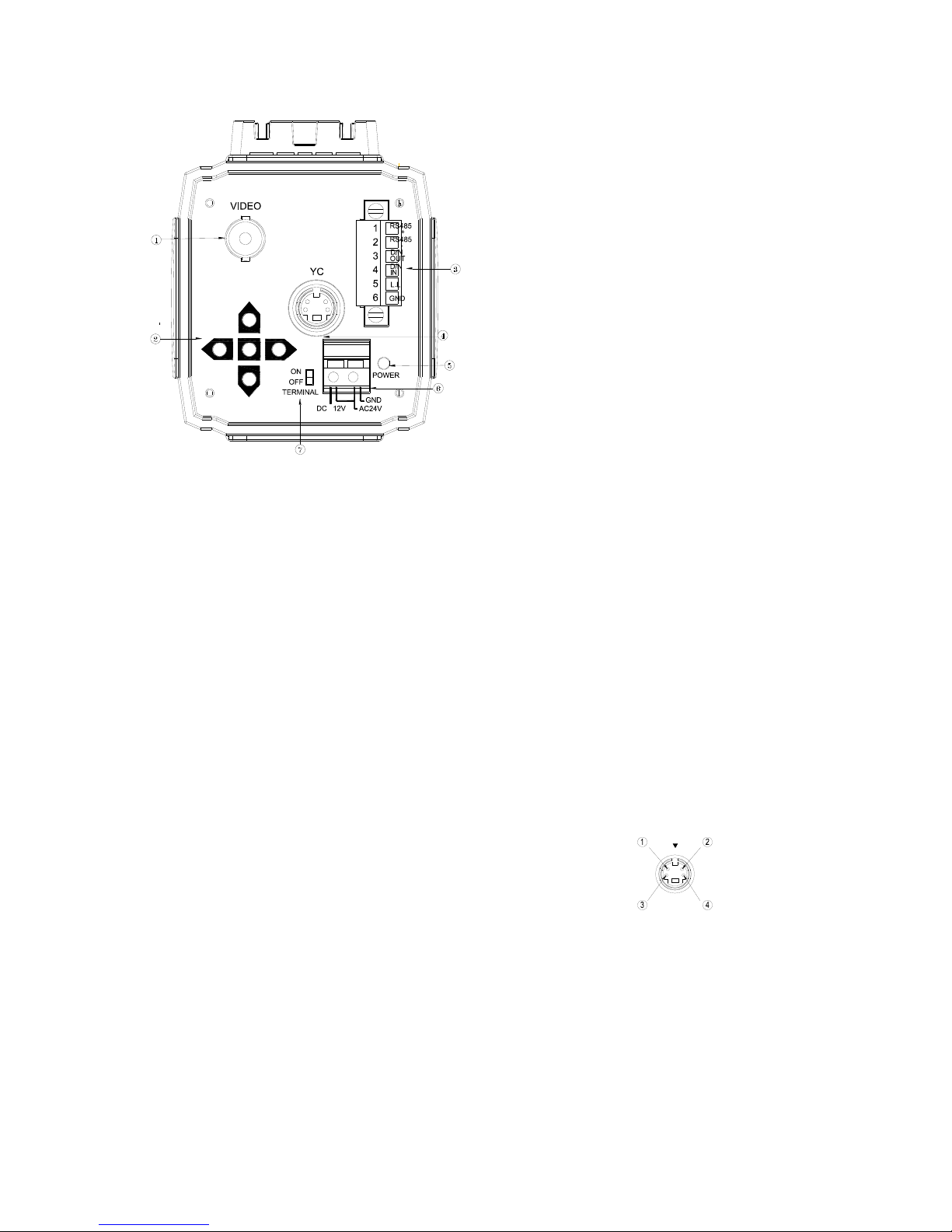

2.2 Descriptions
Video Connector
This is an output for connection to a video monitor, etc (75Ω).
Setting Button
SETUP button
UP & DOWN button
LEFT & RIGHT button
Communication Connector
1. RS485+
2. RS485-
3. Day & Night Output
4. Day & Night External Input
5. V Lock Pulse Input
6. Ground
Y/C Output (S-Video output terminal)
Separate Y(brightness) and C(Color) signal are outputs from this terminal to obtain better video
quality at a video monitor.
1. C signal: 0.3V (p-p), 75Ω, unbalance
2. Y signal: 1.0V (p-p), 75Ω, unbalance, negative synchronizing
3. C signal Ground
4. Y signal Ground
Power Input Indicator Light
When the camera is connected to a power supply, the indicator light will be on.
Power Input Terminal
Connect the power supply of 12Vdc.
RS-485 Terminal Resistor Switch
Set the first and the last equipments terminal resistor as ON. As for the rest parallel
connection equipment in the middle set as OFF to keep the best transmitted status.

FY2111B
9
3. Camera Setup Operations
3.1 Menu Tree
MAIN MENU
SYSTEM
DISPLAY
PRESET
CAMERA
ALARM
REBOOT
EXIT
LANGUAGE
CAMERA
TITLE
BAUD RATE
PROTOCOL
FIRMWARE
RESTORE
CAMERA ID
CARMERA ID
CAMERA
TITLE
PRESET
TITLE
DATE/TIME
ALARM
MESSAG
ZOOM RATIO
PRESET NO.
POSI
SAVE
DELETE
TITLE
PAUSE TIME
LENS
FOCUS
IRIS
BRIGHTNESS
ZOOM SPD
FOCUS SPD
DAY/NIGHT
NIGHT LIGHT
SOURCE SET
EXPOSURE
MODE
WHITE
BALANCE
SHARPNESS
BACKLIGHT
FLC
AGC
SYNC
MIRROR
POS./NEG.
PRIVACY
MASK
IN SWITCH
IN MODE
OUT SWITCH
OUT TIME
ALARM MESSAGE
WHITE BALANCE

FY2111B
10
3.2 Main Menu
MAIN MENU
SYSTEM
DISPLAY
PRESET
CAMERA
ALARM
REBOOT
SET 
SET 
SET 
SET 
SET 
STARTUP 
EXIT
3.3 Submenus of the MAIN MENU
There’re several submenus of the main menu: SYSTEM, DISPLAY, PRESET, CAMERA,
ALARM, and REBOOT.
Return to previous page
Select RETURN and press the SET button to return to previous page.
Close the menu screen
To close the menu screen, use the buttons to select EXIT and press the SET button.

FY2111B
11
3.3.1-SYSTEM
I. LANGUAGE:
Set language preference. Selections are ENGLISH TRADITIONAL CHINESE
SIMPLIFIED CHINESE JAPANESE
II. CAMERA ID:
Camera ID can be set in here. Only numbers 1-1024 can be used.
III. CAMERA TITLE:
Numbers, letters and symbols can be used for naming the camera title.
*Use direction buttons to select the desired character.
*Press SET button to confirm each selection.
*Use the direction buttons to OK to confirm the setting.
*Use the direction buttons to CANCEL to abort the setting.
*Select POSI to change the position of the shown camera title.
*Select SPACE when a blank / a space is needed.
*Select BACKSPACE to clear the precedent character.
IV. BAUD RATE:
Baud Rates can be set here. There’re 5 kinds of baud rates. 2400 4800
9600 19200 38400
V. PROTOCOL:
Select the protocol here. There’re 2 types PELCO D PELCO P
VI. FIRMWARE:
Please refer to the actual firmware version.
VII. RESTORE:
Please choose CANCEL to exit; once the CONTINUE is chosen, all the settings
will be restored to the default settings.
LANGUAGE ENGLISH TRADITIONAL CHINESE SIMPLIFIED CHINESE JAPANESE
CAMERA ID 1~1024
CAMERA TITLE SET 
BAUD RATE 2400 4800 9600 19200 38400
PROTOCOL PELCO D PELCO P
FIRMWARE XX.XX
RESTORE SET
CANCEL CONTINUE
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
a
b
c
d
e
f
g
h
i
j
k
l
m
n
o
p
q
r
s
t
u
v
w
x
y
z
.
,
:
‘
“
/
#
*
=
(
)
<
>
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
SPACE BACKSPACE
POSI COPY
OK CANCEL

FY2111B
12
3.3.2-DISPLAY
I. CAMERA ID:
Select ON to show the Camera ID on the screen; select OFF to hide the Camera
ID from the screen.
II. CAMERA TITLE:
Select ON to show the Camera Title on the screen; select OFF to hide the
Camera Title from the screen.
III. PRESET TITLE:
Select ON to show the Preset Title on the screen; select OFF to hide the Preset
Title from the screen.
IV. DATE/TIME:
HH: Hour, MM: Minute, SS: Second, YY: Year, MM: Month, DD: Date.
*Select ON/OFF to show/hide the Date/Time on the screen.
DATE/TIME Adjust:
*When ON is selected, Date/Time can be adjusted.
*Press SET BUTTON to set up.
*Use RIGHT BUTTON to increase the number and LEFT BUTTON to decrease.
*Press the SET BUTTON to confirm each adjusted number.
FORMAT Adjust:
*The Date/Time Format can further be arranged. YY：MM：DD MM：DD：YY DD：
MM：YY
V. ZOOM RATIO:
Select ON to show the Zoom Ratio on the screen; select OFF to hide the Zoom
Ratio from the screen.
VI. ALARM MESSAGE:
Select ON to show the Alarm Message on the screen; select OFF to hide the
Alarm Message from the screen.
CAMERA ID OFF ON
CAMERA TITLE OFF ON
PRESET TITLE OFF ON
DATE/TIME OFF ON
ZOOM RATIO OFF ON
ALARM MESSAGE OFF ON
DATE / TIME
TIME HH：MM：SS
DATE YY：MM：DD
FORMAT YY：MM：DD MM：DD：YY DD：MM：YY
RETURN EXIT

FY2111B
13
3.3.3-PRESET
I. PRESET NO.:
Select the to-be-set/desired PRESET NO from 1-256.
II. POSI: U ZOOM D/L FOCUS R
Press SET while the POSI is highlighted to setup the position. Use UP/DOWN
BUTTON to adjust ZOOM and LEFT/RIGHT BUTTON to adjust the FOUCS.
III. SAVE:
Select SETand press the SET BUTTON to save the settings.
IV. DELETE:
Select ABOVE or ALL to delete the setting above or to delete every preset
settings.
V. TITLE:
Numbers, letters and symbols can be used for naming the camera title.
*Use direction buttons to select the desired character.
*Press SET button to confirm each selection.
*Use the direction buttons to OK to confirm the setting.
*Use the direction buttons to CANCEL to abort the setting.
*Select POSI to change the position of the shown camera title.
*Select SPACE when a blank / a space is needed.
*Select BACKSPACE to clear the precedent character.
VI. PAUSE TIME:
Pause time can be chosen from 0 to 255 seconds.
PRESET NO. 1-256
POSI SET
SAVE SET
OK
DELETE ABOVE ALL
TITLE SET
PAUSE TIME 0-255
U ZOOM D/L FOCUS R
PRESS ENTER CONFIRM
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
a
b
c
d
e
f
g
h
i
j
k
l
m
n
o
p
q
r
s
t
u
v
w
x
y
z
.
,
:
‘
“
/
#
*
=
(
)
<
>
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
SPACE BACKSPACE
POSI COPY
OK CANCEL

FY2111B
14
3.3.4-CAMERA
3.3.4.1-CAMERA-LENS
LENS SET
FOCUS REAL TIME AF ONE PUSH MANUAL
IRIS AUTO MANUAL
BRIGHTNESS 1-15
ZOOM SPD 1-15
FOCUS SPD 1-15
DAY / NIGHT COLORB&WAUTOEXT SCHEDULE
NIGHT LIGHT NORMAL INFRARED
COLOR
B&W
AUTO 
LEVEL 1-10
DLY TIME 1-10 SEC
OUTPUT
EXTERNAL
DAY / NIGHT IN L LEVEL H LEVEL
SCHEDULE
DAY / NIGHT HH：MM
NIGHT / DAY HH：MM

FY2111B
15
I. LENS: Settings concerning Lens can be set in here.
i. FOCUS:
REAL TIME AF:
Select REAL TIME AF to detect the ambiance light and to adjust the focus
automatically.
ONE PUSH:
When the zoom is changed with the TELE or the WIDE buttons, it becomes
AF Mode. Then, it stops.
MANUAL:
Select MANUAL to adjust the focus by adding or subtracting the shown
setting.
ii. IRIS:
MANUAL: Select MANUAL adjust the IRIS manually.
AUTO: When AUTO is selected, the IRIS will be adjusted automatically.
iii. BRIGHTNESS:
There’re 1-15 levels: the bigger the number, the brighter the images. But if
the IRIS has set to be manual, this function will be disabled.
iv. ZOOM SPD:
There’re 1-15 levels: the bigger the number, the faster the zoom changing
speed will be.
v. FOCUS SPD:
There’re 1-15 levels: when under the manual mode, the bigger the number,
the faster the focus changing speed will be. However, under REAL TIME
AF and ONE PUSH Modes, the FOCUS SPD is fixed and can not be
adjusted.
vi. DAY/NIGHT:
COLOR: The COLOR mode.
B&W: The BLACK & WHITE mode.
AUTO: When AUTO is selected, it will detect the ambient light to change
from DAY/COLOR to NIGHT/B&W and vice versa.
LEVEL: Select brightness of illumination about changing the day/night mode.
The bigger the number, the brighter the images.
DLY TIME: can be chosen from 1 to 10 seconds to delay the
switching time (from DAY/Color to NIGHT/B&W time and vise visa.)
OUTPUT: Select output level. D&N OUT: It’s the PIN 3 external control
connector.
(HIGH: 5V; LOW: GND)
OUTPUT
D&N OUT
SYSTEM
L LEVEL
H LEVEL
COLOR
HIGH
LOW
B&W
LOW
HIGH

FY2111B
16
EXTERNAL: Use the external signal to switch COLOR/B&W.
INPUT: Select input level. D&N IN: It’s the PIN 4 external control connector.
(HIGH: OPEN or 5V; LOW: GND)
SCHEDULE: When SCHEDULE is selected, timing can be set to switch
Day/Night Mode.
DAY/NIGHT: set the timing to switch from DAY/COLOR to NIGHT/B&W.
NIGHT/DAY: set the timing to switch from NIGHT/B&W to DAY/COLOR.
vii. NIGHT LIGHT:
When IR LED is in use, select INFRARED. When regular illuminator is in
use, select NORMAL.
INPUT
SYSTEM
D&N IN
L LEVEL
H LEVEL
HIGH
COLOR
B&W
LOW
B&W
COLOR

FY2111B
17
3.3.4.2-CAMERA-IMAGE
IMAGE SET
EXPOSURE MODE MANUALAUTO
WHITE BALANCE ATW AUTO MWB ONE PUSH
3200K 6300K
SHARPNESS 0-15
BACKLIGHT OFF BLC
FLC OFF ON
AGC MANUALAUTO
SYNC INT LL
MIRROR OFF ON
POS. / NEG. OFF ON
PRIVACY MASK SET
OFF ON
MANUAL--SHUT SPD
1/50(60) 1/120(1/100)
1/250 1/500
1/1000 1/2000
1/4000 1/10000
1/100000
AUTO-MAX SHUT SPD
1/250 1/500
1/1000 1/2000
1/4000 1/10000
1/100000
BLC
OFF AREA1
AREA2 AREA3
AREA4 AREA5
AREA6
ON
AREA SEL 01-08
AREA MODE
COLOR
GREEN ORANGE BLACK WHITE
GRAY BLUE RED PURPLE

FY2111B
18
II. IMAGE
i. EXPOSURE MODE:
To adjust the shutter speeds.
MANUAL:
Adjust shutter manually.
SHUT SPD: adjust shutter speed. 1/50(60) 1/120(1/100) 1/250 1/500 1/1000 1/2000 1/4000
1/10000 1/100000
AUTO:
Automatic Electronic Shutter
MAX SHUT SPD: adjust the maximum shutter speed; shutter will change
from 1/50(60) to maximum shutter speed automatically. 1/250 1/500 1/1000 1/2000
1/4000 1/10000 1/100000
ii. WHITE BALANCE
6 different modes to choose from, ATW, AUTO, MWB, ONE PUSH, 3200K or
6300K.
ATW (Auto Tracking White Balance):
This mode can be used within the color temperature range from 2,500°K to
9,000°K (eg, fluorescent light, outdoor, sodium vapor lamp or inside tunnels).
AUTO:
This mode computes the white balance value output using color information
from the entire screen. It outputs the proper value using the color
temperature radiating from a black subject.
MWB: (Manual White Balance)
RED: select RED to adjust RED gain.
BLUE: select BLUE to adjust BLUE gain.
ONE PUSH:
The ONE PUSH WHITE BALANCE mode is a fixed mode that may be
automatically readjusted only at the request of the user.
ONE PUSH WHITE BALANCE SETUPS
*Press the SET button continually to adjust the WHITE BALANCE.
*Release the SET button, and the WHITE BALANCE will be set.
*Press the SET button again to exit.
3200K: Indoor
6300K: Outdoor
iii. SHARPNESS:
The contour of the video image becomes cleaner and more distinguished as
the level of SHARPNESS increases. If the level goes up extremely, it may
affect the video image and cause noise. The available range is 0~15.
iv. BACKLIGHT:
Even when there’s a massive backlight behind the object, bright images of
the background and the object can still be obtained by using the BACKLIGHT
function. There’re 6 areas to choose from.
AREA
LEVEL
TOP
BOTTOM
LOW
AREA 1
AREA 4
MID
AREA 2
AREA 5
HIGH
AREA 3
AREA 6

FY2111B
19
v. FLC:
Flicker can be eliminated by setting FLC to be ON.
vi. AGC (AUTO GAIN CONTROL)
AUTO: when AUTO is selected, the maximum gain is 26dB.
MANUAL: when MANUAL is selected, the maximum gain can be adjusted
manually, adjusting range from -3 to 28dB.
The more the level of gain increases, the brighter the screen and the level of
noise increases.
vii. SYNC:
INT: Internal synchronization
LL: External line-lock synchronization: when LL is selected, press the SET
BUTTON to confirm. The phase can be set from 0 to 359.
viii. MIRROR:
When ON is selected, images will be horizontal rotated.
ix. POS./NEG.:
Negative/Positive Reversal. Select ON or OFF to enable or disable this
function.
x. PRIVACY MASK:
AREA SEL：
There’re 1~8 masking areas to choose from.
*Press the LEFT/RIGHT buttons to choose the desired areas 1-8.
AREA MODE：
To select the area to be masked or not. ON or OFF.
Selected area setups:
*Press the SET button to enter the chosen area to do the settings.
*Press UP/DOWN to zoom in or zoom out.
Size of the selected area:
*Press the SET button to set the size of the masking area.
*Use the UP/DOWN buttons to select TOP/BOTTOM/LEFT/RIGHT.
*Use the LEFT/RIGHT buttons to shrink or to enlarge the masking area size.
*Press the SET button to exit.
COLOR：
There’re 8 kinds of colors to choose from, GREEN, ORANGE, BLACK,
WHITE, GRAY, BLUE, RED, PURPLE.

FY2111B
20
3.3.5-ALARM
I. IN SWITCH:
Select ON to set the alarm or OFF to cancel the alarm.
II. IN MODE:
NO: NORMAL OPEN; NC: NORMAL CLOSE.
III. OUT SWITCH:
Select ON or OFF, to output the alarm or not.
IV. OUT TIME:
There’re 8 length of time to choose from: 100ms 200ms 300ms 500ms 1000ms 2000ms
3000ms5000ms
3.3.6-REBOOT
I. Restart the camera.
3.3.7-EXIT
I. Select EXIT to leave the MENU.
IN SWITCH OFF ON
IN MODE NC NO
OUT SWITCH OFF ON
OUT TIME 100ms 200ms 300ms 500ms 1000ms 2000ms 3000ms
5000ms
REBOOT STARTUP 
EXIT
