ShareVgo SRM2000 User manual
Owner’s Manual
Smart Home Rowing Machine
Model: SRM2000
FCC ID: 2AWJJ-RM2000
Last Modified: June 5, 2020
M1S1 ShareVgo Smart Home Rowing Machine
2
Before You Begin
Welcome to the ShareVgo community. Before beginning assembly, take a few
moments to familiarize yourself with important information on how to use our
ShareVgo Smart Rowing Machine safely so that you and your loved ones do
not get hurt. Let’s review the safety notes and warnings now. If you have any
questions, please contact support@sharevgo.com
Safety Instructions
CAUTION
WARNING
WARNING
To reduce the risk of serious injury, carefully read the following
Safety Instructions before using this product.
Consult your physician before starting an exercise program or
using the exercise equipment.
Maximum weight capacity is 285 lbs or 130 kg.
1. Consult your physician before using. Stop immediately and consult your physician if you
feel faint, dizzy, or experience pain during exercise.
2. Carefully read all warnings and cautions before using this equipment.
3. We recommend two people be available to assemble this product.
4. Do not let children under the age of 12 use this product without proper adult supervision.
5. Keep children, your fingers, body parts, and pets away while in use.
6. Do not wear loose or dangling clothing while using this product.
7. Set up and operate this product on a solid and level surface with a mat beneath it.
8. The empty space surrounding the equipment should be at least 2 feet (0.6 meters) on
the left and right sides and on the front and back sides. This area must also include
adequate space for emergency dismount.
9. Before using, inspect this product for worn or loose components, and securely tighten or
replace any worn or loose components prior to use.
10. Do not use this equipment if any parts are damaged, missing or if there is an unusual
noise coming from this equipment while in use.
11. Always wear correct footwear and never exercise in bare feet or socks.
12. This equipment should not be used by persons weighing over 285 lbs or 130 kg.
13. Used by only one person at a time.
14. This equipment is for indoor, household, and non-commercial use only.
15. All the values calculated and displayed by the machine’s computer or mobile app is an
approximation and should be used for reference only.
M1S1 ShareVgo Smart Home Rowing Machine
3
FCC Statement and Important Labels
CAUTION: The user is cautioned that changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to operate the
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20cm
between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Warning Label
FCC Label
Product QR Code
M1S1 ShareVgo Smart Home Rowing Machine
4
Part Drawing
70
69
71
M1S1 ShareVgo Smart Home Rowing Machine
5
NO
NO
Description
Spec.
QTY
NO
Description
Spec.
QTY
1
Main Frame
1
36
Washer
φ13*6.5*1.5
6
2
Front Base Tube
1
37
Bolt
M6*16
69
3
Rear Base Tube
1
38
Bolt
10*95*M6*25
1
4
Sliding Track
1
39
Pull Pin
∮7.8*108*98
1
5
Handlebar
1
40
Bolt
M6*16*5#
1
6
Washer
Φ16*Φ8.5*1.5
11
41
Sensor Wire
2
7
Square Head Bolt
M8*60
2
42
Washer
Φ24*Φ12*2
1
8
End Cap
Φ50
2
43
Knob
Φ58*M12*30
1
9
Arc Washer
Φ22*Φ8.5
2
44
Axle for Stoppers
φ12*80*M6
2
10
Foam Grip
200
2
45
Screw
M5*10
1
11
End Cap
∮28
2
46
Jet and Wire
Φ6*38
2
12A
Left Shroud A
1
47
Square End Cap
40*80
1
12B
Left Shroud B
1
48A
Right Shroud A
1
13
Screw
M4*20
8
48B
Right Shroud B
1
14
Screw for Metal
M4*20
6
49
Monitor
1
15
Flange Nut
M10*1.0
4
50
Tension Knob
1
16
Hexagon Nut
M10*1.0*5
4
51
Screw
M5*15
1
17
Wheel
Φ149
1
52
Washer
Φ16*Φ5.5*1.5
1
18
Hexagon Nut
M6*55
1
53
Foam Seat
290*365*50
1
19
Spring Washer
Φ10
2
54
Spring Washer
φ13*φ8*2.0
8
20
Spacer
6000RS
2
55
Bolt
M8*20*S6
8
21
Wave Washer
Φ10*Φ6*40
1
56
End Cap-Adjustable
φ50
2
22
Belt Pulley
Φ45*Φ30*35
1
57
Bolt
M8*120
3
23
Washer
Φ13*Φ6.5*1.5
3
58
U-Shape Bracket
2
24
Lock Nut
M6
5
59
Sliding Bracket
1
25
Handlebar Cushion
105*40*31
1
60
Lock Nut
M8
2
26
Bolt
M5*10
2
61
Wire Plug
φ12
1
27
Nylon Pulling Belt
2140*22*1.5
1
62
Bolt
M6*10
2
28
Wedge Belt
6PJ250
1
63
Bearing
608Z
6
29
Magnetic Wheel
Φ176*132
1
64
Sliding Wheel
φ40*92
3
30
Tension Pull Screw
M6*26
4
65
Lock Nut
M8
4
31
Tension Pull Stop
25*10*1.0
4
66
Tablet Holder Post
1
32
Hexagon Bolt
M12*Φ12.5*165
4
68
Bolt
M4*15
4
33L
Footrest-Left
330*144
2
69
Allen Key
5#
1
33R
Footrest-Right
330*144
2
70
Allen Key
6#
1
34
Strap for Footrest
6
71
Wrench/screwdriver
13-15-19
1
35
Rubber Stopper
φ32*16*φ6.5
4
Part List
M1S1 ShareVgo Smart Home Rowing Machine
6

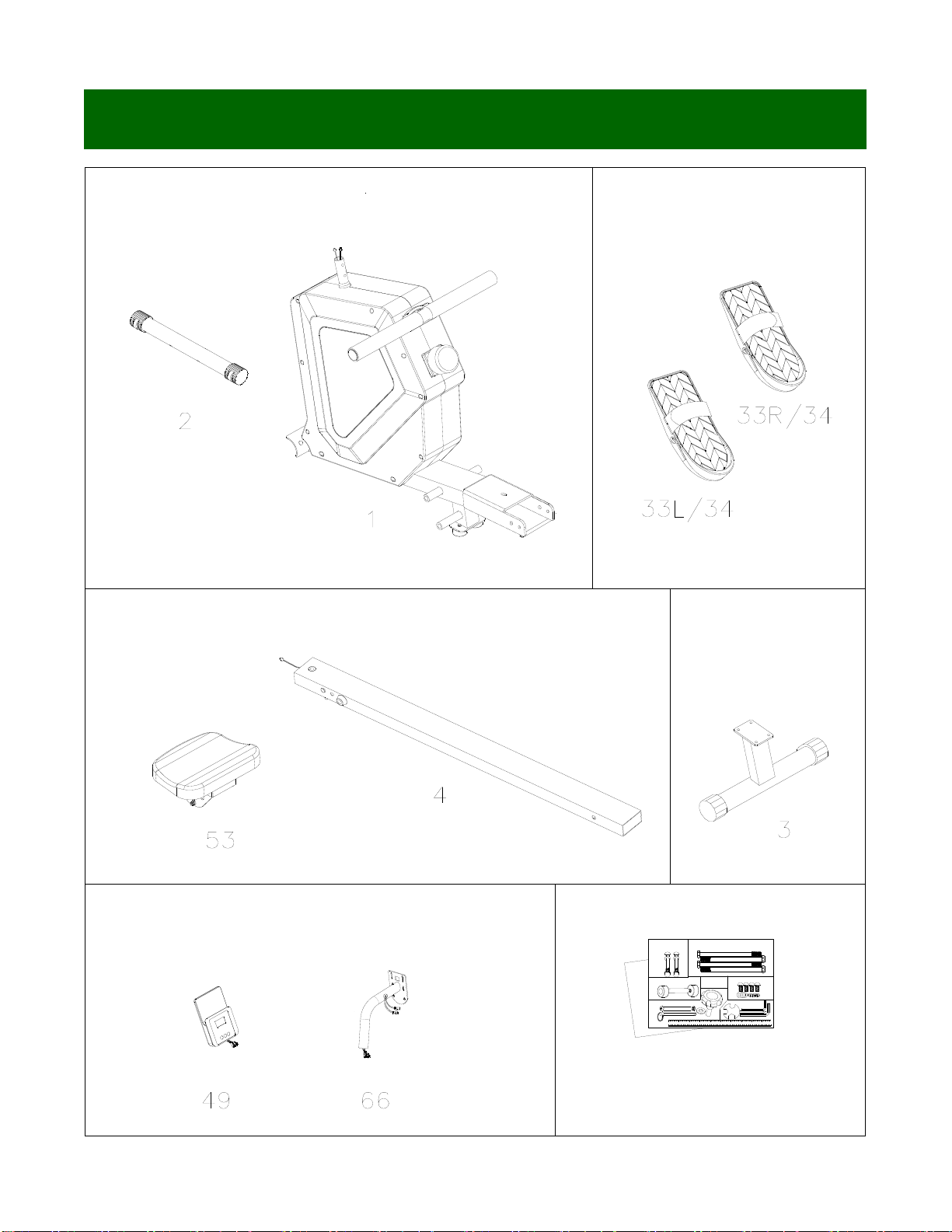

Components For Assembly
STEP 1
Components STEP 2
Components
STEP 3
Components
STEP 4
Components
M8x55 M8x55
STEP1 STEP2
STEP3 STEP4
1 2 3 4 5 6 7 8 9 10 201 2 3 4 5 6 7 8 9 1 2 3 4
1 2 3 4 5 6 7 8 9
0
0cm
inch
STEP5 #5 1PC
#6 1PC
manual
Hardware Pack & Manual
STEP 6
Components
M1S1 ShareVgo Smart Home Rowing Machine
7
71
Attach the Front Base Tube, with two
wheels (2) facing out, onto the Main
Frame (1) and secure it by using 2
Bolts (7), and 2 Washers (9), and 2
Nuts (60). Tighten them using Allen
Key (71).
71
Step 1 –Front Base Tube Assembly
Step 2 –Pedals Assembly
Screw Bolts (32) into both the Rear
Holes (A) at the main frame and
tighten them with Wrench (71).
Insert Bolts (32) through the Left Pedal
(33L) and secure them to the Front
Hole (B) of the main frame. Repeat for
the Right Pedal (33R). Tighten the
Bolts (32) with the Wrench (71).
Be Sure
the pedal marked L is on the
left and the pedal marked R is on the
right.
Wheel
L
R
A
B
B
A
M1S1 ShareVgo Smart Home Rowing Machine
8
Attach the Rear Base Tube (3) onto the
Sliding Track (4) using 4 Screws (55), 4
Spring Washers (54), and 4 Washers (6).
Tighten with the Alley Key (70).
Be sure
the spring washers are closer to
the head of the screw. So that the Rear
Base Tube is installed outwardly.
70
Step 3 –Seat and Sliding Track Assembly
4
53
4
35
35
37
44
53
X
Slide the Seat (53) onto the Sliding Track (4).
Be sure
to slide from the end that does not
have the Rubber Stopper.
Insert the Pin (44) with the Stopper (35)
through the hole near the end of the Sliding
Track (4). Then attach the Rubber Stopper
(35) to the other side and secure it with
Screw (37). Tighten using both the Allen Key
(69) and the Screwdriver (71).
71
69
3
4
Step 4 –Rear Base Tube Assembly
M1S1 ShareVgo Smart Home Rowing Machine
9
4
42
43
40
38
39
1
70
69
20-30°
4
1
Cylinder Block
Step 5 –Connect Sliding Track to Main Frame
Lift up the u-shaped open end of the Main
Frame (1) and the front end of the Sliding
Track (4). Insert the front end of the Sliding
Track into the u-shaped open end of the
Main Frame (1).
Lift the end of the Sliding Track (4) to 20-30
degree so that the Cylinder Block can go in
the u-shaped opening of the Main Frame
(1). Holding them straight, insert Bolt (38)
into the front hole and tighten it with Screw
(40). Tighten the screws using two
screwdrivers (69 & 71).
71
69
Insert the Safety Pin (39) through the rear
hole. Screw Knob (43) with Washer (42)
into the hole on top of the rear square tube
of the Main Frame (1)
14
Cylinder Block
◦
43
42
40
39
38
M1S1 ShareVgo Smart Home Rowing Machine
10
Step 6 –Tablet Holder Assembly
-
6-1: Install 2 AAA batteries into the
slot at the back of Monitor (49).
6-2: Remove the 4 pre-installed
Screws (68) from the back of the
Monitor (49).
6-3: Attach Monitor (49) to the
Monitor Plate (66) using the 4
Screws (68). Connect the two
Sensor Wires (41) to the two
Monitor Sensor Wires (49) and
make sure it is properly connected.
6-4: Properly connect the two
Sensor Wires (41) of the other end
to the two Sensor Wires coming out
of Main Frame (1). Then, install the
Monitor Plate (66) to the Main
Frame (1) with two Screws (62).
71
69
Pedals and Tension Adjustment
-
Pedal Strap (34) is adjustable to
user’s foot size.
Tension Knob (50) is adjustable
from the lowest tension 1 to the
highest tension 8.
LOW HIGH
6-1
49
6-2
68
68
6-3
68
49
49
41 41
66
6-4
46
41
66
62
166
M1S1 ShareVgo Smart Home Rowing Machine
11
To move rowing machine, simply lift
the rear base frame tube until the
wheels at the front base frame tube
touching the floor and then move
the machine to your desired
location .
To Move or Fold Rowing Machine
-
To fold rowing machine for storage,
1. Unscrew and release Knob (43)
and Washer (42).
2. Pull out the Safety Pin (39).
3. Lift up the Sliding Track (4) with
one hand.
4. Insert Safety Pin (39) to Hole C.
5. Screw and tighten Knob (43) with
Washer (42) into Hole D.
CAUTION: To avoid slamming by
Sliding Track, be sure to hold the Sliding
Track when you insert or remove the
Safety Pin (39) and Knob (43).
M1S1 ShareVgo Smart Home Rowing Machine
12
Monitor Operation & Function
Function buttons:
MODE:
1. Press to select functions for display.
2. Press and hold 3-5 seconds to reset time, distance, and count values to zero.
SET:
1. Press to set target functions for time, distance, and count.
2. Press and hold 3-5 seconds to reset time, distance, and count values to zero.
RESET:
1. Press to reset the setting values to zero.
2. Press and hold 3-5 seconds to reset time, distance, and count values to zero.
Operations:
1. SCAN: Press MODE until ‘SCAN’ appears. The monitor will rotate through all the 4
functions: TIME, COUNT, DISTANCE, and TOTAL COUNT. Each function will be displayed
for approximately 5 seconds.
2. TIME: Displays the total amount of time exercised.
3. COUNT: Displays total count of the rowing strokes for one session of workout.
4. DISTANCE: Displays the total distance traveled.
5. TOTAL COUNT: Display total count of the rowing strokes after installing the battery.
NOTE:
1. If the display is faint or will not display properly, replace the batteries.
2. The monitor will automatically turn off if it does not receive signal after 4 minutes.
3. The monitor will turn on when you begin using the rowing machine or by press the
MODE button.
4. The monitor will begin calculating when you begin exercising and will stop calculating
when you stop exercising for 4 seconds.
Specifications:
FUNCTION
SCAN
5 seconds per display
TIME
00:00~99:59 (minute:second OR hour:minute)
COUNT
0~9999 Count
DISTANCE
0.0~9999 Mile
TOTAL COUNT
0~9999 Count
BATTERY TYPE
2pcs of SIZE –AAA
OPERATING TEMPERATURE
0°C ~ +40°C
STORAGE TEMPERATURE
-10°C ~ +60°C
M1S1 ShareVgo Smart Home Rowing Machine
13
Connecting to Mobile Device
To learn more, visit www.sharevgo.com/faq
Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use
of such marks by SHAREVGO is under license.
Google Play and the Google Play logo are trademarks of Google LLC.
App Store is a service mark of Apple Inc., registered in the U.S. and other countries.
STEP 1 - Get it assembled
Make sure your equipment is assembled properly, batteries are installed, and
the monitor with Bluetooth®is ON.
STEP 2 - Get the app
Download the ShareVgo Fitness app from Google Play or the App StoreTM on
a compatible phone or tablet.
STEP 3 - Set up
Find QR code on the equipment you purchased. Follow the on-screen steps to
register your equipment and sign-up an account.
STEP 4 - Congratulations!
You are all set! Let’s start exercise and enjoy healthier life.
ShareVgo Fitness App
M1S1 ShareVgo Smart Home Rowing Machine
14
Item Dimensions: 80 in x 18 ¾ in x 30 in (203 cm x 48 cm x 76 cm)
Folding Dimensions: 39 in x 18 ¾ in x 50 in (99 cm x 48 cm x 127 cm)
Item Weight: 55 lbs (25 kg)
Inspect all parts and make sure all nuts, bolts, and screws are completely
tightened before each use. To clean, wipe this equipment with a damp cloth.
DO NOT use abrasive cleaners or solvents.
Store your equipment at a stable position, in clean and dry environment away
from children.
Maintenance and Storage
80 in
18 ¾ in
30 in
18 ¾ in
39 in
50 in
M1S1 ShareVgo Smart Home Rowing Machine
15
Product Warranty
90-day Limited Warranty
ShareVgo, LLC. warrants that this product will be free from defects in materials and
workmanship for a period of 90 days from date of purchase when purchase of the product
is from an authorized retailer and is used for the purpose intended, under the conditions
that it has been installed and operated in according to ShareVgo’s Owner’s Manual.
ShareVgo’s obligation under this warranty is limited to replacing free of charge, any parts
which may prove to be defective under normal household and personal use. This warranty
does not include any damage cause by improper operation, misuse, or commercial
application. This warranty applies only to the original purchaser and is not transferable.
Proof of purchase is required.
YOU EXPRESSLY UNDERSTAND AND AGREE THAT, TO THE MAXIMUM EXTENT PERMITTED
BY APPLICABLE LAW, SHAREVGO SHALL NOT BE LIABLE TO YOU UNDER ANY THEORY OF
LIABILITY (WHETHER CONTRACT, TORT (INCLUDING NEGLIGENCE), BREACH OR FAILURE
OF ANY WARRANTY OR OTHERWISE) FOR ANY INDIRECT, INCIDENTAL, SPECIAL,
CONSEQUENTIAL OR EXEMPLARY DAMAGES THAT MAY BE INCURRED BY YOU IN
CONNECTION WITH YOUR ShareVgo Smart Home Rowing Machine OR THESE TERMS,
INCLUDING ANY LOSS OF DATA, WHETHER OR NOT SHAREVGO OR ITS
REPRESENTATIVES HAVE BEEN ADVISED OF OR SHOULD HAVE BEEN AWARE OF THE
POSSIBILITY OF ANY SUCH LOSSES ARISING. YOU EXPRESSLY UNDERSTAND AND AGREE
THAT, TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE SHAREVGO’S
TOTAL LIABILITY IN CONNECTION WITH YOUR SMART EXERCISE EQUIPMENT OR THIS
LIMITED WARRANTY WILL NOT EXCEED THE AMOUNT YOU ACTUALLY PAID SHAREVGO
FOR YOUR EQUIPMENT
Some states, provinces or territories do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights that vary from
jurisdiction to jurisdiction.
Customer Service
To request product service and order replacement parts, please have the following
1. Your name
2. Receipt of purchase
3. Model number
4. Description of part
5. Part number
© Copyrighted 2020 ShareVgo, LLC
Table of contents
