SHARP SERVICE MANUAL
ELECTRIC JAR POT
MODELS KP-19S
KP-30S/ST
KP-36S
Intheinterestsofuser-safety (Requiredbysafetyregulations
in some countries) the set should be restored to its original
condition and onlyparts identical to those specified should
be used.
TABLE OF CONTENTS
NAME OF PARTS AND SPECIFICATIONS ................................................................................
CAUTIONS FOR USE .................................................................................................................
CLEANING AND CARE ..............................................................................................................
WIRING DIAGRAM AND CIRCIUT DIAGRAM ..........................................................................
COMPONENTS REPLACEMENT PROCEDURE .......................................................................
INSPECTION AFTER ASSEMBLING ..........................................................................................
TROUBLESHOOTING GUIDE ....................................................................................................

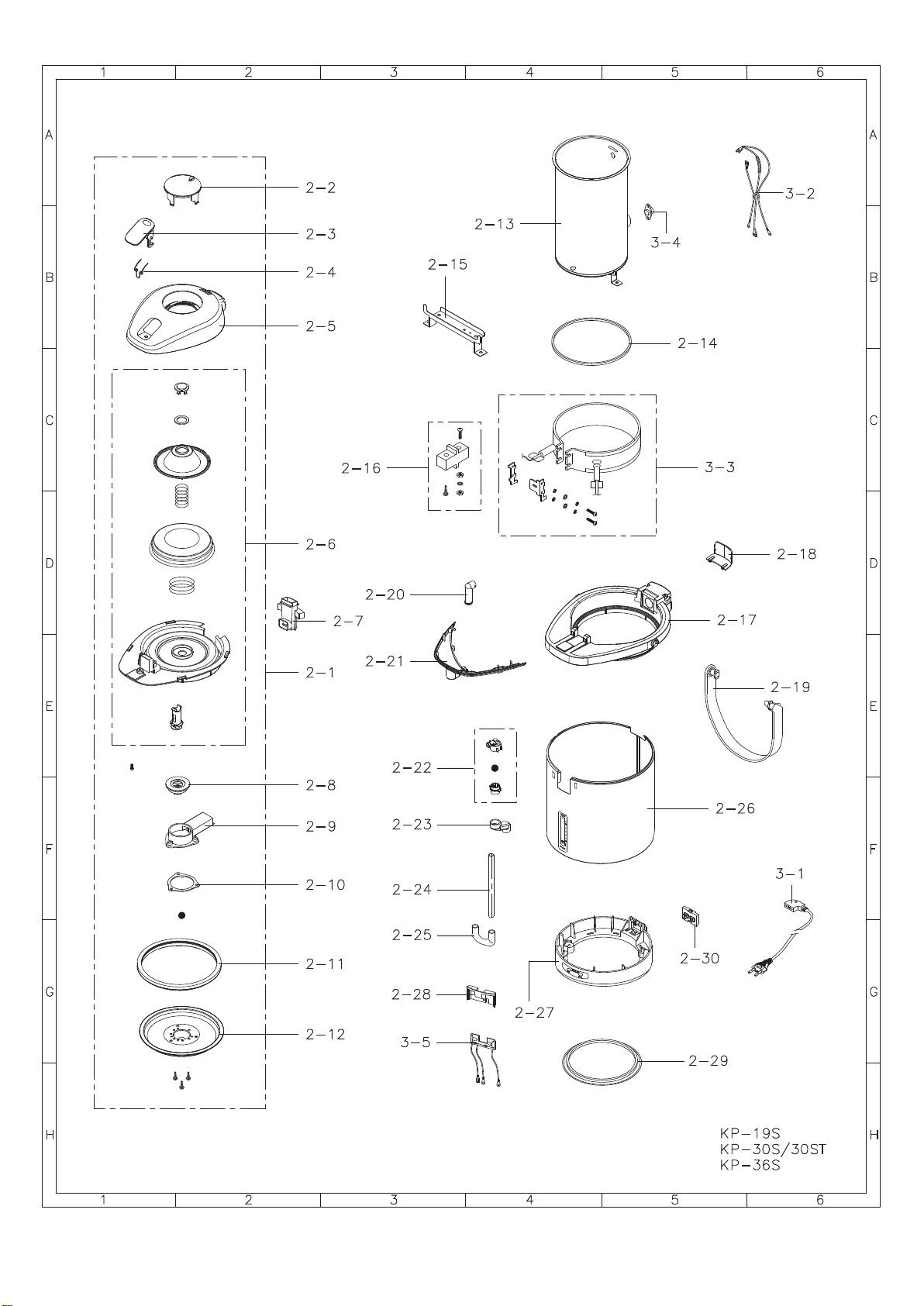

SERVICE PARTS LIST .................................................................................................................
Page
2
3-4
4
5
6-10
11
12-13
14-20
SHARP CORPORATION

2
NAME OF PARTS
SPECIFICATIONS
Outer lid
Inner lid
Delivery base cover
Upper ring
Water level indicator
Refill level
Inner pot
Handle
Swivel base
Plug plate
“BOIL’’ indicator lamp
“WARM’’ indicator lamp
Body
Bottom cover
Model
Power consumption ( W )
Rated voltage ( V )
Capacity (max. water volume) ( l )
Pouring system
Outside dimensions (W x D x H) (mm.)
Weight (kg)
KP-19S KP-30S/ST KP-36S
610 670
220
1.8 2.9 3.6
Manual air pressure operation
201 x 247 x 275 201 x 247 x 357 201 x 247 x 410
1.5 1.6 1.9
Push button for
pouring water
Pour/Stop switch
Steam outlet
Connector
(Connected to body)
Power cord ass’y
Plug
Inner lid packing
Outer lid cover

1. For power supply use the proper socket.
1.1 Do not connect too many loads to one outlet.
1.2 If any of the power supply cord, plug and connector is damaged or feel abnormally hot. Immediately
call the serviceperson to repair it. Otherwise, this will cause an electric shock or fire.
2. Do not immerse the unit in water or splash it with water.
This will result in malfunctioning or electric shock.
3. Do not operate the unit without water in the pot.
This will cause malfunctioning or discolouring of the inner pot.
4. Close lid firmly.
Otherwise hot water outflow so much when tumbling.
5. Do not put milk, liquor, tea, ice cubes and etc. in the pot.
This will result in malfunctioning or electric shock.
6. The power cord ass’y (supplied) is only for the product. Do not use it for other apparatus or apply
the other type of power cord ass’y to this product.
7. When put water into the pot :
7.1 Be sure to keep the water level between the “Refill” level and “Full” level.
7.2 If water is put above the “Full” level, the hot water may be overflow from the spout during boiling.
7.3 Do not put water into the pot directly from the tap, because flooded water may intrude into the
mechanism and cause an electric shock and malfunctioning.
8. Location
8.1 Do not use or place the unit on an unstable, wet floor or adjacent to other heat generating apparatus,
as this will cause the unit to fall down, deform itself or malfunction.
8.2 Keep the pot away from child not to cause an accidental scald or injury.
9. When plugging the power cord ass’y :
Remove iron chip and dust from the connector plug and inner terminal.
10. When boiling and warming water :
10.1 In the beginning of operation, the unit may generate plastic smell or oily smell of the heater, but this
will hardly occur as the usage lasts.
10.2 Sounds are emitted during the boiling and warming. But this is quite normal.
10.3 Keep the power cord ass’y plugged during the warming, otherwise the water temperature goes
down gradually.
10.4 Sometimes exchange the water in the pot not to degrade water quality.
10.5 Disinfectant contained in tap water or some water may cause a smell when it is heated.
10.6 Pressing the push button with undue force may cause the hot water to scatter so as to result in scald
or injury.
10.7 If the water level in the pot go down below the “Refill” level during operation, be sure to add water.
Otherwise the unit may be damaged.
10.8 The inner lid becomes heated during operation; use a dish cloth or the like when removing it.
10.9 Do not carry the pot at the condition of inclining.
CAUTIONS FOR USE
3

4
11. After use
11.1 Pull out the plug from a wall outlet and detach the connector from the unit.
11.2 Detachthelid,anddisposehotwaterremained in the pot : if thehotwaterisleft for a long time, this will
cause discolouring and corrosion of the inner pot. Take care not to dispose hot water directly from the
spout. Splashed hot water from the spout may course scald.
12. Water discharge amount
This electrical thermo pot employs manual air-pressure system, in which the push button is pressed to
inject the compressed air in the bellows into the closed vessel, so as to allow the hot water to be discharged
out of the pot. Therefore, if the water temperature in the pot is high, the amount of water discharge is
increased because the air pressure is increased due to air expansion and steam generated in the pot;
reversely, the amount of the water discharge is decreased when the water temperature in the pot is low.
CLEANING AND CARE
CAUTION : DO NOT IMMERSE CORD PLUG OR BODY IN WATER OR OTHER LIQUID. BEFORE CLEANING,
BE SURE TO DISCONNECT THE PLUG, POUR OUT THE REMAINED WATER AND COOLDOWN
THE BODY. DO NOT USE POLISHING POWDER, HARD BRUSH, THINNERALCOHOL OR OTHER
SOLVENT : OTHERWISE THE SURFACE MAY BE DAMAGED OR DISCOLOURED.
3. When the unit is not used for long periods of time :
Rinse the inner pot with water, drain off by placing the body upside down.
Then wipe off moisture in the inner pot well.
1. Cleaning
1.1 Body and Outer lid ass’y
Soak a soft cloth in water, squeeze properly and wipe carefully.
1.2 Inner pot
Soaka sponge with water, then rubtheinsideof the inner pot carefully.Rinseand drain sufficiently
with water, then wipe off moisture in the inner pot. Do not splash water on parts other than the
inside of inner pot.
2. Against discoloring (into milk white, black, rain bow color, etc.)
It is adhesion of the impurities contained in the water. The following procedures are used to make them
unnoticeable.
2.1 Fill the vessel with water mixed with 50 g Citric Acid or Lemon Juice up to the “Full” level and let it boil.
2.2 Keep warm for about 1 hour, then pour out the lemon water as usual.
2.3 Rinse thoroughly with water until the lemon smell is removed.
However the thermal discoloring due to heating without water can not be restored.
4. Rusty Spots
Rusty Spots result from oxidization of iron which is contained in the water.
Scrub them off with a nylon cleaner or such (except “Polyflon” Scrub them off with a sponge).

5

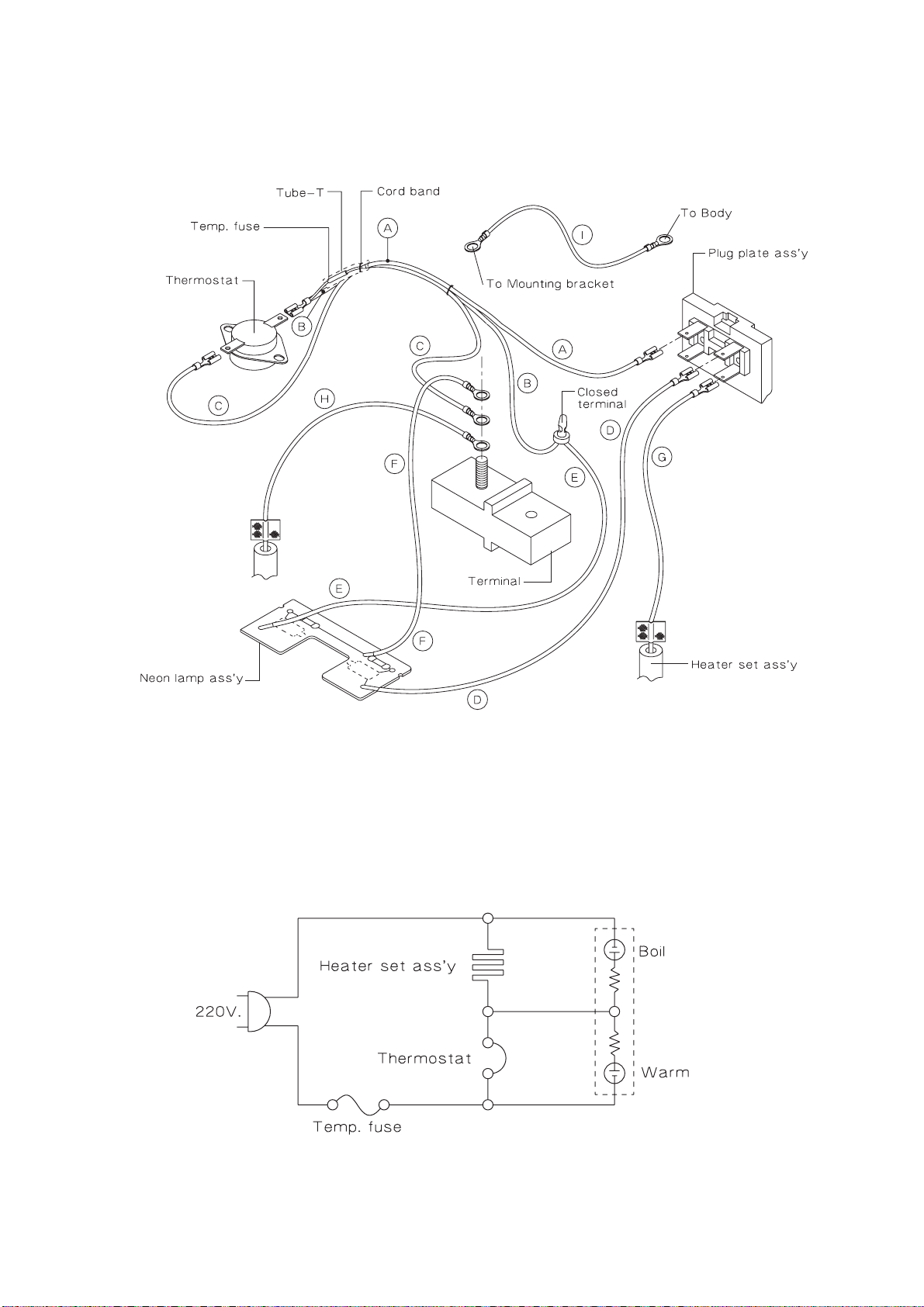

CIRCUIT DIAGRAM
WIRING DIAGRAM

6
COMPONENTS REPLACEMENT PROCEDURE
In disassembling or assembling the parts other than the lid assembly, the work can be done
easily when the lid assembly and body assembly are left connected with each other.
INNER LID PACKING REPLACEMENT
The inner lid packing is non-durable parts. When it is difficult to pour water, please change the inner lid
packing. Fig. 1 and Fig. 2
How to remove
Pull the inner lid packing off from the inner lid.
Fig. 1
How to attach
Remove the inner lid packing as directed in the following
illustration.
Be sure that the inner lid packing can cover tightly into the
inner lid brim.
Fig. 2
Inner lid
Inner lid packing
Correct Incorrect

7
Removal of lid
1. Push the latch knob and open the
lid at approximate 65.
2. Shift the lid forward and lift it up, then
it can be detached.
Fig. 3
Approx. 65
Fig. 4 Fig. 5
DISASSEMBLE OF OUTER LID ASSEMBLY
1. Detach the lid assembly from the body. (Fig. 3)
2. Turn the lid assembly upside down and remove the screw holding the outer lid cover.
3. Detach inner lid assembly by remove 3 screws holding to outer lid cover.
4. Now inner lid assembly, ball valve, steam tube packing are free.
5. Pull steam outlet tube out of outer lid cover.
6. Detach steam cap packing-B by pull out of bellow cap-B and outer lid cover.
7. Detach the outer lid together with the outer lid cover assembly by remove the screw and unfastening the
4 claws at the outer lid.
8. Now outer lid cover are free.
Note : Push button and outer lid can not disassembly.
For replacement of the inner lid packing, see the instruction on “INNER LID PACKING
REPLACEMENT”.
Outer lid
Bellow cap-A
Steam tube-B
Bellow cap packing-B
Steam outlet tube
Inner lid
Latch knob
Inner lid packing
Ball valve
Outer lid cover
Latch spring
Push button
Steam tube packing
Bellow cap-B
Screw
Screw
Bellow cap packing-A
Bellow cap spring
Bellow cap-B
Correct
Bellow cap packing-B
Outer lid cover
BELLOW CAP PACKING-B REPLACEMENT

8
Fig. 6
Fig. 7
REMOVE OF BOTTOM COVER
1. Upside down the unit and pry the rotating base by inserting a putty knife to remove the rotating base.
2. Remove 2 screws holding bottom cover to mounting bracket at the bottom of inner pot.
3. Disconnect 3 lead wires from plug plate ass’y.
4. Detach the lamp insulator cover together with the neon lamp assembly out of of the bottom cover.
5. Push the claws and remove the plug plate.
6. Now the bottom cover is free.
Rotating base
Temp. fuse lead wire blue
Plug plate
Heater set
lead wire
Bottom cover
Neon lamp
lead wire
Lamp insulator cover
Screw
Bottom cover
Bottom cover
REMOVE OF PLUG PLATE ASSEMBLY
Fig. 8
1. Remove the bottom cover in accordance with “REMOVE OF BOTTOM COVER”.
2. Push the claws and remove the plug plate out of the bottom cover.
3. Now the plug plate ass’y is free.
REMOVE OF NEON LAMP ASS’Y
1. Remove the bottom cover in accordance with “REMOVE OF BOTTOM COVER”.
2. Detach the lamp insulator cover to together
with the neon lamp assembly out of the
bottom cover.
3. Pull the lamp assembly out from lamp
insulator cover.
4. Remove 3 lead wires to neon lamp ass’y.
5. Now the neon lamp ass’y is free.
Neon lamp ass’y
Lamp insulator cover
Bottom cover
Lead wire

9
REMOVE OF BODY
REMOVE OF TEMPERATURE FUSE ASS’Y
1. Remove the body in accordance with “REMOVE OF BODY”.
2. Disconnect 3 lead wire of temp. fuse ass’y .
3. Disconnect the 2 terminal of thermostat.
4. Now temp. fuse ass’y is free.
1. Remove the bottom cover in accordance with “REMOVE OF BOTTOM COVER”.
2. Remove the screw holding earth wire to body.
3. Pull out the body and delivery base cover by toward its bottom.
4. Detach the body from the delivery base cover.
5. Now body is free.
Fig. 9
Fig. 10
Insert by
approx. 10 mm. Connector
lower
Screen
Glass pipe
Connector upper
The screen must be faced to arrow mark when glass pipe is inserted to connector lower.
Glass pipe
Connector lower
Screen
REMOVE OF GLASS PIPE
1. Remove the body in accordance with “REMOVE OF BODY”.
2. Disconnect the connector lower from the pipe of inner pot.
3. Disconnect the glass pipe from the connect upper.
4. Remove the connector lower from the glass pipe.
5. Now the glass pipe is free.
Note : Re-install glass pipe in accordance with Fig. 9.
Temp. fuse lead wire yellow
Terminal
Thermostat
Temp. fuse ass’y
Thermostat lead wire blue

10
REMOVE OF UPPER RING ASSEMBLY AND HANDLE
1. Detach the lid ass’y and remove the body in accordance with “REMOVE OF BODY”.
2. Remove the thermostat, mounting bracket and heater set assembly in accordance with “REMOVE OF
THERMOSTAT” and “REMOVE OF HEATER SETASS’Y”.
3. Remove the glass pipe in accordance with “REMOVE OF GLASS PIPE” and remove the ball holder ass’y.
4. Remove the upper ring assembly by pulling it downwards.
5. Remove the handle.
Note 1 : When setting the handle, position it correctly. If reversely set, the handle will come off while using.
Note 2 : For alignment of the inner pot and upper ring, have the corner of hitch part of the upper ring engaged
with welded mark of the inner pot.
Welded mark
of the upper ring
Fig. 13 Fig. 14
Handle
Upper ring Upper ring
Ball holder ass’y

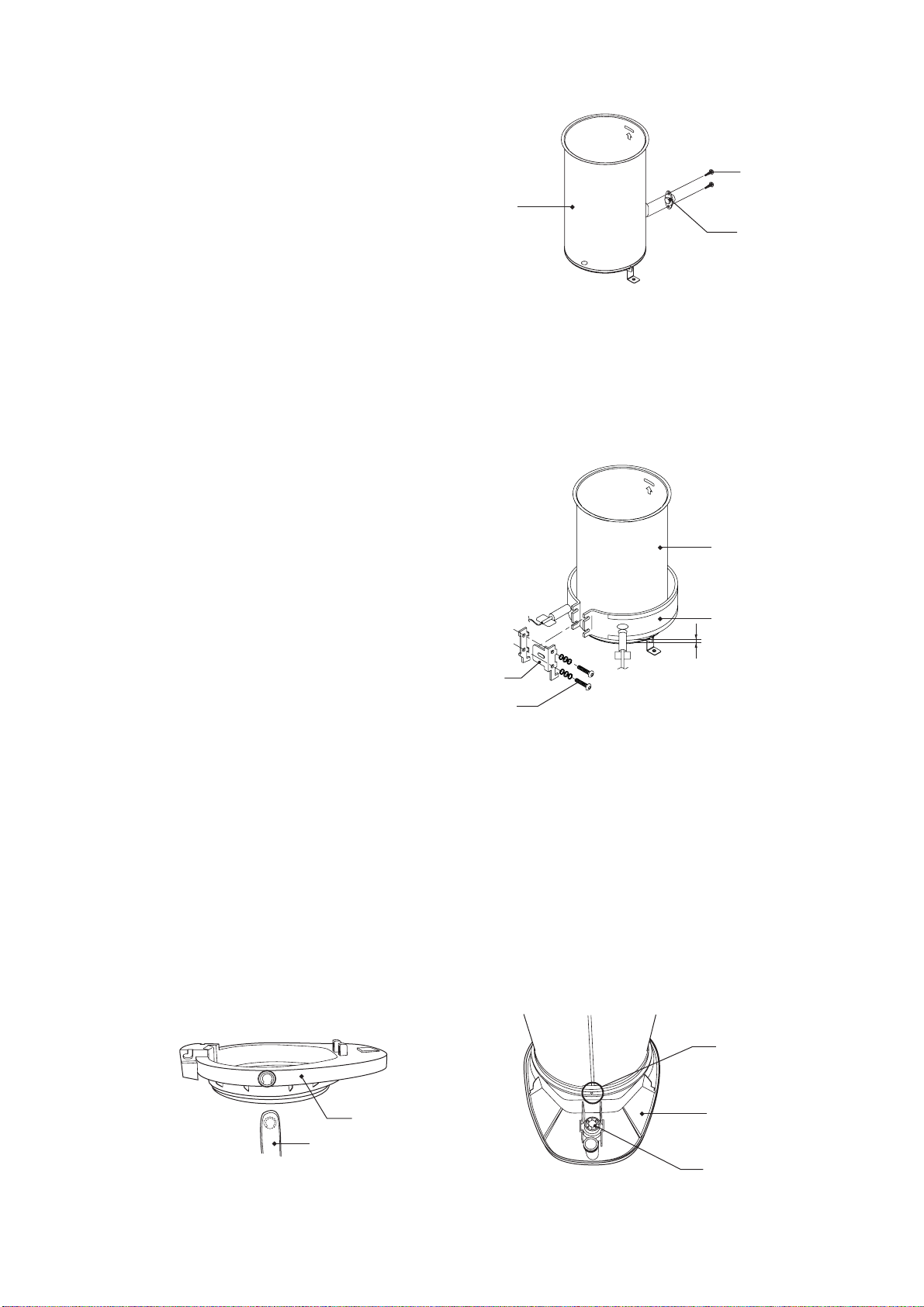

REMOVE OF HEATER SET ASS’Y
1. Remove the body in accordance with “REMOVE OF BODY”.
2. Remove the nut at terminal ass’y to release lead wire from the heater set ass’y.
3. Detach the mounting bracket by remove 2 screws holding the mounting bracket.
4. Disconnect the connector lower from the pipe of inner pot.
5. Unfasten 2 screws at heater set ass’y and then pull
heater set ass’y out from inner pot.
6. Now heater set ass’y is free.
Fig. 11
Fig. 12
Approx. 7-8 mm.
1. Remove the body in accordance with “REMOVE OF BODY”.
2. Disconnect 2 terminals from the thermostat.
3. Remove 2 screws holding the thermostat.
4. Now the thermostat is free.
REMOVE OF THERMOSTAT
Inner pot
Screw
Thermostat
Inner pot
Heater set ass’y
Screw
Heater holder-A

11
INSPECTION AFTER ASSEMBLING
On completion of assembling, the following should be inspected.
1. Verification of operations
1.1 Is there any part left uninstalled (magnet plate, in particular) ?
1.2 Is there any wrong wiring ?
1.3 Is the body engaged securely with the upper ring and bottom cover ?
1.4 Are screws tightened firmly ?
2. Measurement of insulation resistance
2.1 Measure the insulation resistance by a 500V d.c. insulation resistance meter and be sure that
resistance in at least 1 MΩ. (Check it before and just after the performance test.)
2.2 Be sure that the unit can stand against a 1000V a.c. high voltage for one minute. (Check it just
after the performance test.)
3. Boiling and warming capacity
3.1 Fill the pot full of water (up to the full-water level) and boil it. Be sure that hot water temperature
is more than 90oC.
3.2 After boiling, the “WARM” lamp should light up instead of the “BOIL” lamp.
3.3 Approximate one hour after boiling, be sure that the hot water temperature still stays at 80oC or more.
4. Water discharge capacity
After checking the boiling-warming capacity, keep the hot water quantity at its discharge level and
make sure that the hot water is discharged by 150 ml in average when the push button is pressed.
(Water discharge in average = ________________________________ )
If the hot water quantity is insufficient, recheck that the bellow packing-B, inner lid packing, etc.
Due to the troubleshooting guide.
Total water discharge
Number times of pressing the button

TROUBLESHOOTING GUIDE
12
Poor installation of inner lid. Set correctly.
Defective packing. Replace.
Loosened inner lid packing. Secure correctly.
Defective inner lid packing. Replace.
Incorrect attachment of inner lid Set correctly.
packing.
Bellows assembly. Air leak from the bellows. Replace.
Dislocation of bellows cap Set correctly.
packing-B
Problem Check point Possible cause Correction action
No power is supplied. Plug of Power cord Not inserted into outlet. Insert it into outlet.
(“BOIL” indicator lamp dose ass’y.
not light up.) Connector of Power cord Disconnected from inlet Connect with inlet.
ass’y . terminal.
Power cord ass’y. Disconnection. Replace.
Blown out Replace and explain
(by repeated heating without the users not to heat
water). the pot without water.
Blown out Replace.
(by deformation of heater).
Disconnection. Replace.
Internal wiring. Erroneous wiring. Correct wiring.
Terminal screw. Loosened or missing. Retighten.
(Inlet terminal)
Thermostat. Poor operation Replace.
(no conduction).
“BOIL” indicator lamp lights up Heater set assembly. Disconnection. Replace.
but water is not heated.
Boiling continues. Thermostat. Poor operation. Replace.
Internal wiring. Erroneous wiring. Correct wiring.
Outer lid ass’y. Not secured on the body. Secured on the body.
Water temperature is kept Heater set assembly. Disconnection in heating Replace.
low. circuit.
Internal wiring. Erroneous wiring. Correct wiring.
Thermostat. Poor operation. Replace.
Hot water is not or hardly Water temperature. Water is tepid or cold. Explain users that pouring
poured from spout. amount is very small for
tepid or cold water.
Push button. Pushing with undue force. Instruct the users to push
with a proper force.
Pushing the outer edge of Instruct the users to push
the button. at the center of the button.
Inner lid. No inner lid. Attach inner lid.
Temperature fuse.
Indication lamp
assembly.

13
During boiling, steam escapes Steam route. Steam pipe dislocated. Set correctly.
from around the push button Steam tube packing. Deteriorated perforated. Replace.
or dew collects inside the Bellow cap packing-B.
outer lid.
Hot water leaks. Using place. Use at an inclined place. Instruct the users to use the
pot on a level place.
Water level. Water is filled more than full Instruct the users not to feed
water level. water more than full
water level.
Inner pot. Perforated. Replace.
Upper and lower Defective rubber joints. Replace.
connectors. Disconnected joints. Set correctly.
Inner pot packing. Deteriorated. Replace.
Steam discharge route. Stuffed with foreign matters. Remove foreign matters.
Stained inner pot. Inner pot. Spot stain. Caused by adhesion of iron
content in water. Explain the
users that such adhesion
does not affect the corrosion
resistance of stainless steel.
Discolouring. Caused by water quality and
this has no effect on the
corrosion resistance of
stainless steel.
Problem Check point Possible cause Correction action

14
KP-19S
SERVICE PARTS LIST
REF. NO PARTS CODE DESCRIPTION Q’TY PRICE
(FEC)
PRINTING & PACKAGING MATERIAL
1-1 3C6092 * INSTRUCTION BOOK 1
1-2 3D6021 SET PACKING CASE 1
1-3 3D6051 CARTON BOX 1
1-4 3C6041 BOTTOM PAD 1
1-5 3C606B UPPER PAD-B 1
1-6 3C606F UPPER PAD-F 1
MECHANICAL PARTS
2-1 3C102SET OUTER LID SET {KP-19S..FG, PL} 1
3C102MNSET OUTER LID SET {KP-19S..SK} 1
2-2 3C118 PUSH BUTTON {KP-19S..FG, PL} 1
3C118MN PUSH BUTTON {KP-19S..SK} 1
2-3 3C121 LATCH KNOB {KP-19S..FG, PL} 1
3C121MN LATCH KNOB {KP-19S..SK} 1
2-4 3C119 LATCH SPRING 1
2-5 3C102 OUTER LID {KP-19S..FG, PL} 1
3C102MN OUTER LID {KP-19S..SK} 1
2-6 3C1071 ASY BELLOW AS’Y {SERVICE SET} 1
2-7 3X316 STEAM TUBE-B 1
2-8 3C108B BELLOW CAP PACKING-B 1
2-9 3X617 STEAM OUTLET TUBE 1
2-10 3C619 STEAM TUBE PACKING 1
2-11 3X509 INNER LID PACKING 1
2-12 3C607 INNER LID 1
2-13 3D205ASY INNER POT AS’Y 1
2-14 3C123 INNER POT PACKING 1
2-15 3C2155 MOUNTING BRACKET 1
2-16 3C218ASY TERMINALAS’Y 1
2-17 3C206 UPPER RING {KP-19S..FG, PL} 1
3C206MN UPPER RING {KP-19S..SK} 1
2-18 3C223 UPPER RING COVER {KP-19S..FG, PL} 1
3C223MN UPPER RING COVER {KP-19S..SK} 1
2-19 3C203 HANDLE {KP-19S..FG, PL} 1
3C203MN HANDLE {KP-19S..SK} 1
2-20 3C300 DELIVERY PIPE 1
2-21 3C312 DELIVERY BASE COVER {KP-19S..FG, PL} 1
3C312MN DELIVERY BASE COVER {KP-19S..SK} 1

15
REF. NO PARTS CODE DESCRIPTION Q’TY PRICE
(FEC)
MECHANICAL PARTS
2-22 3C216ASY BALL HOLDER AS’Y 1
2-23 3C124 CONNECTOR UPPER 1
2-24 3D213 GLASS PIPE 1
2-25 3C4061 CONNECTOR LOWER 1
2-26 3D1201FGASY ** BODYAS’Y {FG} 1
3D1201PLASY ** BODY AS’Y {PL} 1
3D1201SKASY ** BODYAS’Y {SK} 1
2-27 3D402ASY BOTTOM COVER AS’Y {KP-19S..FG, PL} 1
3D402JASY BOTTOM COVER AS’Y {KP-19S..SK} 1
2-28 3C307 LAMP INSULATOR COVER 1
2-29 3C415 ROTATING BASE {KP-19S..FG, PL} 1
3C415J ROTATING BASE {KP-19S..SK} 1
2-30 3C4104ASY PLUG PLATE AS’Y 1
ELECTRIC PARTS
3-1 3C4123ASY POWER CORD AS’Y 1
3-2 3C2933SET TEMPERATURE FUSE SET 1
3-3 3D2313SET HEATER SET {SERVICE SET} 1
3-4 3B2121 THERMOSTAT 91oC1
3-5 3C4931ASY NEON LAMPAS’Y 1

16
KP-30S / 30ST
SERVICE PARTS LIST
REF. NO PARTS CODE DESCRIPTION Q’TY PRICE
(FEC)
PRINTING & PACKAGING MATERIAL
1-1 3C6092 * INSTRUCTION BOOK 1
1-2 3C6021 SET PACKING CASE {KP-30S} 1
3C6021T SET PACKING CASE {KP-30ST} 1
1-3 3C6051 CARTON BOX {KP-30S} 1
3C6051T CARTON BOX {KP-30ST} 1
1-4 3C6041 BOTTOM PAD 1
1-5 3C606B UPPER PAD-B 1
1-6 3C606F UPPER PAD-F 1
MECHANICAL PARTS
2-1 3C102SET OUTER LID SET {KP-30S / 30ST..FG, PL} 1
3C102MNSET OUTER LID SET {KP-30S..SK, WL} 1
2-2 3C118 PUSH BUTTON {KP-30S / 30ST..FG, PL} 1
3C118MN PUSH BUTTON {KP-30S..SK, WL} 1
2-3 3C121 LATCH KNOB {KP-30S / 30ST..FG, PL} 1
3C121MN LATCH KNOB {KP-30S..SK, WL} 1
2-4 3C119 LATCH SPRING 1
2-5 3C102 OUTER LID {KP-30S / 30ST..FG, PL} 1
3C102MN OUTER LID {KP-30S..SK, WL} 1
2-6 3C1071 ASY BELLOW AS’Y {SERVICE SET} 1
2-7 3X316 STEAM TUBE-B 1
2-8 3C108B BELLOW CAP PACKING-B 1
2-9 3X617 STEAM OUTLET TUBE 1
2-10 3C619 STEAM TUBE PACKING 1
2-11 3X509 INNER LID PACKING 1
2-12 3C607 INNER LID 1
2-13 3C122ASY INNER POT AS’Y {KP-30S} 1
3C122TASY INNER POT COATING AS’Y {KP-30ST} 1
2-14 3C123 INNER POT PACKING 1
2-15 3C2155 MOUNTING BRACKET 1
2-16 3C218ASY TERMINALAS’Y 1
2-17 3C206 UPPER RING {KP-30S / 30ST..FG, PL} 1
3C206MN UPPER RING {KP-30S..SK, WL} 1
2-18 3C223 UPPER RING COVER {KP-30S / 30ST..FG, PL} 1
3C223MN UPPER RING COVER {KP-30S..SK, WL} 1
2-19 3C203 HANDLE {KP-30S / 30ST..FG, PL} 1
3C203MN HANDLE {KP-30S..SK, WL} 1

17
REF. NO PARTS CODE DESCRIPTION Q’TY PRICE
(FEC)
MECHANICAL PARTS
2-20 3C300 DELIVERY PIPE 1
2-21 3C312 DELIVERY BASE COVER {KP-30S / 30ST..FG, PL} 1
3C312MN DELIVERY BASE COVER {KP-30S..SK, WL} 1
2-22 3C216ASY BALL HOLDER AS’Y 1
2-23 3C124 CONNECTOR UPPER 1
2-24 3C125 GLASS PIPE 1
2-25 3C4061 CONNECTOR LOWER 1
2-26 3C2101FGASY ** BODYAS’Y {KP-30S..FG} 1
3C2101PLASY ** BODY AS’Y {KP-30S..PL} 1
3C2101SKASY ** BODYAS’Y {KP-30S..SK} 1
3C2101WLASY ** BODYAS’Y {KP-30S..WL} 1
3C2102FGASY ** BODY AS’Y {KP-30ST..FG} 1
3C2102PLASY ** BODY AS’Y {KP-30ST..PL} 1
2-27 3C402ASY BOTTOM COVER AS’Y {KP-30S..FG, PL} 1
3C402JASY BOTTOM COVER AS’Y {KP-30S..SK, WL} 1
3C402TASY BOTTOM COVER AS’Y {KP-30ST..FG, PL} 1
2-28 3C307 LAMP INSULATOR COVER 1
2-29 3C415 ROTATING BASE {KP-30S / 30ST..FG, PL} 1
3C415J ROTATING BASE {KP-30S..SK, WL} 1
2-30 3C4104ASY PLUG PLATE AS’Y 1
ELECTRIC PARTS
3-1 3C4123ASY POWER CORD AS’Y 1
3-2 3C2933SET TEMPERATURE FUSE SET 1
3-3 3C2095SET HEATER SET {SERVICE SET} 1
3-4 3B2121 THERMOSTAT 91oC1
3-5 3C4931ASY NEON LAMPAS’Y 1

18
KP-36S / 36ST
SERVICE PARTS LIST
REF. NO PARTS CODE DESCRIPTION Q’TY PRICE
(FEC)
PRINTING & PACKAGING MATERIAL
1-1 3C6092 * INSTRUCTION BOOK 1
1-2 3E6021 SET PACKING CASE 1
1-3 3E6043 CARTON BOX 1
1-4 3C6041 BOTTOM PAD 1
1-5 3C606B UPPER PAD-B 1
1-6 3C606F UPPER PAD-F 1
MECHANICAL PARTS
2-1 3C102SET OUTER LID SET 1
2-2 3C118 PUSH BUTTON 1
2-3 3C121 LATCH KNOB 1
2-4 3C119 LATCH SPRING 1
2-5 3C102 OUTER LID 1
2-6 3C1071 ASY BELLOW AS’Y {SERVICE SET} 1
2-7 3X316 STEAM TUBE-B 1
2-8 3C108B BELLOW CAP PACKING-B 1
2-9 3X617 STEAM OUTLET TUBE 1
2-10 3C619 STEAM TUBE PACKING 1
2-11 3X509 INNER LID PACKING 1
2-12 3C607 INNER LID 1
2-13 3E205ASY INNER POTAS’Y 1
2-14 3C123 INNER POT PACKING 1
2-15 3C2155 MOUNTING BRACKET 1
2-16 3C218ASY TERMINALAS’Y 1
2-17 3C206 UPPER RING 1
2-18 3C223 UPPER RING COVER 1
2-19 3C203 HANDLE 1
2-20 3C300 DELIVERY PIPE 1
2-21 3C312 DELIVERY BASE COVER 1
2-22 3C216ASY BALL HOLDER AS’Y 1
2-23 3C124 CONNECTOR UPPER 1
2-24 3E209 GLASS PIPE 1
2-25 3C4061 CONNECTOR LOWER 1
2-26 3E5071PLASY ** BODY AS’Y {KP-36S .. PL} 1
2-27 3E402ASY BOTTOM COVER AS’Y 1
2-28 3C307 LAMP INSULATOR COVER 1
2-29 3C415 ROTATING BASE 1
2-30 3C4104ASY PLUG PLATE AS’Y 1

19
REF. NO PARTS CODE DESCRIPTION Q’TY PRICE
(FEC)
ELECTRIC PARTS
3-1 3C4123ASY POWER CORD AS’Y 1
3-2 3C2933SET TEMPERATURE FUSE SET 1
3-3 3C2095SET HEATER SET {SERVICE SET} 1
3-4 3B2121 THERMOSTAT 91oC1
3-5 3C4931ASY NEON LAMPAS’Y 1

20
