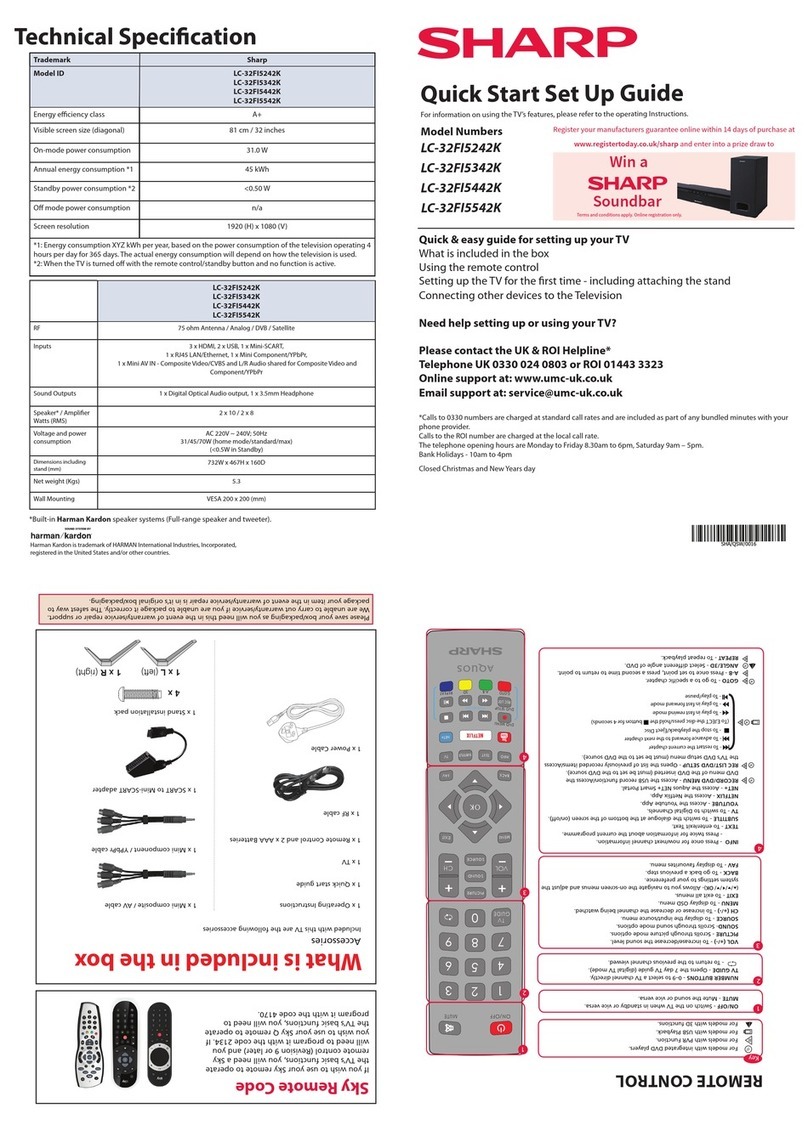

Sharp 32DC1K User manual

Quick & easy guide for setting up your TV
What is included in the box
Using the remote control
Setting up the TV for the rst time - including attaching the stand
Connecting other devices to the Television
Need help setting up or using your TV?
Please contact the UK & ROI Helpline*
Telephone UK 0330 024 0803 or ROI 01443 3323
Online support at: www.umc-uk.co.uk
Email support at: ser[email protected].uk
*Calls to 0330 numbers are charged at standard call rates and are included as
part of any bundled minutes with your phone provider.
Calls to the ROI number are charged at the local call rate.
The telephone opening hours are:
Monday to Friday: 8.30am – 6pm
Saturday: 9am – 5pm
Bank Holidays: 10am – 4pm
Closed Christmas and New Years day.
Model Numbers
32DC1K
32DC2K
32DC3K
32DC4K
32DC5K
32DC6K
SHA/QSW/0221
SHA/QSW/0221
Quick Start Set Up Guide
For information on using the TV’s features, please refer to the Operating Instructions.
Win a
Soundbar
Register your manufacturers guarantee
online within 14 days of purchase at
www.registertoday.co.uk/sharp
and enter into a prize draw to
32DC1K
32DC2K
32DC3K
32DC4K
32DC5K
32DC6K
Energy Eciency Class (SDR) F
Power consumption (SDR) 27 W
Screen resolution (pixels) 1366 x 768
Screen diagonal 81 cm / 32 inches
RF 75 ohm Antenna / Analog / DVB
Inputs 3 x HDMI, 2 x USB, 1 x SCART,
1 x RJ45 LAN/Ethernet, 1 x Composite/CVBS Video & Component/YPbPr Input,
1 x L/R Audio input for Composite/CVBS & Component/YPbPr
Sound Outputs 1 x Digital Optical Audio output, 1 x 3.5mm Headphone
Speaker*/ Amplier Watts (RMS) 2 x 10 / 2 x 8
Voltage and power consumption AC 220V ~ 240V; 50Hz
27/40/65W (home mode/standard/max)
(<0.5W in Standby)
Dimensions including stand (mm) 724W x 456H x 159D
Net weight (Kgs) 4.1
Wall Mounting VESA 200 x 100 (mm)
Please save your box/packaging as you will need this in the event of warranty/service repair or support. We
are unable to carry out warranty/service if you are unable to package it correctly. The safest way to package
your item in the event of warranty/service repair is in it’s original box/packaging.
Accessories
Included with this TV are the following accessories
What is included in the box
1 x Quick Start Guide
1 x Safety Leaflet 1 x Remote Control & 2 x AAA Batteries
1 x Stand installation pack
RF Cable
Additional Accessories
If you don’t have the RF cable shown below, then you can purchase one from www.umc-uk.co.uk/cables
If you are intending to connect your TV to an RF socket in order to receive Freeview you will need this
cable.
Freeview Play brings together live TV viewing with ‘‘catch up’’ TV services such as BBC iPlayer, ITV player, More4 and Demand
5. The Freeview Play Explore app features a carousel of genres to select from when searching for programmes, such as
sport, comedy, dramas and soaps, etc. Content is made up from recommendations of the major broadcasters and offers an
alternative means of searching.
Note that to use the full functionality of Freeview Play your set must be connected to the internet.
Sky Remote Code
If you wish to use your Sky remote to operate the TV’s basic
functions, you will need a Sky remote control (Revision 9 or later)
and you will need to program it with the code 2134. If you wish to
use your Sky Q remote to operate the TV’s basic functions, you will
need to program it with the code 4170.
Using the remote control
789
0
123
456
TV
GUIDE
VOL CH
SOURCE
SOUND
ON/OFF
TEXT
SUBTITLE
INFO
TV
BACK
FAV
APPS
GOTO
A-B
ANGLE
REPEAT
REC LIST
PVR/MEDIA
EXIT
MENU
OK
Freeview Play
1
4
2
3
STANDBY - Switch on the TV when in standby or vice versa.
FREEVIEW PLAY - Access the Freeview Play app.
NUMBER BUTTONS - 0–9 to select a TV channel directly.
MUTE - Mute the sound or vice versa.
TV GUIDE - Opens the 7 day TV guide (digital TV mode).
VOL (+/-) - To increase/decrease the sound level.
PICTURE - Scrolls through picture mode options.
SOUND- Scrolls through sound mode options.
SOURCE - To display the input/source menu.
CH (+/-) - To increase or decrease the channel being watched.
MENU - To display OSD menu.
EXIT - To exit all menus.
- Allows you to navigate the on-screen menus and adjust
the system settings to your preference.
BACK - To go back a previous step.
FAV - To display favourites menu.
INFO - Press once for now/next channel information.
- Press twice for information about the current programme.
TEXT - To enter/exit Text.
SUBTITLE - To switch the dialogue at the bottom of the screen (on/off).
TV - To switch to Digital Channels.
YOUTUBE - Access the Youtube App.
NETFLIX - Access the Netflix App.
APPS - Access the APPS menu.
RECORD - Access the USB record function.
REC LIST - Opens the list of previously recorded items.
GOTO - To go to a specific chapter.
A-B - Press once to set point, press a second time to return to point.
ANGLE - Select different angle of DVD.
REPEAT - To repeat playback.
- To restart the current chapter
- To advance forward to the next chapter
- To stop the playback/Eject Disc
(To EJECT the disc press/hold the button for 4 seconds)
- To play in fast rewind mode
- To play in fast forward mode
- To play/pause
Key
3
2
1
For models with integrated DVD players.
For models with PVR Function.
For models with USB Playback.
For models with 3D functions.
4
Online Manual
Microsoft PlayReady™
This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution
of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.
Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property,
including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content
and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage,
content owners may require Microsoft to revoke the device’s ability to consume PlayReady-protected content.
Revocation should not aect unprotected content or content protected by other content access technologies.
Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you
will not be able to access content that requires the upgrade.
To launch the Online Manual, press the [MENU] button and then select Settings>About TV>Help Information>View
Online Manual
Technical Specication
*Built-in Harman Kardon speaker systems (Full-range speaker and tweeter).
Harman Kardon is trademark of
HARMAN International Industries,
Incorporated, registered in the
United States and/or other
countries.
The terms HDMI, HDMI High-
Denition Multimedia Interface,
and the HDMI Logo are trademarks
or registered trademarks of HDMI
Licensing Administrator, Inc.
Manufactured under license
from Dolby Laboratories. Dolby,
DolbyAudio, and the double-D
symbol are trademarks of
Dolby Laboratories Licensing
Corporation.

4 First time installation
Introduction
When the set first turns on, it enters the First Time Installation
mode. This can be restarted by restoring the set to default settings
in the ‘About TV’ Menu.
Languages
Select your preferred on-screen display language. This will change the language
in which the menus and associated information is displayed in. When set up has
been completed, to change this press the [MENU] button and then select Settings >
System Menu > Language
Country Selection
Select the correct flag for the country in which the set will be
used in. This will enable the set to correctly install the functions
applicable in the country of use.
Environment of Use
Home Mode: For normal use, by default it is set to a power saving mode
which reduces the energy used by up to 25% (by reducing the power to
the LED/LCD panel). This can be changed in the picture mode settings.
Network setup
You can connect the TV to your broadband router or wireless network in order
to take advantage of the Smart functions. If you connect the TV to your router
using an Ethernet cable (recommended) this step will be skipped.
Set Up Netflix
If you have a Netflix account, it can be set up on the television
here. Once set up and validated, the First Time Installation
returns to the next step.
Tune in Channels
Choose to install terrestrial channels now or later.
Support Advice
Information regarding support is displayed for a little while.
Tuning continues and a progress bar is shown with the number of
channels found indicated below.
If you are picking up signals from more than one transmitter, you
will be requested to select your primary and secondary regions.
1 2 3
5 6
789
Basic installation steps are shown below. These may vary slightly depending on model.
Default Source
Select the source which you use the most. If Digital TV (Freeview) is chosen,
then at the next step, the set will tune in and default to Digital TV (Freeview).
If one of the other sources is selected, then the set will not tune in at this
stage and default to that input. If it is required to tune the set in later, press
the [MENU] button and then select Settings>Channels
Note: In home mode,
the TV will switch off
automatically after 4
hours in the event that
no buttons are pressed on
the TV or remote control.
(You can change this
by pressing the [MENU]
button and then selecting
Settings>Time>Auto
Standby) 4
Ethernet/LAN* Network connection
Digital Audio Digital Optical Audio Output
HDMI 1 HDMI input
HDMI 2 HDMI input (ARC)
L/R HDMI input (ARC)
Video/YPbPr HD input (YPbPr)
SCART SCART input
RF in RF / TV aerial input
HDMI 3 HDMI input
Earphones Earphone input
Service Input Input is used only by service centres
CI card in Common interface module
USB 2.0 USB port 2.0
Setting up the TV set for the rst time
Fitting the stand
For the stand installation, there is
one type of screw provided as shown
below.
To complete the stand installation you
will require a cross head screw driver.
Place the TV set on a flat and
clean surface with the panel facing
downwards to avoid damage.
1
1 2 3
Used for attaching the stand
to the TV set (g.2)
4 x
TV panel must be facing downwards.
Place the TV set on a flat and clean surface
with the panel facing downwards to avoid
damage.
When the stand feet are installed correctly the
stand feet will be longest at the front of the TV
and shortest at the back with the feet pointing
away from each other.
When the stand/feet are in the correct
position, secure the feet to the underside of
the TV set using 4 screws provided.
Connecting your set
1) Connect the TV to your power socket.
2) If you wish to use the TV to receive Freeview/Saorview channels, connect a RF input
from the TV to your outdoor Digital TV aerial. If you do not wish to receive Freeview/
Saorview, skip this step.
23Powering On the TV
Switch on the television by pressing
the TV control stick located on the
TV set.
TV control stick
Insert the batteries supplied into the remote
control and press the standby button to power
on the TV.
TV Control Stick Remote Control: Installing Batteries
Back/Shortest
Front/Longest
To obtain a copy of your Operating Instructions, please go to: www.umc-uk.co.uk/instruction-manuals/sharp
Connectivity
J
I
H
K
M
* The Ethernet/LAN port is used for Freeview HD services and smart functions.
AH
L
K
BI
M
C
D
E
F
G
J
1 2 (ARC)
SCART
ETHERNET DIGITAL
AUDIO OUT
OPTICAL L R VIDEO/Y Pb Pr
AB
CD
E
F
Audio shared for Video/Composite
and component/ YPbPr
Video Input (green) and HD input
(Ypbpr)
G
Wall Mounting the TV
Image for illustration only.
1. Remove the four screws that are supplied
in the wall mounting holes.
2. The wall mount can now be easily
attached to the mounting holes on
the rear of the TV.
3. Install the wall mounting bracket to the
television as advised by the bracket
manufacturer.
The picture shows the use of spacers, which
are not applicable to all sets/installations.
L
