OVER THE RANGE MICROWAVE OVEN
INSTALLATION INSTRUCTIONS
Please read all instructions thoroughly before installing the Over the Range Microwave Oven/Hood System. Two
people are recommended to install this product.
If a new electrical outlet is required, its installation should be completed by a qualified electrician before the
Microwave Oven/Hood is installed. See 3 ELECTRICAL GROUNDING INSTRUCTIONS on page 2.
1 MOUNTING SPACE
This Microwave Oven/Hood requires a mounting space on a wall
as shown in Figure 1.
For proper installation and servicing, a 2-inch space is necessary
between the top of the range backsplash and the bottom of the
Microwave Oven/Hood system.
2 WALL CONSTRUCTION
This Microwave Oven/Hood should be mounted against and support-
ed by a at vertical wall. The wall must be at for proper installation.
If the wall is not at, use spacers to ll in the gaps.
Wall construction should be a minimum of 2" x 4" wood studding and
3/8" or more thick dry wall or plaster/lath. The mounting surfaces
must be capable of supporting weight of 110 pounds—the oven
and contents—AND the weight of all items which would normally
be stored in the top cabinet above the unit.
The unit should be attached to a minimum of one 2" x 4" wall stud.
To nd the location of the studs, one of the following methods may
be used:
A. Use a stud nder, a magnetic device which locates the nails in
the stud.
B. Use a hammer to tap lightly across the mounting surface to nd
a solid sound. This will indicate stud location.
The center of the stud can be located by probing the wall with a small
nail to nd the edges of the stud and then placing a mark halfway
between the edges. The center of any adjacent studs will normally
be 16" or 24" to either side of this mark.
NOTE: In the event that the unit will be unable to be supported by any
stud, it will be necessary to use special care in the placement of the
toggle bolts and top cabinet screws. See Wall Template for details.
The top cabinet should be tested to ensure it is securely attached to
the wall. Place extra weight up to 110 pounds inside the top cabinet
to test the support.
Backsplash
At least 2"
66" or more
from floor
15.5"
30"
12"
30" or more from
cooking surface
Figure 1
Figure 2
16" or 24" 2"x 4" Wood Studs
3/8" Dry Wall
or Plaster/lath

2
3 ELECTRICAL GROUNDING INSTRUCTIONS
This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be
plugged into a wall receptacle that is properly installed and grounded in accordance with the National Electrical Code and local
codes and ordinances. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape
wire for the electric current.
WARNING - Improper use of the grounding plug can result in a risk of electric shock.
The oven is equipped with a 3-prong grounding plug. DO NOT UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE
GROUNDING PIN FROM THE PLUG.
The Power Supply Cord and plug must be connected to a separate 120 Volt AC,
60 Hz, 15 Amp, or more branch circuit, single grounded receptacle. The recep-
tacle should be located inside the cabinet directly above the Microwave Oven/
Hood mounting location.
NOTE :
1. If you have any questions about the grounding or electrical instructions, consult
a qualied electrician or serviceperson.
2. Neither Sharp nor the dealer can accept any liability for damage to the oven
or personal injury resulting from failure to observe the correct electrical con-
nection procedures.
4 HOOD EXHAUST DUCT
When the hood is vented to the outside, a hood exhaust duct is required. All ductwork must be metal; absolutely do not use
plastic duct. Check that all connections are made securely. Please read the following carefully:
Exhaust connection: The hood exhaust has been designed to connect to a standard 31/4" x 10" rectangular duct. If round duct
is required, a rectangular-to-round adapter must be used.
Rear exhaust: If a rear or horizontal exhaust is to be used, care should be taken to align the exhaust with the space between
the studs, or wall should be prepared at the time it is constructed by leaving enough space between wall studs to accommodate
exhaust.
Maximum duct length: For satisfactory air movement, the total duct
length of 31/4" X 10" rectangular or 6" diameter round duct should
not exceed 140 feet.
Elbows, adapters, wall, roof caps, etc. present additional resistance to
air ow and are equivalent to a section of straight duct which is longer
than their actual physical size. When calculating the total length, add
the equivalent lengths of all transitions and adapters plus the length
of all straight duct sections. Figure 4 shows the approximate feet of
equivalent length of some typical ductwork parts. Use the values
in parentheses for calculating air ow resistance equivalent, which
should total less than 140 feet.
5 TOOLS RECOMMENDED FOR INSTALLATION
• Phillips Screwdriver • Measure
• Electric Drill • 1/2”, 5/8” and 3/32” Drill Bits
• Scissors • 1-1/2” Wood Bit or Metal Hole Cutter (if metal cabinet is used)
• Pencil • Saw to cut exhaust opening (if needed)
• Tape • Protective Drop Cloth for product and range - you may also use carton for protection

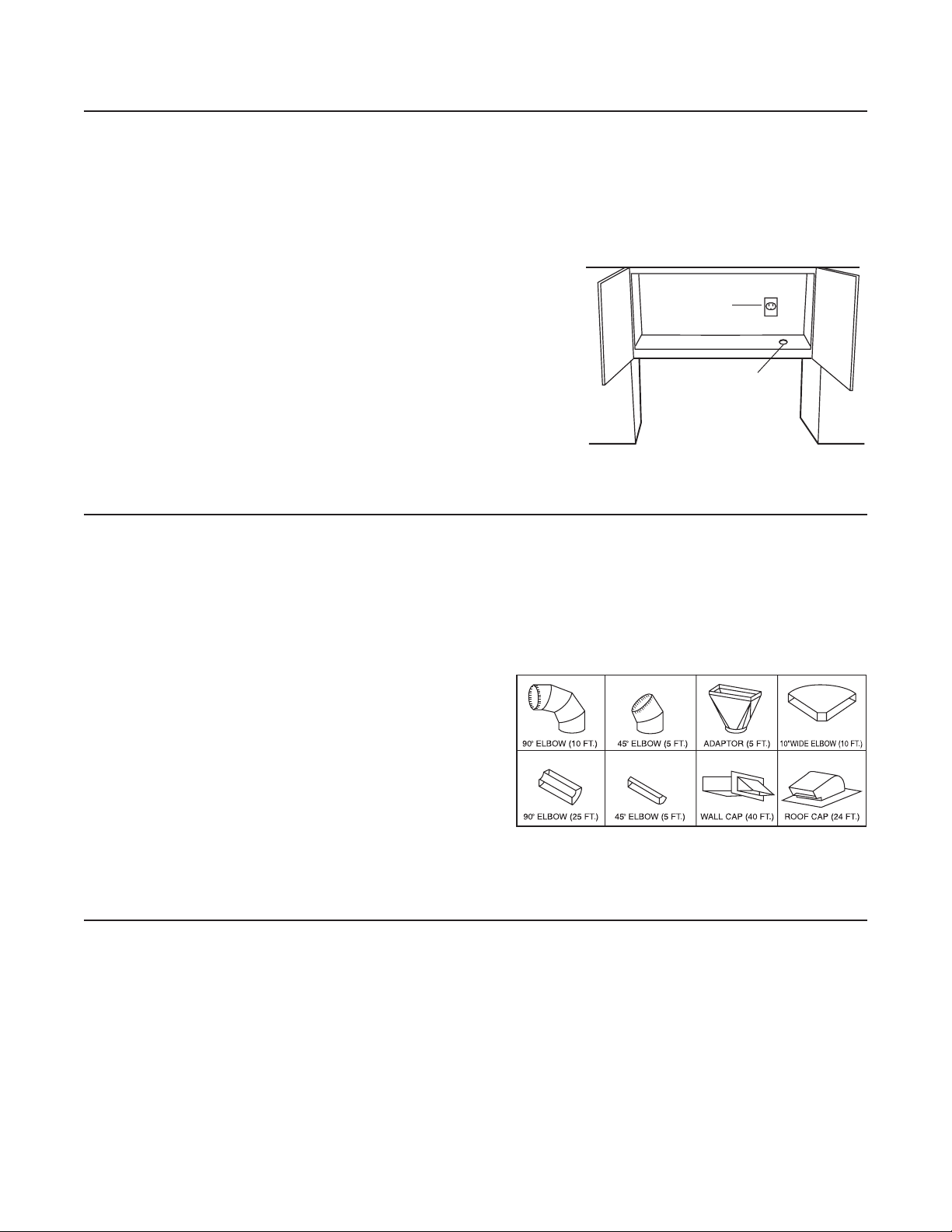

Figure 3
Grounded
Receptacle
Opening for
Power Cord
Figure 4

3
6 INSTALLATION HARDWARE
The INSTALLATION HARDWARE: items 1- 7packed with the oven should contain the following:.
ITEM NAME QUANTITY PART CODE
1Wood Screw 5 x 30 mm 6 XTSS750P35000
2Toggle Bolt #10 - 24 x 50 mm 4 LX-BZ0195WRE0
3Top Cabinet Screw 5 x 60 mm 2 XBPS750P60000
4Flat Washer 30 mm diameter 2 XWH750-16300
5Grommet 1 LBSHC0040MRE0
6Tapping Screw 4 x 12 mm 1 XOTS740P12000
7Exhaust Damper Assembly 1 FFTA-B004MRK0
Parts shown not to common scale.
Figure 5
7 PREPARATION OF THE OVEN
Note: This step does not apply to R-1881LSY
Utilization of the carton may make installation easier.
1. Open the bottom of the carton, remove oven and all packing materials.
2. CHECK THE OVEN.
Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surfaces, broken or loose
door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact
your dealer or SHARP AUTHORIZED SERVICER.
3. Place carton upside down as shown in Figure 6-1.
4. Using cutting line around the carton, cut into two pieces (A) and (BC). See Figure 6-2.
5. Cut the remaining portion (BC) into portion (B) and portion (C) according to cutting line. See Figure 6-3.
Top side (A) (A)
(B) (B)
(C) (C)
Cutting line
Figure 6-1 Figure 6-2 Figure 6-3

45
8 PREPARATION OF THE OVEN
1. Rest the oven on its side as shown in Figure 7. Place portion (C) of the carton
underneath to protect the outercase from being damaged.
2. Remove the two screws which secure the mounting plate to the rear side of the
oven. Remove the mounting plate. The two screws can be discarded.
NOTE: If the unit you purchased does not have the mounting plate attached to the
rear side of the oven, please disregard this section and continue to Section 9.
9 VENTILATION SYSTEM
This Microwave Oven/Hood System is designed for adaptation to three types of hood
ventilation systems. Select the type required for your installation.
A. RECIRCULATING—Non-Vented, Ductless Operation
The unit is shipped assembled for recirculating.
NOTE:
1. The Exhaust Damper Assembly is not required for recirculating operation.
2. The Charcoal Filter should be replaced every 6 to 12 months, depending on use.
3. The Charcoal Filter RK-220 is also sold as an accessory. See Operation Manual
for ordering information.
B. HORIZONTAL EXHAUST — Outside Ventilation
1. Remove and save the 4 screws from Fan Cover Bracket. Remove Fan Cover
Bracket by sliding it in the opposite direction of the arrow on the Fan Cover Bracket,
as shown in Figure 8.
2. Lift Hood Fan Unit carefully and slip wires out of cavity. See Figure 9.
CAUTION: Do not pull or stretch hood fan wiring.
3. Rotate the Hood Fan Unit 180° so that the fan blade openings are facing the back
of the oven. Note, you will need to lift the wire over the hood fan unit so the wire
will clear. See Figure 10 (A). Replace Hood Fan Unit into the oven. Be careful not
to pinch the wire and the Hood Fan Unit. See Figure 10 (B).
4. Put the wire back into the cavity.
5. Replace the fan cover bracket. Make sure the fan blades are visible through the
rear openings in oven before proceeding. Attach the fan cover bracket to the unit
with the 4 screws removed in step 1 above. See Figure 11. The hood fan is now
rotated for horizontal exhaust operation.
6. Attach the Exhaust Damper Assembly to the back of the mounting plate by sliding
it into the slits in the same direction as the arrow. See Figure 12. Using tapping
screw 4 x 12 mm from the INSTALLATION HARDWARE, tighten into place.
Mounting plate Grease filter openings
Figure 7
Face cover
bracket
(A) Rotate 180°
(B)
Figure 8
Figure 9
Figure 10
Wire box
Figure 11
Mounting Plate
(Back side)
Figure 12

5
(C) VERTICAL EXHAUST — Outside Ventilation
1. Remove and save the 4 screws from the Fan Cover Bracket. Remove Fan Cover Bracket by sliding it in the opposite direction
of the arrow on the Fan. Cover Bracket as shown in Figure 13.
2. Lift the Hood Fan Unit carefully and slip wires out of cavity. See Figure 14.
CAUTION: Do not pull or stretch hood fan wiring.
3. Rotate the Hood Fan Unit 180° so that the fan blade openings are facing the back of the oven. Note, you will need to lift the
wire over the hood fan unit so the wire will clear. See Figure 15 (A). Then rotate the Hood Fan Unit 90° so that the fan blade
openings are facing the top of the oven. See Figure 15 (B). Replace Hood Fan Unit into the oven. Be careful not to pinch
the lead wire between the inner bracket and the Hood Fan Unit. Put the lead wire into Wire Box. See Figure 15 (C).
4. Replace the Fan Cover Bracket. Make sure the fan blades are visible through the top openings in the oven before proceeding.
5. Attach the Fan Cover Bracket to unit with the 4 screws removed in step 1 above. See Figure 16. The Hood Fan Unit is now
rotated for vertical exhaust operation.
6. Attach the Exhaust Damper Assembly to the fan cover on the top of the outercase cabinet by sliding it into the slits in the
same direction as the arrow. Use 1 Tapping Screw 4 x12 mm from the INSTALLATION HARDWARE and tighten into place.
See Figure 17.
Face cover
bracket
(A) Rotate 180°
(B)
(C)
Figure 13
Figure 15
Figure 14
Figure 16
Figure 17
Wire box
Exhaust Damper Assembly

6
10 OVEN INSTALLATION
THIS OVEN CANNOT BE PROPERLY INSTALLED WITHOUT REFERRING TO THE MOUNTING INSTRUCTIONS FOUND ON
BOTH TEMPLATES.
READ AND FOLLOW MOUNTING INFORMATION ON BOTH TOP CABINET AND WALL TEMPLATES.
MOUNTING SCALE PLATE
1. Separate 4 Toggle Bolts 2, packed in the INSTALLATION HARDWARE, from the Toggle Nuts.
2. Use Wood Screws 1to attach Mounting Plate to the stud or studs. Use Toggle Bolts to attach Mounting Plate through the holes
at A, B, C and D; UNLESS THOSE HOLES ARE LOCATED ON THE STUD. Insert one Toggle Bolt into A, B, C and D where
appropriate (these correspond to the holes of the Wall Template) and put the Toggle Nuts onto the Toggle Bolts. Figure 18.
Refer to instructions in Wall Template.
3. Position the Mounting Plate with the Toggle Bolts attached at the wall location and insert Toggle Nuts and Bolts through the
holes in the wall with the Toggle Nuts closed. Figure 19. Use Wood Screws 1to attach the Mounting Plate to studs.
NOTE: Before insertion, be sure you leave a space more than the thickness of the wall between the Mounting Plate and the
end of each of the Toggle Nuts (in the closed position). If you do not leave enough space, the Toggle Nut will not be able to
open on the other side of the wall. Also, once a Toggle Nut opens, it cannot be withdrawn from the hole; therefore make sure
all of the Toggles are in the correct position before insertion.
4. Align the Mounting Plate carefully and hold in position while tightening Toggle Bolts. Pull Toggle Bolt toward you and turn
clockwise to tighten. Figure 20.
Mounting
Plate
Figure 18 Figure 19 Figure 20
Space more than
wall thickness
Wall
MOUNTING OVEN TO THE WALL
Note: Does not apply to R-1881LSY
Two people are recommended to attach the Microwave Oven/Hood to the
Mounting Plate.
1. Place cut portion of carton (B) on top surface of range. Protection of the
range cooking surface is recommended. A protective drop cloth may also
be used to cover the top of the range.
2. Place carton portion (C) on portion (A); then place oven as shown in
Figure 21.
3. Place the oven and the carton portions together on the top of the range
covered with (B). Slide carton portion (A) toward backsplash until stops.
Align the lower back edge of the oven with the mounting plate. (A)
(C)
Figure 21

7
4. Thread the power supply cord through the hole made in the bottom of the
top cabinet.
5. Hang the oven on the lower edge of the mounting plate. Rotate the unit
upward. See Figure 22. Take care that the power cord is able to clear
the edge of the hole as the oven is rotated upward. (In the case of a
non-recessed bottom in the top cabinet, the hole for the cord may need
to be enlarged.) Remove the carton portions.
6. Tighten the two unit mounting screws located in the grease lter openings.
See Figure 23.
7. Install grease lters by tting into the opening. Push back and up into
place. See Figure 24.
8. Use the two Top Cabinet Screws (D) and two Flat Washers (E), supplied
in the INSTALLATION HARDWARE, to attach the unit to the top cabinet.
See Figure 25.
9. Make a bundle of the power supply cord and place it inside the cabinet.
(A)
Hang at
these
locations
Figure 22
Figure 23
Unit
mounting
screw
Figure 24
Grease filter
Figure 25
(D)
Grommet
(for metal
cabinet only)
(E)

CHECK LIST FOR INSTALLATION
1. Make sure the unit has been installed according to all of the Installation Instructions, the Top Template and Wall Template.
2. Remove all packing material from the oven.
3. Plug in the power cord.
4. Read the Operation Manual.
5. Keep the Installation Instructions for the local electrical inspector’s use.
ACCESSORY
Check with your dealer or order directly from the SHARP Accessories and Supplies Center. Call toll-free 1-800-BE SHARP
(237-4277).
CHARCOAL FILTER (RK-220). Filter is used when hood exhaust is recirculated only.
TINSEB403WRRZ
Printed in Thailand
Jun 12, 2017
SHARP ELECTRONICS CORPORATION
100 Paragon Drive, Suite #100
Montvale, New Jersey 07645
