Sharp SJ-194S User manual

REFRIGERATOR - FREEZER
OPERATION MANUAL
CONTENTS
•DESCRIPTION
•WARNING
•CAUTION
•INSTALLATION
•OPERATION
•CARE AND CLEANING
•STORING FOOD
•BEFORE CALLING FOR SERVICE
•SPECIFICATION
aa
Thank you for buying this SHARP product. Before using
your SHARP refrigerator, please read this operation
manual to ensure that you gain the maximum benefit
from it.
MODEL
SJ-194S
SJ-222S
SJ-244S
SJ-308S
SJ-339S
......................................... 2
................................................ 3
................................................ 3
......................................... 4
............................................. 4
............................. 5
....................................... 5
........... 6
....................................... 7
SJ-F230G
SJ-F230G
SJ-F230G
Ag

2
DESCRIPTION
SJ-308S
Fresh compartment
Freezer shelf
Freezer temp.control
knob
Ice cube maker
Ice cube box
Refrigerator temp.
control knob
Light
Refrigerator shelf
Vegetable shelf
Vegetable crisper
Adjustable foot Magnetic door seal
Door pocket
Bottle pocket
Small pocket (left)
Small pocket (right)
Light switch
Egg pocket
Egg holder
Door pocket
Magnetic door seal
Model name SJ-194S SJ-222S SJ-244S SJ-308S SJ-339S
Refrigerator shelf (glass) - - 2 2 2
Refrigerator shelf (plastic) 1 2 - - -
Vegetable shelf (glass) - - 1 1 1
Vegetable shelf (plastic) 1 1 - - -
Door pocket 2 2 3 3 3
Egg holder - - - 1 1
Small pocket (right) 1 1 1 2
Small pocket (left) 1 1 1 1
*
*
*
*
*
*
-
-

3
WARNING
CAUTION
Highly volatile and flammable materials such as ether,
petrol, propane gas, adhesive agents and pure alcohol
etc. are liable to explode. Do not store these materials in
the refrigerator.
Dust deposited on the power plug may cause fire. Wipe
it off carefully.
Do not attempt to change or modify this refrigerator. This
may result in fire, electric shock or injury.
Ensure that the refrigerator presents no danger to
children whilst being stored for disposal. (e.g. remove
the door to prevent child entrapment.)
This refrigerator should be disposed of appropriately.
Take the refrigerator to a recycling plant for flammable
insulation blowing gases.
1.
2.
3.
4.
5.
Attention about Power supply:
•Do not use an extension cord or adapter plug.
•Make sure that the power cord has not been damaged
during installation or moving. If the power plug or cord
is loose, do not insert the power plug. There is a risk
of electric shock or fire.
•Disconnect from the mains electricity supply by
removing the mains plug from the electricity supply
socket. Do not remove by pulling the mains lead. This
may cause electric shock or fire.
•Should the flexible supply cord be damaged, it must
be replaced by service agent approved by SHARP as
a special cord is required.
Do not touch the compressor unit or its peripheral parts,
as they become extremely hot during operation and the
metal edges may cause injury.
Do not touch food or metal containers in the freezer
compartment with wet hands. This may cause frostbite.
Do not place bottled and canned drinks in the freezer as
they may crack when frozen.
The refrigeration system behind and inside the
refrigerator contains refrigerant.
If this system is punctured it could result in serious
damage to your refrigerator, therefore do not allow any
sharp objects to come into contact with the refrigeration
system.
In case of gas leak, ventilate the area by opening a
window, etc. Do not touch the refrigerator or the power
outlet.
Do not place objects containing liquid or unsteady
objects on top of refrigerator.
This refrigerator is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the refrigerator by a person
responsible for their safety. Young children should be
supervised to ensure that they do not play with the
refrigerator.
1.
2.
3.
4.
5.
6.
7.
8.

4

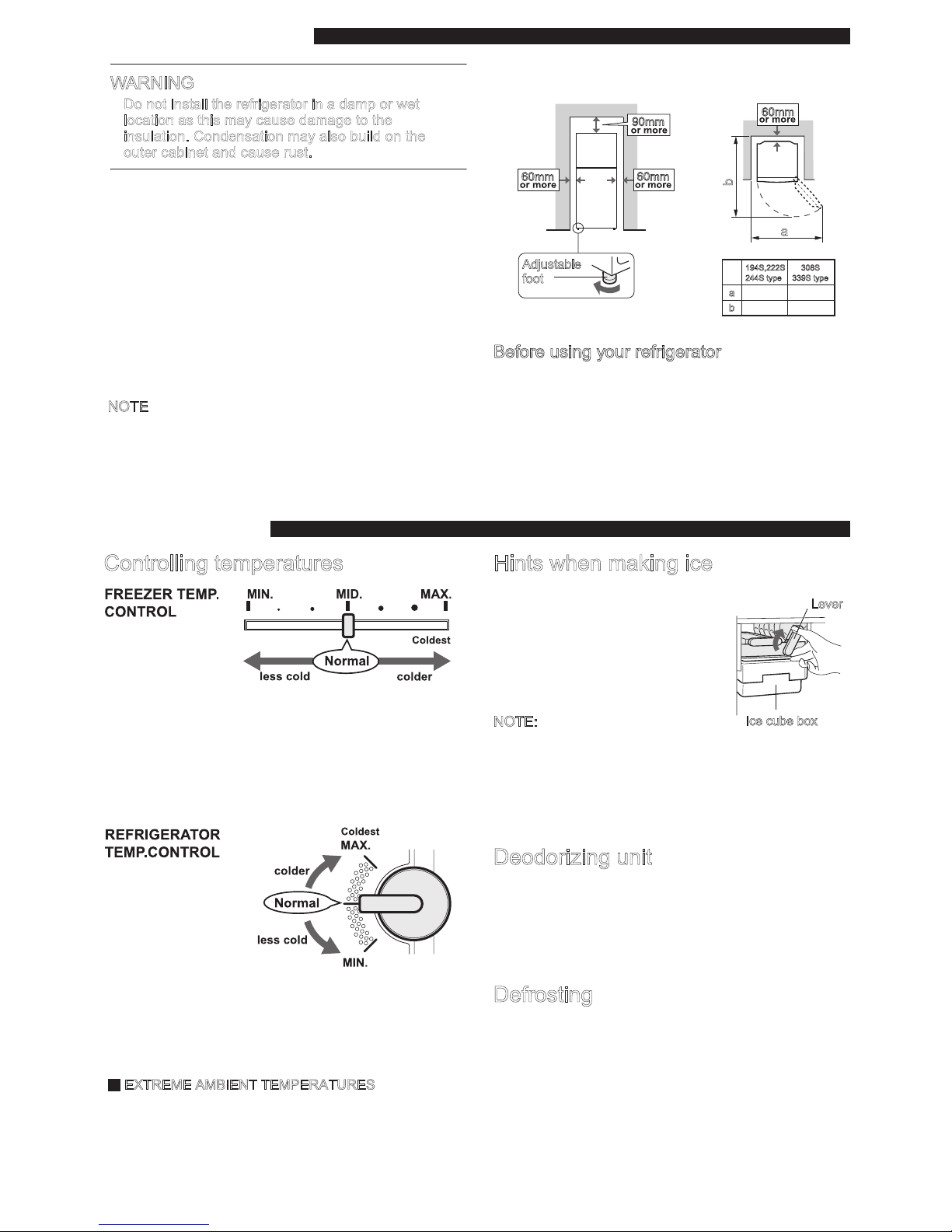

INSTALLATION
2. Using the front adjustable foot, ensure that the
refrigerator is positioned firmly and level on the floor.
3. Connect the power plug to a 230/240 volt. 10 amp.
power point.
Before using your refrigerator
Clean the inside parts with a cloth soaked in warm water.
If soapy water is used, wipe it off thoroughly with water.
OPERATION
Controlling temperatures
•FREEZER TEMP. CONTROL regulates the quantity of
cold air to the freezer.
•With FREEZER TEMP. CONTROL set to MAX, you may
need to adjust the REFRIGERATOR TEMP. CONTROL
to balance the temperatures.
•REFRIGERATOR TEMP. CONTROL controls the
compressor running time of the refrigeration system.
•MAX setting will result in colder temperature in both
(refrigerator and freezer) compartments.
EXTREME AMBIENT TEMPERATURES
During periods of extreme ambient temperatures
(e.g. less than 10°C, or more than 35°C)
you may find it necessary to rebalance the freezer and
refrigerator temperature controls accordingly.
Hints when making ice
1. Do not over fill the Ice cube trays;
otherwise the ice cubes will be
joined together when frozen.
2. When the ice cubes are made, turn
the lever clockwise to empty the ice
into the Ice cube box.
NOTE:
To prevent damage to the Ice cube
box, do not make ice in the Ice cube
box.
Deodorizing unit
A deodorizing catalyst is installed on the routes of cold air.
No operation or cleaning is required.
Defrosting
Defrosting is fully automatic due to a unique energy saving
system.
Adjustable
foot
Lever
Ice cube box
60mm
a
b
60mm
90mm
60mm
Keep adequate ventilation space around the
refrigerator.
• The figure shows the minimum required space for
installing the refrigerator. The amount of space around
the refrigerator affects the amount of power
consumption.
• Insufficient spacing will decrease cooling efficiency
and increase energy consumption.
This may reduce the life of the unit and void warranty.
1.
NOTE
•Position your refrigerator so that the plug is accessible.
•Keep your refrigerator out of direct sunlight.
•Do not place next to a heat generating appliance.
•This refrigerator is designed for indoor use only, do not
place the unit on an unsealed surface.
WARNING
■Do not install the refrigerator in a damp or wet
location as this may cause damage to the
insulation. Condensation may also build on the
outer cabinet and cause rust.
194S,222S
244S type
308S
339S type
970mm
1145mm
1065mm
1221mm
a
b

5

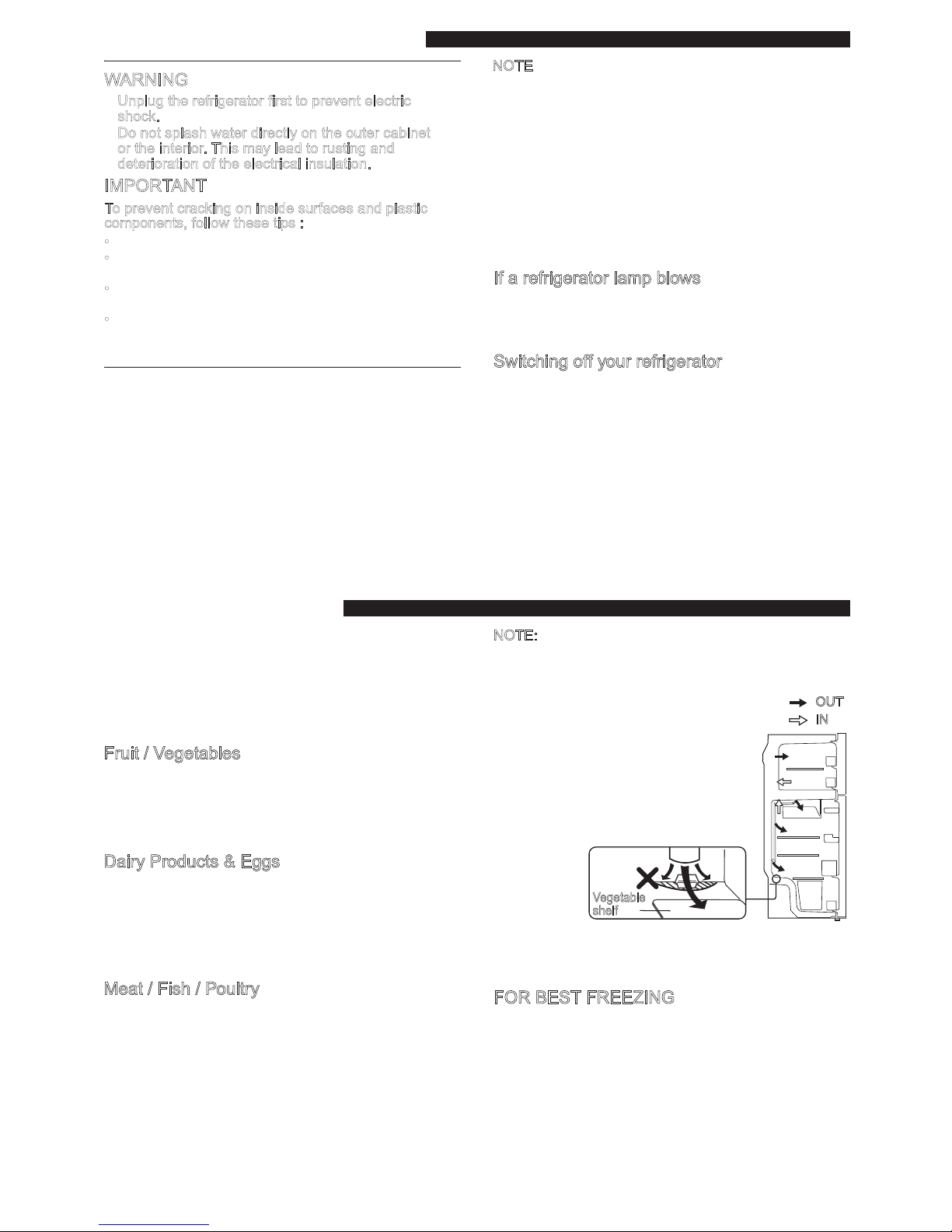

CARE AND CLEANING
1. Remove the shelves and pockets from the cabinet and
door. Wash them in warm soapy dishwashing water;
rinse in clean water and dry.
2. Clean the inside with a cloth soaked in warm soapy
dishwashing water. Then, use cold water to wipe off
soapy water.
3. Wipe the exterior with a soft cloth each time it is soiled.
4. Clean the magnetic door seal with a toothbrush and
warm soapy dishwashing water.
If a refrigerator lamp blows
The lamp should only be replaced by a service centre
approved by SHARP.
Switching off your refrigerator
If the refrigerator needs to be switched off for an extended
period, the following steps should be taken to reduce the
symptom of mould:
1. Remove all food.
2. Remove the power plug from the power point.
3. Clean and dry the interior thoroughly.
4. Ensure that all the doors are wedged open slightly for
air circulation.
STORING FOOD
Refrigeration reduces the rate of food spoilage.
To maximise the shelf life of perishable food products,
ensure that the food is of the freshest possible quality.
The following is a general guide to help promote longer
food storage.
Fruit / Vegetables
To minimise moisture loss, fruit and vegetables should be
loosely enclosed in a plastic material (e.g. wrap, bags) and
placed in the vegetable crisper.
Dairy Products & Eggs
•Most dairy products have a use by date on the outer
packaging which informs the recommended temperature
and shelf life of the product.
•Eggs should be stored in the Egg pocket.
Meat / Fish / Poultry
•Place on a plate or dish and cover with paper or plastic
wrap.
•For larger cuts of meat, fish, or poultry, place to the rear
of the shelves.
•Ensure all cooked food is wrapped securely or placed in
an airtight container.
NOTE:
•Evenly place the food on the shelves to allow the cooling
air to circulate efficiently.
•Hot foods should be cooled before storing.
Storing hot foods increases the temperature
in the unit and increases the risk of food
spoilage.
•Do not block the outlet and inlet of the
cool air circulating circuit with food or
containers; otherwise the food will not
be evenly cooled throughout the
refrigerator.
•Do not
place food
directly in
front of cold
air outlet.
This may lead to the food freezing.
FOR BEST FREEZING
•Quality of food should be fresh.
•Freeze small quantities of food at a time to freeze them
quickly.
•Food should be properly stored or covered and the air
should be removed to seal tightly.
•Evenly place the food in the freezer.
•Label bags or containers to keep an inventory of freezing
food.
IN
OUT
Vegetable
shelf
• Keep the door securely closed.
WARNING
■Unplug the refrigerator first to prevent electric
shock.
■Do not splash water directly on the outer cabinet
or the interior. This may lead to rusting and
deterioration of the electrical insulation.
IMPORTANT
To prevent cracking on inside surfaces and plastic
components, follow these tips :
•Wipe any food oils adhered to plastic components.
•Some household chemicals may cause damage, so use
only diluted washing-up liquid (soapy water).
•If undiluted detergent is used or soapy water is not wiped
off thoroughly, cracking of plastic parts can result.
•Wipe any spills from the refrigerator immediately as acid
or alkaline in the food can cause cracking and staining of
plastic parts.
NOTE
•Do not use hot water, household cleaning powders, creams
or spray-on cleaning products, or any other cleaning
products such as mineral turpentine, methylated spirits,
thinners, petrol etc. These may damage your refrigerator
and may void any warranty.
•If the power supply is disconnected, please wait for at least
5 minutes before re-connecting power.
•Wipe any spills from the control knob immediatelyas liquid
ingress can damage the electronics.
•Do not drop objects inside the refrigerator or strike the inner
wall. This may cause the inner surface to crack.

6
BEFORE CALLING FOR SERVICE
Before you call for service, check the following points.
If you still require service contact your SHARP Approved Service Centre.
SHARP Approved Service Centre locations can be found in the Support area of our website;
Australia : http://www.sharp.net.au
New Zealand : http://www.sharp.net.nz
n
oituloSmelborP
The outside of the cabinet is hot when
touched.
This is normal. The hot pipe is in the cabinet in order to prevent condensation
generation.
When there is refrigerator noise. It is normal for the refrigerator to produce the following sounds :
• Loud noise produced by the compressor when operation starts
--- Sound becomes quieter after a while.
• Loud noise produced once a day by the compressor
--- Operating sound produced immediately after automatic defrost operation.
• Sound of flowing fluid (gurgling sound, fizzing sound)
--- Sound of refrigerant flowing in pipes (sound may become louder from
time to time).
• Cracking or crunching sound, Squeaking sound
--- Sound produced by expansion and contraction of inner walls and internal
parts during cooling.
Frosting or condensation generation
occurs inside or outside the refrigerator.
This may occur in one of the following cases. Use a wet cloth for wiping frost
and a dry cloth for wiping condensation.
•When the ambient humidity is high.
•When the door is frequently opened and closed.
•When food containing plenty of moisture is stored. (Wrapping is required.)
The food in the refrigerator
compartment freeze.
• Is the refrigerator operated for a long time with REFRIGERATOR TEMP.
CONTROLset at MAX?
• Low ambient temperature may cause food to freeze even if
REFRIGERATOR TEMP. CONTROL is set to MIN.
(Refer to temperature adjustment setting on page 4)
iuqersignipparW•.sruodoelbaecitoN red for food with strong odours.
• Deodorising unit cannot remove all of the odours.

7
SPECIFICATION
SJ-194S SJ-222S SJ-244S SJ-308S SJ-339S
177 205 227 288 318
194 222 245 308 339
39 41 45 52 54
Height 1253 1389 1491 1580 1700
Width 545 545 545 600 600
Depth 610 610 610 631 631
Group (AS / NZS 4474.1)
Net weight (kg)
Outer dimensions
(mm)
Charge (g)
Insulation blowing gas
Rated storage volume (L)
Rated gross volume (L)
Defrosting input (W)
Internal lamp input (W)
Climate class
Refrigerant
Rated voltage (V~)
Rated frequency (Hz)
Rated current (A)
Rated input of heating system (W)
230-240
50
0.42-0.43
140-152
140-152
15 max.
T
HFC-134a
110
Cyclo pentane
5T
90 95 11090

SHARP CORPORATION OF AUSTRALIA PTY.LTD.
A. B. N. 40 003 039 405
1 HUNTINGWOOD DRIVE, HUNTINGWOOD, N.S.W. 2148
P.O.BOX 6827, BLACKTOWN. N.S.W. 2148
SHARP CORPORATION OF NEW ZEALAND LIMITED
59 HUGO JOHNSTON DRIVE PENROSE, AUCKLAND
Printed in Thailand
TINS-B021CBRZ 09HT TH 1
