Sharp SJ-TD555S User manual

REFRIGERATOR - FREEZER
OPERATION MANUAL
CONTENTS
• WARNING .................................................. 2
• CAUTION ................................................... 2
• INSTALLATION........................................... 2
• DESCRIPTION ........................................... 3
• WATER DISPENSER ................................. 4
• STORING FOOD........................................ 4
• CARE AND CLEANING.............................. 5
• BEFORE YOU CALL FOR SERVICE......... 6
• SPECIFICATION ........................................ 7
Household use only
Free standing type
MODEL
SJ-TD555S
(B059)_cover.fm Page 1 Monday, September 7, 2009 1:49 PM

2
■Highly volatile and flammable materials such as ether,
petrol, propane gas, adhesive agents and pure alcohol
etc. are liable to explode. Do not store these materials in
the refrigerator.
■Dust deposited on the power plug may cause fire. Wipe
it off carefully.
■Do not attempt to change or modify this refrigerator. This
may result in fire, electric shock or injury.
■Ensure that the refrigerator presents no danger to
children while being stored for disposal. (e.g. remove the
door to prevent child entrapment.)
■This refrigerator should be disposed appropriately. Take
the refrigerator to a recycling plant for flammable
insulation blowing gases.
■Attention about Power supply:
• Do not use an extension cord or adapter plug.
• Make sure that the power cord has not been damaged
during installation or moving. If the power plug or cord
is loose, do not insert the power plug. There is a risk
of electric shock or fire.
• Disconnect from the mains electricity supply by
removing the mains plug from the electricity supply
socket. Do not remove by pulling the mains lead. This
may cause electric shock or fire.
• Should the flexible supply cord be damaged, it must
be replaced by service agent approved by SHARP as
a special cord is required.
■Do not touch the compressor unit or its peripheral parts,
as they become extremely hot during operation and the
metal edges may cause injury.
■Do not touch food or metal containers in the freezer
compartment with wet hands. This may cause frostbite.
■Do not place bottled and canned drinks in the freezer as
they may crack when frozen.
■The refrigeration system behind and inside the
refrigerator contains refrigerant.
If this system is punctured it could result in serious
damage to your refrigerator, therefore do not allow any
sharp objects to come into contact with the refrigeration
system.
■In case of gas leak, ventilate the area by opening a
window, etc. Do not touch the refrigerator or the power
outlet.
■Do not place objects containing liquid or unsteady
objects on top of refrigerator.
■This refrigerator is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the refrigerator by a person
responsible for their safety. Young children should be
supervised to ensure that they do not play with the
refrigerator.
WARNING
■Do not install the refrigerator in a damp or wet
location as this may cause damage to the
insulation. Condensation may also build on the
outer cabinet and cause rust.
1 Keep adequate ventilation space around the
refrigerator.
•
The figure shows the minimum required space for
installing the refrigerator. The amount of space around
the refrigerator affects the amount of power consumption.
• Insufficient spacing will decrease cooling efficiency
and increase energy consumption.
This may reduce the life of the unit and void warranty.
2 Using the two front adjustable feet, ensure that the
refrigerator is positioned firmly and level on the floor.
3 Remove the 2 screws of the cabinet lower part, and
use these to fit the foot covers. (supplied inside the
refrigerator compartment)
4 Connect the power plug to a 230/240 volt. 10 amp.
power point.
NOTE
• Position your refrigerator so that the plug is accessible.
• Keep your refrigerator out of direct sunlight.
• Do not place next to heat generating appliance.
• This refrigerator is designed for indoor use only, do not
place the unit on an unsealed surface.
When transporting
• Using the casters, it is possible to move back and forth.
• Carry the refrigerator by holding the handles located on
the rear and bottom.
Before using your refrigerator
Clean the inside parts with a cloth soaked in warm water.
If soapy water is used, wipe it off thoroughly with water.
Thank you for buying this SHARP product. Before using your SHARP refrigerator, please read this operation manual to
ensure that you gain the maximum benefit from it.
WARNING
CAUTION
INSTALLATION
60 mm
or more
60 mm
or more
90 mm or more
1400 mm
1500 mm
Adjustable foot
Foot cover
Caster (4 pcs.)
(B059)_Eng.fm Page 2 Thursday, September 17, 2009 10:58 AM

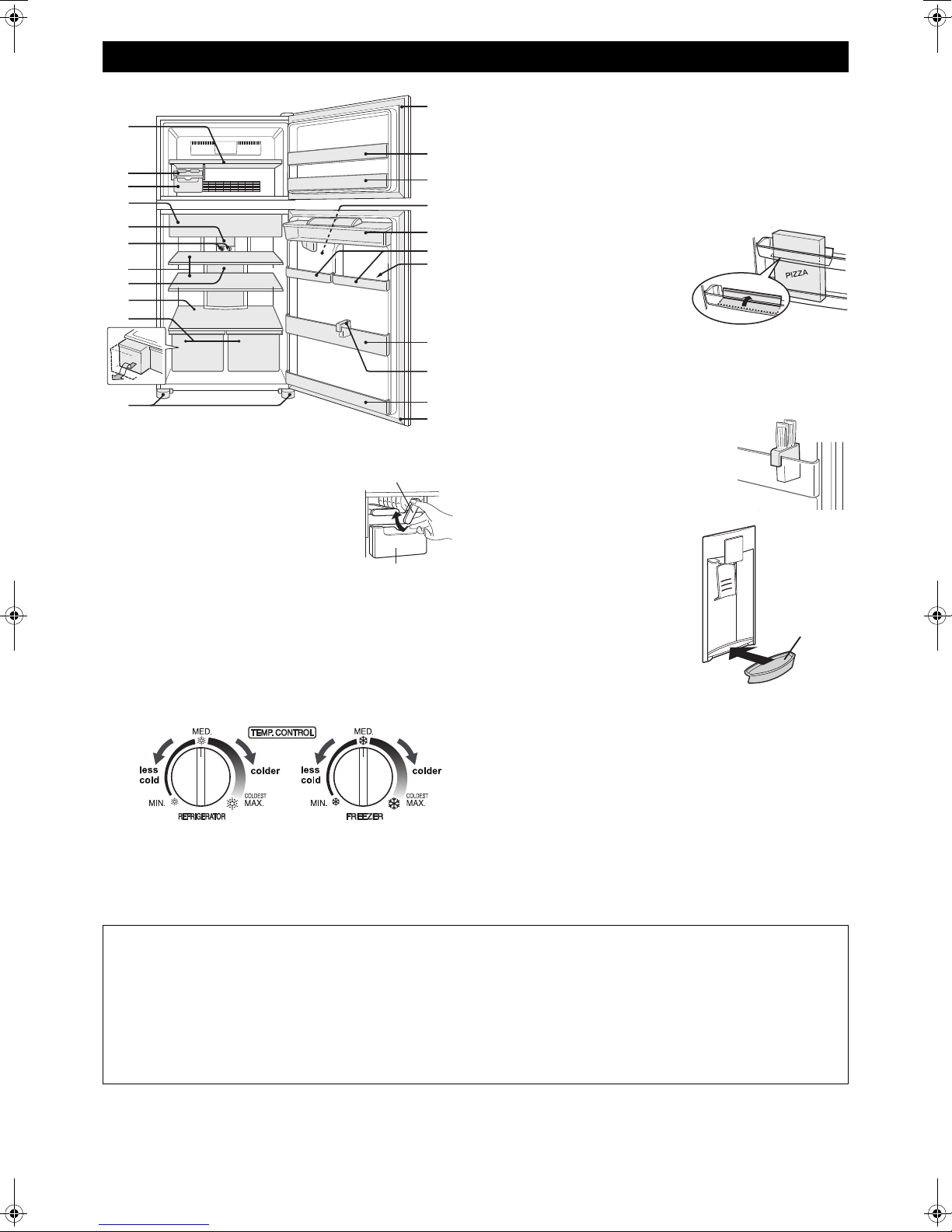

33
1. Freezer shelf
2. Ice cube maker
1) Do not over fill the Ice cube trays;
otherwise the ice cubes will be
joined together when frozen.
2) When the ice cubes are made,
turn the lever clockwise to empty
the ice into the Ice cube box.
NOTE To prevent damage to the Ice
cube box, do not make ice in
the Ice cube box.
3. Ice cube box
4. Fresh case & door
5. Refrigerator light
6. Temp. control knobs
Adjustable by turning each knob.
7. Refrigerator shelves (2 pcs.)
8. Hybrid cooling panel (Aluminum panel)
The panel is cooled from the rear, thus indirectly
cooling the refrigerator compartment. In this way, food
is refrigerated gently, without exposing it to cold air flow.
9. Fruit and vegetable shelf
10. Fruit and vegetable crisper (2 pcs.)
11. Adjustable feet & covers (2 pcs.)
12. Magnetic door seals (2 pcs.)
13. Flexible pocket
Tall food items (e.g. pizza box)
can be stored by lifting the
partition from the bottom of
the pocket.
14. Door pockets (2 pcs.)
15. Water tank
16. Utility pockets (2 pcs.)
17. Egg holder
18. Bottle pocket
19. Bottle stopper / Tube stand
Prevents bottles etc. from falling.
Stick-type food products can also
be stored inside.
20. Water dispenser
Attach the tray included in
the package.
DESCRIPTION
16
17
12
14
20
15
11
1
2
3
4
5
7
8
9
10
6
12
13
14
18
19
Ice cube box
Lever
(for refrigerator) (for freezer)
Tray
Deodorising unit
A deodorising catalyst is installed on the routes of cold
air. No operation and cleaning required.
Defrosting
Defrosting is fully automatic due to a unique energy
saving system.
If a refrigerator lamp blows
The lamp should only be replaced by a SHARP
approved service centre.
(B059)_Eng.fm Page 3 Thursday, September 17, 2009 10:58 AM

4
IN
OUT
Water tank
Water level Lid
How to fill the water dispenser
WARNING
■Fill with potable water only.
1 To open or close slide the lid
of the water tank as shown.
Ensure that the lid is shut
after filling to prevent spillage.
Do not overfill.
NOTE
• Do not open or close the door with force. Water may spill
from the water tank.
• Only fill with water. If other liquid such as juice is poured in, it
might cause a failure.
(Do not fill with hot water. Maximum temperature is
approximately 50°C)
How to dispense water
1 Push the lever with a glass to
dispense water.
Move the glass slowly away from
the lever. (The lever returns to the
original position, and water stops.)
NOTE
• For hygienic reasons, replace the water in the water tank
approximately once a week.
• Frequently empty spillage from
tray.
• If the water dispenser is not
used for an extended period of
time, clean and dry the water
tank thoroughly, and attach it to
the original position.
Child lock
The water dispenser can be locked.
Use this feature to prevent children or someone from
tampering with the dispenser.
Refrigeration reduces the rate of food spoilage.
To maximise the shelf life of perishable food products, ensure
that the food is the freshest possible quality. The following is a
general guide to help promote longer food storage.
• Ensure all cooked food is wrapped securely or placed in
an airtight container.
• To minimise spoilage, fruit and vegetables should be
loosely enclosed in a plastic material e.g. wrap, bags (do
not seal) and place in the fruit and vegetable crisper.
• Eggs should be stored in the Egg holder.
• Evenly place the food on the shelves to allow the cooling
air to circulate efficiently.
• Hot foods should be cooled before storing. Storing hot
foods increases the temperature in the unit and
increases the risk of food spoilage.
• Do not block the outlet and inlet of the cool air circulating
system with food or containers; otherwise the food will
not be evenly cooled throughout the refrigerator.
• Keep the door securely closed.
For best freezing
• Quality of food should be fresh.
• Freeze small quantities of food at a
time to freeze them quickly.
• Food should be properly stored or
covered and the air should be
removed to seal tightly.
• Evenly place the food in the freezer.
• Label bags or containers to keep an
inventory of freezing food.
WATER DISPENSER
Lever
Tray
How to lock
STORING FOOD
(B059)_Eng.fm Page 4 Thursday, September 17, 2009 10:58 AM

55
WARNING
■Unplug the refrigerator first to prevent electric
shock.
■Do not splash water directly on the outer cabinet
or the interior. This may lead to rusting and
deterioration of the electrical insulation.
IMPORTANT
To prevent cracking on inside surfaces and plastic
components, follow these tips:
• Wipe any food oils adhered to plastic components.
• Some household chemicals may cause damage, so use
only diluted washing-up liquid (soapy water).
• If undiluted detergent is used or soapy water is not wiped
off thoroughly, cracking of plastic parts can result.
• Wipe any spills from the refrigerator immediately, as acid
or alkaline in the food can cause cracking and staining of
plastic parts.
1 Remove the accessories e.g. shelves from the cabinet
and door. Wash them in warm soapy dishwashing
water; rinse in clean water and dry.
(Only fruit and vegetable shelf is not removable.)
2 Clean the inside with a cloth soaked in warm soapy
dishwashing water. Then, use cold water to wipe off
soapy water.
3 Wipe the exterior with a soft cloth each time it is soiled.
4 Clean the magnetic door seal with a toothbrush and
warm soapy dishwashing water.
NOTE
• Do not use hot water, household cleaning powders, creams
or spray-on cleaning products, or any other cleaning
products such as mineral turpentine, methylated spirits,
thinners, petrol etc. These may damage your refrigerator
and may void any warranty.
• If the power supply is disconnected, please wait for at least
5 minutes before re-connecting power.
• The glass shelves weigh approximately 3 kg each. Hold
firmly when removing from the cabinet or carrying.
• Do not drop objects inside the refrigerator or strike the inner
wall. This may cause the inner surface to crack.

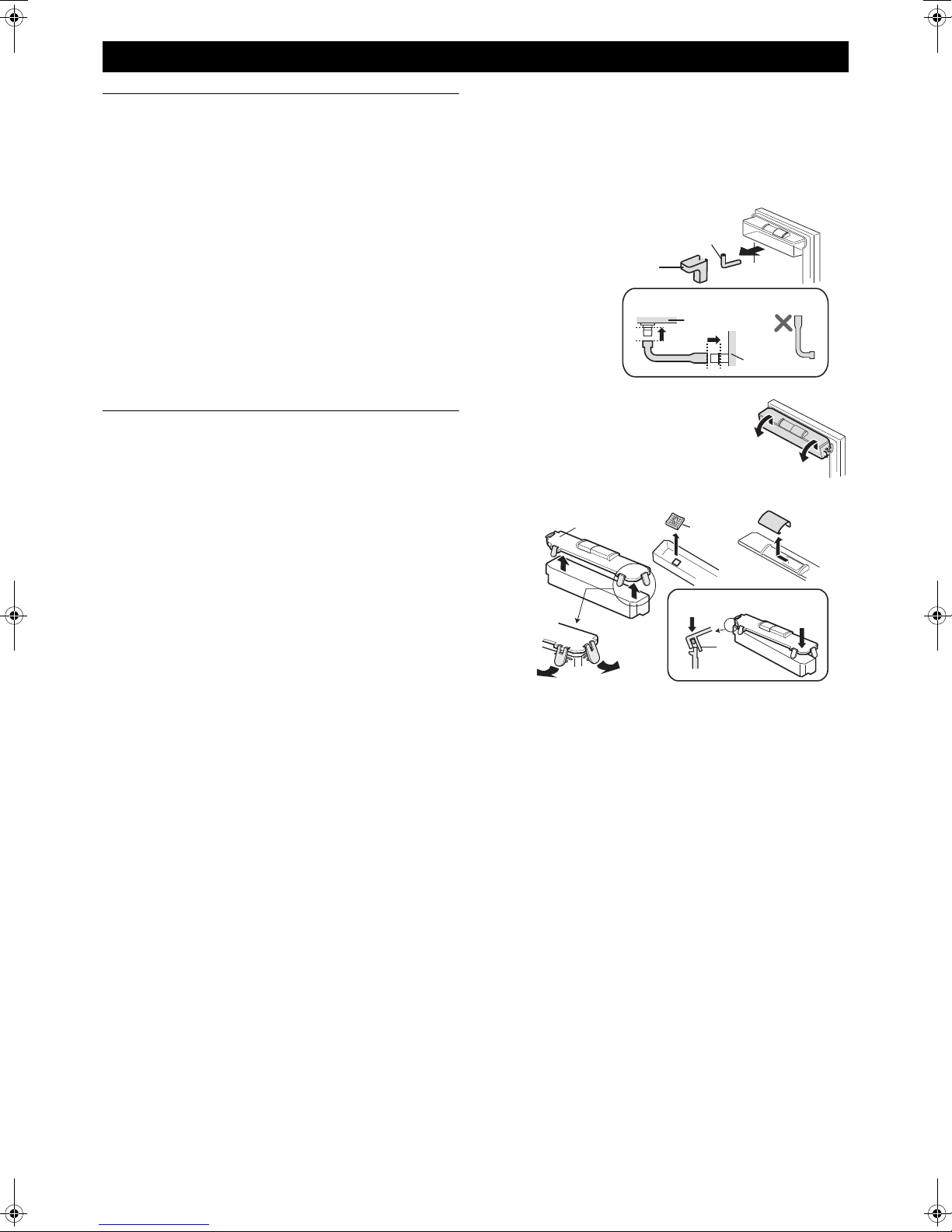

How to remove the water tank
(Cleaning once a month is recommended.)
1 Push the lever and let out all water in the water tank.
2 Remove the pipe cover.
Disconnect the both ends of the joint pipe.
3 Remove the water tank from the door.
4 Remove the cover and take out the mesh filter.
NOTE
Ensure that all parts are reassembled. Incorrect assembly
may cause water leakage.
Switching off your refrigerator
If the refrigerator needs to be switched off for an extended
period, the following steps should be taken to reduce the
symptom of mould:
1. Remove all food.
2. Remove the power plug from the power point.
3. Clean and dry the interior thoroughly.
4. Ensure that all the doors are wedged open slightly for
air circulation.
CARE AND CLEANING
Pipe cover
Joint pipe
To attach
Door
Water tank
2
1
To attach
Mesh
filter
Cover
(B059)_Eng.fm Page 5 Thursday, September 17, 2009 10:58 AM

6
Before you call for service, check the following points.
If you still require service contact your SHARP Approved Service Centre.
SHARP Approved Service Centre locations can be found in the Support area of our website:
Australia : http://www.sharp.net.au
New Zealand : http://www.sharp.net.nz
Problem Solution
The outside of the cabinet is hot when
touched.
This is normal. The hot pipe is in the cabinet in order to prevent condensation
generation.
When there is refrigerator noise. It is normal for the refrigerator to produce the following sounds:
• Loud noise produced by the compressor when operation starts
--- Sound becomes quieter after a while.
• Loud noise produced once a day by the compressor
--- Operating sound produced immediately after automatic defrost
operation.
• Sound of flowing fluid (gurgling sound, fizzing sound)
--- Sound of refrigerant flowing in pipes (sound may become louder from
time to time).
• Cracking or crunching sound, squeaking sound
--- Sound produced by expansion and contraction of inner walls and internal
parts during cooling.
Frosting or condensation generation
occurs inside or outside the
refrigerator.
This may occur in one of the following cases. Use a wet cloth for wiping frost
and a dry cloth for wiping condensation.
• When the ambient humidity is high.
• When the door is frequently opened and closed.
• When food containing plenty of moisture is stored. (Wrapping is required.)
The foods in the refrigerator
compartment freeze.
• Is the refrigerator operated for a long time with temp. control set at MAX?
• Low ambient temperature may cause food to freeze even if refrigerator
temp. control is set to MIN.
Noticeable odours. • Wrapping is required for food with strong odours.
• Deodorising unit cannot remove all of the odours.
BEFORE YOU CALL FOR SERVICE
(B059)_Eng.fm Page 6 Thursday, September 17, 2009 10:58 AM

77
If further depth reduction is required for site access/installation, the doors can be removed to reduce the overall depth from
725 mm to 635 mm. Only a SHARP Approved Service Centre can perform removal and replacement of the doors.
The customer should obtain an estimate from a SHARP Approved Service Centre prior to purchase.
SPECIFICATION
Rated voltage (V~)
Rated frequency (Hz)
Rated current (A)
Rated input of heating systems (W)
230 - 240
SJ-TD555S
50
0.53 - 0.54
160 - 170
160 - 170
Internal lamp input (W)
Defrosting input (W)
15 max.
Refrigerant
Charge (g)
Rated storage volume (L)
Rated gross volume (L)
HFC - 134a
Climate class T
110
Insulation blowing gas Cyclo pentane
Group (AS / NZS 4474.1)
Net weight (kg)
Outer dimensions
(mm)
5T
Height
Width
Depth
(Including
the handle)
514
555
81
1670
800
720
(725)
(B059)_Eng.fm Page 7 Thursday, September 17, 2009 10:58 AM

SHARP CORPORATION OF AUSTRALIA PTY.LTD.
A. B. N. 40 003 039 405
1 HUNTINGWOOD DRIVE, HUNTINGWOOD, N.S.W. 2148
P.O.BOX 6827, BLACKTOWN. N.S.W. 2148
SHARP CORPORATION OF NEW ZEALAND LIMITED
59 HUGO JOHNSTON DRIVE PENROSE, AUCKLAND
Printed in Thailand
TINS-B059CBRZ 09JK TH 1
(B059)_Eng.fm Page 8 Thursday, September 17, 2009 10:58 AM
