Sharp LC-40N5004U User manual

Quick Start Guide
FHD Smart TV
Help SHARP improve the environment by reducing paper waste.
For detailed instructions and feature descriptions, access the full User Manual online.
Before using the TV, please read this guide carefully and keep it for future reference.
LC-40N5004U

© 2019 Hisense Company Ltd. All Rights Reserved.
All material in this Quick Start Guide is the property of Hisense Company Ltd. and its subsidiaries, and is protected under US and In-
ternational copyright and/or other intellectual property laws. Reproduction or transmission of the materials, in whole or in part, in any
manner, electronic, print, or otherwise, without the prior written consent of Hisense Company Ltd., is a violation of Hisense Company Ltd.
rights under the aforementioned laws.
No part of this publication may be stored, reproduced, transmitted or distributed, in whole or in part, in any manner, electronic or other-
wise, whether or not for a charge or other or no consideration, without the prior written permission of Hisense Company Ltd. Requests
for permission to store, reproduce, transmit or distribute materials may be made in writing to the following address:
USA: Hisense USA Corporation
7310 McGinnis Ferry Road
Suwanee, GA 30024
CANADA: Hisense Canada Co., Ltd
2283 Argentia Road, Unit 16
Mississauga, ON, Canada L5N 5Z2
MEXICO: Hisense Mexico S. de R.L. de C.V.
Blvd. Miguel de Cervantes Saavedra No 301
Torre Norte Piso 2, Col. Ampliación Granada
Miguel Hidalgo, Ciudad de México, C.P. 11520
“Sharp™”, “Aquos™”, “Quattron™” and any and all other Sharp product names, logo’s, slogans or marks are registered trademarks
owned exclusively by Sharp Corporation.
"Hisense™", and any and all other Hisense product names, logo’s, slogans or marks are registered trademarks and intellectual property
rights of Hisense Company Ltd. and its subsidiaries.
This product is sold to you under one or more license agreements between Sharp Corporation and Hisense International (Hong Kong)
America Investment Co. Ltd. All other trademarks are the property of their respective holders.

LC-40N5004U
This Quick Setup Guide supports the following models:

1
Table of Contents
Register Your TV!......................................................................................................................................................... 2
Packaged Contents..................................................................................................................................................... 3
Buttons and Ports on the TV .................................................................................................................................... 4
Attach the TV Stand or Wall Mount Bracket ........................................................................................................ 5
Connect Devices to your TV.................................................................................................................................... .7
Establish a Network Connection............................................................................................................................. 9
Buttons on your TV Remote....................................................................................................................................11
Begin Using your Remote........................................................................................................................................12
Power on the TV.........................................................................................................................................................13
Complete the First-Time Setup Menu..................................................................................................................14
Begin to Enjoy your TV.............................................................................................................................................15
Product Specifications.............................................................................................................................................. 16
Quick Problem-Solving Ti ps ...................................................................................................................................18
Certification and Compliance ................................................................................................................................19

2
Register Your TV!
Congratulations on the purchase of your new TV! This Quick Setup Guide will walk you through a few easy steps to set up
your TV. For detailed instructions, access the User Manual on the support pages listed below.
Because we value your business, we want to keep you in the know of 'all things SHARP'. Using your mobile phone, scan the Registration
page QR code to register your TV. Depending on the make and model of your phone, you may need to download a QR code scanning
app.
Country Customer Care Center SHARP Support Page REGISTER YOUR TV
U.S.A • Phone: [phone]
• Hours of Operation:
Monday - Friday:
Monday - Friday 9:00-18:00
9 AM to 9 PM EST
Saturday - Sunday: 9 AM to 6 PM EST
• Service Email: [email protected]
http:// www.sharptvusa.com
/support
www.sharptvusa.com/
support/productreg.asp
No need to register
CANADA • Phone: [phone]
• Hours of Operation:
Monday - Friday: 8 AM to 8 PM EST
• Service Email: [email protected]
http://www.sharp-canada.
ca/support/
MEXICO • Phone: [phone]
• Hours of Operation:
• Service Email: [email protected]
http://www.SHARPTV.com.
mx/support/
http://www.SHARPTV.
com.mx/support/product
Reg.asp
*Scan to download user
manual
Disclaimer: This Quick Start Guide is intended as a general guideline to help you set up your TV. Images throughout this
document are for illustrative purposes only and may differ from the actual product.

3
Packaged Contents
Your package in which you purchased your new TV contains the following items:
TV Quick Setup Guide (this document)
Important Safety Information and Warranty Card Remote Control
2 AAA batteries A left and right leg that forms the TV stand
4 screws (M4×30) AV Input Cable
IMPORTANT:
To prevent accidentally discarding items that came with your TV, be sure to check ALL of the foam in the carton box.
Required tools and devices
Wireless router (not included) for Internet connectivity
Philli ps screwdriver (not included) to secure the TV stand
HDMI and other types of cables (not included) to connect external devices to the TV
Wall mount bracket (not included) if you prefer to mount the TV to the wall
· Please check foam for accessories before discarding.
· Veuillez vérifier la mousse pour qu'il n'y ait pas d'accessoires avant de la jeter.
· Antes de desechar la espuma,asegúrese de retirar todos los accesorios.

4
Buttons and Ports on the TV
Back View of the TV (40")
TV Side View
STANDBY / INPUT
DIGITAL AUDIO OUTANT/CABLE
AV IN
LAN
USB2 USB1
DC 5V 0.5A(MAX)
HDMI 2(ARC) HDMI 1

5
STEP 1. Attach the TV Stand or Wall Mount Bracket (not included)
Attach the TV Stand (For steps to attach the wall mount see page 6)
CAUTION:
Be sure to disconnect the A/C power cord before installing a stand or Wall-Mount brackets.
The LED display is very fragile and must be protected at all times when installing the legs that form the stand. Be sure to protect the TV
screen from getting scratched or damaged by any hard objects. In addition, DO NOTexert pressure on the front of the TV at any time because
it could crack.
To attach the left and right leg that forms the stand:
1. Carefully place your TV face down on a soft, flat surface to prevent damage to the TV or scratching to the screen.
2. Remove the 2 legs from the foam and then insert the legs into the bottom slots of the TV.
3. Use the screws that came inside the carton with your TV to secure each leg tightly.
Screws:
M4×30
Screws:
M4×30
leg
leg

6
Attach the Wall Mount Bracket (not included)
Before you begin the third-party manufacturer instructions, be sure to
do the following things:
1. Place the TV face down on a clean,safe and cushioned surface.
2. Remove the TV stand if you already attached it.
3. Place the spacers (not included) in the corresponding bracket holes.
Screw
(not provided)
CAUTION:
• Whenyouattachthemount,besuretousethespacers
(providedbythethird-partymanufacturer)betweentheTV
and the bracket.
• TopreventinternaldamagetotheTVandensureitis
mountedsecurely,besuretousefixingscrews(not
provided)thatare8.0-10.0mminlengthwhenmeasured
from the attaching surface of the mounting hook.
Rear cover of the TV Spacer
Screw
Wall mount bracket
8.0 - 10.0 mm
Wall mount hole pattern (mm) 100 × 200
Wall mount screw size (mm) M6
Follow instructions provided with the Wall mount bracket.
To complete the installation, please contact the wall-mount
manufacturer or the retailer from which you purchased the TV.
The selected screws are 8.0 - 10.0 mm in length when measured
from the attaching surface of the rear cover. The diameter and
length of the screws differ depending on the Wall mount bracket
model.
NOTE: The diameter and length of the screws differ depending
on the wall mount bracket model.
Bracket
(not provided)
Spacer
(not provided)

7
STEP2.ConnectDevicestoyourTV
Check to ensure that you have selected the right cables for the ports and that they are connected securely. Loose connections can affect the
quality of the picture image and color.
TV label Port Cable External Equipment Brief Description
ANT/CABLE
Antenna
VHF/UHF Antenna
ANT OUT
Connect an outdoor VHF/UHF antenna.
HDMI
DVD Player/Recorder
Set-top Box
Satellite Receiver
Satellite
antenna
cable
VCR
Video
Camera
Connect a High Definition Multimedia
Interface (HDMI) cable from an external
device.
AV IN White(L)
Red(R)
Yellow(Video)
Connect a composite video cable and
left-right audio cables from an external
AV device.
DIGITAL AUDIO
OUT
Digital Sound Bar
Audio Amplier
Connect an optical cable from an
external digital audio system.
USB
Connect a USB device for browsing
photos,musicand movies.
The unit only recogonizes a USB
Memory Stick.

8
TV label Port Cable External Equipment Brief Description
HEADPHONE Connect headphones to hear audio from the TV.
Headphones with microphones are not supported.
LAN LAN
Connect an Ethernet cable to access a network
or the Internet. The TV also has a wireless
connectivity feature.
SERVICE This port is not available for you to connect an external device. It can only be used by our factory for testing purposes.

9
STEP 3. Establish a Network Connection
1.Press the [] button on the remote control, press[ ˅] button to select Settings and then press [OK]to enter the Settings menu.
2.Select Network → NetworkConguration.
TV JACK
Modem Cabl
eL
AN CableLAN Cable
External Modem
(ADSL / VDSL / Cable TV)
IP Sharer (Router)
(with DHCP server)
LAN
Establish a wired network connection
AutomaticallyobtainanIPaddress
1. Select Wired LAN. The TV will automatically obtain an IP address and connect to the network.
NOTE: The default option of IP Settings Mode is DHCP.
2. If the connection fails then "Disconnected" will display for the Ethernet status. Retry or enter the IP Settings, select Manual to input the
information again.
ManuallyentertheIPaddress
1. Select Manual.
2. Enter the IP Address, Netmask, Gateway, DNS Server 1 and DNS Server 2 in the menu. Next, select Save.

10
Establish a wireless network connection
The TV can directly receive network signals via wireless router
1. Select Wireless. The list of networks will be displayed automatically.
2. Select a wireless network from the list,input the password and select Connect.
3. If the network connection does not appear in the list, select Refresh to refresh the list or select Add A Network to manually enter SSID and
Security mode selection
Close the network connection
Select Off. The network connection will close.
Wireless router with DHCP
LAN Cable
Wireless LAN Adapter
built-in TV set

11
ButtonsonyourTVRemote
BUTTON DESCRIPTION
Power on / off
INPUT Change TV input source
Number Enter Channels / input numbers
CC Turn Closed Captioning On/Off and CC On When
Mute
Dash button / Select a digital sub-channel
(Red / Green /
Yellow / Blue) Special function buttons
TV Live TV
The button for the Quick setup menu
˄ / ˅ / ˂ / ˃D-pad (up/down/left/right navigation buttons)
OK Confirmation button
Return to the previous place in the menu or app
SLEEP Adjust sleep timer setting
Display the Home screen
BUTTON DESCRIPTION
VOL Volume (up/down)
CH Channel (up/down)
Mute and restore sound
MTS Set the audio language (Multi Track Sound)
/ / Media content control function buttons
NRT Choose to leave the Video descri ption feature On
or Off (Narration)
APPS All apps
SearchNOW shortcut
NOTE:Thebuttonsareonlyforreference,actualremotemay
varyinappearance.

12

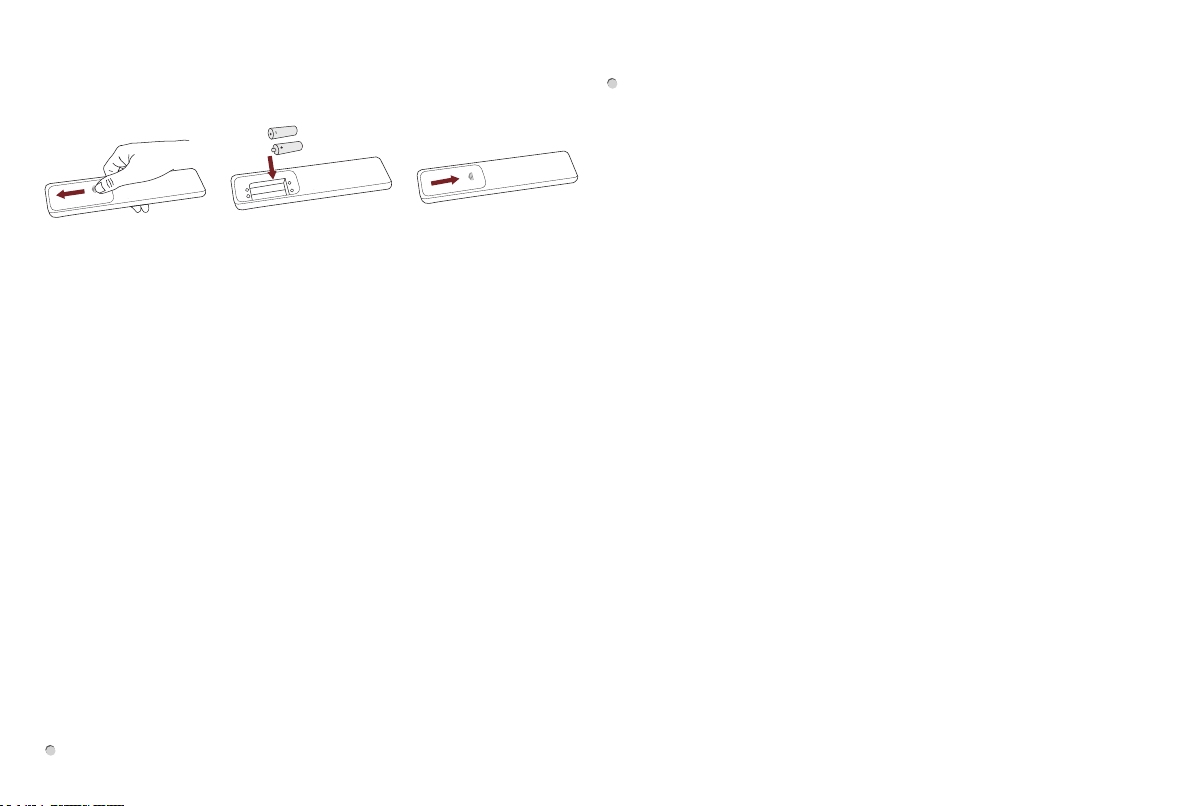

STEP4.BeginUsingyourRemote
1. Slide the back cover to open the battery com partment of the remote
control.
2. Insert two AAA size batteries. Make sure to match the (+) and (-)
ends of the batteries with the (+) and ( - ) ends indicated in the
battery compartment.
3. Replace the battery com partment cover.
Important Information about the remote and batteries:
• Discardbatteriesinadesignateddisposalarea.Donotthrow
them into a fire.
• Removeoldbatteriesimmediatelytopreventthemfromleaking
into the battery compartment.
• Ifyoudonotintendtousetheremotecontrol foralongtime,
thenremovethebatteries.
• Batterychemicalscancausearash.Ifthebatteriesleak,clean
thebatterycompartmentwithacloth.Ifchemicalstouchyour
skin then wash it immediately.
• Donotmixoldandnewbatteries.
• Donotmixalkaline,standard(carbon-zinc)orrechargeable
(NiCd,NiMH,etc.)batteries.
• Donotcontinueusingtheremoteifitgetswarmorhot.
Call our Support Center immediately on the support website.
Remote Control Range Information
The remote control can work at a distance of up to 26 feet in front of
Insert the batteriesGently push and slide Gently push and slide
the TV set.
It can work at a 30 degree horizontal or vertical angle.
Program Your Universal Cable or Satellite Remote
Control to Operate Your New Television (onlyfor
USA)
If you would like to program your other household remote controls
to your new television, please refer to the User's Manual supplied by
your Cable or Satellite provider. The Cable or Satellite providers' User's
Manuals should include instructions on how to program their remote
to your television.
A list of codes for the most common Cable and Satellite providers
are listed below. Use the code that is associated with your Cable or
Satellite provider (if applicable).
DIRECTV......0178,10178,10019,10748,11314,11660,11710,11780,
12049,10171,11204,11326,11517,11564,11641,11963,12002,12183
Time Warner Cable......386,0178,10178,400,450,461,456,0748,1463,
0463,10463
Comcast......0178,10178, 10463,11463,10748, 11314,11660,10171,
11204,11326,11517,11641,11780,11785,11892,11963,12002
CoxCommunications......0178,10178,1326,1463
Dish Network......505,627,538,720,659
If the code associated with your Cable or Satellite provider is not listed,
does not work or you cannot locate the instructions to program your
remote, call your local Cable or Satellite provider's customer service
center.
If your Cable or Satellite provider does not have a code available,please
contact us at one of the phone numbers on Page 2.
UsingYourCableSet-topBoxorSatelliteReceiver

13

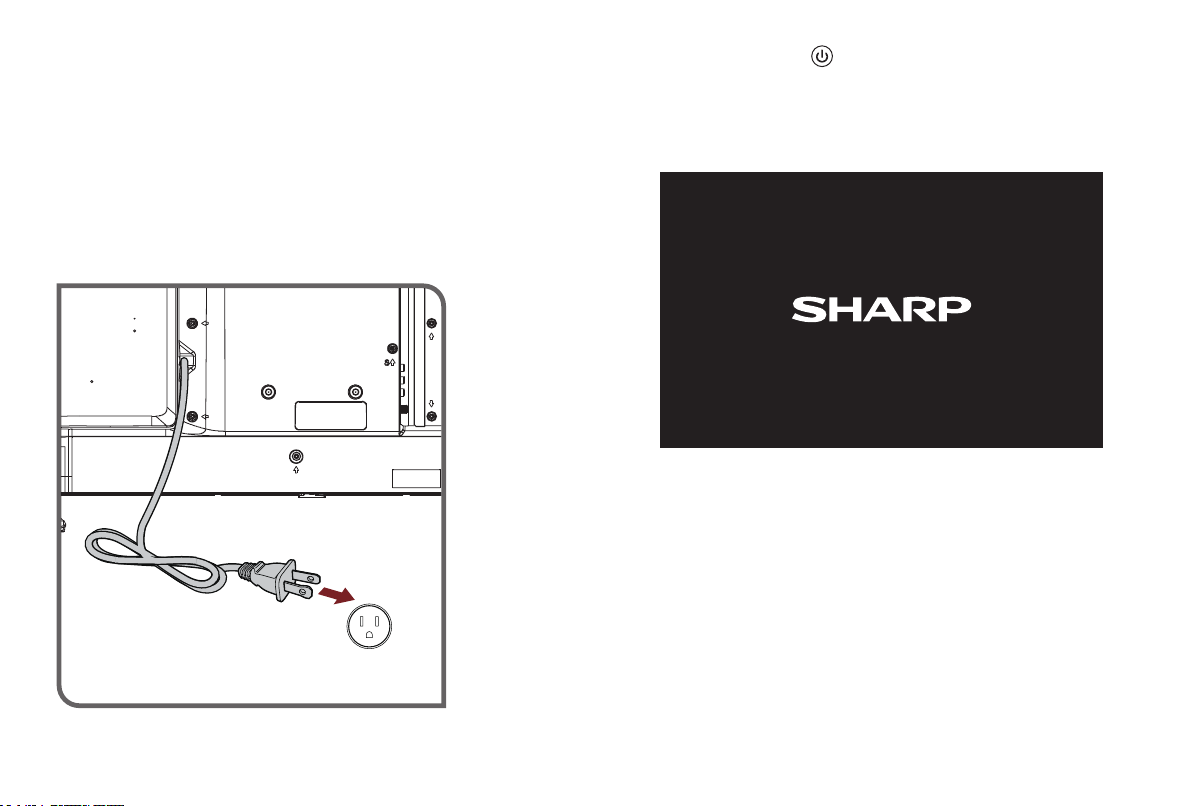

STEP 5. Power on the TV
Plug the power cord into a power outlet.
Remote as a ‘Universal’ Remote
If you prefer to use your Cable Set-top Box or Satellite Receiver
Remote as a ‘Universal Remote’, then visit the Support page to view a
list of the codes.
Press the Power button on the remote to turn on the TV. A splash
screen that shows the logo appears. Next, the First-Time Setup Menu
begins by prompting you to choose your Language,Region, and
Time Zone.
Power Cord
Wall Outlet

14
STEP6.CompletetheFirst-TimeSetupMenu
After the splash screen that shows the logo appears,begin the first-
time setup menu.
Region Time Zone
Language
Honduras
El Salvador
Eastern
Central
Arizona
Pacific
Alaska
Hawaii
Mountain
Screen Task
Language and Location • Using the D-pad arrows of your remote, choose
your Language, Region and Time Zone.
Terms and Conditions,
Privacy Policy
• Choose Agree or Decline. When choose Agree,
select Continue icon and press [OK].
Usage Mode • Select Home Mode (which appears by default).
•
Note: ‘Store Mode should only be selected by
Retailers who plan to demonstrate the TV.
Network Setup • If your TV does not automatically detect an
Ethernet connection, then use a wireless network.
Select your network from the list that displays,
input the password. Also you can add a hidden
network.
Screen Task
Product Registration • Register to stay up-to-date with news and updates
about your TV.
Last step of TV setup • You are at the last step of TV setup. If you have
not connected network, you can select ‘Set up
network’ or ‘Use without network’. If you have
connected network, Congratulations! You have
completed TV setup. Start to use.

15
STEP 7. Begin to enjoy your TV
Your Smart TV is easy to use and brag-worthy!
Now that you’ve completed the rst-time setup menu, the Home
screen is your starting point for navigating the TV. Gone are
the days where your TV only provides one way for you to be
entertained. This showpiece provides you the convenience
of watching a program on a live channel, accessing Video on
Demand to watch a movie and many other entertainment options.
Using your remote, press the Home button to begin enjoying your
TV.
Disclaimer: Subscriptions or other payments may be required
to access content through some applications. Some or all of
the included or downloaded application services in this Sharp,
Aquos or Quattron device may not function depending on the
Internet connection, local limitations of included applications or
other reasons outside of the Licensor's or Manufacturers control.
ALL LICENSORS AND THE MANUFACTURER EXPRESSLY
DISCLAIM RESPONSIBILITY FOR ANY APPLICATION SERVICE
FROM FUNCTIONING AT ANY TIME, FOR CONTENT IN ANY
APPLICATION SERVICE, FOR DISRUPTIONS OF SERVICE,
LOCAL OR REGIONAL LIMITATIONS, WARRANTIES OF
TITLE, NO INFRINGEMENT, AND FOR IMPLIED WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. By purchasing this device, you accept such Disclaimer
without any claim on any Licensor and/or the Manufacturer at any
time and in any territory.
Text-to-Speech(TTS) and Video
Description functionalities on TV
Text-to-Speech (TTS) and Video Description can help you to
navigate the menus on the screen and hear an audio description
of relevant programs. Text-to-Speech can convert written text into
voice text to help visually impaired people listen to the information
they are unable to read. In addition, the Video Description has an
audio narration added to certain programs that will describe the
main visual elements which visually impaired users may not be
able to see.
Follow the steps below to enable the functions:
1. Press the speech button to access the Menu.
2. Next, select Settings to enter the Settings Menu.
3. Select Accessibility > Menu Audio or Video Description to
turn the Menu Audio or Video Description 'On' or 'Off'.
When Menu Audio is turned On, then the contents of each menu
displayed can be broadcasted out.
When Video Description is turned On, then you can hear the
introduction of relevant programs.
https://www.sharptvusa.com/TTS

16
Product Specifications
ModelName LC-40N5004U
Dimension
(W × H × D)
Without Stand 35.6 × 20.4 × 3.2 inches
(904 × 519 × 81.6 mm)
With Stand 35.6 × 22.1 × 8.5 inches
(904 × 562 × 215 mm)
Weight Without Stand 12.8 lbs (5.8 kg)
With Stand 13 lbs (5.9 kg)
Active Screen Size (Diagonal) 39.5 inches
Screen Resolution 1920 × 1080
Audio Power 7 W + 7 W
Power consumption 70 W
Power Supply 120 V ~ 60 Hz
Picture Quality Screen resolution1920 x 1080, FHD Upscaler
Connectivity Built-in Wireless feature
Ports 2 HDMI ports, 2 USB port, 1 LAN port for Ethernet, 1 Digital Audio Output, 1 RF Input, 1 Earphone Audio Output,
1 RCA Composite Video Input, 1 left/right Audio Input for Com posite
Receiving Channels VHF: 2 - 13, UHF: 14 - 69, CATV: 1 - 125
Digital Terrestrial Broadcast (8VSB): 2 - 69
Digital cable (64/256 QAM): 1 - 135
Turner Type Frequency synthesized
Receiving systems Analog: NTSC
Digital: ATSC/QAM

17
Disclaimer: All products, product specifications, and data are subject to change without notice to improve reliability, function, design or
other aspects.
Operating Temperature 5°C - 35°C(41°F - 95°F)
Operating Humidity 20% to 80% non-condensing
Storage Temperature -15°C to 45°C(5°F to 113°F)
Storage Humidity 10%to 70%,non-condensing
