This Quick Setup Guide supports the following models:
LC-65N7004U

D
Table of Contents
What's in the box ......................................................................................................................2
Getting started..........................................................................................................................3
Step 1. Attach stand or mount...................................................................................................3
Step 2. Connect devices to your TV ..........................................................................................5
Step 3. Get your remote ready..................................................................................................8
Step 4. Power on the TV ........................................................................................................10

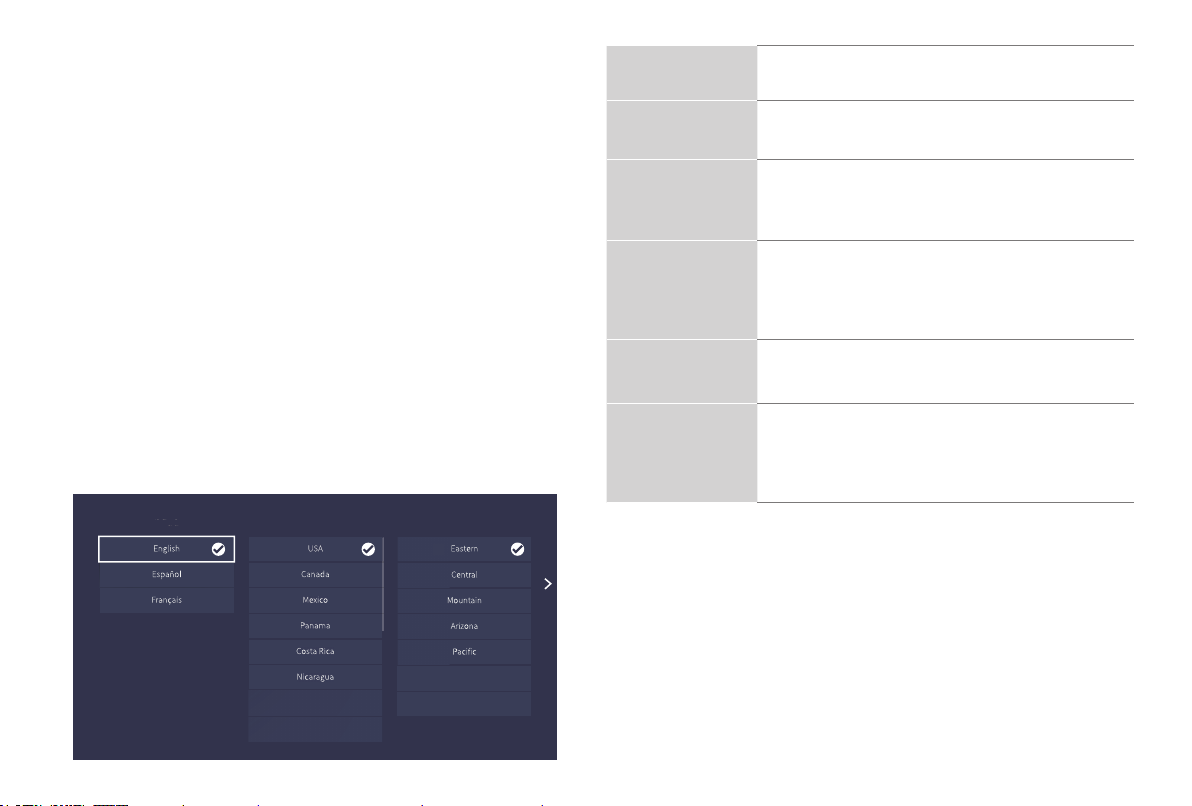

Step 5. Complete the rst-time setup.......................................................................................10
Step 6. Establish a network connection ................................................................................... 11
Step 7. Enjoy your TV! ..........................................................................................................13
Troubleshooting .....................................................................................................................14
Product Specications............................................................................................................15
Certication and Compliance..................................................................................................17

1
Congratulations on the purchase of your SHARP TV! If you would like to know 'all things SHARP', contact us using the support info:
The model and serial number of the TV is located on the back and/or on one side of the TV. We recommend that you record this if you
ever need.
Country Customer Care Center SHARP Support Page REGISTER YOUR TV
U.S.A • Phone: [phone]
• Hours of Operation:
Monday - Friday:
Monday - Friday 9:00-18:00
9 AM to 9 PM EST
Saturday - Sunday: 9 AM to 6 PM EST
• Service Email: [email protected]
http:// www.sharptvusa.com
/support
www.sharptvusa.com/
support/productreg.asp
No need to register
CANADA • Phone: [phone]
• Hours of Operation:
Monday - Friday: 8 AM to 8 PM EST
• Service Email: [email protected]
http://www.sharp-canada.
ca/support/
MEXICO • Phone: [phone]
• Hours of Operation:
• Service Email: [email protected]
http://www.SHARPTV.com.
mx/support/
http://www.SHARPTV.
com.mx/support/product
Reg.asp
*Scan to download user
manual
Disclaimer: This Quick Setup Guide is intended as a general guideline to help you set up your TV. Images throughout this
document are for illustrative purposes only and may differ from the actual product.

2
What's in the box
Your SHARP TV comes with the following items:
TV Power Cord
Remote Control 2 AAA batteries
Quick Start Guide (this document) Important Safety Information and Warranty Card
2 base stands 4 screws (M5×12)
IMPORTANT:
To prevent accidentally discarding items that came with your TV, be sure to check ALL of the foam in the carton box.
You will also need the following items (which are not included) to set up your TV:
● Wireless router (not included) for Internet connectivity
● Phillips screwdriver (not included) to secure the TV stand
● HDMI and other types of cables (not included) to connect external devices to the TV
● Wall mount bracket (not included) if you prefer to mount the TV to the wall
· Please check foam for accessories before discarding.
· Veuillez vérifier la mousse pour qu'il n'y ait pas d'accessoires avant de la jeter.
· Antes de desechar la espuma, asegúrese de retirar todos los accesorios.

3
Getting started
Step 1. Attach stand or mount
Before you start using your TV, attach your TV stand or mount it on a wall.
CAUTION:
• Disconnect the A/C power cord before installing a stand or wall-mount bracket.
• The LED display on your TV is fragile. Make sure the TV screen is not scratched or damaged by hard objects or from pressure on the
front of your TV.
Attach the TV stand
To attach the TV stand legs to your TV:
1. Carefully place your TV face down on a clean, soft, flat surface.
2. Insert the TV Base Stand into the bottom slots on your TV.
3. Use the screws provided to secure each leg tightly.
Base Stand
Base Stand
Screws: M5×12
Screws: M5×12

4
Attach the Wall Mount Bracket (not included)
Before you begin the third-party manufacturer instructions, be
sure to do the following things:
1.Place the TV face down on a clean, safe and cushioned surface.
2.Remove the TV stand if you already attached it.
3.Place the spacers (not included) in the corresponding bracket
holes.
CAUTION:
• Whenyouattachthemount,besuretousethespacers
(provided by the third-party manufacturer) between the TV
and the bracket.
Screw
(not included)
Bracket
(not included)
Spacer
(not included)
• TopreventinternaldamagetotheTVandensureitis
mountedsecurely,besuretousefixingscrews(not
provided) that are 9.5 - 11.5 mm in length when measured
from the attaching surface of the mounting hook.
Wall mount hole pattern (mm) 400 × 200
Wall mount screw size (mm) M6
Follow instructions provided with the Wall mount bracket.
● To complete the installation, please contact the wall-mount
manufacturer or the retailer from which you purchased the TV.
● The selected screws are 9.5 - 11.5 mm in length when
measured from the attaching surface of the rear cover.
NOTE: The diameter and length of the screws differ
depending on the Wall-mount bracket model.
Rear cover of the TV Spacer
Screw
Wall mount bracke
t
9.5 - 11.5 mm

5
Step 2. Connect devices to your TV
Check to ensure that you have selected the right cables for the ports and that they are connected securely.
Loose connections can affect the quality of the picture image and color.
Back View of the TV
TV Bottom View TV Bottom Panel
Power Input
HDMI 3(4K@60Hz)
AV IN
VIDEO LR
TV Side View
HEADPHONE

6

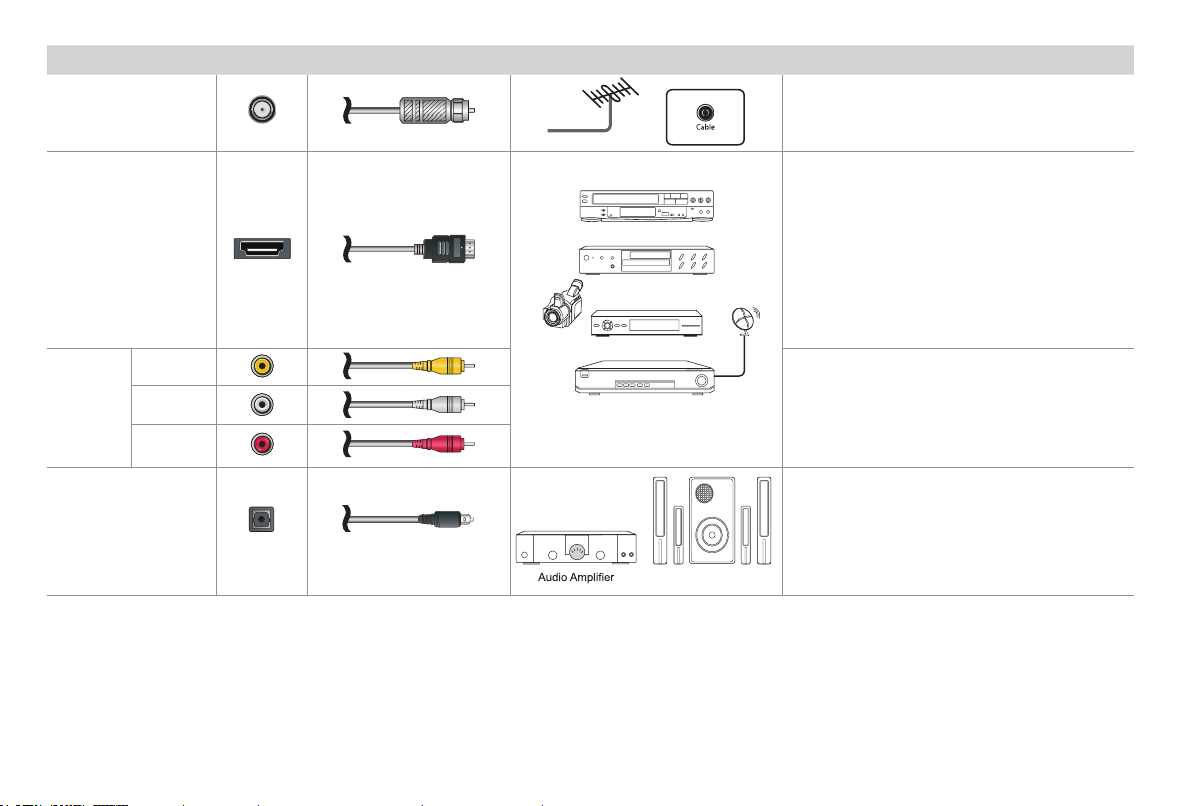

TV label Port Cable External Equipment Brief Description
ANT/CABLE
Antenna
VHF/UHF Antenna
ANT OUT
Connect an outdoor VHF/UHF antenna.
HDMI
DVD Player/Recorder
Set-top Box
Satellite Receiver
Satellite
antenna
cable
VCR
Video
Camera
AV IN
VIDEO Yellow
Connect a composite video cable and left-right
audio cables from an external AV device.
LWhite
RRed
DIGITAL AUDIO OUT
Speaker
Connect an optical cable from an external
digital audio system.
Connect a High Definition Multimedia Interface
(HDMI) cable from an external device.

7
TV label Port Cable External Equipment Brief Description
HEADPHONE
Connect headphones to hear audio from the
TV.
Headphones with microphones are not
supported.
USB
LAN
LAN
Connect an Ethernet cable to access a network
or the Internet. The TV also has a wireless
connectivity feature.
SERVICE This port is not available for you to connect an external device. It can only be used by our factory for testing
purposes.
Connect a USB device for browsing photos,
music and movies.
Hard disks with a total current consumption
or impulse current consumption greater than
500mA are not supported.

8
Step 3. Get your remote ready
The following table shows the buttons on your remote control and
describes what each button does.
BUTTON DESCRIPTION
Power on / off
INPUT Change TV input source
Number Enter Channels / input numbers
CC Turn Closed Captioning On/Off and CC On
When Mute
Dash button / Select a digital sub-channel
(Red / Green /
Yellow / Blue)
Special function buttons
TV Live TV
The button for the Quick setup menu
˄ / ˅ / ˂ / ˃D-pad (up/down/left/right navigation buttons)
OK Conrmation button
Return to the previous place in the menu or
app
SLEEP Adjust sleep timer setting
BUTTON DESCRIPTION
Display the Home screen
VOL Volume (up/down)
CH Channel (up/down)
Mute and restore sound
MTS Set the audio language(MTS)
/ / Media content control function buttons
NRT Choose to leave the Video description feature
On or Off
APPS All Apps
SearchNOW shortcut
NOTE: Buttons listed here are for reference only. Actual
remote control models may vary.

9
Insert the batteries
1. Take off the back cover to open the battery compartment of the
remote control
2. Insert two AAA size batteries. Make sure to match the (+) and (-)
ends of the batteries with the (+) and (-) ends indicated in the
battery compartment.
3. Replace the battery compartment cover.
Important Information about the remote and batteries
• Discardbatteriesinadesignateddisposalarea.Donot
throw them into a fire.
• Removeoldbatteriesimmediatelytopreventthemfrom
leaking into the battery compartment.
• Ifyoudonotintendtousetheremotecontrolforalong
time,thenremovethebatteries.
• Batterychemicalscancausearash.Ifthebatteriesleak,
clean the battery compartment with a cloth. If chemicals
touch your skin then wash it immediately.
• Donotmixoldandnewbatteries.
• Donotmixalkaline,standard(carbon-zinc)orrechargeable
(NiCd,NiMH,etc.)batteries.
• Donotcontinueusingtheremoteifitgetswarmorhot.
Call our Support Center immediately on the support
website.
Remote Control Range Information
● The remote control can work at a distance of up to 26 feet in
front of the TV set.
● It can work at a 30 degree horizontal or vertical angle.
Program Your Universal Cable or Satellite Remote
Control to Operate Your New Television (only for USA)
If you would like to program your other household remote controls
to your new television, please refer to the User Manual supplied
by your Cable or Satellite provider. It should include instructions
on how to program their remote to your television.
A list of codes for the most common Cable and Satellite providers
are listed below. Use the code that is associated with your Cable
or Satellite provider (if applicable).
DIRECTV......0178, 10178, 10019, 10748, 11314, 11660, 11710,
11780, 12049, 10171, 11204, 11326, 11517, 11564, 11641, 11963,
12002, 12183
Time Warner Cable......386, 0178, 10178, 400, 450, 461, 456,
0748, 1463, 0463, 10463
Comcast......0178, 10178, 10463, 11463, 10748, 11314, 11660,
10171, 11204, 11326, 11517, 11641, 11780, 11785, 11892, 11963,
12002
Cox Communications......0178, 10178, 1326, 1463
Dish Network......505, 627, 538, 720, 659
If the code associated with your Cable or Satellite provider is
not listed, does not work or you cannot locate the instructions to
program your remote, call your local Cable or Satellite provider's
customer service center.

10
Step 4. Power on the TV
Plug the power cord into a power outlet.
Step 5. Complete the first-time setup
The first time you turn on your TV, there is a guided setup to make
it easy to connect your TV to the Internet and complete the setup
of your TV.
Region Time Zone
Language
Honduras
Alaska
Hawaii
El Salvador
If your Cable or Satellite provider does not have a code available,
please contact us at one of the phone numbers on Page 2.
Using Your Cable Set-top Box or Satellite Receiver
Remote as a ‘Universal’ Remote
If you prefer to use your Cable Set-top Box or Satellite Receiver
Remote as a ‘Universal Remote’, then visit the Support page to
view a list of the codes.
Language and
Location
• Using the D-pad arrows of your remote, choose
your Language, Region and Time Zone.
End User License
Agreement
• Choose Agree or Decline, then select Continue
icon and press [OK].
Usage Mode • Select Home Mode (which appears by default).
• Note: ‘Store Mode and Store Mode(Video Demo
Only)’ should only be selected by Retailers who
plan to demonstrate the TV.
Network
Connection
• If your TV does not automatically detect an
Ethernet connection, then use a wireless network.
Select your network from the list that displays,
input the password. Also you can add a hidden
network.
Product
Registration
•Registering helps keep your product humming
with software updates, product support and our
warranty.
Last step of TV
setup
•You are at the last step of TV setup. If you have
not connected network, you can select ‘Set up
network’ or ‘Use without network’. If you have
connected network,Congratulations! You have
completed TV setup. Start to use.

11
STEP 6. Establish a network connection
1.Press the [] button on the remote control, press[ ˅] button to select Settings and then press [OK]to enter the Settings menu.
2.Select Network → NetworkConguration.
TV JACK
Modem Cabl
eL
AN CableLAN Cable
External Modem
(ADSL / VDSL / Cable TV)
IP Sharer (Router)
(with DHCP server)
LAN
Establish a wired network connection
Automatically obtain an IP address
1.Select Wired LAN. The TV will automatically obtain an IP address and connect to the network.
NOTE: The default option of IP Settings Mode is DHCP.
2.If the connection fails then "Disconnected" will display for the Ethernet status. Retry or enter the IP Settings, select Manual to input
the information again.
Manually enter the IP Settings
1.Select Manual.
2.Enter the IP Address, Netmask, Gateway, DNS Server 1 and DNS Server 2 in the menu. Next, select Connect.

12
Establish a wireless network connection
The TV can directly receive network signals via wireless router
1.Select Wireless. The list of networks will be displayed automatically.
2.Select a wireless network from the list, input the password and select Connect.
3.If the network connection does not appear in the list, select Refresh to refresh the list or select Add to manually enter SSID and
Security mode selection
Close the network connection
Select Off. The network connection will close.
Wireless router with DHCP
LAN Cable
Wireless LAN Adapter
built-in TV set

13
Step 7. Enjoy your TV!
Now that you’ve completed the first-time setup, your Home screen
is your starting point for using your TV. Your SHARP TV provides
a variety of entertainment options, so you'll always find something
new. Use your TV to watch live channels, access video on
demand to watch movies, and much more.
Press the Home button on your remote to get started.

14
Troubleshooting
If you are having trouble with your TV, first try turning it off and on again. If this does not fix the problem, check the tips in the following table. If your
problem is not listed in the following table, then contact us at one of the phone numbers on Page 2.
Issues Possible solutions
No sound or picture
• Check if the power cord is plugged into a powered AC outlet.
• Press the Power button on the remote control to activate the unit from 'Standby' mode.
• Check to see if the LED light is on or not. If it is, then the TV is receiving power.
I have connected an external
source to my TV and I get no
picture and/or sound.
• Check for the correct output connection on the external source and for the correct input connection on the TV.
• Make sure you have made the correct selection for the input mode for the incoming signal.
When I turn on my TV, there is a
delay for a few seconds before the
picture appears. Is this normal?
• Yes, this is normal. The TV is initializing and searching for previous setting information.
The picture is normal but there is
no sound
• Check the volume settings.
• Check if 'Mute' mode is set to On.
Sound but no picture or black and
white picture
• If the picture is black and white, unplug the TV from the AC outlet and replug it after 60 seconds.
• Check that the Color is set to 50 or higher.
• Try different TV channels.
The sound and/or picture is
distorted or appears wavy
• An electric appliance may be affecting the TV. Turn off any appliances that are nearby and move it farther away
from the TV.
• Insert the power plug of the TV set into another power outlet.
The sound and picture is blurry or
cuts out
• If using an external antenna, check the direction, position and connection of the antenna.
• Adjust the direction of your antenna or reset or ne tune the channel.
A horizontal or vertical stripe
appears on the picture and/or the
picture is shaking
• Check if there is an appliance or electric tool nearby that is causing interference.
The plastic cabinet makes a
"clicking" type of sound
• The 'click' sound can occur when the temperature of the television changes. This change causes the television
cabinet to expand or contract, which makes the sound. This is normal and the TV is OK.
The remote control does not work
• Conrm that TV still has power and is operational.
• Change the batteries in the remote control.
• Check if the batteries are correctly installed.

15
Product specifications
Model Name LC-65N7004U
Dimension
(W × H × D)
Without Stand 57.5 × 33.3 × 3 inches
(1 460 × 847 × 76 mm)
With Stand 57.5 × 36.1 × 12.2 inches
(1 460 × 916 × 311 mm)
Weight Without Stand 43.2 lbs (19.6 kg)
With Stand 44.5 lbs (20.2kg)
TV Stand Width(W × D) 47.1 × 12.2 inch
(1196 × 311 mm)
Class 65"
Active Screen Size (Diagonal) 64.5 inches
Screen Resolution 3 840 × 2 160
Audio Power 15 W + 15 W
Power consumption 170W
Power Supply 120 V ~ 60 Hz
Connectivity Built-in Wireless feature (2x2 dual band)
Ports 3 HDMI ports, 1 USB port, 1 LAN port for Ethernet, 1 Digital Audio Output, 1 RF Input, 1 Headphone Audio Output, 1
RCA Composite Video Input , 1 left/right Audio Input for Composite
Receiving Channels VHF: 2 - 13, UHF: 14 - 69, CATV: 1 - 125
Digital Terrestrial Broadcast (8VSB): 2 - 69
Digital cable (64/256 QAM): 1 - 135
Tuner Type Frequency synthesized
Receiving System Analog: NTSC
Digital: ATSC/QAM
Operating Temperature 5°C - 35°C(41°F - 95°F)

16
Operating Humidity 20% to 80% non-condensing
Storage Temperature -15°C to 45°C(5°F to 113°F)
Storage Humidity 10% to 70%, non-condensing
Disclaimer: All products, product specifications, and data are subject to change without notice to improve reliability, function, design or
otherwise.
