LC-19DV27UT
LC-22DV27UT
COMBINATION LIQUID CRYSTAL TELEVISION
AND DVDICD PLAYER
ENGLISH
OPERATION MANUAL
IMPORTANT:
•
To aid reporting in case of loss ortheft, please record
theTV/DVD's model and serial numbers
in the space
provided.The numbers are located at the rear of the
TV/DVD.
I Model No
Serial No.:
Location of the required Marking
The rating sheet and the safety caution are on
the rear of the unit.
CLASS 1
LASER PRODUCT
CERTIFICATION: COMPLIES WITH FDA RADIATION PERFORMANCE STANDARDS, 21 CFR SUBCHAPTER J.
COMPLIES WITH FDA PERFORMANCE STANDARDS FOR LASER PRODUCTS EXCEPT FOR DEVIATIONS PURSUANT
TO LASER NOTICE NO. 50, DATED JUNE 24,2007.
IMPORTANT INFORMATION
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
The lightning flash with arrow-head
symbol, within an equilateral triangle,
is intended
to alert the user to the
presence of uninsulated "dangerous
voltage" within the product's
enclosure that may be of sufficient
magnitude
to constitute arisk of
electric shock to persons.
•
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The exclamation point within a
triangle is intended
to alert the user
to the presence of important
operating and maintenance
(servicing) instructions
in the
literature accompanying the product.
@-1

@-2
IMPORTANT INFORMATION
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly
approved by the manufacturer could void the user's authority to operate this equipment.
CAUTION:
This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other
equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded
cables and connectors for connections.
"Note to CATV system installer: This reminder
is provided to call the CATV system installer's attention to Article 820-40 of
the National Electrical Code that provides guidelines for proper grounding and,
in particular, specifies that the cable ground
shall be connected to the grounding system of the building, as close to the point of cable entry as practical."
This product utilizes tin-lead solder, and fluorescent lamp containing asmall amount
of mercury. Disposal of these materials may be regulated due to environmental
considerations. For disposal or recycling information, please contact your local
authorities, the Electronic Industries Alliance: www.eiae.org, the lamp recycling
organization: www.lamprecycle.org or Sharp at 1-800-BE-SHARP (For U.S.A. Only)
CAUTION:
THIS DIGITAL VIDEO PLAYER EMPLOYS ALASER SYSTEM.
TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE READ THIS USER'S GUIDE CAREFULLY AND RETAIN FOR FUTURE
REFERENCE. SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT AN AUTHORIZED SERVICE LOCATION SEE SERVICE
PROCEDURE.
USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE
TO PREVENT DIRECT EXPOSURE TO LASER BEAM, DO NOTTRY TO OPENTHE ENCLOSURE. VISIBLE LASER RADIATION MAY BE
PRESENT WHEN THE ENCLOSURE IS OPENED. DO NOT STARE INTO BEAM.
DECLARATION OF CONFORMITY
SHARP COMBINATION LIQUID CRYSTAL TELEVISION AND DVD CD PLAYER, MODEL LC-19DV27UT/LC-22DV27UT.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
RESPONSIBLE PARTY:
SHARP ELECTRONICS CORPORATION
Sharp Plaza, Mahwah, New Jersey 07495-1163
TEL: 1-800-BE-SHARP
For Business Customers: URL http://www.sharpusa.com
INFORMATION:
This equipment has been tested and found to comply with the limits for aClass Bdigital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in aresidential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in aparticular installation.
Ifthis equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on acircuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.

DEAR SHARP CUSTOMER
Thank you for your purchase of the Sharp Combination Liquid Crystal Television and DVD/CD player.
To ensure safety and many years of trouble-free operation of your product, please read the Important
Safety Instructions carefully before using this product.
IMPORTANT SAFETY INSTRUCTIONS
Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if
improperly handled. This product has been engineered and manufactured with the highest priority on safety. However,
improper use can result
in electric shock and/or fire. In order to prevent potential danger, please observe the following
instructions when installing, operating and cleaning the product.
To ensure your safety and prolong the service life of
your Liquid Crystal Television, please read the following precautions carefully before using the product.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7)
Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. Apolarized plug has two blades with
one wider than the other. Agrounding type plug has two blades and athird grounding prong. The wide blade or
the third prong are provided for your safety. Ifthe provided plug does not fit into your outlet, consult
an electrician
for replacement of the obsolete outlet.
10) Protect the power cord from being walked
on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When acart
is used, use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods
of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in
any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally, or has been dropped.
Additional Safety Information
15) Power Sources-This product should be operated only from the type of power source indicated on the marking
label. If you are not sure ofthe type of power supply to your home, consult your product dealer or local power
company. For products intended to operate from battery power, or other sources, refer to the operating
instructions.
16)
Overloading-Do not overload wall outlets, extension cords, or integral convenience receptacles as this can
result
in arisk of fire or electric shock.
17) Object and Liquid Entry-Never push objects of any kind into this product through openings as they may touch
dangerous voltage points or short-out parts that could result
in afire or electric shock. Never spill liquid of any
kind on the product.
18) Damage Requiring
Service-Unplug this product from the wall outlet and refer servicing to qualified service
personnel under the following conditions:
a) When the AC cord or plug
is damaged,
b) If liquid has been spilled, or objects have fallen into the product,
c) If the product has been exposed to rain or water,
d) If the product does not operate normally by following the operating instructions.
Adjust only those controls that are covered by the operating instructions as an improper adjustment
of other
controls may result
in damage and will often require extensive work by aqualified technician to restore the
product
to its normal operation,
e) If the product has been dropped or damaged
in any way, and
f) When the product exhibits adistinct change
in performance -this indicates aneed for service.
19) Replacement
Parts-When replacement parts are required, be sure the service technician has used replacement
parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized
substitutions may result
in fire, electric shock, or other hazards.
20) Safety
Check-Upon completion of any service or repairs to this product, ask the service technician to perform
safety checks
to determine that the product is in proper operating condition.
21) Wall
or ceiling mounting-When mounting the product on awall or ceiling, be sure to install the product according
to the method recommended by the manufacturer.
@-3

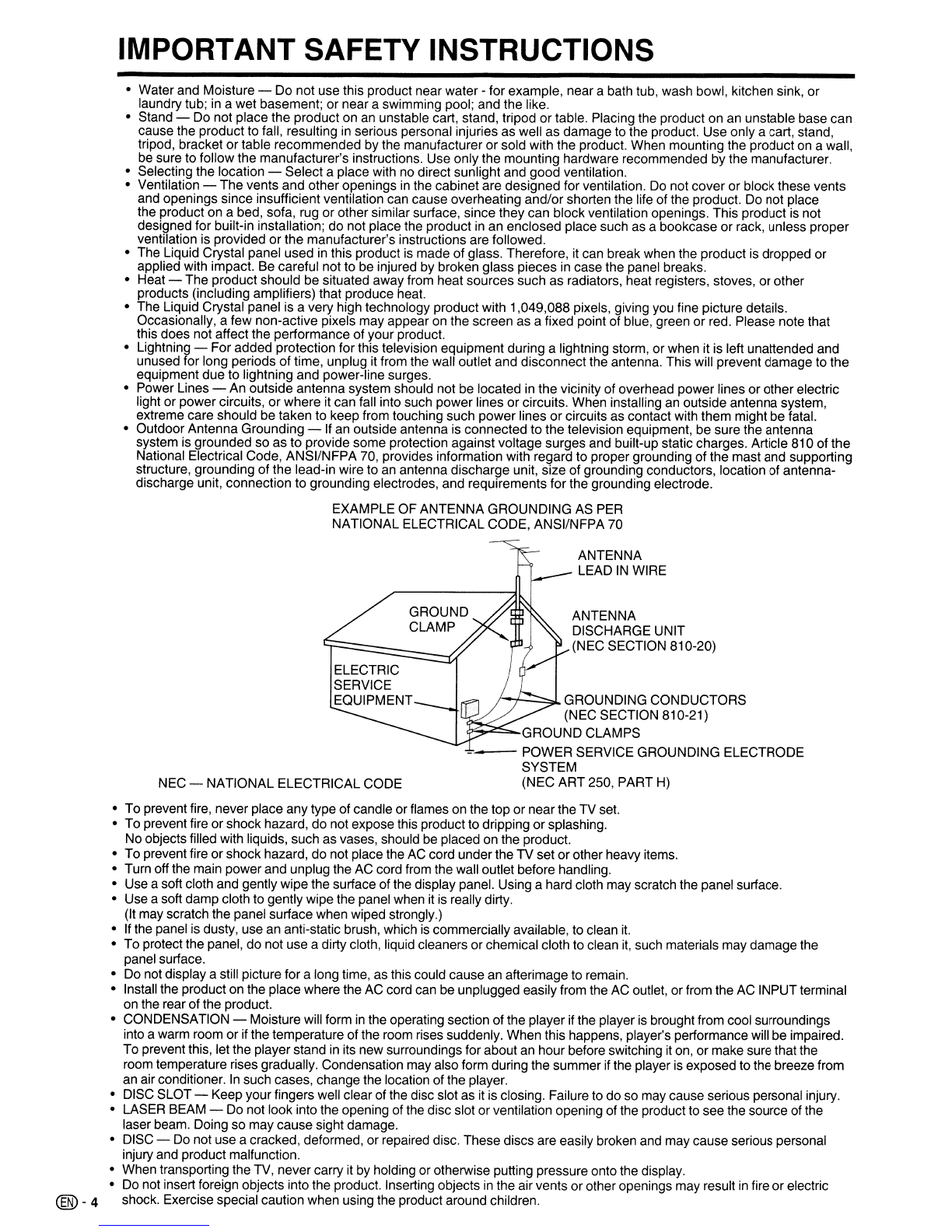

IMPORTANT SAFETY INSTRUCTIONS
•Water and Moisture -Do not use this product near water -for example, near abath tub, wash bowl, kitchen sink, or
laundry tub; in awet basement; or near aswimming pool; and the like.
•Stand -Do not place the product on an unstable cart, stand, tripod
or table. Placing the product on an unstable base can
cause the product to fall, resulting
in serious personal injuries as well as damage to the product. Use only acart, stand,
tripod, bracket
or table recommended by the manufacturer or sold with the product. When mounting the product on awall,
be sure to follow the manufacturer's instructions. Use only the mounting hardware recommended by the manufacturer.
•Selecting the location -Select aplace with no direct sunlight and good ventilation.
•Ventilation -The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents
and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place
the product on abed, sofa, rug
or other similar surface, since they can block ventilation openings. This product is not
designed for built-in installation; do not place the product
in an enclosed place such as abookcase or rack, unless proper
ventilation is proVided
or the manufacturer's instructions are followed.
•The Liquid Crystal panel used in this product is made of glass. Therefore, it can break when the product is dropped or
applied with impact. Be careful notto be injured by broken glass pieces in case the panel breaks.
•Heat -The product should be situated away from heat sources such as radiators, heat registers, stoves,
or other
products (including amplifiers) that produce heat.
•The
liqUid Crystal panel is avery high technology product with 1,049,088 pixels, giving you fine picture details.
Occasionally, afew non-active pixels may appear on the screen as afixed point of blue, green or red. Please note that
this does not affect the performance of your product.
•Lightning -For added protection for this television equipment during alightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the
equipment due to lightning and power-line surges.
•Power Lines -An outside antenna system should not be located in the vicinity of overhead power lines
or other electric
light or power circuits,
or where it can fall into such power lines or circuits. When installing an outside antenna system,
extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
•Outdoor Antenna Grounding -If an outside antenna is connected to the television equipment, be sure the antenna
system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the
National Electrical Code, ANSIINFPA 70, provides information with regard to proper grounding ofthe mast and supporting
structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-
discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
EXAMPLE
OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE, ANSI/NFPA 70
ANTENNA
LEAD
IN WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
(--,'--....:::::::..L..GROUNDING CONDUCTORS
(NEC SECTION 810-21)
~"':::::::::'-GROUND CLAMPS
-- POWER SERVICE GROUNDING ELECTRODE
SYSTEM
(NEC
ART 250, PART H)
ELECTRIC
SERVICE
EQUIPMENT
NEC -NATIONAL ELECTRICAL CODE
•To prevent fire, never place any type of candle or flames on the top
or near the TV set.
•To prevent fire
or shock hazard, do not expose this product to dripping or splashing.
No objects filled with liquids, such as vases, should be placed on the product.
•To prevent fire or shock hazard, do not place the AC cord underthe TV set or other heavy items.
•Turn off the main power and unplug the AC cord from the wall outlet before handling.
•Use asoft cloth and gently wipe the surface of the display panel. Using ahard cloth may scratch the panel surface.
•Use asoft damp cloth to gently wipe the panel when
it is really dirty.
(It may scratch the panel surface when wiped strongly.)
•If the panel is dusty, use an anti-static brush, which is commercially available, to clean it.
•To protect the panel, do not use adirty cloth, liquid cleaners or chemical cloth to clean it, such materials may damage the
panel surface.
•Do not display astill picture for along time, as this could cause an afterimage to remain.
•Install the product on the place where the AC cord can be unplugged easily from the AC outlet, or from the AC INPUT terminal
on the rear ofthe product.
•CONDENSATION -Moisture will form in the operating section of the player if the player
is brought from cool surroundings
into awarm room
or if the temperature ofthe room rises suddenly. When this happens, player's performance will be impaired.
To prevent this, let the player stand in its new surroundings for about an hour before switching it on,
or make sure that the
room temperature rises gradually. Condensation may also form during the summer if the player is exposed to the breeze from
an air conditioner.
In such cases, change the location of the player.
•DISC SLOT-Keep your fingers well clear of the disc slot as
it is closing. Failure to do so may cause serious personal injury.
•LASER BEAM -Do not look into the opening of the disc slot or ventilation opening of the product to see the source of the
laser beam. Doing so may cause sight damage.
•DISC -Do not use acracked, deformed,
or repaired disc. These discs are easily broken and may cause serious personal
injury and product malfunction.
•When transporting the TV, nevercarry it by holding
or otherwise putting pressure onto the display.
•Do not insert foreign objects into the
prodUCt. Inserting objects in the air vents or other openings may result in fire or electric
® -4shock. Exercise special caution when using the product around children.

IMPORTANT SAFETY INSTRUCTIONS
CHILD SAFETY
It Makes ADifference How and Where You Use Your Flat Panel Display
Congratulations on your purchase! As you enjoy your new product, please keep these safety tips in mind:
THE ISSUE
•The home theater entertainment experience is agrowing trend and larger flat panel
displays are popular purchases. However, flat panel displays are not always supported on
the proper stands or installed according to the manufacturer's recommendations.
•Flat panel displays that are inappropriately situated on dressers, bookcases, shelves,
desks, speakers, chests or carts may fall over and cause injury.
THIS MANUFACTURER CARES!
•The consumer electronics industry is committed to making home entertainment enjoyable
and safe.
TUNE INTO SAFETY
•One size does NOT fit all. Follow the manufacturer's recommendations for the safe
installation and use of your flat panel display.
•Carefully read and understand all enclosed instructions for proper use of this product.
•Don't allow children to climb on or play with furniture and television sets.
•Don't place flat panel displays on furniture that can easily be used as steps, such as a
chest of drawers.
•Remember that children can become excited while watching aprogram, especially on
a"larger than life" flat panel display. Care should
be taken to place or install the display
where it cannot be pushed, pulled over, or knocked down.
•Care should
be taken to route all cords and cables connected to the flat panel display
so that they cannot be pulled
or grabbed by curious children.
WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT YOUR FLAT PANEL
DISPLAY, ALWAYS:
•Use amount that has been recommended by the display manufacturer and/or listed by
an independent laboratory (such as UL, CSA, ETL).
•Follow all instructions supplied by the display and wall mount manufacturers.
•
If you have any doubts about your ability to safely install your flat panel display, contact
your retailer about professional installation.
•Make sure that the wall where you are mounting the display
is appropriate. Some wall
mounts are not designed to be mounted to walls with steel studs or old cinder block
construction.
If you are unsure, contact aprofessional installer.
• A minimum of two people are required for installation. Flat panel displays can
be heavy.
~~~.
www.CE.org/safety
Note: CEA is the preeminent trade association promoting growth in the $161 billion U.S.
consumer electronics industry. More than 2,200 companies enjoy the benefits of CEA
membership, including legislative advocacy, market research, technical training and
education, industry promotion and the fostering of business and strategic relationships.
@-s

TITLE 2
CHAPTER 2CHAPTER 3
@-6
Disc
Discs which can be played back
In this unit, use only discs that meet the standard, such
as those bearing the below logo marks on the disc label
surface. If you use anon-standard disc, we cannot
guarantee playback. Even if such adisc can
be played back,
we cannot guarantee the image or sound quality.
The DVD logo is aregistered trademark.
Media type Logo mark
DVD-Video
~
VI DEO
DVD-RJRW
~~
(Video format only) R
RW
R4.7
Audio CD'
cQ]Do~r~
OKiITAL AUDIO
CD-RJCD-RW (CD-DA, MP3, WMA
illl~~
[Q]o~~
or JPEG format) IReWritable I
';-MAI
•This unit is designed to playback music Compact Discs
(CD) that conform to the
CD standard. CDs that contain
(copy-restriction) signals to protect copyrights cannot be
played back.
oSome CD-RJRWs and DVD-RJRW can not be played back
depending
on the recording conditions.
o8cm discs can be played without an adapter.
Region management information
This unit is designed and manufactured to support the
region management information that is recorded on aDVD
disc. If the region number written on the DVD disc does not
correspond to the region number of this unit, this unit cannot
play that disc.
oThe region number of this unit is "1 ".
oThe unit will play DVD-Video discs marked with labels
containing "1" or "ALL".
Example: (j) ~
Operating DVD-Video
oSome operations of DVD-Video may be prohibited by the
manufacturer, or some operation methods or functions of
the
__ f>VD-Video may be different from the description in
this manual.
oIf you attempt an operation that is prohibited by either the
disc orthe unit, a"X' mark will appear on the TV screen.
For operations prohibited by the disc, see the information
that came with the disc.
oWhen the menu screen or the operation guide appears
during disc playback, follow the displayed information.
Discs which cannot be played back
The discs listed below cannot be played back in general.
Even if one of these can be played back,
it may not be
played back correctly.
If adisc is played back by mistake,
extensively loud sounds may blow the speakers or may
damage the hearing of those
in hearing range. Do not
playback the discs listed below.
CDG, Photo-CD, CD-ROM, CD-TEXT, CD-EXTRA,
SACD,
PD, DVD-ROM, SVCD, CVD, VCD, DVD-RAM,
DVD+RJRW, DVD audio, HD DVD, Blu-ray, etc.
The following DVD·Video discs may not be played back
on this unit:
•DVD-Video that do not have the region number "1" or
"ALL".
•PAL or SECAM DVD-Video.
oProhibited or business-use DVD-Video.
CD·R/CD·RWs cannot be played back for the following
reasons.
•Compatibility of the disc and this unit.
oCompatibility of the disc and the recorder used.
oUnfinalised discs.
Never use the following discs or accessories. It may
cause serious damage to the TV/DVD.
•Irregular shaped discs such as card shaped, heart shaped
•The ring protector or other disc accessories
•The 8cm disc adapter
•Stickered or papered discs
•Discs with scotch tape, glue or other remains of labels
Title/ChapterlTrack
ADVD-Video has large partitions called "Titles", and smaller
partitions within them called "Chapters".
DVD DISC
TITLE 1I
1-------- .. • ~.----------I
CHAPTER 1CHAPTER 2CHAPTER 1
Aaudio CD has other partitions called "Tracks". Anumber is
allotted to each partition and these numbers are called "title
numbers", "chapter numbers" or ''track numbers".
IAudio CD
'[
. ..
I TRACK 1 TRACK 2TRACK 3TRACK 4TRACK 5
ImJJ ..... 11 I.lI.l .....11 J J JJI ..... I IJ .• w .....11 nI.l .....1

Disc
Handling discs
Removing the Disc from its case
Be sure to hold the edge of disc. Do not touch the surface of
the disc.
Pick up the disc gently from the case.
• Do not scratch the disc.
•
Do not get dirt on the surface of the disc.
•
Do not stick alabel or adhesive tape on the disc.
• Do not drop or bend the disc.
Storing discs
• Store the disc in the case to avoid any risk of scratches,
dirt
or damage.
• Do not leave the disc exposed to direct sunlight or in hot
or humid places.
Cleaning discs
Wipe the disc with aclean, dry cloth from the center outward
toward
the edges.
• Do not wipe the disc in acircular motion around the
center.
• Do not use liquid or aerosol cleaners.
o
x~~
Notes on copyright
•This product incorporates copyright protection technology
that
is protected by U.S. patents and other intellectual
property
rights. Use of this copyright protection
technology
must be authorized by Macrovision, and is
intended for home and other limited viewing uses only
unless otherwise authorized by Macrovision. Reverse
engineering or disassembly is prohibited.
•
Unauthorized recording of copyrighted television
programs, films, video cassettes and other materials may
infringe the rights of copyright owners and be contrary to
copyright laws.
• Manufactured under license from Dolby Laboratories.
"Dolby" and the double-D symbol are trademarks of
Dolby Laboratories.
•
"HDMI, the HDMIIogo and High-Definition Multimedia
Interface
are trademarks or registered trademarks of
HDMI Licensing LLC."
•Manufactured under license under U.S. Patent #:
5,451,942 &other U.S. and worldwide patents issued
& pending. DTS and DTS Digital Out are registered
trademarks
and the DTS logos and Symbol are
trademarks of DTS, Inc. ©1996-2008 DTS, Inc. All
Rights Reserved
• Products that have earned the ENERGY STARl&' are
designed to protect the environment through superior
energy efficiency.
@-7

Supplied accessories
Make sure the following accessories are provided with the product.
SHARP.
Remote control unit
(X1)
Page 10
"API' size battery
(X2)
Page 10
AC cord (X1)
Page 9Cable Tie
(X 1)
Page 9
iii
Screw (X3)
Page 8Operation manual (X1)
l\!mD
•Always use the AC cord supplied with the TV/DVD.
To avoid scratching the frame or screen, please use asoft, lint free cloth for cleaning. Approved cleaning cloths are
available directly from Sharp
in single (OOZ-LCD-CLOTH) or triple (OOZ-LCD- CLOTH- 3) packs. Call1-800-BE-SHARP
for ordering, or VISIT www.sharpusa.com/SharpDirect.
QUICK REFERENCE
Attaching the stand
•Before attaching (or detaching) the stand, unplug the AC cord from the AC input terminal.
•Before performing work spread cushioning over the base area
to lay the TV on. This will prevent it from being damaged.
~
l\!mD
•To detach the stand, perform the step in reverse order.
Screws (X3)
iii
•Attach the stand in the correct direction.
•Be sure to follow the instructions. Incorrect installation of the stand may result
in the TV falling over.
1Confirm the 3screws supplied with the TV. 3For protection, sheets
are covering the product.
Please remove these
sheets before use.
2Remove the covering sheet of the stand.
CD Insert the stand to the bottom of the TV.
®Insert and tighten the 3screws into the 3holes on the
bottom of the stand. S
ft h"
ocus Ion
~
Screw
Ventilation &Cleaning Tips
Keep your TV/DVD in awell ventilated area and make sure not to place it by aheat source or use near
water. The TV/DVD
is designed for AC use only and should be used with supplied AC cord.
Clean the screen by spraying asoft lint free cloth with water to lightly moisten.
Gently wipe and avoid pressing on the screen. To clean the outer cabinet, use the same method.
Do not use liquid or aerosol cleaners.
® -8 The screen is glass and can be scratched or broken when dropped or impacted.

QUICK REFERENCE
QUICK INSTALLATION TIPS
1Attach your antenna to the back ofthe TV/DVD.
(See page 14.)
2Connect the AC plug for the TV/DVD into the wall outlet.
LJ
'----,If-----c:::P> .. IAC outlet I
•Place the TV/DVD close to the AC outlet, and keep the
power plug within reach.
RmD
•TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT
TOUCH UN-INSULATED PARTS OF ANY CABLES
WITH THE AC CORD CONNECTED.
3Secure cables and cords with the supplied cable tie so
that they
do not get caught when mounting the cover.
4How to turn on the TV/DVD for the first time.
A) Press POWER
on TV/DVD.
~ +~
IVOL
i -~
~ "A~
I I CH
... v~
I
MENU ~
I INPUT
ENTER ~
POWER
.... .a-4--- POWER
B) POWER indicator
on the front of the TV/DVD lights
GREEN.
===~
LJ
SHARP
a
POWER indicator
•Speaker cannot be detached from the TV/DVD.
•TV/DVD angle cannot be adjusted.
@og

QUICK REFERENCE
If the remote control fails to operate TV/DVD functions, replace the batteries in the remote control unit.
1Open the battery cover. 2Insert two "AA" size batteries
(supplied with the product). 3Close the battery cover.
oPlace the batteries with their terminals
corresponding to the (+) and H
indications in the battery compartment.
Bmm
Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.
o Do not mix batteries of different types. Different types of batteries have different characteristics.
• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical
leakage in old batteries.
o Remove batteries as soon as they are worn out. Chemicals that leak from batteries that come in contact with skin can
cause arash. If you find any chemical leakage, wipe thoroughly with acloth.
o The batteries supplied with this product may have ashorter life expectancy due to storage conditions.
oIf you will not be using the remote control unit for an extended period of time, remove batteries from it.
Remote control
sensor
®-10
IMPORTANT:
The POWER indicator on the television should light GREEN indicating you have power to the TV/DVD.
If the POWER indicator
on the television still does not light up, press POWER on the remote control to turn the
power on.
POWER
~OlSf'!.J,~rvIDVO EJECT
~ S?e",S2. ~
000
CD®®f1
0®@lj
IMPORTANT:
IF THE UNIT DOES NOT POWER ON -UNPLUG THE TELEVISION FROM THE OUTLET AND REPEAT THE
INSTALLATION STEPS.
IF YOU STILL ENCOUNTER NO POWER, PLEASE CONTACT
US AT 1-800-BE-SHARP.

Contents
IMPORTANT INFORMATION 1
DEAR SHARP CUSTOMER 3
IMPORTANT SAFETY INSTRUCTIONS 3
Disc 6
Discs which can be played back 6
Discs which cannot be played back 6
Title/ChapterfTrack 6
Handling discs 7
Supplied accessories 8
QUICK REFERENCE 8
Attaching the stand 8
Contents 11
Part names 12
TV/DVD (Front) 12
TV/DVD (Rear) 12
TV/DVD (Left) 12
Remote control unit 13
Preparation 14
Using the remote control unit.. 14
Cautions regarding remote control unit.. 14
Antennas 14
Using external equipment 15
Displaying an external equipment image 15
Connecting to External Equipment 15
Watching TV 16
Preparation 16
Turning on the power 16
Auto Setup 16
Select the TV mode 16
Turni
ng off the power 16
Changing channels 16
Auto Ch Memory 17
Skipping stored channel 17
Clear All 17
Display the channel information 17
Setting MTS/SAP stereo mode 17
Selecting the digital audio language 18
View mode for 4:3 programs 18
View mode for HD programs 18
Labeling channels 18
Closed captions and digital closed captions 19
Caption setup 20
Password setting for parental control. 20
How to enter the Lock menu 20
To clear the all V-Chip settings 20
Parental control (V-CHIP)
21
TV Parental Guidelines (TV Guidelines) 21
Voluntary movie rating system (MPAA) 21
Canadian rating systems 22
Canadian English ratings 22
Canadian French ratings 22
How to temporarily release the V-Chip block 22
Other convenience functions 23
Menu operation buttons 23
Quick guide for MENU operation 23
Connecting a PC (Personal computer) 25
Viewing an image from a PC 25
Displaying an image from a
PC 25
PC compatibility chart 25
Watching the DVD 26
Preparation 26
Turning
on the power 26
Select the DVD mode 26
Turning off the power 26
Playback procedure 26
Status display of DVD disc 26
Special playback 27
Zooming 27
Locating desired scene
27
Repeat playback 27
A-B Repeat playback 27
Marking desired scenes
28
Changing angles 28
Changing soundtrack language 28
Subtitles
28
MP3IWMAlJPEG and Audio CD operation 29
MP3IWMAlJPEG CD information 29
Loading CD 30
MP3IWMA and Audio CD playback 30
Select Files 30
JPEG playback 30
Slide show playback 30
Repeat playback (CD)
31
Random playback (CD) 31
Program playback (CD) 31
Function setup 31
Basic operation buttons 31
Quick guide for DVD MENU operation 31
Parental control setting 33
Set the new password 33
Temporary disabling of rating level by DVD disc
33
Appendix 34
Language code list 34
Troubleshooting 35
Troubleshooting-Digital broadcasting 35
Troubleshooting-PC mode
35
Troubleshooting-DVD 36
Specifications
37
Calling for Service 38
LIMITED WARRANTY ;38
Dimensional Drawings
•The dimensional drawings for the TV/DVD set are
shown
on the inside back cover.
@-11

Part names
TV/DVD (Front) TV/DVD (Left)
POWER indicator Channel AI
Jt./~ PLAY button
Channel vIT
I. STOP button
MENU button
INPUT/ENTER button
1\
POWER
~~-----J
Remote control sensor
~
•The buttons on the main unit have the same functions as
the same buttons on the remote control. Fundamentally,
this operation manual provides adescription based on
operation using the remote control.
~ EJECT button
Volume (VOL-I+)I
"4/~buttons
POWER button
~
.......
-
I
!Disc slot
r~O
!
---t-H: .+0
II f-o
~
':'~'O
,
··0
-II ~. ,,0
ii·
o
I I CH
-... vO
;; '9-
_II "L
o.i
Vo
-·0
II I INM ::----
,J..
o
--ENTER 0 ,....,.,
e
II ~,
ue--.....
t
h7
TV/DVD (Rear)
Listening with headphones
Plug the headphone mini-plug into the
headphone jack located on the back
of the
main unit.
Adjust the sound volume using
VOL (+)/(-)
on the remote control.
IO_Cll @J e:;I 0
- -~::r COAXIAL DIGITAL AUDIO OUTPUT le,m;na'
INPUT 3terminal
® o@)
D
ACINPUT
INPUT 2terminals
r
~Ji~li;i~iiliii~!G~ ANT.lCABLE in
~
=
=
=
111=""='9.
=
=
=
=
INPUT 1terminals INPUT 4terminals
~
•The illustrations in this operation manual are for explanation purposes and may vary slightly from the actual operations.
•The examples used throughout this manual are based on the LC-22DV27UT model.
@-12

Part names
Remote control unit
There is aprotective film covering the face of the remote
control. Please remove this film before use.
~
•When using the remote control unit, point it at the TV/DVD.
(See page 10.)
4 REV: Review playback. (See page 27.)
5SKIP ~.h~: Skip chapter to reverse or forward direction.
(See page 27.)
6 STILl/PAUSE: Still picture of DVD /Pause CD sound.
(See page 27.)
7SETUPITV MENU: TV mode -Display menu of TV /
DVD mode -Call up initial setup mode. (See pages 23,
31.)
8 "'/T/~/~/ENTER: Select adesired item on the screen.
SLOW .... 1/ J~: Reverse/Forward -slow motion. (See
page 27.)
9EXIT/CANCEL: Turn off the menu screen /Reset
information in the menu.
10 PLAY MODE: Select playback mode. (See page 27.)
11 AUDIO: Switch the sound of TV /Change sound track
language. (See pages 18,28.)
12 RETURN: Turn off the DVD setup menu screen.
13 A-B REPEAT: Repeat playback between Aand B. (See
page 27.)
14 DISPLAY: Display the current channel (or input source)
information on the screen. (See page 17.)
15 TV/DVD: Switch between TV/AV and DVD. (See pages
16,26.)
16 EJECT: Eject the disc. (See page 26.)
17 SLEEP: Allows you to set atime when the TV/DVD
automatically switches to standby. Each time you press
this button, the remaining time setting switches by 10
minutes up to 2hours. This display will disappear after
afew seconds, and the sleep timer automatically starts
counting down.
•If you want to adjust the sleep timer again, you can
press this button repeatedly then change the time
setting.
•Select "Off" by pressing SLEEP repeatedly to cancel
the sleep timer.
•The TV/DVD will enterthe standby mode when the
remaining time reaches zero.
18 INPUT: Select input source. (See page 15.)
19 VIEW MODE: Select the screen size. (See page 18.)
20 VOL +/-: Set the volume.
•To increase the volume, press VOL+.
•To decrease the volume, press VOL-.
• VOL+/- on the TV/DVD operates the same as VOL+/-
on the remote control unit.
21 CH A/V: Select the channel. (See page 16.)
22 MUTE: Mute the sound. "Mute" will be displayed on the
screen, and the sound is silenced. The muting feature
can be released by pressing this button again or one of
the VOL +/- buttons.
•Sound via the COAXIAL DIGITAL AUDIO OUTPUT
terminal is not muted.
23 FWD: Fast forward playback. (See page 27.)
24 PLAY: Playback. (See page 26.)
25 STOP: Stop. (See page 26.)
26 DVD MENU: Display DVD menu.
•Press J;./T /~/~ to select desired title.
27 TOP MENU: Display title menu.
•Press J;./T/~/~ to select desired title.
28 ANGLE: Change playback channel. (See page 28.)
29 ZOOM: Zoom. (See page 27.)
30 DIRECT SKIP: Locating desired scene of DVD. (See
page 27.)
31 MARKER: Index (DVD). (See page 28.)
SHARP
14 15 16
r---j--j-Jl'
I POWER '. II
! ~ DiSPlJ.Y TVIIMJ EJECT •I
---:-:--i ~ EJ G:J m1 17
i ~LE~pJnEW"~ '~~ II 18
i ~ c;J (§~1'--19
2 _7;-11 ~ : ~ ~ II 20
i SP.'"Ll @. CfJ.~t 8.~ '; '.----;-:--
3-;-'----'; G)@ G) 1fJ II 21
L0 " 22
4 'i SKIP L REV FWoJ SKIP II 23
5 • 8~S(!E)
Ii STiLUPAUSE PLAY. Jr""::'sr;::o::=p :"""";1-;-'-- 24
6 ---;-;j-;CJE) eBB [".>.; 125
II SETUPITV MENU DVD MENU II
~ ---+I~! 0 • 0;-...,1-;---- 26
1
,
9 ~~~gEL To,P"~ 27
110 ®II
10 Ii AUDIO ~VMOO£ ANGLEJ ZOOM II 28
11 ; @2) 0®029
II RETURN A·B ~PEAT MARKER DIRECT SKIP IJ
12 -~I ,-@CDCJ(ig---:'-;--1-
30
13 I I I I 31
I
; I
~---------~
POWER: Switch the power on or enters standby mode.
(See page 16.)
2 0-9: Set the channel. (See page 16.)
3 • (DOT) /SUBTITLE: To select 4-digit channel number.
(See page 16.) /Set subtitle. (See page 28.)
@-13

Preparation
Using the remote control unit
Use the remote control unit by pointing it towards the remote control sensor on
the TV/DVD. Objects between the remote control unit and the remote control
sensor may prevent proper operation.
Cautions regarding remote control unit
•Do not expose the remote control unit to shock.
In addition, do not expose the remote control unit to liquids, and do not place in an area
with high humidity.
•Do not install or place the remote control unit under direct sunlight. The heat may cause
deformation of the remote control unit.
•The remote control unit may not work properly if the remote control sensor
on the TV/DVD
is under direct sunlight or strong lighting. In such cases, change the angle ofthe lighting or
the TV/DVD, or operate the remote control unit closer to the remote control sensor.
Antennas
To enjoy aclearer picture, use an outdoor antenna. The following is abrief explanation of the types of
connections that are used for acoaxial cable. If your outdoor antenna uses a75-ohm coaxial cable with an
F-type connector, plug
it into the antenna terminal at the rear of the TV set.
1. A 75-ohm system is generally around cable with F-type
connector that can easily be attached to aterminal
without tools (Commercially available).
F-type connector
•
-----m 75-ohm coaxial cable (round)
2. A300-ohm system is aflat "twin-lead" cable that can be
attached to a75-ohm terminal through a300/75-ohm
adapter (Commercially available).
300-ohm twin-lead cable (flat)
caB F-type connector should be
fingertightened only.
When connecting the RF cable to the TV set, do not tighten
F-type connector with tools.
If tools are used, it may cause damage to your TV set. (The
breaking of internal circuit, etc.)
~~ ~F-type coooe<:lo<
75-ohm coaxial cable
Connecting Antenna Cable Home Antenna
CD Cable without aCable TV lead-In terminal (7S-ohm)
CATV converter --------- ~ D>~\==<CI
Coaxial cable
(commercially available)
@ VHF/UHF antenna
•Connect
the antenna cable to the
TV using one of the methods in the
illustration as shown <CD, @, @ or @).
or 7S-ohm coaxial cable (round)
300-ohm twin-lead cable (flat)
~~~~~===.
To TV antenna terminal
300nS-ohm adapter
(commercially available)
300-ohm
twin-lead cableCombiner
~
(commercially
available)
300-ohm twin-lead cable
CJ
r=~~~~;;:=-~~-----iOlJ[Q-:Q
or 7S-ohm coaxial cable /
~t::::. ====l1J1}
VHF UHF
ANTENNA ANTENNA
Home Antenna
7S-ohm coaxial cable (round) terminal (7S-ohm)
'---- ........ -I!J D>~\==<CI
Coaxial cable
(commercially available)
@Combination VHFI
UHF antenna
@Separate VHFI
UHF antenna
@-14

Using external equipment
You can connect many types of external equipment to your TV/DVD like a DVD player, VCR, Digital TV tuner,
HDMI equipment, game console or camcorder.
Displaying an external equipment image
POWER
~
DISPLAY TV/DVD EJECT
800m
SLEEP VIEW MODE INPUT
o 0 G:J![l
~ @@r:J_OL
@~®8
0®®G
S0E@O~
Wi
~EJECTO
.+0
I VOl
. -0
I
~. A«)
I I CH
•. vO
I
MENU 0
I INPUT
ENTERCl)
e
STILUPAUSE PLAY STOP
000
AUDIO PLAY MODE ANGLE ZOOM
@DOCIDO
To view external source images, select the input
source from "Source Selection" menu using 0-5 on
the remote control.
SOl.lrc:eSelectlon
lit
l.Inpul1
2.1npul2
3.lnpul3
4.1npUl4
5.D\l0
[0 5] Select
•Each time INPUT is pressed, "Source Selection" item
toggles.
•
You can also select "Source Selection" item by pressing
./T.
•To protect equipment. always turn off the TV before
connecting aDVD player, VCR, Digital TV tuner, HDMI
equipment, game console, camcorder or other external
equipment.
~
•Please read the relevant operation manual (DVD player,
etc.) carefully before making connections.
•Refer to your external equipment operation manual for the
signal type.
Connecting to External Equipment
Connecting a DVD player, VCR, Digital TV tuner, HDMI equipment game console or camcorder.
Terminal on the TV/DVD Cable
Terminal on external
eauioment
INPUT 1I-
-.
-1AV cable (commercially available) r
--
@
L@@R
-
-.
=Jl-VIDEO AUDIO
--
INPUT 2Component video cable
:)(commercially available) [:y
P, P,
I.
@@@
COMPONENT
Audio cable
L@ @R
. . :(commercially available) :
)(AUDIO
INPUT 1S-VIDEO cable
II
(commercially available)
~
••• Audio cable •
L@ @R
:(commercially available) :S-VIDEO AUDIO
)(
INPUT 3HDMI-certified cable
t!E7lJ
•
d~~~P
(commercially available)
~D
HDMI
DIGITAL AUDIO Coaxial cable
@]
OUTPUT I(commercially available)
={]j[)::=>
c:::::(]]O=
DIGITAL
AUDIO
INPUT
~
•The S-VIDEO terminal takes priority over the video terminals.
•When connecting an HDMI-DVI conversion adapter/cable to the HDMI terminal, the image may not come
in clearly.
•When using an HDMI-DVI conversion adapter/cable, use INPUT 3and AUDIO terminal.
@-15

Watching TV
Preparation Select the TV mode
Turning on the power
Press POWER on the TV/DVD, or POWER on the
remote control.
TV
status indicator (POWER)
Perform the following steps before you press POWER
on the remote control unit.
1Insert the batteries into the remote control unit.
(See page 10.)
2Connect the antenna cable to the TV/DVD. (See
page 14.)
3Plug in the AC cord to the AC outlet. (See page 9.)
ON Lighting (Green)
Press TV/DVD to select the TV mode.
Turning off the power
Press POWER on the TV/DVD, or POWER on the
remote control.
• The TV enters standby mode and the image on the screen
disappears.
•The POWER indicator on the TV/DVD changes to Red.
Rm1D
•If you are not going to use this TV/DVD for along period of
time, be sure to remove the AC cord from the poweroutlet.
•Weak electric power is still consumed even when POWER
is turned off.
Changing channels
VHF/UHF channels
CABLE TV channels
Auto Setup
You can change channels in several ways.
Method 1
Using
CH A/Von the remote control unit or on the
TV/DVD.
Rm1D
•If your cable-TV system includes analog and digital
channels using the same channel number, your channel
up function will scroll through the analog channel first,
then the digital channel. Although it may appearas though
the channel does not change, it actually moves from the
analog to the digital channel
in sequence.
If you use channel-down, it will move
in reverse, from the
digital channel to the analog channel.
Method 2
Using remote control buttons 0-9, •(DOT) to select
channels for VHF/UHF/CATV/DIGITAL.
To select a 1 or 2-digit channel number (e. g., Channel 5):
Press 5
To selecta3-digit channel number (e. g., Channel 115):
Press 1 ~1 ~5
To select a4-digit channel number (e. g., Channel 22.1 ):
Press 2~2~ •(DOT) ~1
Rm1D
• When selecting a 1-digit channel number, it is not
necessary to press 0before the number.
•When you enter 0-9 only, channel selection will be made
if there is no operation within afew seconds.
Rm1D
•When you enter 0-9 only, channel selection will be made
if there is no operation within afew seconds.
•If
you press 0 by itself in "Air" reception, nothing will
happen.
•Complete the above steps within afew seconds.
•When you enter
0-9 and •(DOT), channel selection will
be made if there is no operation within afew seconds.
Lighting (Red)OFF/Standby
•POWER indicator (Green):
The TV/DVD is on. ("Please
wait" will appear for afew seconds on the screen.)
The Auto Setup menu appears the first time you turn
on the TV/DVD, and assists you
to select the menu
language, specify the Air/Cable setting,
and program
your channels automatically.
IMPORTANT: Make sure that the antenna or cable TV
system connection
is made!
1The turn on theTV/DVD, press POWER (POWER
indicator on the front of the unit changes green. It may
take approx. 10 seconds for apicture to appear on
screen.).
2The "Auto Setup" function begins. Press "4/~ to select
your desired language.
3Press £/T to select "Signal Type", then press "4/~ to
select "Cable" or"Air".
4Press £/T to select "Automatic Search", then press
ENTER.
SThe TV will begin memorizing all the channels available
in your area.
•It may take from 15 minutes to 30 minutes to complete
memorizing digital cable channels.
Depending on the reception condition, aBAR display
may not advance for several minutes, please be
patient.
Rm1D
•If you press EXIT in the process of "Auto Setup", the Auto
Setup stops and changes to the normal screen.
•When you make amenu selection, your changes occur
immediately.
You do not have to press EXITto see your
changes.
•When you are finished programming the menus, press
EXIT.
@-16

Watching TV
3Press EXIT to return to the normal screen.
Setting MTS/SAP stereo mode
When the TV receives aanalog signal, the analog
information will appear.
The TVIDVD has afeature that allows reception of
sound other than the main audio for the program.
This feature is called Multi-channel Television Sound
(MTS). The TV/DVD with MTS can receive mono
sound, stereo.sound and Secondary Audio Programs
(SAP). The SAP feature allows aTV/DVD station to
broadcast other information, which could
be audio in
another language or something completely different
like weather information.
•Channel label (if preset)
•Signal type
•
Audio information (Stereo, SAP or Mono)
•Resolution
•Channel number
•V-Chip rating
•Sleep timer
•Picture size
Display the channel information
Press DISPLAY to display the current channel (or
input source) information
on the screen.
When the TV receives adigital signal, the digital information
will appear for afew seconds.
•Channel number •Station name
•Channel label (if preset) •Broadcast program name
•V-Chip rating •Signal type
•Sleep timer •Audio language
•Program guide •Picture size
•Resolution
You can enjoy Hi-Fi stereo sound or SAP
broadcasts where available.
•Stereo broadcasts
View programs like live sporting events, shows and
concerts in dynamic stereo sound.
•SAP broadcasts
Receive TV broadcasts in either MAIN or SAP sound.
MAIN sound: The normal program soundtrack (either in
mono or stereo).
SAP sound: Listen to asecond language, supplementary
commentary or other information. (SAP
is mono sound.)
If stereo sound is difficult to hear.
•Obtain a clearer sound by manually SWitching to fixed
mono-sound mode.
Rm1D
•MTS only operates while in TV mode.
•MTS is available only when receiving analog broadcasting,
not when receiving digital broadcasting.
•When the
TV receives astereo or SAP broadcast, the
word "Stereo" or "SAP" displays on-screen if you press
DISPLAY.
Changing MTS
You can change MTS as shown below to match the
television broadcast signal.
1 In analog TV mode, press AUDIO and the "Audio"
menu screen displays. "MTS" will be highlighted.
2Press
AUDIO again or ..,.1 .. to select "Stereo",
"SAP" or "Mono".
Clear All
Auto
Ch Memory
Auto Ch Memory makes the TVIDVD look for all
channels viewable
in the set area.
1Press TV MENU and the MENU screen displays.
2Press .. IT to select "Channel", then press .. or ENTER.
Press
.. IT to select "Auto Ch Memory", then press .. or
ENTER.
3Press .. IT to select "Signal Type", then press ~/ .. to
select "Cable" or"Air".
4Press .. IT to select "Automatic Search", then press
ENTER.
S The TV will begin memorizing all the channels available
in your area.
•It may take from 15 minutes to 30 minutes to complete
memorizing digital cable channels.
Depending on the reception condition, aBAR display
may not advance for several minutes, please be
patient.
Rm1D
•Memorizing channels is best accomplished during evening
"PRIMETIME" hours, as more stations are broadcasting
digital signals. Memorizing channels can only be
accomplished while astation is broadcasting adigital
signal to set that channel into memory.
•New digital channels may be added to your area
periodically,
it is recommended to perform the "Automatic
Search" procedure regularly.
All channels are deleted from the channel memory.
1Press TV MENU and the MENU screen displays.
2Press .. IT to select "Channel", then press" or ENTER.
3Press .. IT to select "Add/Delete", then press" or
ENTER.
4Press .. IT to select "Clear All", then press .. or ENTER.
SPress EXIT to return to the normal screen.
Skipping stored channel
You can set channel selection disabled using CH A/V.
1Press TV MENU and the MENU screen displays.
2Press .. IT to select "Channel", then press .. or ENTER.
3Press .. IT to select "Add/Delete", then press .. or
ENTER.
4Press .. IT to select "Add/Delete", then press .. or
ENTER.
SPress .. IT to select the channel that you want to skip.
6Press ~/ .. to select "Delete" for selected channel.
7Press EXITto return to the normal screen.
Rm1D
•To add adigital channel you are watching:
Select achannel you want to add. Then select "Adding
Channel" in step 4, press .. or ENTER.
•To release the skipping channel:
Select "Add" in step 6.
@-17

Watching TV
Selecting the digital audio language
When two or more audio languages are included in a
digital signal,
you can select one of the audio languages.
1
In digital TV mode, press AUDIO and the "Audio
Language" menu screen displays.
2Press
J./T or 0-6 to select your desired language.
3Press EXIT to return to the normal screen.
~
•Digital audio is active only when receiving digital
boardcasting, not when receiving analog boardcasting.
View mode for 4:3 programs
1Press VIEW MODE.
•The View mode menu displays.
•The menu lists the view mode options selectable for
the type of video signal currently being received.
2Press 0-3 to select each view mode directly while
the View mode menu
is still on the screen.
•Each time VIEW MODE is pressed, View Mode item
toggles.
•You can also select View Mode item by pressing "/T.
•You can sequentially select aview mode that has its
own aspect ratio.
•You can select "Dot by Dot" in PC input mode.
View mode for HD programs
Stretch mode is available for HD programs.
Suitable for viewing wide-screen 1.78:1 aspect-ratio
programs. When viewing 1.85:1 programs, the stretch
mode will still show very thin black bands at the top
and bottom of the screen.
Labeling channels
To create channel labels
1Select achannel you want to label.
2Press TV MENU, then press
J./T to select
"Channel", then press
.. or ENTER.
Press J./T to select "Ch Label", then press .. or
ENTER. The Ch Label menu will appear.
3Press .,./ .. to select achannel you want to label,
then press
T.
,-
ChLaoel
LabolClea<
4Press .,./ .. repeatedly until the character you want
appears
in the first space.
°0°
o0
°0°
o0
DQU
() ()
°0°
o0
Side Bar:
Suitable for viewing conventional
4:3 programs
in their normal
format.
S.Stretch (Smart stretch):
Suitable for stretching 4:3
programs to fill the screen.
Zoom:
Suitable for viewing wide-screen
2.35:1 anamorphic DVDs
in full
screen.
Stretch:
This mode is useful for 1.78:1 DVDs.
When viewing 1.85:1 DVDs,
stretch mode will still show very
thin black bands at the top and
bottom of the screen.
Dot by Dot (for PC/HOMI mode
only):
Detects the resolution of the signal
of
the image and it will be shown
on the screen with same amount of
pixels.
The characters rotation as follows:
[
0"'9 ~A"'Z ~_. 'O@/+=-J
L ...... ,SPACE +-, ----
If the character which you desire appears, press
ENTER. Repeat this step to enter the rest of the
characters.
When you finish inputting the label name, press
ENTER.
SPress EXIT to return to the normal screen.
6Repeat steps 1-5 for other channels. You can
assign alabel to each channel.
To erase channel labels
1Select achannel with alabel which you want to
remove.
2Press TV MENU, then press
J./T to select
"Channel", then press
.. or ENTER.
Press J./T to select "Ch Label", then press .. or
ENTER to display the Ch Label menu.
3Press
J./T to select "Label Clear". Press .. or
ENTER.
4Press EXIT to return to the normal screen.
SRepeat steps 1-4 to erase other channel labels.
@)-18
~
•You can enter to the same menu screen from "Picture" menu.
oYou cannot select "Side Bar" and "S.Stretch" when a720p, 1D8Di
or 1 D8Dp signal is being input.
oSome High Definition and/or Digital broadcasts may not allow you
to change the picture size.
o In PC Mode, only the "Side Bar", "Stretch" and "Dot by Dot"
picture size features are available. In PC Mode (WXGA), only the
"Stretch" and "Dot by Dot" picture size features are available.

Watching TV
Closed captions and digital closed
captions
R1mD
•Closed Caption might not appear according to the
condition ofthe signal from the broadcasting station.
Your TV/DVD is equipped with an internal Closed
Caption decoder. It allows you to view conversations,
narration and sound effects as subtitles on your
TV/DVD. Closed Captions are available on some TV
programs and
on some VHS home video tapes at the
discretion of the program provider.
Digital Closed Caption service is anew caption
service available only on digital TV programs (also
at the discretion of the service provider).
It is amore
flexible system than the original Closed Caption
system, because it allows avariety of caption sizes
and font styles. When the Digital Closed Caption
service
is in use, it will be indicated by the appearance
of a3-letter abbreviation that also indicates the
language of the Digital Closed Captions: ENG
(English), SPA (Spanish), FRA (French) or other
language codes.
Not all programs and VHS videotapes offer closed
captions. Please look for the
"~' symbol to ensure
that captions will be shown.
In the Closed Caption system, there can be more than
one caption service provided. Each
is identified by
its own number. The "C1" and "C2" services display
subtitles of TV programs superimposed over the
program's picture. Generally, Closed Captions
in
English are transmitted on C1 and Closed Captions in
other languages are transmitted on C2.
In the Closed Caption system, the ''Text1" or 'Text2"
services display text that
is unrelated to the program
being viewed (e.g., weather
or news). These services
are also superimposed overthe program currently
being viewed.
1Tune the TV to the desired program.
2Press TV MENU and the MENU screen displays.
3 Press ;"/T to select "Setup", then press ~ or ENTER.
4Press ;"/T to select "Closed Caption", then press
~ or ENTER.
The Closed Caption menu will appear.
SPress
«II or ~ to setting the "CC Setting" to "On".
6Press
;"/T to select "Analog Caption" or "Digital
Caption".
When you select "Analog Caption", you can choose
C1, C2, C3, C4, T1, T2, T3 and T4.
When you select "Digital Caption", you can choose
from CS1, CS2, CS3, CS4, CS5 and CS6.
7Press
«II/~ to select the desired Closed Caption
mode for both Digital and Analog Caption.
8Press
;"/T to select "CC Priority", then press «II / ~
to select "Digital CC" or "Analog CC".
•Depending on the broadcast signal, some
Analog Captions will function with aDigital
broadcast signal.This step prevent that two kind
of captions are overlapping.
9Press EXIT to return to the normal screen.
R1mD
•To turn the Closed Caption feature off, setting the "CC
Setting" to "Off".
R1mD
•If the program or video you selected is not closed-captioned, no captions will display on-screen.
•If text is not available in your viewing area, ablack rectangle may appear on-screen. If this happens, setting the "CC
Setting" to "Off".
•When selecting Closed Captions, the captioning will be delayed approx. 10 seconds.
•If no caption signal is received, no captions will appear, but the television will remain
in the Caption Mode.
•Misspellings or unusual characters may occasionally appear during Closed Captioning. This is normal with Closed
Captioning, especially with live programs. This is because during live programs, captions are also entered live. These
transmissions do not allow time for editing.
•When Captions are being displayed, on-screen displays, such as volume and mute may be seen but may interfere with
Closed Captions.
•Some Cable TV systems and copy protection systems may interfere with the Closed Captioned signal.
•If using an indoor antenna or if
TV reception is very poor, the Closed Caption Decoder may not appearor may appear with
strange characters or misspelled words.
In this case, adjust the antenna for better reception or use an outdoor antenna.
•When aDigital TV Program has both Digital Closed Caption and Analog Closed Caption signals, Digital Closed Caption is
displayed.
@-19
