13K-M100/150
CK13M10/15
SERVICE MANUAL
Page
æELECTRICAL SPECIFICATIONS ........................................................................................... 1
æIMPORTANT SERVICE SAFETY PRECAUTION ................................................................... 2
æLOCATION OF USER'S CONTROL ....................................................................................... 6
æINSTALLATION AND SERVICE INSTRUCTIONS.................................................................. 7
æCHASSIS LAYOUT ............................................................................................................... 13
æBLOCK DIAGRAM ................................................................................................................ 14
æDESCRIPTION OF SCHEMATIC DIAGRAMS ..................................................................... 15
æSCHEMATIC DIAGRAMS ..................................................................................................... 16
æPRINTED WIRING BOARD ASSEMBLIES .......................................................................... 19
æREPLACEMENT PARTS LIST .............................................................................................. 23
æPACKING OF THE SET ........................................................................................................ 30
CONTENTS
Intheinterestsofuser-safety(Requiredbysafetyregulationsinsomecountries)thesetshouldberestoredtoits
originalconditionandonlypartsidenticaltothosespecifiedshouldbeused.
POWER INPUT........................... 120 V AC 60 Hz
POWER RATING .......................................... 69 W
PICTURE SIZE ..................... 580cm2(89.9sq inch)
CONVERGENCE .................................... Magnetic
SWEEP DEFLECTION ........................... Magnetic
FOCUS....................... Hi-Bi-Potential Electrostatic
INTERMEDIATE FREQUENCIES
Picture IF Carrier Frequency............. 45.75 MHz
Sound IF Carrier Frequency ............. 41.25 MHz
Color Sub-Carrier Frequency............ 42.17 MHz
(Nominal)
AUDIO POWER
OUTPUT RATING ........ 0.9W (at 10% distortion)
SPEAKER
SIZE ................................................ 8cm(Round)
VOICE COIL IMPEDANCE ....... 8ohm at 400 Hz
ANTENNA INPUT IMPEDANCE
VHF/UHF ............................75 ohm Unbalanced
TUNING RANGES
VHF-Channels .......................................2thru 13
UHF-Channels .....................................14thru 69
CATV Channels....................................1thru 125
USA: (EIA, Channel Plan)
ELECTRICAL SPECIFICATIONS
Specifications are subject to change without prior
notice.
13K-M100/150
CK13M10/15
COLOR TELEVISION
Chassis No. SN-80
MODELS
SHARP CORPORATION This document has been published to be used for
after sales service only.
The contents are subject to change without notice.
S28L513K-M100

2
13K-M100/150
CK13M10/15
IMPORTANT SERVICE SAFETY PRECAUTION
Service work should be performed only by qualified service technicians who are thoroughly familiar with
all safety checks and servicing guidelines which follow:
WARNING
1. For continued safety, no modification of any circuit
should be attempted.
2. Disconnect AC power before servicing.
3. Semiconductor heat sinks are potential shock
hazards when the chassis is operating.
4. The chassis in this receiver has two ground systems
whichareseparated by insulation material.The non-
isolated (hot) ground system is for the B+ voltage
regulator circuit and the horizontal output circuit.The
isolatedground systemis forthe low B+ DCvoltages
and the secondary circuit of the high voltage
transformer.
To prevent electrical shock use an isolation
transformer between the line cord and power
receptacle, when servicing this chassis.
SERVICING OF HIGH VOLTAGE SYSTEM
AND PICTURE TUBE
When servicing the high voltage system, re-
move the static charge by connecting a 10k
ohmresistor in series with an insulated wire
(such as a test probe) between the picture
tube ground and the anode lead. (AC line
cord should be disconnected from AC
outlet.)
1. Picture tube in this receiver employs integral
implosion protection.
2. Replace with tube of the same type number for
continued safety.
3. Do not lift picture tube by the neck.
4. Handle the picture tube only when wearing
shatterproof goggles and after discharging the high
voltage anode completely.
CAUTION: FOR CONTINUED
PROTECTION AGAINST A
RISK OF FIRE, REPLACE
ONLY WITH SAME TYPE 4A-
125V FUSE.
4A 125V
X-RADIATION AND HIGH VOLTAGE
LIMITS
1. Be sure all service personnel are aware of the
proceduresandinstructionscoveringX-radiation.The
only potential source of X-ray in current solid state
TVreceivers is thepicturetube. However, the picture
tubedoesnot emit measurableX-Rayradiation if the
high voltage is as specified in the "High Voltage
Check" instructions.
It is only when high voltage is excessive that X-
radiation is capable of penetrating the shell of the
picture tube including the lead in glass material. The
importantprecautionistokeepthehigh voltagebelow
the maximum level specified.
2. It is essential that service personal have available at
all times an accurate high voltage meter.
The calibration of this meter should be checked
periodically.
3. Highvoltageshould alwaysbe keptatthe ratedvalue
−no higher. Operation at higher voltages may cause
a failure of the picture tube or high voltage circuitry
and; also under certain conditions, may produce
radiation that exceeds specifications.
4. Whenthehigh voltageregulatoris operatingproperly
thereisnopossibilityofanX-radiation problem.Every
time a color chassis is serviced, the brightness
should be tested while monitoring the high voltage
with a meter to be certain that the high voltage does
notexceed thespecified valueandthat itis regulating
correctly.
5. Do not use a picture tube other than that specified or
make unrecommended circuit modifications to the
high voltage circuitry.
6. Whentroubleshootingandtakingtestmeasurements
ona receiverwith excessivehighvoltage,avoidbeing
unnecessarily close to the receiver.
Donotoperate the receiver longer than isnecessary
to locate the cause of excessive voltage.

3
13K-M100/150
CK13M10/15
RETBEFOREURNING THE RECEIVER
(Fire & Shock Hazard)
Before returning the receiver to the user, perform
the following safety checks.
æConnecttheresistor connection to allexposed metal
parts having a return to the chassis
(antenna, metal cabinet, screw heads, knobs and
control shafts, escutcheon, etc.) and measure the
AC voltage drop across the resistor.
AII check must be repeated with the AC line cord
plug connection reversed. (IF necessary, a non-
polarized adapter plug must be used only for the
purpose of completing these check.)
Anycurrent measured mustnotexceed 0.5 milliamp.
Any measurements not within the limits outlined
above are indicative of a potential shock hazard and
corrective action must be taken before returning the
instrument to the customer.
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
SAFETY NOTICE
Many electrical and mechanical parts in television
receivers have special safety-related characteristics.
These characteristics are often not evident from visual
inspection, nor can protection afforded by them be
necessarilyincreasedbyusingreplacement components
rated for higher voltage, wattage, etc.
Replacement parts which have special safety
characteristics are identified in this manual; electrical
components having such features are identified by "å"
and shaded areas in the Replacement Parts Lists and
Schematic Diagrams.
IMPORTANT SERVICE SAFETY PRECAUTION
(Continued)
1. Inspect all lead dress to make certain that leads are
not pinched or that hardware is not lodged between
the chassis and other metal parts in the receiver.
2. Inspect all protective devices such as non-metallic
control knobs, insulating materials, cabinet backs,
adjustment and compartment covers or shields,
isolation resistor-capacity networks, mechanical
insulators, etc.
3. To be sure that no shock hazard exists, check for
leakage current in the following manner.
æPlug the AC cord directly into a 120 volt AC outlet,
(Do not use an isolation transformer for this test).
æUsing to clip leads, connect a 1.5k ohm, Iê watt
resistor paralleled by a 0.15µF capacitor in series
with all exposed metal cabinet parts and a known
earth ground, such as electrical conduit or electrical
ground connected to earth ground.
æUse anAC voltmeter having with 5000 ohm per volt,
orhigher, sensitivity tomeasurethe AC voltage drop
across the resistor.

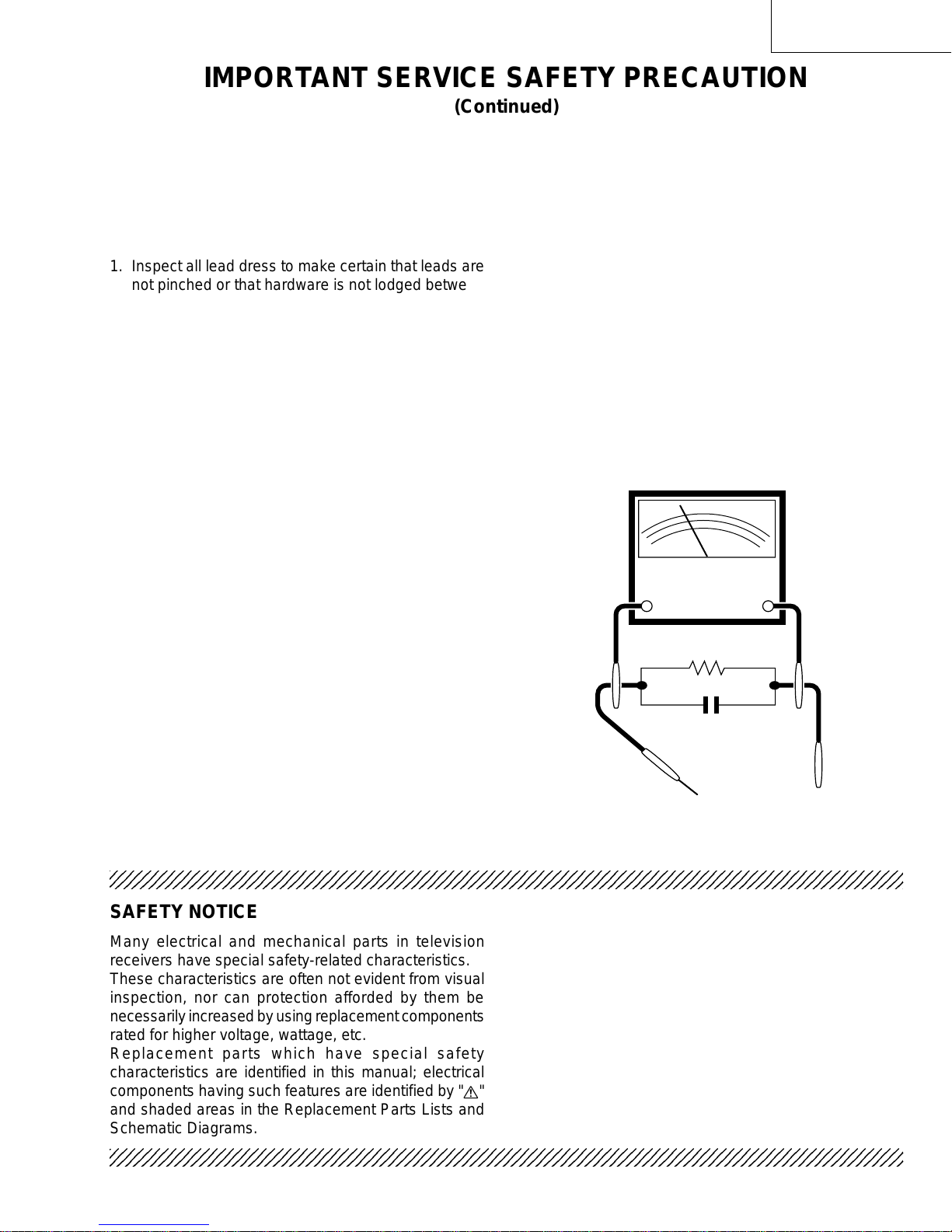

AC
VOLTMETER
1.5k ohm
10w
0.15µF
TEST PROBE
TO EXPOSED
METAL PARTS CONNECT TO
KNOWN EARTH
GROUND
For continued protection, replacement parts must be
identical to those used in the original circuit.
The use of substitute replacement parts which do not
have the same safety characteristics as the factory
recommended replacement parts shown in this service
manual, may create shock, fire, X-radiation or other
hazards.

4
13K-M100/150
CK13M10/15
PRECAUTIONS A PRENDRE LORS DE LA REPARATION
Ne peut effectuer la réparation qu' un technicien spécialisé qui s'est parfaitement
accoutumé à toute vérification de sécurité et aux conseils suivants.
AVERTISSEMENT
1. N'entreprendre aucune modification de tout circuit.
C'est dangereux.
2. Débrancher le récepteur avant toute réparation.
3. Les déversoirs thermiques à semi-conducteurs
peuvent présenter un danger de choc électrique
lorsque le réceqteur est en marche.
4. Le châssis de ce récepteur possède deux systèmes
de masse qui sont séparées par du matériel
d'isolation. Le système de masse non-isolée (sous
tension) est pour le circuit du régulateur de tension
+ B et le circuit de sortie horizontale. Le système de
masseisoléeest pour les tensions DC +Bbasses et
lecircuit secondairedu transformateurhautetension.
Pour éviter tout risque d'électrocution lors de
l'entretien de ce châssis, utiliser un transformateur
d'isolation entre le cordon de ligne et la prise de
courant.
PRECAUTION:POUR LA
PROTECTION CONTINUE
CONTRE LES RISQUES
D'INCENDIE, REMPLACER LE
FUSIBLE PAR UN FUSIBLE DE
MEME TYPE 4A-125V.
4A 125V
REPARATION DU SYSTEME AHAUTE TEN-
SION ET DU TUBE-IMAGE
Lors de la réparation de ce systéme,
supprimer la charge statique en branchant
une résistance de 10 kΩen série avec un fil
isolé (comme une sonde d'essai) entre la
mise à la terre du tube-image et le fil
d'anodel.(Le corden d'alimentation doit être
retiré de la prise murale.)
1. Le tube image dans ce récepteur emploie une
protection intégrée contre l'implosion.
2. Par mesure de sécurité, changer le tube-image pour
un tube du même numéro de type.
3. Ne pas lever le tube-image par son col.
4. Nemanipulerletube-imagequ'enporantdeslunettes
incassables et qu'après avoir déchargé totalement
la haute tension.
LIMITES DES RADIATIONS X ET DE LA
HAUTE TENSION
1. Tout le personnel réparateur doit être instruit des
instructions et procédés relatifs aux radiations X.
Le tube-image, seule source de rayons X dons les
téleviseurs transistorisés, n'émet pourtant pas de
rayonsmesurables si lahautetension est maintenue
à un niveau préconisé dans la section "Vérification
de la haute tension".
C'estseulementquandlahautetensionest excessive
que les rayons X peuvent entrer dans l'enveloppe
du tube-image y compris le conducteur de verre. Il
est important de maintenir la haute tension en-
dessous du niveau spécifié.
2. Il est essentiel que le réparateur ait sous la main un
voltmètreàhautetensionqui doitêtre périodiquement
étalonné.
3. La haute tension doit toujours être maintenue à la
valeur de régime -et pas plus haute. L'opération à
des tensions plus élevées peut entraîner une panne
du tube-image ou du circuit à haute tension et, dans
certaines conditions, peut entraîner une radiation
dépassant les niveaux préscrits.
4. Quand le régulateur à haute tension fonctionne
correctement, il n'y a aucun problème de radiation
X. Chaque fois qu'un châssis couleurs est réparé, la
luminosité doit être examinée bout en contrôlant la
haute tension à l'aide d'un voltmètre pour s'assurer
que la haute tension ne dépasse pas la valeur
spécifiée et qu'elle soit correctement réglée.
5. Nepasutiliser untube-imageautre queceluispécifié
et ne pas effectuer de modifications déconseillées
du circuit à haute tension.
6. Lors de la recherche des pannes et des mesures
d'essai sur un récepteur qui présente une haute
tension excessive, éviter de s'approcher inutilement
du récepteur.
Nepasfaire fonctionner le récepteurpluslongtemps
que nécessaire pour localiser la cause de la tension
excessive.

5
13K-M100/150
CK13M10/15
VERIFICATIONS CONTRE L'INCEN-DIE ET
LE CHOC ELECTRIQUE
Avant de rendre le récepteur à l'utilisateur, effectuer
les vérifications suivantes.
æToucheravec lasonded'essai lespiècesmétalliques
exposées qui présentent une voie de retour au
châssis (antenne, coffret métallique, tête des vis,
arbres de commande et des boutons, écusson, etc.)
et mesurer la chute de tension CA en-travers de la
résistance. Toutes les vérifications doivent être
refaites après avoir inversé la fiche du cordon
d'alimentation.(Si nécessaire,uneprise d'adpatation
non polarisée peut être utilisée dans le but de
terminer ces vérifications.)
Tous les courants mesurés ne doivent pas dépasser
0,5 mA.
Dans le cas contraire, il y a une possibilité de choc
électrique qui doit être supprimée avant de rendre le
récepteur au client.
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
1
234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121
2
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212
AVIS POUR LA SECURITE
Denombreuses pièces,électriques etmécaniques,dans
lestéléviseurs présententdes caractéristiquesspéciales
relativesà lasécurité,qui nesontsouvent pasévidentes
à vue. Le degré de protection ne peut pas être
nécessairement augmentée en utilisant des pièces de
remplacement étalonnées pour haute tension,
puissance, etc.
Les pièces de remplacement qui présentent ces
caractéristiques sont identifiées dans ce manuel; les
piècesélectriquesqui présentent ces particularitéssont

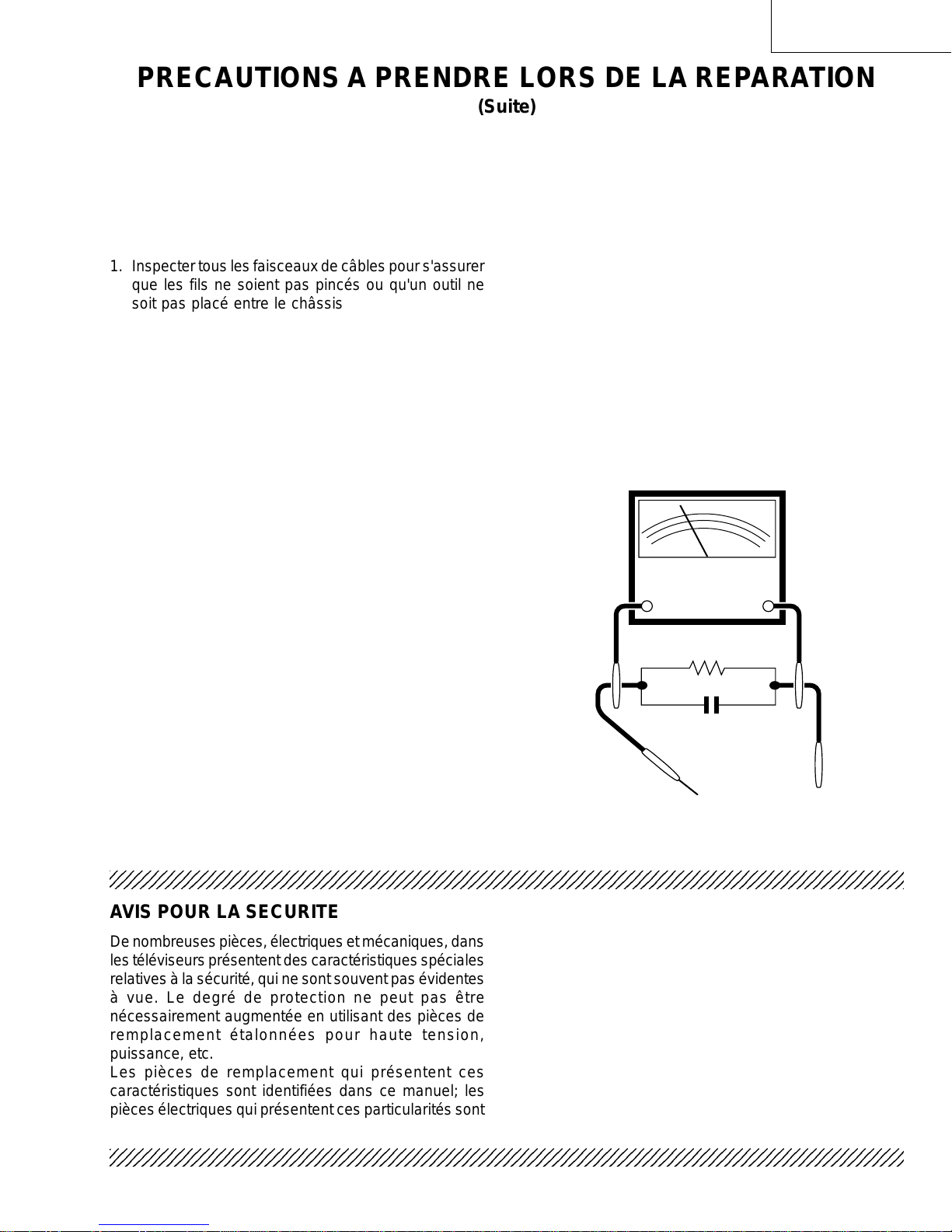

PRECAUTIONS A PRENDRE LORS DE LA REPARATION
(Suite)
1. Inspectertousles faisceauxdecâbles pours'assurer
que les fils ne soient pas pincés ou qu'un outil ne
soit pas placé entre le châssis et les autres pièces
métalliques du récepteur.
2. Inspecter tous les dispositifs de protection comme
les boutons de commande non-métalliques, les
isolants,le dosdu coffret,les couverclesou blindages
de réglage et de compartiment, les réseaux de
résistance-capacité, les isolateurs mécaniques, etc.
3. S'assurer qu'il n'y ait pas de danger d'électrocution
en vérifiant la fuite de courant, de la facon suivante:
æBrancherle cordond'alimentationdirectem-ent àune
prise de courant de 120V. (Ne pas utiliser de
transformateur d'isolation pour cet essai).
æAl'aide dedeux filsà pinces,brancher unerésistance
de1,5 kΩ10watts enparallèleavecuncondensateur
de0,15µFen sérieavec toutesles piècesmétalliques
exposées du coffret et une terre connue comme une
conduite électrique ou une prise de terre branchée à
la terre.
æUtiliser un voltmètre CA d'une sensibilité d'au moins
5000Ω/Vpour mesurerlachute detensionen travers
de la résistance.
AC
VOLTMETER
1.5k ohm
10w
0.15µF
TEST PROBE
TO EXPOSED
METAL PARTS CONNECT TO
KNOWN EARTH
GROUND
AUX PIECES
METALLIQUES
EXPOSEES
BRANCHER A UNE
TERRE CONNUE
Voltmètre CA
identifiées par la marque " å" et hachurées dans la
liste des pièces de remplacement et les diagrammes
schématiques.
Pour assurer la protection, ces pièces doivent être
identiques à celles utilisées dans le circuit d'origine.
L'utilisation de pièces qui n'ont pas les mêmes
caractéristiques que les pièces recommandées par
l'usine, indiquées dans ce manuel, peut provoquer des
électrocutions, incendies, radiations X ou autres
accidents.
SONDE D'ESSAI

6
13K-M100/150
CK13M10/15

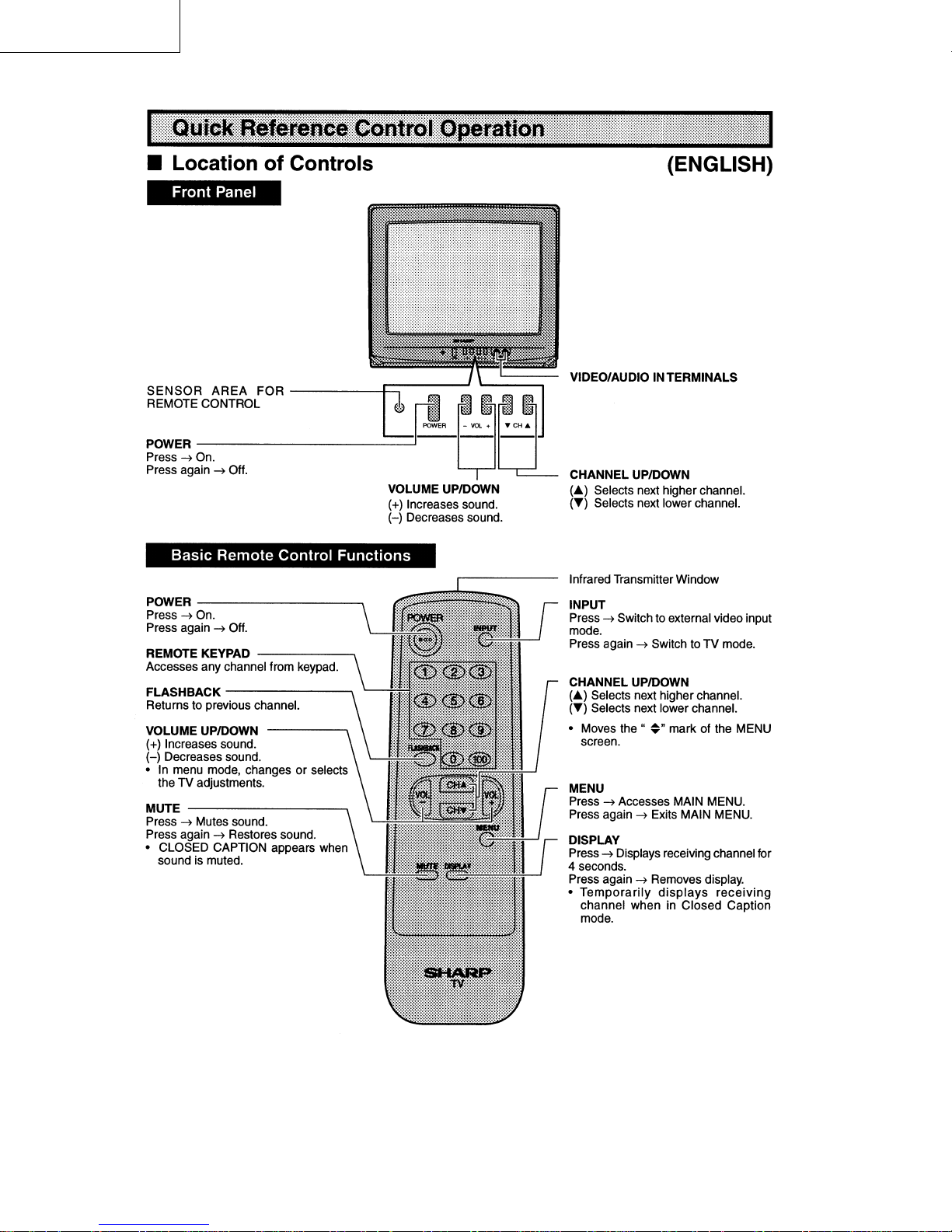

LOCATION OF USER'S CONTROL

7
13K-M100/150
CK13M10/15
INSTALLATION AND SERVICE INSTRUCTIONS
Note: (1) When performing any adjustments to resistor controls and transformers use non-metallic
screwdriver or TV alignment tools.
(2) Before performing adjustment, TV set must be on at least 15 minutes.
HIGH VOLTAGE CHECK
High voltage is not adjustable but must be checke
to verify that the receiver is operating within safe
and efficient design limitations as specified checks
should be as follows:
1. Connect an accurate high voltage meter between
ground and anode of picture tube.
2. Operate receiver for at least 15 minutes at 120VAC
line voltage, with strong air signal or properly tuned
in test signal.
3. Set service mode on (See next page.),Service
No.S19 and Bus data "01" (Y-mute on).
4. Thevoltageshould be approximately24.0kV (at zero
beam)."
Ifacorrectreadingcannot beobtained,checkcircuitry
for malfunctioning components. After the voltage
test,make Y-mute off (normal mode).
CIRCUIT PROTECTION
The receiver is protected by a 4.0A fuse (F701),
mounted on PWB-A, wired into one side of the AC
line input.
X-RADIATION PROTECTOR CIRCUIT
TEST
1. After service has been performed on the horizontal
deflection system, high voltage system, B + system,
test the X-Radiation protection circuit to ascertain
proper operation as follows:
1) Apply 120V AC using a variac transformer for
accurate input voltage.
2) Allow for warm up and adjust all customer controls
for normal picture and sound.
3) Select a local channel.
4) Connecta digital voltmeter to TP653 andmakesure
that the voltmeter reads 21.3V ±1.5V.
5) Apply external 28.9V DC at TP653 by using an
external DC supply, TV must be shut off.
6) To reset the protector, unplug theAC cord and make
ashort circuit betweenTP651 andTP652.Nowmake
sure that normal picture appears on the screen.
7) If the operation of the horizontal oscillator does not
stopinstep5, the circuit must be repaired before the
set is returned to the customer.

8
13K-M100/150
CK13M10/15
1.Service mode -
Beforeputtingunit into the servicemode,check, that
customer adjustments are in the normal mode. use
the reset function in the video adjust menu to ensure
customer controls are in their
To enter the service mode .
While Pressing the Vol-up and Ch-up buttons at
once,plug the AC cord into a wall socket.Now the TV
set is switched on and enters the service mode.
To exit the service mode, shut the television off by
pressing the power button.
2.Service number selection
Once in the service mode, press the channel up or
channel down button on the remote transmitter or at
the set. the service adjustment number will vary in
increments of one, from "S01" to "S19".
Select the item you wish to adjust.
3.Data number selection
Press the volume up or down button to adjust the
data number.
Figure B.
S01 D:00
02
For adjustments of this model, the bus data is convered to various analog signals by the D-A converter
circuit.
Note: There are still a few analog adjustments in this series such as focus and master screen voltage.
Follow the steps below whenever service adjustment is required. See Figure "B" to determine if service
adjustments are required.
55S01
DA1A NUMBER
(DEC)
(DECIMAL)
DATA NUMBER
(HEX )
(HEXADEC:MAL)
SERVICE ADJUSTMENT NUMBER

9
13K-M100/150
CK13M10/15
S01 PICTURE 55 00-7F
S02 TINT 46 00-7F
S03 COLOR 32 00-7F
S04 BRIGHTNESS 40 00-7F
S05 SHARPNESS 28 00-3F Must be set to “24”
S06 VERTICAL PHASE 00 00-07 Must be set between "0" to "03"
S07 HORIZONTAL PHASE 12 00-1F
S08 RF-AGC 2A 00-3F
S09 VERTICALAMP 20 00-3F
S10 VCO 2C 00-7F
S11 R CUT-OFF 00 00-FF
S12 G CUT -OFF 00 00-FF
S13 B CUT-OFF 00 00-FF
S14 G GAIN 7F 00-FF
S15 B GAIN 7F 00-FF
S16 TRAP(3.58MHz) 00 00 or 01 Must be set to “00”
S17 BALANCE 20 00-3F Must be set to “20”
S18 C.C.POSITION 18 00-7F
S19 Y-MUTE 00 00,01,03 00=NORMAL, 01=no”Y, 03=NO VERTICAL”
SERVICE
NUMBER DATA ADJUSTMENT CONTENTS
ADJUSTMENT ITEM RANGE
Holding down both the CH UP/DOWN keys on the TV set at service mode for more then 2 seconds will automatically
write the above initial values into IC2101.
NECESSARY UNNECESSARY
ADJUSTMENT NOTES
PART REPLACED
IC2001
IC201
IC2101
CRT
The adjustment is needed to compensate for
characteristics of parts including IC201.
Data is stored in IC2101.
Adjust items related to picture tube only.
Holding down both the CH UP/DOWN keys on the TV set
at service mode for more than 2 seconds will automatically
write the above initial values into IC2101.
INITIAL VALUE
X
X
X
X
Table - A
Table - B

10
13K-M100/150
CK13M10/15
ËË
ËË
Ë adjustment
VCO Adjustment
1. Connectadigital voltmeterbetween pin(44)of IC201
and ground.
2. Select a good local channel.
3. Enter the service mode. select adjustment "S10".
4. Adjust the data so that digital voltmeter should read
2.2V
5. Adjustment is complete, remove the volt-meter,
return to "normal" mode.
RF AGC Adjustment
1. Have unit receive a good local channel.
2. Entertheservicemodeandselectserviceadjustment
"S08".
3. Set the data value to point where no noise or beat
appears.
4. Select another channel to confirm that no noise or
beat appears.
NOTE 1 :Youwillhave tocome outof theservice
mode to select another channel.
NOTE 2 :Setting the data to "00" will pro-duce a
black raster.
Screen adjustment
1. Connect a digital voltmeter between TP852 and
TP853 on the CRT socket PWB.
Note:These test points may not be provided.
Then connect the voltmeter to both ends of R852
located near Q852 on the foil side.
2. Select a good local channel.
3. Entertheservicemodeandselectserviceadjustment
“S03” and set the data value to “00” to set the color
level to minimum.(Record original data code under
adjustment“S03” before changing)You may skipthis
step if you selected a B/W picture or monoscope
pattern.
4. Select service adjustment “S19” and adjust the data
value to “01” this turn off the luminance signal (Y-
mute).
5. Select service adjustment "S04" and adjust data
value to obtain 0.17 volts on the digital voltmeter.
6. Adjust the master screen cotrol untill raster darkens
to the point where raster is barely seen.
7. Adjust service adjustments "S11" red, "S12" green
and "S13" blue to obtain a good grey scale with
normal whites at low brightness level.
8. Select service adjustment “S19” and reset data to
“00”.
Select service adjustment “S03” and reset data to
obtain normal color level.
9. Remove digital voltmeter.
Reset master screen cotrol to obtain normal
brightness range.
White balance adjustment
1. Have unit receive a good local channel.
2. Enter the service mode. select service adjustment
"S03" and set to "00" ( minimum color) . "S03" does
not haveto be adjustedifyou selected aB/Wpicture
or monoscope pattern.
3. Alternately adjust service adjustment data of "S14"
and"S15"untill a goodgreyscale with normalwhites
is obtained.
4. Select service adjustment "S03" and adjust data to
obtain normal color level.
Sub-picture adjustment
1. Have unit receive a good local channel.
2. Make sure the customer picture control is set to
maximum.
3. Entertheservicemodeandselectserviceadjustment
"S01".
4. Adjust the data value to achieve normal contrast
range.
Sub-Tint Adjustment
1. Have unit receive a good local channel.
2. Set customer tint control to center of it's range.
3. Entertheservicemodeandselectserviceadjustment
"S02".
4. Adjust"S02" data valueto obtain normalfleshtones.

11
13K-M100/150
CK13M10/15
Sub-color adjustment
1. Have unit receive a good local channel.
2. Makesurethe customer color controlisset to center
position .
3. Entertheservicemodeandselectserviceadjustment
"S03".
4. Adjust "S03"data value to obtain normal color level.
Sub-brightness adjustment
1. Have unit receive a good local channel.
2. Make sure the customer brightness control is set to
center position.
3. Entertheservicemodeandselectserviceadjustment
"S04".
4. Adjust "S04"data value to obtain normal brightness
level.
Vertical-size adjustment
1. Have unit receive a good local channel.
2. Entertheservicemodeandselectserviceadjustment
"S09".
3. While observing the top and bottom of the screen,
adjust "S09" data value to proper vertical size .
Vertical phase adjustment
1. Entertheservicemodeandselectserviceadjustment
"S06".
2. Adjust data value to "00"~"03" so that picture is
approximate center.
Note: Thismust be set "00"~"03"whenadjust another
data retrace line will be appear.
Horizontal position adjustment
1. Have unit receive a good local channel.
2. Entertheservicemodeandselectserviceadjustment
"S07".
3. Adjust "S07" data value so that picture is centered.
Caption position adjustment (horizontal)
1. Have unit receive a good local channel.
2. Entertheservicemodeandselectserviceadjustment
"S18".
3. A black text box appears on the screen (see Figure
C ) .
4. Adjust"S18"data value so thattextbox is positioned
in the center of the screen.
3.58MHz trap adjustment
1. Have unit receive a good local channel.
2. Entertheservicemodeandselectserviceadjustment
"S16" .
3. This is a two position adjustment, "00" is ON , "01"
is OFF.
4. Adjust data value to "00" for normal viewing.
Sharpness and Audio balance adjust-
ments
1. Have unit receive a good local channel.
2. Enter the service mode and select "S05" for
sharpness and "S17" for balance.
• Sharpness adjustments
3. Adjust data value to "24" (center of data range) for
sharpness adjustment.
• Audio balance adjustments
4. Adjust data value to "20" (center of data range) for
Audio balance adjustment.
Figure C.

12
13K-M100/150
CK13M10/15
Memo

H
G
F
E
D
C
B
A
1 2 3456
H
G
F
E
D
C
B
A
1 23456
13K-M100/150
CK13M10/15 13K-M100/150 CK13M10/15
13 14
CHASSIS LAYOUT BLOCK DIAGRAM

H
G
F
E
D
C
B
A
1 23456
H
G
F
E
D
C
B
A
1 2 3456
13K-M100/150
CK13M10/15 13K-M100/150 CK13M10/15
15 16
DESCRIPTION OF SCHEMATIC DIAGRAM SCHEMATIC DIAGRAM :CRT Unit
WAVEFORM MEASUREMENT CONDITIONS:
1. Photographs taken on a standard gated color bar
signal, the tint setting adjusted for proper color. The
wave shapes at the red, green and blue cathodes of
the picture tube depend on the tint, color level and
picture control.
2. indicates waveform check points (See chart,
waveforms are measured from point indicated to
chassis ground.)
NOTE:
1. The unit of resistance "ohm" is omitted (K:1000
ohms, M:1 Meg ohm).
2. All resistors are 1/8 watt, unless otherwise noted.
3. All capacitors are µ F, unless otherwise noted P:
µµ F.
4. (G) indicates ± 2% tolerance may be used.
5. indecates line isolated ground.
6. indecates hot ground.
VOLTAGE MEASUREMENT CONDITIONS:
1. All DC voltages are measured with DVM connected
between points indicated and chassis ground, line
voltage set at 120V AC and all controls set for
normal picture unless otherwise indicated.
2. All voltages measured with 1000 µ V B & W or Color
signal.
å AND SHADED ( ) COMPONENTS
= SAFETY RELATED PARTS.
▲ MARK= X-RAY RELATED PARTS.
DRGANNES MARQUES å ET HACHRES ( ):
PIECES RELATIVES A LA SECURITE.
MARQUE ▲ : PIECS RELATIVE AUX RAYONS X.
This circuit diagram is a standard one, printed circuits
may be subject to change for product improvement
without prior notice.

H
G
F
E
D
C
B
A
1 2 3 4 5 6 7 8 9 101112
13K-M100/150
CK13M10/15 13K-M100/150 CK13M10/15

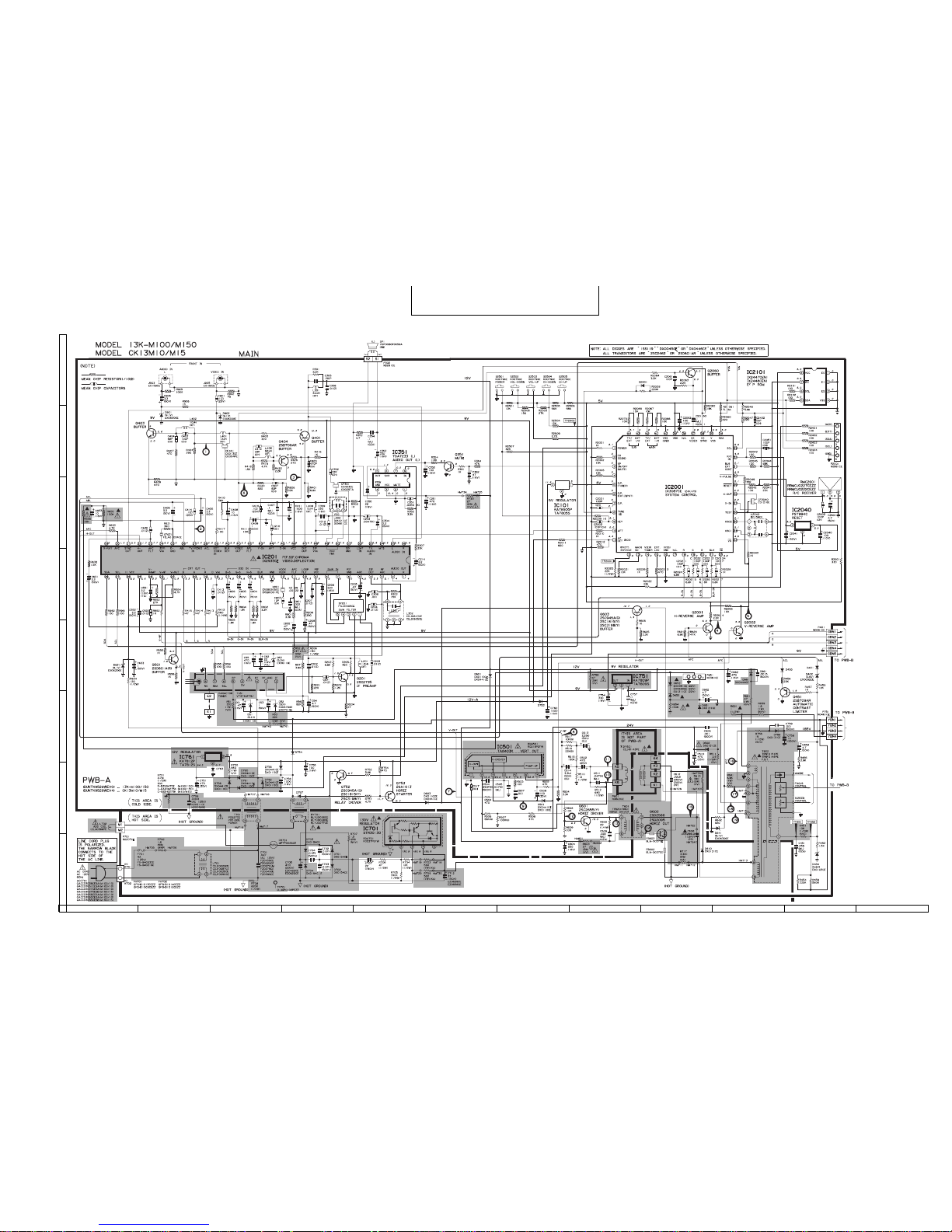

SCHEMATIC DIAGRAM:MAIN Unit
17 18

H
G
F
E
D
C
B
A
1 2 3 4 5 6 7 8 9 101112
13K-M100/150
CK13M10/15 13K-M100/150 CK13M10/15
PRINTED WIRING BOARD ASSEMBLIES
PWB-A:MAIN Unit (Wiring Side)
PWB-B:CRT Unit (Wiring Side)
2019

H
G
F
E
D
C
B
A
1 2 3 4 5 6 7 8 9 101112
13K-M100/150
CK13M10/15 13K-M100/150 CK13M10/15

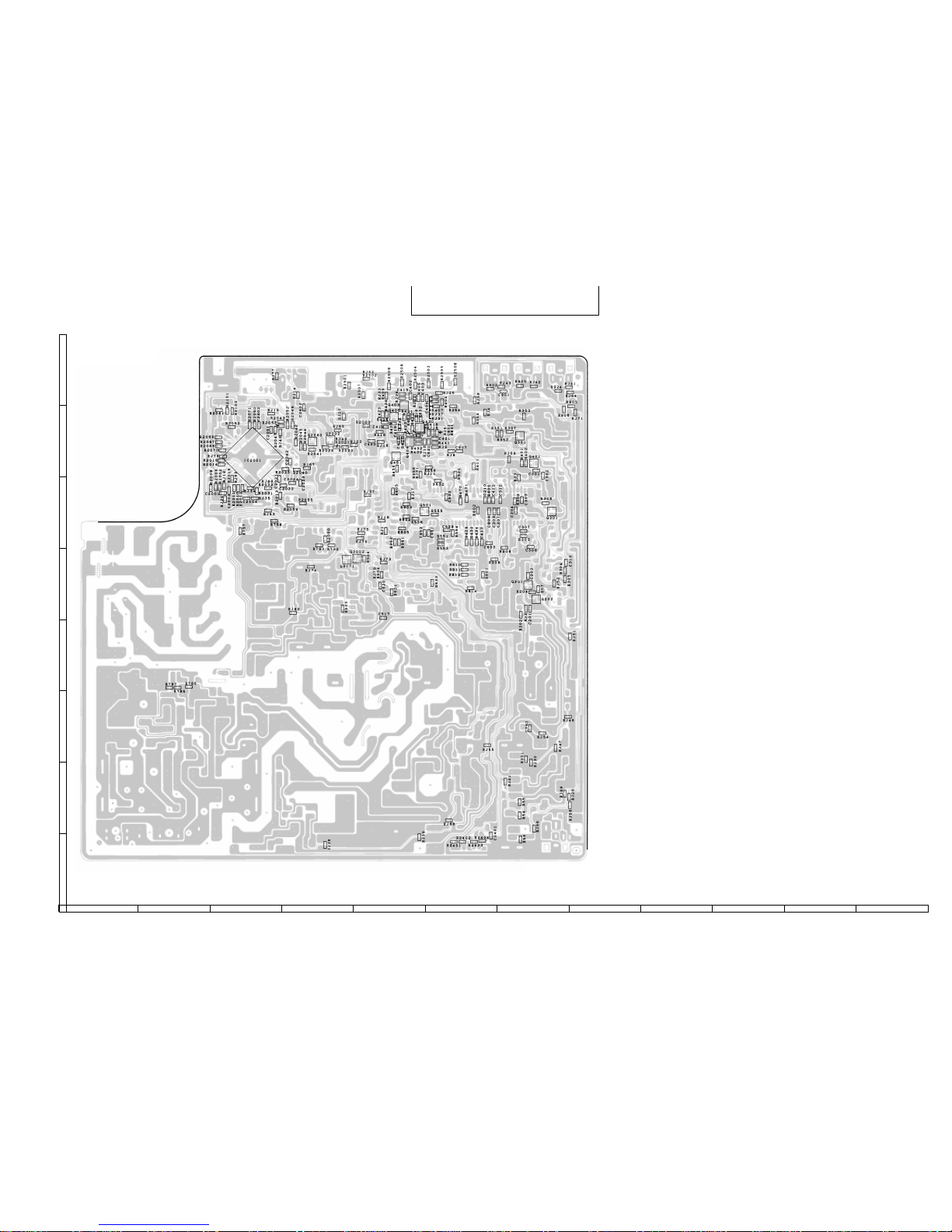

PWB-A:MAIN Unit (Chip Parts Side)
21 22

13K-M100/150
CK13M10/15 13K-M100/150
CK13M10/15
Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code
23 24
Ref. No. Part No. ★Description Code
PICTURE TUBE
TUNER
NOTE:THE PARTS HERES SHOWNARE SUPPLIEDAS AN
ASSEMBLY NOT INDEPENEDTLY.
åTU51 VTUVTST6UF78/ J Tuner BD
INTEGRATED CIRCUITS
IC101 VHiKA78S05P-1 J KiA78S05P AD
or VHiTA7805S/-1
çå C201 RH-iX2933CEZZ J TA1268N AX
IC351 VHiTDA7233/-1 J TdA7233 AF
åIC501 VHiTA8403K/-1 J TA8403K AL
çå IC701 VHiSTR301301E J I.C. AP
åIC751 VHiKA7809Pi-1 R KiA7809Pi AE
or VHiTA7809S/-1
åIC761 VHiKA7812Pi-1 R KiA7812Pi AE
or VHiTA7812S/-1
IC2001 RH-iX3087CEZZ J I.C. AV
IC2040 VHiPST994C/-1 J PSt994C AD
IC2101 RH-iX2447CEN1 J ST24C01B6 AL
or RH-iX2448CEN1
TRANSISTORS
You can substitute "VS2SD601AR/-1" for "VS2SC2462-C-1".
Q201 VS2SC2735//1E J 2SC2735 AC
Q351 VS2SD601AR/-1 J 2SD601 AC
Q401 VS2SD601AR/-1 J 2SD601 AC
Q403 VS2SD601AR/-1 J 2SD601 AC
Q404 VS2SB709AR/-1 J 2SB709 AC
Q451 VS2SB709AR/-1 J 2SB709 AC
Q501 VS2SD601AR/-1 J 2SD601 AC
Q601 VS2SC2655Y/-1 J 2SC2655 AE
PRINTED WIRING BOARD ASSEMBLIES
ç åV101 VB370BVBK1U-S R CRT ( DY601:H0143PE) BX
or VB370BVBK1S-S R CRT ( DY601:H0143PE) BZ
or VB34JFQ90X/*S R CRT( DY601:H0143PE ) CB
or VB34KPU02X/*S R CR ( DY601:H0141PE ) BX
or VB34JLL40X/*S R CRT ( DY601:H0144PE ) BX
or VB37GDA86X/1E R CRT ( DY601:H0142PE ) BX
ç åDY601 RCiLH0141PEZZ R DY ( CRT:A34KPU02XX) BA
or RCiLH0142PEZZ R DY ( CRT:37GDA86X) AZ
or RCiLH0143PEZZ R DY( CRT:CPJ370BVBK1UBC
or CPJ370BVBK1S
or A34JFQ90X)
åL702 RCiLG0386PEZZ R Degaussing Coil AK
PMAGF3041CEZZ J Magnet Ass'y AG
-Purity and Static
Convergence
PSPAG0004PEZZ R Wedge (Gum),Yoke AC
QEARC1404PEZZ R Groundsing strap AD
MSPRT0001PEFJ R Spring for CRT AC
DUNTK9529WEV0/V4
MAIN Unit
MARK★: SPARE PARTS-DELIVERY SECTION
MARKç: X- RAY RELATED PARTS
Ref. No. Part No. ★Description Code
PWB-A DUNTK9529WEV0 _ MAIN Unit (13K-M100/150) _
PWB-A DUNTK9529WEV4 _ MAIN Unit (CK13M10/15) _
PWB-B DUNTK9530WEV0 _ CRT Unit _
LISTE DES PIECES
CHANGE DES PIECES
Les pi`eces de rechange qui pr élelesentent ces caract éleristiques
sp éleciales de s élecurit éle, sont identifi élees dans ce manuel : les
pi`eces élelectriques qui pr élesentent ces particularit éles, sont rep
éler élee par la marque ået sont hachur élees dans les listes de
pi`eces et dans les diagrammes sch élematiques.
La substitution d'une pi`ece de rechange par une autre qui ne pr
éLesente pas les m éoemes caract éLeristiques de s élecurit éle que
la pi`ece recommand élee parl'usine et dans ce manuel de service,
peutprovoqueruneéLelectrocution,unincendieoutoutautresinistre.
"COMMENT COMMANDER LES PIECES DE RECHANGE"
Pour que votre commande soit rapidement et correctement remplie,
veuillez fournir les renseignements suivants.
1. NUMERO DU MODELE 2. NO. DE REF
3. NO. DE PIECE 4. DESCRIPTION
in CANADE: Contact SHARP Electronics of Conada Limited
Phone [phone]
★MARQUE: SECTION LIVRAISON DES PIECES DE RECHANGE
çMARQUE : PIECES RELATIVE AUX RAYONS X
PARTS LIST
PARTS REPLACEMENT
Replacement parts which have these special safety characteristics
identified in this manual ; electrical components having such fea-
tures are identified by åandshaded areas in the ReplacementParts
Lists and Schematic Diagrams. The use of a substitute replacement
part which dose no have the same safety characteristic as the fac-
tory recommended replacement parts shown in this service manual
may create shock, fire or other hazards.
"HOW TO ORDER REPLACEMENT PARTS"
To have your order filled promptly and correctly, please furnish the
following informations.
1. MODEL NUMBER 2. REF. NO.
3. PART NO. 4. DESCRIPTION
in USA: Contact your nearest SHARP Parts Distributor to or-
der. For location of SHARP Parts Distributor, Please
call Toll-Free; 1-800-BE-SHARP
åQ602 VS2SD2586//1E J 2SD2586 AM
or VS2SD2095//1E
Q603 VS2SC945AQ/-1 J 2SC945 AB
or VS2SC1815YW-1
or VS2SC3198AQ/-1
Q752 VS2SC945AQ/-1 J 2SC945 AB
Q753 VS2SA1013//1E J 2SA1013 AD
Q2001VS2SD601AR/-1 J 2SD601 AC
Q2002VS2SD601AR/-1 J 2SD601 AC
Q2060VS2SD601AR/-1 J 2SD601 AC
DIODES
You can substitute "RH-DX-446CEZZ" for "VHD1SS119//-1" and "RH-
DX0045GEZZ".
D51 RH-EX0611GEZZ J Zener Diode AA
D52 RH-EX0676GEZZ J Zener Diode AA
or RH-EX0701GEZZ
D53 RH-EX0611GEZZ J Zener Diode AA
D401 VHD1SS119//-1 J Diode AB
D402 RH-EX0092CEZZ J Zener Diode AB
D454 RH-EX0103CEZZ J Zener Diode AB
D455 VHD1SS119//-1 J Diode AB
D501 RH-DX0441CEZZ J Diode AC
or RH-DX0110CEZZ
åD502 RH-DX0131CEZZ J Diode AC
D601 RH-DX0441CEZZ J Diode AC
or RH-DX0110CEZZ
D603 RH-DX0441CEZZ J Diode AC
or RH-DX0110CEZZ
D610 RH-DX0131CEZZ J Diode AC
D631 RH-EX0630GEZZ J Zener Diode AA
D641 RH-EX0630GEZZ J Zener Diode AA
çå D651 RH-DX0131CEZZ J Diode AC
çå D652 VHD1SS119//-1 J Diode AB
çå D653 RH-EX0091CEZZ J Zener Diode AB
or RH-EX0660GEZZ
or RH-EX1311CEZZ
åD661 RH-DX0444CEZZ J Diode AH
åD701 RH-DX0154CEZZ J Diode AC
åD702 RH-DX0154CEZZ J Diode AC
åD703 RH-DX0154CEZZ J Diode AC
åD704 RH-DX0154CEZZ J Diode AC
D753 VHD1SS119//-1 J Diode AB
D754 VHD1SS119//-1 J Diode AB
D755 RH-DX0441CEZZ J Diode AC
or RH-DX0110CEZZ
åD756 RH-DX0441CEZZ J Diode AC
or RH-DX0110CEZZ
D757 VHD1SS119//-1 J Diode AB
D758 RH-DX0131CEZZ J Diode AC
åD760 RH-DX0441CEZZ J Diode AC
or RH-DX0110CEZZ
åD761 RH-DX0441CEZZ J Diode AC
or RH-DX0110CEZZ
åD762 RH-DX0441CEZZ J Diode AC
or RH-DX0110CEZZ
D763 VHD1SS119//-1 J Diode AB
D901 RH-EX0630GEZZ J Zener Diode AA
D902 RH-EX0630GEZZ J Zener Diode AA
D2001 VHD1SS119//-1 J Diode AB
PACKAGED CIRCUITS
åPR701RMPTP0026CEZZ J Packaged Circuit AF
X801 RCRSB0001PEZZ R Crystal AL
or RCRSB0205CEZZ
FILTERS
CF301RFiLC0403CEZZ J Filter AE
or RFiLC0029TAZZ
CF401RFiLC0013CEZZ J Filter AE
or RFiLC0004PEZZ
CF631RFiLA0034CEZZ J Filter AD
CF2040 RFiLC0121GEZZ J Filter AD
COILS
L201 VP-XF1R2K0000 J Peaking 1.2µHAB
L202 RCiLi0612CEZZ J If Coil AE
or RCiLi0588CEZZ
L301 VP-XF8R2K0000 J Peaking 8.2µHAB
L302 RCiLi0613CEZZ J If Coil AE
or RCiLi0605CEZZ
L401 VP-XF120K0000 J Peaking 12µHAB
L402 VP-XF100K0000 J Peaking 10µHAB
L406 VP-XF680K0000 J Peaking 68µHAB
L408 VP-XF100K0000 J Peaking 10µHAB
åL701 RCiLF0029PEZZ R Coil AH
or RCiLF0087CEZZ
or RCiLF0235CEZZ
or RCiLF0090CEZZ
L2040 RCiLB0159CEZZ J Oscillation Coil AE
SF201 RFiLC0405CEZZ J Filter AH
TRANSFORMERS
åT601 RTRNZ0168CEZZ J H-Driver AH
çå T602 RTRNF0151PEZZ R H-out BE
or RTRNF0148PEZZ
åT701 RTRNP0527CEZZ J Power AM
or RTRNP0518CEZZ
CAPACITORS
C51 VCEA0A1CW476M J 47 16V EL. AB
C52 VCSATA1CE226K J 22 16V Tantalum AD
C53 VCEA0A1HW105M J 1.0 50V EL. AB
C54 VCEA0A1HW475M J 4.7 50V EL. AB
C55 VCEA0A1CW477M J 470 16V EL. AC
C201 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C202 VCKYPA1HF103Z J 0.01 50V Ceramic AA
C203 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C204 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C205 VCEA0A1HW474M J 0.47 50V EL. AB
DUNTK9529WEV0/V4
MAIN Unit (Continued)

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code
25
13K-M100/150
CK13M10/15
C206 VCEA0A1CW227M J 220 16V EL. AC
C207 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C208 VCEA0A1HW474M J 0.47 50V EL. AB
C209 VCKYCY1HB222K J 2200p 50V Ceramic AA
C210 VCKYCY1HB102K J 1000p 50V Ceramic AA
C302 VCCCCY1HH330J J 33p 50V Ceramic AA
C303 VCKYCY1HB472K J 4700p 50V Ceramic AA
C304 VCEA0A1HW225M J 2.2 50V EL. AB
C305 VCKYPA1HB151K J 150p 50V Ceramic AA
C306 VCKYPA1HF103Z J 0.01 50V Ceramic AA
C308 VCKYCY1HB102K J 1000p 50V Ceramic AA
C309 VCEA0A1CW227M J 220 16V EL. AC
C312 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C314 VCEA0A1HW225M J 2.2 50V EL. AB
C351 VCKYCY1HB562K J 5600p 50V Ceramic AA
C352 VCEA0A1CW107M J 100 16V EL. AC
C353 VCEA0A1CW337M J 330 16V EL. AC
C354 RC-QZA104TAYK J 0.1 50V Mylar AB
C355 VCEA0A1CW226M J 22 16V EL. AB
C361 VCEA0A1CW477M J 470 16V EL. AC
C362 VCEA0A1CW476M J 47 16V EL. AB
C403 VCCCCY1HH101J J 100p 50V Ceramic AA
C404 VCCCCY1HH680J J 68p 50V Ceramic AA
C405 VCEA0A1HW335M J 3.3 50V EL. AB
C406 VCEA0A1HW335M J 3.3 50V EL. AB
C407 RC-QZA104TAYK J 0.1 50V Mylar AB
C408 VCEA0A1CW106M J 10 16V EL. AB
C409 VCEA0A1HW105M J 1.0 50V EL. AB
C410 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C411 VCEAGA1CW108M J 1000 16V EL. AD
C413 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C414 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C419 VCCCCY1HH330J J 33p 50V Ceramic AA
C420 VCCCCY1HH471J J 470p 50V Ceramic AA
C451 RC-QZA563TAYK J 0.056 50V Mylar AB
C454 VCEA0A1HW475M J 4.7 50V EL. AB
C502 VCEA0A1EW477M J 470 25V EL. AD
C504 VCKYPA2HB391K J 390p 500V Ceramic AA
C505 VCQYTA1HM473K J 0.047 50V Mylar AB
C507 VCKYPA1HB102K J 1000p 50V Ceramic AA
C508 VCEAGA1VW107M J 100 35V EL. AC
C509 VCKYPA2HB102K J 1000p 500V Ceramic AA
C510 VCEAGA1VW477M J 470 35V EL. AD
C511 VCQYTA1HM473K J 0.047 50V Mylar AB
C513 VCEACA1HC225M J 2.2 50V EL. AC
C514 VCEACA1HC335J J 3.3 50V EL. AC
C517 VCKYCY1HB102K J 1000p 50V Ceramic AA
C522 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C551 VCSATA1CE225K J 2.2 16V Tantalum AB
C552 VCEA0A1HW225M J 2.2 50V EL. AB
C604 VCEA0A1CW227M J 220 16V EL. AC
çå C608 VCFPPD3CA522H J 5200p 1600V Metal.Poly.Film AE
C609 RC-QZA223TAYK J 0.022 50V Mylar AB
C612 VCFPPB2EB334J J 0.33 250V Metal.Poly.FilmAF
C631 VCEA0A1HW225M J 2.2 50V EL. AB
C632 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C633 VCEA0A1HW105M J 1.0 50V EL. AB
C652 VCEA0A1HW475M J 4.7 50V EL. AB
C653 VCEA0A1CW106M J 10 16V EL. AB
C661 VCKYPA2HB152K J 1500p 500V Ceramic AA
C662 VCEA0A1CW477M J 470 16V EL. AC
åC701 RC-FZ015SCEZZ J AE
or RC-FZ002SCEZZ
or RC-FZ004SGEZZ
or RC-FZ027CUMZZ
or RC-FZ059SCEZZ
or RC-FZ0279CEZZ
C702 VCKYPB2HE103P J 0.01 500V Ceramic AB
C703 VCKYPB2HE103P J 0.01 500V Ceramic AB
C704 VCKYPB2HE103P J 0.01 500V Ceramic AB
åC705 RC-EZ0422CEZZ J 470 200V EL. AN
or RC-EZ0522CEZZ
åC706 RC-KZ0092GEZZ J 0.0033 AC125V Ceramic AC
or RC-KZ0311CEZZ
åC707 VCEAGA2CW226M J 22 160V EL. AD
C712 RC-EZ0638CEZZ J 33 160V EL. AG
or RC-EZ0658CEZZ
C751 VCEA0A1VW477M J 470 35V EL. AB
C754 VCEA0A1CW337M J 330 16V EL. AC
C755 VCEA0A1CW107M J 100 16V EL. AC
C756 VCEAGA1CW108M J 1000 16V EL. AD
C757 RC-QZA104TAYK J 0.1 50V Mylar AB
åC758 VCEAGA2EW106M J 10 250V EL. AC
C759 VCKYPA2HB102K J 1000p 500V Ceramic AA
C760 VCEAGA1CW108M J 1000 16V EL. AD
C801 RC-QZA223TAYK J 0.022 50V Mylar AB
C802 VCEA0A1HW474M J 0.47 50V EL. AB
C803 VCCCCY1HH120J J 12p 50V Ceramic AA
C804 VCEA0A1HW104M J 0.1 50V EL. AB
C805 VCEA0A1HW104M J 0.1 50V EL. AB
C806 VCEA0A1HW104M J 0.1 50V EL. AB
C807 VCCCCY1HH820J J 82p 50V Ceramic AA
C901 VCKYCY1EF104Z J 0.1 25V Ceramic AA
C905 VCEA0A1HW335M J 3.3 50V EL. AB
C2001 VCCCCY1HH101J J 100p 50V Ceramic AA
C2002 VCCCCY1HH101J J 100p 50V Ceramic AA
C2021 VCCCCY1HH101J J 100p 50V Ceramic AA
C2022 VCCCCY1HH101J J 100p 50V Ceramic AA
C2023 VCCCCY1HH101J J 100p 50V Ceramic AA
C2024 VCCCCY1HH101J J 100p 50V Ceramic AA
C2040 VCEA0A1AW107M J 100 10V EL. AB
C2041 VCEA0A1HW105M J 1.0 50V EL. AB
C2051 VCCCCY1HH101J J 100p 50V Ceramic AA
C2060 RC-QZA104TAYK J 0.1 50V Mylar AB
C2061 VCKYD41HB101K J 100p 50V Ceramic AA
C2062 VCEA0A1AW107M J 100 10V EL. AB
C2402 VCCCCY1HH560J J 56p 50V Ceramic AA
C2601 VCEA0A1HW475M J 4.7 50V EL. AB
C2602 VCCCCY1HH101J J 100p 50V Ceramic AA
DUNTK9529WEV0/V4
MAIN Unit (Continued)

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code
26
13K-M100/150
CK13M10/15
RESISTORS
RJ1 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ3 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ5 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ6 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ7 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ9 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ10 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ12 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ15 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ17 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ18 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ19 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ20 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ21 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ23 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ24 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ26 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ30 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ31 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ32 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ35 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ40 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ47 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ49 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ52 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ55 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ57 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ59 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ62 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ63 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ66 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ67 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ68 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ71 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ75 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ77 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ78 VRN-MD2AL000J J 00 0.1W Metal.Film AA
RJ79 VRN-MD2AL000J J 00 0.1W Metal.Film AA
åR51 VRS-VV3AB331J J 330 1W Metal.Oxide AA
åR52 VRS-VV3DB470J J 47 2W Metal.Oxide AA
åR53 VRS-VV3LB223J J 22k 3.0W Metal.Oxide AB
R54 VRN-MD2AL101J J 100 0.1W Metal.Film AA
R55 VRN-MD2AL101J J 100 0.1W Metal.Film AA
R56 VRN-MD2AL823J J 82k 0.1W Metal.Film AA
R57 VRN-MD2AL392J J 3.9k 0.1W Metal.Film AA
R201 VRN-MD2AL221J J 220 0.1W Metal.Film AA
R202 VRN-MD2AL122J J 1.2k 0.1W Metal.Film
R203 VRD-RA2BE682J J 6.8k 1/8W Carbon AA
R204 VRN-MD2AL270J J 27 0.1W Metal.Film AA
R205 VRD-RA2BE391J J 390 1/8W Carbon AA
R206 VRD-RA2EE151J J 150 1/4W Carbon AA
R208 VRN-MD2AL391J J 390 0.1W Metal.Film AA
R301 VRD-RA2BE222J J 2.2k 1/8W Carbon AA
R302 VRN-MD2AL102J J 1.0k 0.1W Metal.Film AA
R303 VRN-MD2AL153J J 15k 0.1W Metal.Film AA
R307 VRN-MD2AL333J J 33k 0.1W Metal.Film AA
R352 VRN-MD2AL332J J 3.3k 0.1W Metal.Film AA
R353 VRN-MD2AL4R7J J 4.7 0.1W Metal.Film AA
R354 VRN-MD2AL152J J 1.5k 0.1W Metal.Film AA
R361 VRD-RA2BE102J J 1.0k 1/8W Carbon AA
R364 VRN-MD2AL473J J 47k 0.1W Metal.Film AA
R401 VRN-MD2AL682J J 6.8k 0.1W Metal.Film AA
R403 VRD-RA2BE331J J 330 1/8W Carbon AA
R404 VRN-MD2AL391J J 390 0.1W Metal.Film AA
R407 VRN-MD2AL471J J 470 0.1W Metal.Film AA
R409 VRN-MD2AL471J J 470 0.1W Metal.Film AA
R410 VRD-RA2BE563J J 56k 1/8W Carbon AA
R411 VRN-MD2AL103J J 10k 0.1W Metal.Film AA
R412 VRD-RA2EE561J J 560 1/4W Carbon AA
R413 VRD-RA2BE470J J 47 1/8W Carbon AA
R414 VRD-RA2BE470J J 47 1/8W Carbon AA
R415 VRD-RA2BE470J J 47 1/8W Carbon AA
R416 VRN-MD2AL102J J 1.0k 0.1W Metal.Film AA
R417 VRD-RA2BE101J J 100 1/8W Carbon AB
R418 VRN-MD2AL152J J 1.5k 0.1W Metal.Film AA
R419 VRN-MD2AL472J J 4.7k 0.1W Metal.Film AA
R423 VRN-MD2AL222J J 2.2k 0.1W Metal.Film AA
R426 VRN-MD2AL271J J 270 0.1W Metal.Film AA
R440 VRN-MD2AL821J J 820 0.1W Metal.Film AA
åR451 VRS-SV2HC103J J 10k 1/2W Metal.Oxide AA
R452 VRD-RA2BE152J J 1.5k 1/8W Carbon AA
R454 VRD-RA2BE334J J 330k 1/8W Carbon AA
R455 VRD-RA2BE392J J 3.9k 1/8W Carbon AA
R456 VRN-MD2AL223J J 22k 0.1W Metal.Film AA
R457 VRD-RA2BE102J J 1.0k 1/8W Carbon AA
R458 VRD-RA2BE564J J 560k 1/8W Carbon AA
R459 VRD-RA2BE123J J 12k 1/8W Carbon AA
R504 VRD-RA2BE471J J 470 1/8W Carbon AA
R505 VRN-MD2AL101J J 100 0.1W Metal.Film AA
R506 VRD-RA2BE683G J 68k 1/8W Carbon AA
R507 VRD-RA2BE104G J 100k 1/8W Carbon AA
R508 VRD-RA2BE473J J 47k 1/8W Carbon AA
R510 VRD-RM2HD1R5J J 1.5 1/2W Carbon AA
åR511 VRN-SV2HB3R9J J 3.9 1/2W Metal.Film AB
R512 VRD-RM2HD681J J 680 1/2W Carbon AA
R516 VRD-RA2BE223G J 22k 1/8W Carbon AA
R517 VRD-RA2BE103G J 10k 1/8W Carbon AA
R518 VRD-RA2BE154J J 150k 1/8W Carbon AA
R524 VRN-MD2AL332J J 3.3k 0.1W Metal.Film AA
R525 VRD-RA2BE473J J 47k 1/8W Carbon AA
R552 VRD-RA2BE102J J 1.0k 1/8W Carbon AA
R553 VRN-MD2AL273J J 27k 0.1W Metal.Film AA
R554 VRN-MD2AL472J J 4.7k 0.1W Metal.Film AA
R555 VRN-MD2AL102J J 1.0k 0.1W Metal.Film AA
R556 VRN-MD2AL102J J 1.0k 0.1W Metal.Film AA
R602 VRD-RA2EE820J J 82 1/4W Carbon AA
åR603 VRS-VV3LB270J J 27 3.0W Metal.Oxide AB
R605 VRN-MD2AL332J J 3.3k 0.1W Metal.Film AA
DUNTK9529WEV0/V4
MAIN Unit (Continued)
