Sharp 14LK22 User manual

1
CONTENTS
PAGE
• IMPORTANT INFORMATION ....................... 2
• Supplied Accessories ................................. 2
• IMPORTANT SAFEGUARDS ............ 3~ 4
• Before Operating Your Television ............... 5
• Antenna Connections ................................. 6
• Quick Reference Control Operation .......... 7
• EZ SETUP during First Use ........................ 8
• Demo Mode .................................................. 9
• Accessing the MAIN MENU screen
without Remote Control .............................. 9
• Language .................................................... 10
• Sleep Timer ................................... 10 ~ 11
• On Timer ..................................................... 12
• Clock Set .................................................... 13
• Video Adjust ............................................... 14
• Closed Caption .......................................... 15
• Parent Control .............................. 16 ~ 18
View Timer ................................. 16 ~ 18
• Energy Save ............................................... 18
• Set Up ........................................... 19 ~ 22
EZ SETUP ................................................ 19
Channel Setting ........................ 20 ~ 22
Blue Screen ............................................ 22
•
Using the Video and Audio Input Jacks ..... 23
•
Specifications ............................................... 24
• Before Calling for Service ......................... 25
• Calling for Service ..................................... 25
COLOR TELEVISION
OPERATION MANUAL
MODEL
14LK22
7400 GJ
READ THIS OPERATION MANUAL
COMPLETELY BEFORE OPERATING
THIS PRODUCT.
01-07 14LK22 [E].p65e 29/5/01, 7:52 PM1
Downloaded from: http://www.usersmanualguide.com/

2
TV
Welcome to the SHARP Family. We are pleased that you are now the owner of a SHARP Color Television
– built for outstanding quality, reliability and performance.
Every SHARP Color Television set is tuned and adjusted for proper color and sound, and has passed
through the most stringent quality control tests at the factory. We have prepared this OPERATION MANUAL
so that you may adjust the picture and color to your personal viewing preference.
We sincerely hope that you receive the greatest satisfaction and enjoyment from your new SHARP Color
Television set for years to come.
Please read these instructions carefully, and keep them handy for your future reference.
IMPORTANT
To aid reporting in case of loss or theft, please record the TV’s
model and serial numbers in the space provided. The numbers
are located at the rear of the TV.
Size AA
Dry Batteries
Infrared Remote Control
Part Number : RRMCG1339CESB
IMPORTANT INFORMATION
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO WET LOCATIONS.
Model No.:
Serial No.:
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with
arrowhead within a triangle is
intended to tell the user that
parts inside the product are a
risk of electric shock to
persons.
The exclamation point within a
triangle is intended to tell the
user that important operating
and servicing instructions are
in the papers with the
appliance.
Supplied Accessories
AC Plug Adaptor
01-07 14LK22 [E].p65e 9/5/01, 6:24 PM2
Downloaded from: http://www.usersmanualguide.com/

3
CAUTION: Please read all of these instructions before you operate your television and save
these instructions for later use.
Electrical energy can perform many useful functions. This unit has been engineered and manufactured to
assure your personal safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK
OR FIRE HAZARDS. In order not to defeat the safeguards incorporated in this equipment, observe the
following basic rules for its installation, use and servicing.
1. Unplug this television equipment from the wall outlet before cleaning.
2. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
3. Do not use attachments not recommended by the television equipment manufacturer as they may
cause hazards.
4. Do not use this television equipment near water — for example, near a bathtub, washbowl, kitchen sink
or laundry tub, in a wet basement, or near a swimming pool, etc.
5. Do not place this equipment on an unstable cart, stand, or table. The television equipment may fall,
causing serious injury to a child or an adult, and serious damage to the equipment.
Use only with a cart or stand recommended by the manufacturer or sold with the
television equipment.
Television equipment and cart combination should be moved with care. Quick stops,
excessive force, and uneven surfaces may cause the equipment and cart combination
to overturn.
6. Wall or shelf mounting should follow the manufacturer’s instructions, and should use a mounting kit
approved by the manufacturer.
7. Slots and openings in the cabinet and the back or bottom are provided for ventilation, and to insure
reliable operation of the television equipment and to protect it from overheating, these openings must
not be blocked or covered. This television equipment should not be placed in a built-in insulation such
as a bookcase unless proper ventilation is provided.
8. The openings should never be covered with a cloth or other material, and the bottom openings should
not be blocked by placing the television equipment on a bed, sofa, rug, or other similar surface. This
television equipment should never be placed near or over a radiator or heat register.
9. This television equipment should be operated only from the type of power source indicated on the
marking label. If you are not sure of the type of power supplied to your home, consult your television
dealer or local power company.
For television equipment designed to operate from battery power, refer to the operating instructions.
10. Do not allow anything to rest on the power cord. Do not locate this television equipment where the cord
will be abused by persons walking on it.
11. Follow all warnings and instructions marked on the television equipment.
12. If an outside antenna is connected to the television equipment, be sure the antenna system is grounded
so as to provide some protection against voltage surges and built-up static charges.
IMPORTANT SAFEGUARDS
01-07 14LK22 [E].p65e 9/5/01, 6:24 PM3
Downloaded from: http://www.usersmanualguide.com/

4
EXAMPLE OF ANTENNA GROUNDING
ACCORDING TO NATIONAL ELECTRICAL CODE.
ANTENNA LEAD-IN WIRE
GROUND CLAMP
ANTENNA DISCHARGE UNIT
GROUND CLAMPS
13. For added protection for this television equipment during a lightning storm, or when it is left unattended
and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This
will prevent damage to the equipment due to lightning and power-line surges.
14. An outside antenna system should not be located in the vicinity of overhead power lines or other electric
light or power circuits, or where it can fall into such power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep from touching such power lines or circuits as
contact with them might be fatal.
15. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
16. Never push objects of any kind into this television equipment through cabinet slots as they may touch
dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid
of any kind on the television equipment.
17. Do not attempt to service this television equipment yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
18. Unplug this television equipment from the wall outlet and refer servicing to qualified service personnel
under the following conditions:
A. When the power cord or plug is damaged or frayed.
B. If liquid has been spilled into the television equipment.
C. If the television equipment has been exposed to rain or water.
D. If the television equipment does not operate normally by following the operating instructions. Adjust
only those controls that are covered by the operating instructions as improper adjustment of other
controls may result in damage and will often require extensive work by a qualified technician to
restore the television equipment to normal operation .
E. If the television equipment has been dropped or the cabinet has been damaged.
F. When the television equipment exhibits a distinct change in performance — this indicates a need
for service.
19. Upon completion of any service or repairs to this television equipment, ask the service technician to
perform routine safety checks to determine that the television is in safe operating condition.
20. When replacement parts are required, be sure the service technician has used replacement parts
specified by the manufacturer that have the same characteristics as the original part. Unauthorized
substitutions may result in fire, electric shock, or other hazards.
GROUNDING CONDUCTORS
ELECTRIC
SERVICE
EQUIPMENT
POWER SERVICE GROUNDING ELECTRODE
SYSTEM
IMPORTANT SAFEGUARDS (Continued)
01-07 14LK22 [E].p65e 9/5/01, 6:24 PM4
Downloaded from: http://www.usersmanualguide.com/

5
Location
• For normal operation, your TV should be located in an area of the room where cool adequate ventilation
is provided. Do not place the back of the television set in a place where free airflow will be restricted.
• Any magnetic force may disturb the color picture. Make sure that magnets, electric clocks, toys using
magnets or any other magnetic substance, such as iron are kept well away from the TV set.
Power
Your TV operates on 110-220 Volts, 50/60 Hz (normal household current).
Note:
• If the set will not be used for a long period, such as during a vacation, unplug the set from the wall
outlet to economize power. (If the TV set is plugged in, a slight current still flows, even with the
POWER BUTTON in the OFF position.)
• Lines and other noise may appear in TV broadcast images when an FM tuner or radio is located near
the TV and both radio and TV broadcasts are being received. Should such noise appear, turn off
either the TV or the radio.
• If you are listening to an AM broadcast, turn the TV off. AM broadcast signals may not be received
due to interference from the TV.

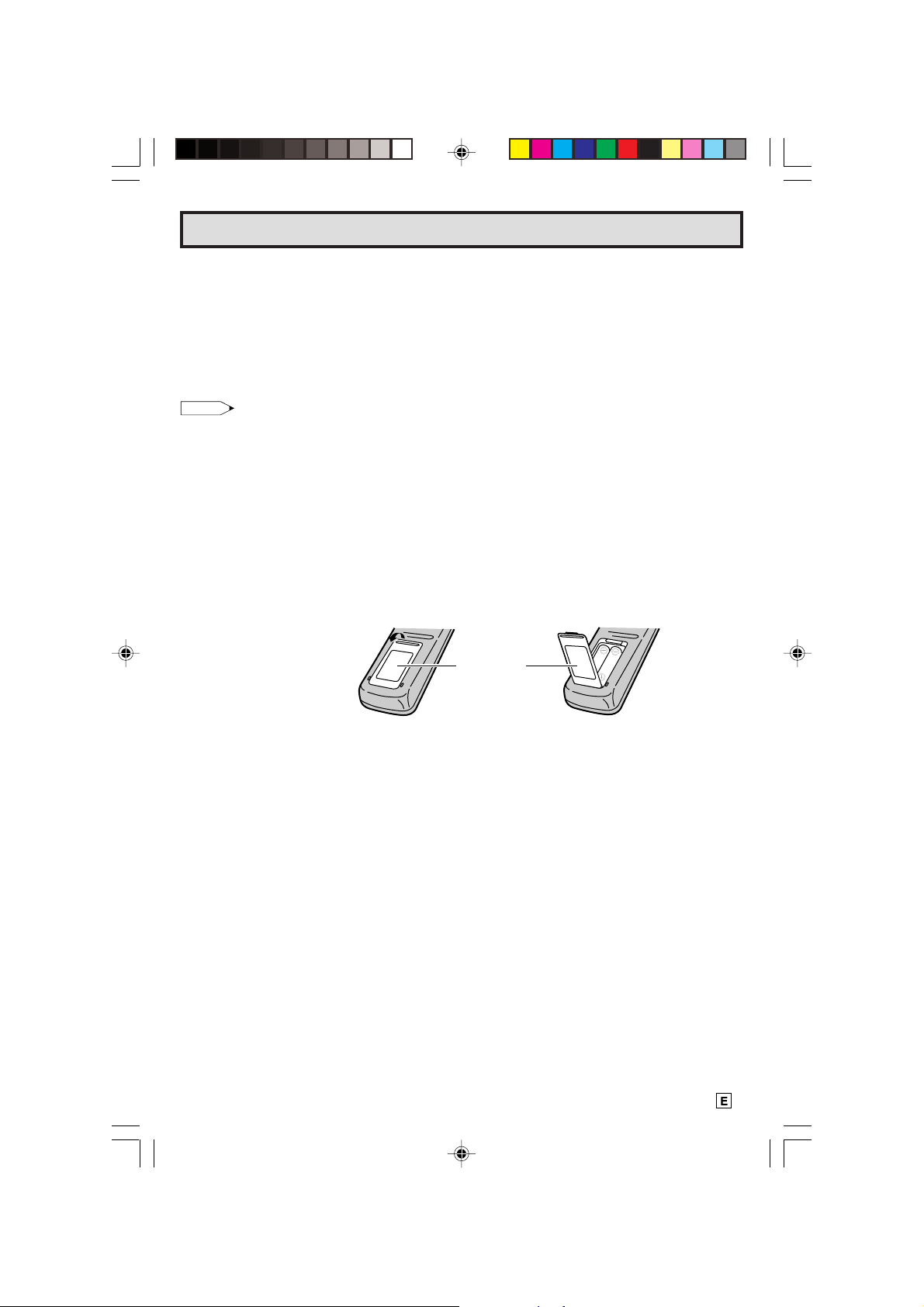

LBefore using the television, prepare the Remote Control
To use the remote control, insert batteries first.
Insert the batteries
• With your thumb nail, pull up the slit as indicated by the arrow to remove the back cover. Insert two
batteries (size “AA”). Be sure to match the battery e/dterminals with the e/dmarks inside the
compartment.
Before Operating Your Television
Battery
Cover
Pull up
01-07 14LK22 [E].p65e 9/5/01, 6:24 PM5
Downloaded from: http://www.usersmanualguide.com/

6
75-ohm
coaxial
cable
300-ohm
twin-lead
VHF/UHF
ANTENNA
VHF/UHF ANTENNA
REAR OF TV
300/75-ohm
ADAPTOR
(not supplied)
or
300-ohm
twin-lead
300-ohm
twin-lead
75-ohm coaxial
cable
IN OUT
VHF
ANTENNA
UHF
ANTENNA
COMBINER
(not supplied)
or
REAR OF TV
OUT
A
IN
B
A. Combination VHF/UHF Antennas
OUTDOOR ANTENNA CONNECTION
• Use one of the following two diagrams if you connect an outdoor antenna.
A: Using a VHF/UHF combination outdoor antenna.
B: Using separate VHF and/or UHF outdoor antenna.
• Connect an outdoor antenna cable lead-in to the COAXIAL CABLE CONNECTOR on the rear of the
TV set.
CABLE TV (CATV) CONNECTION
• A 75 ohm coaxial cable connector is built into the set for easy hookup. When connecting the 75 ohm
coaxial cable to the set, screw the 75 ohm cable to the COAXIAL CABLE CONNECTOR.
• Some cable TV companies offer “premium pay channels”. Since the signals of these premium pay
channels are scrambled, a cable TV converter/descrambler is generally provided to the subscriber by
the cable TV company. This converter/descrambler is necessary for normal viewing of the scrambled
channels. (Place your TV on channel 3 or 4, typically one of these channels is used. If this is unknown,
consult your cable TV company.) For more specific instructions on installing cable TV, consult your
cable TV company. One possible method of utilizing the converter/descrambler provided by your
cable TV company is explained below.
Please note: RF switch equipped with position A/B (not provided) is required.
“A” position on the RF switch (not supplied) : You can view all unscrambled channels using the TV’s
channel keys.
“B” position on the RF switch (not supplied) : You can view the scrambled channels via the converter/
descrambler using the converter’s channel keys.
Note:
• Consult your SHARP Dealer or Service Center for the type of splitter, RF switch or combiner that
might be required.
B. Separate VHF/UHF Antenna
Antenna Connections
Cable TV converter/
descrambler
(not supplied)
Two-set
signal
splitter
(not
supplied)
Cable TV Line
RF switch (not supplied)
OUT IN
Antennas
• The antenna requirements for good color television reception are more important than those for
black & white television reception. For this reason, a good quality outdoor antenna is strongly
recommended.
01-07 14LK22 [E].p65e 10/5/01, 11:03 AM6
Downloaded from: http://www.usersmanualguide.com/

7
TV
Quick Reference Control Operation
Infrared Transmitter Window
INPUT
Press →Switch to external video input
mode.
Press again →Switch to TV mode.
See page 23.
CHANNEL UP/DOWN
(8) Selects next higher channel.
(9) Selects next lower channel.
•
See pages 19 ~ 22 for channel
presetting.
• Moves the “ ” mark of the MENU
screen.
MENU
Press →Accesses MAIN MENU.
Press again →Exits MAIN MENU.
DISPLAY
Press →Displays receiving channel for
4 seconds.
Press again →Removes display.
• Temporarily displays receiving
channel when in Closed Caption
mode.
LLocation of Controls
Front Panel
CHANNEL UP/DOWN
(8) Selects next higher channel.
(9) Selects next lower channel.
VOLUME UP/DOWN
(+) Increases sound.
(–) Decreases sound.
POWER
Press →On.
Press again →Off.
Basic Remote Control Functions
POWER
Press →On.
Press again →Off.
REMOTE KEYPAD
Accesses any channel from keypad.
FLASHBACK
Returns to previous channel.
VOLUME UP/DOWN
(+) Increases sound.
(–) Decreases sound.
• In menu mode, changes or selects
the TV adjustments.
MUTE
Press →Mutes sound.
Press again →Restores sound.
• CLOSED CAPTION appears when
sound is muted.
MENU
Press ;Accesses MAIN MENU.
Press again ;Exits MAIN MENU.
ON TIMER indicator
SENSOR AREA FOR
REMOTE CONTROL
VIDEO/AUDIO TERMINALS
(VIDEO/AUDIO terminals are also
provided on the rear.)
IN
01-07 14LK22 [E].p65e 29/5/01, 4:08 PM7
Downloaded from: http://www.usersmanualguide.com/

8
ENGL I SH
ESPAÑOL
FAVORABIDIOMA LE
ENGL I SH
ESPAÑOL
LANGUAGSELECT E
OR CAB LE .
TSART SETUP?ZE
ANTENNCONNECT A
YE : VOL+
VOL –
S
NO :
AU
18
TO RGGAMM I NORP
WA I TPLE EAS
VOL –
TSOP:
2

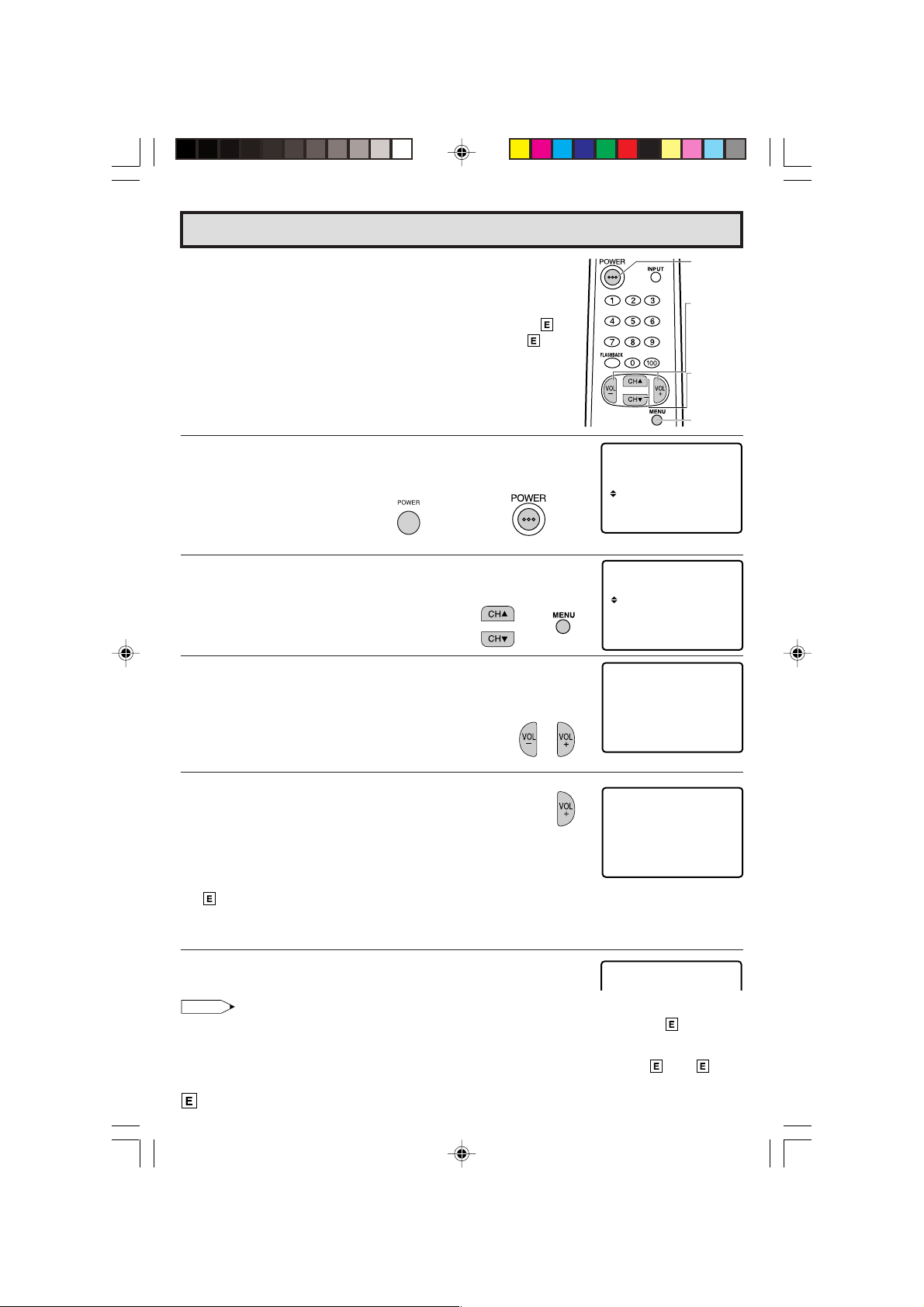

LWhen you turn on the TV for the first time, it will automatically
memorize the broadcast channels.
Please perform the following instructions before pressing the
power button.
(1) Insert the batteries into the remote control. (See page 5)
(2) Connect the antenna cable to the TV set. (See page 6)
(3) Plug in the AC POWER cord to the wall outlet.
1Press the POWER button on the TV set or on the Remote Control
to turn on the TV. The SELECT LANGUAGE mode will be
displayed.
2Press CH UP ( 8 ) or DOWN ( 9 ) to select “ENGLISH”or “SPANISH
(ESPAÑOL)”. Then press
Menu to SET LANGUAGE.
3Press VOL (+) or (–) to access EZ SETUP mode.
4Press VOL (+) .
The tuner will automatically search for the
broadcast and cable TV channels. (The CH No.
will automatically increase when it appears.)
If you want to stop the EZ SETUP process once it
has started, press
VOL (–) and it will be cancelled.
If you want to SET UP again, please refer to page
19 on SET UP.
To cancel EZ SETUP
Press
VOL (–) .
5Once EZ SETUP is completed, the smallest channel number
memorized will be displayed.
Note:
•If EZ SETUP does not memorize all the channels in your region, please refer to page 19 for more
information on manual memorizing the channels using CHANNEL SETTING.
•It may be difficult to PRESET when the broadcast signals are weak, the channel cycle frequency is
incorrect or frequency jamming is occuring around the area. Please refer to pages 19 ~ 22 for
more information on manual memorizing the channels using CHANNEL SETTING.
EZ SETUP during First Use
(Remote Control)
POWER
CHANNEL
UP (8)/
DOWN (9)
MENU
VOLUME
(+)/(–)
(SELECT LANGUAGE mode)
(On the Set)
(EZ SETUP mode)
→
08-09 14LK22 [E].p65e 28/5/01, 10:43 AM8
Downloaded from: http://www.usersmanualguide.com/

9

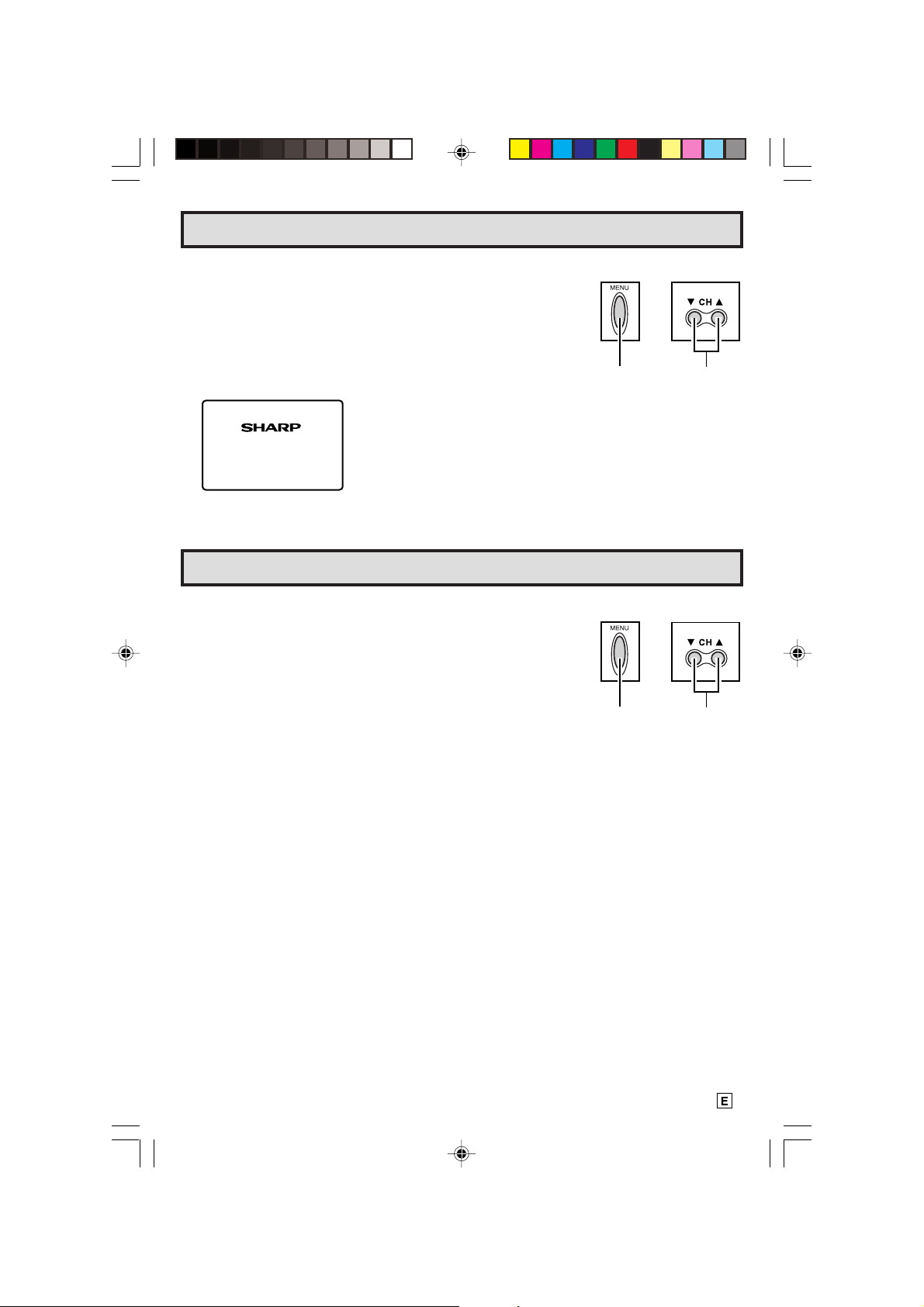

Demo Mode
•To quickly learn more about the TV set, press and hold for more
than three seconds
MENU or both CH UP (
88
88
8
) and DOWN (
99
99
9
) on
the TV set. The TV set will go into DEMO mode and briefly explain
the various features.
•To cancel DEMO mode, again press
MENU or both CH UP (
88
88
8
) and
DOWN (
99
99
9
) on the TV set.
Example:
DEMO mode display
(On the Set)
CHANNEL
UP
(
88
88
8
) /
DOWN
(
99
99
9
)
buttons
Accessing the MAIN MENU screen without Remote Control
•If you misplaced your Remote Control you can still access most
settings via the MAIN MENU screen when you press
MENU or
both
CH UP (
88
88
8
) and DOWN (
99
99
9
) on the TV set.
•Some features of your TV set will not be accessible without the
Remote Control. If you lost your Remote Control, contact a Sharp
Service Center for a replacement.
MENU
button
S i e m p r e
S i e m p r e
M e j o r,
Sha r p
or
(On the Set)
CHANNEL
UP
(
88
88
8
) /
DOWN
(
99
99
9
)
buttons
MENU
button
or
08-09 14LK22 [E].p65e 9/5/01, 6:25 PM9
Downloaded from: http://www.usersmanualguide.com/

10
SET UP
TIMER
VIDEO ADJUST
CAPT I ONCLOSED
PARENT CONTROL
ENERGY SAVE
ON T I MER
SETCLOCK
SLEEP T IMER
Sleep Timer
LYou can preset your television to turn off automatically in increments of 30, 60, 90 or 120
minutes.
1Press MENU to access the MAIN MENU screen.
2Press CH UP ( 8 ) or DOWN ( 9 ) to move the “ ” mark to “TIMER”.
3Press VOL (+) or (–) to access TIMER mode, then press CH UP ( 8 )
or DOWN ( 9 ) to move the “ ” mark to “SLEEP TIMER”.
(MAIN MENU screen)
→
Language
(TIMER select mode)
→
SET UP
TIMER
VIDEO ADJUST
CAPT I ONCLOSED
PARENT CONTROL
ENERGY SAVE
SET UP
VIDEO ADJUST
CAPT I ONCLOSED
PARENT CONTROL
ENERGY SAVE
TIMER
BL E SCREENU
AGE
TINGCH SET
LANGU
ENGL I SH
ESPAÑOL
LANGUAGE
ENGL I SH
ESPAÑOL
IDIOMA
(LANGUAGE change mode)
(MAIN MENU screen)
LThe language for the ON SCREEN DISPLAY can be set to ENGLISH or SPANISH.
LSetting the ON SCREEN DISPLAY Language.
1Press MENU to access the MAIN MENU screen.
2Press CH UP ( 8 ) or DOWN ( 9 ) to move the “ ”mark to “SET UP”.
3Press VOL (+) or (–) to access SET UP mode, then press CH UP
(
8 ) or DOWN ( 9 ) to move the “ ”mark to “LANGUAGE”.
4Press VOL (+) or (–) to access LANGUAGE change mode.
5Press CH UP ( 8 ) or DOWN ( 9 ) to select “ENGLISH” or “SPANISH
(ESPAÑOL)”.
6Press MENU to exit.
(SET UP mode)
→
10-14 14LK22 [E].p65e 28/5/01, 10:47 AM10
Downloaded from: http://www.usersmanualguide.com/

11
SL EP T IMERE
120 RE AIMN
4Press VOL (+) or (–) to set a sleep time of 30, 60, 90 or 120 minutes.
5Press MENU to exit.
•To turn off the Sleep Timer, repeat the above SLEEP TIMER steps and select “--- REMAIN”
during step 4.
•While SLEEP TIMER is active, the time remaining will be briefly displayed on-screen at regular
intervals or when the remote’s Display key is pressed.
(TIMER SET mode)
Note:
VOLUME
(+)/(–)
CHANNEL
UP (8)/
DOWN (9)
MENU
;
--- ↔ 30 ↔ 60 ↔ 90 ↔ 120
'
LSetting the On Time automatically turns on the TV at a preset
time.
1Press MENU to access the MAIN MENU screen.
2Press
CH UP ( 8 ) or DOWN ( 9 ) to move the “ ”mark to “TIMER”.
3Press VOL (+) or (–) to access “TIMER”, then press CH UP ( 8 ) or
DOWN ( 9 ) to move the “ ”mark to “ON TIMER”.
4Press VOL (+) or (–) to access “ON TIMER”.
Press CH UP ( 8 ) or DOWN ( 9 ) to select “ON TIMER”.
•When the timer is not set, CLOCK SET screen appears automatically after the OSD shown
below appears. (CLOCK SET step. 3)
SET UP
TIMER
V I DEO ADJUST
CAPT I ONCLOSED
PARENT CON TROL
ENERGY SAVE
ON T I MER
SETCLOCK
SLEEP T IMER
ON T I MER
ST TUS OFFA
10 00 PM:
:
PLEASE
SET UP T I ME
(MAIN MENU screen)
On Timer
(TIMER select mode)
→
→
(ON TIMER SET mode)
→
Note:
Sleep Timer (Continued)
Note:
10-14 14LK22 [E].p65e 9/5/01, 6:25 PM11
Downloaded from: http://www.usersmanualguide.com/

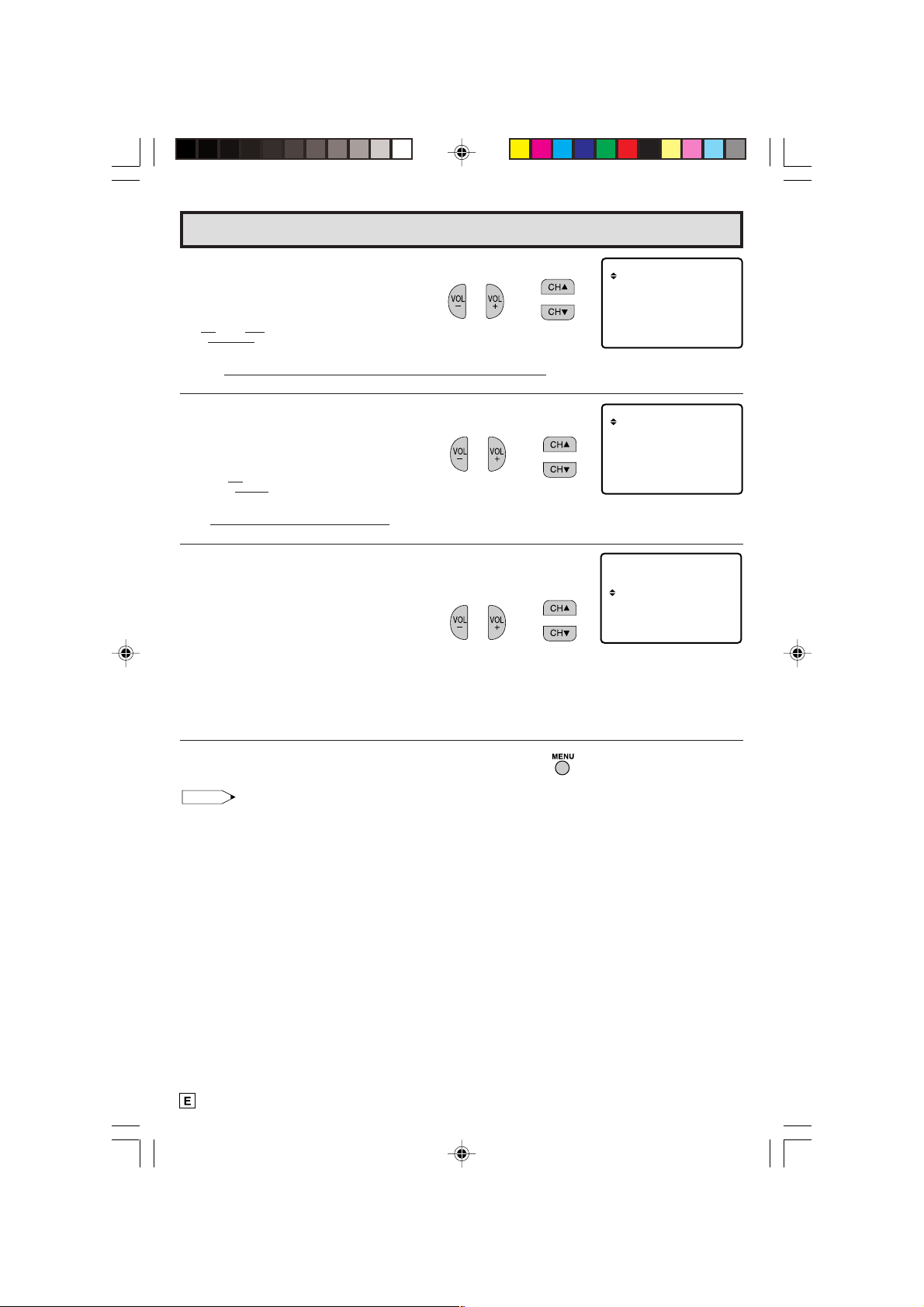

12
On Timer (Continued)
ON T I MER
ST TUS OFFA
10 30 PM:
:
ON T I MER
ST TUS ONA
10 30 PM:
:
5Press VOL (+) or (–) to select the hour-digit and adjust by pressing
CH UP ( 8 ) or DOWN ( 9 ) .
6Press VOL (+) or (–) to select the minute-digit and adjust by
pressing
CH UP ( 8 ) or DOWN ( 9 ) .
7Press VOL (+) or (–) to complete the TIMER setting.
Press
CH UP ( 8 ) or DOWN ( 9 ) to select “STATUS”, and press
VOL (+) or (–) to select “ON” or “OFF”.
ON : ON TIMER becomes activated, and turns on the unit at
the desired time.
(ON TIMER indicator: lights on.)
OFF : ON TIMER turns off.
(ON TIMER indicator: lights off.)
8Press MENU to exit.
•For safety reasons, the unit automatically turns off for 120 minutes (SLEEP TIMER) after the
unit is turned on by the ON TIMER setting.
(Press any button to cancel SLEEP TIMER.)
→
10 : 00 PM
.The indicator color changes to red.
00↔ 10 ↔ 20 ↔ 30 ↔ 40 ↔ 50
..
→
Note:
12 : 00 AM
..The indicator color changes to red.
12:00AM↔ 1:00AM ↔ 2:00AM ↔ … ↔ 10:00PM ↔ 11:00PM
..
ON T I MER
ST TUS OFFA
10 00 PM:
:
→
10-14 14LK22 [E].p65e 9/5/01, 6:25 PM12
Downloaded from: http://www.usersmanualguide.com/

13
LHow to set the time.
1Press MENU to access the MAIN MENU screen.
2Press CH UP ( 8 ) or DOWN ( 9 ) to move the “”mark to “TIMER”.
3Press VOL (+) or (–) to access “TIMER”, then press CH UP ( 8 ) or
DOWN ( 9 ) to move the “ ”mark to “CLOCK SET”.
4Press VOL (+) or (–) to access “CLOCK SET”.
5Press CH UP ( 8 ) or DOWN ( 9 ) to set the hour-digit.
6Press VOL (+) or (–) to select the minute-digit and adjust by
pressing
CH UP ( 8 ) or DOWN ( 9 ) .
7Press MENU to exit.
•The clock settings may become incorrect due to power failure etc.
SET UP
TIMER
V I DEO ADJUST
CAPT I ONCLOSED
PARENT CONTROL
ENERGY SAVE
ON T I MER
SETCLOCK
SLEEP T IMER
Clock Set
(MAIN MENU screen)
→
SETCLOCK
5:00AM
SETCLOCK
5:32AM
→
Note:
(TIMER Select mode)
→
SETCLOCK
–– :––
(CLOCK SET mode)
The indicator color changes to red.
The indicator color changes to red.
12 : 00 AM
12:00AM 1:00AM 2:00AM
11:00PM 10:00PM 9:00PM
12 : 00 AM
00 01 02 ... 57 58 59
10-14 14LK22 [E].p65e 9/5/01, 6:25 PM13
Downloaded from: http://www.usersmanualguide.com/

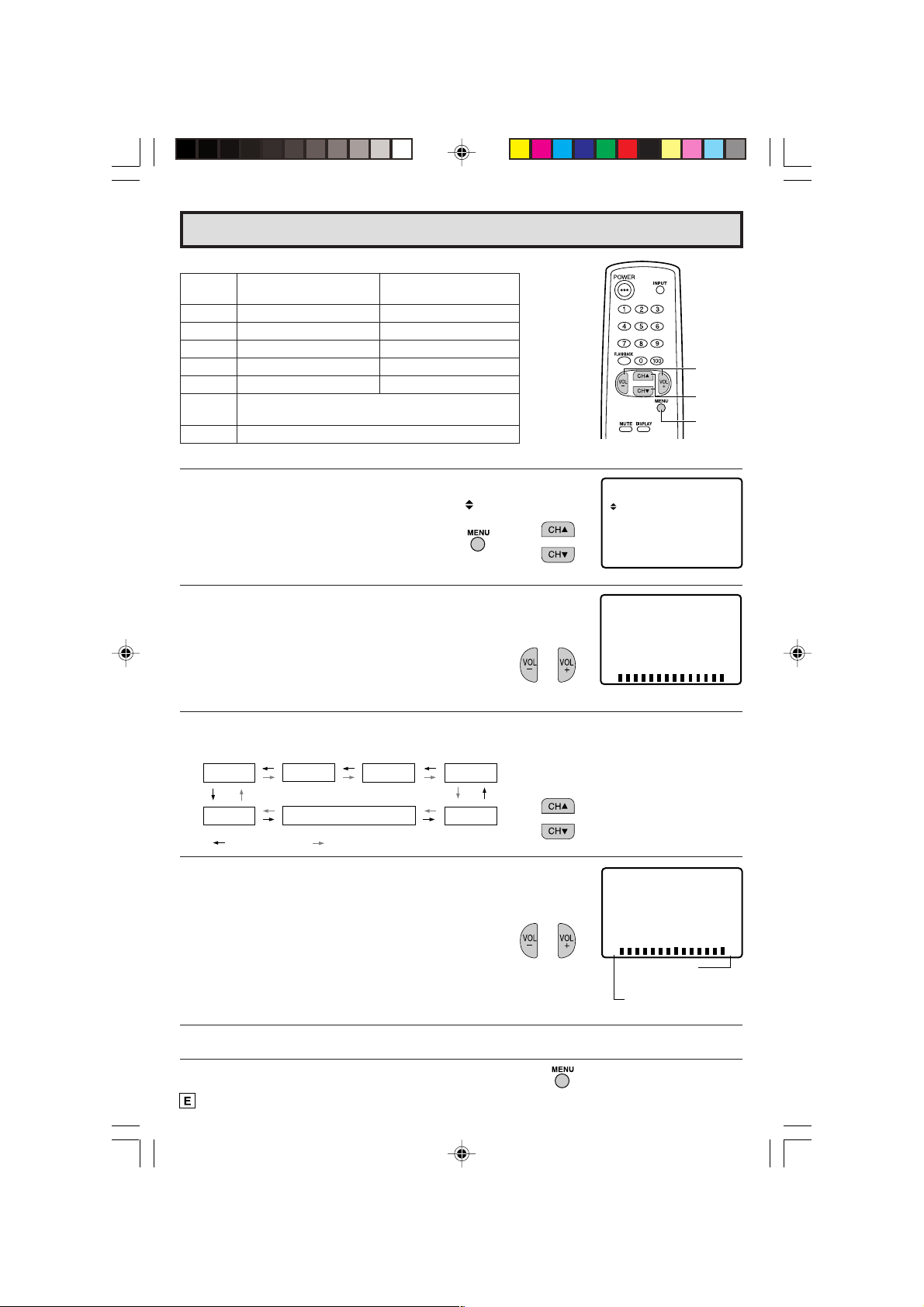

14
SET UP
VIDEO ADJUST
CAPT I ONCLOSED
PARENT CONTROL
ENERGY SAVE
TIMER
ICTUR
E
– +
P50
ICTUR
E
– +
P50
PICTURE TINT COLOR
SHARP
FAVORITE COLOR
RESET
: CH DOWN (9)
: CH UP (8)
BRIGHT
VOLUME
(+)/(–)
CHANNEL
UP (8)/
DOWN (9)
MENU
1Press MENU to access the MAIN MENU screen.
2Press
CH UP ( 8 ) or DOWN ( 9 ) to move the “ ”mark to “VIDEO
ADJUST”.
3Press VOL (+) or (–) to access PICTURE adjust mode.
4Press CH UP ( 8 ) or DOWN ( 9 ) to select the desired mode.
(Refer to the diagram below.)
5Press VOL (+) or (–) to adjust the setting.
6Repeat steps 4to 5to adjust other settings.
7Press MENU to exit.
(PICTURE adjust mode)
VOL UP (+)
increase contrast
VOL DOWN (–)
decrease contrast
(MAIN MENU screen)
Selected VOL UP (+) button VOL DOWN (–) button
item
PICTURE To increase contrast To decrease contrast
TINT To make skin tones greenish To make skin tones purplish
COLOR To increase color intensity To decrease color intensity
BRIGHT To increase brightness To decrease brightness
SHARP To increase sharpness To decrease sharpness
FAVORITE To choose a RED, BLUE or STANDARD COLOR TONE.
COLOR
RESET To return all adjustments to factory preset levels.
Description of Adjustment Items
Video Adjust
→
10-14 14LK22 [E].p65e 9/5/01, 6:25 PM14
Downloaded from: http://www.usersmanualguide.com/

15
LHOW TO SET CLOSED CAPTION

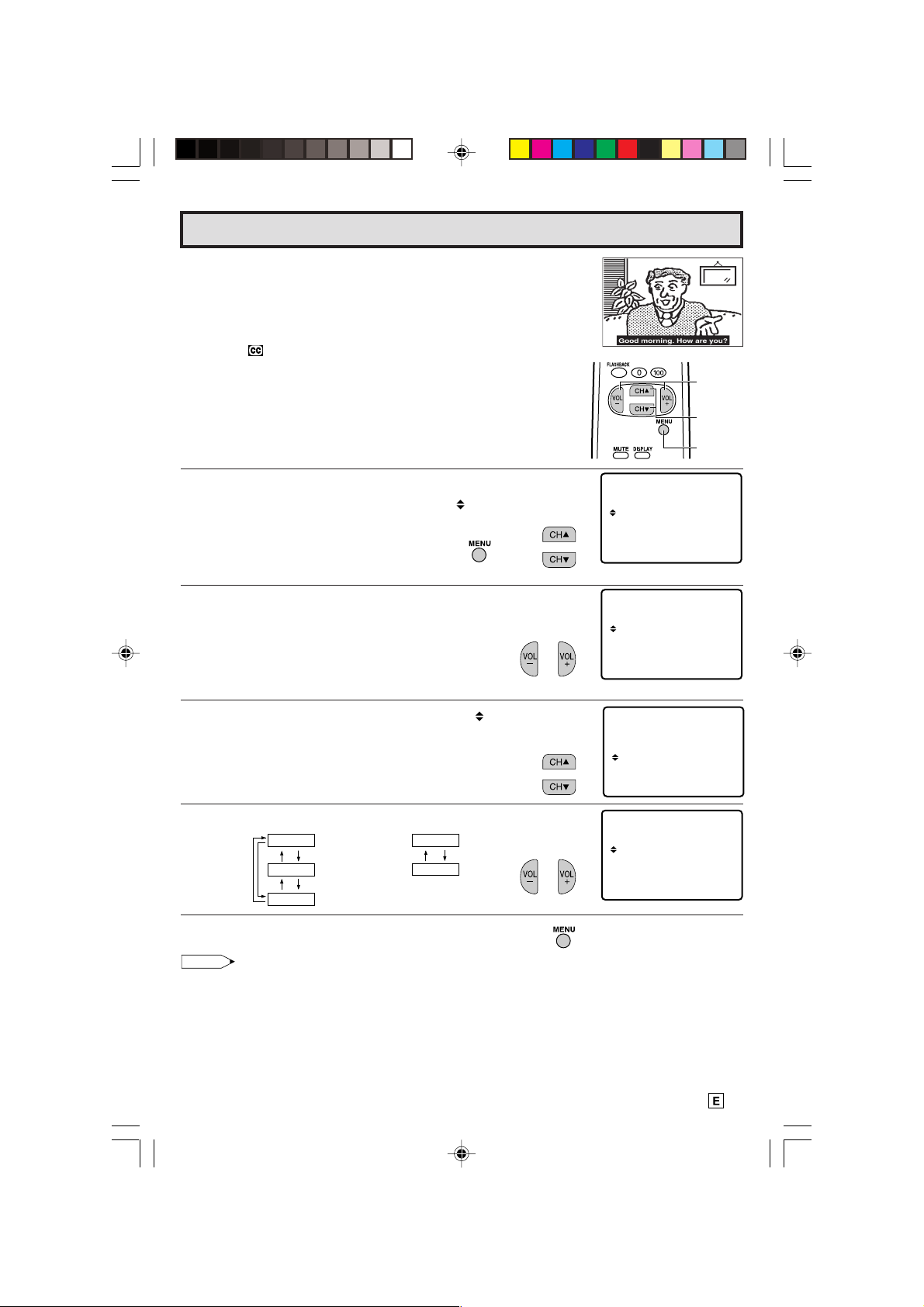

• Your TV is equipped with an internal Closed Caption decoder. “Closed
Caption” is a system which allows you to view conversations, narration,
and sound effects in TV programs and home videos as subscript on
your TV screen as shown on the right.
• Not all the programs and videos will offer closed caption. Please look
for the “ ” symbol to ensure that captions will be shown.
• Closed Caption broadcast can be viewed in two modes: CAPTION
and TEXT. For each mode, two channels are available, CH1 and CH2:
The [CAPTION] mode subscripts dialogues and commentaries of TV
dramas and news programs while allowing clear view of the picture.
The [TEXT] mode displays over the picture other various information
(such as TV program schedule, weather forecast, etc.) that is
independent of the TV programs.
1Press MENU to access the MAIN MENU screen.
2Press
CH UP ( 8 ) or DOWN ( 9 ) to move the “”mark to “CLOSED
CAPTION”.
3Press VOL (+) or (–) to access “CLOSED CAPTION”.
4Press CH UP ( 8 ) or DOWN ( 9 ) to move the “ ”mark to either
“MODE”or “DATA”.
5Press VOL (+) or (–) to change the CLOSED CAPTION setting.
6Press MENU to exit.
Note:
•If a broadcast has CLOSED CAPTION and the MUTE button is pressed, the set enters [CAPTION]
mode automatically. Pressing
MUTE again will return the set to its previous condition.
•Closed Caption may malfunction (white blocks, strange characters, etc.) if signal conditions are poor
or if there are problems at the broadcast source. This does not necessarily indicate a problem with
your TV.
•If any button is pressed to call up the ON SCREEN DISPLAY while viewing a CLOSED CAPTION
broadcast, the closed captions will disappear momentarily.
•When viewing in TEXT mode, if no TEXT broadcast is being received, for some programs the screen
may become dark and blank. Should this occur, set the Closed Caption mode to “OFF”.
Closed Caption
(MAIN MENU screen)
(CLOSED CAPTION setting mode)
MODE : DATA :
→
VOLUME
(+)/(–)
CHANNEL
UP (8)/
DOWN (9)
MENU
TIMER
SET UP
V I DEO ADJUST
CAPT I ONCLOSED
PARENT CONTROL
ENERGY SAVE
CAPT I ONCLOSED
MOD E : C A P
DATA : CH 1
TION
CAPT I ONCLOSED
MOD E : C A P
DATA : CH 1
TION
CAPT I ONCLOSED
MOD E : C A P
DATA : CH 1
TION
CH 1
CH 2
CAPTION
TEXT
OFF
15-17 14LK22 [E].p65e 9/5/01, 6:26 PM15
Downloaded from: http://www.usersmanualguide.com/

16
VEWT
––H
IIMER
––M
OFF
STATU
VEWINGITIME
TIME
––H––M
S:OFF
SET UP
V I DEO ADJUST
CAPT I ONCLOSED
PARENT CONTROL
ENERGY SAVE
TIMER
TIMER
VIE
W
PARENT CONTROL
VI W TIMER
ST TAUS
E
VI
W ITIME
:OFF
EGN
––––H
––––H
OFF T I ME
M
M
VEWT
2H
IIMER
00M
OFF
STATU
VEWINGITIME
TIME
––H––M
S:OFF
VEWT
2H
IIMER
00M
OFF
STATU
VEWINGITIME
TIME
5H 00M
S:ON
– – –
–
NIPUTSECRETNo.
Parent Control
LVIEW TIMER
This function allows you to restrict TV viewing time and also allows you to control TV usage.
This function is to prevent your children from watching too much TV.
VIEWING TIME (an accumulative timer: counts only the time
duration acquired while the TV is on.)
•VIEWING TIME can be set from 30M (30 minutes) to 10H00M (10
hours) in 30 minutes intervals.
OFF TIME (Restricts TV watching after the VIEWING TIME reaches
zero.)
•OFF TIME can be set from 30M (30 minutes) to 10H00M (10 hours)
in 30 minutes intervals.
STATUS (ON/OFF setting of VIEW TIMER)
LHow to set VIEW TIMER.
1Press
MENU to access the MAIN MENU screen.
2Press
CH UP ( 8 ) or DOWN ( 9 ) to move the “”mark to “PARENT
CONTROL”.
3Press VOL (+) or (–) to access “PARENT CONTROL VIEW
TIMER”.
4Press VOL (+) or (–) to access “VIEW TIMER”.
5Press CH UP ( 8 ) or DOWN ( 9 ) to select “VIEWING TIME” and
“OFF TIME”. For each selection, press the
VOL (+) or (–) to set
the time duration.
6Press CH UP ( 8 ) or DOWN ( 9 ) to select “STATUS”. Press the
VOL (+) or (–) to turn ON the “VIEWING TIMER”. (If STATUS is
OFF, VIEW TIMER will not operate.)
7Press MENU . “INPUT SECRET No.” will be displayed.
(MAIN MENU screen)
→
→
→
15-17 14LK22 [E].p65e 9/5/01, 6:26 PM16
Downloaded from: http://www.usersmanualguide.com/

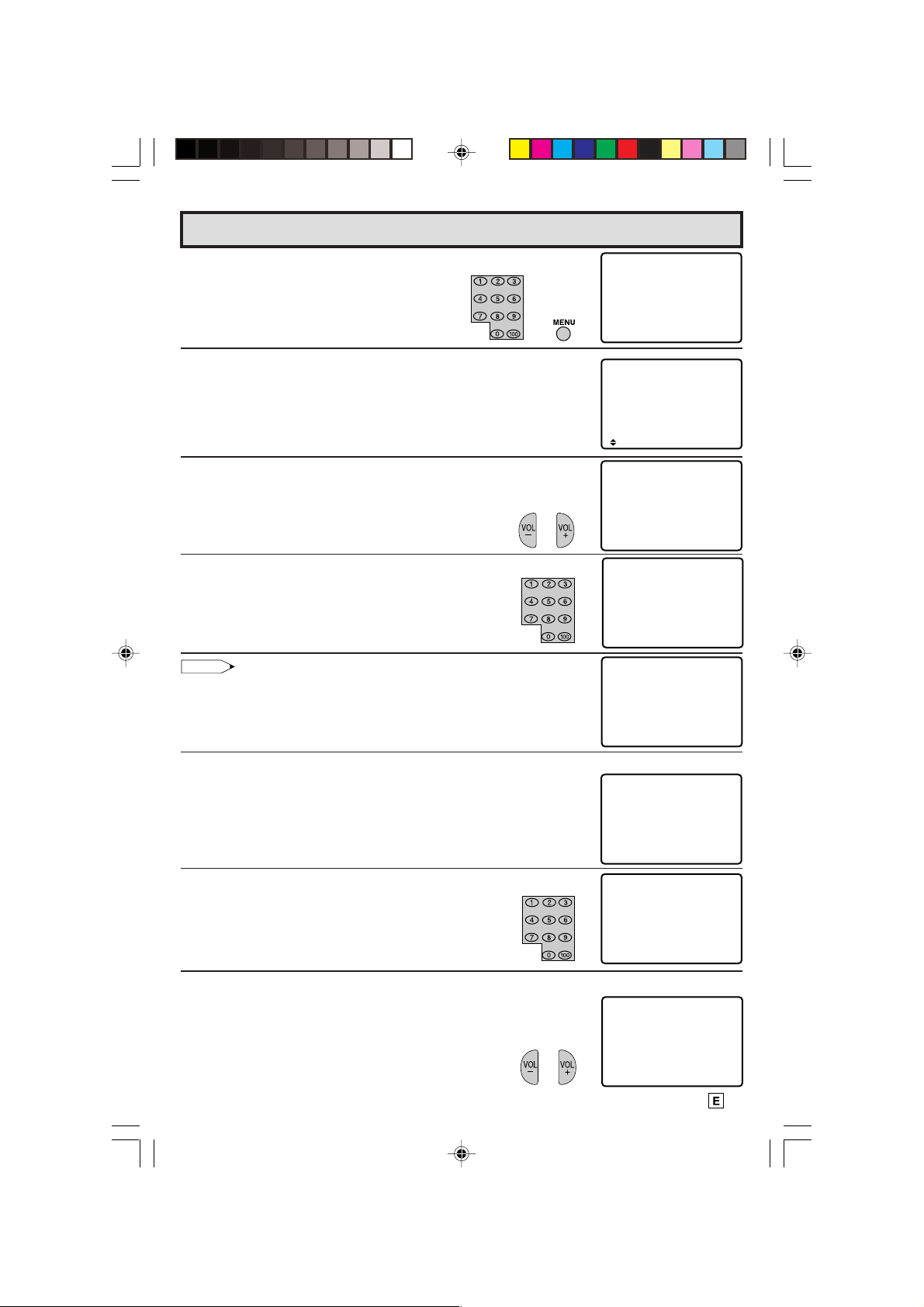

17
2 3 0
1
NI PUT SECRET No .
VEWT
2H
IIMER
00M
OFF
STATU
VEWINGITIME
TIME
5H 00M
S:ON
– – –
–
NIPUTSECRETNo.
IPUT ESNCRETNo .
****
RRECT
INC
O
S ECRET No . I S
TMEO
–
IVER
IPUT ESNCRETNo .
–––
TMEOIVER
IPUT ESNCRET
No .
****
– – –
–
NIPUTSECRETNo.
→
8Enter the 4-digit SECRET No. using the REMOTE
KEYPAD
.
9Press
MENU , and SECRET No. is registered.
Example
•To restrict anybody from watching the TV for 5 hours, after watching
the TV for 2 hours, your settings would look like this:
•They can choose to watch the 2 hours of TV however they wish. For
example, they could watch 1 hour of TV, turn TV off for 30 minutes,
then turn TV on and watch the remaining 1 hour on the VIEWING
TIMER.
L To change the VIEW TIMER settings. (SECRET No. is registered)
1Repeat “How to set VIEW TIMER”steps and select
“PARENT CONTROL VIEW TIMER” during step
3. Press
VOL (+) or (–) , and “INPUT SECRET No.”
will be displayed.
2Enter the 4-digit SECRET No. using the REMOTE
KEYPAD
, and the VIEW TIMER access screen will
be displayed. Repeat step 5~6.
Note:
•When you choose the correct SECRET No., the VIEW TIMER access
screen is displayed. If the wrong SECRET No. is chosen, “SECRET
No. IS INCORRECT” is displayed. Input the SECRET No. again in
this case.
LTo cancel the VIEW TIMER (While the TV set is OFF but the VIEW TIMER is set)
1Turn on TV; a blue screen message “TIME OVER” will appear. If
you do nothing, the TV will turn off in approximately 30 seconds.
2Enter the 4-digit SECRET No. using the REMOTE
KEYPAD
. When you choose the correct SECRET
No., the VIEW TIMER is canceled. If the wrong
SECRET No. is chosen, “SECRET No. IS
INCORRECT”is displayed. Input the SECRET No.
again in this case.
LTo cancel the VIEW TIMER setting or change the SECRET No. (When you forget the SECRET
No.)
1Repeat “How to set VIEW TIMER”steps and select
“PARENT CONTROL VIEW TIMER” during step
3. Press
VOL (+) or (–) , and “INPUT SECRET No.”
will be displayed.
Parent Control (Continued)
15-17 14LK22 [E].p65e 9/5/01, 6:26 PM17
Downloaded from: http://www.usersmanualguide.com/

18
REMAIN
30M
VIEWING TIME
0H
REMAIN
05M
VIEWING TIME
0H
REMAIN
0
VIEWING TIME
→
:OFF
EN REGYSAVE
:ON
EN REGYSAVE
Energy Save
(MAIN MENU screen)
(ENERGY SAVE select mode)
(On the Set)
SET UP
V I DEO ADJUST
CAPT I ONCLOSED
PARENT CONTROL
ENERGY SAVE
TIMER
VOL (+)/
CH UP (8)
Parent Control (Continued)
2Press and hold both
VOL (+) and CH UP ( 8 ) on the TV set
simultaneously until the VIEW TIMER access screen is displayed.
Now you can cancel the VIEW TIMER settings or change the
SECRET No. while “INPUT SECRET No.” is displayed.
LNotice of Remaining VIEWING TIME
•For every 30 minute interval, the “remaining time” will be displayed
for 4 seconds. For the last 5 minutes, the “remaining time” will be
displayed every minute.
• “0 REMAIN” will be displayed for 10 seconds just before the VIEWING
TIME is completed.
LThis feature lets you lower the power consumption of your TV
set which in turn saves you money and minimizes the impact on
the environment. When this feature is turned on, it reduces the
brightness of the TV to a level that consumes approximately 20%
less energy than when the feature is turned off.
The reduction in brightness will be less noticeable under low
room lighting conditions.
1Press MENU to access the MAIN MENU screen.
2Press
CH UP ( 8 ) or DOWN ( 9 ) to move the “”mark to
“ENERGY SAVE”.
3Press VOL (+) or (–) to access ENERGY SAVE select mode.
4Press VOL (+) or (–) to select “ON”.
5Press MENU to exit.
VOLUME
(+)/(–)
CHANNEL
UP (8)/
DOWN (9)
MENU
18-22 14LK22 [E].p65e 9/5/01, 6:27 PM18
Downloaded from: http://www.usersmanualguide.com/

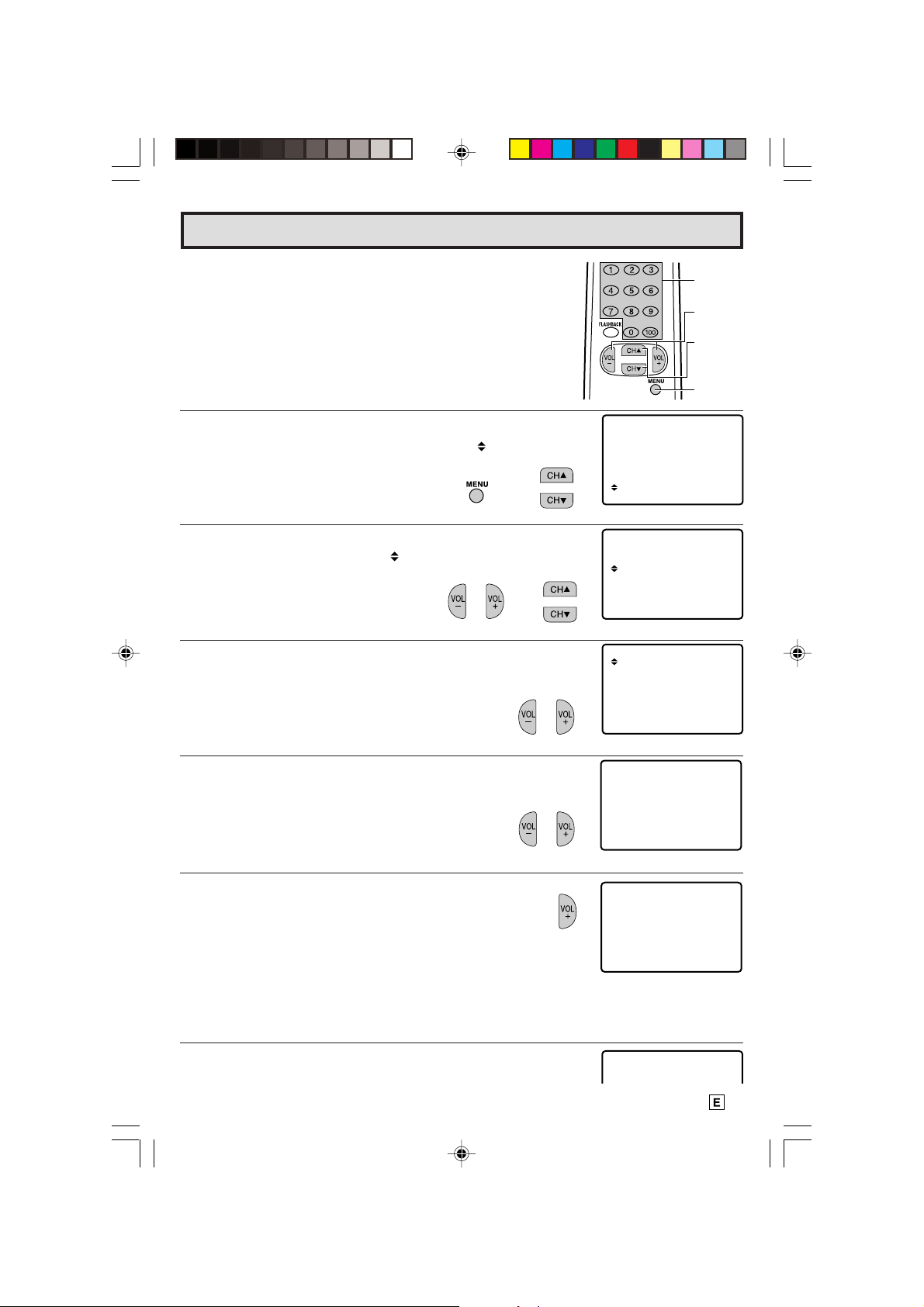

19
SET UP
V I DEO ADJUST
CAPT I ONCLOSED
PARENT CONTROL
ENERGY SAVE
TIMER
LA GUAGEN
BL E NSCREEU
CH SETT I NG
A I / CABLER
EZ SE PTU
CH SEARCH
CH MEMORY
OR CAB L E .
TSART SETUP?ZE
ANTENNCONNECT A
YE : VOL+
VOL –
S
NO :
AU
18
TO RGGAMM I NORP
WA I TPLE EAS
VOL –
TSOP:
2
LEZ SETUP
By operating the channel preset functions, you can preset your
TV to the desired channels for viewing.
1Press MENU to access the MAIN MENU screen.
2Press
CH UP ( 8 ) or DOWN ( 9 ) to move the “ ”mark to “SET
UP”.
3Press VOL (+) or (–) to access SET UP mode, then press CH UP
(
8 ) or DOWN ( 9 ) to move the “ ”mark to “CH SETTING”.
4Press VOL (+) or (–) to access CH SETTING mode.
5Press VOL (+) or (–) to access EZ SETUP mode.
6Press VOL (+) .
The tuner will automatically search for the
broadcasting and cable TV channels. (The CH No.
will automatically increase when it appears.)
If you want to stop the EZ SETUP process once it
has started, press
VOL (–) . Search will be
canceled.
To cancel EZ SETUP
Press
VOL (–) .
7Once EZ SETUP is completed, the smallest channel number
memorized will be displayed.
(MAIN MENU screen)
(SET UP mode)
Set Up
→
VOLUME
(+)/(–)
CHANNEL
UP (8)/
DOWN (9)
MENU
REMOTE
KEYPAD
(EZ SETUP mode)
(CH SETTING mode)
→
18-22 14LK22 [E].p65e 9/5/01, 6:27 PM19
Downloaded from: http://www.usersmanualguide.com/

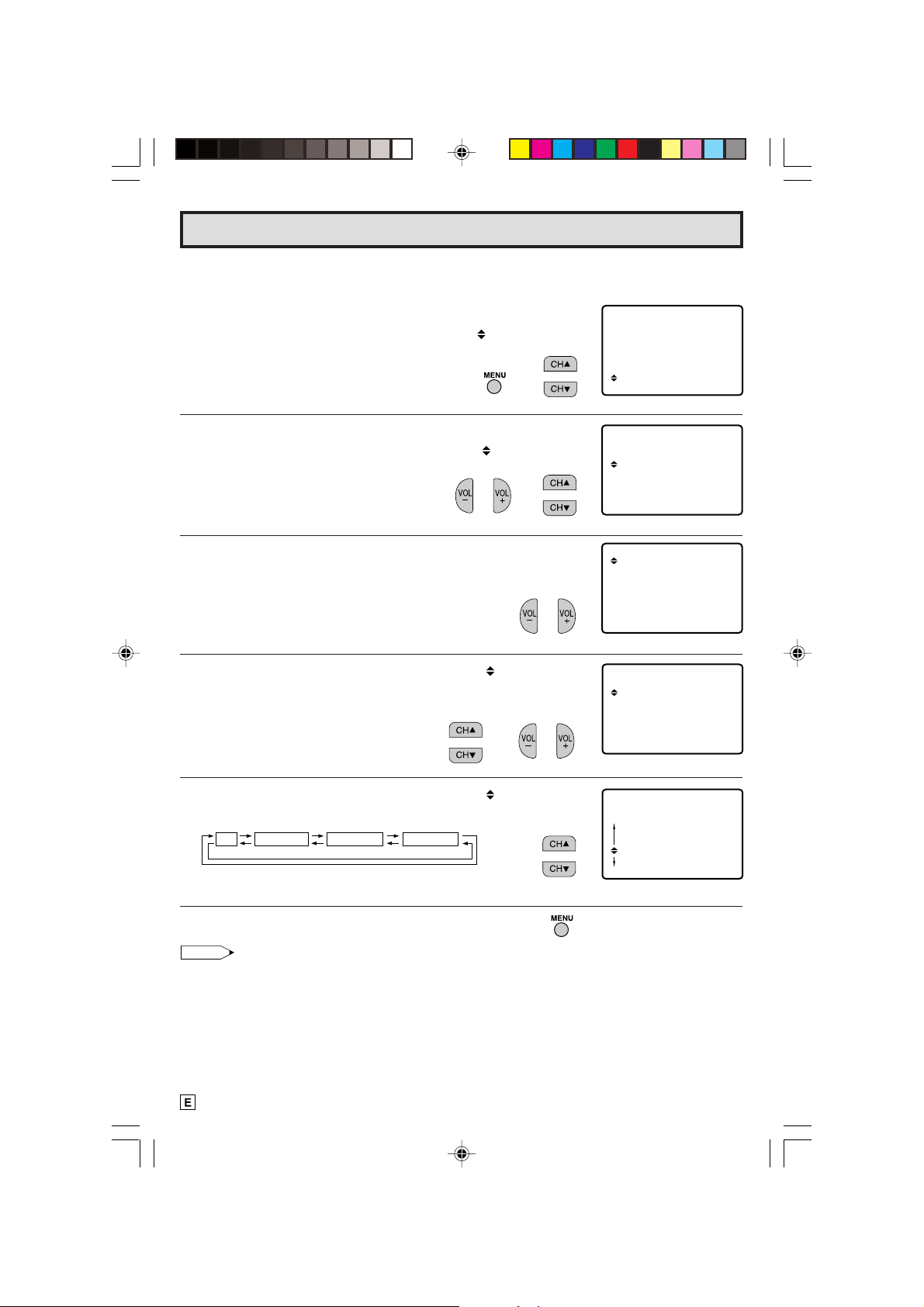

20
SET UP
V I DEO ADJUST
CAPT I ONCLOSED
PARENT CONTROL
ENERGY SAVE
TIMER
LA GUAGEN
BL E NSCREEU
CH SETT I NG
A I / CABLER
EZ SE PTU
CH SEARCH
CH MEMORY
AI
ABLE STD
R
A I / CABLER
C
ABLE HRCC
ABLE I RCC
AIR CABLE STD CABLE HRC CABLE IRC
→
LCHANNEL SETTING
If EZ SETUP does not memorize all the channels in your region, follow the instructions below
to manually memorize the channel.
1Press MENU to access the MAIN MENU screen.
2Press
CH UP ( 8 ) or DOWN ( 9 ) to move the “ ”mark to “SET
UP”.
3Press VOL (+) or (–) to access SET UP mode.
4Press
CH UP ( 8 ) or DOWN ( 9 ) to move the “ ”mark to “CH
SETTING”.
5Press VOL (+) or (–) to access CH SETTING mode.
6Press CH UP ( 8 ) or DOWN ( 9 ) to move the “ ”mark to the
“AIR/CABLE”, then press
VOL (+) or (–) to access AIR/CABLE
mode.
7Press CH UP ( 8 ) or DOWN ( 9 ) to move the “ ”mark to the
desired mode.
8Press MENU to exit.
Note:
•Receivable channels of your TV set are:
AIR channels: CABLE channels:
VHF: 2 through 13. 1 (HRC and IRC mode only)
UHF: 14 through 69. 2 through 125 (STD, HRC and IRC)
Set Up (Continued)
(CH SETTING mode)
(SET UP mode)
(AIR/CABLE mode)
(MAIN MENU screen)
→
→
HSEARCH
A I / CABLER
EZ SETUP
C
H MEMORYC
(CH SETTING mode)
18-22 14LK22 [E].p65e 9/5/01, 6:27 PM20
Downloaded from: http://www.usersmanualguide.com/
