29LF-92E
SERVICE MANUAL
This document has been published to
be used for after sales service only.
AK-45 CHASSIS
In the interests of user safety (required by safety
regulations in some countries) the set should be re-
stored to its original condition and only parts identi-
cal to those specified should be used.
CONTENTS
ELECTRICAL SPECIFICATIONS ........................................................................................ 3
IMPORTANT SERVICING NOTES ...................................................................................... 4
CONTROLS & TERMINALS ................................................................................................ 5
PRINTED WIRING BOARD LAYOUT ................................................................................. 7
PARTS LISTING ................................................................................................................... 8
HOW TO UPDATE THE TECHNICAL INFORMATION ...................................................... 15
SHARP CORPORATION
PAL B/G / SECAM L/L’, B/G, D/K SYSTEM COLOUR TELEVISION
MODEL 29LF-92EC/IT
SE0029LF92E00
Issued: 28th July 2004
In order to service the model 29LF-92E, refer to
the AK-45 Chassis Service Manual
(SE00AK45CHA00).

2
29LF-92E
Use this page to keep any special servicing information as Technical Report (Bulletin), Technical Information, etc.
If only part number changes are required, just change part number directly the part number in the Parts Listing Section.
If you need more information, please refer to the Technical Report (Bulletin).
SERVICE MANUAL UPDATE LOG SHEET
Part No.
Technical Report No.
Technical Bulletin No. Cause / Solution Page No. Application
Data /Serial No.

3
29LF-92E
ELECTRICAL SPECIFICATIONS
WARNING
The chassis in this receiver is partially hot. Use an isolation transformer between the line cord plug
and power receptacle, when servicing this chassis.
To prevent electric shock, do not remove cover. No user-serviceable parts inside. Refer servicing to
qualified service personnel.
Specifications are subject to change without prior notice.
MODEL DESTINATION (Operation Manual Languages)
28LF-92EC: Czech, English, Hungarian, Polish, Romanian, Russian, Slovakian
28LF-92EIT: Italiano.
•Picture Intermediate frequency
L’ ................................................ 33.9MHz
L, B/G, D/K .............................. 38.9MHz
•Sound Carrier Trap
L’ ................................................ 40.4MHz
L, D/K ......................................... 32.4MHz
B/G ............................................ 33.4MHz
•Adjacent Sound Carrier Trap
L’ ................................................ 32.4MHz
L, D/K, B/G ................................ 40.4MHz
•Adjacent Picture Carrier Trap
L’ ................................................ 41.9MHz
L, D/K ...................................... 30.9MHz
B/G ............................................ 31.9MHz
•Aerial Input Impedance
VHF/UHF ................. 75 ohm Unbalanced
•Tuning Ranges ..... 45.75MHz thru 855.25 MHz
VHF: S1 - S41 CH (Hiperband)
E2 - E12 CH / F2 - F10
UHF: E21 - E69 CH
AREA 29”
A0.4
BC 1.0
DE 1.0
FGHJ 1.5
KLMN 1.3
F’G’H’J’ 1.3
STUV 1.0
mm
•Power Input .................... 220V-240 Volts AC 50 Hz
•Power Consumption
Normal Operation (Method IEC60107) ............... 83 W
Stand-by Operation .......................................... < 4 W
•Audio Power Output Rating (MPO) / Impedance
Internal Left Speaker ................................. 10 W, 7 Ω
Internal Right Speaker ............................... 10 W, 7 Ω
•Speakers
Full range (2 pcs) ................................... 60 x 120 mm
•Convergence (Maximum Misconvergence)
•White Level
Apply the rated voltage at the rated frequency to the TV set, while it is receiving full white pattern RF signal of 60
dB/µV from its RF input via the pattern generator.
Turn all picture controls to maximum value. Measure the colour temperatures at the center of the screen by
using the colour analyzer.
29LF94EC: X=0.304 ± 0.015 Y=0.306 ± 0.015
29LF94EIT: X=0.290 ± 0.015 Y=0.300 ± 0.015

4
29LF-92E
IMPORTANT SERVICING NOTES
Only qualified service personnel are allowed to carry out maintenance and repair of this receiver.
Servicing of High Voltage System and CRT
It is important that the static charge is removed from the high voltage system when carrying out work on the
receiver. This can be achieved by connecting a 10K resistor (with a suitably insulated lead) from the CRT
cavity connector to the CRT ground tag. This must be carried out with the AC supply disconnected from the
receiver.
Note the following:
•The CRT in this receiver employs Integral Implosion Protection.
•If the CRT has to be changed it MUST be replaced with the correct type for continued safe working.
•DO NOT lift the CRT by its neck.
•When handing the CRT, ensure that shatterproof goggles are worn.
•Ensure that the CRT is discharge before handling.
X-Ray
This receiver is designed to keep any x-ray emission to an absolute minimum. Some fault conditions and
servicing procedures may produce potentially hazardous x-ray radiation levels. This is a problem when in
close proximity to the receiver for long periods of time. To reduce any risks associated with this, please
observe the following precautions:
1. When undertaking any servicing on this chassis, DO NOT increase the EHT to more than 33 KV, (at a
instantaneous beam current of 1800 µA).
2. Ensure that during normal operation the EHT does not exceed 29.55 KV (at a beam current of 1800 µA).
This level has been preset in the factory. Always check that this level has not been exceeded after
carrying out any repair on the receiver.
3. DO NOT replace the CRT with any other type than that specified in the parts listing as this may cause
excessive x-ray radiation.
Before returning the receiver to the customer
In addition to the above checks, the following should also be carried out before returning the receiver to the
customer.
1. Inspect all the leads to ensure that they are dressed correctly and that they are not obstructed or pinched
by any other parts.
2. Ensure that all protective devices are in good condition. These will include nonmetallic control knobs,
insulating fish papers, cabinets backs, compartment covers or shields, mechanical insulators, etc.

5
29LF-92E

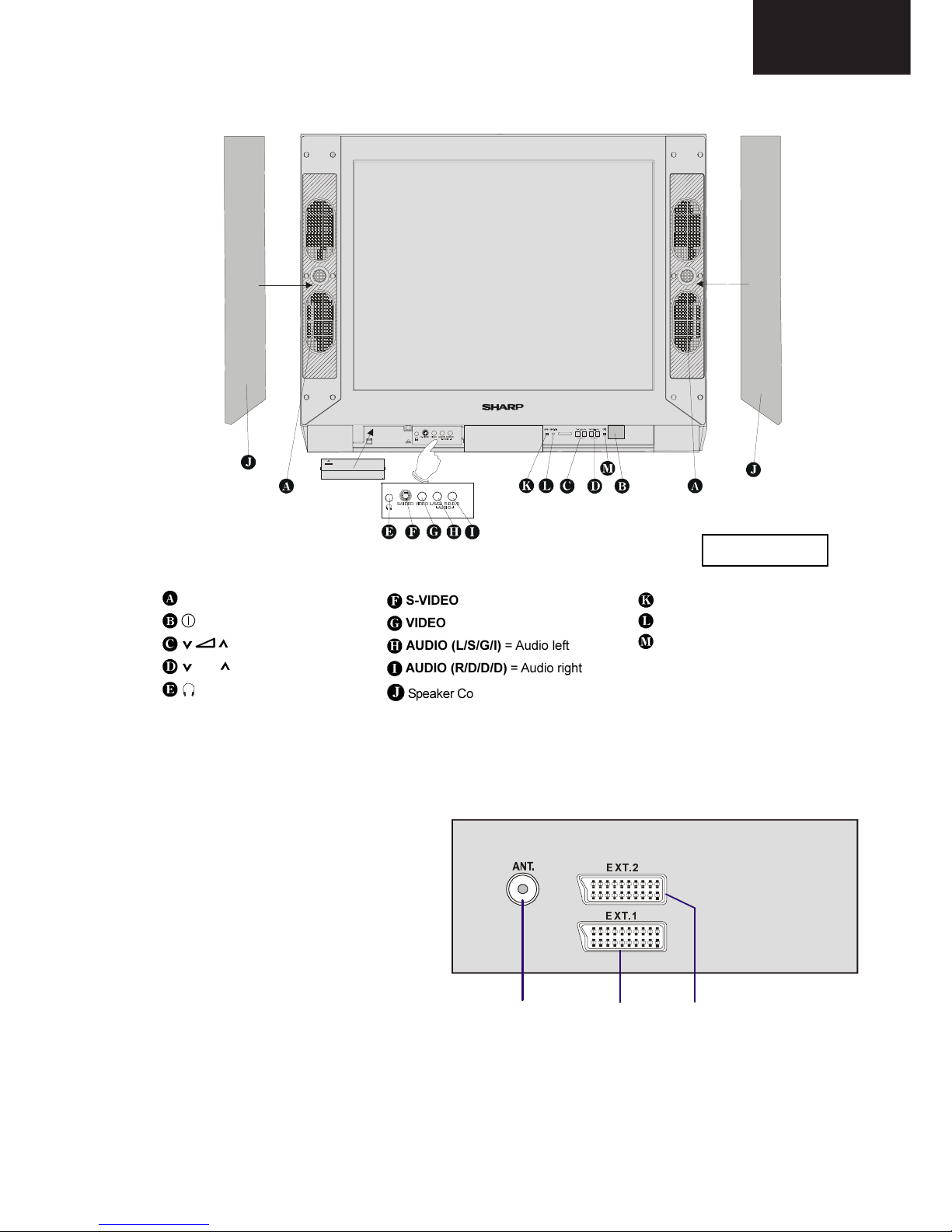

CONTROLS & TERMINALS
FRONT PANEL
Speakers (left + right)
= Power O / Off
= Volume -/+
CH = Program -/+
= Headpho e 3,6 mm Ø
69,'(2 9,'(2 / 6 * ,   5 ' ''
   $8', 2
69,'(2 9, '(2
/6*,5'''
$8',2
S-VIDEO
VIDEO
AUDIO (L/S/G/I) = Audio left
AUDIO (R/D/D/D) = Audio right
Speaker Covers
Remote Co trol I dicator
Sou d I dicator
Power I dicator
REAR TV
RF Input
1. Aerial terminal
21-pin In/Out
2. 21-pin Audio/Video (RGB) (EXT.1) With
AL/SECAM/NTSC Video Input
3. 21-pin Audio/Video (EXT.2) With
AL/SECAM/NTSC Video Input
(;7
(;7


6
29LF-92E

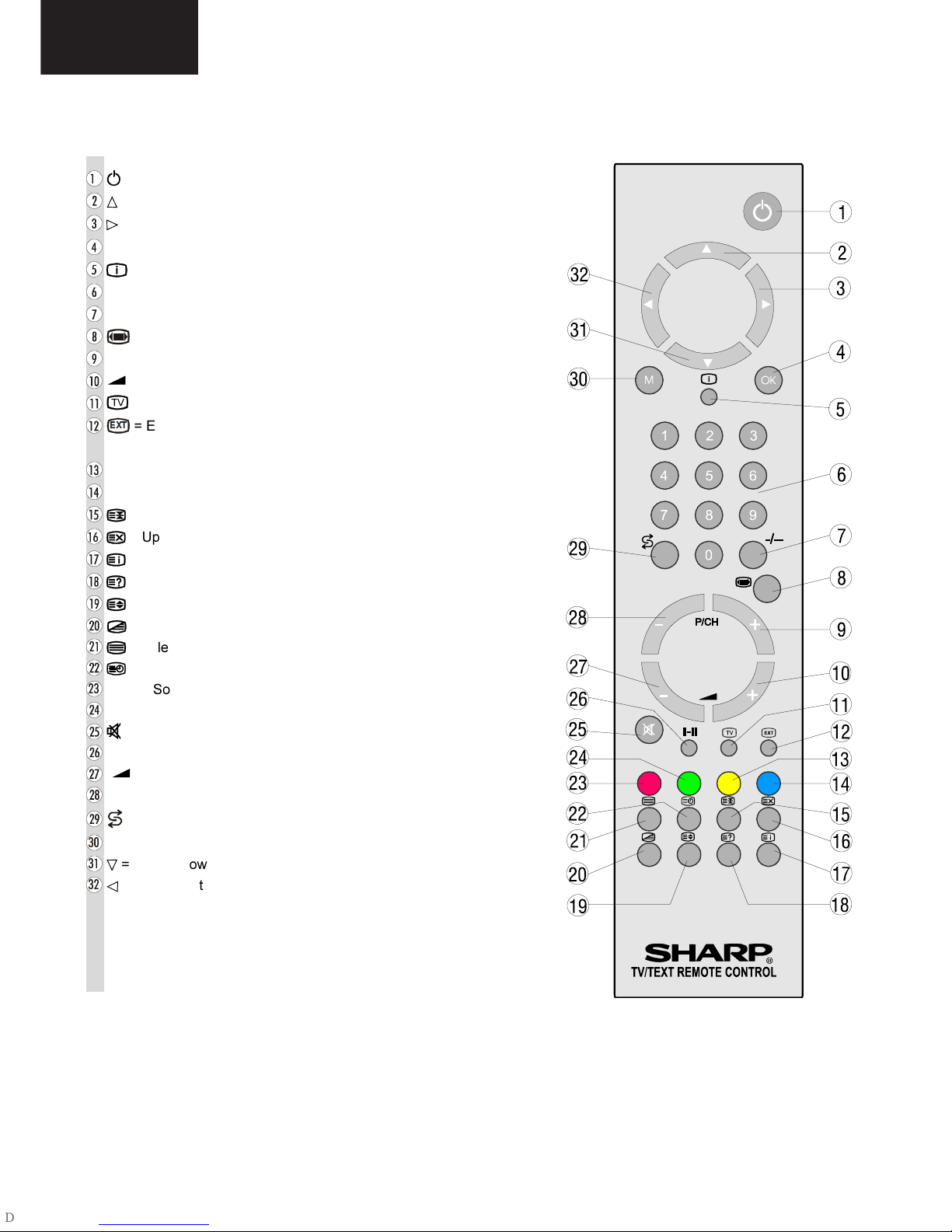

REMOTE CONTROL

= Sta d By
= Cursor Up
= Cursor Right
OK = OK
= I fo (Program Me u)
0 - 9 = Direct Program
-/-- = Double Digit
= Wide mode butto
P/CH+ = Program +
+ = Volume +
= TV / Quit Me u
(;7
= EXT butto
(EXT-1, RGB, EXT-2, F-AV, S-VHS)
Y llow = Feature Me u
Blu = I stallatio Me u
= Hold

= Update
= I dex Page
= Reveal
= Expa d
= Mix

= Teletext
= Time

R d = Sou d Me u
Gr n = Picture Me u
= Mute
I-II = Mo o/Stereo - Dual I-II
- = - Volume
- P/CH = -Program
= Flash back butto

M = Me u

= Cursor Dow

= Cursor Left

7
29LF-92E

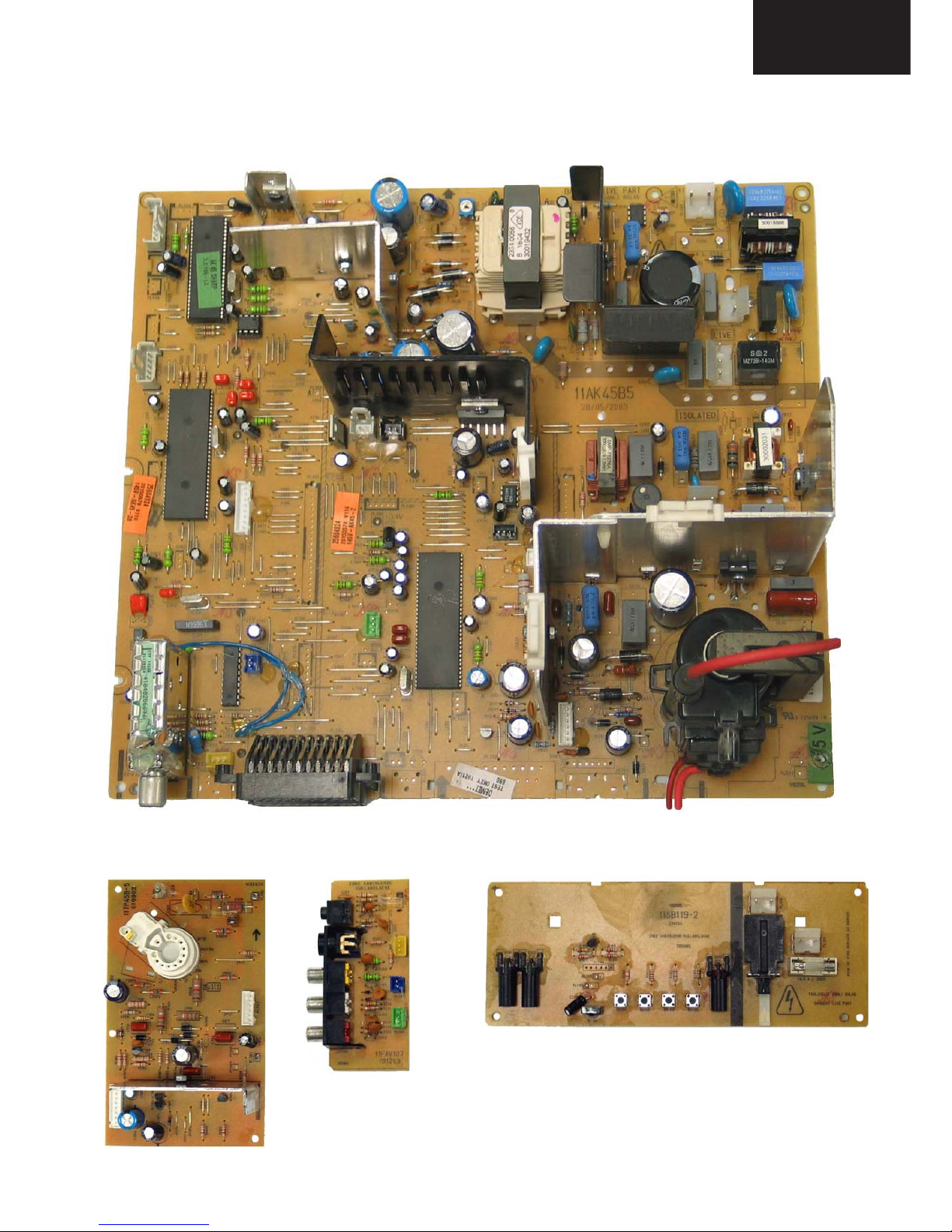

CHASSIS LAYOUT
Mother Unit
CRT Unit Front AV Unit Keyboard Unit

TABLE OF CONTENTS
1.INTRODUCTION ........................................................................................................................ 1
2.TUNER.......................................................................................................................................... 1
3.IF PART (TDA9885/86)............................................................................................................. 1
4.VIDEO SWITCH TEA6415....................................................................................................... 2

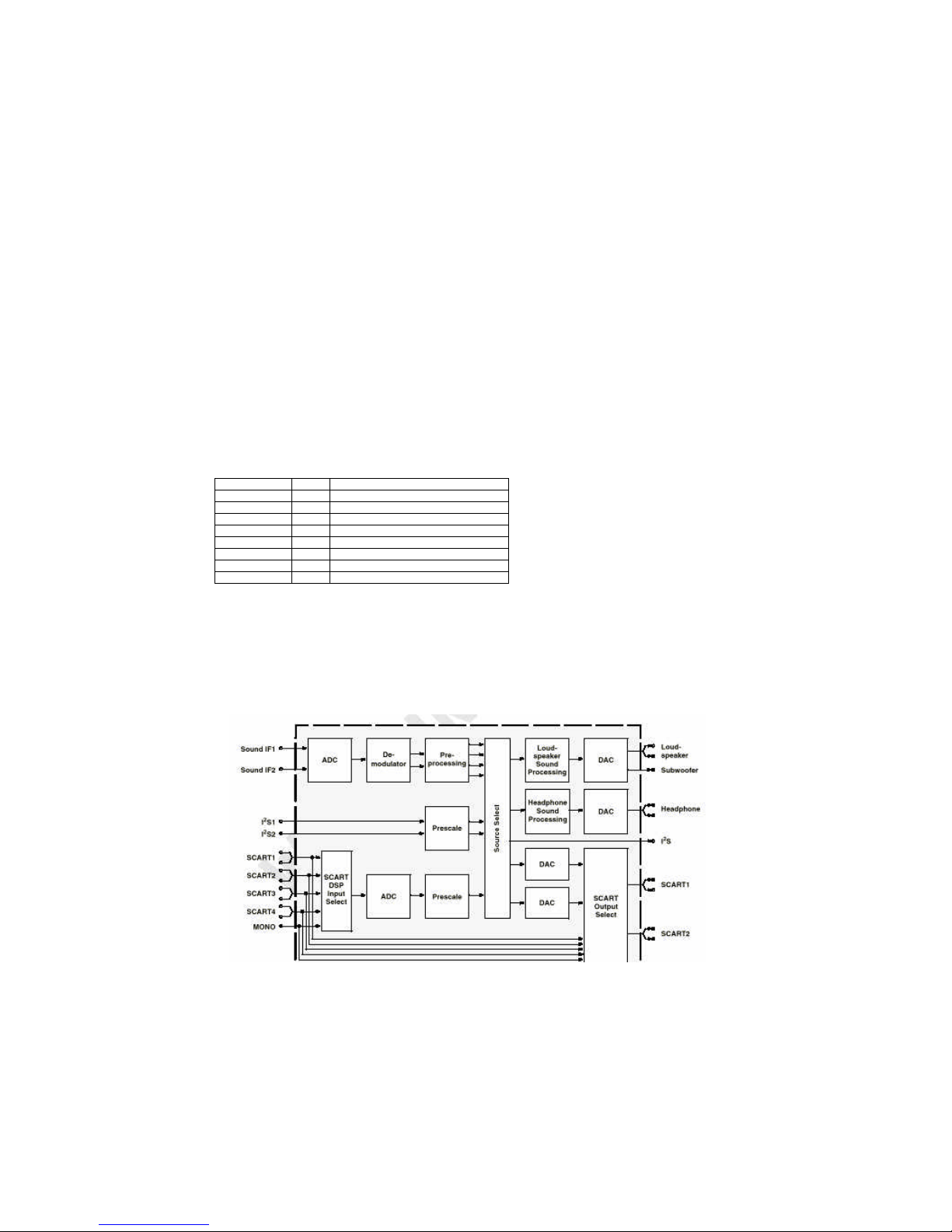

5.MULTI STANDARD SOUND PROCESSOR....................................................................... 2
6.SOUND OUTPUT STAGE WITH TDA7269A...................................................................... 2
7.BERTICAL OUTPUT STAGE WITH STV9379FA.............................................................. 2
8.VIDEO OUTPUT AMPLIFIER TDA6108 .............................................................................. 2
9.POWER SUPPLY (SMPS)....................................................................................................... 3
10.MICROCONTROLLER SDA55XX....................................................................................... 3
10.1.General Features.................................................................................................................... 3
10.2.External Crystal and Programmable Clock Speed................................................................ 3
10.3.Microcontroller Features........................................................................................................ 3
10.4.Memory................................................................................................................................... 3
10.5.Display Features..................................................................................................................... 3
10.6.Acquisition Features.............................................................................................................. 4
10.7.Ports........................................................................................................................................ 4
11.CLASS AB STEREO HEADPHONE DRIVER TDA1308............................................... 4
12.SAW FILTERS.......................................................................................................................... 4
13.IC DESCRIPTIONS ................................................................................................................. 5
13.1.LM317T................................................................................................................................ 5
13.1.1.Description....................................................................................................................... 5
13.1.2.Features............................................................................................................................ 5
13.2.TDA1308T........................................................................................................................... 5
13.2.1.General Description......................................................................................................... 5
13.2.2.Features............................................................................................................................ 5
13.2.3.Pinning ............................................................................................................................. 6
13.3.MSP34X0G (MSP3410G)................................................................................................ 6
13.3.1.Description....................................................................................................................... 6
13.3.2.Features............................................................................................................................ 7
13.3.3.Pin connections ............................................................................................................... 7
13.4.VDP313xY .......................................................................................................................... 8
13.4.1.Introduction...................................................................................................................... 8
13.4.2.Features............................................................................................................................ 9
13.4.3.Pin Connections and short descriptions ........................................................................ 9
13.5.TEA6415C .........................................................................................................................10
13.5.1.General Description........................................................................................................10
13.5.2.Features...........................................................................................................................10
13.5.3.Pinning
................................
................................
................................
............................
11

13.10.SDA5555..........................................................................................................................13
13.10.1.General definition..........................................................................................................13
13.10.2.Features.........................................................................................................................13
13.11.MC44608..........................................................................................................................14
13.11.1.Description....................................................................................................................14
13.11.2.General Features...........................................................................................................15
13.11.3.Pin Connections............................................................................................................15
13.12.TCET1102G....................................................................................................................16
13.12.1.Description....................................................................................................................16
13.12.2.Applications ..................................................................................................................16
13.12.3.Features.........................................................................................................................16
13.13.TDA9885T.......................................................................................................................16
13.13.1.General Description......................................................................................................16
13.13.2.Features.........................................................................................................................16
13.13.3.Pinning...........................................................................................................................17
13.14.PI5V330............................................................................................................................17
13.14.1.General Description......................................................................................................17
14.AK45 CHASSIS PRODUCTION SERVICE MODE ADJUSTMENTS........................18
14.1.SERVICE MENU.....................................................................................................................18
14.2.ADJUST MENU ......................................................................................................................18
14.3.OPTIONS MENU.....................................................................................................................30
Option 0. Video Processor Crystal Indication..........................................................................30
Option 1. (0x01) Video Processor Decoder Mode Register......................................................30
Option 2. (0x18) Video Processor Blanking Control ................................................................30
Option 3. (0x19) Video Processor Cathode Drive Level...........................................................31
Option 4......................................................................................................................................31
Option 5. CTI Avaliable, Mono AVL...........................................................................................31
Option 6......................................................................................................................................31
Option 7. OPTIONHOTELACTIVE, PLL_VST, PIP Zoom Mode, PIP Position...........................31
Option 8. IF Frequency..............................................................................................................32
Option 9. Standard Available.....................................................................................................32
Option 10. Scart, Combfilter, Teletext, Language.....................................................................33
Option 11. PLL Tuner Control 1 Byte........................................................................................33
Option 12. PLL Tuner Control 2 Low Byte................................................................................33
Option 13. PLL Tuner Control 2 Mid Byte.................................................................................34
Option 14. PLL Tuner Control 2 High Byte ...............................................................................34
Option 15. PLL Tuner VHF LOW –VHF HIGH Crossover Low Byte.........................................34
Option 16. PLL Tuner VHF LOW –VHF HIGH Crossover High Byte........................................34
Option 17. PLL Tuner VHF HIGH –UHF Crossover Low Byte..................................................34
Option 18. PLL Tuner VHF HIGH –UHF Crossover High Byte.................................................34
Option 19. PIP PLL Tuner Control 1 Byte .................................................................................35
Option 20. PIP PLL Tuner Control 2 Low Byte..........................................................................35
Option 21. PIP PLL Tuner Control 2 Mid Byte ..........................................................................35
Option 22. PIP PLL Tuner Control 2 High Byte.........................................................................35
Option 23. PIP PLL Tuner VHF LOW
–
VHF HIGH Crossover Low Byte
................................
..
35

Option 39. Personal Preferance Equalizer Band 1 ...................................................................39
Option 40. Personal Preferance Equalizer Band 2 ...................................................................39
Option 41. Personal Preferance Equalizer Band 3 ...................................................................39
Option 42. Personal Preferance Equalizer Band 4 ...................................................................39
Option 43. Personal Preferance Equalizer Band 5 ...................................................................39
Option 44. Sound Efect (Standard; Music; Speech; Jazz; Pp).................................................39
Option 45. Volume Offset Left...................................................................................................39
Option 46. Volume Offset Right ................................................................................................39
Option 47. Volume Offset Center ..............................................................................................40
Option 48. Volume Offset Rear..................................................................................................40
Option 49. Surround Delay........................................................................................................40
Option 50. FM Prescale..............................................................................................................40
Option 51. NICAM Prescale.......................................................................................................40
Option 52. Scart Input Prescale ................................................................................................40
Option 53. I2S Prescale .............................................................................................................40
Option 54. Scart Output Prescale..............................................................................................40
Option 55. Speaker Setup..........................................................................................................41
Option 56. Audio Options Available Or Not..............................................................................41
Option 57. Stereo Threshold.....................................................................................................41
Option 58. MSP Audio Flags......................................................................................................42
Option 59. NICAM Threshold.....................................................................................................42
Option 60. Power Delay Time....................................................................................................42
14.4.OPTION TABLE RECOMMENDED VALUES..........................................................................45
14.5.SCREEN ADJUSTMENT (FBT SCREEN)...............................................................................47
14.6.GEOMETRY ADJUSTMENT...................................................................................................48
4:3 FORMATS.............................................................................................................................48
16:9 FORMATS...........................................................................................................................49
16.BLOCK DIAGRAM.................................................................................................................57

1.INTRODUCTION
11AK45 is a 50Hz colour television capable of driving 24” + CRT sizes( beginning from 24” 16:9 up to
33”).
The chassis is capable of operation in PAL, SECAM, NTSC (playback) colour standards and multiple
transmission standards as B/G, D/K, I/I’, and L/L´.
Sound system output is supplying 2x10W (10%THD) for left and right outputs of 8ohm speakers.
TV supports FASTTEXT. It is possible to decode transmissions including high graphical data.
The chassis is equipped with three full EuroScarts, only one of them supports RGB input, one
headphone output, one FAV input, one SVHS input (via SCART)
2.TUNER
The hardware and software of the TV is suitable for tuners, supplied by different companies, which are
selected from the Service Menu. These tuners can be combined VHF, UHF tuners suitable for CCIR
systems B/G, H, L, L´, I/I´, and D/K. The tuning is available through the digitally controlled I2C bus
(PLL). Below you will find info on one of the Tuners in use.
General description of UV1316:
The UV1316 tuner belongs to the UV 1300 family of tuners, which are designed to meet a wide range of
applications. It is a combined VHF, UHF tuner suitable for CCIR systems B/G, H, L, L’, I and I’. The low
IF output impedance has been designed for direct drive of a wide variety of SAW filters with sufficient
suppression of triple transient.
Features of UV1316:
1. Member of the UV1300 family small sized UHF/VHF tuners
2. Systems CCIR: B/G, H, L, L’, I and I’; OIRT: D/K
3. Digitally controlled (PLL) tuning via I2C-bus
4. Off-air channels, S-cable channels and Hyperband
5. World standardized mechanical dimensions and world standard pinning
6. Compact size
7. Complies to “CENELEC EN55020” and “EN55013”
Pinning:
1. Gain control voltage (AGC) :4.0V, Max: 4.5V
2. Tuning voltage
3. I²C-bus address select :Max: 5.5V
4. I²C-bus serial clock :Min:-0.3V, Max: 5.5V
5. I²C-bus serial data :Min:-0.3V, Max: 5.5V
6. Not connected
7. PLL supply voltage :5.0V, Min: 4.75V, Max: 5.5V
8. ADC input
9. Tuner supply voltage :33V, Min: 30V, Max: 35V
10. Symmetrical IF output 1
11. Symmetrical IF output 2
3.IF PART (TDA9885/86)

4.VIDEO SWITCH TEA6415
In case of three or more external sources are used, the video switch IC TEA6415 is used. The main
function of this device is to switch 8 video-input sources on the 6 outputs.
Each output can be switched on only one of each input. On each input an alignment of the lowest level
of the signal is made (bottom of sync. top for CVBS or black level for RGB signals).
Each nominal gain between any input and output is 6.5dB.For D2MAC or Chroma signal the alignment
is switched off by forcing, with an external resistor bridge, 5VDC on the input. Each input can be used
as a normal input or as a MAC or Chroma input (with external Resistor Bridge). All the switching
possibilities are changed through the BUS. Driving 75ohm load needs an external resistor. It is possible
to have the same input connected to several outputs.
5.MULTI STANDARD SOUND PROCESSOR
The MSP 34x10G family of single-chip Multi-standard Sound Processors covers the sound processing
of all analog TV-Standards worldwide, as well as the NICAM digital sound standards. The full TV sound
processing, starting with analog sound IF signal-in, down to processed analog AF-out, is performed on
a single chip.
The DBX noise reduction, or alternatively, MICRONAS Noise Reduction (MNR) is performed alignment
free. Other processed standards are the Japanese FM-FM multiplex standard (EIA-J) and the FM
Stereo Radio standard.
6.SOUND OUTPUT STAGE WITH TDA7269A

9.POWER SUPPLY (SMPS)
The DC voltages required at various parts of the chassis are provided by an SMPS transformer
controlled by the IC MC44608, which is designed for driving, controlling and protecting switching
transistor of SMPS. The transformer generates 145V for FBT input, +/-14V for audio amplifier, 5V and
3.3V stand by voltage and 8V, 12V and 5V supplies for other different parts of the chassis.
An optocoupler is used to control the regulation of line voltage and stand-by power consumption. There
is a regulation circuit in secondary side. This circuit produces a control voltage according to the
changes in 145V DC voltage, via an optocoupler (TCET1102G) to pin3 of the IC.
During the switch on period of the transistor, energy is stored in the transformer. During the switch off
period energy is fed to the load via secondary winding. By varying switch-on time of the power
transistor, it controls each portion of energy transferred to the second side such that the output voltage
remains nearly independent of load variations.
10.MICROCONTROLLER SDA55XX
10.1.General Features
• Feature selection via special function register
• Simultaneous reception of TTX, VPS, PDC, and WSS (line 23)
• Supply Voltage 2.5 and 3.3 V
• ROM version package PSDIP52-2, PMQFP64-1
• Romless version package PMQFP100-2, PLCC84-2
10.2.External Crystal and Programmable Clock Speed
• Single external 6MHz crystal, all necessary clocks are generated internally
• CPU clock speed selectable via special function registers.
• Normal Mode 33.33 MHz CPU clock, Power Save mode 8.33 MHz
10.3.Microcontroller Features
• 8bit 8051 instruction set compatible CPU.
• 33.33-MHz internal clock (max.)
• 0.360 ms (min.) instruction cycle
• Two 16-bit timers
• Watchdog timer
• Capture compare timer for infrared remote control decoding
• Pulse width modulation unit (2 channels 14 bit, 6 channels 8 bit)
• ADC (4 channels, 8 bit)
• UART (rxd, txd)
10.4.Memory
• Non-multiplexed 8-bit data and 16 … 20-bit address bus (ROMless Version)
• Memory banking up to 1Mbyte (Romless version)
• Up to 128 Kilobyte on Chip Program ROM
• Eight 16-bit data pointer registers (DPTR)
• 256-bytes on-chip Processor Internal RAM (IRAM)
• 128bytes extended stack memory.
• Display RAM and TXT/VPS/PDC/WSS-Acquisition-Buffer directly accessible via MOVX

• Up to 16 Colours per DRCS Character
• One out of Eight Colours for Foreground and Background Colours for 1-bit DRCS and ROM
Characters
• Shadowing
• Contrast Reduction
• Pixel by Pixel Shiftable Cursor With up to 4 Different Colours
• Support of Progressive Scan and 100 Hz.
• 3 X 4Bits RGB-DACs On-Chip
• Free Programmable Pixel Clock from 10 MHz to 32MHz
• Pixel Clock Independent from CPU Clock
• Multinorm H/V-Display Synchronization in Master or Slave Mode
10.6.Acquisition Features
• Multi-standard Digital Data Slicer
• Parallel Multi-norm Slicing (TTX, VPS, WSS, CC, G+)
• Four Different Framing Codes Available
• Data Caption only limited by available Memory
• Programmable VBI-buffer
• Full Channel Data Slicing Supported
• Fully Digital Signal Processing
• Noise Measurement and Controlled Noise Compensation
• Attenuation Measurement and Compensation
• Group Delay Measurement and Compensation
• Exact Decoding of Echo Disturbed Signals
10.7.Ports
• One 8-bit I/O-port with open drain output and optional I2C Bus emulation support (Port0)
• Two 8-bit multifunction I/O-ports (Port1, Port3)
• One 4-bit port working as digital or analogue inputs for the ADC (Port2)
• One 2-bit I/O port with secondary function (P4.2, 4.3, 4.7)
• One 4-bit I/O-port with secondary function (P4.0, 4.1, 4.4) (Not available in P-SDIP 52)
11.CLASS AB STEREO HEADPHONE DRIVER TDA1308
The TDA1308 is an integrated class AB stereo headphone driver contained in a DIP8 plastic package.
The device is fabricated in a 1 mm CMOS process and has been primarily developed for portable digital
audio applications.
12.SAW FILTERS
K3953M:
Standard
B/G, D/K, I, L/L’
Features
TV IF filter with Nyquist slopes at 33,90 MHz and 38,90 MHz
Constant group delay
Suitable for CENELEC EN 55020
Terminals

K9356M:
Standard
B/G, D/K, I, L
Features
TV IF audio filter with pass band for sound carriers at 32,40 MHz (D/K, L), 32,90 MHz (I) and 33,40 MHz
(B/G)
Terminal and Pin configuration are the same with K3953M
K9656M:
Standard
B/G, D/K, I, L/L’
Features
TV IF audio filter with two channels
Channel 1 (L’) with one pass band for sound carriers at 40,40 MHz (L’) and 39,75 MHz (L’-NICAM)
Channel 2 (B/G, D/K, L, I) with one pass band for sound carriers between 32,35 MHz and 33,40 MHz
Terminal and Pin configuration are the same with K3953M
13.IC DESCRIPTIONS
LM317T TDA1308T
MSP3410G VDP3130Y
TEA6415 STV9379FA
TDA7269A LM7805/LM7808
24C08 SDA55XX
MC44608 TCET1102G
TDA9885T
13.1.LM317T
13.1.1.Description
The LM317T is an adjustable 3 terminal positive voltage regulator capable of supplying in excess of 1.5
amps over an output range of 1.25 to 37 volts. This voltage regulator is exceptionally easy to use and
requires only two external resistors to set the output voltage. Further, it employs internal current limiting,
thermal shutdown and safe area compensation, making it essentially blow–out proof. The LM317
serves a wide variety of applications including local, on card regulation. This device can also be used to
make a programmable output regulator, or by connecting a fixed resistor between the adjustment and
output, the LM317 can be used as a precision current regulator.
13.1.2.Features
• Output Current in Excess of 1.5 A
• Output Adjustable between 1.2 V and 37 V
• Internal Thermal Overload Protection
• Internal Short Circuit Current Limiting Constant with Temperature
• Output Transistor Safe–Area Compensation
• Floating Operation for High Voltage Applications
• Available in Surface Mount D2PAK, and Standard 3–Lead Transistor Package

• Low power consumption
• Short-circuit resistant
• High performance
• high signal-to-noise ratio
• High slew rate
• Low distortion
• Large output voltage swing.
13.2.3.Pinning
SYMBOL PIN DESCRIPTION
OUTA 1Output A
INA(neg) 2Inverting input A
INA(pos) 3Non-inverting input A
VSS 4Negative supply
INB(pos) 5Non-inverting input B
INB(neg) 6Inverting input B
OUTB 7Output B
VDD 8Positive supply
13.3.MSP34X0G (MSP3410G)
13.3.1.Description
The MSP 34x0G family of single-chip Multi standard Sound Processors covers the sound processing of
all analog TV-Standards worldwide, as well as the NICAM digital sound standards. The full TV sound
processing, starting with analog sound IF signal-in, down to processed analog AF-out, is performed on
a single chip. Figure shows a simplified functional block diagram of the MSP 34x0G.

13.3.2.Features
Standard Selection with single I2C transmission
Automatic Standard Detection of terrestrial TV standards
Automatic Sound Selection (mono/stereo/bilingual), new registers MODUS, STATUS
Two selectable sound IF (SIF) inputs
Automatic Carrier Mute function
Interrupt output programmable (indicating status change)
Loudspeaker / Headphone channel with volume, balance, bass, treble, loudness
AVC: Automatic Volume Correction
Subwoofer output with programmable low-pass and complementary high-pass filter
5-band graphic equalizer for loudspeaker channel
Spatial effect for loudspeaker channel
Four Stereo SCART (line) inputs, one Mono input; two Stereo SCART outputs
Complete SCART in/out switching matrix
Two I2S inputs; one I2S output
Dolby Pro Logic with DPL 351xA coprocessor
All analog FM-Stereo A2 and satellite standards; AM-SECAM L standard
Simultaneous demodulation of (very) high-deviation FM-Mono and NICAM
Adaptive deemphasis for satellite (Wegener-Panda, acc. to ASTRA specification)
ASTRA Digital Radio (ADR) together with DRP 3510A
All NICAM standards
Korean FM-Stereo A2 standard
13.3.3.Pin connections
NC = not connected; leave vacant
LV = if not used, leave vacant
X = obligatory; connect as described in circuit diagram
DVSS: if not used, connect to DVSS
AHVSS: connect to AHVSS
Pin No. Pin Name Type Connection
(if not used) Short Description
PLCC
68-pin PSDIP 64-pin PSDIP 52-pin PQFP 80-pin PLQFP 64-pin
116 14 98ADR_WS OUT LV ADR word strobe
2----NC LV Not connected
315 13 87ADR_DA OUT LV ADR Data Output
414 12 76I2S_DA_IN1 IN LV I2S1 data input
513 11 65I2S_DA_OUT OUT LV I2S data output
612 10 54I2S_WS IN/OUT LV I2S word strobe
711 943I2S_CL IN/OUT LV I2S clock
810 832I2C_DA IN/OUT XI2C data
99721I2C_CL IN/OUT XI2C data
10 8-164 NC LV Not connected
11 7680 63 STANDBYQ IN XStand-by (low-active)
12 6579 62 ADR_SEL IN XI2C bus address select
13
5
4
78
61
D_CTR_I/O_0
IN/OUT
LV
D_CTR_I/O_0

---64 -NC LV Not connected
---63 -NC LV Not connected
27 56 45 62 48 AVSS XAnalog ground
---61 -AVSS XAnalog ground
28 55 44 60 47 MONO_IN IN LV Mono input
---59 -NC LV Not connected
29 54 43 58 46 VREFTOP XReference voltage IF A/D
converter
30 53 42 57 45 SC1_IN_R IN LV SCART 1 input, right
31 52 41 56 44 SC1_IN_L IN LV SCART 1 input, left
32 51 -55 43 ASG1 AHVSS Analog Shield Ground 1
33 50 40 54 42 SC2_IN_R IN LV SCART 2 input, right
34 49 39 53 41 SC2_IN_L IN LV SCART 2 input, left
35 48 -52 40 ASG2 AHVSSAnalog Shield Ground 2
36 47 38 51 39 SC3_IN_R IN LV SCART 3 input, right
37 46 37 50 38 SC3_IN_L IN LV SCART 3 input, left
38 45 -49 37 ASG4 AHVSS Analog Shield Ground 4
39 44 -48 36 SC4_IN_R IN LV SCART 4 input, right
40 43 -47 35 SC4_IN_L IN LV SCART 4 input, left
41 --46 -NC LV or AHVSS Not connected
42 42 36 45 34 AGNDC XAnalog reference voltage
43 41 35 44 33 AHVSS XAnalog ground
---43 -AHVSS XAnalog ground
---42 -NC LV Not connected
---41 -NC LV Not connected
44 40 34 40 32 CAPL_M XVolume capacitor MAIN
45 39 33 39 31 AHVSUP XAnalog power supply 8V
46 38 32 38 30 CAPL_A XVolume capacitor AUX
47 37 31 37 29 SC1_OUT_L OUT LV SCART output 1, left
48 36 30 36 28 SC1_OUT_R OUT LV SCART output 1, right
49 35 29 35 27 VREF1 XReference ground 1
50 34 28 34 26 SC2_OUT_L OUT LV SCART output 2, left
51 33 27 33 25 SC2_OUT_R OUT LV SCART output 2, right
52 --32 -NC LV Not connected
53 32 -31 24 NC LV Not connected
54 31 26 30 23 DACM_SUB OUT LV Subwoofer output
55 30 -29 22 NC LV Not connected
56 29 25 28 21 DACM_L OUT LV Loudspeaker out, left
57 28 24 27 20 DACM_R OUT LV Loudspeaker out, right
58 27 23 26 19 VREF2 XReference ground 2
59 26 22 25 18 DACA_L OUT LV Headphone out, left
60 25 21 24 17 DACA_R OUT LV Headphone out, right
---23 -NC LV Not connected
---22 -NC LV Not connected
61 24 20 21 16 RESETQ IN XPower-on-reset
62 23 -20 15 NC LV Not connected
63 22 -19 14 NC LV Not connected
64 21 19 18 13 NC LV Not connected
65 20 18 17 12 I2S_DA_IN2 IN LV I2S2-data input
66 19 17 16 11 DVSS XDigital ground
---15 -DVSS XDigital ground
---14 -DVSS XDigital ground
67 18 16 13 10 DVSUP XDigital power supply 5V
-
-
-
12
-
DVSUP
X
Digital power supply 5V

13.4.2.Features
Video Decoding and Processing
–four CVBS, one S-VHS input, one YC R C B component input
–integrated high-quality A/D converters and associated clamp and AGC circuits
–adaptive 2H comb filter Y/C separator
–multistandard colour decoder PAL/NTSC/SECAM including all substandards
–multistandard sync decoder
–automatic standard recognition
–black-line detector
–linear horizontal scaling (0.25...4), as well as nonlinear horizontal scaling “Panoramavision”
–black-level expander
–dynamic peaking
–soft limiter (gamma correction)
–colour transient improvement
RGB Processing and Deflection
–programmable RGB matrix
–two analog RGB / Fastblank inputs
–half-contrast switch
–picture frame generator
–scan velocity modulation output
–high-performance H/V deflection
–separate ADC for tube measurements
–EHT compensation
–angle and bow correction
–one 20.25 MHz crystal, few external components
–I2C-Bus Interface
–64-pin PSDIP package
13.4.3.Pin Connections and short descriptions
NC = not connected LV = if not used, leave vacant
X = obligatory; connect as described in circuit diagram IN = Input
OUT = Output SUPPLY = Supply Pin
Pin no
PSDIP 64-pin Pin name Type Connection (if not used) Short description
1TEST IN GNDD Test Input
2RESQ IN XReset Input
3SCL IN/OUT XI2C Bus Clock
4SDA IN/OUT XI2C Bus Data
5GNDD SUPPLY XDigital Ground
6HCS IN LV Half Contrast Switch Input
7FSY OUT LV Front Sync Output
8
CSY
OUT
LV
Composite Sync Output

25 GNDD SUPPLY XDigital Ground
26 RSW2 OUT GNDAB Range Switch 2 for Measurement ADC
27 RSW1 OUT GNDAB Range Switch 1 for Measurement ADC
28 SENSE IN GNDAB Sense ADC Input
29 GNDM SUPPLY XGround, MADC ýnput
30 VERTQ OUT LV Inverted Vertical Sawtooth Output
31 VERT OUT LV Vertical Sawtooth Output
32 E/w OUT LV Vertical Parabola Output
33 XREF IN XReference Input for RGB DACs
34 SVMOUT OUT VSUPAB Analog Scan Velocity Modulation Output
35 GNDAB SUPPLY XAnalog Ground Backend
36 VSUPAB SUPPLY XAnalog Supply Voltage (5.0V) Backend
37 ROUT OUT VSUPAB Analog Red Output
38 GOUT OUT VSUPAB Analog Green Output
39 BOUT OUT VSUPAB Analog Blue Output
40 VRD IN XDAC Reference
41 RIN IN GNDAB Analog Red Input
42 GIN IN GNDAB Analog Green Input
43 BIN IN GNDAB Analog Blue Input
44 FBLIN IN GNDAB Fast Blank Input
45 RIN2 IN GNDAB Analog Red Input2
46 GIN2 IN GNDAB Analog Green Input2
47 BIN2 IN GNDAB Analog Blue Input2
48 FBLIN2 IN GNDAB Fast Blank Input2
49 CLK20 OUT LV 20.25 MHz System Clock Output
50 HOUT OUT XHorizontal Drive Output
51 XTAL 1 IN XAnalog Crystal Input
52 XTAL 2 OUT XAnalog Crystal Output
53 CIN 2/CRIN LV Analog Chroma 2/Component CRInput
54 CBIN IN LV Component CBInput
55 GNDAF SUPPLY XAnalog Ground Frontend
56 SGND IN GNDAF Signal Ground for Analog Input
57 VRT IN XReference Voltage Top, Video ADC
58 VSUPAF SUPPLY XAnalog Supply Voltage (5.0V) Frontend
59 VOUT OUT LV Analog Video Output
60 CIN1 IN VRT Analog Chroma 1 Input
61 VIN1 IN VRT Analog Video 1 Input
62 VIN2 IN VRT Analog Video 2 Input
63 VIN3 IN VRT Analog Video 3 Input
64 VIN4 IN VRT Analog Video 4 Input
13.5.TEA6415C
13.5.1.General Description
The main function of the IC is to switch 8 video input sources on 6 outputs. Each output can be
switched on only one of each input. On each input an alignment of the lowest level of the signal is made
(bottom of synch. top for CVBS or black level for RGB signals). Each nominal gain between any input
and output is 6.5dB. For D2MAC or Chroma signal the alignment is switched
off by forcing, with an
