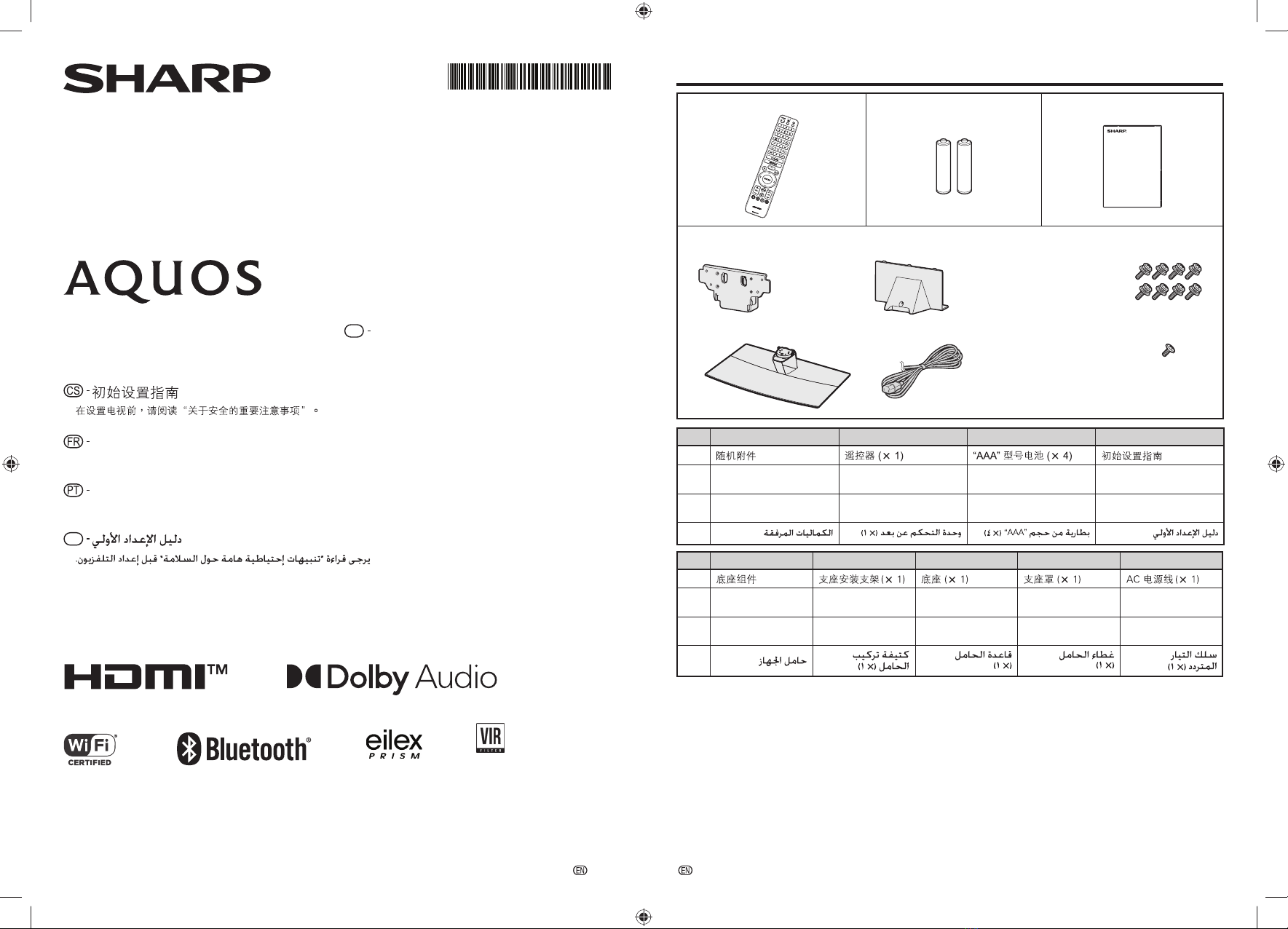

Sharp AQUOS 8T-C60DW1X Manual

-1-2
1Remote control unit (m 1) 2“AAA” size battery (m 2) 3Initial setup guide
4Stand unit
5Stand mounting bracket (m 1)
6Stand base (m 1)
7Stand cover (m 1) 9Screws
• Screw for assembling the
stand (m 4)
• Mounting screw for stand
(m 4)
• Mounting screw for stand
cover (m 1)
8AC cord (m 1)
M5 (12mm
length (large))
M4 (8mm
length (small))
A123
CS
FR Accessoires fournis Télécommande (m 1)
Pile de format « AAA »
(
m 4)
Guide d’installation initiale
PT Acessórios fornecidos Controlo remoto (m 1)
Pilha de tamanho “AAA”
(
m 4)
Guia de confi guração
inicial
AR
45678
CS  
FR Ensemble du socle
Support de fi xation du
socle
(m 1) Socle (m 1) Couvercle du socle
(m 1) Câble CA (m 1)
PT Pedestal
Suporte de montagem do
pedestal
(m 1)
Base do suporte
(m 1)
Cobertura do
pedestal (m 1)
Cabo de alimentação CA
(m 1)
AR
8T-C60DW1X
8T-C70DW1X
LED BACKLIGHT TV
EN
Initial setup guide
• Please read “Important safety precautions” before
setting up the TV.
• 
Guide d’installation initiale
• Veuillez lire les « Précautions de sécurité importantes » avant d’installer le téléviseur.
Guia de confi guração inicial
• Antes de começar a confi gurar o televisor, leia as “Importantes Precauções de Segurança”.
AR
•
TINS-H493WJZZ
21P05-MA-NF
A. Supplied accessories
TINS-H493WJZZ
8T-C6070DW1X_H493.indb 18T-C6070DW1X_H493.indb 1 23/2/2021 5:41:23 PM23/2/2021 5:41:23 PM

-3-4
A. Supplied accessories (Continued)
9
CS • 
•
•
FR
Vis
M5 (longueur 12mm (grand))
• Vis pour le montage du socle (m 4)
• Vis de fi xation pour le socle (m 4)
M4 (longueur 8mm (petit))
• Vis de fi xation pour couvercle de socle (m 1)
PT
Parafusos
M5 (12 mm de comprimento [grande])
• Parafuso para a instalação do pedestal (m 4)
• Parafuso de montagem do pedestal (m 4)
M4 (8 mm de comprimento [pequeno])
• Parafuso de montagem da cobertura do pedestal (m 1)
AR
For the Philippines only
• Antenna adaptor.
B. Inserting the batteries
Remote control unit
321
1“AAA” size battery
B1
CS
FR Insertion des piles Pile de format « AAA »
PT Colocar as pilhas Pilha de tamanho “AAA”
AR
B. Inserting the batteries (Continued)
CAUTION
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fi re or the like.
CS
FR
ATTENTION
• Les piles (ou le bloc-piles) ne doivent pas être exposées à une source de chaleur excessive, telle que les
rayons du soleil, un feu, etc.
PT
CUIDADO
• A pilhas (módulo de pilha ou pilhas instaladas), não deve ser exposta a calor excessivo, seja por exposição
ao sol, fogo ou outras fontes de calor.
AR
Symbols placed on equipment
• This mark indicates the product operates on AC Voltage.
• This mark indicates a class II or double insulated electrical appliance wherein the product does not
require a safety connection to electrical earth (ground).
CS
•
•
FR
Symboles placés sur l’équipement
• Ce symbole indique que le produit fonctionne sous tension alternative.
• Cette marque indique un appareil électrique de classe II ou à double isolation, ce qui implique
que le produit n’a pas besoin d’une connexion de sécurité à la mise à la terre électrique.
PT
Símbolos existentes no equipamento
• Esta marca indica que o produto funciona com tensão CA.
• Esta marca indica que se trata de um equipamento elétrico classe II ou duplamente isolado
e, como tal, o produto não requer uma ligação elétrica de segurança com ligação à terra
(massa).
AR
8T-C6070DW1X_H493.indb 28T-C6070DW1X_H493.indb 2 23/2/2021 5:41:24 PM23/2/2021 5:41:24 PM

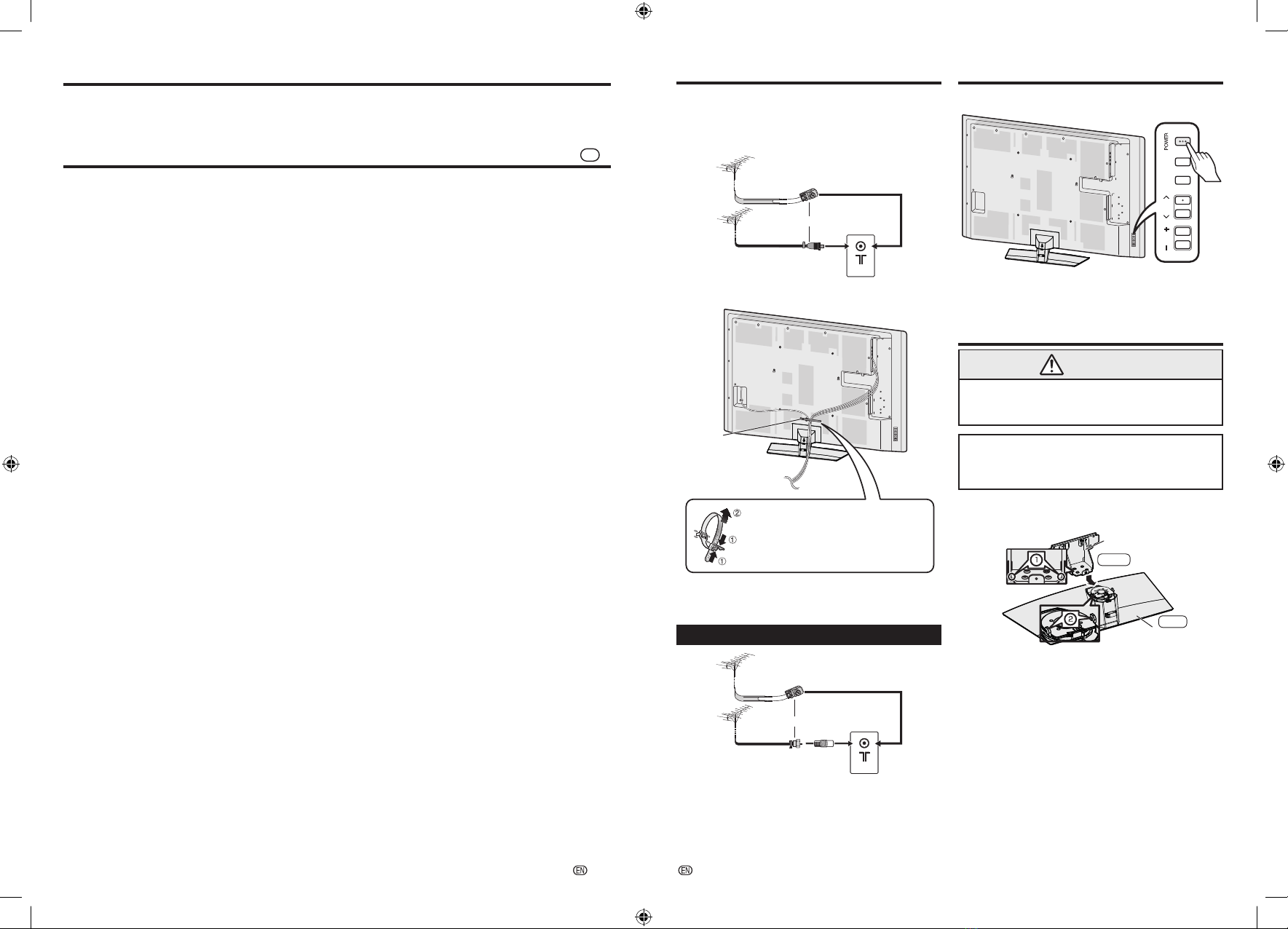

Initial installation Initial installation (Continued)
-5-6
Follow the steps below one by one when using the TV
for the fi rst time. Some steps may not be necessary
depending on your TV installation and connection.
Connect an antenna cable to the antenna terminal.
ANT
or
Plug the AC cord into the AC outlet.
Bundle the cables into cable tie.
Press cable tie clip (1) and pull out
cable tie (2) completely to release.
Cable tie
• Place the TV close to the AC outlet, and keep the power
plug within reach.
• Product shape varies in some countries.
For the Philippines only
Antenna adaptor (supplied)
ANT
or
Press POWER on the TV.
EXITINPUTCHVOL
Run the initial installation.
• Follow the guide on the TV screen to set the settings.
Attaching the stand
CAUTION
Since this product is heavy, be sure that it is
unpacked and carried by at least two people.
• Carrying it by yourself may lead to injury.
Use a commercially available screwdriver and tighten
the screws securely.
When using an electric screwdriver, set the tightening
torque to 2.0 N·m (20 kgf·cm).
1Insert the stand mounting bracket 1 into the stand
base 2.
Stand mounting bracket
Stand base
Rear
Front
Dear SHARP customer
Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of trouble-
free operation of your product, please read the Important Safety Precautions carefully before using this product.
Important Safety Precautions [ENGLISH
EN
]
• Stand base must be attached to prevent the TV set from falling down and cause injuries.
• Cleaning — Unplug the AC cord from the AC outlet before cleaning the product. Use a soft damp cloth to clean the
product. Do not use liquid cleaners, aerosol cleaners or chemical cloth to clean it, as such materials may damage the
product.
• Water and moisture — Do not use the product near water, such as bathtub, washbasin, kitchen sink, laundry tub,
swimming pool and in a wet basement.
• Do not place vases or any other water-fi lled containers on this product.
The water may spill onto the product causing fi re or electric shock.
• Stand — Do not place the product on an unstable cart, stand, tripod or table. Doing so can cause the product to fall,
resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table
recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the
manufacturer’s instructions. Use only the mounting hardware recommended by the manufacturer.
• When relocating the product placed on a cart, it must be moved with utmost care. Sudden stops, excessive force and
uneven fl oor surface can cause the product to fall from the cart.
• Ventilation — The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these
vents and openings since insuffi cient ventilation can cause overheating and/or shorten the life of the product. Do not
place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is
not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless
proper ventilation is provided or the manufacturer’s instructions are followed.
• The LCD panel used in this product is made of glass. Therefore, it can break when the product is struck forcefully or
with a sharp object. If the LCD panel is broken, be careful not to be injured by broken glass.
• Heat sources — Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating
products (including amplifi ers).
• To prevent fi re, never place any type of candle or naked fl ames on the top or near the TV set.
• To prevent fi re or shock hazard, do not place the AC power cord under the TV set or other heavy items.
• Do not place heavy objects on this product or stand on it. Doing so could cause injury if the product overturns. Take
special care near children and pets.
• The LCD panel is a very high technology product with 33,177,600 pixels, giving you fi ne picture details.
Due to the very large number of pixels, occasionally a few non-active pixels may appear on the screen as a fi xed point of
blue, green or red.
This is within product specifi cations and does not constitute a fault.
•Precautions when transporting the TV
When transporting the TV, never carry it by holding or otherwise putting pressure onto the display. Be sure to always
carry the TV by two people holding it with two hands — one hand on each side of the TV.
• Do not display a still picture for a long time, as this could cause an afterimage to remain.
• Install the product on the place where the AC cord can be unplugged easily from the AC outlet or from the AC INPUT
terminal on the rear of the product.
• If a television is not positioned in a suffi ciently stable location, it can be potentially hazardous due to falling. Many
injuries, particularly to children, can be avoided by taking simple precautions such as:
• Using cabinets or stands recommended by the manufacturer of the television.
• Only using furniture that can safely support the television.
• Ensuring the television is not overhanging the edge of the supporting furniture.
• Not placing the television on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture
and the television to a suitable support.
• Not standing the televisions on cloth or other materials placed between the television and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television or its controls.
• Do not install the TV in a location in which it will be subject to water drops such as underneath an air conditioning unit
or in the vicinity of a humidifi er.
• Water drops falling onto the TV and water entering inside it may result in fi re, electric shock, or malfunctions.
• We recommend that you install the TV at least 1m away from the outlet of an air conditioner.
8T-C6070DW1X_H493.indb 38T-C6070DW1X_H493.indb 3 23/2/2021 5:41:24 PM23/2/2021 5:41:24 PM

Attaching the stand (Continued) Viewing E-Manual
Viewing the Built-in Operation Manual
2
1
Displays the built-in operation manual on the screen.
You can read information about how to use this device.
1Press (HOME) to display the HOME screen,
press / / / to select (Manual) icon, and
then press ENTER.
This displays the built-in operation manual screen.
2When you select contents, its page will be
displayed.
Appendix
Troubleshooting
The problems described below are not always caused by malfunctions. Check the TV again before having the TV serviced.
Problem Possible Solution
• No power. • Check if you pressed POWER on the remote control unit.
• Is the AC cord disconnected?
• Has the power been turned on?
• Remote control unit does
not operate.
• Are batteries inserted with polarity (+, –) aligned?
• No picture. • Is connection to other components correct?
• No sound. • Is connection to other components correct?
CLEARING THE PASSWORD
If you forget the password, clear the password using the following procedure.
1From the ATV/DTV screen, select “Tools” > “Basic settings” > “Function settings” > “Security & Restrictions” >
“Parental Control” > “Password”, and then press ENTER and the password input screen will display.
2Enter “3001” using 0 – 9, select “Disable” in the password settings, and then select “Enable” to reset password.
3Select “Back to settings”.
4Select “Password” then select “Enable” to set password for parental control.
5Enter the 4-digit number as a password using 0 – 9,and then enter the same 4-digit to confi rm. The new password
is now set.
-7-8
2Fix the stand mounting bracket and stand base
with 4 pieces of the screws (large) for assembling
the stand.
Rear
Front
3Prepare a table and lay the display portion on it.
• To prevent damage to the LCD panel, spread a soft
cloth such as a blanket on the table and lay the
display portion on it.
• Do not remove protective sheet until fi nish the
setting.
4Attaching the stand to the main unit.
• Make sure that the 4 tabs on the stand mounting
bracket are securely inserted into the holes on the
main unit.
CAUTION
• After laying down the TV, do not push it inside to prevent
damage to the indicator. Please be more careful.
NG
OK
TV
Example
Example
TV
Table or Box
Table or Box
5Fix the stand with 4 pieces of the mounting screws
(large) for stand and then tighten the screws.
Do not leave a gap
between the groove on
the main unit and the
tabs on the stand.
6Attach the stand cover.
• Slide the stand cover in the arrow direction and
attach it with the mounting screw for stand cover
(small).
CAUTION
• After fi xing the stand, make sure that the stand
is not loose or wobbling and all the screws are
securely tightened.
• When raising up the TV, please do not push the TV
surface by fi nger.
How to adjust angle
(Be careful not to pinch your fingers)
• Turn the main unit while being careful not to pinch your
hand.
The angle can be adjusted within the range of
approximately 15 degrees to the right and left.
Approx. 15° Approx. 15°
Detaching the stand
• Please take care the LED part in front of TV. For detach
the stand base, perform the above steps in reverse
order.
• To prevent damage to the LCD panel, spread a soft
cloth such as a blanket on the table and lay the display
portion on it.
CAUTION
• If you remove screws with TV stand-up position, there is
a big risk that the TV will falling down.
8T-C6070DW1X_H493.indb 48T-C6070DW1X_H493.indb 4 23/2/2021 5:41:24 PM23/2/2021 5:41:24 PM

-9-10

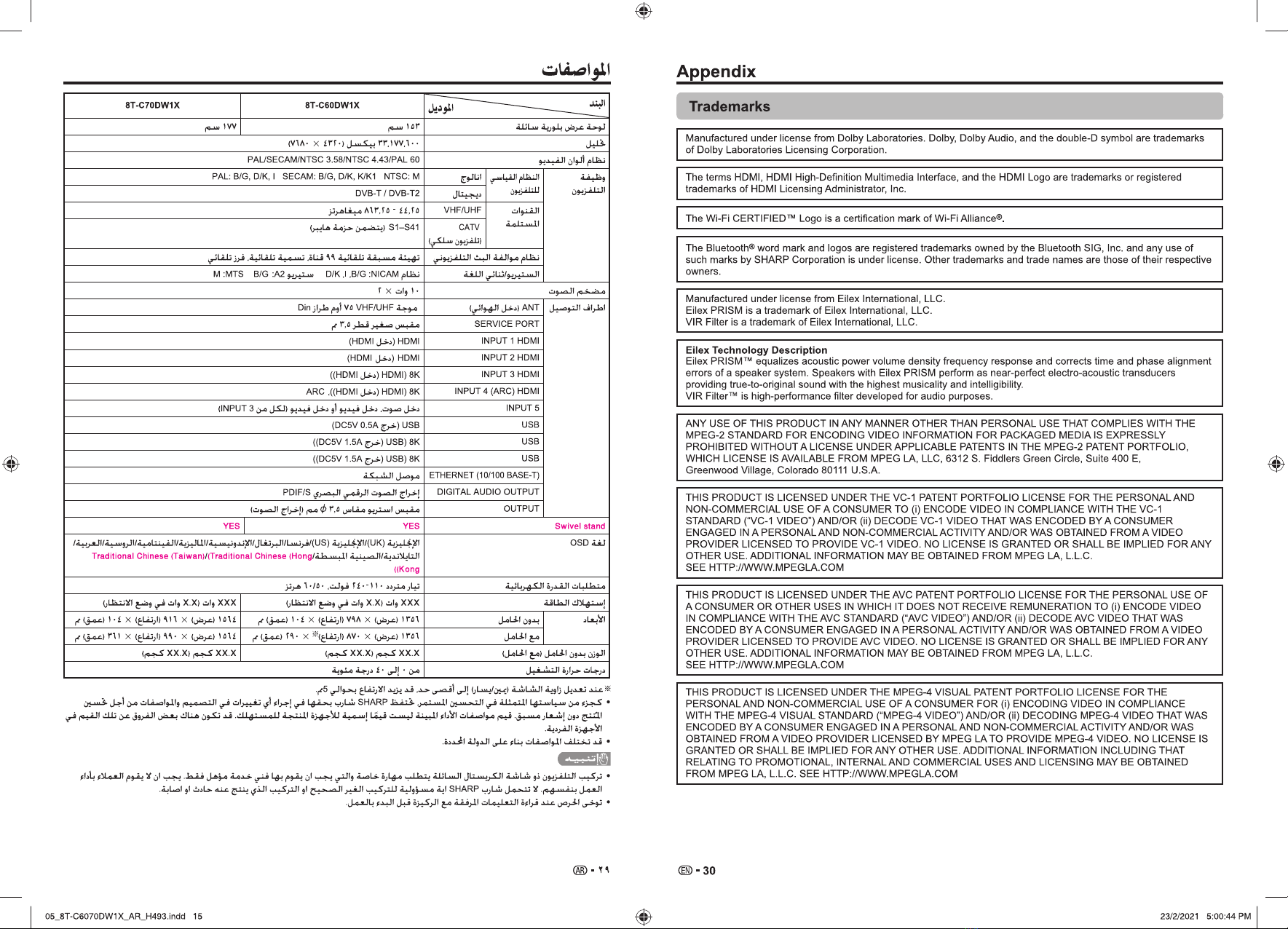

Specifications
Item Model 8T-C60DW1X 8T-C70DW1X
LCD panel 153 cm 177 cm
Resolution 33,177,600 pixels (7680 g 4320)
Video colour system PAL/SECAM/NTSC 3.58/NTSC 4.43/PAL 60
TV function TV-
standard Analogue PAL: B/G, D/K, I SECAM: B/G, D/K, K/K1 NTSC: M
Digital DVB-T / DVB-T2
Receiving
channel VHF/UHF 44.25—863.25 MHz
CATV S1—S41 ch (including Hyperband)
TV-tuning system Auto Preset 99 ch
STEREO/BILINGUAL NICAM: B/G, I, D/K A2 stereo: B/G MTS: M
Audio amplifi er
10 W
g
2
Terminals ANT (Antenna input) UHF/VHF 75 q DIN type
SERVICE PORT 3.5 mm jack
INPUT 1 HDMI HDMI (HDMI input)
INPUT 2 HDMI HDMI (HDMI input)
INPUT 3 HDMI 8K (HDMI (HDMI input))
INPUT 4 (ARC) HDMI 8K (HDMI (HDMI input)), ARC
INPUT 5 AUDIO in, VIDEO in, AUDIO in (for INPUT 3)
USB USB (DC5V 0.5A output)
USB 8K (USB (DC5V 1.5A output))
USB 8K (USB (DC5V 1.5A output))
ETHERNET
(10/100 BASE-T) Network connector
DIGITAL AUDIO
OUTPUT Optical S/PDIF digital audio output
OUTPUT 3.5 mm stereo jack (audio output)
Swivel stand Yes
OSD language English (UK)/English (US)/French/Indonesia/Malay/Portuguese/Vietnamese/
Russian/Arabic/Thai/Simplifi ed Chinese/Traditional Chinese (Taiwan)/
Traditional Chinese (Hong Kong)
Power requirement AC 110 — 240 V, 50/60 Hz
Power consumption 448 W (0.5 W Standby) 500 W (0.5 W Standby)
Dimensions without stand 1356 (W) g 798 (H) g 104 (D) mm 1564 (W) g 916 (H) g 104 (D) mm
with stand 1356 (W) g 870 (H) g 290 (D) mm 1564 (W) g 990 (H) g 361 (D) mm
Weight without stand (with stand) 25.5 kg (31.0 kg) 34.5 kg (43.0 kg)
Operating temperature 0°C to +40°C
• As a part of policy of continuous improvement, SHARP reserves the right to make design and specifi cation changes
for product improvement without prior notice. The performance specifi cation fi gures indicated are nominal values of
production units. There may be some deviations from these values in individual units.
• Specifi cation may diff er depending on the selected country.
CAUTION
• Installing the Liquid Crystal Television requires special skill that should only be performed by qualifi ed service
personnel. Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper
mounting or mounting that results in accident or injury.
• Carefully read the instructions that come with the bracket before beginning work.
CS

02_8T-C6070DW1X_CS_H493.indd 502_8T-C6070DW1X_CS_H493.indd 5 24/2/2021 2:16:48 PM24/2/2021 2:16:48 PM

Printed in Malaysia
Imprimé en Malaisie
Impresso na Malásia
SHARP CORPORATION
ER72885/19
DA56116/16
-31
Dimensional Drawing
8T-C60DW1X
1355
1356
1332.3
1355
1355
1355
1355
1355
549.1
798
1355
1355
1355
1355
870
104
91.2
290
750.7
400
400
Unit : mm
8T-C70DW1X
Screw size for wall mount M6
1355
1564
104
58.2
105.9
361
1540.6
1355
1355
1355
1355
1355
1355
595.3
916
1355
1355
1355
1355
990
867.9
1355
1355
1355
1355
1355
1355
1355
400
400
Unit : mm
Screw size for wall mount M6
06_8T-C6070DW1X_EN_H493.indd 1606_8T-C6070DW1X_EN_H493.indd 16 24/2/2021 2:16:21 PM24/2/2021 2:16:21 PM
